Introduction

This is a report for the insert benchmark with 30M docs and 1 client(s). It is generated by scripts (bash, awk, sed) and Tufte might not be impressed. An overview of the insert benchmark is here and a short update is here. Below, by DBMS, I mean DBMS+version.config. An example is my8020.c10b40 where my means MySQL, 8020 is version 8.0.20 and c10b40 is the name for the configuration file.

The test server has 8 AMD cores, 32G RAM and an NVMe device for the database. The benchmark was run with 1 client and there were 1 or 3 connections per client (1 for queries or inserts without rate limits, 1+1 for rate limited inserts+deletes). It uses 1 table with a table per client. It loads 30M rows per table without secondary indexes, creates 3 secondary indexes per table, then inserts 40m+10m rows per table with a delete per insert to avoid growing the table. It then does 6 read+write tests for 1800s each that do queries as fast as possible with 100,100,500,500,1000,1000 inserts/s and the same for deletes/s per client concurrent with the queries. The database is cached by Postgres. Clients and the DBMS share one server.

The tested DBMS are:

• pg170_o2nofp.cx10a_c8r32 - Postgres 17.0 with my standard config (x10a)
• pg171_o2nofp.cx10a_c8r32 - Postgres 17.1 with my standard config (x10a)
• pg172_o2nofp.cx10a_c8r32 - Postgres 17.2 with my standard config (x10a)
• pg173_o2nofp.cx10a_c8r32 - Postgres 17.3 with my standard config (x10a)
• pg174_o2nofp.cx10a_c8r32 - Postgres 17.4 with my standard config (x10a)
• pg175_o2nofp.cx10a_c8r32 - Postgres 17.5 with my standard config (x10a)
• pg176_o2nofp.cx10a_c8r32 - Postgres 17.6 with my standard config (x10a)
• pg177_o2nofp.cx10a_c8r32 - Postgres 17.7 with my standard config (x10a)
• pg178_o2nofp.cx10a_c8r32 - Postgres 17.8 with my standard config (x10a)
• pg179_o2nofp.cx10a_c8r32 - Postgres 17.9 with my standard config (x10a)

---

Summary

The numbers are inserts/s for l.i0, l.i1 and l.i2, indexed docs (or rows) /s for l.x and queries/s for qr100, qp100 thru qr1000, qp1000" The values are the average rate over the entire test for inserts (IPS) and queries (QPS). The range of values for IPS and QPS is split into 3 parts: bottom 25%, middle 50%, top 25%. Values in the bottom 25% have a red background, values in the top 25% have a green background and values in the middle have no color. A gray background is used for values that can be ignored because the DBMS did not sustain the target insert rate. Red backgrounds are not used when the minimum value is within 80% of the max value.

dbms	l.i0	l.x	l.i1	l.i2	qr100	qp100	qr500	qp500	qr1000	qp1000
pg170_o2nofp.cx10a_c8r32	209790	491805	21870	2641	26985	13175	24473	13167	24609	13136
pg171_o2nofp.cx10a_c8r32	208333	491805	21906	2737	26840	12360	24263	12948	24447	12798
pg172_o2nofp.cx10a_c8r32	211268	491805	20672	2483	26705	13236	24179	13084	24454	13118
pg173_o2nofp.cx10a_c8r32	209790	491805	21786	2814	26992	13205	24438	13231	24551	13184
pg174_o2nofp.cx10a_c8r32	208333	491805	21598	2558	27061	13240	24426	13218	24462	13184
pg175_o2nofp.cx10a_c8r32	208333	491805	21494	2556	27007	13303	24228	13285	24413	13195
pg176_o2nofp.cx10a_c8r32	206896	491805	21425	2658	27057	13251	24218	13172	24501	13179
pg177_o2nofp.cx10a_c8r32	211268	491805	20243	2305	26905	13249	24403	13248	24446	13136
pg178_o2nofp.cx10a_c8r32	211268	491805	21505	2623	26914	13360	24326	13204	24359	13139
pg179_o2nofp.cx10a_c8r32	209790	491805	20779	2509	27209	13206	24727	13115	24823	13204

This table has relative throughput, throughput for the DBMS relative to the DBMS in the first line, using the absolute throughput from the previous table. Values less than 0.95 have a yellow background. Values greater than 1.05 have a blue background.

dbms	l.i0	l.x	l.i1	l.i2	qr100	qp100	qr500	qp500	qr1000	qp1000
pg170_o2nofp.cx10a_c8r32	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00
pg171_o2nofp.cx10a_c8r32	0.99	1.00	1.00	1.04	0.99	0.94	0.99	0.98	0.99	0.97
pg172_o2nofp.cx10a_c8r32	1.01	1.00	0.95	0.94	0.99	1.00	0.99	0.99	0.99	1.00
pg173_o2nofp.cx10a_c8r32	1.00	1.00	1.00	1.07	1.00	1.00	1.00	1.00	1.00	1.00
pg174_o2nofp.cx10a_c8r32	0.99	1.00	0.99	0.97	1.00	1.00	1.00	1.00	0.99	1.00
pg175_o2nofp.cx10a_c8r32	0.99	1.00	0.98	0.97	1.00	1.01	0.99	1.01	0.99	1.00
pg176_o2nofp.cx10a_c8r32	0.99	1.00	0.98	1.01	1.00	1.01	0.99	1.00	1.00	1.00
pg177_o2nofp.cx10a_c8r32	1.01	1.00	0.93	0.87	1.00	1.01	1.00	1.01	0.99	1.00
pg178_o2nofp.cx10a_c8r32	1.01	1.00	0.98	0.99	1.00	1.01	0.99	1.00	0.99	1.00
pg179_o2nofp.cx10a_c8r32	1.00	1.00	0.95	0.95	1.01	1.00	1.01	1.00	1.01	1.01

This lists the average rate of inserts/s for the tests that do inserts concurrent with queries. For such tests the query rate is listed in the table above. The read+write tests are setup so that the insert rate should match the target rate every second. Cells that are not at least 95% of the target have a red background to indicate a failure to satisfy the target.

dbms	qr100.L1	qp100.L2	qr500.L3	qp500.L4	qr1000.L5	qp1000.L6
pg170_o2nofp.cx10a_c8r32	100	100	500	499	999	999
pg171_o2nofp.cx10a_c8r32	100	100	500	500	999	999
pg172_o2nofp.cx10a_c8r32	100	100	500	500	999	999
pg173_o2nofp.cx10a_c8r32	100	100	500	500	999	999
pg174_o2nofp.cx10a_c8r32	100	100	500	500	999	999
pg175_o2nofp.cx10a_c8r32	100	100	499	499	999	999
pg176_o2nofp.cx10a_c8r32	100	100	499	499	999	999
pg177_o2nofp.cx10a_c8r32	100	100	500	500	999	999
pg178_o2nofp.cx10a_c8r32	100	100	499	499	999	999
pg179_o2nofp.cx10a_c8r32	100	100	499	500	999	999
target	100	100	500	500	1000	1000

---

l.i0

l.i0: load without secondary indexes. Graphs for performance per 1-second interval are here.

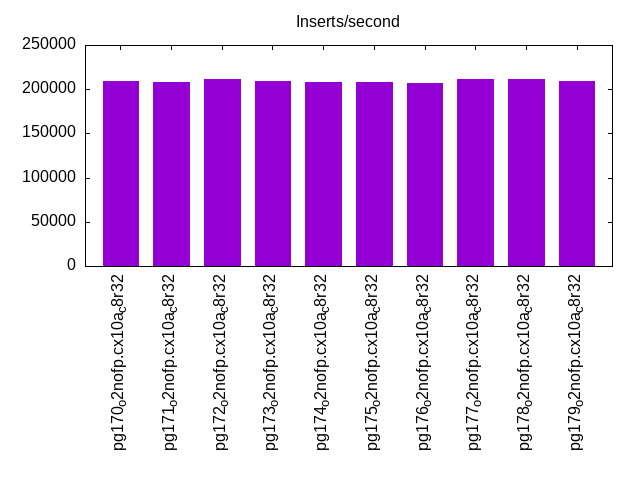

Average throughput:

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32		99.987	0.013								0.003
pg171_o2nofp.cx10a_c8r32		99.988	0.012	nonzero							0.006
pg172_o2nofp.cx10a_c8r32		99.988	0.011	nonzero							0.006
pg173_o2nofp.cx10a_c8r32		99.992	0.008								0.002
pg174_o2nofp.cx10a_c8r32		99.994	0.006								0.002
pg175_o2nofp.cx10a_c8r32		99.984	0.016								0.004
pg176_o2nofp.cx10a_c8r32		99.988	0.012								0.002
pg177_o2nofp.cx10a_c8r32		99.993	0.007								0.002
pg178_o2nofp.cx10a_c8r32		99.990	0.010								0.003
pg179_o2nofp.cx10a_c8r32		99.990	0.010								0.003

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
209790	0	0	0.0	781.0	89.0	0.000	0.000	0.004	0.434	22162	19.4	0.106	7	2.9	7.8	2.4	0.003	210679	203187	pg170_o2nofp.cx10a_c8r32
208333	0	0	0.0	773.0	87.9	0.000	0.000	0.004	0.432	21782	19.4	0.105	7	2.9	7.8	2.4	0.006	208566	200369	pg171_o2nofp.cx10a_c8r32
211268	0	0	0.0	787.1	89.6	0.000	0.000	0.004	0.434	22157	19.8	0.105	7	2.9	7.8	1.8	0.006	212678	205147	pg172_o2nofp.cx10a_c8r32
209790	0	0	0.0	777.7	88.5	0.000	0.000	0.004	0.432	21843	19.3	0.104	7	2.9	7.8	2.4	0.002	209879	207172	pg173_o2nofp.cx10a_c8r32
208333	0	0	0.0	777.0	88.4	0.000	0.000	0.004	0.435	21824	19.4	0.105	7	2.9	7.8	2.4	0.002	209676	200779	pg174_o2nofp.cx10a_c8r32
208333	0	0	0.0	778.7	88.5	0.000	0.000	0.004	0.435	21775	19.4	0.105	7	2.9	7.8	2.4	0.004	209566	201178	pg175_o2nofp.cx10a_c8r32
206896	0	0	0.0	777.5	88.4	0.000	0.000	0.004	0.438	21734	19.5	0.105	8	2.9	7.8	2.4	0.002	209965	201077	pg176_o2nofp.cx10a_c8r32
211268	0	0	0.0	785.4	89.3	0.000	0.000	0.004	0.433	21925	19.4	0.104	7	2.9	7.8	2.4	0.002	211868	203367	pg177_o2nofp.cx10a_c8r32
211268	0	0	0.0	786.8	89.5	0.000	0.000	0.004	0.434	22218	19.4	0.105	7	2.9	7.8	2.4	0.003	212664	204274	pg178_o2nofp.cx10a_c8r32
209790	0	0	0.0	781.3	88.8	0.000	0.000	0.004	0.433	21920	19.5	0.104	7	2.9	7.8	2.4	0.003	210373	201867	pg179_o2nofp.cx10a_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.444	1.778	0.000	0.000	0.116	4.000	788.0	91999.0	36.99	4.952	0.450	115.6	0.067	0.800	0.000	0.000	0.213	1.667	43.30	1.673	0.430	12.13		pg170_o2nofp.cx10a_c8r32
0.437	1.748	0.000	0.000	0.113	4.000	779.7	90873.2	37.18	4.970	0.470	115.4	0.074	0.800	0.000	0.000	0.131	1.630	42.73	1.815	0.448	12.73		pg171_o2nofp.cx10a_c8r32
0.415	1.659	0.000	0.000	0.103	3.704	793.9	92589.9	38.00	4.965	0.440	115.4	0.096	0.977	0.000	0.000	0.210	1.630	43.64	1.689	0.430	12.39		pg172_o2nofp.cx10a_c8r32
0.363	1.452	0.000	0.000	0.097	3.852	784.3	91484.5	37.33	4.956	0.416	115.4	0.126	1.067	0.000	0.000	0.233	1.564	43.13	1.633	0.388	11.97		pg173_o2nofp.cx10a_c8r32
0.267	1.067	0.000	0.000	0.093	2.667	783.7	91388.4	37.31	4.956	0.428	115.4	0.081	1.007	0.000	0.000	0.219	1.756	43.18	1.656	0.417	12.05		pg174_o2nofp.cx10a_c8r32
0.311	1.244	0.000	0.000	0.083	4.000	785.6	91471.6	37.30	4.929	0.478	115.2	0.089	1.778	0.000	0.000	0.307	2.624	43.14	1.627	0.508	11.86		pg175_o2nofp.cx10a_c8r32
0.444	1.778	0.000	0.000	0.118	4.000	784.3	91424.2	37.63	5.007	0.411	115.3	0.089	0.978	0.000	0.000	0.189	1.689	43.17	1.719	0.390	12.36		pg176_o2nofp.cx10a_c8r32
0.444	1.778	0.000	0.000	0.072	4.000	792.3	92327.8	37.97	4.994	0.434	115.3	0.067	0.830	0.000	0.000	0.117	1.679	43.57	1.740	0.428	12.63		pg177_o2nofp.cx10a_c8r32
0.274	1.096	0.000	0.000	0.107	2.519	793.6	92575.4	37.57	4.913	0.471	115.4	0.096	1.126	0.000	0.000	0.250	1.988	43.55	1.755	0.486	12.64		pg178_o2nofp.cx10a_c8r32
0.393	1.570	0.000	0.000	0.169	3.852	788.0	91805.3	37.56	4.984	0.397	115.3	0.067	1.185	0.000	0.000	0.170	2.136	43.39	1.362	0.363	10.67		pg179_o2nofp.cx10a_c8r32

---

l.x

l.x: create secondary indexes.

Average throughput:

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
491805	0	1	0.0	999.2	122.7	0.000	0.000	0.002	0.255	2756	11.3	0.006	2	5.8	13.3	3.0	0.002	NA	NA	pg170_o2nofp.cx10a_c8r32
491805	0	1	0.0	1007.7	123.9	0.000	0.000	0.002	0.258	2721	11.4	0.006	2	5.8	13.3	3.0	0.002	NA	NA	pg171_o2nofp.cx10a_c8r32
491805	0	0	0.0	1007.5	123.8	0.000	0.000	0.002	0.258	2997	11.4	0.006	2	5.8	13.3	3.0	0.002	NA	NA	pg172_o2nofp.cx10a_c8r32
491805	0	1	0.0	1026.3	126.1	0.000	0.000	0.002	0.263	2764	11.2	0.006	2	5.8	13.3	3.0	0.002	NA	NA	pg173_o2nofp.cx10a_c8r32
491805	0	1	0.0	1073.9	132.0	0.000	0.000	0.002	0.275	2792	11.5	0.006	2	5.8	13.3	3.0	0.002	NA	NA	pg174_o2nofp.cx10a_c8r32
491805	0	0	0.0	1077.8	132.5	0.000	0.000	0.002	0.276	2856	11.5	0.006	2	5.8	13.3	3.0	0.001	NA	NA	pg175_o2nofp.cx10a_c8r32
491805	0	1	0.0	1065.2	131.0	0.000	0.000	0.002	0.273	2827	11.5	0.006	2	5.8	13.3	3.0	0.002	NA	NA	pg176_o2nofp.cx10a_c8r32
491805	0	1	0.0	1017.7	125.0	0.000	0.000	0.002	0.260	2849	11.5	0.006	2	5.8	13.3	3.0	0.001	NA	NA	pg177_o2nofp.cx10a_c8r32
491805	0	1	0.0	1011.7	124.2	0.000	0.000	0.002	0.259	2971	11.2	0.006	2	5.8	13.3	3.0	0.002	NA	NA	pg178_o2nofp.cx10a_c8r32
491805	0	1	0.0	997.7	122.5	0.000	0.000	0.002	0.255	2894	11.6	0.006	2	5.8	13.3	3.0	0.001	NA	NA	pg179_o2nofp.cx10a_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.745	2.982	0.000	0.000	0.059	2.545	1089.7	137054	36.82	14.32	1.661	105.1	0.418	3950.5	0.000	0.000	0.325	1412.2	12.20	1.785	0.954	7.451		pg170_o2nofp.cx10a_c8r32
0.727	2.909	0.000	0.000	0.119	2.545	1098.9	138371	35.20	19.61	2.296	94.95	0.382	6407.3	0.000	0.000	0.585	1885.6	11.87	1.746	1.135	6.709		pg171_o2nofp.cx10a_c8r32
0.564	2.255	0.000	0.000	0.076	2.545	1099.0	138295	36.56	11.27	1.669	103.0	0.382	3428.1	0.000	0.000	0.404	8565.5	12.33	1.892	0.930	7.564		pg172_o2nofp.cx10a_c8r32
0.745	2.982	0.000	0.000	0.076	2.182	1119.2	140848	35.76	19.03	2.385	95.17	0.600	8567.6	0.000	0.000	0.506	2142.6	12.02	2.215	1.129	7.355		pg173_o2nofp.cx10a_c8r32
0.691	2.764	0.000	0.000	0.100	2.545	1171.2	147476	37.09	18.44	2.286	93.97	0.727	12964.4	0.000	0.000	0.492	2947.7	12.35	2.245	1.165	7.727		pg174_o2nofp.cx10a_c8r32
0.291	1.164	0.000	0.000	0.023	1.818	1175.4	148031	37.27	18.23	2.407	94.12	0.582	12888.4	0.000	0.000	0.555	3393.3	12.40	2.379	1.345	7.636		pg175_o2nofp.cx10a_c8r32
0.800	3.200	0.000	0.000	0.092	2.545	1161.7	146311	37.20	18.37	2.305	94.16	0.545	10652.5	0.000	0.000	0.616	2804.1	12.45	2.194	1.146	7.693		pg176_o2nofp.cx10a_c8r32
0.745	2.982	0.000	0.000	0.062	2.909	1110.1	139607	37.35	10.24	1.685	103.5	0.509	3502.8	0.000	0.000	0.564	3501.8	12.56	2.020	0.965	7.547		pg177_o2nofp.cx10a_c8r32
0.655	2.618	0.000	0.000	0.088	2.909	1103.5	138749	36.29	12.34	1.736	104.4	0.327	3877.0	0.000	0.000	0.297	3231.6	12.44	1.797	0.904	7.289		pg178_o2nofp.cx10a_c8r32
0.727	2.909	0.000	0.000	0.109	2.909	1088.3	136883	35.80	11.50	1.714	104.4	0.291	4024.9	0.000	0.000	0.381	2875.5	12.25	2.115	0.905	7.565		pg179_o2nofp.cx10a_c8r32

---

l.i1

l.i1: continue load after secondary indexes created with 50 inserts per transaction. Graphs for performance per 1-second interval are here.

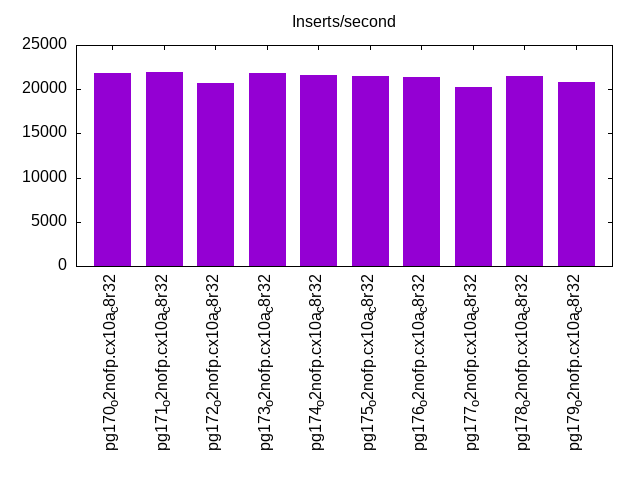

Average throughput:

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32		51.290	48.709	0.001	0.001						0.049
pg171_o2nofp.cx10a_c8r32		50.374	49.625	nonzero	0.001						0.036
pg172_o2nofp.cx10a_c8r32		57.941	42.057	nonzero	0.001						0.034
pg173_o2nofp.cx10a_c8r32		51.384	48.615	0.001	0.001						0.036
pg174_o2nofp.cx10a_c8r32		50.798	49.201	nonzero	0.001						0.039
pg175_o2nofp.cx10a_c8r32		47.444	52.554	0.001	0.001						0.035
pg176_o2nofp.cx10a_c8r32		49.453	50.545	nonzero	0.001						0.032
pg177_o2nofp.cx10a_c8r32		57.524	42.474	0.001	0.001						0.030
pg178_o2nofp.cx10a_c8r32		57.408	42.590	0.001	0.001						0.026
pg179_o2nofp.cx10a_c8r32		55.229	44.770	nonzero	0.001						0.034

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32	0.002	25.749	70.792	3.455	0.001						0.048
pg171_o2nofp.cx10a_c8r32	0.001	26.731	69.950	3.316	0.002						0.039
pg172_o2nofp.cx10a_c8r32	0.002	26.660	54.417	18.920	0.001						0.043
pg173_o2nofp.cx10a_c8r32	0.002	26.063	70.583	3.351	0.002						0.043
pg174_o2nofp.cx10a_c8r32	0.003	25.996	69.644	4.355	0.002						0.041
pg175_o2nofp.cx10a_c8r32	0.003	25.709	70.012	4.276	0.001						0.035
pg176_o2nofp.cx10a_c8r32	0.002	26.272	68.371	5.354	0.002						0.038
pg177_o2nofp.cx10a_c8r32	0.003	26.537	53.270	20.188	0.001						0.034
pg178_o2nofp.cx10a_c8r32	0.003	28.706	54.987	16.302	0.002						0.039
pg179_o2nofp.cx10a_c8r32	0.003	27.183	54.944	17.867	0.002						0.037

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
21870	0	0	0.0	262.2	29.6	0.000	0.000	0.012	1.386	8991	20.1	0.411	74	7.8	38.3	5.6	0.049	16697	11798	pg170_o2nofp.cx10a_c8r32
21906	0	0	0.0	262.7	29.7	0.000	0.000	0.012	1.386	9065	20.2	0.414	74	7.8	38.3	7.6	0.036	16598	11748	pg171_o2nofp.cx10a_c8r32
20672	0	0	0.0	247.7	28.0	0.000	0.000	0.012	1.385	8564	19.5	0.414	75	7.8	38.3	2.3	0.034	13498	7899	pg172_o2nofp.cx10a_c8r32
21786	0	0	0.0	261.2	29.5	0.000	0.000	0.012	1.386	9000	20.1	0.413	74	7.8	38.3	6.1	0.036	16398	11548	pg173_o2nofp.cx10a_c8r32
21598	0	0	0.0	258.8	29.2	0.000	0.000	0.012	1.385	8899	20.1	0.412	74	7.8	38.3	5.5	0.039	16397	11648	pg174_o2nofp.cx10a_c8r32
21494	0	0	0.0	257.6	29.1	0.000	0.000	0.012	1.385	8865	20.2	0.412	75	7.8	38.3	6.3	0.035	16397	11647	pg175_o2nofp.cx10a_c8r32
21425	0	0	0.0	256.9	29.0	0.000	0.000	0.012	1.386	8843	20.1	0.413	75	7.8	38.3	6.4	0.032	16048	11297	pg176_o2nofp.cx10a_c8r32
20243	0	0	0.0	242.9	27.4	0.000	0.000	0.012	1.386	8363	19.5	0.413	77	7.8	38.3	2.0	0.030	13348	7749	pg177_o2nofp.cx10a_c8r32
21505	0	0	0.0	257.7	29.1	0.000	0.000	0.012	1.386	8914	19.9	0.415	74	7.8	38.3	3.6	0.026	14048	9499	pg178_o2nofp.cx10a_c8r32
20779	0	0	0.0	249.3	28.1	0.000	0.000	0.012	1.386	8595	19.8	0.414	76	7.8	38.3	1.6	0.034	13698	9247	pg179_o2nofp.cx10a_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.121	0.484	0.000	0.000	0.051	1.868	261.8	30265.1	12.71	4.836	0.716	114.9	0.014	0.127	0.000	0.000	0.050	0.168	15.12	1.878	0.176	4.911		pg170_o2nofp.cx10a_c8r32
0.116	0.464	0.000	0.000	0.054	1.912	262.4	30333.3	12.24	4.602	0.701	114.9	0.012	0.081	0.000	0.000	0.029	0.140	15.17	1.867	0.178	4.851		pg171_o2nofp.cx10a_c8r32
0.105	0.419	0.000	0.000	0.085	1.772	247.4	28590.8	11.85	4.846	0.795	114.7	0.015	0.334	0.000	0.000	0.075	1.436	14.44	1.803	0.165	4.461		pg172_o2nofp.cx10a_c8r32
0.110	0.442	0.000	0.000	0.069	1.825	260.9	30175.6	12.56	4.740	0.708	114.9	0.011	5.217	0.000	0.000	0.033	25.74	15.09	1.745	0.173	4.697		pg173_o2nofp.cx10a_c8r32
0.089	0.356	0.000	0.000	0.046	1.507	258.4	29874.5	12.34	4.749	0.702	114.9	0.013	0.111	0.000	0.000	0.030	0.126	14.95	1.792	0.173	4.722		pg174_o2nofp.cx10a_c8r32
0.085	0.341	0.000	0.000	0.044	1.520	257.3	29735.5	12.26	4.806	0.708	114.9	0.015	0.140	0.000	0.000	0.032	0.179	14.88	1.764	0.173	4.662		pg175_o2nofp.cx10a_c8r32
0.116	0.462	0.000	0.000	0.049	1.796	256.5	29658.7	11.91	4.570	0.724	114.9	0.017	31.57	0.000	0.000	0.052	22.62	14.82	1.751	0.171	4.607		pg176_o2nofp.cx10a_c8r32
0.099	0.398	0.000	0.000	0.082	1.624	242.5	28007.6	11.76	4.846	0.815	114.6	0.012	9.726	0.000	0.000	0.035	16.33	14.15	1.722	0.166	4.356		pg177_o2nofp.cx10a_c8r32
0.092	0.367	0.000	0.000	0.044	1.456	257.4	29782.2	12.51	4.853	0.762	114.9	0.009	0.188	0.000	0.000	0.025	0.313	14.88	1.800	0.175	4.706		pg178_o2nofp.cx10a_c8r32
0.104	0.417	0.000	0.000	0.068	1.646	248.9	28763.2	11.50	4.616	0.766	114.7	0.013	21.47	0.000	0.000	0.033	27.00	14.49	1.575	0.163	4.182		pg179_o2nofp.cx10a_c8r32

---

l.i2

l.i2: continue load after secondary indexes created with 5 inserts per transaction. Graphs for performance per 1-second interval are here.

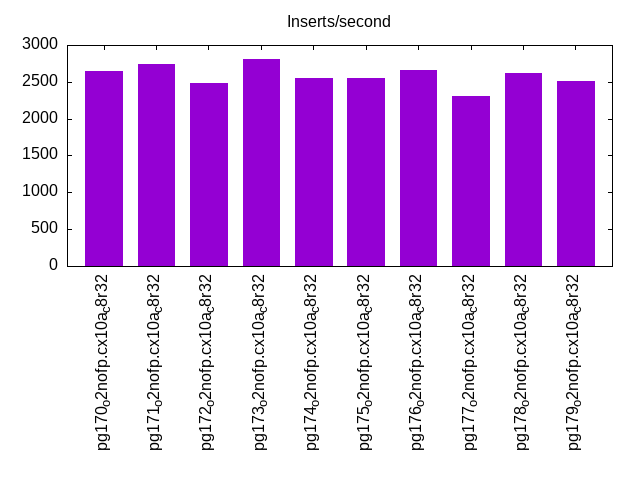

Average throughput:

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32	49.246	50.753	0.001								0.004
pg171_o2nofp.cx10a_c8r32	52.115	47.884	0.001	nonzero							0.013
pg172_o2nofp.cx10a_c8r32	49.241	50.758	0.001	nonzero	nonzero						0.023
pg173_o2nofp.cx10a_c8r32	56.452	43.547	0.001								0.003
pg174_o2nofp.cx10a_c8r32	47.704	52.296	0.001	nonzero							0.008
pg175_o2nofp.cx10a_c8r32	48.694	51.305	0.001	nonzero							0.014
pg176_o2nofp.cx10a_c8r32	53.163	46.835	0.001	nonzero							0.013
pg177_o2nofp.cx10a_c8r32	55.291	44.708	0.001								0.003
pg178_o2nofp.cx10a_c8r32	50.667	49.332	0.001	nonzero							0.006
pg179_o2nofp.cx10a_c8r32	44.147	55.853	nonzero								0.003

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32	4.464	21.257	74.232	0.047	nonzero						0.019
pg171_o2nofp.cx10a_c8r32	4.551	24.037	71.363	0.049	nonzero						0.017
pg172_o2nofp.cx10a_c8r32	4.572	31.663	58.788	4.976	nonzero						0.023
pg173_o2nofp.cx10a_c8r32	4.546	18.229	77.180	0.044							0.009
pg174_o2nofp.cx10a_c8r32	4.558	22.661	72.384	0.397							0.014
pg175_o2nofp.cx10a_c8r32	3.888	17.853	78.202	0.058							0.014
pg176_o2nofp.cx10a_c8r32	4.456	19.765	75.583	0.196							0.013
pg177_o2nofp.cx10a_c8r32	4.530	32.706	44.473	18.291							0.013
pg178_o2nofp.cx10a_c8r32	4.505	34.528	57.175	3.792							0.012
pg179_o2nofp.cx10a_c8r32	4.576	27.340	66.904	1.179							0.007

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
2641	0	0	0.0	58.3	5.8	0.000	0.000	0.022	2.235	9956	15.2	3.770	461	7.9	40.2	2.8	0.004	1940	1345	pg170_o2nofp.cx10a_c8r32
2737	0	0	0.0	59.5	5.9	0.000	0.000	0.022	2.208	10338	15.3	3.776	447	7.9	40.3	0.4	0.013	1970	1360	pg171_o2nofp.cx10a_c8r32
2483	0	0	0.0	56.1	5.5	0.000	0.000	0.023	2.272	9348	15.0	3.765	483	7.9	39.9	0.2	0.023	1620	1035	pg172_o2nofp.cx10a_c8r32
2814	0	0	0.0	60.5	6.0	0.000	0.000	0.022	2.183	10635	15.2	3.779	432	7.9	40.2	8.0	0.003	2120	1370	pg173_o2nofp.cx10a_c8r32
2558	0	0	0.0	57.3	5.6	0.000	0.000	0.022	2.257	9620	15.3	3.762	479	7.9	40.1	0.2	0.008	1830	1255	pg174_o2nofp.cx10a_c8r32
2556	0	0	0.0	56.2	5.5	0.000	0.000	0.022	2.210	9602	15.2	3.756	476	7.9	39.8	6.5	0.014	1930	1340	pg175_o2nofp.cx10a_c8r32
2658	0	0	0.0	58.5	5.8	0.000	0.000	0.022	2.233	10029	15.1	3.773	454	7.9	40.2	0.2	0.013	1905	1275	pg176_o2nofp.cx10a_c8r32
2305	0	0	0.0	53.8	5.3	0.000	0.000	0.023	2.346	8671	14.9	3.761	517	7.9	40.0	0.3	0.003	1384	865	pg177_o2nofp.cx10a_c8r32
2623	0	0	0.0	58.1	5.7	0.000	0.000	0.022	2.241	9904	15.2	3.777	464	7.9	40.2	0.2	0.006	1715	1075	pg178_o2nofp.cx10a_c8r32
2509	0	0	0.0	55.8	5.5	0.000	0.000	0.022	2.234	9448	15.2	3.765	485	7.9	39.7	0.3	0.003	1780	1190	pg179_o2nofp.cx10a_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.004	0.016	0.000	0.000	0.005	0.074	58.32	5904.3	3.715	3.196	0.625	98.56	0.008	1.647	0.000	0.000	0.006	0.567	7.535	1.866	0.044	2.163		pg170_o2nofp.cx10a_c8r32
0.004	0.016	0.000	0.000	0.004	0.082	59.56	6049.3	3.657	2.804	0.611	98.86	0.007	1.650	0.000	0.000	0.004	0.690	7.631	1.835	0.043	2.085		pg171_o2nofp.cx10a_c8r32
0.003	0.013	0.000	0.000	0.006	0.065	56.15	5645.8	3.500	3.070	0.567	97.55	0.008	3.240	0.000	0.000	0.004	4.663	7.242	1.786	0.039	1.960		pg172_o2nofp.cx10a_c8r32
0.004	0.017	0.000	0.000	0.006	0.085	60.54	6146.3	3.929	3.199	0.584	99.11	0.008	1.783	0.000	0.000	0.004	0.580	7.709	1.750	0.042	2.111		pg173_o2nofp.cx10a_c8r32
0.004	0.015	0.000	0.000	0.009	0.077	57.35	5777.6	3.628	3.203	0.573	98.43	0.008	1.651	0.000	0.000	0.004	0.558	7.432	1.746	0.041	2.035		pg174_o2nofp.cx10a_c8r32
0.003	0.012	0.000	0.000	0.003	0.061	56.25	5653.6	3.547	3.018	0.559	99.31	0.008	1.733	0.000	0.000	0.005	0.587	7.386	1.742	0.040	1.979		pg175_o2nofp.cx10a_c8r32
0.005	0.020	0.000	0.000	0.006	0.091	58.49	5936.8	3.586	2.938	0.633	96.82	0.008	1.640	0.000	0.000	0.004	0.547	7.421	1.762	0.043	2.057		pg176_o2nofp.cx10a_c8r32
0.004	0.015	0.000	0.000	0.003	0.074	53.88	5412.7	3.334	3.164	0.550	97.72	0.006	1.441	0.000	0.000	0.003	0.571	7.109	1.730	0.037	1.856		pg177_o2nofp.cx10a_c8r32
0.004	0.016	0.000	0.000	0.007	0.079	58.17	5883.6	3.725	3.348	0.585	97.39	0.007	1.552	0.000	0.000	0.004	0.503	7.432	1.830	0.040	2.010		pg178_o2nofp.cx10a_c8r32
0.003	0.013	0.000	0.000	0.003	0.060	55.83	5609.1	3.372	2.736	0.523	98.69	0.008	1.705	0.000	0.000	0.003	0.541	7.355	1.571	0.037	1.804		pg179_o2nofp.cx10a_c8r32

---

qr100.L1

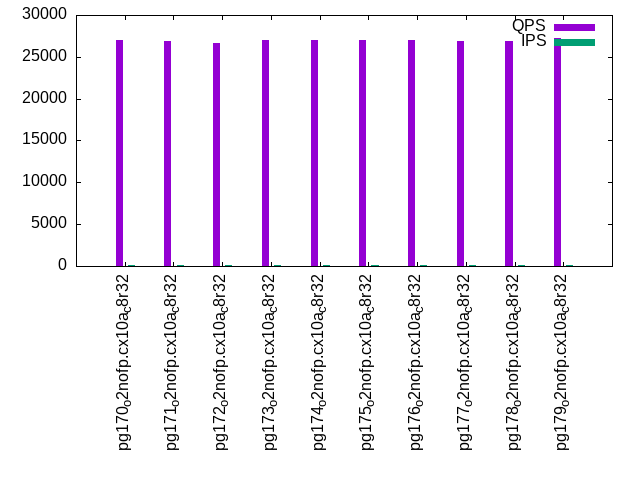

qr100.L1: range queries with 100 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

Query response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32	99.993	0.007	nonzero								0.002
pg171_o2nofp.cx10a_c8r32	99.993	0.007									0.001
pg172_o2nofp.cx10a_c8r32	99.993	0.007	nonzero								0.003
pg173_o2nofp.cx10a_c8r32	99.993	0.007	nonzero								0.001
pg174_o2nofp.cx10a_c8r32	99.993	0.007									0.001
pg175_o2nofp.cx10a_c8r32	99.993	0.007	nonzero								0.001
pg176_o2nofp.cx10a_c8r32	99.995	0.005	nonzero								0.001
pg177_o2nofp.cx10a_c8r32	99.994	0.006	nonzero								0.001
pg178_o2nofp.cx10a_c8r32	99.992	0.008									0.001
pg179_o2nofp.cx10a_c8r32	99.994	0.006	nonzero								0.003

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32		20.056	79.917	0.028							0.005
pg171_o2nofp.cx10a_c8r32		23.861	76.111	0.028							0.005
pg172_o2nofp.cx10a_c8r32		22.000	77.972	0.028							0.005
pg173_o2nofp.cx10a_c8r32		22.917	77.056	0.028							0.005
pg174_o2nofp.cx10a_c8r32		20.944	79.028	0.028							0.005
pg175_o2nofp.cx10a_c8r32		19.694	80.278	0.028							0.005
pg176_o2nofp.cx10a_c8r32		18.417	81.556	0.028							0.005
pg177_o2nofp.cx10a_c8r32		22.806	77.167	0.028							0.005
pg178_o2nofp.cx10a_c8r32		21.472	78.500	0.028							0.005
pg179_o2nofp.cx10a_c8r32		22.306	77.667	0.028							0.005

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32	0.056	62.861	37.083								0.002
pg171_o2nofp.cx10a_c8r32	0.056	65.972	33.972								0.002
pg172_o2nofp.cx10a_c8r32	0.028	65.472	34.500								0.002
pg173_o2nofp.cx10a_c8r32		65.361	34.639								0.002
pg174_o2nofp.cx10a_c8r32		64.750	35.250								0.002
pg175_o2nofp.cx10a_c8r32		63.361	36.639								0.002
pg176_o2nofp.cx10a_c8r32	0.028	61.833	38.139								0.002
pg177_o2nofp.cx10a_c8r32		65.861	34.139								0.002
pg178_o2nofp.cx10a_c8r32		63.694	36.306								0.002
pg179_o2nofp.cx10a_c8r32		63.750	36.250								0.002

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
100	26985	0	0.0	12.2	0.8	0.000	0.000	0.123	7.722	102956	8.5	3.815	25	7.9	40.2	0.1	0.002	26987	26599	pg170_o2nofp.cx10a_c8r32
100	26840	0	0.0	12.1	0.8	0.000	0.000	0.122	7.717	102405	8.5	3.815	25	7.9	40.2	0.1	0.001	26855	26396	pg171_o2nofp.cx10a_c8r32
100	26705	0	0.0	12.2	0.8	0.000	0.000	0.122	7.726	101943	8.5	3.817	25	7.9	39.9	0.1	0.003	26733	26251	pg172_o2nofp.cx10a_c8r32
100	26992	0	0.0	12.1	0.8	0.000	0.000	0.121	7.712	102981	8.7	3.815	26	7.9	40.2	0.1	0.001	27000	26619	pg173_o2nofp.cx10a_c8r32
100	27061	0	0.0	12.2	0.8	0.000	0.000	0.122	7.725	103300	8.0	3.817	24	7.9	40.1	0.1	0.001	27068	26699	pg174_o2nofp.cx10a_c8r32
100	27007	0	0.0	12.2	0.8	0.000	0.000	0.122	7.702	103093	8.7	3.817	26	7.9	39.8	0.1	0.001	27020	26563	pg175_o2nofp.cx10a_c8r32
100	27057	0	0.0	12.2	0.8	0.000	0.000	0.122	7.724	103232	8.7	3.815	26	7.9	40.2	0.1	0.001	27083	26509	pg176_o2nofp.cx10a_c8r32
100	26905	0	0.0	12.3	0.8	0.000	0.000	0.123	7.753	102652	8.0	3.815	24	7.9	40.0	0.1	0.001	26907	26523	pg177_o2nofp.cx10a_c8r32
100	26914	0	0.0	12.2	0.8	0.000	0.000	0.122	7.718	102742	8.5	3.817	25	7.9	40.2	0.1	0.001	26939	26507	pg178_o2nofp.cx10a_c8r32
100	27209	0	0.0	12.2	0.8	0.000	0.000	0.123	7.737	103865	8.3	3.817	24	7.9	39.7	0.1	0.003	27241	26817	pg179_o2nofp.cx10a_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.000	0.000	0.000	0.000	0.000	0.000	12.23	769.5	0.249	2.139	2.139	66.27	0.001	0.002	0.000	0.000	0.003	0.011	2.764	2.483	0.031	1.275		pg170_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	12.12	769.1	0.248	2.139	2.110	66.78	0.001	0.002	0.000	0.000	0.003	0.011	2.741	2.430	0.030	1.252		pg171_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	12.14	769.1	0.250	2.176	2.122	66.58	0.001	0.002	0.000	0.000	0.000	0.011	2.731	2.472	0.031	1.259		pg172_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	12.09	768.5	0.247	2.150	2.074	66.50	0.001	0.002	0.000	0.000	0.003	0.011	2.752	2.335	0.030	1.221		pg173_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	12.18	769.1	0.247	2.136	2.056	66.46	0.001	0.002	0.000	0.000	0.003	0.011	2.758	2.297	0.030	1.220		pg174_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	12.17	766.8	0.250	2.162	2.087	66.13	0.001	0.002	0.000	0.000	0.006	0.011	2.778	2.378	0.031	1.284		pg175_o2nofp.cx10a_c8r32
0.001	0.002	0.000	0.000	0.000	0.011	12.17	769.7	0.247	2.137	2.107	66.30	0.001	0.002	0.000	0.000	0.000	0.011	2.764	2.412	0.031	1.254		pg176_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	12.23	772.7	0.251	2.166	2.065	66.42	0.001	0.002	0.000	0.000	0.003	0.011	2.758	2.272	0.030	1.224		pg177_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	12.16	768.3	0.252	2.188	2.090	66.14	0.001	0.002	0.000	0.000	0.003	0.011	2.770	2.382	0.031	1.316		pg178_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	12.23	770.1	0.249	2.160	1.973	66.53	0.001	0.002	0.000	0.000	0.006	0.011	2.738	2.005	0.028	1.141		pg179_o2nofp.cx10a_c8r32

---

qp100.L2

qp100.L2: point queries with 100 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

Query response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32	99.982	0.018	nonzero								0.002
pg171_o2nofp.cx10a_c8r32	99.982	0.018	nonzero								0.002
pg172_o2nofp.cx10a_c8r32	99.984	0.016									0.001
pg173_o2nofp.cx10a_c8r32	99.984	0.016									0.001
pg174_o2nofp.cx10a_c8r32	99.983	0.017									0.001
pg175_o2nofp.cx10a_c8r32	99.983	0.017	nonzero								0.001
pg176_o2nofp.cx10a_c8r32	99.985	0.014	nonzero								0.001
pg177_o2nofp.cx10a_c8r32	99.984	0.016	nonzero								0.001
pg178_o2nofp.cx10a_c8r32	99.983	0.017									0.001
pg179_o2nofp.cx10a_c8r32	99.987	0.013	nonzero								0.002

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32		2.167	97.806	0.028							0.004
pg171_o2nofp.cx10a_c8r32		2.306	97.667	0.028							0.005
pg172_o2nofp.cx10a_c8r32		2.556	97.417	0.028							0.005
pg173_o2nofp.cx10a_c8r32		2.861	97.111	0.028							0.005
pg174_o2nofp.cx10a_c8r32		2.806	97.167	0.028							0.005
pg175_o2nofp.cx10a_c8r32		2.278	97.694	0.028							0.005
pg176_o2nofp.cx10a_c8r32		2.528	97.444	0.028							0.005
pg177_o2nofp.cx10a_c8r32		3.722	96.250	0.028							0.005
pg178_o2nofp.cx10a_c8r32		2.222	97.750	0.028							0.005
pg179_o2nofp.cx10a_c8r32		1.917	98.056	0.028							0.005

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32		10.111	89.889								0.003
pg171_o2nofp.cx10a_c8r32		11.444	88.556								0.004
pg172_o2nofp.cx10a_c8r32		25.417	74.583								0.004
pg173_o2nofp.cx10a_c8r32		8.056	91.944								0.004
pg174_o2nofp.cx10a_c8r32		9.194	90.806								0.004
pg175_o2nofp.cx10a_c8r32		7.306	92.694								0.004
pg176_o2nofp.cx10a_c8r32		6.556	93.417	0.028							0.004
pg177_o2nofp.cx10a_c8r32		8.639	91.361								0.004
pg178_o2nofp.cx10a_c8r32		12.722	87.278								0.004
pg179_o2nofp.cx10a_c8r32		16.444	83.556								0.004

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
100	13175	0	0.0	58.9	1.6	0.000	0.000	0.590	16.797	50844	10.0	3.859	61	7.9	40.2	0.1	0.002	13178	13083	pg170_o2nofp.cx10a_c8r32
100	12360	0	0.0	58.8	1.6	0.000	0.000	0.588	16.802	47709	10.3	3.860	67	7.9	40.2	0.1	0.002	12366	12267	pg171_o2nofp.cx10a_c8r32
100	13236	0	0.0	59.0	1.6	0.000	0.000	0.590	16.790	51081	9.9	3.859	60	7.9	39.9	0.1	0.001	13246	13130	pg172_o2nofp.cx10a_c8r32
100	13205	0	0.0	58.9	1.6	0.000	0.000	0.590	16.795	50961	10.1	3.859	61	7.9	40.2	0.9	0.001	13198	13115	pg173_o2nofp.cx10a_c8r32
100	13240	0	0.0	58.7	1.6	0.000	0.000	0.588	16.792	51122	9.9	3.861	60	7.9	40.1	0.1	0.001	13246	13145	pg174_o2nofp.cx10a_c8r32
100	13303	0	0.0	59.0	1.6	0.000	0.000	0.591	16.865	51371	9.9	3.862	60	7.9	39.8	0.1	0.001	13310	13199	pg175_o2nofp.cx10a_c8r32
100	13251	0	0.0	58.7	1.6	0.000	0.000	0.587	16.794	51139	10.2	3.859	62	7.9	40.2	0.1	0.001	13261	13150	pg176_o2nofp.cx10a_c8r32
100	13249	0	0.0	58.7	1.6	0.000	0.000	0.588	16.782	51138	9.8	3.860	59	7.9	40.0	1.6	0.001	13246	13086	pg177_o2nofp.cx10a_c8r32
100	13360	0	0.0	58.8	1.6	0.000	0.000	0.589	16.802	51587	9.7	3.861	58	7.9	40.2	0.1	0.001	13374	13262	pg178_o2nofp.cx10a_c8r32
100	13206	0	0.0	59.0	1.6	0.000	0.000	0.591	16.790	50995	10.1	3.861	61	7.9	39.7	0.1	0.002	13214	13102	pg179_o2nofp.cx10a_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.000	0.000	0.000	0.000	0.000	0.000	58.84	1670.5	0.636	1.293	1.436	32.57	0.001	0.002	0.000	0.000	0.003	0.011	2.583	2.118	0.085	1.513		pg170_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	58.68	1671.0	0.665	1.443	1.423	32.35	0.003	45.64	0.000	0.000	0.004	45.65	2.600	2.051	0.085	1.503		pg171_o2nofp.cx10a_c8r32
0.001	0.002	0.000	0.000	0.000	0.011	58.92	1669.8	0.640	1.293	1.439	32.29	0.001	0.002	0.000	0.000	0.003	0.011	2.605	1.989	0.085	1.477		pg172_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	58.83	1670.3	0.646	1.340	1.420	32.40	0.003	36.51	0.000	0.000	0.002	45.65	2.604	1.970	0.085	1.491		pg173_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	58.64	1668.3	0.655	1.386	1.432	32.57	0.001	0.002	0.000	0.000	0.003	0.011	2.598	2.000	0.085	1.472		pg174_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	58.94	1675.6	0.997	2.360	1.419	32.90	0.001	0.002	0.000	0.000	0.000	0.011	2.563	2.000	0.085	1.468		pg175_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	58.60	1670.2	0.660	1.429	1.424	32.52	0.003	36.51	0.000	0.000	0.006	45.65	2.590	1.992	0.084	1.502		pg176_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	58.64	1668.8	0.641	1.285	1.426	32.71	0.001	0.002	0.000	0.000	0.000	0.011	2.579	1.926	0.085	1.461		pg177_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	58.76	1669.1	0.643	1.400	1.427	32.40	0.001	0.002	0.000	0.000	0.003	0.011	2.604	2.047	0.085	1.502		pg178_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	58.91	1667.9	0.639	1.268	1.410	32.42	0.001	0.002	0.000	0.000	0.003	0.011	2.589	1.770	0.085	1.440		pg179_o2nofp.cx10a_c8r32

---

qr500.L3

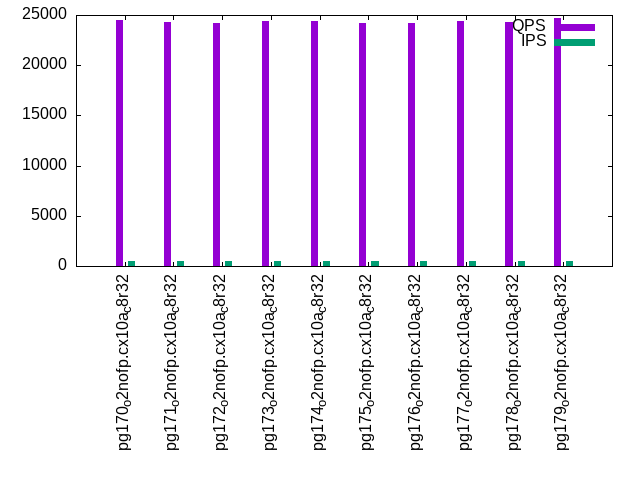

qr500.L3: range queries with 500 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

Query response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32	99.990	0.010	nonzero	nonzero							0.004
pg171_o2nofp.cx10a_c8r32	99.990	0.010	nonzero								0.002
pg172_o2nofp.cx10a_c8r32	99.990	0.010	nonzero								0.002
pg173_o2nofp.cx10a_c8r32	99.990	0.010	nonzero								0.002
pg174_o2nofp.cx10a_c8r32	99.989	0.011	nonzero								0.001
pg175_o2nofp.cx10a_c8r32	99.990	0.010	nonzero								0.002
pg176_o2nofp.cx10a_c8r32	99.991	0.009	nonzero								0.002
pg177_o2nofp.cx10a_c8r32	99.990	0.010	nonzero								0.002
pg178_o2nofp.cx10a_c8r32	99.990	0.010	nonzero								0.002
pg179_o2nofp.cx10a_c8r32	99.992	0.008	nonzero								0.002

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32		74.494	25.500	0.006							0.004
pg171_o2nofp.cx10a_c8r32		73.328	26.667	0.006							0.004
pg172_o2nofp.cx10a_c8r32		75.583	24.411	0.006							0.005
pg173_o2nofp.cx10a_c8r32		74.422	25.572	0.006							0.004
pg174_o2nofp.cx10a_c8r32		72.533	27.461	0.006							0.005
pg175_o2nofp.cx10a_c8r32		68.828	31.161	0.011							0.004
pg176_o2nofp.cx10a_c8r32		72.494	27.500	0.006							0.005
pg177_o2nofp.cx10a_c8r32		75.317	24.678	0.006							0.004
pg178_o2nofp.cx10a_c8r32		74.961	25.033	0.006							0.004
pg179_o2nofp.cx10a_c8r32		74.922	25.072	0.006							0.005

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32		2.472	94.256	3.272							0.005
pg171_o2nofp.cx10a_c8r32		1.744	95.317	2.939							0.005
pg172_o2nofp.cx10a_c8r32		3.328	94.111	2.561							0.005
pg173_o2nofp.cx10a_c8r32		2.117	94.706	3.178							0.005
pg174_o2nofp.cx10a_c8r32		1.600	95.306	3.094							0.005
pg175_o2nofp.cx10a_c8r32		1.328	95.917	2.756							0.005
pg176_o2nofp.cx10a_c8r32		1.200	95.972	2.828							0.007
pg177_o2nofp.cx10a_c8r32		1.811	94.683	3.506							0.005
pg178_o2nofp.cx10a_c8r32		2.967	94.139	2.894							0.005
pg179_o2nofp.cx10a_c8r32		4.783	92.083	3.133							0.005

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
500	24473	0	0.0	66.8	2.2	0.000	0.000	0.134	4.597	93510	9.5	3.821	31	7.9	39.0	0.3	0.004	24451	23004	pg170_o2nofp.cx10a_c8r32
500	24263	0	0.0	66.7	2.2	0.000	0.000	0.134	4.597	92708	9.4	3.821	31	7.9	39.0	0.3	0.002	24236	22732	pg171_o2nofp.cx10a_c8r32
500	24179	0	0.0	66.9	2.2	0.000	0.000	0.134	4.590	92390	9.2	3.821	30	7.9	38.8	0.3	0.002	24188	22652	pg172_o2nofp.cx10a_c8r32
500	24438	0	0.0	66.8	2.2	0.000	0.000	0.134	4.590	93421	9.5	3.823	31	7.9	39.0	0.3	0.002	24444	22887	pg173_o2nofp.cx10a_c8r32
500	24426	0	0.0	66.8	2.2	0.000	0.000	0.134	4.592	93328	9.1	3.821	30	7.9	39.0	0.3	0.001	24428	22860	pg174_o2nofp.cx10a_c8r32
499	24228	0	0.0	67.1	2.3	0.000	0.000	0.134	4.685	92633	9.4	3.823	31	8.0	38.7	0.4	0.002	24252	22717	pg175_o2nofp.cx10a_c8r32
499	24218	0	0.0	66.5	2.3	0.000	0.000	0.133	4.626	92589	9.4	3.823	31	7.9	39.0	0.3	0.002	24210	22680	pg176_o2nofp.cx10a_c8r32
500	24403	0	0.0	66.9	2.3	0.000	0.000	0.134	4.617	93537	9.6	3.833	31	7.9	38.8	0.3	0.002	24430	22300	pg177_o2nofp.cx10a_c8r32
499	24326	0	0.0	66.7	2.2	0.000	0.000	0.134	4.599	92998	9.1	3.823	30	7.9	39.0	0.3	0.002	24331	22797	pg178_o2nofp.cx10a_c8r32
499	24727	0	0.0	66.8	2.2	0.000	0.000	0.134	4.599	94527	9.1	3.823	29	7.9	38.6	0.3	0.002	24779	23210	pg179_o2nofp.cx10a_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.003	0.013	0.000	0.000	0.000	0.011	66.68	2283.4	1.238	2.155	1.250	35.85	0.047	684.6	0.000	0.000	0.004	41.25	3.720	2.133	0.085	1.726		pg170_o2nofp.cx10a_c8r32
0.002	0.007	0.000	0.000	0.000	0.011	66.61	2283.6	1.202	2.169	1.253	35.83	0.046	684.6	0.000	0.000	0.004	42.27	3.699	2.110	0.085	1.711		pg171_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	66.77	2279.9	1.248	2.150	1.243	35.73	0.047	684.6	0.000	0.000	0.004	41.25	3.730	2.060	0.085	1.752		pg172_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	66.70	2280.7	1.267	2.132	1.230	35.74	0.045	684.6	0.000	0.000	0.005	42.80	3.705	2.000	0.084	1.659		pg173_o2nofp.cx10a_c8r32
0.002	0.009	0.000	0.000	0.000	0.011	66.67	2281.7	1.264	2.145	1.250	35.94	0.044	684.6	0.000	0.000	0.005	43.89	3.691	2.023	0.084	1.664		pg174_o2nofp.cx10a_c8r32
0.001	0.004	0.000	0.000	0.000	0.011	66.99	2325.9	1.816	3.338	1.247	36.56	0.045	675.4	0.000	0.000	0.005	42.23	3.697	1.993	0.085	1.672		pg175_o2nofp.cx10a_c8r32
0.002	0.009	0.000	0.000	0.000	0.011	66.44	2297.1	1.384	2.592	1.233	36.29	0.046	684.6	0.000	0.000	0.005	41.75	3.686	1.922	0.084	1.643		pg176_o2nofp.cx10a_c8r32
0.007	0.021	0.000	0.000	0.001	0.029	66.76	2294.1	1.388	2.925	1.229	36.17	0.046	684.6	0.000	0.000	0.008	87.54	3.715	1.962	0.084	1.672		pg177_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	66.58	2283.1	1.321	2.405	1.255	35.99	0.044	684.6	0.000	0.000	0.005	43.89	3.697	2.050	0.085	1.711		pg178_o2nofp.cx10a_c8r32
0.002	0.007	0.000	0.000	0.000	0.011	66.71	2283.2	1.165	1.848	1.220	35.78	0.045	675.4	0.000	0.000	0.005	42.76	3.731	1.756	0.083	1.609		pg179_o2nofp.cx10a_c8r32

---

qp500.L4

qp500.L4: point queries with 500 insert/s per client. Graphs for performance per 1-second interval are here.

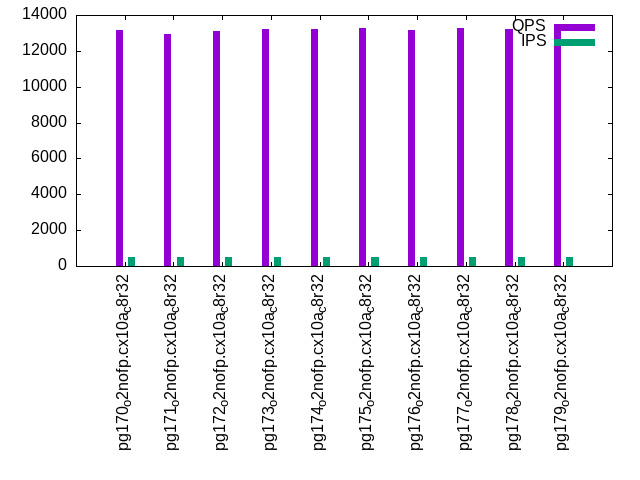

Average throughput:

Query response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32	99.976	0.024	nonzero								0.001
pg171_o2nofp.cx10a_c8r32	99.976	0.024	nonzero								0.001
pg172_o2nofp.cx10a_c8r32	99.976	0.024	nonzero								0.002
pg173_o2nofp.cx10a_c8r32	99.977	0.023									0.001
pg174_o2nofp.cx10a_c8r32	99.975	0.025	nonzero								0.002
pg175_o2nofp.cx10a_c8r32	99.978	0.022	nonzero								0.001
pg176_o2nofp.cx10a_c8r32	99.978	0.022	nonzero								0.001
pg177_o2nofp.cx10a_c8r32	99.976	0.024									0.001
pg178_o2nofp.cx10a_c8r32	99.976	0.024	nonzero								0.002
pg179_o2nofp.cx10a_c8r32	99.979	0.021	nonzero								0.001

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32		70.994	28.983	0.011	0.011						0.018
pg171_o2nofp.cx10a_c8r32		68.856	31.139	0.006							0.005
pg172_o2nofp.cx10a_c8r32		69.183	30.794	0.022							0.014
pg173_o2nofp.cx10a_c8r32		68.450	31.539	0.006	0.006						0.018
pg174_o2nofp.cx10a_c8r32		68.689	31.294	0.011	0.006						0.017
pg175_o2nofp.cx10a_c8r32		67.850	32.133	0.017							0.014
pg176_o2nofp.cx10a_c8r32		69.056	30.922	0.017	0.006						0.018
pg177_o2nofp.cx10a_c8r32		71.194	28.772	0.022	0.011						0.018
pg178_o2nofp.cx10a_c8r32		71.344	28.633	0.017	0.006						0.016
pg179_o2nofp.cx10a_c8r32		69.833	30.144	0.022							0.014

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32	0.150	25.028	65.094	9.722	0.006						0.017
pg171_o2nofp.cx10a_c8r32	0.122	32.844	57.528	9.506							0.011
pg172_o2nofp.cx10a_c8r32	0.144	31.700	59.794	8.361							0.013
pg173_o2nofp.cx10a_c8r32	0.189	30.583	58.950	10.272	0.006						0.016
pg174_o2nofp.cx10a_c8r32	0.106	30.428	58.889	10.578							0.016
pg175_o2nofp.cx10a_c8r32	0.161	27.139	61.539	11.161							0.013
pg176_o2nofp.cx10a_c8r32	0.106	29.928	56.194	13.767	0.006						0.017
pg177_o2nofp.cx10a_c8r32	0.144	28.944	60.533	10.372	0.006						0.017
pg178_o2nofp.cx10a_c8r32	0.100	29.328	61.117	9.456							0.015
pg179_o2nofp.cx10a_c8r32	0.072	28.639	61.300	9.989							0.013

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
499	13167	0	0.0	42.1	3.0	0.000	0.000	0.084	6.099	50956	10.5	3.870	64	8.0	36.9	0.3	0.001	13182	13016	pg170_o2nofp.cx10a_c8r32
500	12948	0	0.0	42.0	3.0	0.000	0.000	0.084	6.092	50085	10.6	3.868	65	8.0	36.9	0.3	0.001	12958	12778	pg171_o2nofp.cx10a_c8r32
500	13084	0	0.0	42.2	3.0	0.000	0.000	0.084	6.108	50610	10.5	3.868	64	8.0	36.7	0.3	0.002	13099	12941	pg172_o2nofp.cx10a_c8r32
500	13231	0	0.0	42.2	3.0	0.000	0.000	0.084	6.102	51172	10.5	3.868	63	8.0	36.9	0.3	0.001	13241	13118	pg173_o2nofp.cx10a_c8r32
500	13218	0	0.0	42.2	3.0	0.000	0.000	0.084	6.104	51124	10.4	3.868	63	8.0	36.9	0.3	0.002	13230	13070	pg174_o2nofp.cx10a_c8r32
499	13285	0	0.0	42.0	3.0	0.000	0.000	0.084	6.085	51405	10.3	3.870	62	8.0	36.6	0.3	0.001	13307	13134	pg175_o2nofp.cx10a_c8r32
499	13172	0	0.0	41.7	3.0	0.000	0.000	0.084	6.073	50974	10.5	3.870	64	8.0	36.9	0.3	0.001	13196	13038	pg176_o2nofp.cx10a_c8r32
500	13248	0	0.0	42.1	3.0	0.000	0.000	0.084	6.076	51239	10.4	3.868	63	7.9	36.7	0.3	0.001	13278	13006	pg177_o2nofp.cx10a_c8r32
499	13204	0	0.0	42.0	3.0	0.000	0.000	0.084	6.082	51097	10.5	3.870	64	7.9	36.9	0.3	0.002	13214	13100	pg178_o2nofp.cx10a_c8r32
500	13115	0	0.0	42.0	3.0	0.000	0.000	0.084	6.067	50725	10.5	3.868	64	7.9	36.5	0.3	0.001	13129	12958	pg179_o2nofp.cx10a_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.003	0.013	0.000	0.000	0.000	0.022	41.77	3005.3	1.658	3.535	0.830	67.60	0.089	1241.5	0.000	0.000	0.010	80.48	3.245	2.029	0.035	1.362		pg170_o2nofp.cx10a_c8r32
0.001	0.002	0.000	0.000	0.000	0.011	41.69	3004.0	1.568	3.162	0.813	67.68	0.086	1241.5	0.000	0.000	0.008	40.59	3.281	1.965	0.036	1.384		pg171_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	41.84	3011.6	1.661	3.594	0.792	67.90	0.084	1241.5	0.000	0.000	0.005	86.84	3.283	1.894	0.035	1.340		pg172_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	41.87	3008.7	1.684	3.358	0.818	67.78	0.084	1241.5	0.000	0.000	0.004	41.96	3.261	1.929	0.036	1.349		pg173_o2nofp.cx10a_c8r32
0.002	0.007	0.000	0.000	0.000	0.022	41.88	3009.5	1.697	3.529	0.807	67.52	0.084	1241.5	0.000	0.000	0.005	84.17	3.304	1.873	0.035	1.341		pg174_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	41.64	2998.4	1.555	2.691	0.827	67.77	0.083	1241.5	0.000	0.000	0.008	42.25	3.258	1.896	0.036	1.342		pg175_o2nofp.cx10a_c8r32
0.003	0.011	0.000	0.000	0.001	0.011	41.41	2992.2	1.474	2.608	0.844	67.58	0.083	1241.5	0.000	0.000	0.008	42.25	3.252	1.955	0.036	1.369		pg176_o2nofp.cx10a_c8r32
0.002	0.007	0.000	0.000	0.000	0.011	41.74	2996.0	1.546	2.678	0.819	67.39	0.084	1241.5	0.000	0.000	0.004	41.68	3.280	1.854	0.035	1.323		pg177_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	41.63	2996.8	1.617	3.128	0.821	67.61	0.085	1241.5	0.000	0.000	0.005	41.13	3.254	1.950	0.035	1.363		pg178_o2nofp.cx10a_c8r32
0.003	0.013	0.000	0.000	0.000	0.011	41.72	2991.8	1.507	2.822	0.768	67.54	0.084	1241.5	0.000	0.000	0.008	41.68	3.271	1.601	0.033	1.269		pg179_o2nofp.cx10a_c8r32

---

qr1000.L5

qr1000.L5: range queries with 1000 insert/s per client. Graphs for performance per 1-second interval are here.

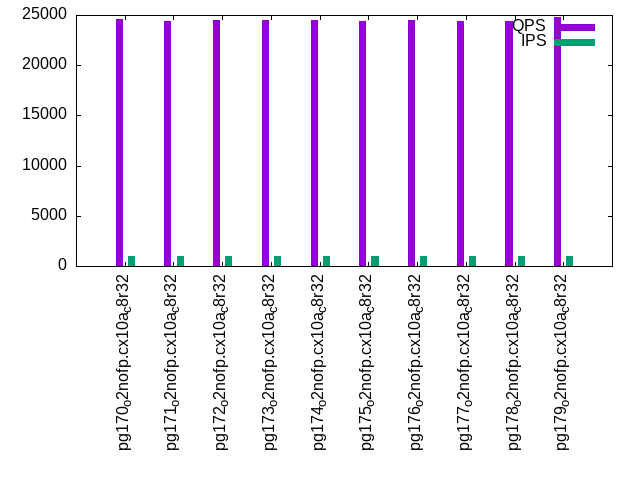

Average throughput:

Query response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32	99.988	0.012	nonzero	nonzero							0.004
pg171_o2nofp.cx10a_c8r32	99.989	0.011	nonzero								0.004
pg172_o2nofp.cx10a_c8r32	99.988	0.012	nonzero								0.004
pg173_o2nofp.cx10a_c8r32	99.989	0.011	nonzero	nonzero							0.005
pg174_o2nofp.cx10a_c8r32	99.987	0.013	nonzero	nonzero							0.004
pg175_o2nofp.cx10a_c8r32	99.989	0.011	nonzero								0.004
pg176_o2nofp.cx10a_c8r32	99.989	0.011	nonzero	nonzero							0.004
pg177_o2nofp.cx10a_c8r32	99.988	0.012	nonzero	nonzero							0.005
pg178_o2nofp.cx10a_c8r32	99.988	0.012	nonzero	nonzero							0.004
pg179_o2nofp.cx10a_c8r32	99.990	0.010	nonzero	nonzero							0.004

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32		73.006	26.992	0.003							0.005
pg171_o2nofp.cx10a_c8r32		73.344	26.653	0.003							0.004
pg172_o2nofp.cx10a_c8r32		73.142	26.856	0.003							0.005
pg173_o2nofp.cx10a_c8r32		72.508	27.489	0.003							0.005
pg174_o2nofp.cx10a_c8r32		72.736	27.261	0.003							0.004
pg175_o2nofp.cx10a_c8r32		72.775	27.222	0.003							0.004
pg176_o2nofp.cx10a_c8r32		72.181	27.814	0.006							0.005
pg177_o2nofp.cx10a_c8r32		72.825	27.172	0.003							0.005
pg178_o2nofp.cx10a_c8r32		73.492	26.506	0.003							0.004
pg179_o2nofp.cx10a_c8r32		73.986	26.011	0.003							0.005

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32	0.175	20.125	74.753	4.947							0.007
pg171_o2nofp.cx10a_c8r32	0.083	18.803	76.931	4.183							0.007
pg172_o2nofp.cx10a_c8r32	0.081	19.403	76.206	4.311							0.007
pg173_o2nofp.cx10a_c8r32	0.169	16.917	77.611	5.303							0.007
pg174_o2nofp.cx10a_c8r32	0.094	19.406	75.619	4.881							0.007
pg175_o2nofp.cx10a_c8r32	0.139	15.906	79.364	4.592							0.006
pg176_o2nofp.cx10a_c8r32	0.061	15.811	78.789	5.339							0.006
pg177_o2nofp.cx10a_c8r32	0.078	17.833	76.731	5.358							0.007
pg178_o2nofp.cx10a_c8r32	0.108	18.642	76.947	4.303							0.007
pg179_o2nofp.cx10a_c8r32	0.064	20.536	74.336	5.064							0.007

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
999	24609	0	0.0	50.8	3.5	0.000	0.000	0.051	3.556	94262	9.6	3.830	31	8.0	34.7	0.4	0.004	24540	22220	pg170_o2nofp.cx10a_c8r32
999	24447	0	0.0	51.1	3.5	0.000	0.000	0.051	3.553	93646	9.8	3.831	32	8.0	34.7	0.4	0.004	24381	22108	pg171_o2nofp.cx10a_c8r32
999	24454	0	0.0	51.1	3.5	0.000	0.000	0.051	3.553	93621	9.8	3.828	32	8.0	34.4	0.4	0.004	24396	21930	pg172_o2nofp.cx10a_c8r32
999	24551	0	0.0	50.9	3.5	0.000	0.000	0.051	3.556	93989	9.9	3.828	32	8.0	34.7	0.4	0.005	24444	22204	pg173_o2nofp.cx10a_c8r32
999	24462	0	0.0	51.1	3.5	0.000	0.000	0.051	3.552	93750	9.8	3.833	32	8.0	34.6	0.4	0.004	24396	22008	pg174_o2nofp.cx10a_c8r32
999	24413	0	0.0	50.8	3.4	0.000	0.000	0.051	3.513	93512	9.6	3.830	31	8.0	34.3	0.4	0.004	24393	21949	pg175_o2nofp.cx10a_c8r32
999	24501	0	0.0	50.7	3.4	0.000	0.000	0.051	3.515	93852	9.9	3.831	32	8.0	34.6	0.4	0.004	24428	22156	pg176_o2nofp.cx10a_c8r32
999	24446	0	0.0	50.6	3.4	0.000	0.000	0.051	3.494	93592	9.6	3.828	31	8.0	34.4	0.3	0.005	24396	22124	pg177_o2nofp.cx10a_c8r32
999	24359	0	0.0	50.6	3.4	0.000	0.000	0.051	3.511	93314	9.5	3.831	31	8.0	34.6	0.4	0.004	24299	21978	pg178_o2nofp.cx10a_c8r32
999	24823	0	0.0	50.9	3.4	0.000	0.000	0.051	3.531	95027	9.6	3.828	31	8.0	34.2	0.4	0.004	24800	22349	pg179_o2nofp.cx10a_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.001	0.002	0.000	0.000	0.000	0.011	50.58	3522.9	1.918	3.055	0.767	72.53	0.092	1378.3	0.000	0.000	0.005	41.78	4.072	1.986	0.039	1.567		pg170_o2nofp.cx10a_c8r32
0.002	0.009	0.000	0.000	0.001	0.011	50.87	3521.0	1.805	3.015	0.754	72.07	0.091	1378.3	0.000	0.000	0.005	82.81	4.074	1.952	0.039	1.526		pg171_o2nofp.cx10a_c8r32
0.001	0.002	0.000	0.000	0.006	0.011	50.88	3522.9	1.898	3.085	0.749	71.77	0.095	1378.3	0.000	0.000	0.004	40.79	4.081	1.876	0.039	1.472		pg172_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	50.73	3526.0	1.952	3.247	0.750	72.32	0.090	1369.2	0.000	0.000	0.004	42.53	4.102	1.873	0.038	1.460		pg173_o2nofp.cx10a_c8r32
0.001	0.004	0.000	0.000	0.000	0.011	50.86	3521.4	1.929	3.174	0.751	71.85	0.095	1378.3	0.000	0.000	0.005	40.55	4.121	1.877	0.039	1.514		pg174_o2nofp.cx10a_c8r32
0.001	0.004	0.000	0.000	0.000	0.011	50.60	3480.2	1.666	2.675	0.757	71.11	0.092	1378.3	0.000	0.000	0.008	83.99	4.085	1.859	0.039	1.507		pg175_o2nofp.cx10a_c8r32
0.001	0.002	0.000	0.000	0.000	0.011	50.44	3482.6	1.685	2.788	0.773	71.69	0.095	1378.3	0.000	0.000	0.007	83.20	4.093	1.877	0.039	1.532		pg176_o2nofp.cx10a_c8r32
0.001	0.002	0.000	0.000	0.000	0.011	50.36	3463.3	1.729	2.854	0.775	71.46	0.094	1378.3	0.000	0.000	0.002	41.03	4.068	1.845	0.040	1.505		pg177_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	50.39	3478.1	1.835	3.057	0.783	71.78	0.091	1369.2	0.000	0.000	0.005	42.01	4.076	1.966	0.040	1.547		pg178_o2nofp.cx10a_c8r32
0.001	0.002	0.000	0.000	0.000	0.011	50.73	3500.9	1.802	2.892	0.735	71.54	0.091	1378.3	0.000	0.000	0.002	42.55	4.074	1.666	0.037	1.416		pg179_o2nofp.cx10a_c8r32

---

qp1000.L6

qp1000.L6: point queries with 1000 insert/s per client. Graphs for performance per 1-second interval are here.

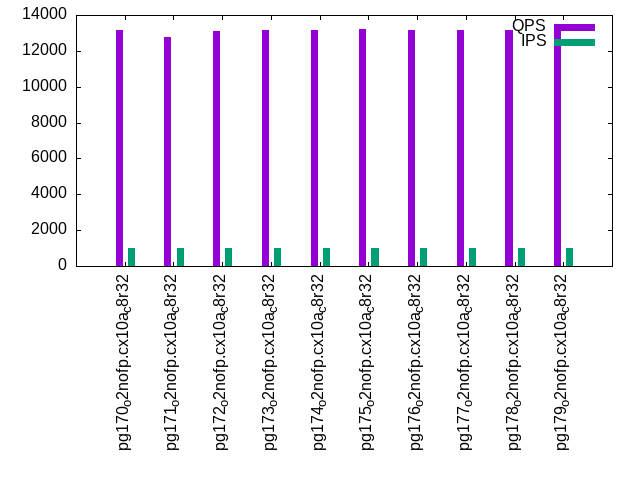

Average throughput:

Query response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32	99.973	0.027	nonzero								0.001
pg171_o2nofp.cx10a_c8r32	99.973	0.027	nonzero								0.001
pg172_o2nofp.cx10a_c8r32	99.974	0.026									0.001
pg173_o2nofp.cx10a_c8r32	99.973	0.027	nonzero								0.001
pg174_o2nofp.cx10a_c8r32	99.971	0.029									0.001
pg175_o2nofp.cx10a_c8r32	99.976	0.024	nonzero								0.001
pg176_o2nofp.cx10a_c8r32	99.975	0.025	nonzero								0.002
pg177_o2nofp.cx10a_c8r32	99.972	0.028	nonzero								0.002
pg178_o2nofp.cx10a_c8r32	99.973	0.027	nonzero								0.002
pg179_o2nofp.cx10a_c8r32	99.977	0.023									0.001

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32		69.219	30.772	0.006	0.003						0.018
pg171_o2nofp.cx10a_c8r32		69.269	30.725	0.003	0.003						0.016
pg172_o2nofp.cx10a_c8r32		68.586	31.408	0.003	0.003						0.018
pg173_o2nofp.cx10a_c8r32		68.508	31.486	0.006							0.012
pg174_o2nofp.cx10a_c8r32		68.375	31.619	0.003	0.003						0.018
pg175_o2nofp.cx10a_c8r32		68.000	31.994	0.003	0.003						0.018
pg176_o2nofp.cx10a_c8r32		67.072	32.922	0.003	0.003						0.018
pg177_o2nofp.cx10a_c8r32		68.564	31.428	0.006	0.003						0.018
pg178_o2nofp.cx10a_c8r32		69.489	30.506	0.006							0.010
pg179_o2nofp.cx10a_c8r32		67.828	32.169	0.003							0.004

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max
pg170_o2nofp.cx10a_c8r32	0.056	17.714	75.872	6.356	0.003						0.016
pg171_o2nofp.cx10a_c8r32	0.044	18.792	75.594	5.569							0.015
pg172_o2nofp.cx10a_c8r32	0.081	13.106	82.550	4.261	0.003						0.017
pg173_o2nofp.cx10a_c8r32	0.153	13.544	81.319	4.983							0.011
pg174_o2nofp.cx10a_c8r32	0.097	18.481	74.550	6.869	0.003						0.016
pg175_o2nofp.cx10a_c8r32	0.111	16.003	78.222	5.661	0.003						0.016
pg176_o2nofp.cx10a_c8r32	0.044	16.214	77.064	6.675	0.003						0.016
pg177_o2nofp.cx10a_c8r32	0.075	14.636	77.578	7.708	0.003						0.016
pg178_o2nofp.cx10a_c8r32	0.094	14.875	78.300	6.731							0.009
pg179_o2nofp.cx10a_c8r32	0.042	17.506	77.344	5.108							0.009

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
999	13136	0	0.0	40.9	3.5	0.000	0.000	0.041	3.586	51016	10.9	3.884	66	8.1	31.9	0.3	0.001	13150	12973	pg170_o2nofp.cx10a_c8r32
999	12798	0	0.0	40.9	3.5	0.000	0.000	0.041	3.597	49714	11.1	3.884	69	8.1	31.9	0.3	0.001	12814	12622	pg171_o2nofp.cx10a_c8r32
999	13118	0	0.0	41.0	3.5	0.000	0.000	0.041	3.596	50916	10.9	3.881	66	8.1	31.6	2.3	0.001	13131	12970	pg172_o2nofp.cx10a_c8r32
999	13184	0	0.0	41.0	3.5	0.000	0.000	0.041	3.600	51171	10.9	3.881	66	8.1	31.9	0.3	0.001	13196	13036	pg173_o2nofp.cx10a_c8r32
999	13184	0	0.0	41.1	3.5	0.000	0.000	0.041	3.603	51169	10.8	3.881	66	8.1	31.9	0.3	0.001	13195	13031	pg174_o2nofp.cx10a_c8r32
999	13195	0	0.0	41.0	3.5	0.000	0.000	0.041	3.600	51241	10.8	3.883	65	8.1	31.5	2.3	0.001	13214	13038	pg175_o2nofp.cx10a_c8r32
999	13179	0	0.0	41.3	3.5	0.000	0.000	0.041	3.605	51178	10.9	3.883	66	8.1	31.9	0.3	0.002	13198	13035	pg176_o2nofp.cx10a_c8r32
999	13136	0	0.0	41.2	3.5	0.000	0.000	0.041	3.574	50986	10.9	3.881	66	8.0	31.6	0.3	0.002	13148	12958	pg177_o2nofp.cx10a_c8r32
999	13139	0	0.0	41.0	3.5	0.000	0.000	0.041	3.563	51023	10.9	3.883	66	8.0	31.9	0.3	0.002	13150	13006	pg178_o2nofp.cx10a_c8r32
999	13204	0	0.0	41.4	3.5	0.000	0.000	0.041	3.607	51245	10.9	3.881	66	8.1	31.5	0.3	0.001	13213	13051	pg179_o2nofp.cx10a_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.001	0.002	0.000	0.000	0.000	0.011	40.50	3539.5	1.800	2.997	0.659	86.89	0.111	1624.8	0.000	0.000	0.005	40.83	3.427	2.010	0.029	1.289		pg170_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	40.54	3549.7	1.667	2.554	0.653	86.91	0.107	1624.8	0.000	0.000	0.005	42.78	3.439	2.028	0.028	1.284		pg171_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	40.65	3550.8	1.780	2.967	0.647	86.90	0.107	1624.8	0.000	0.000	0.005	42.54	3.408	1.943	0.028	1.252		pg172_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	40.65	3555.1	1.810	3.062	0.635	86.97	0.108	1633.9	0.000	0.000	0.004	42.34	3.428	1.920	0.027	1.210		pg173_o2nofp.cx10a_c8r32
0.001	0.002	0.000	0.000	0.000	0.011	40.70	3558.4	1.783	2.843	0.646	86.95	0.106	1624.8	0.000	0.000	0.004	42.77	3.448	1.922	0.028	1.213		pg174_o2nofp.cx10a_c8r32
0.001	0.002	0.000	0.000	0.003	0.011	40.61	3552.8	1.767	2.892	0.633	87.01	0.103	1633.9	0.000	0.000	0.002	44.65	3.444	1.868	0.027	1.240		pg175_o2nofp.cx10a_c8r32
0.001	0.004	0.000	0.000	0.000	0.022	40.96	3558.0	1.725	2.765	0.620	86.47	0.108	1624.8	0.000	0.000	0.005	42.10	3.424	1.837	0.027	1.243		pg176_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	40.79	3528.8	1.885	3.444	0.651	85.94	0.103	1621.9	0.000	0.000	0.005	87.35	3.463	1.847	0.028	1.247		pg177_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	40.66	3515.3	1.782	3.033	0.660	86.31	0.106	1633.9	0.000	0.000	0.005	43.24	3.427	1.966	0.028	1.253		pg178_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	0.000	0.000	41.07	3562.6	1.767	3.034	0.610	86.53	0.106	1624.8	0.000	0.000	0.007	85.29	3.445	1.651	0.026	1.162		pg179_o2nofp.cx10a_c8r32

---

l.i0

l.i0: load without secondary indexes

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
209790	0	0	0.0	781.0	89.0	0.000	0.000	0.004	0.434	22162	19.4	0.106	7	2.9	7.8	2.4	0.003	210679	203187	pg170_o2nofp.cx10a_c8r32
208333	0	0	0.0	773.0	87.9	0.000	0.000	0.004	0.432	21782	19.4	0.105	7	2.9	7.8	2.4	0.006	208566	200369	pg171_o2nofp.cx10a_c8r32
211268	0	0	0.0	787.1	89.6	0.000	0.000	0.004	0.434	22157	19.8	0.105	7	2.9	7.8	1.8	0.006	212678	205147	pg172_o2nofp.cx10a_c8r32
209790	0	0	0.0	777.7	88.5	0.000	0.000	0.004	0.432	21843	19.3	0.104	7	2.9	7.8	2.4	0.002	209879	207172	pg173_o2nofp.cx10a_c8r32
208333	0	0	0.0	777.0	88.4	0.000	0.000	0.004	0.435	21824	19.4	0.105	7	2.9	7.8	2.4	0.002	209676	200779	pg174_o2nofp.cx10a_c8r32
208333	0	0	0.0	778.7	88.5	0.000	0.000	0.004	0.435	21775	19.4	0.105	7	2.9	7.8	2.4	0.004	209566	201178	pg175_o2nofp.cx10a_c8r32
206896	0	0	0.0	777.5	88.4	0.000	0.000	0.004	0.438	21734	19.5	0.105	8	2.9	7.8	2.4	0.002	209965	201077	pg176_o2nofp.cx10a_c8r32
211268	0	0	0.0	785.4	89.3	0.000	0.000	0.004	0.433	21925	19.4	0.104	7	2.9	7.8	2.4	0.002	211868	203367	pg177_o2nofp.cx10a_c8r32
211268	0	0	0.0	786.8	89.5	0.000	0.000	0.004	0.434	22218	19.4	0.105	7	2.9	7.8	2.4	0.003	212664	204274	pg178_o2nofp.cx10a_c8r32
209790	0	0	0.0	781.3	88.8	0.000	0.000	0.004	0.433	21920	19.5	0.104	7	2.9	7.8	2.4	0.003	210373	201867	pg179_o2nofp.cx10a_c8r32

---

l.x

l.x: create secondary indexes

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
491805	0	1	0.0	999.2	122.7	0.000	0.000	0.002	0.255	2756	11.3	0.006	2	5.8	13.3	3.0	0.002	NA	NA	pg170_o2nofp.cx10a_c8r32
491805	0	1	0.0	1007.7	123.9	0.000	0.000	0.002	0.258	2721	11.4	0.006	2	5.8	13.3	3.0	0.002	NA	NA	pg171_o2nofp.cx10a_c8r32
491805	0	0	0.0	1007.5	123.8	0.000	0.000	0.002	0.258	2997	11.4	0.006	2	5.8	13.3	3.0	0.002	NA	NA	pg172_o2nofp.cx10a_c8r32
491805	0	1	0.0	1026.3	126.1	0.000	0.000	0.002	0.263	2764	11.2	0.006	2	5.8	13.3	3.0	0.002	NA	NA	pg173_o2nofp.cx10a_c8r32
491805	0	1	0.0	1073.9	132.0	0.000	0.000	0.002	0.275	2792	11.5	0.006	2	5.8	13.3	3.0	0.002	NA	NA	pg174_o2nofp.cx10a_c8r32
491805	0	0	0.0	1077.8	132.5	0.000	0.000	0.002	0.276	2856	11.5	0.006	2	5.8	13.3	3.0	0.001	NA	NA	pg175_o2nofp.cx10a_c8r32
491805	0	1	0.0	1065.2	131.0	0.000	0.000	0.002	0.273	2827	11.5	0.006	2	5.8	13.3	3.0	0.002	NA	NA	pg176_o2nofp.cx10a_c8r32
491805	0	1	0.0	1017.7	125.0	0.000	0.000	0.002	0.260	2849	11.5	0.006	2	5.8	13.3	3.0	0.001	NA	NA	pg177_o2nofp.cx10a_c8r32
491805	0	1	0.0	1011.7	124.2	0.000	0.000	0.002	0.259	2971	11.2	0.006	2	5.8	13.3	3.0	0.002	NA	NA	pg178_o2nofp.cx10a_c8r32
491805	0	1	0.0	997.7	122.5	0.000	0.000	0.002	0.255	2894	11.6	0.006	2	5.8	13.3	3.0	0.001	NA	NA	pg179_o2nofp.cx10a_c8r32

---

l.i1

l.i1: continue load after secondary indexes created with 50 inserts per transaction

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
21870	0	0	0.0	262.2	29.6	0.000	0.000	0.012	1.386	8991	20.1	0.411	74	7.8	38.3	5.6	0.049	16697	11798	pg170_o2nofp.cx10a_c8r32
21906	0	0	0.0	262.7	29.7	0.000	0.000	0.012	1.386	9065	20.2	0.414	74	7.8	38.3	7.6	0.036	16598	11748	pg171_o2nofp.cx10a_c8r32
20672	0	0	0.0	247.7	28.0	0.000	0.000	0.012	1.385	8564	19.5	0.414	75	7.8	38.3	2.3	0.034	13498	7899	pg172_o2nofp.cx10a_c8r32
21786	0	0	0.0	261.2	29.5	0.000	0.000	0.012	1.386	9000	20.1	0.413	74	7.8	38.3	6.1	0.036	16398	11548	pg173_o2nofp.cx10a_c8r32
21598	0	0	0.0	258.8	29.2	0.000	0.000	0.012	1.385	8899	20.1	0.412	74	7.8	38.3	5.5	0.039	16397	11648	pg174_o2nofp.cx10a_c8r32
21494	0	0	0.0	257.6	29.1	0.000	0.000	0.012	1.385	8865	20.2	0.412	75	7.8	38.3	6.3	0.035	16397	11647	pg175_o2nofp.cx10a_c8r32
21425	0	0	0.0	256.9	29.0	0.000	0.000	0.012	1.386	8843	20.1	0.413	75	7.8	38.3	6.4	0.032	16048	11297	pg176_o2nofp.cx10a_c8r32
20243	0	0	0.0	242.9	27.4	0.000	0.000	0.012	1.386	8363	19.5	0.413	77	7.8	38.3	2.0	0.030	13348	7749	pg177_o2nofp.cx10a_c8r32
21505	0	0	0.0	257.7	29.1	0.000	0.000	0.012	1.386	8914	19.9	0.415	74	7.8	38.3	3.6	0.026	14048	9499	pg178_o2nofp.cx10a_c8r32
20779	0	0	0.0	249.3	28.1	0.000	0.000	0.012	1.386	8595	19.8	0.414	76	7.8	38.3	1.6	0.034	13698	9247	pg179_o2nofp.cx10a_c8r32

---

l.i2

l.i2: continue load after secondary indexes created with 5 inserts per transaction

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
2641	0	0	0.0	58.3	5.8	0.000	0.000	0.022	2.235	9956	15.2	3.770	461	7.9	40.2	2.8	0.004	1940	1345	pg170_o2nofp.cx10a_c8r32
2737	0	0	0.0	59.5	5.9	0.000	0.000	0.022	2.208	10338	15.3	3.776	447	7.9	40.3	0.4	0.013	1970	1360	pg171_o2nofp.cx10a_c8r32
2483	0	0	0.0	56.1	5.5	0.000	0.000	0.023	2.272	9348	15.0	3.765	483	7.9	39.9	0.2	0.023	1620	1035	pg172_o2nofp.cx10a_c8r32
2814	0	0	0.0	60.5	6.0	0.000	0.000	0.022	2.183	10635	15.2	3.779	432	7.9	40.2	8.0	0.003	2120	1370	pg173_o2nofp.cx10a_c8r32
2558	0	0	0.0	57.3	5.6	0.000	0.000	0.022	2.257	9620	15.3	3.762	479	7.9	40.1	0.2	0.008	1830	1255	pg174_o2nofp.cx10a_c8r32
2556	0	0	0.0	56.2	5.5	0.000	0.000	0.022	2.210	9602	15.2	3.756	476	7.9	39.8	6.5	0.014	1930	1340	pg175_o2nofp.cx10a_c8r32
2658	0	0	0.0	58.5	5.8	0.000	0.000	0.022	2.233	10029	15.1	3.773	454	7.9	40.2	0.2	0.013	1905	1275	pg176_o2nofp.cx10a_c8r32
2305	0	0	0.0	53.8	5.3	0.000	0.000	0.023	2.346	8671	14.9	3.761	517	7.9	40.0	0.3	0.003	1384	865	pg177_o2nofp.cx10a_c8r32
2623	0	0	0.0	58.1	5.7	0.000	0.000	0.022	2.241	9904	15.2	3.777	464	7.9	40.2	0.2	0.006	1715	1075	pg178_o2nofp.cx10a_c8r32
2509	0	0	0.0	55.8	5.5	0.000	0.000	0.022	2.234	9448	15.2	3.765	485	7.9	39.7	0.3	0.003	1780	1190	pg179_o2nofp.cx10a_c8r32

---

qr100.L1

qr100.L1: range queries with 100 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
100	26985	0	0.0	12.2	0.8	0.000	0.000	0.123	7.722	102956	8.5	3.815	25	7.9	40.2	0.1	0.002	26987	26599	pg170_o2nofp.cx10a_c8r32
100	26840	0	0.0	12.1	0.8	0.000	0.000	0.122	7.717	102405	8.5	3.815	25	7.9	40.2	0.1	0.001	26855	26396	pg171_o2nofp.cx10a_c8r32
100	26705	0	0.0	12.2	0.8	0.000	0.000	0.122	7.726	101943	8.5	3.817	25	7.9	39.9	0.1	0.003	26733	26251	pg172_o2nofp.cx10a_c8r32
100	26992	0	0.0	12.1	0.8	0.000	0.000	0.121	7.712	102981	8.7	3.815	26	7.9	40.2	0.1	0.001	27000	26619	pg173_o2nofp.cx10a_c8r32
100	27061	0	0.0	12.2	0.8	0.000	0.000	0.122	7.725	103300	8.0	3.817	24	7.9	40.1	0.1	0.001	27068	26699	pg174_o2nofp.cx10a_c8r32
100	27007	0	0.0	12.2	0.8	0.000	0.000	0.122	7.702	103093	8.7	3.817	26	7.9	39.8	0.1	0.001	27020	26563	pg175_o2nofp.cx10a_c8r32
100	27057	0	0.0	12.2	0.8	0.000	0.000	0.122	7.724	103232	8.7	3.815	26	7.9	40.2	0.1	0.001	27083	26509	pg176_o2nofp.cx10a_c8r32
100	26905	0	0.0	12.3	0.8	0.000	0.000	0.123	7.753	102652	8.0	3.815	24	7.9	40.0	0.1	0.001	26907	26523	pg177_o2nofp.cx10a_c8r32
100	26914	0	0.0	12.2	0.8	0.000	0.000	0.122	7.718	102742	8.5	3.817	25	7.9	40.2	0.1	0.001	26939	26507	pg178_o2nofp.cx10a_c8r32
100	27209	0	0.0	12.2	0.8	0.000	0.000	0.123	7.737	103865	8.3	3.817	24	7.9	39.7	0.1	0.003	27241	26817	pg179_o2nofp.cx10a_c8r32

---

qp100.L2

qp100.L2: point queries with 100 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
100	13175	0	0.0	58.9	1.6	0.000	0.000	0.590	16.797	50844	10.0	3.859	61	7.9	40.2	0.1	0.002	13178	13083	pg170_o2nofp.cx10a_c8r32
100	12360	0	0.0	58.8	1.6	0.000	0.000	0.588	16.802	47709	10.3	3.860	67	7.9	40.2	0.1	0.002	12366	12267	pg171_o2nofp.cx10a_c8r32
100	13236	0	0.0	59.0	1.6	0.000	0.000	0.590	16.790	51081	9.9	3.859	60	7.9	39.9	0.1	0.001	13246	13130	pg172_o2nofp.cx10a_c8r32
100	13205	0	0.0	58.9	1.6	0.000	0.000	0.590	16.795	50961	10.1	3.859	61	7.9	40.2	0.9	0.001	13198	13115	pg173_o2nofp.cx10a_c8r32
100	13240	0	0.0	58.7	1.6	0.000	0.000	0.588	16.792	51122	9.9	3.861	60	7.9	40.1	0.1	0.001	13246	13145	pg174_o2nofp.cx10a_c8r32
100	13303	0	0.0	59.0	1.6	0.000	0.000	0.591	16.865	51371	9.9	3.862	60	7.9	39.8	0.1	0.001	13310	13199	pg175_o2nofp.cx10a_c8r32
100	13251	0	0.0	58.7	1.6	0.000	0.000	0.587	16.794	51139	10.2	3.859	62	7.9	40.2	0.1	0.001	13261	13150	pg176_o2nofp.cx10a_c8r32
100	13249	0	0.0	58.7	1.6	0.000	0.000	0.588	16.782	51138	9.8	3.860	59	7.9	40.0	1.6	0.001	13246	13086	pg177_o2nofp.cx10a_c8r32
100	13360	0	0.0	58.8	1.6	0.000	0.000	0.589	16.802	51587	9.7	3.861	58	7.9	40.2	0.1	0.001	13374	13262	pg178_o2nofp.cx10a_c8r32
100	13206	0	0.0	59.0	1.6	0.000	0.000	0.591	16.790	50995	10.1	3.861	61	7.9	39.7	0.1	0.002	13214	13102	pg179_o2nofp.cx10a_c8r32

---

qr500.L3

qr500.L3: range queries with 500 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
500	24473	0	0.0	66.8	2.2	0.000	0.000	0.134	4.597	93510	9.5	3.821	31	7.9	39.0	0.3	0.004	24451	23004	pg170_o2nofp.cx10a_c8r32
500	24263	0	0.0	66.7	2.2	0.000	0.000	0.134	4.597	92708	9.4	3.821	31	7.9	39.0	0.3	0.002	24236	22732	pg171_o2nofp.cx10a_c8r32
500	24179	0	0.0	66.9	2.2	0.000	0.000	0.134	4.590	92390	9.2	3.821	30	7.9	38.8	0.3	0.002	24188	22652	pg172_o2nofp.cx10a_c8r32
500	24438	0	0.0	66.8	2.2	0.000	0.000	0.134	4.590	93421	9.5	3.823	31	7.9	39.0	0.3	0.002	24444	22887	pg173_o2nofp.cx10a_c8r32
500	24426	0	0.0	66.8	2.2	0.000	0.000	0.134	4.592	93328	9.1	3.821	30	7.9	39.0	0.3	0.001	24428	22860	pg174_o2nofp.cx10a_c8r32
499	24228	0	0.0	67.1	2.3	0.000	0.000	0.134	4.685	92633	9.4	3.823	31	8.0	38.7	0.4	0.002	24252	22717	pg175_o2nofp.cx10a_c8r32
499	24218	0	0.0	66.5	2.3	0.000	0.000	0.133	4.626	92589	9.4	3.823	31	7.9	39.0	0.3	0.002	24210	22680	pg176_o2nofp.cx10a_c8r32
500	24403	0	0.0	66.9	2.3	0.000	0.000	0.134	4.617	93537	9.6	3.833	31	7.9	38.8	0.3	0.002	24430	22300	pg177_o2nofp.cx10a_c8r32
499	24326	0	0.0	66.7	2.2	0.000	0.000	0.134	4.599	92998	9.1	3.823	30	7.9	39.0	0.3	0.002	24331	22797	pg178_o2nofp.cx10a_c8r32
499	24727	0	0.0	66.8	2.2	0.000	0.000	0.134	4.599	94527	9.1	3.823	29	7.9	38.6	0.3	0.002	24779	23210	pg179_o2nofp.cx10a_c8r32

---

qp500.L4

qp500.L4: point queries with 500 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
499	13167	0	0.0	42.1	3.0	0.000	0.000	0.084	6.099	50956	10.5	3.870	64	8.0	36.9	0.3	0.001	13182	13016	pg170_o2nofp.cx10a_c8r32
500	12948	0	0.0	42.0	3.0	0.000	0.000	0.084	6.092	50085	10.6	3.868	65	8.0	36.9	0.3	0.001	12958	12778	pg171_o2nofp.cx10a_c8r32
500	13084	0	0.0	42.2	3.0	0.000	0.000	0.084	6.108	50610	10.5	3.868	64	8.0	36.7	0.3	0.002	13099	12941	pg172_o2nofp.cx10a_c8r32
500	13231	0	0.0	42.2	3.0	0.000	0.000	0.084	6.102	51172	10.5	3.868	63	8.0	36.9	0.3	0.001	13241	13118	pg173_o2nofp.cx10a_c8r32
500	13218	0	0.0	42.2	3.0	0.000	0.000	0.084	6.104	51124	10.4	3.868	63	8.0	36.9	0.3	0.002	13230	13070	pg174_o2nofp.cx10a_c8r32
499	13285	0	0.0	42.0	3.0	0.000	0.000	0.084	6.085	51405	10.3	3.870	62	8.0	36.6	0.3	0.001	13307	13134	pg175_o2nofp.cx10a_c8r32
499	13172	0	0.0	41.7	3.0	0.000	0.000	0.084	6.073	50974	10.5	3.870	64	8.0	36.9	0.3	0.001	13196	13038	pg176_o2nofp.cx10a_c8r32
500	13248	0	0.0	42.1	3.0	0.000	0.000	0.084	6.076	51239	10.4	3.868	63	7.9	36.7	0.3	0.001	13278	13006	pg177_o2nofp.cx10a_c8r32
499	13204	0	0.0	42.0	3.0	0.000	0.000	0.084	6.082	51097	10.5	3.870	64	7.9	36.9	0.3	0.002	13214	13100	pg178_o2nofp.cx10a_c8r32
500	13115	0	0.0	42.0	3.0	0.000	0.000	0.084	6.067	50725	10.5	3.868	64	7.9	36.5	0.3	0.001	13129	12958	pg179_o2nofp.cx10a_c8r32

---

qr1000.L5

qr1000.L5: range queries with 1000 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
999	24609	0	0.0	50.8	3.5	0.000	0.000	0.051	3.556	94262	9.6	3.830	31	8.0	34.7	0.4	0.004	24540	22220	pg170_o2nofp.cx10a_c8r32
999	24447	0	0.0	51.1	3.5	0.000	0.000	0.051	3.553	93646	9.8	3.831	32	8.0	34.7	0.4	0.004	24381	22108	pg171_o2nofp.cx10a_c8r32
999	24454	0	0.0	51.1	3.5	0.000	0.000	0.051	3.553	93621	9.8	3.828	32	8.0	34.4	0.4	0.004	24396	21930	pg172_o2nofp.cx10a_c8r32
999	24551	0	0.0	50.9	3.5	0.000	0.000	0.051	3.556	93989	9.9	3.828	32	8.0	34.7	0.4	0.005	24444	22204	pg173_o2nofp.cx10a_c8r32
999	24462	0	0.0	51.1	3.5	0.000	0.000	0.051	3.552	93750	9.8	3.833	32	8.0	34.6	0.4	0.004	24396	22008	pg174_o2nofp.cx10a_c8r32
999	24413	0	0.0	50.8	3.4	0.000	0.000	0.051	3.513	93512	9.6	3.830	31	8.0	34.3	0.4	0.004	24393	21949	pg175_o2nofp.cx10a_c8r32
999	24501	0	0.0	50.7	3.4	0.000	0.000	0.051	3.515	93852	9.9	3.831	32	8.0	34.6	0.4	0.004	24428	22156	pg176_o2nofp.cx10a_c8r32
999	24446	0	0.0	50.6	3.4	0.000	0.000	0.051	3.494	93592	9.6	3.828	31	8.0	34.4	0.3	0.005	24396	22124	pg177_o2nofp.cx10a_c8r32
999	24359	0	0.0	50.6	3.4	0.000	0.000	0.051	3.511	93314	9.5	3.831	31	8.0	34.6	0.4	0.004	24299	21978	pg178_o2nofp.cx10a_c8r32
999	24823	0	0.0	50.9	3.4	0.000	0.000	0.051	3.531	95027	9.6	3.828	31	8.0	34.2	0.4	0.004	24800	22349	pg179_o2nofp.cx10a_c8r32

---

qp1000.L6

qp1000.L6: point queries with 1000 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
999	13136	0	0.0	40.9	3.5	0.000	0.000	0.041	3.586	51016	10.9	3.884	66	8.1	31.9	0.3	0.001	13150	12973	pg170_o2nofp.cx10a_c8r32
999	12798	0	0.0	40.9	3.5	0.000	0.000	0.041	3.597	49714	11.1	3.884	69	8.1	31.9	0.3	0.001	12814	12622	pg171_o2nofp.cx10a_c8r32
999	13118	0	0.0	41.0	3.5	0.000	0.000	0.041	3.596	50916	10.9	3.881	66	8.1	31.6	2.3	0.001	13131	12970	pg172_o2nofp.cx10a_c8r32
999	13184	0	0.0	41.0	3.5	0.000	0.000	0.041	3.600	51171	10.9	3.881	66	8.1	31.9	0.3	0.001	13196	13036	pg173_o2nofp.cx10a_c8r32
999	13184	0	0.0	41.1	3.5	0.000	0.000	0.041	3.603	51169	10.8	3.881	66	8.1	31.9	0.3	0.001	13195	13031	pg174_o2nofp.cx10a_c8r32
999	13195	0	0.0	41.0	3.5	0.000	0.000	0.041	3.600	51241	10.8	3.883	65	8.1	31.5	2.3	0.001	13214	13038	pg175_o2nofp.cx10a_c8r32
999	13179	0	0.0	41.3	3.5	0.000	0.000	0.041	3.605	51178	10.9	3.883	66	8.1	31.9	0.3	0.002	13198	13035	pg176_o2nofp.cx10a_c8r32
999	13136	0	0.0	41.2	3.5	0.000	0.000	0.041	3.574	50986	10.9	3.881	66	8.0	31.6	0.3	0.002	13148	12958	pg177_o2nofp.cx10a_c8r32
999	13139	0	0.0	41.0	3.5	0.000	0.000	0.041	3.563	51023	10.9	3.883	66	8.0	31.9	0.3	0.002	13150	13006	pg178_o2nofp.cx10a_c8r32
999	13204	0	0.0	41.4	3.5	0.000	0.000	0.041	3.607	51245	10.9	3.881	66	8.1	31.5	0.3	0.001	13213	13051	pg179_o2nofp.cx10a_c8r32

---

l.i0

• l.i0: load without secondary indexes
• Legend for results is here.
• Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	99.987	0.013	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg170_o2nofp.cx10a_c8r32
0.000	99.988	0.012	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.006	pg171_o2nofp.cx10a_c8r32
0.000	99.988	0.011	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.006	pg172_o2nofp.cx10a_c8r32
0.000	99.992	0.008	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg173_o2nofp.cx10a_c8r32
0.000	99.994	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg174_o2nofp.cx10a_c8r32
0.000	99.984	0.016	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg175_o2nofp.cx10a_c8r32
0.000	99.988	0.012	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg176_o2nofp.cx10a_c8r32
0.000	99.993	0.007	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg177_o2nofp.cx10a_c8r32
0.000	99.990	0.010	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg178_o2nofp.cx10a_c8r32
0.000	99.990	0.010	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg179_o2nofp.cx10a_c8r32

---

l.x

• l.x: create secondary indexes
• Legend for results is here.
• Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

TODO - determine whether there is data for create index response time

---

l.i1

• l.i1: continue load after secondary indexes created with 50 inserts per transaction
• Legend for results is here.
• Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	51.290	48.709	0.001	0.001	0.000	0.000	0.000	0.000	0.000	0.049	pg170_o2nofp.cx10a_c8r32
0.000	50.374	49.625	nonzero	0.001	0.000	0.000	0.000	0.000	0.000	0.036	pg171_o2nofp.cx10a_c8r32
0.000	57.941	42.057	nonzero	0.001	0.000	0.000	0.000	0.000	0.000	0.034	pg172_o2nofp.cx10a_c8r32
0.000	51.384	48.615	0.001	0.001	0.000	0.000	0.000	0.000	0.000	0.036	pg173_o2nofp.cx10a_c8r32
0.000	50.798	49.201	nonzero	0.001	0.000	0.000	0.000	0.000	0.000	0.039	pg174_o2nofp.cx10a_c8r32
0.000	47.444	52.554	0.001	0.001	0.000	0.000	0.000	0.000	0.000	0.035	pg175_o2nofp.cx10a_c8r32
0.000	49.453	50.545	nonzero	0.001	0.000	0.000	0.000	0.000	0.000	0.032	pg176_o2nofp.cx10a_c8r32
0.000	57.524	42.474	0.001	0.001	0.000	0.000	0.000	0.000	0.000	0.030	pg177_o2nofp.cx10a_c8r32
0.000	57.408	42.590	0.001	0.001	0.000	0.000	0.000	0.000	0.000	0.026	pg178_o2nofp.cx10a_c8r32
0.000	55.229	44.770	nonzero	0.001	0.000	0.000	0.000	0.000	0.000	0.034	pg179_o2nofp.cx10a_c8r32

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.002	25.749	70.792	3.455	0.001	0.000	0.000	0.000	0.000	0.000	0.048	pg170_o2nofp.cx10a_c8r32
0.001	26.731	69.950	3.316	0.002	0.000	0.000	0.000	0.000	0.000	0.039	pg171_o2nofp.cx10a_c8r32
0.002	26.660	54.417	18.920	0.001	0.000	0.000	0.000	0.000	0.000	0.043	pg172_o2nofp.cx10a_c8r32
0.002	26.063	70.583	3.351	0.002	0.000	0.000	0.000	0.000	0.000	0.043	pg173_o2nofp.cx10a_c8r32
0.003	25.996	69.644	4.355	0.002	0.000	0.000	0.000	0.000	0.000	0.041	pg174_o2nofp.cx10a_c8r32
0.003	25.709	70.012	4.276	0.001	0.000	0.000	0.000	0.000	0.000	0.035	pg175_o2nofp.cx10a_c8r32
0.002	26.272	68.371	5.354	0.002	0.000	0.000	0.000	0.000	0.000	0.038	pg176_o2nofp.cx10a_c8r32
0.003	26.537	53.270	20.188	0.001	0.000	0.000	0.000	0.000	0.000	0.034	pg177_o2nofp.cx10a_c8r32
0.003	28.706	54.987	16.302	0.002	0.000	0.000	0.000	0.000	0.000	0.039	pg178_o2nofp.cx10a_c8r32
0.003	27.183	54.944	17.867	0.002	0.000	0.000	0.000	0.000	0.000	0.037	pg179_o2nofp.cx10a_c8r32

---

l.i2

• l.i2: continue load after secondary indexes created with 5 inserts per transaction
• Legend for results is here.
• Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
49.246	50.753	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg170_o2nofp.cx10a_c8r32
52.115	47.884	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg171_o2nofp.cx10a_c8r32
49.241	50.758	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.023	pg172_o2nofp.cx10a_c8r32
56.452	43.547	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg173_o2nofp.cx10a_c8r32
47.704	52.296	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg174_o2nofp.cx10a_c8r32
48.694	51.305	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.014	pg175_o2nofp.cx10a_c8r32
53.163	46.835	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg176_o2nofp.cx10a_c8r32
55.291	44.708	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg177_o2nofp.cx10a_c8r32
50.667	49.332	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.006	pg178_o2nofp.cx10a_c8r32
44.147	55.853	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg179_o2nofp.cx10a_c8r32

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
4.464	21.257	74.232	0.047	nonzero	0.000	0.000	0.000	0.000	0.000	0.019	pg170_o2nofp.cx10a_c8r32
4.551	24.037	71.363	0.049	nonzero	0.000	0.000	0.000	0.000	0.000	0.017	pg171_o2nofp.cx10a_c8r32
4.572	31.663	58.788	4.976	nonzero	0.000	0.000	0.000	0.000	0.000	0.023	pg172_o2nofp.cx10a_c8r32
4.546	18.229	77.180	0.044	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg173_o2nofp.cx10a_c8r32
4.558	22.661	72.384	0.397	0.000	0.000	0.000	0.000	0.000	0.000	0.014	pg174_o2nofp.cx10a_c8r32
3.888	17.853	78.202	0.058	0.000	0.000	0.000	0.000	0.000	0.000	0.014	pg175_o2nofp.cx10a_c8r32
4.456	19.765	75.583	0.196	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg176_o2nofp.cx10a_c8r32
4.530	32.706	44.473	18.291	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg177_o2nofp.cx10a_c8r32
4.505	34.528	57.175	3.792	0.000	0.000	0.000	0.000	0.000	0.000	0.012	pg178_o2nofp.cx10a_c8r32
4.576	27.340	66.904	1.179	0.000	0.000	0.000	0.000	0.000	0.000	0.007	pg179_o2nofp.cx10a_c8r32

---

qr100.L1

• qr100.L1: range queries with 100 insert/s per client
• Legend for results is here.
• Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.993	0.007	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg170_o2nofp.cx10a_c8r32
99.993	0.007	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg171_o2nofp.cx10a_c8r32
99.993	0.007	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg172_o2nofp.cx10a_c8r32
99.993	0.007	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg173_o2nofp.cx10a_c8r32
99.993	0.007	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg174_o2nofp.cx10a_c8r32
99.993	0.007	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg175_o2nofp.cx10a_c8r32
99.995	0.005	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg176_o2nofp.cx10a_c8r32
99.994	0.006	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg177_o2nofp.cx10a_c8r32
99.992	0.008	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg178_o2nofp.cx10a_c8r32
99.994	0.006	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg179_o2nofp.cx10a_c8r32

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	20.056	79.917	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg170_o2nofp.cx10a_c8r32
0.000	23.861	76.111	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg171_o2nofp.cx10a_c8r32
0.000	22.000	77.972	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg172_o2nofp.cx10a_c8r32
0.000	22.917	77.056	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg173_o2nofp.cx10a_c8r32
0.000	20.944	79.028	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg174_o2nofp.cx10a_c8r32
0.000	19.694	80.278	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg175_o2nofp.cx10a_c8r32
0.000	18.417	81.556	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg176_o2nofp.cx10a_c8r32
0.000	22.806	77.167	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg177_o2nofp.cx10a_c8r32
0.000	21.472	78.500	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg178_o2nofp.cx10a_c8r32
0.000	22.306	77.667	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg179_o2nofp.cx10a_c8r32

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.056	62.861	37.083	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg170_o2nofp.cx10a_c8r32
0.056	65.972	33.972	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg171_o2nofp.cx10a_c8r32
0.028	65.472	34.500	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg172_o2nofp.cx10a_c8r32
0.000	65.361	34.639	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg173_o2nofp.cx10a_c8r32
0.000	64.750	35.250	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg174_o2nofp.cx10a_c8r32
0.000	63.361	36.639	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg175_o2nofp.cx10a_c8r32
0.028	61.833	38.139	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg176_o2nofp.cx10a_c8r32
0.000	65.861	34.139	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg177_o2nofp.cx10a_c8r32
0.000	63.694	36.306	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg178_o2nofp.cx10a_c8r32
0.000	63.750	36.250	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg179_o2nofp.cx10a_c8r32

---

qp100.L2

• qp100.L2: point queries with 100 insert/s per client
• Legend for results is here.
• Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.982	0.018	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg170_o2nofp.cx10a_c8r32
99.982	0.018	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg171_o2nofp.cx10a_c8r32
99.984	0.016	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg172_o2nofp.cx10a_c8r32
99.984	0.016	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg173_o2nofp.cx10a_c8r32
99.983	0.017	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg174_o2nofp.cx10a_c8r32
99.983	0.017	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg175_o2nofp.cx10a_c8r32
99.985	0.014	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg176_o2nofp.cx10a_c8r32
99.984	0.016	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg177_o2nofp.cx10a_c8r32
99.983	0.017	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg178_o2nofp.cx10a_c8r32
99.987	0.013	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg179_o2nofp.cx10a_c8r32

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	2.167	97.806	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg170_o2nofp.cx10a_c8r32
0.000	2.306	97.667	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg171_o2nofp.cx10a_c8r32
0.000	2.556	97.417	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg172_o2nofp.cx10a_c8r32
0.000	2.861	97.111	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg173_o2nofp.cx10a_c8r32
0.000	2.806	97.167	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg174_o2nofp.cx10a_c8r32
0.000	2.278	97.694	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg175_o2nofp.cx10a_c8r32
0.000	2.528	97.444	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg176_o2nofp.cx10a_c8r32
0.000	3.722	96.250	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg177_o2nofp.cx10a_c8r32
0.000	2.222	97.750	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg178_o2nofp.cx10a_c8r32
0.000	1.917	98.056	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg179_o2nofp.cx10a_c8r32

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	10.111	89.889	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg170_o2nofp.cx10a_c8r32
0.000	11.444	88.556	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg171_o2nofp.cx10a_c8r32
0.000	25.417	74.583	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg172_o2nofp.cx10a_c8r32
0.000	8.056	91.944	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg173_o2nofp.cx10a_c8r32
0.000	9.194	90.806	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg174_o2nofp.cx10a_c8r32
0.000	7.306	92.694	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg175_o2nofp.cx10a_c8r32
0.000	6.556	93.417	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg176_o2nofp.cx10a_c8r32
0.000	8.639	91.361	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg177_o2nofp.cx10a_c8r32
0.000	12.722	87.278	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg178_o2nofp.cx10a_c8r32
0.000	16.444	83.556	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg179_o2nofp.cx10a_c8r32

---

qr500.L3

• qr500.L3: range queries with 500 insert/s per client
• Legend for results is here.
• Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.990	0.010	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg170_o2nofp.cx10a_c8r32
99.990	0.010	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg171_o2nofp.cx10a_c8r32
99.990	0.010	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg172_o2nofp.cx10a_c8r32
99.990	0.010	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg173_o2nofp.cx10a_c8r32
99.989	0.011	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg174_o2nofp.cx10a_c8r32
99.990	0.010	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg175_o2nofp.cx10a_c8r32
99.991	0.009	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg176_o2nofp.cx10a_c8r32
99.990	0.010	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg177_o2nofp.cx10a_c8r32
99.990	0.010	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg178_o2nofp.cx10a_c8r32
99.992	0.008	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg179_o2nofp.cx10a_c8r32

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	74.494	25.500	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg170_o2nofp.cx10a_c8r32
0.000	73.328	26.667	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg171_o2nofp.cx10a_c8r32
0.000	75.583	24.411	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg172_o2nofp.cx10a_c8r32
0.000	74.422	25.572	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg173_o2nofp.cx10a_c8r32
0.000	72.533	27.461	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg174_o2nofp.cx10a_c8r32
0.000	68.828	31.161	0.011	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg175_o2nofp.cx10a_c8r32
0.000	72.494	27.500	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg176_o2nofp.cx10a_c8r32
0.000	75.317	24.678	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg177_o2nofp.cx10a_c8r32
0.000	74.961	25.033	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg178_o2nofp.cx10a_c8r32
0.000	74.922	25.072	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg179_o2nofp.cx10a_c8r32

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	2.472	94.256	3.272	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg170_o2nofp.cx10a_c8r32
0.000	1.744	95.317	2.939	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg171_o2nofp.cx10a_c8r32
0.000	3.328	94.111	2.561	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg172_o2nofp.cx10a_c8r32
0.000	2.117	94.706	3.178	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg173_o2nofp.cx10a_c8r32
0.000	1.600	95.306	3.094	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg174_o2nofp.cx10a_c8r32
0.000	1.328	95.917	2.756	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg175_o2nofp.cx10a_c8r32
0.000	1.200	95.972	2.828	0.000	0.000	0.000	0.000	0.000	0.000	0.007	pg176_o2nofp.cx10a_c8r32
0.000	1.811	94.683	3.506	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg177_o2nofp.cx10a_c8r32
0.000	2.967	94.139	2.894	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg178_o2nofp.cx10a_c8r32
0.000	4.783	92.083	3.133	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg179_o2nofp.cx10a_c8r32

---

qp500.L4

• qp500.L4: point queries with 500 insert/s per client
• Legend for results is here.
• Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.976	0.024	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg170_o2nofp.cx10a_c8r32
99.976	0.024	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg171_o2nofp.cx10a_c8r32
99.976	0.024	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg172_o2nofp.cx10a_c8r32
99.977	0.023	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg173_o2nofp.cx10a_c8r32
99.975	0.025	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg174_o2nofp.cx10a_c8r32
99.978	0.022	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg175_o2nofp.cx10a_c8r32
99.978	0.022	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg176_o2nofp.cx10a_c8r32
99.976	0.024	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg177_o2nofp.cx10a_c8r32
99.976	0.024	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg178_o2nofp.cx10a_c8r32
99.979	0.021	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg179_o2nofp.cx10a_c8r32

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	70.994	28.983	0.011	0.011	0.000	0.000	0.000	0.000	0.000	0.018	pg170_o2nofp.cx10a_c8r32
0.000	68.856	31.139	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg171_o2nofp.cx10a_c8r32
0.000	69.183	30.794	0.022	0.000	0.000	0.000	0.000	0.000	0.000	0.014	pg172_o2nofp.cx10a_c8r32
0.000	68.450	31.539	0.006	0.006	0.000	0.000	0.000	0.000	0.000	0.018	pg173_o2nofp.cx10a_c8r32
0.000	68.689	31.294	0.011	0.006	0.000	0.000	0.000	0.000	0.000	0.017	pg174_o2nofp.cx10a_c8r32
0.000	67.850	32.133	0.017	0.000	0.000	0.000	0.000	0.000	0.000	0.014	pg175_o2nofp.cx10a_c8r32
0.000	69.056	30.922	0.017	0.006	0.000	0.000	0.000	0.000	0.000	0.018	pg176_o2nofp.cx10a_c8r32
0.000	71.194	28.772	0.022	0.011	0.000	0.000	0.000	0.000	0.000	0.018	pg177_o2nofp.cx10a_c8r32
0.000	71.344	28.633	0.017	0.006	0.000	0.000	0.000	0.000	0.000	0.016	pg178_o2nofp.cx10a_c8r32
0.000	69.833	30.144	0.022	0.000	0.000	0.000	0.000	0.000	0.000	0.014	pg179_o2nofp.cx10a_c8r32

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.150	25.028	65.094	9.722	0.006	0.000	0.000	0.000	0.000	0.000	0.017	pg170_o2nofp.cx10a_c8r32
0.122	32.844	57.528	9.506	0.000	0.000	0.000	0.000	0.000	0.000	0.011	pg171_o2nofp.cx10a_c8r32
0.144	31.700	59.794	8.361	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg172_o2nofp.cx10a_c8r32
0.189	30.583	58.950	10.272	0.006	0.000	0.000	0.000	0.000	0.000	0.016	pg173_o2nofp.cx10a_c8r32
0.106	30.428	58.889	10.578	0.000	0.000	0.000	0.000	0.000	0.000	0.016	pg174_o2nofp.cx10a_c8r32
0.161	27.139	61.539	11.161	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg175_o2nofp.cx10a_c8r32
0.106	29.928	56.194	13.767	0.006	0.000	0.000	0.000	0.000	0.000	0.017	pg176_o2nofp.cx10a_c8r32
0.144	28.944	60.533	10.372	0.006	0.000	0.000	0.000	0.000	0.000	0.017	pg177_o2nofp.cx10a_c8r32
0.100	29.328	61.117	9.456	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg178_o2nofp.cx10a_c8r32
0.072	28.639	61.300	9.989	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg179_o2nofp.cx10a_c8r32

---

qr1000.L5

• qr1000.L5: range queries with 1000 insert/s per client
• Legend for results is here.
• Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.988	0.012	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg170_o2nofp.cx10a_c8r32
99.989	0.011	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg171_o2nofp.cx10a_c8r32
99.988	0.012	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg172_o2nofp.cx10a_c8r32
99.989	0.011	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg173_o2nofp.cx10a_c8r32
99.987	0.013	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg174_o2nofp.cx10a_c8r32
99.989	0.011	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg175_o2nofp.cx10a_c8r32
99.989	0.011	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg176_o2nofp.cx10a_c8r32
99.988	0.012	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg177_o2nofp.cx10a_c8r32
99.988	0.012	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg178_o2nofp.cx10a_c8r32
99.990	0.010	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg179_o2nofp.cx10a_c8r32

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	73.006	26.992	0.003	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg170_o2nofp.cx10a_c8r32
0.000	73.344	26.653	0.003	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg171_o2nofp.cx10a_c8r32
0.000	73.142	26.856	0.003	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg172_o2nofp.cx10a_c8r32
0.000	72.508	27.489	0.003	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg173_o2nofp.cx10a_c8r32
0.000	72.736	27.261	0.003	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg174_o2nofp.cx10a_c8r32
0.000	72.775	27.222	0.003	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg175_o2nofp.cx10a_c8r32
0.000	72.181	27.814	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg176_o2nofp.cx10a_c8r32
0.000	72.825	27.172	0.003	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg177_o2nofp.cx10a_c8r32
0.000	73.492	26.506	0.003	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg178_o2nofp.cx10a_c8r32
0.000	73.986	26.011	0.003	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg179_o2nofp.cx10a_c8r32

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.175	20.125	74.753	4.947	0.000	0.000	0.000	0.000	0.000	0.000	0.007	pg170_o2nofp.cx10a_c8r32
0.083	18.803	76.931	4.183	0.000	0.000	0.000	0.000	0.000	0.000	0.007	pg171_o2nofp.cx10a_c8r32
0.081	19.403	76.206	4.311	0.000	0.000	0.000	0.000	0.000	0.000	0.007	pg172_o2nofp.cx10a_c8r32
0.169	16.917	77.611	5.303	0.000	0.000	0.000	0.000	0.000	0.000	0.007	pg173_o2nofp.cx10a_c8r32
0.094	19.406	75.619	4.881	0.000	0.000	0.000	0.000	0.000	0.000	0.007	pg174_o2nofp.cx10a_c8r32
0.139	15.906	79.364	4.592	0.000	0.000	0.000	0.000	0.000	0.000	0.006	pg175_o2nofp.cx10a_c8r32
0.061	15.811	78.789	5.339	0.000	0.000	0.000	0.000	0.000	0.000	0.006	pg176_o2nofp.cx10a_c8r32
0.078	17.833	76.731	5.358	0.000	0.000	0.000	0.000	0.000	0.000	0.007	pg177_o2nofp.cx10a_c8r32
0.108	18.642	76.947	4.303	0.000	0.000	0.000	0.000	0.000	0.000	0.007	pg178_o2nofp.cx10a_c8r32
0.064	20.536	74.336	5.064	0.000	0.000	0.000	0.000	0.000	0.000	0.007	pg179_o2nofp.cx10a_c8r32

---

qp1000.L6

• qp1000.L6: point queries with 1000 insert/s per client
• Legend for results is here.
• Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.973	0.027	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg170_o2nofp.cx10a_c8r32
99.973	0.027	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg171_o2nofp.cx10a_c8r32
99.974	0.026	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg172_o2nofp.cx10a_c8r32
99.973	0.027	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg173_o2nofp.cx10a_c8r32
99.971	0.029	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg174_o2nofp.cx10a_c8r32
99.976	0.024	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg175_o2nofp.cx10a_c8r32
99.975	0.025	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg176_o2nofp.cx10a_c8r32
99.972	0.028	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg177_o2nofp.cx10a_c8r32
99.973	0.027	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg178_o2nofp.cx10a_c8r32
99.977	0.023	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg179_o2nofp.cx10a_c8r32

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	69.219	30.772	0.006	0.003	0.000	0.000	0.000	0.000	0.000	0.018	pg170_o2nofp.cx10a_c8r32
0.000	69.269	30.725	0.003	0.003	0.000	0.000	0.000	0.000	0.000	0.016	pg171_o2nofp.cx10a_c8r32
0.000	68.586	31.408	0.003	0.003	0.000	0.000	0.000	0.000	0.000	0.018	pg172_o2nofp.cx10a_c8r32
0.000	68.508	31.486	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.012	pg173_o2nofp.cx10a_c8r32
0.000	68.375	31.619	0.003	0.003	0.000	0.000	0.000	0.000	0.000	0.018	pg174_o2nofp.cx10a_c8r32
0.000	68.000	31.994	0.003	0.003	0.000	0.000	0.000	0.000	0.000	0.018	pg175_o2nofp.cx10a_c8r32
0.000	67.072	32.922	0.003	0.003	0.000	0.000	0.000	0.000	0.000	0.018	pg176_o2nofp.cx10a_c8r32
0.000	68.564	31.428	0.006	0.003	0.000	0.000	0.000	0.000	0.000	0.018	pg177_o2nofp.cx10a_c8r32
0.000	69.489	30.506	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg178_o2nofp.cx10a_c8r32
0.000	67.828	32.169	0.003	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg179_o2nofp.cx10a_c8r32

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.056	17.714	75.872	6.356	0.003	0.000	0.000	0.000	0.000	0.000	0.016	pg170_o2nofp.cx10a_c8r32
0.044	18.792	75.594	5.569	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg171_o2nofp.cx10a_c8r32
0.081	13.106	82.550	4.261	0.003	0.000	0.000	0.000	0.000	0.000	0.017	pg172_o2nofp.cx10a_c8r32
0.153	13.544	81.319	4.983	0.000	0.000	0.000	0.000	0.000	0.000	0.011	pg173_o2nofp.cx10a_c8r32
0.097	18.481	74.550	6.869	0.003	0.000	0.000	0.000	0.000	0.000	0.016	pg174_o2nofp.cx10a_c8r32
0.111	16.003	78.222	5.661	0.003	0.000	0.000	0.000	0.000	0.000	0.016	pg175_o2nofp.cx10a_c8r32
0.044	16.214	77.064	6.675	0.003	0.000	0.000	0.000	0.000	0.000	0.016	pg176_o2nofp.cx10a_c8r32
0.075	14.636	77.578	7.708	0.003	0.000	0.000	0.000	0.000	0.000	0.016	pg177_o2nofp.cx10a_c8r32
0.094	14.875	78.300	6.731	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg178_o2nofp.cx10a_c8r32
0.042	17.506	77.344	5.108	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg179_o2nofp.cx10a_c8r32
