Introduction

This is a report for the insert benchmark with 120M docs and 12 client(s). It is generated by scripts (bash, awk, sed) and Tufte might not be impressed. An overview of the insert benchmark is here and a short update is here. Below, by DBMS, I mean DBMS+version.config. An example is my8020.c10b40 where my means MySQL, 8020 is version 8.0.20 and c10b40 is the name for the configuration file.

The test server has 32 cores, 128G RAM and 1 NVMe devices. The benchmark was run with 8 clients and there were 1 or 3 connections per client (1 for queries or inserts without rate limits, 1+1 for rate limited inserts+deletes). It uses 8 tables with a table per client. It loads 10M rows per table without secondary indexes, creates 3 secondary indexes per table, then inserts 16m+4m rows per table with a delete per insert to avoid growing the table. It then does 6 read+write tests for 1800s each that do queries as fast as possible with 100,100,500,500,1000,1000 inserts/s and the same for deletes/s per client concurrent with the queries. The database is cached. Clients and the DBMS share one server.

The tested DBMS are:

pg1222_o2nofp.cx10a_c32r128 - Postgres 12.22 with the cx10a_c32r128 config
pg1322_o2nofp.cx10a_c32r128 - Postgres 13.22 with the cx10a_c32r128 config
pg1323_o2nofp.cx10a_c32r128 - Postgres 13.23 with the cx10a_c32r128 config
pg1419_o2nofp.cx10a_c32r128 - Postgres 14.19 with the cx10a_c32r128 config
pg1420_o2nofp.cx10a_c32r128 - Postgres 14.20 with the cx10a_c32r128 config
pg1514_o2nofp.cx10a_c32r128 - Postgres 15.14 with the cx10a_c32r128 config
pg1515_o2nofp.cx10a_c32r128 - Postgres 15.15 with the cx10a_c32r128 config
pg1610_o2nofp.cx10a_c32r128 - Postgres 16.10 with the cx10a_c32r128 config
pg1611_o2nofp.cx10a_c32r128 - Postgres 16.11 with the cx10a_c32r128 config
pg176_o2nofp.cx10a_c32r128 - Postgres 17.6 with the cx10a_c32r128 config
pg177_o2nofp.cx10a_c32r128 - Postgres 17.7 with the cx10a_c32r128 config
pg180_o2nofp.cx10b_c32r128 - Postgres 18.0 with the cx10b_c32r128 config that uses io_method=sync
pg180_o2nofp.cx10c_c32r128 - Postgres 18.0 with the cx10c_c32r128 config that uses io_method=io_worker
pg180_o2nofp.cx10d_c32r128 - Postgres 18.0 with the cx10d_c32r128 config that uses io_method=io_uring
pg181_o2nofp.cx10b_c32r128 - Postgres 18.1 with the cx10b_c32r128 config that uses io_method=sync
pg181_o2nofp.cx10d_c32r128 - Postgres 18.1 with the cx10d_c32r128 config that uses io_method=io_uring

Summary
l.i0: load without secondary indexes
l.x: create secondary indexes

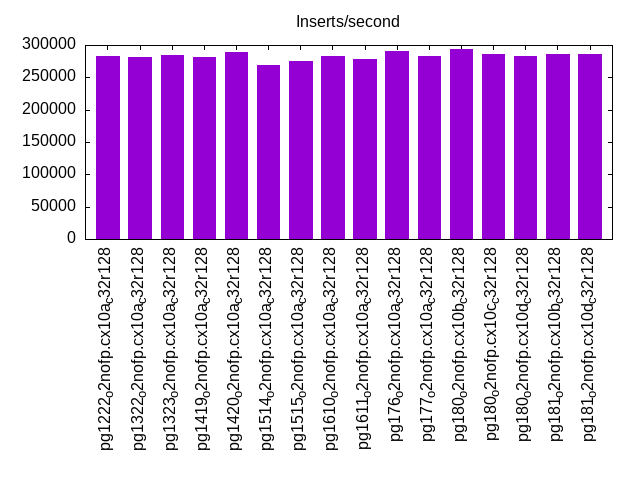

l.i1: continue load after secondary indexes created with 50 inserts per transaction

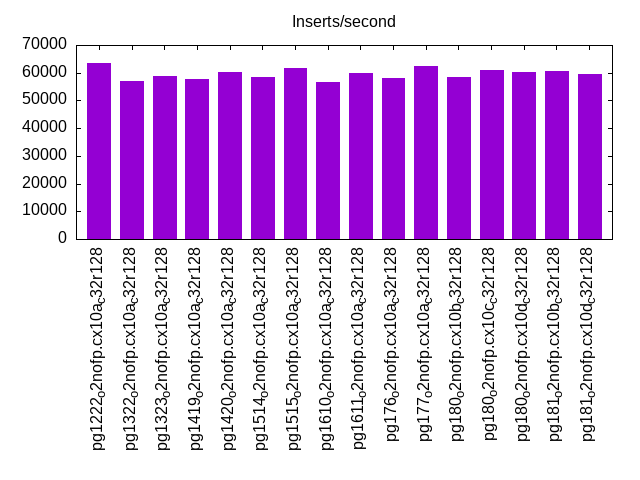

l.i2: continue load after secondary indexes created with 5 inserts per transaction

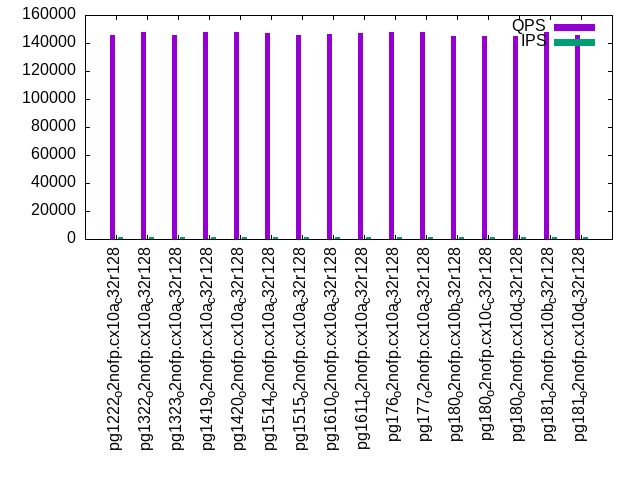

qr100.L1: range queries with 100 insert/s per client

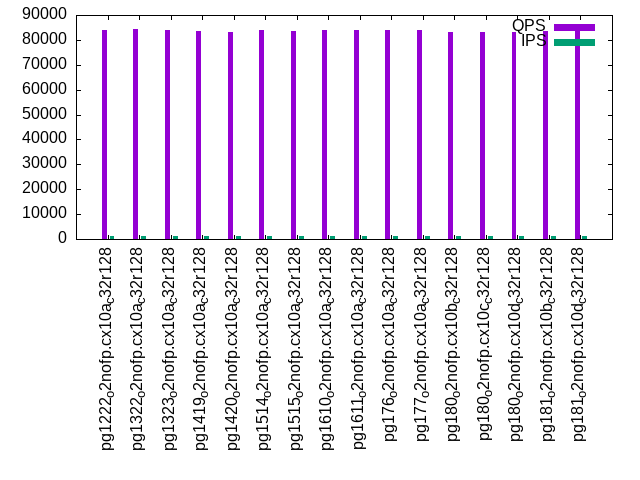

qp100.L2: point queries with 100 insert/s per client
qr500.L3: range queries with 500 insert/s per client

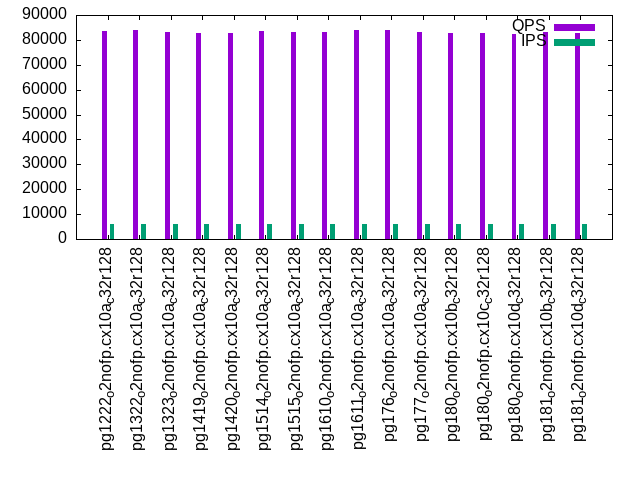

qp500.L4: point queries with 500 insert/s per client

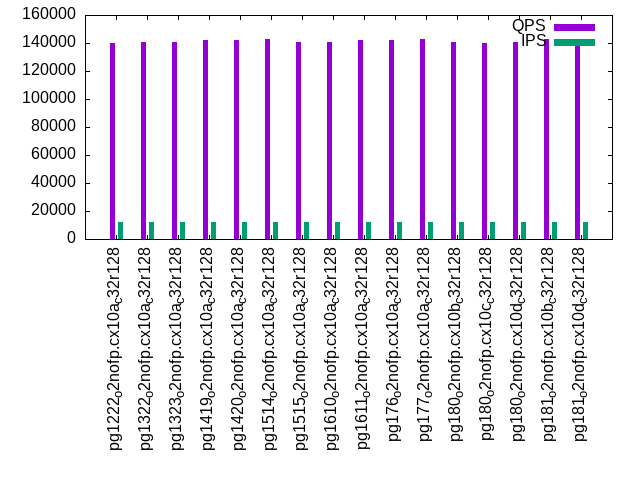

qr1000.L5: range queries with 1000 insert/s per client

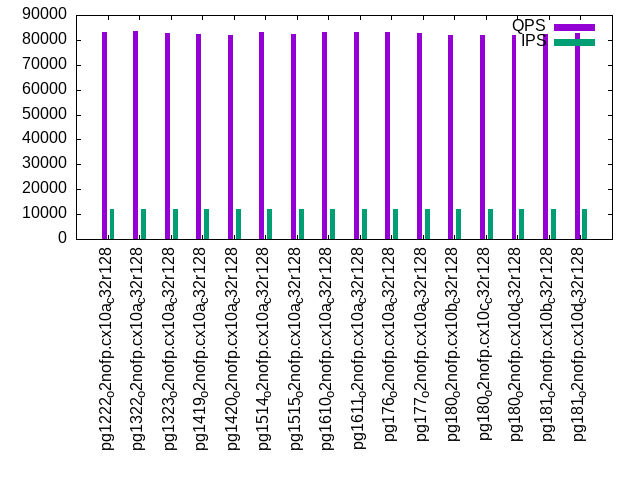

qp1000.L6: point queries with 1000 insert/s per client

Summary

The numbers are inserts/s for l.i0, l.i1 and l.i2, indexed docs (or rows) /s for l.x and queries/s for qr100, qp100 thru qr1000, qp1000" The values are the average rate over the entire test for inserts (IPS) and queries (QPS). The range of values for IPS and QPS is split into 3 parts: bottom 25%, middle 50%, top 25%. Values in the bottom 25% have a red background, values in the top 25% have a green background and values in the middle have no color. A gray background is used for values that can be ignored because the DBMS did not sustain the target insert rate. Red backgrounds are not used when the minimum value is within 80% of the max value.

dbms	l.i0	l.x	l.i1	l.i2	qr100	qp100	qr500	qp500	qr1000	qp1000
pg1222_o2nofp.cx10a_c32r128	1111111	2307694	283604	63660	145403	84167	141614	83672	140003	83116
pg1322_o2nofp.cx10a_c32r128	1111111	2222224	280702	57075	147514	84362	143022	83909	140977	83483
pg1323_o2nofp.cx10a_c32r128	991736	2222224	284024	58896	145900	83804	142306	83248	140701	82771
pg1419_o2nofp.cx10a_c32r128	1081081	2222224	280702	57623	147762	83456	143472	82904	142032	82368
pg1420_o2nofp.cx10a_c32r128	1061947	2264153	288722	60226	147709	83017	143579	82785	142100	82164
pg1514_o2nofp.cx10a_c32r128	1090909	2352943	269663	58465	146855	83934	143310	83766	142691	82991
pg1515_o2nofp.cx10a_c32r128	1121495	2307694	275862	61856	145769	83422	141957	83123	140543	82480
pg1610_o2nofp.cx10a_c32r128	1090909	2307694	282353	56470	146336	83910	142324	83323	141056	82979
pg1611_o2nofp.cx10a_c32r128	1100917	2352943	278665	59776	147343	83928	143416	83798	142041	83029
pg176_o2nofp.cx10a_c32r128	1111111	2448982	290469	58182	147895	84004	143641	83858	142470	83130
pg177_o2nofp.cx10a_c32r128	1090909	2448982	282353	62419	147861	83776	144168	83214	142705	82601
pg180_o2nofp.cx10b_c32r128	1111111	2448982	294478	58323	145280	83033	141266	82581	140568	81989
pg180_o2nofp.cx10c_c32r128	1100917	2448982	286567	60991	145197	83119	141197	82692	139959	81936
pg180_o2nofp.cx10d_c32r128	1100917	2448982	282769	60150	145155	83027	141555	82453	140450	81955
pg181_o2nofp.cx10b_c32r128	1100917	2448982	286140	60759	147902	83614	144498	83212	142783	82561
pg181_o2nofp.cx10d_c32r128	1090909	2448982	285714	59480	145710	83576	142304	82966	140533	82582

This table has relative throughput, throughput for the DBMS relative to the DBMS in the first line, using the absolute throughput from the previous table. Values less than 0.95 have a yellow background. Values greater than 1.05 have a blue background.

dbms	l.i0	l.x	l.i1	l.i2	qr100	qp100	qr500	qp500	qr1000	qp1000
pg1222_o2nofp.cx10a_c32r128	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00
pg1322_o2nofp.cx10a_c32r128	1.00	0.96	0.99	0.90	1.01	1.00	1.01	1.00	1.01	1.00
pg1323_o2nofp.cx10a_c32r128	0.89	0.96	1.00	0.93	1.00	1.00	1.00	0.99	1.00	1.00
pg1419_o2nofp.cx10a_c32r128	0.97	0.96	0.99	0.91	1.02	0.99	1.01	0.99	1.01	0.99
pg1420_o2nofp.cx10a_c32r128	0.96	0.98	1.02	0.95	1.02	0.99	1.01	0.99	1.01	0.99
pg1514_o2nofp.cx10a_c32r128	0.98	1.02	0.95	0.92	1.01	1.00	1.01	1.00	1.02	1.00
pg1515_o2nofp.cx10a_c32r128	1.01	1.00	0.97	0.97	1.00	0.99	1.00	0.99	1.00	0.99
pg1610_o2nofp.cx10a_c32r128	0.98	1.00	1.00	0.89	1.01	1.00	1.01	1.00	1.01	1.00
pg1611_o2nofp.cx10a_c32r128	0.99	1.02	0.98	0.94	1.01	1.00	1.01	1.00	1.01	1.00
pg176_o2nofp.cx10a_c32r128	1.00	1.06	1.02	0.91	1.02	1.00	1.01	1.00	1.02	1.00
pg177_o2nofp.cx10a_c32r128	0.98	1.06	1.00	0.98	1.02	1.00	1.02	0.99	1.02	0.99
pg180_o2nofp.cx10b_c32r128	1.00	1.06	1.04	0.92	1.00	0.99	1.00	0.99	1.00	0.99
pg180_o2nofp.cx10c_c32r128	0.99	1.06	1.01	0.96	1.00	0.99	1.00	0.99	1.00	0.99
pg180_o2nofp.cx10d_c32r128	0.99	1.06	1.00	0.94	1.00	0.99	1.00	0.99	1.00	0.99
pg181_o2nofp.cx10b_c32r128	0.99	1.06	1.01	0.95	1.02	0.99	1.02	0.99	1.02	0.99
pg181_o2nofp.cx10d_c32r128	0.98	1.06	1.01	0.93	1.00	0.99	1.00	0.99	1.00	0.99

This lists the average rate of inserts/s for the tests that do inserts concurrent with queries. For such tests the query rate is listed in the table above. The read+write tests are setup so that the insert rate should match the target rate every second. Cells that are not at least 95% of the target have a red background to indicate a failure to satisfy the target.

dbms	qr100.L1	qp100.L2	qr500.L3	qp500.L4	qr1000.L5	qp1000.L6
pg1222_o2nofp.cx10a_c32r128	1193	1193	5964	5960	11920	11920
pg1322_o2nofp.cx10a_c32r128	1193	1193	5964	5964	11920	11920
pg1323_o2nofp.cx10a_c32r128	1192	1192	5960	5960	11920	11927
pg1419_o2nofp.cx10a_c32r128	1192	1192	5960	5960	11920	11920
pg1420_o2nofp.cx10a_c32r128	1193	1193	5964	5964	11920	11920
pg1514_o2nofp.cx10a_c32r128	1192	1193	5964	5964	11927	11927
pg1515_o2nofp.cx10a_c32r128	1192	1192	5960	5960	11920	11927
pg1610_o2nofp.cx10a_c32r128	1193	1193	5964	5960	11920	11920
pg1611_o2nofp.cx10a_c32r128	1192	1192	5964	5964	11927	11927
pg176_o2nofp.cx10a_c32r128	1193	1193	5964	5964	11927	11920
pg177_o2nofp.cx10a_c32r128	1193	1193	5964	5964	11927	11920
pg180_o2nofp.cx10b_c32r128	1193	1193	5964	5964	11927	11927
pg180_o2nofp.cx10c_c32r128	1192	1192	5960	5960	11920	11920
pg180_o2nofp.cx10d_c32r128	1193	1193	5960	5960	11920	11920
pg181_o2nofp.cx10b_c32r128	1192	1192	5964	5964	11927	11927
pg181_o2nofp.cx10d_c32r128	1193	1193	5964	5964	11927	11927
target	1200	1200	6000	6000	12000	12000

l.i0

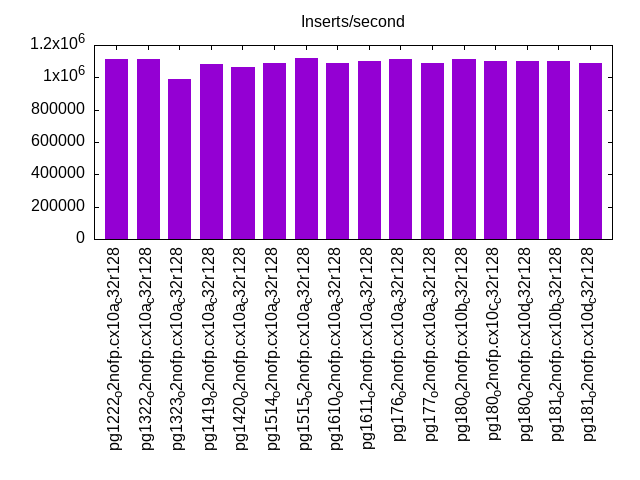

l.i0: load without secondary indexes. Graphs for performance per 1-second interval are here.

Average throughput:

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	1ms	4ms	16ms	64ms	256ms	1s	4s	max
pg1222_o2nofp.cx10a_c32r128	99.191	0.807	0.001					0.006
pg1322_o2nofp.cx10a_c32r128	99.193	0.806	0.001					0.005
pg1323_o2nofp.cx10a_c32r128	99.056	0.880	0.006	0.012	0.022	0.022	0.001	2.080
pg1419_o2nofp.cx10a_c32r128	98.505	1.494	0.001					0.004
pg1420_o2nofp.cx10a_c32r128	98.457	1.542	0.001					0.006
pg1514_o2nofp.cx10a_c32r128	98.922	1.075	0.003					0.007
pg1515_o2nofp.cx10a_c32r128	99.075	0.921	0.004					0.009
pg1610_o2nofp.cx10a_c32r128	98.835	1.162	0.002					0.005
pg1611_o2nofp.cx10a_c32r128	99.062	0.936	0.002					0.005
pg176_o2nofp.cx10a_c32r128	98.948	1.051	0.002					0.005
pg177_o2nofp.cx10a_c32r128	98.977	1.021	0.002					0.005
pg180_o2nofp.cx10b_c32r128	98.999	1.001	0.001					0.005
pg180_o2nofp.cx10c_c32r128	98.953	1.047	0.001					0.005
pg180_o2nofp.cx10d_c32r128	98.981	1.018	0.001					0.006
pg181_o2nofp.cx10b_c32r128	98.914	1.082	0.004					0.005
pg181_o2nofp.cx10d_c32r128	98.931	1.067	0.001	0.001				0.024

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1111111	0	0	0.0	4029.0	466.5	0.000	0.000	0.004	0.430	122298	48.1	0.110	14	11.5	31.0	5.4	0.006	114287	106988	pg1222_o2nofp.cx10a_c32r128
1111111	0	0	0.0	4050.4	468.7	0.000	0.000	0.004	0.432	122584	48.6	0.110	14	11.5	31.1	7.9	0.005	114685	108485	pg1322_o2nofp.cx10a_c32r128
991736	0	1	0.0	3643.5	422.8	0.000	0.000	0.004	0.437	109430	43.5	0.110	14	11.5	31.1	3.3	2.080	114188	7799	pg1323_o2nofp.cx10a_c32r128
1081081	0	0	0.0	3944.0	455.4	0.000	0.000	0.004	0.431	118851	47.4	0.110	14	11.5	31.1	7.7	0.004	109987	104787	pg1419_o2nofp.cx10a_c32r128
1061947	0	1	0.0	3855.6	444.9	0.000	0.000	0.004	0.429	119093	48.0	0.112	14	11.5	31.1	7.7	0.006	109786	105588	pg1420_o2nofp.cx10a_c32r128
1090909	0	0	0.0	3900.1	450.7	0.000	0.000	0.004	0.423	118938	46.8	0.109	14	11.5	31.1	1.5	0.007	112787	105488	pg1514_o2nofp.cx10a_c32r128
1121495	0	1	0.0	4048.4	468.1	0.000	0.000	0.004	0.427	123418	48.8	0.110	14	11.5	31.1	1.5	0.009	114586	107287	pg1515_o2nofp.cx10a_c32r128
1090909	0	0	0.0	3876.7	448.1	0.000	0.000	0.004	0.421	117992	47.2	0.108	14	11.5	31.1	1.5	0.005	111286	103484	pg1610_o2nofp.cx10a_c32r128
1100917	0	1	0.0	4040.8	467.3	0.000	0.000	0.004	0.435	122999	48.7	0.112	14	11.5	31.1	1.5	0.005	114186	107688	pg1611_o2nofp.cx10a_c32r128
1111111	0	0	0.0	4044.0	466.7	0.000	0.000	0.004	0.430	115482	48.0	0.104	14	11.5	31.1	0.2	0.005	113986	107087	pg176_o2nofp.cx10a_c32r128
1090909	0	1	0.0	3944.7	455.5	0.000	0.000	0.004	0.428	111362	47.1	0.102	14	11.5	31.1	0.2	0.005	113687	108587	pg177_o2nofp.cx10a_c32r128
1111111	0	0	0.0	4039.3	466.2	0.000	0.000	0.004	0.430	115416	48.0	0.104	14	11.5	31.1	0.2	0.005	113687	108187	pg180_o2nofp.cx10b_c32r128
1100917	0	0	0.0	3952.4	456.5	0.000	0.000	0.004	0.425	111210	46.7	0.101	14	11.5	31.1	0.2	0.005	113386	106788	pg180_o2nofp.cx10c_c32r128
1100917	0	0	0.0	3955.9	456.7	0.000	0.000	0.004	0.425	111134	46.5	0.101	14	11.5	31.1	0.2	0.006	113286	105688	pg180_o2nofp.cx10d_c32r128
1100917	0	2	0.0	3933.7	454.1	0.000	0.000	0.004	0.422	110935	47.3	0.101	14	11.5	31.1	0.2	0.005	112987	106487	pg181_o2nofp.cx10b_c32r128
1090909	0	0	0.0	3921.5	452.7	0.000	0.000	0.004	0.425	111346	47.2	0.102	14	11.5	31.1	0.2	0.024	113487	108491	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.000	0.000	0.000	0.000	0.000	0.000	4029.0	477691	521.6	11.46	0.382	117.5	5.724	58.02	0.000	0.000	1.236	8.587	175.5	0.414	1.721	22.62		pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	4050.4	479961	536.8	11.40	0.381	117.4	5.695	59.50	0.000	0.000	1.309	9.136	176.7	0.417	1.718	22.82		pg1322_o2nofp.cx10a_c32r128
0.592	2.367	0.000	0.000	0.199	3.167	3643.5	432907	466.1	11.15	5.560	118.1	5.600	68.19	0.000	0.000	6.125	9.808	152.4	1.065	11.00	32.82		pg1323_o2nofp.cx10a_c32r128
0.036	0.145	0.000	0.000	0.205	0.545	3944.0	466370	522.6	11.57	0.369	117.2	5.855	80.80	0.000	0.000	1.330	11.55	175.7	0.417	1.611	22.64		pg1419_o2nofp.cx10a_c32r128
0.555	2.218	0.000	0.000	0.242	3.273	3855.6	455614	519.0	11.55	0.381	117.1	5.700	55.85	0.000	0.000	1.260	8.591	176.0	0.416	1.635	22.12		pg1420_o2nofp.cx10a_c32r128
0.009	0.036	0.000	0.000	0.000	0.182	3900.1	461540	495.1	11.05	0.366	117.3	1.009	12.69	0.000	0.000	0.722	10.54	175.2	0.413	1.591	21.79		pg1514_o2nofp.cx10a_c32r128
1.305	5.219	0.000	0.000	0.289	3.810	4048.4	479380	516.7	11.29	0.374	117.3	1.000	15.12	0.000	0.000	0.902	13.29	182.1	0.414	1.683	22.54		pg1515_o2nofp.cx10a_c32r128
0.091	0.364	0.000	0.000	0.083	1.091	3876.7	458875	496.7	11.31	0.365	117.3	0.855	73.35	0.000	0.000	0.666	25.17	175.7	0.413	1.535	21.96		pg1610_o2nofp.cx10a_c32r128
1.181	4.724	0.000	0.000	0.312	3.619	4040.8	478467	516.5	11.36	0.369	117.2	0.943	21.26	0.000	0.000	0.868	21.01	182.2	0.414	1.655	22.58		pg1611_o2nofp.cx10a_c32r128
0.010	0.038	0.000	0.000	0.000	0.190	4044.0	477888	491.8	10.73	0.365	117.1	0.952	14.51	0.000	0.000	0.848	13.64	177.6	0.410	1.629	22.57		pg176_o2nofp.cx10a_c32r128
1.300	5.199	0.000	0.000	0.316	3.636	3944.7	466427	470.1	10.29	0.360	117.3	0.690	9.633	0.000	0.000	0.830	11.72	171.4	0.409	1.568	21.79		pg177_o2nofp.cx10a_c32r128
0.010	0.038	0.000	0.000	0.048	0.190	4039.3	477353	520.1	11.34	0.371	117.1	1.162	14.48	0.000	0.000	0.870	20.85	177.7	0.411	1.687	22.38		pg180_o2nofp.cx10b_c32r128
0.018	0.073	0.000	0.000	0.045	0.364	3952.4	467483	501.7	10.92	0.372	117.4	0.827	15.31	0.000	0.000	0.810	15.67	171.3	0.410	1.624	21.91		pg180_o2nofp.cx10c_c32r128
0.027	0.109	0.000	0.000	0.045	0.545	3955.9	467690	500.2	10.88	0.358	117.3	0.891	18.76	0.000	0.000	0.836	19.15	171.9	0.410	1.581	22.05		pg180_o2nofp.cx10d_c32r128
1.663	6.654	0.000	0.000	0.248	3.636	3933.7	465046	500.8	10.99	0.357	117.3	0.590	18.38	0.000	0.000	0.806	17.49	172.6	0.410	1.543	21.75		pg181_o2nofp.cx10b_c32r128
0.045	0.182	0.000	0.000	0.091	0.727	3921.5	463575	501.3	11.01	0.365	117.2	0.864	14.07	0.000	0.000	0.898	18.66	172.3	0.410	1.597	21.74		pg181_o2nofp.cx10d_c32r128

l.x

l.x: create secondary indexes.

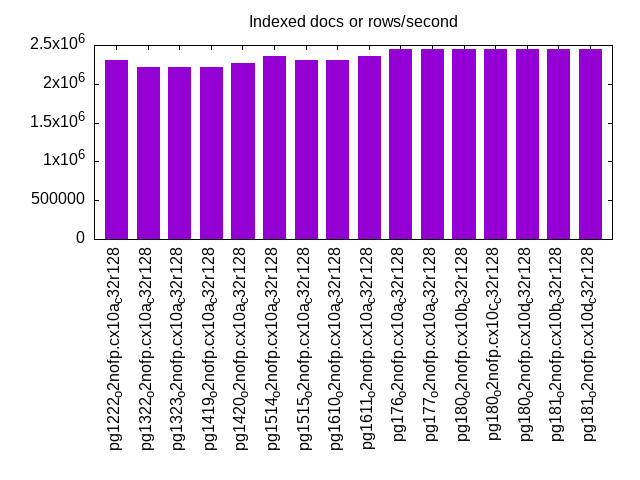

Average throughput:

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
2307694	0	0	0.0	5463.2	668.9	0.000	0.000	0.002	0.297	29036	23.8	0.013	3	23.1	53.1	6.8	0.049	NA	NA	pg1222_o2nofp.cx10a_c32r128
2222224	0	0	0.0	5162.9	632.2	0.000	0.000	0.002	0.291	25115	23.8	0.011	3	23.1	53.2	6.8	0.008	NA	NA	pg1322_o2nofp.cx10a_c32r128
2222224	0	1	0.0	5043.8	618.2	0.000	0.000	0.002	0.285	23090	23.5	0.010	3	23.1	53.2	6.9	0.007	NA	NA	pg1323_o2nofp.cx10a_c32r128
2222224	0	0	0.0	5251.5	642.6	0.000	0.000	0.002	0.296	24706	24.3	0.011	3	23.1	53.2	6.9	0.013	NA	NA	pg1419_o2nofp.cx10a_c32r128
2264153	0	1	0.0	5209.7	637.9	0.000	0.000	0.002	0.289	23042	25.3	0.010	4	23.1	53.2	6.8	0.036	NA	NA	pg1420_o2nofp.cx10a_c32r128
2352943	0	0	0.0	5509.9	675.4	0.000	0.000	0.002	0.294	28050	23.1	0.012	3	23.1	53.2	6.9	0.005	NA	NA	pg1514_o2nofp.cx10a_c32r128
2307694	0	2	0.0	5527.3	677.6	0.000	0.000	0.002	0.301	27925	24.2	0.012	3	23.1	53.2	6.9	0.041	NA	NA	pg1515_o2nofp.cx10a_c32r128
2307694	0	0	0.0	5538.1	678.9	0.000	0.000	0.002	0.301	27984	22.8	0.012	3	23.1	53.2	6.9	0.003	NA	NA	pg1610_o2nofp.cx10a_c32r128
2352943	0	1	0.0	5579.9	684.3	0.000	0.000	0.002	0.298	28507	23.7	0.012	3	23.1	53.2	6.9	0.003	NA	NA	pg1611_o2nofp.cx10a_c32r128
2448982	0	0	0.0	5685.7	696.7	0.000	0.000	0.002	0.291	16284	21.8	0.007	3	23.1	53.1	6.3	0.003	NA	NA	pg176_o2nofp.cx10a_c32r128
2448982	0	1	0.0	5542.8	679.4	0.000	0.000	0.002	0.284	16422	22.9	0.007	3	23.1	53.1	6.3	0.007	NA	NA	pg177_o2nofp.cx10a_c32r128
2448982	0	0	0.0	5690.6	697.7	0.000	0.000	0.002	0.292	16612	21.8	0.007	3	23.1	53.1	7.1	0.050	NA	NA	pg180_o2nofp.cx10b_c32r128
2448982	0	0	0.0	5548.1	679.6	0.000	0.000	0.002	0.284	16257	21.8	0.007	3	23.1	53.1	7.1	0.027	NA	NA	pg180_o2nofp.cx10c_c32r128
2448982	0	0	0.0	5602.2	686.6	0.000	0.000	0.002	0.287	16077	22.0	0.007	3	23.1	53.1	7.1	0.037	NA	NA	pg180_o2nofp.cx10d_c32r128
2448982	0	0	0.0	5406.2	662.4	0.000	0.000	0.002	0.277	16222	23.4	0.007	3	23.1	53.1	7.0	0.033	NA	NA	pg181_o2nofp.cx10b_c32r128
2448982	0	0	0.0	5413.6	663.0	0.000	0.000	0.002	0.277	15972	23.1	0.007	3	23.1	53.1	7.1	0.003	NA	NA	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.000	0.000	0.000	0.000	0.000	0.000	5463.2	684974	271.5	4.379	0.764	125.0	6.360	121.9	0.000	0.000	1.431	18.64	64.44	0.462	4.545	23.24		pg1222_o2nofp.cx10a_c32r128
0.020	0.080	0.000	0.000	0.000	0.400	5162.9	647352	267.7	4.581	0.753	124.8	4.879	52.95	0.000	0.000	1.441	10.14	62.27	0.444	4.297	22.13		pg1322_o2nofp.cx10a_c32r128
0.800	3.200	0.000	0.000	0.254	4.000	5043.8	633074	243.6	5.427	0.830	124.1	4.400	363.0	0.000	0.000	1.456	74.66	60.55	0.447	4.238	21.19		pg1323_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	5251.5	657996	263.1	4.429	0.760	124.9	4.660	91.28	0.000	0.000	1.394	16.76	62.70	0.446	4.254	22.64		pg1419_o2nofp.cx10a_c32r128
0.880	3.519	0.000	0.000	0.253	3.200	5209.7	653230	270.7	4.795	0.849	125.0	4.699	88.07	0.000	0.000	1.550	16.34	62.70	0.454	4.442	22.02		pg1420_o2nofp.cx10a_c32r128
0.040	0.160	0.000	0.000	0.100	0.800	5509.9	691649	269.2	4.599	0.790	125.2	2.860	100.6	0.000	0.000	1.209	32.09	64.12	0.464	4.480	23.11		pg1514_o2nofp.cx10a_c32r128
1.560	6.240	0.000	0.000	0.314	3.600	5527.3	693886	267.4	10.45	0.883	115.2	4.140	67.28	0.000	0.000	1.301	14.72	64.16	0.463	4.563	23.23		pg1515_o2nofp.cx10a_c32r128
0.180	0.720	0.000	0.000	0.283	2.400	5538.1	695195	261.4	4.448	0.789	125.3	2.840	52.80	0.000	0.000	1.475	25.12	64.34	0.455	4.514	23.43		pg1610_o2nofp.cx10a_c32r128
0.620	2.480	0.000	0.000	0.530	4.000	5579.9	700730	266.0	4.440	0.813	125.3	3.440	44.48	0.000	0.000	1.378	13.06	63.96	0.465	4.677	23.11		pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	5685.7	713416	265.9	4.950	0.819	124.8	5.980	61929.8	0.000	0.000	1.282	6553.3	64.22	0.479	5.108	23.92		pg176_o2nofp.cx10a_c32r128
1.340	5.360	0.000	0.000	0.389	4.000	5542.8	695673	269.8	5.133	0.818	124.8	4.980	42314.2	0.000	0.000	1.298	4485.4	64.08	0.460	4.903	22.77		pg177_o2nofp.cx10a_c32r128
0.040	0.160	0.000	0.000	0.000	0.800	5690.6	714433	271.9	5.325	0.844	124.8	6.940	67541.3	0.000	0.000	1.131	6675.9	64.04	0.485	5.321	23.69		pg180_o2nofp.cx10b_c32r128
0.040	0.160	0.000	0.000	0.000	0.400	5548.1	695950	275.5	5.118	0.830	124.8	5.080	42317.8	0.000	0.000	1.128	4620.5	64.64	0.480	4.988	23.24		pg180_o2nofp.cx10c_c32r128
0.140	0.560	0.000	0.000	0.260	1.200	5602.2	703028	274.3	5.143	0.810	124.8	4.800	49354.3	0.000	0.000	1.073	5188.0	63.88	0.484	4.799	23.41		pg180_o2nofp.cx10d_c32r128
0.160	0.640	0.000	0.000	0.750	2.400	5406.2	678337	271.2	5.291	0.829	124.9	4.540	35272.4	0.000	0.000	0.963	4519.6	63.54	0.469	4.562	22.80		pg181_o2nofp.cx10b_c32r128
0.020	0.080	0.000	0.000	0.000	0.400	5413.6	678928	267.8	5.246	0.840	124.8	4.280	28222.7	0.000	0.000	1.110	4652.1	64.18	0.465	4.831	22.67		pg181_o2nofp.cx10d_c32r128

l.i1

l.i1: continue load after secondary indexes created with 50 inserts per transaction. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	1ms	4ms	16ms	64ms	256ms	1s	4s	max
pg1222_o2nofp.cx10a_c32r128	0.604	98.751	0.265	0.280	0.060	0.038	nonzero	1.077
pg1322_o2nofp.cx10a_c32r128	0.641	98.751	0.251	0.261	0.063	0.033	nonzero	1.236
pg1323_o2nofp.cx10a_c32r128	0.562	98.796	0.273	0.281	0.061	0.028		0.945
pg1419_o2nofp.cx10a_c32r128	0.534	98.935	0.207	0.227	0.066	0.031		0.914
pg1420_o2nofp.cx10a_c32r128	0.592	98.929	0.189	0.206	0.045	0.039	nonzero	1.039
pg1514_o2nofp.cx10a_c32r128	0.695	98.719	0.195	0.264	0.092	0.034	nonzero	1.013
pg1515_o2nofp.cx10a_c32r128	1.374	98.112	0.188	0.236	0.051	0.038		0.728
pg1610_o2nofp.cx10a_c32r128	0.651	98.778	0.242	0.238	0.063	0.028		0.739
pg1611_o2nofp.cx10a_c32r128	0.941	98.496	0.230	0.243	0.056	0.033		0.616
pg176_o2nofp.cx10a_c32r128	0.690	98.755	0.260	0.214	0.049	0.031		0.900
pg177_o2nofp.cx10a_c32r128	1.219	98.204	0.222	0.251	0.077	0.028		0.827
pg180_o2nofp.cx10b_c32r128	0.856	98.580	0.227	0.241	0.066	0.030		0.622
pg180_o2nofp.cx10c_c32r128	1.001	98.400	0.243	0.263	0.064	0.030		0.853
pg180_o2nofp.cx10d_c32r128	1.425	98.028	0.189	0.256	0.070	0.032		0.607
pg181_o2nofp.cx10b_c32r128	0.805	98.611	0.245	0.238	0.066	0.035		0.675
pg181_o2nofp.cx10d_c32r128	1.090	98.291	0.257	0.264	0.067	0.030		0.834

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	1ms	4ms	16ms	64ms	256ms	1s	4s	max
pg1222_o2nofp.cx10a_c32r128	29.717	68.922	0.992	0.268	0.060	0.040	nonzero	1.077
pg1322_o2nofp.cx10a_c32r128	28.406	70.343	0.912	0.242	0.062	0.035	nonzero	1.236
pg1323_o2nofp.cx10a_c32r128	27.481	71.290	0.870	0.265	0.064	0.030		0.946
pg1419_o2nofp.cx10a_c32r128	24.151	74.781	0.762	0.212	0.061	0.032		0.915
pg1420_o2nofp.cx10a_c32r128	26.032	73.140	0.552	0.193	0.043	0.040	nonzero	1.039
pg1514_o2nofp.cx10a_c32r128	23.788	75.114	0.719	0.256	0.088	0.035	nonzero	1.012
pg1515_o2nofp.cx10a_c32r128	25.449	73.579	0.683	0.201	0.050	0.038		0.728
pg1610_o2nofp.cx10a_c32r128	25.928	73.080	0.693	0.212	0.058	0.030		0.597
pg1611_o2nofp.cx10a_c32r128	26.136	72.748	0.801	0.224	0.058	0.034		0.616
pg176_o2nofp.cx10a_c32r128	23.146	75.884	0.682	0.206	0.049	0.033		0.900
pg177_o2nofp.cx10a_c32r128	22.871	76.226	0.562	0.239	0.073	0.030		0.829
pg180_o2nofp.cx10b_c32r128	24.655	74.594	0.429	0.228	0.065	0.029		0.622
pg180_o2nofp.cx10c_c32r128	23.281	75.905	0.479	0.242	0.064	0.030		0.790
pg180_o2nofp.cx10d_c32r128	22.585	76.657	0.433	0.228	0.065	0.032		0.607
pg181_o2nofp.cx10b_c32r128	23.501	75.672	0.502	0.226	0.062	0.035		0.674
pg181_o2nofp.cx10d_c32r128	23.885	75.258	0.514	0.245	0.067	0.031		0.833

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
283604	0	0	0.0	3843.5	420.4	0.000	0.000	0.014	1.518	125276	64.2	0.442	72	35.4	131.5	25.1	1.077	31196	2050	pg1222_o2nofp.cx10a_c32r128
280702	0	0	0.0	3751.5	409.2	0.000	0.000	0.013	1.493	122627	64.7	0.437	74	35.1	131.1	27.3	1.236	29046	1150	pg1322_o2nofp.cx10a_c32r128
284024	0	0	0.0	3812.0	416.2	0.000	0.000	0.013	1.500	123893	65.8	0.436	74	35.0	131.1	24.5	0.945	29795	2250	pg1323_o2nofp.cx10a_c32r128
280702	0	0	0.0	3696.6	398.9	0.000	0.000	0.013	1.455	125323	62.2	0.446	71	33.5	129.5	27.5	0.914	27246	700	pg1419_o2nofp.cx10a_c32r128
288722	0	0	0.0	3817.0	411.1	0.000	0.000	0.013	1.458	126885	62.3	0.439	69	33.5	129.5	24.6	1.039	29595	700	pg1420_o2nofp.cx10a_c32r128
269663	0	0	0.0	3552.0	382.7	0.000	0.000	0.013	1.453	121431	60.6	0.450	72	33.3	129.4	25.2	1.013	26846	850	pg1514_o2nofp.cx10a_c32r128
275862	0	0	0.0	3632.0	391.3	0.000	0.000	0.013	1.452	124852	60.2	0.453	70	33.5	129.5	27.1	0.728	31196	1800	pg1515_o2nofp.cx10a_c32r128
282353	0	0	0.0	3535.2	396.9	0.000	0.000	0.013	1.439	127255	62.8	0.451	71	33.2	129.2	22.7	0.739	27897	750	pg1610_o2nofp.cx10a_c32r128
278665	0	0	0.0	3484.6	390.9	0.000	0.000	0.013	1.436	127684	61.4	0.458	71	33.2	129.2	28.7	0.616	27396	2850	pg1611_o2nofp.cx10a_c32r128
290469	0	0	0.0	3690.7	413.2	0.000	0.000	0.013	1.457	121421	63.2	0.418	70	33.2	129.2	23.7	0.900	28146	550	pg176_o2nofp.cx10a_c32r128
282353	0	1	0.0	3592.0	402.8	0.000	0.000	0.013	1.461	117515	61.1	0.416	69	33.2	129.3	29.4	0.827	28946	850	pg177_o2nofp.cx10a_c32r128
294478	0	0	0.0	3753.6	419.8	0.000	0.000	0.013	1.460	122424	62.8	0.416	68	33.0	129.1	24.0	0.622	30046	1700	pg180_o2nofp.cx10b_c32r128
286567	0	0	0.0	3648.2	408.7	0.000	0.000	0.013	1.460	118758	61.8	0.414	69	33.2	129.2	18.6	0.853	29346	1300	pg180_o2nofp.cx10c_c32r128
282769	0	0	0.0	3600.1	402.5	0.000	0.000	0.013	1.458	118372	61.6	0.419	70	33.0	129.0	18.7	0.607	28396	1300	pg180_o2nofp.cx10d_c32r128
286140	0	0	0.0	3657.3	409.6	0.000	0.000	0.013	1.466	118065	61.9	0.413	69	33.0	129.1	30.1	0.675	28246	900	pg181_o2nofp.cx10b_c32r128
285714	0	0	0.0	3659.5	409.9	0.000	0.000	0.013	1.469	118179	61.9	0.414	69	33.1	129.1	18.6	0.834	27997	1300	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.006	0.024	0.000	0.000	0.207	0.119	3843.5	430506	319.3	7.016	5.360	111.3	3.970	878.2	0.000	0.000	5.896	152.3	220.7	1.495	11.24	42.60		pg1222_o2nofp.cx10a_c32r128
0.003	0.012	0.000	0.000	0.007	0.058	3751.5	418970	319.4	7.110	5.244	110.9	3.939	423.9	0.000	0.000	6.423	62.05	219.9	1.513	10.28	41.41		pg1322_o2nofp.cx10a_c32r128
0.407	1.636	0.001	0.093	0.337	2.197	3812.0	426140	352.7	7.750	4.681	110.9	3.960	546.2	0.000	0.000	5.912	102.7	224.0	1.454	9.839	40.05		pg1323_o2nofp.cx10a_c32r128
0.015	0.058	0.000	0.000	0.022	0.292	3696.6	408504	302.9	6.289	4.734	110.4	3.730	360.8	0.000	0.000	6.059	61.81	238.8	1.604	9.543	41.58		pg1419_o2nofp.cx10a_c32r128
0.385	1.540	0.000	0.000	1.153	2.135	3817.0	420935	307.2	6.452	4.716	109.8	3.782	451.6	0.000	0.000	6.812	69.81	250.0	1.509	9.202	40.15		pg1420_o2nofp.cx10a_c32r128
0.018	0.073	0.000	0.000	0.025	0.310	3552.0	391935	288.7	6.085	5.552	110.5	0.224	353.9	0.000	0.000	0.375	258.5	230.9	1.840	11.44	43.55		pg1514_o2nofp.cx10a_c32r128
0.483	1.934	0.000	0.000	0.321	2.273	3632.0	400689	283.3	5.978	3.892	110.4	0.237	424.4	0.000	0.000	0.616	372.0	237.7	1.564	8.269	40.65		pg1515_o2nofp.cx10a_c32r128
0.004	0.018	0.000	0.000	0.007	0.088	3535.2	406403	287.0	6.304	4.413	114.5	0.213	229.9	0.000	0.000	0.151	102.7	195.6	1.510	8.408	37.78		pg1610_o2nofp.cx10a_c32r128
0.335	1.339	0.000	0.000	0.167	2.087	3484.6	400266	293.4	6.465	4.584	114.3	0.232	264.4	0.000	0.000	0.231	37.23	193.7	1.522	8.283	37.44		pg1611_o2nofp.cx10a_c32r128
0.008	0.030	0.000	0.000	0.015	0.152	3690.7	423077	289.9	6.229	4.213	113.9	0.258	396.0	0.000	0.000	1.043	63.66	200.5	1.431	7.589	36.81		pg176_o2nofp.cx10a_c32r128
0.659	2.635	0.000	0.000	0.419	2.324	3592.0	412484	298.8	6.224	4.650	114.5	0.232	392.9	0.000	0.000	0.361	404.3	193.7	1.790	9.096	39.89		pg177_o2nofp.cx10a_c32r128
0.003	0.012	0.000	0.000	0.008	0.062	3753.6	429903	298.1	6.498	4.359	113.9	0.298	719.2	0.000	0.000	0.396	547.3	202.5	1.569	7.992	38.14		pg180_o2nofp.cx10b_c32r128
0.007	0.030	0.000	0.000	0.015	0.149	3648.2	418469	294.2	6.607	4.539	114.2	0.237	526.0	0.000	0.000	0.861	216.8	194.0	1.714	8.430	40.47		pg180_o2nofp.cx10c_c32r128
0.013	0.053	0.000	0.000	0.019	0.237	3600.1	412194	294.2	6.285	4.631	114.3	0.210	341.1	0.000	0.000	0.330	301.2	194.7	1.758	8.726	39.83		pg180_o2nofp.cx10d_c32r128
0.024	0.096	0.000	0.000	0.049	0.418	3657.3	419452	296.3	6.306	5.198	114.5	0.245	535.6	0.000	0.000	1.203	258.9	194.7	1.777	9.704	40.42		pg181_o2nofp.cx10b_c32r128
0.022	0.090	0.000	0.000	0.101	0.418	3659.5	419739	292.3	6.423	4.829	114.3	0.245	469.6	0.000	0.000	0.394	153.6	193.7	1.826	8.583	40.44		pg181_o2nofp.cx10d_c32r128

l.i2

l.i2: continue load after secondary indexes created with 5 inserts per transaction. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c32r128	35.791	64.184	0.025	nonzero	nonzero		0.047
pg1322_o2nofp.cx10a_c32r128	52.001	47.976	0.023	nonzero	nonzero	nonzero	0.097
pg1323_o2nofp.cx10a_c32r128	58.214	41.763	0.022	nonzero	nonzero	nonzero	0.093
pg1419_o2nofp.cx10a_c32r128	37.381	62.616	0.003	nonzero		nonzero	0.109
pg1420_o2nofp.cx10a_c32r128	52.774	47.223	0.003	nonzero	nonzero	nonzero	0.091
pg1514_o2nofp.cx10a_c32r128	31.572	68.426	0.002	nonzero		nonzero	0.108
pg1515_o2nofp.cx10a_c32r128	54.595	45.402	0.003			nonzero	0.106
pg1610_o2nofp.cx10a_c32r128	30.313	69.684	0.003	nonzero	0.001	nonzero	0.093
pg1611_o2nofp.cx10a_c32r128	51.325	48.670	0.004	0.001	0.001	nonzero	0.093
pg176_o2nofp.cx10a_c32r128	50.841	49.156	0.003	nonzero	nonzero	nonzero	0.098
pg177_o2nofp.cx10a_c32r128	72.144	27.854	0.002	nonzero		nonzero	0.094
pg180_o2nofp.cx10b_c32r128	48.486	51.511	0.003	nonzero	nonzero	nonzero	0.104
pg180_o2nofp.cx10c_c32r128	65.088	34.910	0.002	nonzero	nonzero	nonzero	0.114
pg180_o2nofp.cx10d_c32r128	66.178	33.820	0.002	nonzero	nonzero	nonzero	0.093
pg181_o2nofp.cx10b_c32r128	66.195	33.801	0.003	nonzero	nonzero	nonzero	0.095
pg181_o2nofp.cx10d_c32r128	66.441	33.557	0.003		nonzero	nonzero	0.101

dbms	256us	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c32r128	0.141	63.744	36.102	0.012	0.001		0.048
pg1322_o2nofp.cx10a_c32r128	0.120	56.457	43.408	0.014	0.001	nonzero	0.097
pg1323_o2nofp.cx10a_c32r128	0.179	57.633	42.184	0.004	0.001	nonzero	0.094
pg1419_o2nofp.cx10a_c32r128	0.063	50.739	49.196	0.003		nonzero	0.109
pg1420_o2nofp.cx10a_c32r128	0.071	57.418	42.509	0.002	nonzero	nonzero	0.091
pg1514_o2nofp.cx10a_c32r128	0.040	52.114	47.844	0.002		nonzero	0.108
pg1515_o2nofp.cx10a_c32r128	0.088	59.905	40.004	0.002		nonzero	0.106
pg1610_o2nofp.cx10a_c32r128	0.044	49.901	50.051	0.003	0.001	nonzero	0.093
pg1611_o2nofp.cx10a_c32r128	0.064	56.345	43.587	0.003	0.001	nonzero	0.093
pg176_o2nofp.cx10a_c32r128	0.062	49.847	50.090	0.001	nonzero	nonzero	0.098
pg177_o2nofp.cx10a_c32r128	0.123	54.087	45.790	nonzero		nonzero	0.094
pg180_o2nofp.cx10b_c32r128	0.004	51.773	48.219	0.004	0.001	nonzero	0.104
pg180_o2nofp.cx10c_c32r128	0.008	54.791	45.199	0.002	nonzero	nonzero	0.115
pg180_o2nofp.cx10d_c32r128	0.010	55.057	44.930	0.003	nonzero	nonzero	0.093
pg181_o2nofp.cx10b_c32r128	0.013	53.814	46.172	0.001	nonzero	nonzero	0.095
pg181_o2nofp.cx10d_c32r128	0.014	53.625	46.359	0.001	nonzero	nonzero	0.101

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
63660	0	0	0.0	600.9	66.2	0.000	0.000	0.009	1.064	271715	57.0	4.268	287	35.5	131.6	8.0	0.047	4389	2955	pg1222_o2nofp.cx10a_c32r128
57075	0	0	0.0	535.8	59.1	0.000	0.000	0.009	1.060	248678	53.2	4.357	298	35.1	131.2	17.3	0.097	3964	2590	pg1322_o2nofp.cx10a_c32r128
58896	0	0	0.0	551.1	60.6	0.000	0.000	0.009	1.054	255811	53.3	4.343	290	35.1	131.2	10.2	0.093	4129	2755	pg1323_o2nofp.cx10a_c32r128
57623	0	0	0.0	550.8	61.0	0.000	0.000	0.010	1.083	257436	52.1	4.468	289	33.5	129.6	9.9	0.109	3945	2755	pg1419_o2nofp.cx10a_c32r128
60226	0	0	0.0	573.4	63.6	0.000	0.000	0.010	1.081	266223	52.4	4.420	278	33.6	129.7	27.2	0.091	3945	2250	pg1420_o2nofp.cx10a_c32r128
58465	0	0	0.0	554.8	61.7	0.000	0.000	0.009	1.081	260486	53.2	4.455	291	33.4	129.5	27.2	0.108	3750	2395	pg1514_o2nofp.cx10a_c32r128
61856	0	0	0.0	594.0	66.2	0.000	0.000	0.010	1.095	272955	52.8	4.413	273	33.5	129.6	2.7	0.106	4814	3655	pg1515_o2nofp.cx10a_c32r128
56470	0	0	0.0	532.7	59.3	0.000	0.000	0.009	1.076	250196	52.2	4.431	296	33.3	129.5	10.3	0.093	3660	2280	pg1610_o2nofp.cx10a_c32r128
59776	0	0	0.0	571.5	63.7	0.000	0.000	0.010	1.092	264249	52.5	4.421	281	33.4	129.5	24.1	0.093	3960	2735	pg1611_o2nofp.cx10a_c32r128
58182	0	0	0.0	557.1	62.0	0.000	0.000	0.010	1.091	234046	52.2	4.023	287	33.4	129.5	11.2	0.098	3780	2565	pg176_o2nofp.cx10a_c32r128
62419	0	0	0.0	591.4	65.6	0.000	0.000	0.009	1.076	250304	53.1	4.010	272	33.4	129.5	9.2	0.094	4729	3460	pg177_o2nofp.cx10a_c32r128
58323	0	0	0.0	560.7	62.3	0.000	0.000	0.010	1.094	234772	52.8	4.025	290	33.2	129.3	8.0	0.104	4384	3070	pg180_o2nofp.cx10b_c32r128
60991	0	0	0.0	576.3	64.0	0.000	0.000	0.009	1.074	244691	52.5	4.012	275	33.3	129.5	23.3	0.114	4424	3215	pg180_o2nofp.cx10c_c32r128
60150	0	0	0.0	580.6	64.3	0.000	0.000	0.010	1.095	242072	51.8	4.024	276	33.2	129.3	18.7	0.093	3880	2345	pg180_o2nofp.cx10d_c32r128
60759	0	0	0.0	570.1	63.3	0.000	0.000	0.009	1.067	241471	52.7	3.974	278	33.2	129.3	25.4	0.095	3929	2415	pg181_o2nofp.cx10b_c32r128
59480	0	0	0.0	553.8	61.3	0.000	0.000	0.009	1.056	237020	51.7	3.985	278	33.2	129.3	17.6	0.101	4164	3204	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.000	0.000	0.000	0.000	0.000	0.000	600.9	67743.7	18.70	3.180	0.283	112.4	2.667	19.42	0.000	0.000	1.103	7.049	43.47	0.534	0.195	6.564		pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	535.8	60476.6	17.21	3.261	0.353	112.5	2.706	203.0	0.000	0.000	1.178	56.40	38.96	0.569	0.240	6.426		pg1322_o2nofp.cx10a_c32r128
0.001	0.005	0.000	0.000	0.000	0.025	551.1	62082.2	19.91	3.630	0.272	112.4	2.628	53.42	0.000	0.000	1.039	13.67	40.18	0.521	0.171	5.822		pg1323_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	550.8	62415.9	11.34	2.354	0.359	112.4	2.620	141.7	0.000	0.000	1.245	44.08	40.10	0.563	0.270	6.370		pg1419_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	573.4	65109.8	10.60	2.038	0.471	112.9	2.664	85.79	0.000	0.000	1.326	26.08	41.33	0.669	0.432	7.930		pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	554.8	63183.2	8.915	1.725	0.285	113.8	0.032	157.6	0.000	0.000	0.056	298.9	41.13	0.531	0.175	5.836		pg1514_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	594.0	67759.6	8.680	1.678	0.296	113.8	0.025	165.4	0.000	0.000	0.052	242.9	44.01	0.518	0.184	5.919		pg1515_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	532.7	60754.2	8.354	1.698	0.469	113.7	0.014	32.96	0.000	0.000	0.041	68.39	39.05	0.619	0.395	6.709		pg1610_o2nofp.cx10a_c32r128
0.001	0.005	0.000	0.000	0.000	0.025	571.5	65263.0	8.999	1.775	0.494	114.0	0.011	15.04	0.000	0.000	0.031	25.11	41.38	0.612	0.493	6.883		pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	557.1	63459.8	7.908	1.535	0.533	113.5	0.004	13.60	0.000	0.000	0.006	22.67	39.91	0.703	0.540	7.970		pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	591.4	67138.9	8.476	1.545	0.295	113.5	0.014	49.28	0.000	0.000	0.048	133.3	43.94	0.526	0.199	5.936		pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	560.7	63807.1	8.348	1.620	0.551	113.8	0.011	35.14	0.000	0.000	0.026	65.71	40.52	0.682	0.527	8.003		pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	576.3	65527.5	8.636	1.606	0.353	113.6	0.015	1.345	0.000	0.000	0.057	4.930	42.37	0.560	0.316	6.175		pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	580.6	65866.1	8.449	1.604	0.357	112.9	0.015	34.85	0.000	0.000	0.040	89.36	43.15	0.567	0.248	6.202		pg180_o2nofp.cx10d_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	570.1	64807.8	9.167	1.806	0.378	113.5	0.016	20.58	0.000	0.000	0.043	28.90	41.85	0.557	0.367	6.041		pg181_o2nofp.cx10b_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	553.8	62789.0	8.512	1.737	0.277	113.0	0.019	60.96	0.000	0.000	0.064	126.3	41.19	0.528	0.161	5.442		pg181_o2nofp.cx10d_c32r128

qr100.L1

qr100.L1: range queries with 100 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

Query response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	max
pg1222_o2nofp.cx10a_c32r128	99.999	0.001	nonzero			0.002
pg1322_o2nofp.cx10a_c32r128	99.999	0.001	nonzero			0.002
pg1323_o2nofp.cx10a_c32r128	99.999	0.001	nonzero	nonzero		0.004
pg1419_o2nofp.cx10a_c32r128	99.999	0.001	nonzero	nonzero		0.004
pg1420_o2nofp.cx10a_c32r128	99.999	0.001	nonzero	nonzero	nonzero	0.017
pg1514_o2nofp.cx10a_c32r128	99.999	0.001	nonzero			0.002
pg1515_o2nofp.cx10a_c32r128	99.999	0.001	nonzero			0.003
pg1610_o2nofp.cx10a_c32r128	99.999	0.001	nonzero	nonzero		0.007
pg1611_o2nofp.cx10a_c32r128	99.999	0.001	nonzero			0.003
pg176_o2nofp.cx10a_c32r128	99.999	0.001	nonzero			0.002
pg177_o2nofp.cx10a_c32r128	99.999	0.001	nonzero			0.003
pg180_o2nofp.cx10b_c32r128	99.999	0.001	nonzero			0.004
pg180_o2nofp.cx10c_c32r128	99.999	0.001	nonzero	nonzero		0.006
pg180_o2nofp.cx10d_c32r128	99.999	0.001	nonzero			0.002
pg181_o2nofp.cx10b_c32r128	99.999	0.001	nonzero			0.002
pg181_o2nofp.cx10d_c32r128	99.999	0.001	nonzero			0.003

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	4ms	16ms	64ms	max
pg1222_o2nofp.cx10a_c32r128	99.845	0.155		0.008
pg1322_o2nofp.cx10a_c32r128	99.859	0.141		0.008
pg1323_o2nofp.cx10a_c32r128	99.852	0.148		0.008
pg1419_o2nofp.cx10a_c32r128	99.845	0.155		0.008
pg1420_o2nofp.cx10a_c32r128	99.845	0.150	0.005	0.020
pg1514_o2nofp.cx10a_c32r128	99.824	0.176		0.009
pg1515_o2nofp.cx10a_c32r128	99.836	0.164		0.008
pg1610_o2nofp.cx10a_c32r128	99.840	0.160		0.010
pg1611_o2nofp.cx10a_c32r128	99.852	0.148		0.008
pg176_o2nofp.cx10a_c32r128	99.866	0.134		0.008
pg177_o2nofp.cx10a_c32r128	99.840	0.160		0.008
pg180_o2nofp.cx10b_c32r128	99.845	0.155		0.008
pg180_o2nofp.cx10c_c32r128	99.843	0.157		0.010
pg180_o2nofp.cx10d_c32r128	99.861	0.139		0.008
pg181_o2nofp.cx10b_c32r128	99.850	0.150		0.008
pg181_o2nofp.cx10d_c32r128	99.856	0.144		0.008

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	1ms	4ms	16ms	max
pg1222_o2nofp.cx10a_c32r128	68.125	31.875		0.002
pg1322_o2nofp.cx10a_c32r128	63.567	36.433		0.002
pg1323_o2nofp.cx10a_c32r128	64.801	35.199		0.002
pg1419_o2nofp.cx10a_c32r128	61.039	38.961		0.002
pg1420_o2nofp.cx10a_c32r128	66.836	33.164		0.002
pg1514_o2nofp.cx10a_c32r128	65.745	34.255		0.003
pg1515_o2nofp.cx10a_c32r128	66.789	33.211		0.003
pg1610_o2nofp.cx10a_c32r128	61.752	38.245	0.002	0.009
pg1611_o2nofp.cx10a_c32r128	68.470	31.530		0.002
pg176_o2nofp.cx10a_c32r128	60.771	39.229		0.002
pg177_o2nofp.cx10a_c32r128	65.771	34.225	0.005	0.004
pg180_o2nofp.cx10b_c32r128	62.028	37.970	0.002	0.005
pg180_o2nofp.cx10c_c32r128	64.917	35.079	0.005	0.009
pg180_o2nofp.cx10d_c32r128	66.324	33.676		0.003
pg181_o2nofp.cx10b_c32r128	65.512	34.488		0.004
pg181_o2nofp.cx10d_c32r128	66.755	33.245		0.003

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1193	145403	0	0.0	64.9	5.6	0.000	0.000	0.054	4.848	555557	37.5	3.821	83	35.5	131.6	0.6	0.002	12126	11631	pg1222_o2nofp.cx10a_c32r128
1193	147514	0	0.0	64.8	5.7	0.000	0.000	0.054	4.855	563629	37.2	3.821	81	35.1	131.1	0.5	0.002	12366	12110	pg1322_o2nofp.cx10a_c32r128
1192	145900	0	0.0	65.0	5.7	0.000	0.000	0.055	4.870	557825	37.6	3.823	82	35.1	131.1	0.5	0.004	12254	12015	pg1323_o2nofp.cx10a_c32r128
1192	147762	0	0.0	66.0	5.8	0.000	0.000	0.055	4.966	564748	37.2	3.822	81	33.5	129.6	0.5	0.004	12367	12126	pg1419_o2nofp.cx10a_c32r128
1193	147709	0	0.0	65.8	5.8	0.000	0.000	0.055	4.959	564308	37.4	3.820	81	33.6	129.6	0.5	0.017	12286	12078	pg1420_o2nofp.cx10a_c32r128
1192	146855	0	0.0	64.0	5.8	0.000	0.000	0.054	4.951	561274	37.1	3.822	81	33.4	129.4	0.4	0.002	12254	12030	pg1514_o2nofp.cx10a_c32r128
1192	145769	0	0.0	63.4	5.8	0.000	0.000	0.053	4.943	557144	37.4	3.822	82	33.5	129.6	0.5	0.003	12318	12062	pg1515_o2nofp.cx10a_c32r128
1193	146336	0	0.0	63.5	5.8	0.000	0.000	0.053	4.952	558944	37.2	3.820	81	33.3	129.4	1.7	0.007	12318	12079	pg1610_o2nofp.cx10a_c32r128
1192	147343	0	0.0	63.3	5.8	0.000	0.000	0.053	4.958	563157	37.3	3.822	81	33.4	129.4	4.9	0.003	12366	12158	pg1611_o2nofp.cx10a_c32r128
1193	147895	0	0.0	64.1	5.8	0.000	0.000	0.054	4.961	564822	37.1	3.819	80	33.3	129.4	0.4	0.002	12478	12254	pg176_o2nofp.cx10a_c32r128
1193	147861	0	0.0	63.7	5.8	0.000	0.000	0.053	4.949	564745	37.4	3.819	81	33.4	129.4	0.4	0.003	12462	12238	pg177_o2nofp.cx10a_c32r128
1193	145280	0	0.0	64.0	5.8	0.000	0.000	0.054	4.959	554866	37.3	3.819	82	33.2	129.2	0.5	0.004	12222	11982	pg180_o2nofp.cx10b_c32r128
1192	145197	0	0.0	64.0	5.8	0.000	0.000	0.054	4.963	554832	37.4	3.821	82	33.3	129.4	0.4	0.006	12286	12078	pg180_o2nofp.cx10c_c32r128
1193	145155	0	0.0	64.2	5.8	0.000	0.000	0.054	4.957	554467	37.2	3.820	82	33.2	129.2	0.4	0.002	12190	11982	pg180_o2nofp.cx10d_c32r128
1192	147902	0	0.0	63.8	5.8	0.000	0.000	0.054	4.960	565245	37.3	3.822	81	33.2	129.3	0.5	0.002	12510	12270	pg181_o2nofp.cx10b_c32r128
1193	145710	0	0.0	63.6	5.8	0.000	0.000	0.053	4.956	556570	37.5	3.820	82	33.2	129.2	0.5	0.003	12142	11934	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.000	0.000	0.000	0.000	0.000	0.000	64.95	5782.6	4.350	8.601	0.929	86.87	2.000	11.20	0.000	0.000	1.387	5.600	7.260	0.513	0.057	1.905		pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	64.78	5790.8	4.404	8.782	0.990	86.78	1.998	11.19	0.000	0.000	1.705	5.600	7.300	0.692	0.053	2.073		pg1322_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	65.01	5804.5	4.750	9.354	0.818	86.78	2.000	11.20	0.000	0.000	1.272	5.600	7.214	0.463	0.043	1.800		pg1323_o2nofp.cx10a_c32r128
0.001	0.004	0.000	0.000	0.008	0.022	66.01	5919.6	4.318	8.533	0.943	86.81	2.001	11.60	0.000	0.000	1.469	5.799	7.197	0.563	0.060	1.951		pg1419_o2nofp.cx10a_c32r128
0.001	0.004	0.000	0.000	0.008	0.022	65.85	5914.3	3.475	7.006	0.865	86.93	1.999	11.60	0.000	0.000	1.563	5.799	7.274	0.654	0.045	1.950		pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	63.98	5901.2	0.788	1.588	0.959	90.54	0.001	0.002	0.000	0.000	0.003	0.011	7.556	0.514	0.052	1.656		pg1514_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	63.39	5891.9	0.750	1.500	0.958	91.18	0.001	0.002	0.000	0.000	0.003	0.011	7.133	0.624	0.044	1.677		pg1515_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	63.53	5906.6	0.802	1.691	1.179	90.82	0.001	0.002	0.000	0.000	0.003	0.011	7.249	0.669	0.072	1.852		pg1610_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	63.31	5910.4	0.764	1.562	1.292	91.17	0.001	0.002	0.000	0.000	0.003	0.011	7.074	0.734	0.085	1.919		pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	64.12	5917.4	0.734	1.437	1.490	90.08	0.001	0.002	0.000	0.000	0.003	0.011	7.429	0.734	0.079	2.041		pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	63.73	5902.4	0.692	1.307	1.448	90.34	0.001	0.002	0.000	0.000	0.003	0.011	7.241	0.586	0.080	1.962		pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	64.01	5915.2	0.791	1.505	1.480	90.10	0.001	0.002	0.000	0.000	0.003	0.011	7.292	0.640	0.081	2.028		pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	63.95	5915.9	0.728	1.411	1.666	90.22	0.001	0.002	0.000	0.000	0.003	0.011	7.334	0.796	0.095	2.166		pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	64.24	5911.7	0.780	1.567	1.432	89.82	0.001	0.002	0.000	0.000	0.000	0.011	7.570	0.580	0.075	1.974		pg180_o2nofp.cx10d_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	63.80	5912.4	0.739	1.430	1.399	90.28	0.001	0.002	0.000	0.000	0.003	0.011	7.246	0.633	0.071	1.992		pg181_o2nofp.cx10b_c32r128
0.001	0.004	0.000	0.000	0.000	0.011	63.57	5911.0	0.743	1.497	1.428	90.44	0.001	0.002	0.000	0.000	0.003	0.011	7.147	0.582	0.075	1.923		pg181_o2nofp.cx10d_c32r128

qp100.L2

qp100.L2: point queries with 100 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	max
pg1222_o2nofp.cx10a_c32r128	99.992	0.008	nonzero		0.002
pg1322_o2nofp.cx10a_c32r128	99.991	0.009	nonzero		0.003
pg1323_o2nofp.cx10a_c32r128	99.992	0.008	nonzero	nonzero	0.015
pg1419_o2nofp.cx10a_c32r128	99.993	0.007	nonzero		0.001
pg1420_o2nofp.cx10a_c32r128	99.990	0.010	nonzero		0.003
pg1514_o2nofp.cx10a_c32r128	99.993	0.007	nonzero		0.003
pg1515_o2nofp.cx10a_c32r128	99.993	0.007	nonzero		0.002
pg1610_o2nofp.cx10a_c32r128	99.990	0.010	nonzero		0.002
pg1611_o2nofp.cx10a_c32r128	99.991	0.009	nonzero		0.002
pg176_o2nofp.cx10a_c32r128	99.993	0.007	nonzero		0.002
pg177_o2nofp.cx10a_c32r128	99.992	0.007	nonzero		0.002
pg180_o2nofp.cx10b_c32r128	99.990	0.010	nonzero		0.001
pg180_o2nofp.cx10c_c32r128	99.992	0.008	nonzero		0.001
pg180_o2nofp.cx10d_c32r128	99.992	0.008	nonzero		0.001
pg181_o2nofp.cx10b_c32r128	99.992	0.008	nonzero		0.002
pg181_o2nofp.cx10d_c32r128	99.992	0.008	nonzero		0.002

dbms	4ms	16ms	max
pg1222_o2nofp.cx10a_c32r128	99.889	0.111	0.007
pg1322_o2nofp.cx10a_c32r128	99.877	0.123	0.008
pg1323_o2nofp.cx10a_c32r128	99.891	0.109	0.007
pg1419_o2nofp.cx10a_c32r128	99.880	0.120	0.008
pg1420_o2nofp.cx10a_c32r128	99.889	0.111	0.008
pg1514_o2nofp.cx10a_c32r128	99.877	0.123	0.008
pg1515_o2nofp.cx10a_c32r128	99.889	0.111	0.008
pg1610_o2nofp.cx10a_c32r128	99.870	0.130	0.008
pg1611_o2nofp.cx10a_c32r128	99.884	0.116	0.008
pg176_o2nofp.cx10a_c32r128	99.889	0.111	0.008
pg177_o2nofp.cx10a_c32r128	99.891	0.109	0.007
pg180_o2nofp.cx10b_c32r128	99.882	0.118	0.008
pg180_o2nofp.cx10c_c32r128	99.870	0.130	0.008
pg180_o2nofp.cx10d_c32r128	99.889	0.111	0.008
pg181_o2nofp.cx10b_c32r128	99.875	0.125	0.008
pg181_o2nofp.cx10d_c32r128	99.894	0.106	0.008

dbms	1ms	4ms	16ms	max
pg1222_o2nofp.cx10a_c32r128	22.287	77.685	0.028	0.008
pg1322_o2nofp.cx10a_c32r128	9.889	90.083	0.028	0.008
pg1323_o2nofp.cx10a_c32r128	24.935	75.037	0.028	0.008
pg1419_o2nofp.cx10a_c32r128	13.363	86.609	0.028	0.008
pg1420_o2nofp.cx10a_c32r128	22.201	77.771	0.028	0.008
pg1514_o2nofp.cx10a_c32r128	7.093	92.880	0.028	0.008
pg1515_o2nofp.cx10a_c32r128	18.731	81.241	0.028	0.008
pg1610_o2nofp.cx10a_c32r128	10.236	89.736	0.028	0.008
pg1611_o2nofp.cx10a_c32r128	19.183	80.787	0.030	0.008
pg176_o2nofp.cx10a_c32r128	8.058	91.914	0.028	0.008
pg177_o2nofp.cx10a_c32r128	16.294	83.678	0.028	0.007
pg180_o2nofp.cx10b_c32r128	9.833	90.139	0.028	0.008
pg180_o2nofp.cx10c_c32r128	12.845	87.118	0.037	0.008
pg180_o2nofp.cx10d_c32r128	15.359	84.613	0.028	0.008
pg181_o2nofp.cx10b_c32r128	13.699	86.273	0.028	0.008
pg181_o2nofp.cx10d_c32r128	16.498	83.475	0.028	0.008

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1193	84167	0	0.0	181.8	11.1	0.000	0.000	0.152	9.549	325462	36.9	3.867	140	35.5	131.1	0.6	0.002	7119	6975	pg1222_o2nofp.cx10a_c32r128
1193	84362	0	0.0	176.8	11.0	0.000	0.000	0.148	9.451	326177	36.7	3.866	139	35.1	130.5	0.5	0.003	7087	6991	pg1322_o2nofp.cx10a_c32r128
1192	83804	0	0.0	177.8	11.0	0.000	0.000	0.149	9.468	324386	36.8	3.871	141	35.1	130.5	0.5	0.015	6991	6911	pg1323_o2nofp.cx10a_c32r128
1192	83456	0	0.0	172.0	10.8	0.000	0.000	0.144	9.312	322771	36.8	3.868	141	33.5	128.9	0.5	0.001	6959	6895	pg1419_o2nofp.cx10a_c32r128
1193	83017	0	0.0	170.9	10.8	0.000	0.000	0.143	9.295	320955	36.9	3.866	142	33.6	128.9	0.5	0.003	6959	6879	pg1420_o2nofp.cx10a_c32r128
1193	83934	0	0.0	167.5	10.8	0.000	0.000	0.140	9.246	324328	36.8	3.864	140	33.4	128.6	0.5	0.003	7071	6975	pg1514_o2nofp.cx10a_c32r128
1192	83422	0	0.0	169.2	10.8	0.000	0.000	0.142	9.288	322635	36.9	3.868	142	33.5	128.8	0.5	0.002	7023	6911	pg1515_o2nofp.cx10a_c32r128
1193	83910	0	0.0	165.9	10.7	0.000	0.000	0.139	9.212	324171	36.9	3.863	141	33.3	128.5	5.0	0.002	7039	6927	pg1610_o2nofp.cx10a_c32r128
1192	83928	0	0.0	165.7	10.7	0.000	0.000	0.139	9.220	324536	37.0	3.867	141	33.4	128.7	4.5	0.002	7071	6959	pg1611_o2nofp.cx10a_c32r128
1193	84004	0	0.0	165.8	10.7	0.000	0.000	0.139	9.209	324492	36.8	3.863	140	33.3	128.6	0.5	0.002	7103	6991	pg176_o2nofp.cx10a_c32r128
1193	83776	0	0.0	166.3	10.8	0.000	0.000	0.139	9.230	323712	36.9	3.864	141	33.4	128.6	0.4	0.002	7055	6911	pg177_o2nofp.cx10a_c32r128
1193	83033	0	0.0	164.4	10.7	0.000	0.000	0.138	9.194	320743	36.9	3.863	142	33.2	128.4	0.5	0.001	6943	6879	pg180_o2nofp.cx10b_c32r128
1192	83119	0	0.0	165.0	10.7	0.000	0.000	0.138	9.207	321250	36.8	3.865	142	33.4	128.5	0.5	0.001	6959	6863	pg180_o2nofp.cx10c_c32r128
1193	83027	0	0.0	164.6	10.7	0.000	0.000	0.138	9.190	320740	36.9	3.863	142	33.2	128.3	0.5	0.001	6927	6831	pg180_o2nofp.cx10d_c32r128
1192	83614	0	0.0	165.1	10.7	0.000	0.000	0.138	9.216	323278	36.9	3.866	141	33.2	128.5	0.5	0.002	7071	6927	pg181_o2nofp.cx10b_c32r128
1193	83576	0	0.0	165.3	10.7	0.000	0.000	0.139	9.207	322943	37.0	3.864	142	33.2	128.4	0.5	0.002	7023	6911	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.000	0.000	0.000	0.000	0.000	0.000	181.8	11389.3	6.469	4.368	0.324	63.89	2.028	301.4	0.000	0.000	1.357	30.71	7.629	0.668	0.041	1.639		pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	176.8	11272.3	6.997	4.846	0.240	64.93	2.034	382.6	0.000	0.000	1.070	32.90	7.397	0.449	0.031	1.389		pg1322_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	177.8	11285.3	7.386	5.105	0.362	64.57	2.031	355.5	0.000	0.000	1.342	32.07	7.658	0.628	0.056	1.665		pg1323_o2nofp.cx10a_c32r128
0.001	0.004	0.000	0.000	0.003	0.022	172.0	11099.6	7.088	5.012	0.325	65.63	2.036	428.3	0.000	0.000	1.187	33.94	7.679	0.529	0.047	1.543		pg1419_o2nofp.cx10a_c32r128
0.001	0.004	0.000	0.000	0.003	0.022	170.9	11085.7	5.662	4.001	0.260	65.89	2.038	437.4	0.000	0.000	1.056	33.82	7.373	0.446	0.032	1.359		pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	167.5	11027.9	3.479	2.444	0.265	67.30	0.037	461.9	0.000	0.000	0.005	35.59	7.614	0.448	0.028	1.178		pg1514_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	169.2	11071.4	3.264	2.049	0.257	66.89	0.040	471.0	0.000	0.000	0.008	33.70	7.571	0.445	0.028	1.168		pg1515_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	165.9	10987.7	3.244	2.109	0.250	67.86	0.043	480.1	0.000	0.000	0.008	32.16	7.217	0.448	0.027	1.161		pg1610_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	165.7	10990.1	3.568	2.475	0.275	67.70	0.039	443.9	0.000	0.000	0.008	32.86	7.321	0.446	0.029	1.160		pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	165.8	10983.0	3.310	2.211	0.336	67.81	0.042	461.9	0.000	0.000	0.052	40.73	7.336	0.448	0.030	1.175		pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	166.3	11008.4	3.261	2.319	0.439	67.59	0.032	470.9	0.000	0.000	0.022	41.32	7.217	0.793	0.041	1.768		pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	164.4	10965.5	3.435	2.309	0.337	68.37	0.034	470.9	0.000	0.000	0.005	39.26	6.949	0.449	0.030	1.154		pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	165.0	10974.2	3.415	2.349	0.342	68.19	0.034	498.1	0.000	0.000	0.006	40.84	7.192	0.449	0.031	1.176		pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	164.6	10960.5	3.308	2.191	0.357	68.27	0.036	525.3	0.000	0.000	0.006	41.05	7.152	0.527	0.033	1.248		pg180_o2nofp.cx10d_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	165.1	10985.8	3.692	2.575	0.343	68.13	0.033	470.9	0.000	0.000	0.006	39.92	6.992	0.537	0.032	1.207		pg181_o2nofp.cx10b_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	165.3	10980.8	3.496	2.442	0.359	67.97	0.033	470.9	0.000	0.000	0.006	40.61	7.125	0.533	0.034	1.236		pg181_o2nofp.cx10d_c32r128

qr500.L3

qr500.L3: range queries with 500 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c32r128	99.995	0.004	nonzero	nonzero	nonzero		0.021
pg1322_o2nofp.cx10a_c32r128	99.995	0.004	0.001	nonzero	nonzero	nonzero	0.189
pg1323_o2nofp.cx10a_c32r128	99.995	0.004	nonzero	nonzero	nonzero	nonzero	0.086
pg1419_o2nofp.cx10a_c32r128	99.995	0.004	nonzero	nonzero	nonzero		0.020
pg1420_o2nofp.cx10a_c32r128	99.995	0.005	nonzero	nonzero	nonzero	nonzero	0.173
pg1514_o2nofp.cx10a_c32r128	99.995	0.004	nonzero	nonzero	nonzero		0.019
pg1515_o2nofp.cx10a_c32r128	99.995	0.004	nonzero	nonzero	nonzero		0.021
pg1610_o2nofp.cx10a_c32r128	99.995	0.005	nonzero	nonzero	nonzero	nonzero	0.084
pg1611_o2nofp.cx10a_c32r128	99.995	0.004	nonzero	nonzero	nonzero		0.022
pg176_o2nofp.cx10a_c32r128	99.995	0.004	nonzero	nonzero	nonzero	nonzero	0.103
pg177_o2nofp.cx10a_c32r128	99.995	0.004	nonzero	nonzero	nonzero		0.020
pg180_o2nofp.cx10b_c32r128	99.994	0.004	nonzero	0.001	nonzero	nonzero	0.169
pg180_o2nofp.cx10c_c32r128	99.995	0.004	nonzero	0.001	nonzero	nonzero	0.096
pg180_o2nofp.cx10d_c32r128	99.995	0.004	nonzero	nonzero	nonzero	nonzero	0.064
pg181_o2nofp.cx10b_c32r128	99.995	0.004	nonzero	nonzero	nonzero		0.019
pg181_o2nofp.cx10d_c32r128	99.995	0.004	nonzero	nonzero	nonzero	nonzero	0.084

dbms	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c32r128	0.013	99.347	0.552	0.088		0.026
pg1322_o2nofp.cx10a_c32r128	0.012	99.051	0.760	0.162	0.016	0.191
pg1323_o2nofp.cx10a_c32r128	0.093	99.296	0.537	0.074		0.026
pg1419_o2nofp.cx10a_c32r128	0.001	99.013	0.843	0.144		0.025
pg1420_o2nofp.cx10a_c32r128	0.073	98.850	0.754	0.266	0.057	0.178
pg1514_o2nofp.cx10a_c32r128	0.004	99.361	0.591	0.044		0.024
pg1515_o2nofp.cx10a_c32r128	0.118	99.243	0.513	0.126		0.025
pg1610_o2nofp.cx10a_c32r128	0.006	98.964	0.843	0.187		0.025
pg1611_o2nofp.cx10a_c32r128	0.108	98.969	0.773	0.150		0.027
pg176_o2nofp.cx10a_c32r128	0.090	98.973	0.786	0.150		0.028
pg177_o2nofp.cx10a_c32r128	0.435	98.854	0.610	0.101		0.033
pg180_o2nofp.cx10b_c32r128	0.095	98.599	0.968	0.278	0.060	0.171
pg180_o2nofp.cx10c_c32r128	0.205	98.654	0.937	0.204	nonzero	0.090
pg180_o2nofp.cx10d_c32r128	0.141	98.897	0.711	0.250		0.054
pg181_o2nofp.cx10b_c32r128	0.269	98.617	0.956	0.159		0.041
pg181_o2nofp.cx10d_c32r128	0.421	98.719	0.747	0.113		0.025

dbms	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c32r128	53.506	46.212	0.254	0.028		0.022
pg1322_o2nofp.cx10a_c32r128	47.151	52.387	0.381	0.068	0.013	0.190
pg1323_o2nofp.cx10a_c32r128	51.739	47.987	0.252	0.023		0.022
pg1419_o2nofp.cx10a_c32r128	47.056	52.485	0.399	0.059		0.022
pg1420_o2nofp.cx10a_c32r128	51.257	48.244	0.353	0.115	0.030	0.178
pg1514_o2nofp.cx10a_c32r128	46.762	52.913	0.308	0.018		0.023
pg1515_o2nofp.cx10a_c32r128	51.907	47.797	0.260	0.037		0.021
pg1610_o2nofp.cx10a_c32r128	46.115	53.384	0.434	0.067		0.023
pg1611_o2nofp.cx10a_c32r128	50.877	48.731	0.338	0.054		0.024
pg176_o2nofp.cx10a_c32r128	45.832	53.688	0.420	0.060		0.027
pg177_o2nofp.cx10a_c32r128	51.474	48.175	0.309	0.043		0.022
pg180_o2nofp.cx10b_c32r128	43.964	55.136	0.671	0.187	0.043	0.170
pg180_o2nofp.cx10c_c32r128	46.075	53.164	0.660	0.100	0.001	0.089
pg180_o2nofp.cx10d_c32r128	47.663	51.729	0.468	0.140	nonzero	0.065
pg181_o2nofp.cx10b_c32r128	47.769	51.531	0.617	0.082		0.023
pg181_o2nofp.cx10d_c32r128	50.296	49.193	0.451	0.059		0.024

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
5964	141614	0	0.0	288.8	16.0	0.000	0.000	0.048	2.744	542412	38.6	3.830	87	35.5	123.7	14.7	0.021	11807	11359	pg1222_o2nofp.cx10a_c32r128
5964	143022	0	0.0	282.1	15.9	0.000	0.000	0.047	2.727	547286	38.6	3.827	86	35.1	123.1	22.7	0.189	11918	11455	pg1322_o2nofp.cx10a_c32r128
5960	142306	0	0.0	283.2	15.9	0.000	0.000	0.048	2.729	545442	38.7	3.833	87	35.1	123.1	22.9	0.086	11935	11518	pg1323_o2nofp.cx10a_c32r128
5960	143472	0	0.0	273.7	15.8	0.000	0.000	0.046	2.711	549021	38.5	3.827	86	33.7	121.5	30.3	0.020	11982	11567	pg1419_o2nofp.cx10a_c32r128
5964	143579	0	0.0	272.9	15.8	0.000	0.000	0.046	2.707	549305	38.5	3.826	86	33.7	121.6	22.4	0.173	12031	11295	pg1420_o2nofp.cx10a_c32r128
5964	143310	0	0.0	269.8	15.7	0.000	0.000	0.045	2.696	548597	38.5	3.828	86	33.5	121.3	28.7	0.019	12031	11599	pg1514_o2nofp.cx10a_c32r128
5960	141957	0	0.0	271.6	15.7	0.000	0.000	0.046	2.698	543855	38.5	3.831	87	33.6	121.4	20.4	0.021	11886	11454	pg1515_o2nofp.cx10a_c32r128
5964	142324	0	0.0	267.3	15.7	0.000	0.000	0.045	2.695	544174	38.4	3.823	86	33.4	121.2	20.6	0.084	11950	11230	pg1610_o2nofp.cx10a_c32r128
5964	143416	0	0.0	267.2	15.7	0.000	0.000	0.045	2.691	548658	38.5	3.826	86	33.5	121.3	26.4	0.022	12110	11662	pg1611_o2nofp.cx10a_c32r128
5964	143641	0	0.0	267.6	15.7	0.000	0.000	0.045	2.691	549316	38.4	3.824	86	33.4	121.1	28.5	0.103	12126	11614	pg176_o2nofp.cx10a_c32r128
5964	144168	0	0.0	269.2	15.7	0.000	0.000	0.045	2.695	551687	38.5	3.827	85	33.5	121.3	8.7	0.020	12126	11583	pg177_o2nofp.cx10a_c32r128
5964	141266	0	0.0	265.5	15.6	0.000	0.000	0.045	2.685	539878	38.4	3.822	87	33.3	121.0	0.4	0.169	11902	11342	pg180_o2nofp.cx10b_c32r128
5960	141197	0	0.0	266.4	15.7	0.000	0.000	0.045	2.689	540038	38.5	3.825	87	33.4	121.2	0.4	0.096	11934	11486	pg180_o2nofp.cx10c_c32r128
5960	141555	0	0.0	265.9	15.6	0.000	0.000	0.045	2.688	541619	38.4	3.826	87	33.3	120.9	6.9	0.064	11918	11518	pg180_o2nofp.cx10d_c32r128
5964	144498	0	0.0	266.9	15.7	0.000	0.000	0.045	2.691	552566	38.5	3.824	85	33.3	121.1	0.4	0.019	12079	11662	pg181_o2nofp.cx10b_c32r128
5964	142304	0	0.0	267.0	15.7	0.000	0.000	0.045	2.690	544502	38.6	3.826	87	33.3	121.1	15.1	0.084	12030	11631	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.000	0.000	0.000	0.000	0.000	0.000	288.8	16365.7	8.997	3.429	0.226	59.07	2.344	4294.5	0.000	0.000	1.115	108.0	9.926	0.439	0.058	1.820		pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	282.1	16262.4	9.417	3.463	0.428	59.74	2.344	4312.7	0.000	0.000	1.375	81.84	9.516	0.586	0.114	2.076		pg1322_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	283.2	16263.9	9.962	3.827	0.253	59.37	2.351	4325.1	0.000	0.000	1.224	113.7	9.982	0.509	0.069	1.938		pg1323_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	273.7	16156.6	9.733	3.720	0.260	60.59	2.343	4321.7	0.000	0.000	1.162	80.86	9.565	0.512	0.067	1.902		pg1419_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	272.9	16143.5	8.129	2.819	0.493	60.82	2.355	4330.9	0.000	0.000	1.283	68.44	9.389	0.578	0.160	2.109		pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	269.8	16074.8	5.938	1.817	0.243	61.27	0.304	4311.5	0.000	0.000	0.010	83.94	10.20	0.441	0.055	1.615		pg1514_o2nofp.cx10a_c32r128
0.001	0.002	0.000	0.000	0.000	0.011	271.6	16083.4	5.714	1.745	0.235	61.07	0.299	4313.2	0.000	0.000	0.014	95.56	10.02	0.441	0.056	1.583		pg1515_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	267.3	16072.8	5.741	1.452	0.259	62.06	0.308	4325.7	0.000	0.000	0.014	61.36	9.494	0.515	0.063	1.651		pg1610_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	267.2	16049.5	6.126	1.845	0.260	61.76	0.304	4328.7	0.000	0.000	0.019	124.1	9.618	0.527	0.062	1.666		pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	267.6	16048.5	5.570	1.689	0.316	61.66	0.302	4374.5	0.000	0.000	0.017	121.1	9.749	0.501	0.062	1.696		pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	269.2	16073.2	5.799	1.761	0.285	61.32	0.290	4317.9	0.000	0.000	0.030	83.65	9.848	0.442	0.059	1.642		pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	265.5	16009.4	5.638	1.849	0.557	61.64	0.288	4317.9	0.000	0.000	0.008	82.34	9.066	0.790	0.131	2.101		pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	266.4	16028.0	5.834	1.892	0.358	61.51	0.301	4328.8	0.000	0.000	0.041	95.32	9.184	0.491	0.076	1.662		pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	265.9	16023.3	5.770	1.855	0.540	61.28	0.290	4317.9	0.000	0.000	0.005	41.29	9.256	0.623	0.111	1.835		pg180_o2nofp.cx10d_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	266.9	16048.4	5.944	2.084	0.311	61.29	0.291	4317.9	0.000	0.000	0.005	81.70	9.268	0.528	0.069	1.688		pg181_o2nofp.cx10b_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	267.0	16044.4	5.816	1.990	0.350	61.33	0.286	4321.7	0.000	0.000	0.014	93.48	9.647	0.600	0.068	1.776		pg181_o2nofp.cx10d_c32r128

qp500.L4

qp500.L4: point queries with 500 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c32r128	99.973	0.027	nonzero	nonzero	nonzero	nonzero	0.143
pg1322_o2nofp.cx10a_c32r128	99.974	0.026	nonzero	nonzero	nonzero	nonzero	0.183
pg1323_o2nofp.cx10a_c32r128	99.979	0.021	nonzero	nonzero	nonzero	nonzero	0.205
pg1419_o2nofp.cx10a_c32r128	99.979	0.020	nonzero	nonzero	nonzero	nonzero	0.201
pg1420_o2nofp.cx10a_c32r128	99.972	0.028	nonzero	nonzero			0.016
pg1514_o2nofp.cx10a_c32r128	99.978	0.022	nonzero	nonzero	nonzero	nonzero	0.144
pg1515_o2nofp.cx10a_c32r128	99.980	0.020	nonzero	nonzero			0.014
pg1610_o2nofp.cx10a_c32r128	99.973	0.026	nonzero	nonzero	nonzero	nonzero	0.174
pg1611_o2nofp.cx10a_c32r128	99.976	0.024	nonzero	nonzero	nonzero	nonzero	0.089
pg176_o2nofp.cx10a_c32r128	99.978	0.022	nonzero	nonzero	nonzero	nonzero	0.205
pg177_o2nofp.cx10a_c32r128	99.978	0.022	nonzero	nonzero	nonzero	nonzero	0.102
pg180_o2nofp.cx10b_c32r128	99.973	0.027	nonzero	nonzero	nonzero	nonzero	0.111
pg180_o2nofp.cx10c_c32r128	99.980	0.020	nonzero	nonzero	nonzero		0.019
pg180_o2nofp.cx10d_c32r128	99.975	0.024	nonzero	nonzero	nonzero	nonzero	0.171
pg181_o2nofp.cx10b_c32r128	99.979	0.021	nonzero	nonzero	nonzero	nonzero	0.243
pg181_o2nofp.cx10d_c32r128	99.977	0.022	nonzero	nonzero	nonzero	nonzero	0.211

dbms	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c32r128	0.077	99.185	0.550	0.139	0.048	0.225
pg1322_o2nofp.cx10a_c32r128	0.082	99.159	0.621	0.102	0.036	0.225
pg1323_o2nofp.cx10a_c32r128	0.099	99.374	0.377	0.030	0.121	0.218
pg1419_o2nofp.cx10a_c32r128	0.022	99.322	0.454	0.076	0.126	0.248
pg1420_o2nofp.cx10a_c32r128	0.005	99.256	0.635	0.105		0.022
pg1514_o2nofp.cx10a_c32r128	0.002	99.349	0.570	0.079		0.025
pg1515_o2nofp.cx10a_c32r128	0.154	99.236	0.543	0.067		0.022
pg1610_o2nofp.cx10a_c32r128	0.035	99.214	0.524	0.182	0.045	0.211
pg1611_o2nofp.cx10a_c32r128	0.180	99.076	0.596	0.148		0.025
pg176_o2nofp.cx10a_c32r128	0.044	99.031	0.703	0.186	0.036	0.231
pg177_o2nofp.cx10a_c32r128	0.108	99.075	0.700	0.117		0.022
pg180_o2nofp.cx10b_c32r128	0.028	98.900	0.887	0.186		0.040
pg180_o2nofp.cx10c_c32r128	0.081	99.188	0.589	0.142		0.024
pg180_o2nofp.cx10d_c32r128	0.134	98.832	0.776	0.202	0.055	0.191
pg181_o2nofp.cx10b_c32r128	0.114	99.072	0.601	0.132	0.081	0.239
pg181_o2nofp.cx10d_c32r128	0.216	98.806	0.573	0.205	0.200	0.227

dbms	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c32r128	52.650	47.095	0.179	0.045	0.031	0.232
pg1322_o2nofp.cx10a_c32r128	40.648	59.075	0.222	0.030	0.026	0.188
pg1323_o2nofp.cx10a_c32r128	44.821	54.965	0.155	0.012	0.047	0.200
pg1419_o2nofp.cx10a_c32r128	42.459	57.291	0.169	0.030	0.052	0.248
pg1420_o2nofp.cx10a_c32r128	43.035	56.699	0.233	0.033		0.020
pg1514_o2nofp.cx10a_c32r128	40.719	59.051	0.213	0.017		0.022
pg1515_o2nofp.cx10a_c32r128	44.273	55.522	0.190	0.016		0.021
pg1610_o2nofp.cx10a_c32r128	40.210	59.501	0.186	0.070	0.033	0.211
pg1611_o2nofp.cx10a_c32r128	42.888	56.859	0.210	0.044		0.024
pg176_o2nofp.cx10a_c32r128	38.045	61.624	0.254	0.051	0.025	0.223
pg177_o2nofp.cx10a_c32r128	40.851	58.863	0.262	0.024		0.020
pg180_o2nofp.cx10b_c32r128	38.808	60.567	0.542	0.083		0.023
pg180_o2nofp.cx10c_c32r128	40.730	58.809	0.381	0.080		0.022
pg180_o2nofp.cx10d_c32r128	40.080	59.307	0.473	0.097	0.044	0.190
pg181_o2nofp.cx10b_c32r128	42.500	57.010	0.368	0.063	0.059	0.214
pg181_o2nofp.cx10d_c32r128	42.831	56.562	0.359	0.123	0.125	0.208

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
5960	83672	0	0.0	171.8	17.3	0.000	0.000	0.029	2.971	324609	38.0	3.880	145	35.6	117.1	23.5	0.143	7023	6879	pg1222_o2nofp.cx10a_c32r128
5964	83909	0	0.0	170.1	17.1	0.000	0.000	0.029	2.931	325381	37.6	3.878	143	35.1	116.6	7.5	0.183	7087	6959	pg1322_o2nofp.cx10a_c32r128
5960	83248	0	0.0	170.4	17.1	0.000	0.000	0.029	2.939	323485	37.7	3.886	145	35.1	116.6	15.9	0.205	7007	6847	pg1323_o2nofp.cx10a_c32r128
5960	82904	0	0.0	167.4	16.7	0.000	0.000	0.028	2.861	321933	37.8	3.883	146	33.7	115.0	17.2	0.201	6975	6863	pg1419_o2nofp.cx10a_c32r128
5964	82785	0	0.0	166.6	16.7	0.000	0.000	0.028	2.859	320999	37.9	3.878	147	33.7	115.1	24.7	0.016	6959	6847	pg1420_o2nofp.cx10a_c32r128
5964	83766	0	0.0	163.4	16.5	0.000	0.000	0.027	2.838	324805	37.9	3.878	145	33.5	114.8	15.6	0.144	7071	6943	pg1514_o2nofp.cx10a_c32r128
5960	83123	0	0.0	164.3	16.6	0.000	0.000	0.028	2.851	322682	37.9	3.882	146	33.7	115.0	22.0	0.014	6975	6847	pg1515_o2nofp.cx10a_c32r128
5960	83323	0	0.0	163.1	16.5	0.000	0.000	0.027	2.837	323007	37.9	3.877	146	33.5	114.8	21.2	0.174	6975	6863	pg1610_o2nofp.cx10a_c32r128
5964	83798	0	0.0	163.1	16.5	0.000	0.000	0.027	2.831	324860	37.8	3.877	144	33.5	114.9	13.3	0.089	7055	6911	pg1611_o2nofp.cx10a_c32r128
5964	83858	0	0.0	162.4	16.4	0.000	0.000	0.027	2.824	324681	37.6	3.872	143	33.4	114.7	22.2	0.205	6975	6847	pg176_o2nofp.cx10a_c32r128
5964	83214	0	0.0	163.9	16.6	0.000	0.000	0.027	2.845	322459	37.6	3.875	145	33.5	114.8	14.4	0.102	6975	6847	pg177_o2nofp.cx10a_c32r128
5964	82581	0	0.0	167.3	16.5	0.000	0.000	0.028	2.835	319629	37.8	3.870	146	33.3	114.6	8.2	0.111	6927	6799	pg180_o2nofp.cx10b_c32r128
5960	82692	0	0.0	168.1	16.5	0.000	0.000	0.028	2.838	320656	37.8	3.878	146	33.5	114.8	5.0	0.019	6943	6815	pg180_o2nofp.cx10c_c32r128
5960	82453	0	0.0	167.1	16.5	0.000	0.000	0.028	2.836	319537	37.7	3.875	146	33.3	114.6	20.5	0.171	6927	6783	pg180_o2nofp.cx10d_c32r128
5964	83212	0	0.0	167.8	16.5	0.000	0.000	0.028	2.839	322605	37.6	3.877	145	33.4	114.7	0.4	0.243	6895	6735	pg181_o2nofp.cx10b_c32r128
5964	82966	0	0.0	167.1	16.5	0.000	0.000	0.028	2.838	321526	37.7	3.875	145	33.3	114.7	7.9	0.211	6991	6687	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.000	0.000	0.000	0.000	0.000	0.000	171.8	17707.1	9.534	4.833	0.660	103.2	2.307	3816.0	0.000	0.000	1.631	82.42	9.231	0.762	0.158	2.415		pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	170.1	17480.0	10.14	5.215	0.599	102.9	2.324	3778.8	0.000	0.000	1.471	72.44	9.289	0.692	0.130	2.283		pg1322_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	170.4	17518.5	10.58	5.602	0.571	102.9	2.326	3818.6	0.000	0.000	1.611	88.48	9.409	0.671	0.204	2.405		pg1323_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	167.4	17051.4	9.780	5.125	0.665	102.3	2.317	3803.0	0.000	0.000	1.458	88.28	9.498	0.659	0.207	2.400		pg1419_o2nofp.cx10a_c32r128
0.001	0.004	0.000	0.000	0.000	0.011	166.6	17052.6	8.233	3.960	0.624	102.8	2.317	3760.7	0.000	0.000	1.422	43.13	9.218	0.678	0.109	2.173		pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	163.4	16922.9	6.633	3.120	0.334	104.4	0.272	3807.3	0.000	0.000	0.075	213.5	9.366	0.536	0.048	1.679		pg1514_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	164.3	16994.5	6.337	2.866	0.269	104.0	0.268	3750.4	0.000	0.000	0.019	87.87	9.410	0.443	0.045	1.564		pg1515_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	163.1	16906.4	6.206	2.502	0.563	104.3	0.268	3758.3	0.000	0.000	0.018	98.95	9.268	0.641	0.131	1.921		pg1610_o2nofp.cx10a_c32r128
0.002	0.013	0.000	0.000	0.003	0.066	163.1	16883.3	6.549	2.979	0.331	104.2	0.272	3752.5	0.000	0.000	0.019	94.62	9.267	0.564	0.053	1.722		pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	162.4	16843.4	6.056	2.668	0.636	104.3	0.251	3751.5	0.000	0.000	0.016	115.6	8.987	0.669	0.139	1.988		pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	163.9	16968.1	6.279	2.684	0.301	104.0	0.257	3784.3	0.000	0.000	0.014	104.0	9.038	0.442	0.047	1.594		pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	167.3	16903.9	6.252	2.570	0.283	100.7	0.251	3774.3	0.000	0.000	0.016	72.40	8.951	0.442	0.046	1.584		pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	168.1	16917.1	6.199	2.551	0.329	100.3	0.261	3729.7	0.000	0.000	0.069	81.57	9.073	0.543	0.054	1.773		pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	167.1	16905.0	6.217	2.403	0.620	101.1	0.247	3736.1	0.000	0.000	0.008	58.51	8.933	0.597	0.150	1.883		pg180_o2nofp.cx10d_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	167.8	16929.5	6.286	2.609	0.701	101.0	0.256	3738.8	0.000	0.000	0.014	41.44	9.094	0.648	0.177	2.028		pg181_o2nofp.cx10b_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	167.1	16923.5	6.175	2.484	0.646	101.0	0.249	3743.7	0.000	0.000	0.008	54.48	8.954	0.606	0.236	2.031		pg181_o2nofp.cx10d_c32r128

qr1000.L5

qr1000.L5: range queries with 1000 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c32r128	99.992	0.007	nonzero	nonzero	nonzero	nonzero	0.159
pg1322_o2nofp.cx10a_c32r128	99.992	0.007	nonzero	nonzero	nonzero	nonzero	0.119
pg1323_o2nofp.cx10a_c32r128	99.992	0.007	nonzero	nonzero	nonzero	nonzero	0.111
pg1419_o2nofp.cx10a_c32r128	99.994	0.006	nonzero	nonzero	nonzero	nonzero	0.115
pg1420_o2nofp.cx10a_c32r128	99.993	0.006	nonzero	nonzero	nonzero	nonzero	0.104
pg1514_o2nofp.cx10a_c32r128	99.993	0.006	nonzero	nonzero	nonzero	nonzero	0.086
pg1515_o2nofp.cx10a_c32r128	99.993	0.007	nonzero	nonzero	nonzero	nonzero	0.102
pg1610_o2nofp.cx10a_c32r128	99.993	0.006	nonzero	nonzero	nonzero	nonzero	0.109
pg1611_o2nofp.cx10a_c32r128	99.993	0.006	nonzero	nonzero	nonzero	nonzero	0.193
pg176_o2nofp.cx10a_c32r128	99.994	0.005	nonzero	nonzero	nonzero	nonzero	0.096
pg177_o2nofp.cx10a_c32r128	99.993	0.006	nonzero	nonzero	nonzero	nonzero	0.134
pg180_o2nofp.cx10b_c32r128	99.991	0.008	nonzero	nonzero	nonzero	nonzero	0.107
pg180_o2nofp.cx10c_c32r128	99.992	0.007	nonzero	nonzero	nonzero	nonzero	0.146
pg180_o2nofp.cx10d_c32r128	99.992	0.007	nonzero	nonzero	nonzero	nonzero	0.119
pg181_o2nofp.cx10b_c32r128	99.992	0.007	nonzero	nonzero	nonzero	nonzero	0.177
pg181_o2nofp.cx10d_c32r128	99.992	0.007	nonzero	nonzero	nonzero	nonzero	0.131

dbms	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c32r128	0.137	99.247	0.565	0.051		0.055
pg1322_o2nofp.cx10a_c32r128	0.250	99.141	0.543	0.065		0.025
pg1323_o2nofp.cx10a_c32r128	0.237	99.170	0.507	0.087		0.036
pg1419_o2nofp.cx10a_c32r128	0.014	99.478	0.428	0.080		0.026
pg1420_o2nofp.cx10a_c32r128	0.342	99.056	0.522	0.080		0.036
pg1514_o2nofp.cx10a_c32r128	0.033	99.382	0.478	0.108		0.026
pg1515_o2nofp.cx10a_c32r128	0.487	98.857	0.558	0.098		0.025
pg1610_o2nofp.cx10a_c32r128	0.078	99.299	0.529	0.094		0.025
pg1611_o2nofp.cx10a_c32r128	0.507	98.828	0.550	0.092	0.024	0.196
pg176_o2nofp.cx10a_c32r128	0.297	99.094	0.509	0.099	nonzero	0.072
pg177_o2nofp.cx10a_c32r128	0.863	98.484	0.556	0.084	0.013	0.136
pg180_o2nofp.cx10b_c32r128	0.143	99.265	0.486	0.106		0.032
pg180_o2nofp.cx10c_c32r128	0.345	99.078	0.464	0.104	0.009	0.148
pg180_o2nofp.cx10d_c32r128	0.528	98.997	0.390	0.084		0.036
pg181_o2nofp.cx10b_c32r128	0.945	98.506	0.442	0.107	nonzero	0.134
pg181_o2nofp.cx10d_c32r128	0.866	98.625	0.407	0.099	0.003	0.134

dbms	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c32r128	54.025	45.672	0.283	0.020		0.054
pg1322_o2nofp.cx10a_c32r128	44.365	55.315	0.292	0.027		0.023
pg1323_o2nofp.cx10a_c32r128	47.336	52.377	0.253	0.035		0.022
pg1419_o2nofp.cx10a_c32r128	42.487	57.237	0.241	0.035		0.023
pg1420_o2nofp.cx10a_c32r128	47.170	52.511	0.288	0.031		0.023
pg1514_o2nofp.cx10a_c32r128	42.715	56.988	0.254	0.043		0.024
pg1515_o2nofp.cx10a_c32r128	46.173	53.482	0.312	0.032		0.022
pg1610_o2nofp.cx10a_c32r128	42.341	57.341	0.280	0.038		0.023
pg1611_o2nofp.cx10a_c32r128	45.862	53.809	0.287	0.035	0.006	0.194
pg176_o2nofp.cx10a_c32r128	41.159	58.500	0.303	0.038	nonzero	0.071
pg177_o2nofp.cx10a_c32r128	44.479	55.178	0.311	0.030	0.002	0.135
pg180_o2nofp.cx10b_c32r128	35.861	63.750	0.325	0.065		0.030
pg180_o2nofp.cx10c_c32r128	38.416	61.160	0.350	0.068	0.006	0.148
pg180_o2nofp.cx10d_c32r128	37.276	62.392	0.282	0.051		0.036
pg181_o2nofp.cx10b_c32r128	38.004	61.616	0.316	0.064	nonzero	0.133
pg181_o2nofp.cx10d_c32r128	38.951	60.670	0.316	0.062	0.001	0.134

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
11920	140003	0	0.0	210.9	21.7	0.000	0.000	0.018	1.866	536133	39.8	3.829	91	35.5	111.7	16.5	0.159	11694	11279	pg1222_o2nofp.cx10a_c32r128
11920	140977	0	0.0	208.9	21.5	0.000	0.000	0.018	1.846	539572	39.8	3.827	90	35.0	111.2	17.4	0.119	11775	11374	pg1322_o2nofp.cx10a_c32r128
11920	140701	0	0.0	208.9	21.5	0.000	0.000	0.018	1.846	538957	39.8	3.831	91	35.1	111.3	19.3	0.111	11758	11374	pg1323_o2nofp.cx10a_c32r128
11920	142032	0	0.0	203.2	20.9	0.000	0.000	0.017	1.793	544087	39.6	3.831	89	33.6	109.7	26.3	0.115	12014	11567	pg1419_o2nofp.cx10a_c32r128
11920	142100	0	0.0	203.3	20.9	0.000	0.000	0.017	1.797	543927	39.7	3.828	89	33.7	109.7	29.4	0.104	11918	11503	pg1420_o2nofp.cx10a_c32r128
11927	142691	0	0.0	200.6	20.8	0.000	0.000	0.017	1.786	545950	39.7	3.826	89	33.6	109.6	26.2	0.086	11886	11471	pg1514_o2nofp.cx10a_c32r128
11920	140543	0	0.0	201.1	20.9	0.000	0.000	0.017	1.796	537680	39.7	3.826	90	33.7	109.7	26.5	0.102	11727	11279	pg1515_o2nofp.cx10a_c32r128
11920	141056	0	0.0	200.1	20.8	0.000	0.000	0.017	1.784	539600	39.6	3.825	90	33.3	109.3	26.9	0.109	11855	11438	pg1610_o2nofp.cx10a_c32r128
11927	142041	0	0.0	200.0	20.8	0.000	0.000	0.017	1.784	543185	39.6	3.824	89	33.5	109.5	24.4	0.193	11887	11406	pg1611_o2nofp.cx10a_c32r128
11927	142470	0	0.0	200.7	20.7	0.000	0.000	0.017	1.778	544229	39.5	3.820	89	33.4	109.4	0.7	0.096	11886	11406	pg176_o2nofp.cx10a_c32r128
11927	142705	0	0.0	201.0	20.7	0.000	0.000	0.017	1.780	545292	39.6	3.821	89	33.6	109.6	0.6	0.134	12030	11534	pg177_o2nofp.cx10a_c32r128
11927	140568	0	0.0	207.6	21.3	0.000	0.000	0.017	1.830	536782	39.8	3.819	91	33.4	109.4	9.1	0.107	11823	11295	pg180_o2nofp.cx10b_c32r128
11920	139959	0	0.0	208.2	21.3	0.000	0.000	0.017	1.834	535482	39.8	3.826	91	33.5	109.4	4.1	0.146	11790	10959	pg180_o2nofp.cx10c_c32r128
11920	140450	0	0.0	208.4	21.3	0.000	0.000	0.017	1.832	537227	39.8	3.825	91	33.3	109.3	2.3	0.119	11742	11327	pg180_o2nofp.cx10d_c32r128
11927	142783	0	0.0	208.9	21.3	0.000	0.000	0.018	1.831	546000	39.8	3.824	89	33.4	109.5	0.5	0.177	11951	11295	pg181_o2nofp.cx10b_c32r128
11927	140533	0	0.0	208.5	21.4	0.000	0.000	0.017	1.838	537598	39.8	3.825	91	33.4	109.4	7.0	0.131	11758	11071	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.000	0.000	0.000	0.000	0.000	0.000	210.9	22244.1	9.612	3.794	0.278	105.4	2.302	3232.0	0.000	0.000	1.333	122.5	13.43	0.531	0.063	2.352		pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	208.9	22006.0	10.57	4.225	0.272	105.4	2.302	3201.7	0.000	0.000	1.289	69.17	13.41	0.551	0.063	2.344		pg1322_o2nofp.cx10a_c32r128
0.001	0.002	0.000	0.000	0.003	0.011	208.9	22000.0	11.30	4.800	0.345	105.2	2.298	3148.9	0.000	0.000	1.311	87.89	13.35	0.523	0.085	2.389		pg1323_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	203.2	21373.2	10.29	4.403	0.332	105.4	2.291	3211.1	0.000	0.000	1.294	109.3	13.47	0.534	0.075	2.376		pg1419_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	203.3	21419.7	8.947	3.460	0.288	105.5	2.301	3214.0	0.000	0.000	1.258	67.12	13.41	0.551	0.065	2.328		pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	200.6	21302.4	7.050	2.552	0.286	106.6	0.227	3092.6	0.000	0.000	0.011	101.7	13.39	0.544	0.063	2.094		pg1514_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	201.1	21409.5	6.892	2.417	0.213	106.8	0.225	3156.7	0.000	0.000	0.010	147.3	13.35	0.436	0.051	1.865		pg1515_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	200.1	21262.0	7.033	2.379	0.291	106.8	0.235	3258.4	0.000	0.000	0.029	312.1	13.37	0.546	0.064	2.082		pg1610_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	200.0	21283.6	7.229	2.610	0.481	106.7	0.233	3190.4	0.000	0.000	0.030	219.4	13.16	0.646	0.115	2.360		pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	200.7	21206.9	6.476	2.265	0.318	105.7	0.214	3152.2	0.000	0.000	0.023	242.3	13.55	0.552	0.067	2.110		pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	201.0	21235.3	6.766	2.183	0.490	105.8	0.206	3086.9	0.000	0.000	0.008	41.84	13.47	0.656	0.113	2.397		pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	207.6	21826.3	6.887	2.639	0.316	104.4	0.202	3096.6	0.000	0.000	0.011	74.17	13.47	0.553	0.071	2.134		pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	208.2	21857.2	7.031	2.784	0.496	104.3	0.223	3154.1	0.000	0.000	0.022	103.8	13.32	0.649	0.117	2.434		pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	208.4	21834.8	7.033	2.556	0.314	104.1	0.210	3137.6	0.000	0.000	0.020	145.4	13.45	0.555	0.072	2.155		pg180_o2nofp.cx10d_c32r128
0.001	0.004	0.000	0.000	0.000	0.011	208.9	21835.0	6.996	2.710	0.338	104.2	0.217	3086.2	0.000	0.000	0.088	54.11	13.37	0.549	0.078	2.161		pg181_o2nofp.cx10b_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	208.5	21922.0	6.824	2.609	0.475	104.3	0.214	3127.4	0.000	0.000	0.022	123.4	13.26	0.645	0.109	2.361		pg181_o2nofp.cx10d_c32r128

qp1000.L6

qp1000.L6: point queries with 1000 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c32r128	99.947	0.053	nonzero	nonzero	nonzero	nonzero	0.168
pg1322_o2nofp.cx10a_c32r128	99.949	0.050	0.001	nonzero	nonzero	nonzero	0.126
pg1323_o2nofp.cx10a_c32r128	99.947	0.053	nonzero	nonzero	nonzero	nonzero	0.123
pg1419_o2nofp.cx10a_c32r128	99.949	0.050	nonzero	nonzero	nonzero	nonzero	0.102
pg1420_o2nofp.cx10a_c32r128	99.950	0.049	nonzero	nonzero	nonzero	nonzero	0.108
pg1514_o2nofp.cx10a_c32r128	99.951	0.049	nonzero	nonzero	nonzero	nonzero	0.114
pg1515_o2nofp.cx10a_c32r128	99.954	0.046	nonzero	nonzero	nonzero	nonzero	0.112
pg1610_o2nofp.cx10a_c32r128	99.951	0.049	nonzero	nonzero	nonzero	nonzero	0.097
pg1611_o2nofp.cx10a_c32r128	99.951	0.048	nonzero	nonzero	nonzero	nonzero	0.111
pg176_o2nofp.cx10a_c32r128	99.957	0.043	nonzero	nonzero	nonzero	nonzero	0.105
pg177_o2nofp.cx10a_c32r128	99.956	0.043	nonzero	nonzero	nonzero	nonzero	0.119
pg180_o2nofp.cx10b_c32r128	99.952	0.048	nonzero	nonzero	nonzero	nonzero	0.111
pg180_o2nofp.cx10c_c32r128	99.952	0.047	nonzero	nonzero	nonzero	nonzero	0.112
pg180_o2nofp.cx10d_c32r128	99.952	0.048	nonzero	nonzero	nonzero	nonzero	0.113
pg181_o2nofp.cx10b_c32r128	99.954	0.045	nonzero	nonzero	nonzero	nonzero	0.119
pg181_o2nofp.cx10d_c32r128	99.954	0.045	nonzero	nonzero	nonzero	nonzero	0.181

dbms	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c32r128	0.263	99.107	0.554	0.071	0.006	0.147
pg1322_o2nofp.cx10a_c32r128	0.252	99.098	0.561	0.087	0.001	0.124
pg1323_o2nofp.cx10a_c32r128	0.414	99.020	0.452	0.102	0.012	0.131
pg1419_o2nofp.cx10a_c32r128	0.077	99.237	0.555	0.131	0.001	0.073
pg1420_o2nofp.cx10a_c32r128	0.503	98.880	0.508	0.108	nonzero	0.109
pg1514_o2nofp.cx10a_c32r128	0.032	99.233	0.593	0.142	nonzero	0.065
pg1515_o2nofp.cx10a_c32r128	0.431	98.931	0.533	0.105		0.034
pg1610_o2nofp.cx10a_c32r128	0.166	99.234	0.492	0.108		0.037
pg1611_o2nofp.cx10a_c32r128	0.571	98.825	0.492	0.111		0.028
pg176_o2nofp.cx10a_c32r128	0.262	99.104	0.487	0.147		0.039
pg177_o2nofp.cx10a_c32r128	0.665	98.707	0.464	0.160	0.005	0.094
pg180_o2nofp.cx10b_c32r128	0.197	99.262	0.422	0.119		0.037
pg180_o2nofp.cx10c_c32r128	0.234	99.231	0.425	0.109		0.038
pg180_o2nofp.cx10d_c32r128	0.339	98.956	0.570	0.134	0.001	0.085
pg181_o2nofp.cx10b_c32r128	0.578	98.895	0.415	0.112		0.040
pg181_o2nofp.cx10d_c32r128	0.747	98.661	0.454	0.135	0.002	0.073

dbms	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c32r128	57.066	42.456	0.424	0.051	0.003	0.147
pg1322_o2nofp.cx10a_c32r128	48.459	50.939	0.539	0.060	0.001	0.124
pg1323_o2nofp.cx10a_c32r128	50.209	49.313	0.395	0.073	0.011	0.132
pg1419_o2nofp.cx10a_c32r128	48.361	51.045	0.493	0.100	nonzero	0.072
pg1420_o2nofp.cx10a_c32r128	50.683	48.740	0.499	0.078	nonzero	0.108
pg1514_o2nofp.cx10a_c32r128	47.479	51.848	0.558	0.116		0.064
pg1515_o2nofp.cx10a_c32r128	49.848	49.593	0.477	0.083		0.027
pg1610_o2nofp.cx10a_c32r128	47.374	52.062	0.484	0.081		0.027
pg1611_o2nofp.cx10a_c32r128	49.423	50.041	0.452	0.084		0.025
pg176_o2nofp.cx10a_c32r128	46.262	53.093	0.519	0.126		0.028
pg177_o2nofp.cx10a_c32r128	48.900	50.432	0.518	0.145	0.004	0.093
pg180_o2nofp.cx10b_c32r128	37.580	61.876	0.465	0.079		0.033
pg180_o2nofp.cx10c_c32r128	37.621	61.896	0.400	0.083		0.027
pg180_o2nofp.cx10d_c32r128	37.277	62.093	0.531	0.098	0.001	0.085
pg181_o2nofp.cx10b_c32r128	39.789	59.755	0.385	0.071		0.039
pg181_o2nofp.cx10d_c32r128	36.846	62.642	0.407	0.103	0.002	0.073

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
11920	83116	0	0.0	212.6	22.2	0.000	0.000	0.018	1.904	323254	39.1	3.889	151	35.2	107.8	1.1	0.168	6991	6751	pg1222_o2nofp.cx10a_c32r128
11920	83483	0	0.0	211.6	22.0	0.000	0.000	0.018	1.891	324918	39.0	3.892	149	34.8	107.3	19.1	0.126	7007	6719	pg1322_o2nofp.cx10a_c32r128
11927	82771	0	0.0	211.5	22.0	0.000	0.000	0.018	1.889	322120	39.2	3.892	152	34.8	107.3	6.6	0.123	6927	6703	pg1323_o2nofp.cx10a_c32r128
11920	82368	0	0.0	207.6	21.5	0.000	0.000	0.017	1.847	320367	39.0	3.889	152	33.6	106.0	15.0	0.102	6959	6767	pg1419_o2nofp.cx10a_c32r128
11920	82164	0	0.0	207.5	21.5	0.000	0.000	0.017	1.848	320170	38.9	3.897	152	33.6	106.0	23.2	0.108	6927	6719	pg1420_o2nofp.cx10a_c32r128
11927	82991	0	0.0	204.7	21.4	0.000	0.000	0.017	1.841	322314	39.1	3.884	151	33.4	105.8	2.0	0.114	7023	6687	pg1514_o2nofp.cx10a_c32r128
11927	82480	0	0.0	205.1	21.5	0.000	0.000	0.017	1.846	320422	39.0	3.885	151	33.6	105.9	17.8	0.112	6911	6703	pg1515_o2nofp.cx10a_c32r128
11920	82979	0	0.0	203.5	21.4	0.000	0.000	0.017	1.836	322809	38.9	3.890	150	33.4	105.7	24.9	0.097	6991	6782	pg1610_o2nofp.cx10a_c32r128
11927	83029	0	0.0	204.9	21.4	0.000	0.000	0.017	1.833	322640	39.1	3.886	151	33.4	105.8	5.8	0.111	6991	6719	pg1611_o2nofp.cx10a_c32r128
11920	83130	0	0.0	204.2	21.3	0.000	0.000	0.017	1.833	322627	38.7	3.881	149	33.3	105.7	1.8	0.105	6959	6719	pg176_o2nofp.cx10a_c32r128
11920	82601	0	0.0	205.1	21.4	0.000	0.000	0.017	1.841	321099	38.8	3.887	150	33.4	105.8	3.8	0.119	6991	6815	pg177_o2nofp.cx10a_c32r128
11927	81989	0	0.0	202.2	21.0	0.000	0.000	0.017	1.800	318406	39.0	3.884	152	33.3	105.7	2.4	0.111	6943	6751	pg180_o2nofp.cx10b_c32r128
11920	81936	0	0.0	203.2	21.1	0.000	0.000	0.017	1.809	318141	39.0	3.883	152	33.3	105.7	1.9	0.112	6895	6751	pg180_o2nofp.cx10c_c32r128
11920	81955	0	0.0	202.3	21.0	0.000	0.000	0.017	1.802	318093	39.0	3.881	152	33.2	105.6	20.0	0.113	6895	6703	pg180_o2nofp.cx10d_c32r128
11927	82561	0	0.0	202.2	21.0	0.000	0.000	0.017	1.804	320836	38.9	3.886	151	33.2	105.7	13.6	0.119	6943	6717	pg181_o2nofp.cx10b_c32r128
11927	82582	0	0.0	202.1	21.0	0.000	0.000	0.017	1.799	320956	38.9	3.886	151	33.3	105.7	5.6	0.181	6975	6799	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
0.000	0.000	0.000	0.000	0.000	0.000	212.6	22700.2	9.781	4.074	0.417	105.5	2.270	2334.9	0.000	0.000	1.433	102.2	13.29	0.574	0.150	2.772		pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	211.6	22542.7	11.06	4.801	0.358	105.3	2.278	2360.3	0.000	0.000	1.338	144.0	13.30	0.554	0.130	2.780		pg1322_o2nofp.cx10a_c32r128
0.002	0.009	0.000	0.000	0.001	0.011	211.5	22535.0	11.66	5.142	0.356	105.0	2.269	2353.7	0.000	0.000	1.267	114.6	13.29	0.548	0.120	2.593		pg1323_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	207.6	22019.9	10.70	4.652	0.343	104.3	2.236	2176.2	0.000	0.000	1.285	56.44	13.01	0.529	0.115	2.478		pg1419_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	207.5	22031.4	9.368	3.749	0.328	104.7	2.255	2217.0	0.000	0.000	1.240	69.65	13.15	0.523	0.087	2.398		pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	204.7	21953.0	7.449	2.680	0.318	105.8	0.171	2262.9	0.000	0.000	0.032	340.4	13.20	0.535	0.066	2.098		pg1514_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	205.1	22014.0	7.407	2.535	0.369	106.1	0.172	2238.5	0.000	0.000	0.064	416.0	13.09	0.552	0.112	2.342		pg1515_o2nofp.cx10a_c32r128
0.002	0.018	0.000	0.000	0.001	0.022	203.5	21886.9	7.144	2.365	0.372	106.3	0.165	2145.1	0.000	0.000	0.019	167.0	13.15	0.565	0.095	2.230		pg1610_o2nofp.cx10a_c32r128
0.002	0.013	0.000	0.000	0.000	0.044	204.9	21864.2	7.621	2.763	0.301	105.7	0.170	2219.1	0.000	0.000	0.023	268.2	13.35	0.533	0.064	2.082		pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	204.2	21847.3	6.871	2.240	0.422	105.7	0.150	2204.9	0.000	0.000	0.025	235.0	13.06	0.602	0.103	2.269		pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	205.1	21943.3	7.276	2.472	0.402	105.6	0.152	2284.5	0.000	0.000	0.028	269.1	13.02	0.549	0.102	2.169		pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	202.2	21464.3	7.376	2.622	0.357	105.4	0.154	2153.2	0.000	0.000	0.026	201.6	12.94	0.514	0.078	2.124		pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	203.2	21567.1	7.659	2.804	0.400	105.2	0.159	2212.7	0.000	0.000	0.036	280.4	12.99	0.534	0.080	2.148		pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	202.3	21477.2	7.549	2.604	0.454	105.5	0.153	2195.7	0.000	0.000	0.025	219.7	12.74	0.577	0.099	2.152		pg180_o2nofp.cx10d_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	202.2	21516.1	7.578	2.636	0.394	105.5	0.157	2249.5	0.000	0.000	0.051	310.2	12.89	0.570	0.080	2.203		pg181_o2nofp.cx10b_c32r128
0.000	0.000	0.000	0.000	0.000	0.000	202.1	21460.4	7.455	2.619	0.382	105.3	0.155	2191.8	0.000	0.000	0.035	310.8	12.81	0.512	0.093	2.083		pg181_o2nofp.cx10d_c32r128

l.i0

l.i0: load without secondary indexes

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1111111	0	0	0.0	4029.0	466.5	0.000	0.000	0.004	0.430	122298	48.1	0.110	14	11.5	31.0	5.4	0.006	114287	106988	pg1222_o2nofp.cx10a_c32r128
1111111	0	0	0.0	4050.4	468.7	0.000	0.000	0.004	0.432	122584	48.6	0.110	14	11.5	31.1	7.9	0.005	114685	108485	pg1322_o2nofp.cx10a_c32r128
991736	0	1	0.0	3643.5	422.8	0.000	0.000	0.004	0.437	109430	43.5	0.110	14	11.5	31.1	3.3	2.080	114188	7799	pg1323_o2nofp.cx10a_c32r128
1081081	0	0	0.0	3944.0	455.4	0.000	0.000	0.004	0.431	118851	47.4	0.110	14	11.5	31.1	7.7	0.004	109987	104787	pg1419_o2nofp.cx10a_c32r128
1061947	0	1	0.0	3855.6	444.9	0.000	0.000	0.004	0.429	119093	48.0	0.112	14	11.5	31.1	7.7	0.006	109786	105588	pg1420_o2nofp.cx10a_c32r128
1090909	0	0	0.0	3900.1	450.7	0.000	0.000	0.004	0.423	118938	46.8	0.109	14	11.5	31.1	1.5	0.007	112787	105488	pg1514_o2nofp.cx10a_c32r128
1121495	0	1	0.0	4048.4	468.1	0.000	0.000	0.004	0.427	123418	48.8	0.110	14	11.5	31.1	1.5	0.009	114586	107287	pg1515_o2nofp.cx10a_c32r128
1090909	0	0	0.0	3876.7	448.1	0.000	0.000	0.004	0.421	117992	47.2	0.108	14	11.5	31.1	1.5	0.005	111286	103484	pg1610_o2nofp.cx10a_c32r128
1100917	0	1	0.0	4040.8	467.3	0.000	0.000	0.004	0.435	122999	48.7	0.112	14	11.5	31.1	1.5	0.005	114186	107688	pg1611_o2nofp.cx10a_c32r128
1111111	0	0	0.0	4044.0	466.7	0.000	0.000	0.004	0.430	115482	48.0	0.104	14	11.5	31.1	0.2	0.005	113986	107087	pg176_o2nofp.cx10a_c32r128
1090909	0	1	0.0	3944.7	455.5	0.000	0.000	0.004	0.428	111362	47.1	0.102	14	11.5	31.1	0.2	0.005	113687	108587	pg177_o2nofp.cx10a_c32r128
1111111	0	0	0.0	4039.3	466.2	0.000	0.000	0.004	0.430	115416	48.0	0.104	14	11.5	31.1	0.2	0.005	113687	108187	pg180_o2nofp.cx10b_c32r128
1100917	0	0	0.0	3952.4	456.5	0.000	0.000	0.004	0.425	111210	46.7	0.101	14	11.5	31.1	0.2	0.005	113386	106788	pg180_o2nofp.cx10c_c32r128
1100917	0	0	0.0	3955.9	456.7	0.000	0.000	0.004	0.425	111134	46.5	0.101	14	11.5	31.1	0.2	0.006	113286	105688	pg180_o2nofp.cx10d_c32r128
1100917	0	2	0.0	3933.7	454.1	0.000	0.000	0.004	0.422	110935	47.3	0.101	14	11.5	31.1	0.2	0.005	112987	106487	pg181_o2nofp.cx10b_c32r128
1090909	0	0	0.0	3921.5	452.7	0.000	0.000	0.004	0.425	111346	47.2	0.102	14	11.5	31.1	0.2	0.024	113487	108491	pg181_o2nofp.cx10d_c32r128

l.x

l.x: create secondary indexes

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
2307694	0	0	0.0	5463.2	668.9	0.000	0.000	0.002	0.297	29036	23.8	0.013	3	23.1	53.1	6.8	0.049	NA	NA	pg1222_o2nofp.cx10a_c32r128
2222224	0	0	0.0	5162.9	632.2	0.000	0.000	0.002	0.291	25115	23.8	0.011	3	23.1	53.2	6.8	0.008	NA	NA	pg1322_o2nofp.cx10a_c32r128
2222224	0	1	0.0	5043.8	618.2	0.000	0.000	0.002	0.285	23090	23.5	0.010	3	23.1	53.2	6.9	0.007	NA	NA	pg1323_o2nofp.cx10a_c32r128
2222224	0	0	0.0	5251.5	642.6	0.000	0.000	0.002	0.296	24706	24.3	0.011	3	23.1	53.2	6.9	0.013	NA	NA	pg1419_o2nofp.cx10a_c32r128
2264153	0	1	0.0	5209.7	637.9	0.000	0.000	0.002	0.289	23042	25.3	0.010	4	23.1	53.2	6.8	0.036	NA	NA	pg1420_o2nofp.cx10a_c32r128
2352943	0	0	0.0	5509.9	675.4	0.000	0.000	0.002	0.294	28050	23.1	0.012	3	23.1	53.2	6.9	0.005	NA	NA	pg1514_o2nofp.cx10a_c32r128
2307694	0	2	0.0	5527.3	677.6	0.000	0.000	0.002	0.301	27925	24.2	0.012	3	23.1	53.2	6.9	0.041	NA	NA	pg1515_o2nofp.cx10a_c32r128
2307694	0	0	0.0	5538.1	678.9	0.000	0.000	0.002	0.301	27984	22.8	0.012	3	23.1	53.2	6.9	0.003	NA	NA	pg1610_o2nofp.cx10a_c32r128
2352943	0	1	0.0	5579.9	684.3	0.000	0.000	0.002	0.298	28507	23.7	0.012	3	23.1	53.2	6.9	0.003	NA	NA	pg1611_o2nofp.cx10a_c32r128
2448982	0	0	0.0	5685.7	696.7	0.000	0.000	0.002	0.291	16284	21.8	0.007	3	23.1	53.1	6.3	0.003	NA	NA	pg176_o2nofp.cx10a_c32r128
2448982	0	1	0.0	5542.8	679.4	0.000	0.000	0.002	0.284	16422	22.9	0.007	3	23.1	53.1	6.3	0.007	NA	NA	pg177_o2nofp.cx10a_c32r128
2448982	0	0	0.0	5690.6	697.7	0.000	0.000	0.002	0.292	16612	21.8	0.007	3	23.1	53.1	7.1	0.050	NA	NA	pg180_o2nofp.cx10b_c32r128
2448982	0	0	0.0	5548.1	679.6	0.000	0.000	0.002	0.284	16257	21.8	0.007	3	23.1	53.1	7.1	0.027	NA	NA	pg180_o2nofp.cx10c_c32r128
2448982	0	0	0.0	5602.2	686.6	0.000	0.000	0.002	0.287	16077	22.0	0.007	3	23.1	53.1	7.1	0.037	NA	NA	pg180_o2nofp.cx10d_c32r128
2448982	0	0	0.0	5406.2	662.4	0.000	0.000	0.002	0.277	16222	23.4	0.007	3	23.1	53.1	7.0	0.033	NA	NA	pg181_o2nofp.cx10b_c32r128
2448982	0	0	0.0	5413.6	663.0	0.000	0.000	0.002	0.277	15972	23.1	0.007	3	23.1	53.1	7.1	0.003	NA	NA	pg181_o2nofp.cx10d_c32r128

l.i1

l.i1: continue load after secondary indexes created with 50 inserts per transaction

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
283604	0	0	0.0	3843.5	420.4	0.000	0.000	0.014	1.518	125276	64.2	0.442	72	35.4	131.5	25.1	1.077	31196	2050	pg1222_o2nofp.cx10a_c32r128
280702	0	0	0.0	3751.5	409.2	0.000	0.000	0.013	1.493	122627	64.7	0.437	74	35.1	131.1	27.3	1.236	29046	1150	pg1322_o2nofp.cx10a_c32r128
284024	0	0	0.0	3812.0	416.2	0.000	0.000	0.013	1.500	123893	65.8	0.436	74	35.0	131.1	24.5	0.945	29795	2250	pg1323_o2nofp.cx10a_c32r128
280702	0	0	0.0	3696.6	398.9	0.000	0.000	0.013	1.455	125323	62.2	0.446	71	33.5	129.5	27.5	0.914	27246	700	pg1419_o2nofp.cx10a_c32r128
288722	0	0	0.0	3817.0	411.1	0.000	0.000	0.013	1.458	126885	62.3	0.439	69	33.5	129.5	24.6	1.039	29595	700	pg1420_o2nofp.cx10a_c32r128
269663	0	0	0.0	3552.0	382.7	0.000	0.000	0.013	1.453	121431	60.6	0.450	72	33.3	129.4	25.2	1.013	26846	850	pg1514_o2nofp.cx10a_c32r128
275862	0	0	0.0	3632.0	391.3	0.000	0.000	0.013	1.452	124852	60.2	0.453	70	33.5	129.5	27.1	0.728	31196	1800	pg1515_o2nofp.cx10a_c32r128
282353	0	0	0.0	3535.2	396.9	0.000	0.000	0.013	1.439	127255	62.8	0.451	71	33.2	129.2	22.7	0.739	27897	750	pg1610_o2nofp.cx10a_c32r128
278665	0	0	0.0	3484.6	390.9	0.000	0.000	0.013	1.436	127684	61.4	0.458	71	33.2	129.2	28.7	0.616	27396	2850	pg1611_o2nofp.cx10a_c32r128
290469	0	0	0.0	3690.7	413.2	0.000	0.000	0.013	1.457	121421	63.2	0.418	70	33.2	129.2	23.7	0.900	28146	550	pg176_o2nofp.cx10a_c32r128
282353	0	1	0.0	3592.0	402.8	0.000	0.000	0.013	1.461	117515	61.1	0.416	69	33.2	129.3	29.4	0.827	28946	850	pg177_o2nofp.cx10a_c32r128
294478	0	0	0.0	3753.6	419.8	0.000	0.000	0.013	1.460	122424	62.8	0.416	68	33.0	129.1	24.0	0.622	30046	1700	pg180_o2nofp.cx10b_c32r128
286567	0	0	0.0	3648.2	408.7	0.000	0.000	0.013	1.460	118758	61.8	0.414	69	33.2	129.2	18.6	0.853	29346	1300	pg180_o2nofp.cx10c_c32r128
282769	0	0	0.0	3600.1	402.5	0.000	0.000	0.013	1.458	118372	61.6	0.419	70	33.0	129.0	18.7	0.607	28396	1300	pg180_o2nofp.cx10d_c32r128
286140	0	0	0.0	3657.3	409.6	0.000	0.000	0.013	1.466	118065	61.9	0.413	69	33.0	129.1	30.1	0.675	28246	900	pg181_o2nofp.cx10b_c32r128
285714	0	0	0.0	3659.5	409.9	0.000	0.000	0.013	1.469	118179	61.9	0.414	69	33.1	129.1	18.6	0.834	27997	1300	pg181_o2nofp.cx10d_c32r128

l.i2

l.i2: continue load after secondary indexes created with 5 inserts per transaction

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
63660	0	0	0.0	600.9	66.2	0.000	0.000	0.009	1.064	271715	57.0	4.268	287	35.5	131.6	8.0	0.047	4389	2955	pg1222_o2nofp.cx10a_c32r128
57075	0	0	0.0	535.8	59.1	0.000	0.000	0.009	1.060	248678	53.2	4.357	298	35.1	131.2	17.3	0.097	3964	2590	pg1322_o2nofp.cx10a_c32r128
58896	0	0	0.0	551.1	60.6	0.000	0.000	0.009	1.054	255811	53.3	4.343	290	35.1	131.2	10.2	0.093	4129	2755	pg1323_o2nofp.cx10a_c32r128
57623	0	0	0.0	550.8	61.0	0.000	0.000	0.010	1.083	257436	52.1	4.468	289	33.5	129.6	9.9	0.109	3945	2755	pg1419_o2nofp.cx10a_c32r128
60226	0	0	0.0	573.4	63.6	0.000	0.000	0.010	1.081	266223	52.4	4.420	278	33.6	129.7	27.2	0.091	3945	2250	pg1420_o2nofp.cx10a_c32r128
58465	0	0	0.0	554.8	61.7	0.000	0.000	0.009	1.081	260486	53.2	4.455	291	33.4	129.5	27.2	0.108	3750	2395	pg1514_o2nofp.cx10a_c32r128
61856	0	0	0.0	594.0	66.2	0.000	0.000	0.010	1.095	272955	52.8	4.413	273	33.5	129.6	2.7	0.106	4814	3655	pg1515_o2nofp.cx10a_c32r128
56470	0	0	0.0	532.7	59.3	0.000	0.000	0.009	1.076	250196	52.2	4.431	296	33.3	129.5	10.3	0.093	3660	2280	pg1610_o2nofp.cx10a_c32r128
59776	0	0	0.0	571.5	63.7	0.000	0.000	0.010	1.092	264249	52.5	4.421	281	33.4	129.5	24.1	0.093	3960	2735	pg1611_o2nofp.cx10a_c32r128
58182	0	0	0.0	557.1	62.0	0.000	0.000	0.010	1.091	234046	52.2	4.023	287	33.4	129.5	11.2	0.098	3780	2565	pg176_o2nofp.cx10a_c32r128
62419	0	0	0.0	591.4	65.6	0.000	0.000	0.009	1.076	250304	53.1	4.010	272	33.4	129.5	9.2	0.094	4729	3460	pg177_o2nofp.cx10a_c32r128
58323	0	0	0.0	560.7	62.3	0.000	0.000	0.010	1.094	234772	52.8	4.025	290	33.2	129.3	8.0	0.104	4384	3070	pg180_o2nofp.cx10b_c32r128
60991	0	0	0.0	576.3	64.0	0.000	0.000	0.009	1.074	244691	52.5	4.012	275	33.3	129.5	23.3	0.114	4424	3215	pg180_o2nofp.cx10c_c32r128
60150	0	0	0.0	580.6	64.3	0.000	0.000	0.010	1.095	242072	51.8	4.024	276	33.2	129.3	18.7	0.093	3880	2345	pg180_o2nofp.cx10d_c32r128
60759	0	0	0.0	570.1	63.3	0.000	0.000	0.009	1.067	241471	52.7	3.974	278	33.2	129.3	25.4	0.095	3929	2415	pg181_o2nofp.cx10b_c32r128
59480	0	0	0.0	553.8	61.3	0.000	0.000	0.009	1.056	237020	51.7	3.985	278	33.2	129.3	17.6	0.101	4164	3204	pg181_o2nofp.cx10d_c32r128

qr100.L1

qr100.L1: range queries with 100 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1193	145403	0	0.0	64.9	5.6	0.000	0.000	0.054	4.848	555557	37.5	3.821	83	35.5	131.6	0.6	0.002	12126	11631	pg1222_o2nofp.cx10a_c32r128
1193	147514	0	0.0	64.8	5.7	0.000	0.000	0.054	4.855	563629	37.2	3.821	81	35.1	131.1	0.5	0.002	12366	12110	pg1322_o2nofp.cx10a_c32r128
1192	145900	0	0.0	65.0	5.7	0.000	0.000	0.055	4.870	557825	37.6	3.823	82	35.1	131.1	0.5	0.004	12254	12015	pg1323_o2nofp.cx10a_c32r128
1192	147762	0	0.0	66.0	5.8	0.000	0.000	0.055	4.966	564748	37.2	3.822	81	33.5	129.6	0.5	0.004	12367	12126	pg1419_o2nofp.cx10a_c32r128
1193	147709	0	0.0	65.8	5.8	0.000	0.000	0.055	4.959	564308	37.4	3.820	81	33.6	129.6	0.5	0.017	12286	12078	pg1420_o2nofp.cx10a_c32r128
1192	146855	0	0.0	64.0	5.8	0.000	0.000	0.054	4.951	561274	37.1	3.822	81	33.4	129.4	0.4	0.002	12254	12030	pg1514_o2nofp.cx10a_c32r128
1192	145769	0	0.0	63.4	5.8	0.000	0.000	0.053	4.943	557144	37.4	3.822	82	33.5	129.6	0.5	0.003	12318	12062	pg1515_o2nofp.cx10a_c32r128
1193	146336	0	0.0	63.5	5.8	0.000	0.000	0.053	4.952	558944	37.2	3.820	81	33.3	129.4	1.7	0.007	12318	12079	pg1610_o2nofp.cx10a_c32r128
1192	147343	0	0.0	63.3	5.8	0.000	0.000	0.053	4.958	563157	37.3	3.822	81	33.4	129.4	4.9	0.003	12366	12158	pg1611_o2nofp.cx10a_c32r128
1193	147895	0	0.0	64.1	5.8	0.000	0.000	0.054	4.961	564822	37.1	3.819	80	33.3	129.4	0.4	0.002	12478	12254	pg176_o2nofp.cx10a_c32r128
1193	147861	0	0.0	63.7	5.8	0.000	0.000	0.053	4.949	564745	37.4	3.819	81	33.4	129.4	0.4	0.003	12462	12238	pg177_o2nofp.cx10a_c32r128
1193	145280	0	0.0	64.0	5.8	0.000	0.000	0.054	4.959	554866	37.3	3.819	82	33.2	129.2	0.5	0.004	12222	11982	pg180_o2nofp.cx10b_c32r128
1192	145197	0	0.0	64.0	5.8	0.000	0.000	0.054	4.963	554832	37.4	3.821	82	33.3	129.4	0.4	0.006	12286	12078	pg180_o2nofp.cx10c_c32r128
1193	145155	0	0.0	64.2	5.8	0.000	0.000	0.054	4.957	554467	37.2	3.820	82	33.2	129.2	0.4	0.002	12190	11982	pg180_o2nofp.cx10d_c32r128
1192	147902	0	0.0	63.8	5.8	0.000	0.000	0.054	4.960	565245	37.3	3.822	81	33.2	129.3	0.5	0.002	12510	12270	pg181_o2nofp.cx10b_c32r128
1193	145710	0	0.0	63.6	5.8	0.000	0.000	0.053	4.956	556570	37.5	3.820	82	33.2	129.2	0.5	0.003	12142	11934	pg181_o2nofp.cx10d_c32r128

qp100.L2

qp100.L2: point queries with 100 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1193	84167	0	0.0	181.8	11.1	0.000	0.000	0.152	9.549	325462	36.9	3.867	140	35.5	131.1	0.6	0.002	7119	6975	pg1222_o2nofp.cx10a_c32r128
1193	84362	0	0.0	176.8	11.0	0.000	0.000	0.148	9.451	326177	36.7	3.866	139	35.1	130.5	0.5	0.003	7087	6991	pg1322_o2nofp.cx10a_c32r128
1192	83804	0	0.0	177.8	11.0	0.000	0.000	0.149	9.468	324386	36.8	3.871	141	35.1	130.5	0.5	0.015	6991	6911	pg1323_o2nofp.cx10a_c32r128
1192	83456	0	0.0	172.0	10.8	0.000	0.000	0.144	9.312	322771	36.8	3.868	141	33.5	128.9	0.5	0.001	6959	6895	pg1419_o2nofp.cx10a_c32r128
1193	83017	0	0.0	170.9	10.8	0.000	0.000	0.143	9.295	320955	36.9	3.866	142	33.6	128.9	0.5	0.003	6959	6879	pg1420_o2nofp.cx10a_c32r128
1193	83934	0	0.0	167.5	10.8	0.000	0.000	0.140	9.246	324328	36.8	3.864	140	33.4	128.6	0.5	0.003	7071	6975	pg1514_o2nofp.cx10a_c32r128
1192	83422	0	0.0	169.2	10.8	0.000	0.000	0.142	9.288	322635	36.9	3.868	142	33.5	128.8	0.5	0.002	7023	6911	pg1515_o2nofp.cx10a_c32r128
1193	83910	0	0.0	165.9	10.7	0.000	0.000	0.139	9.212	324171	36.9	3.863	141	33.3	128.5	5.0	0.002	7039	6927	pg1610_o2nofp.cx10a_c32r128
1192	83928	0	0.0	165.7	10.7	0.000	0.000	0.139	9.220	324536	37.0	3.867	141	33.4	128.7	4.5	0.002	7071	6959	pg1611_o2nofp.cx10a_c32r128
1193	84004	0	0.0	165.8	10.7	0.000	0.000	0.139	9.209	324492	36.8	3.863	140	33.3	128.6	0.5	0.002	7103	6991	pg176_o2nofp.cx10a_c32r128
1193	83776	0	0.0	166.3	10.8	0.000	0.000	0.139	9.230	323712	36.9	3.864	141	33.4	128.6	0.4	0.002	7055	6911	pg177_o2nofp.cx10a_c32r128
1193	83033	0	0.0	164.4	10.7	0.000	0.000	0.138	9.194	320743	36.9	3.863	142	33.2	128.4	0.5	0.001	6943	6879	pg180_o2nofp.cx10b_c32r128
1192	83119	0	0.0	165.0	10.7	0.000	0.000	0.138	9.207	321250	36.8	3.865	142	33.4	128.5	0.5	0.001	6959	6863	pg180_o2nofp.cx10c_c32r128
1193	83027	0	0.0	164.6	10.7	0.000	0.000	0.138	9.190	320740	36.9	3.863	142	33.2	128.3	0.5	0.001	6927	6831	pg180_o2nofp.cx10d_c32r128
1192	83614	0	0.0	165.1	10.7	0.000	0.000	0.138	9.216	323278	36.9	3.866	141	33.2	128.5	0.5	0.002	7071	6927	pg181_o2nofp.cx10b_c32r128
1193	83576	0	0.0	165.3	10.7	0.000	0.000	0.139	9.207	322943	37.0	3.864	142	33.2	128.4	0.5	0.002	7023	6911	pg181_o2nofp.cx10d_c32r128

qr500.L3

qr500.L3: range queries with 500 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
5964	141614	0	0.0	288.8	16.0	0.000	0.000	0.048	2.744	542412	38.6	3.830	87	35.5	123.7	14.7	0.021	11807	11359	pg1222_o2nofp.cx10a_c32r128
5964	143022	0	0.0	282.1	15.9	0.000	0.000	0.047	2.727	547286	38.6	3.827	86	35.1	123.1	22.7	0.189	11918	11455	pg1322_o2nofp.cx10a_c32r128
5960	142306	0	0.0	283.2	15.9	0.000	0.000	0.048	2.729	545442	38.7	3.833	87	35.1	123.1	22.9	0.086	11935	11518	pg1323_o2nofp.cx10a_c32r128
5960	143472	0	0.0	273.7	15.8	0.000	0.000	0.046	2.711	549021	38.5	3.827	86	33.7	121.5	30.3	0.020	11982	11567	pg1419_o2nofp.cx10a_c32r128
5964	143579	0	0.0	272.9	15.8	0.000	0.000	0.046	2.707	549305	38.5	3.826	86	33.7	121.6	22.4	0.173	12031	11295	pg1420_o2nofp.cx10a_c32r128
5964	143310	0	0.0	269.8	15.7	0.000	0.000	0.045	2.696	548597	38.5	3.828	86	33.5	121.3	28.7	0.019	12031	11599	pg1514_o2nofp.cx10a_c32r128
5960	141957	0	0.0	271.6	15.7	0.000	0.000	0.046	2.698	543855	38.5	3.831	87	33.6	121.4	20.4	0.021	11886	11454	pg1515_o2nofp.cx10a_c32r128
5964	142324	0	0.0	267.3	15.7	0.000	0.000	0.045	2.695	544174	38.4	3.823	86	33.4	121.2	20.6	0.084	11950	11230	pg1610_o2nofp.cx10a_c32r128
5964	143416	0	0.0	267.2	15.7	0.000	0.000	0.045	2.691	548658	38.5	3.826	86	33.5	121.3	26.4	0.022	12110	11662	pg1611_o2nofp.cx10a_c32r128
5964	143641	0	0.0	267.6	15.7	0.000	0.000	0.045	2.691	549316	38.4	3.824	86	33.4	121.1	28.5	0.103	12126	11614	pg176_o2nofp.cx10a_c32r128
5964	144168	0	0.0	269.2	15.7	0.000	0.000	0.045	2.695	551687	38.5	3.827	85	33.5	121.3	8.7	0.020	12126	11583	pg177_o2nofp.cx10a_c32r128
5964	141266	0	0.0	265.5	15.6	0.000	0.000	0.045	2.685	539878	38.4	3.822	87	33.3	121.0	0.4	0.169	11902	11342	pg180_o2nofp.cx10b_c32r128
5960	141197	0	0.0	266.4	15.7	0.000	0.000	0.045	2.689	540038	38.5	3.825	87	33.4	121.2	0.4	0.096	11934	11486	pg180_o2nofp.cx10c_c32r128
5960	141555	0	0.0	265.9	15.6	0.000	0.000	0.045	2.688	541619	38.4	3.826	87	33.3	120.9	6.9	0.064	11918	11518	pg180_o2nofp.cx10d_c32r128
5964	144498	0	0.0	266.9	15.7	0.000	0.000	0.045	2.691	552566	38.5	3.824	85	33.3	121.1	0.4	0.019	12079	11662	pg181_o2nofp.cx10b_c32r128
5964	142304	0	0.0	267.0	15.7	0.000	0.000	0.045	2.690	544502	38.6	3.826	87	33.3	121.1	15.1	0.084	12030	11631	pg181_o2nofp.cx10d_c32r128

qp500.L4

qp500.L4: point queries with 500 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
5960	83672	0	0.0	171.8	17.3	0.000	0.000	0.029	2.971	324609	38.0	3.880	145	35.6	117.1	23.5	0.143	7023	6879	pg1222_o2nofp.cx10a_c32r128
5964	83909	0	0.0	170.1	17.1	0.000	0.000	0.029	2.931	325381	37.6	3.878	143	35.1	116.6	7.5	0.183	7087	6959	pg1322_o2nofp.cx10a_c32r128
5960	83248	0	0.0	170.4	17.1	0.000	0.000	0.029	2.939	323485	37.7	3.886	145	35.1	116.6	15.9	0.205	7007	6847	pg1323_o2nofp.cx10a_c32r128
5960	82904	0	0.0	167.4	16.7	0.000	0.000	0.028	2.861	321933	37.8	3.883	146	33.7	115.0	17.2	0.201	6975	6863	pg1419_o2nofp.cx10a_c32r128
5964	82785	0	0.0	166.6	16.7	0.000	0.000	0.028	2.859	320999	37.9	3.878	147	33.7	115.1	24.7	0.016	6959	6847	pg1420_o2nofp.cx10a_c32r128
5964	83766	0	0.0	163.4	16.5	0.000	0.000	0.027	2.838	324805	37.9	3.878	145	33.5	114.8	15.6	0.144	7071	6943	pg1514_o2nofp.cx10a_c32r128
5960	83123	0	0.0	164.3	16.6	0.000	0.000	0.028	2.851	322682	37.9	3.882	146	33.7	115.0	22.0	0.014	6975	6847	pg1515_o2nofp.cx10a_c32r128
5960	83323	0	0.0	163.1	16.5	0.000	0.000	0.027	2.837	323007	37.9	3.877	146	33.5	114.8	21.2	0.174	6975	6863	pg1610_o2nofp.cx10a_c32r128
5964	83798	0	0.0	163.1	16.5	0.000	0.000	0.027	2.831	324860	37.8	3.877	144	33.5	114.9	13.3	0.089	7055	6911	pg1611_o2nofp.cx10a_c32r128
5964	83858	0	0.0	162.4	16.4	0.000	0.000	0.027	2.824	324681	37.6	3.872	143	33.4	114.7	22.2	0.205	6975	6847	pg176_o2nofp.cx10a_c32r128
5964	83214	0	0.0	163.9	16.6	0.000	0.000	0.027	2.845	322459	37.6	3.875	145	33.5	114.8	14.4	0.102	6975	6847	pg177_o2nofp.cx10a_c32r128
5964	82581	0	0.0	167.3	16.5	0.000	0.000	0.028	2.835	319629	37.8	3.870	146	33.3	114.6	8.2	0.111	6927	6799	pg180_o2nofp.cx10b_c32r128
5960	82692	0	0.0	168.1	16.5	0.000	0.000	0.028	2.838	320656	37.8	3.878	146	33.5	114.8	5.0	0.019	6943	6815	pg180_o2nofp.cx10c_c32r128
5960	82453	0	0.0	167.1	16.5	0.000	0.000	0.028	2.836	319537	37.7	3.875	146	33.3	114.6	20.5	0.171	6927	6783	pg180_o2nofp.cx10d_c32r128
5964	83212	0	0.0	167.8	16.5	0.000	0.000	0.028	2.839	322605	37.6	3.877	145	33.4	114.7	0.4	0.243	6895	6735	pg181_o2nofp.cx10b_c32r128
5964	82966	0	0.0	167.1	16.5	0.000	0.000	0.028	2.838	321526	37.7	3.875	145	33.3	114.7	7.9	0.211	6991	6687	pg181_o2nofp.cx10d_c32r128

qr1000.L5

qr1000.L5: range queries with 1000 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
11920	140003	0	0.0	210.9	21.7	0.000	0.000	0.018	1.866	536133	39.8	3.829	91	35.5	111.7	16.5	0.159	11694	11279	pg1222_o2nofp.cx10a_c32r128
11920	140977	0	0.0	208.9	21.5	0.000	0.000	0.018	1.846	539572	39.8	3.827	90	35.0	111.2	17.4	0.119	11775	11374	pg1322_o2nofp.cx10a_c32r128
11920	140701	0	0.0	208.9	21.5	0.000	0.000	0.018	1.846	538957	39.8	3.831	91	35.1	111.3	19.3	0.111	11758	11374	pg1323_o2nofp.cx10a_c32r128
11920	142032	0	0.0	203.2	20.9	0.000	0.000	0.017	1.793	544087	39.6	3.831	89	33.6	109.7	26.3	0.115	12014	11567	pg1419_o2nofp.cx10a_c32r128
11920	142100	0	0.0	203.3	20.9	0.000	0.000	0.017	1.797	543927	39.7	3.828	89	33.7	109.7	29.4	0.104	11918	11503	pg1420_o2nofp.cx10a_c32r128
11927	142691	0	0.0	200.6	20.8	0.000	0.000	0.017	1.786	545950	39.7	3.826	89	33.6	109.6	26.2	0.086	11886	11471	pg1514_o2nofp.cx10a_c32r128
11920	140543	0	0.0	201.1	20.9	0.000	0.000	0.017	1.796	537680	39.7	3.826	90	33.7	109.7	26.5	0.102	11727	11279	pg1515_o2nofp.cx10a_c32r128
11920	141056	0	0.0	200.1	20.8	0.000	0.000	0.017	1.784	539600	39.6	3.825	90	33.3	109.3	26.9	0.109	11855	11438	pg1610_o2nofp.cx10a_c32r128
11927	142041	0	0.0	200.0	20.8	0.000	0.000	0.017	1.784	543185	39.6	3.824	89	33.5	109.5	24.4	0.193	11887	11406	pg1611_o2nofp.cx10a_c32r128
11927	142470	0	0.0	200.7	20.7	0.000	0.000	0.017	1.778	544229	39.5	3.820	89	33.4	109.4	0.7	0.096	11886	11406	pg176_o2nofp.cx10a_c32r128
11927	142705	0	0.0	201.0	20.7	0.000	0.000	0.017	1.780	545292	39.6	3.821	89	33.6	109.6	0.6	0.134	12030	11534	pg177_o2nofp.cx10a_c32r128
11927	140568	0	0.0	207.6	21.3	0.000	0.000	0.017	1.830	536782	39.8	3.819	91	33.4	109.4	9.1	0.107	11823	11295	pg180_o2nofp.cx10b_c32r128
11920	139959	0	0.0	208.2	21.3	0.000	0.000	0.017	1.834	535482	39.8	3.826	91	33.5	109.4	4.1	0.146	11790	10959	pg180_o2nofp.cx10c_c32r128
11920	140450	0	0.0	208.4	21.3	0.000	0.000	0.017	1.832	537227	39.8	3.825	91	33.3	109.3	2.3	0.119	11742	11327	pg180_o2nofp.cx10d_c32r128
11927	142783	0	0.0	208.9	21.3	0.000	0.000	0.018	1.831	546000	39.8	3.824	89	33.4	109.5	0.5	0.177	11951	11295	pg181_o2nofp.cx10b_c32r128
11927	140533	0	0.0	208.5	21.4	0.000	0.000	0.017	1.838	537598	39.8	3.825	91	33.4	109.4	7.0	0.131	11758	11071	pg181_o2nofp.cx10d_c32r128

qp1000.L6

qp1000.L6: point queries with 1000 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
11920	83116	0	0.0	212.6	22.2	0.000	0.000	0.018	1.904	323254	39.1	3.889	151	35.2	107.8	1.1	0.168	6991	6751	pg1222_o2nofp.cx10a_c32r128
11920	83483	0	0.0	211.6	22.0	0.000	0.000	0.018	1.891	324918	39.0	3.892	149	34.8	107.3	19.1	0.126	7007	6719	pg1322_o2nofp.cx10a_c32r128
11927	82771	0	0.0	211.5	22.0	0.000	0.000	0.018	1.889	322120	39.2	3.892	152	34.8	107.3	6.6	0.123	6927	6703	pg1323_o2nofp.cx10a_c32r128
11920	82368	0	0.0	207.6	21.5	0.000	0.000	0.017	1.847	320367	39.0	3.889	152	33.6	106.0	15.0	0.102	6959	6767	pg1419_o2nofp.cx10a_c32r128
11920	82164	0	0.0	207.5	21.5	0.000	0.000	0.017	1.848	320170	38.9	3.897	152	33.6	106.0	23.2	0.108	6927	6719	pg1420_o2nofp.cx10a_c32r128
11927	82991	0	0.0	204.7	21.4	0.000	0.000	0.017	1.841	322314	39.1	3.884	151	33.4	105.8	2.0	0.114	7023	6687	pg1514_o2nofp.cx10a_c32r128
11927	82480	0	0.0	205.1	21.5	0.000	0.000	0.017	1.846	320422	39.0	3.885	151	33.6	105.9	17.8	0.112	6911	6703	pg1515_o2nofp.cx10a_c32r128
11920	82979	0	0.0	203.5	21.4	0.000	0.000	0.017	1.836	322809	38.9	3.890	150	33.4	105.7	24.9	0.097	6991	6782	pg1610_o2nofp.cx10a_c32r128
11927	83029	0	0.0	204.9	21.4	0.000	0.000	0.017	1.833	322640	39.1	3.886	151	33.4	105.8	5.8	0.111	6991	6719	pg1611_o2nofp.cx10a_c32r128
11920	83130	0	0.0	204.2	21.3	0.000	0.000	0.017	1.833	322627	38.7	3.881	149	33.3	105.7	1.8	0.105	6959	6719	pg176_o2nofp.cx10a_c32r128
11920	82601	0	0.0	205.1	21.4	0.000	0.000	0.017	1.841	321099	38.8	3.887	150	33.4	105.8	3.8	0.119	6991	6815	pg177_o2nofp.cx10a_c32r128
11927	81989	0	0.0	202.2	21.0	0.000	0.000	0.017	1.800	318406	39.0	3.884	152	33.3	105.7	2.4	0.111	6943	6751	pg180_o2nofp.cx10b_c32r128
11920	81936	0	0.0	203.2	21.1	0.000	0.000	0.017	1.809	318141	39.0	3.883	152	33.3	105.7	1.9	0.112	6895	6751	pg180_o2nofp.cx10c_c32r128
11920	81955	0	0.0	202.3	21.0	0.000	0.000	0.017	1.802	318093	39.0	3.881	152	33.2	105.6	20.0	0.113	6895	6703	pg180_o2nofp.cx10d_c32r128
11927	82561	0	0.0	202.2	21.0	0.000	0.000	0.017	1.804	320836	38.9	3.886	151	33.2	105.7	13.6	0.119	6943	6717	pg181_o2nofp.cx10b_c32r128
11927	82582	0	0.0	202.1	21.0	0.000	0.000	0.017	1.799	320956	38.9	3.886	151	33.3	105.7	5.6	0.181	6975	6799	pg181_o2nofp.cx10d_c32r128

l.i0

l.i0: load without secondary indexes
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	99.191	0.807	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.006	pg1222_o2nofp.cx10a_c32r128
0.000	99.193	0.806	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg1322_o2nofp.cx10a_c32r128
0.000	99.056	0.880	0.006	0.012	0.022	0.022	0.001	0.000	0.000	2.080	pg1323_o2nofp.cx10a_c32r128
0.000	98.505	1.494	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg1419_o2nofp.cx10a_c32r128
0.000	98.457	1.542	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.006	pg1420_o2nofp.cx10a_c32r128
0.000	98.922	1.075	0.003	0.000	0.000	0.000	0.000	0.000	0.000	0.007	pg1514_o2nofp.cx10a_c32r128
0.000	99.075	0.921	0.004	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg1515_o2nofp.cx10a_c32r128
0.000	98.835	1.162	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg1610_o2nofp.cx10a_c32r128
0.000	99.062	0.936	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg1611_o2nofp.cx10a_c32r128
0.000	98.948	1.051	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg176_o2nofp.cx10a_c32r128
0.000	98.977	1.021	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg177_o2nofp.cx10a_c32r128
0.000	98.999	1.001	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg180_o2nofp.cx10b_c32r128
0.000	98.953	1.047	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg180_o2nofp.cx10c_c32r128
0.000	98.981	1.018	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.006	pg180_o2nofp.cx10d_c32r128
0.000	98.914	1.082	0.004	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg181_o2nofp.cx10b_c32r128
0.000	98.931	1.067	0.001	0.001	0.000	0.000	0.000	0.000	0.000	0.024	pg181_o2nofp.cx10d_c32r128

l.x

l.x: create secondary indexes
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

TODO - determine whether there is data for create index response time

l.i1

l.i1: continue load after secondary indexes created with 50 inserts per transaction
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.604	98.751	0.265	0.280	0.060	0.038	nonzero	0.000	0.000	1.077	pg1222_o2nofp.cx10a_c32r128
0.000	0.641	98.751	0.251	0.261	0.063	0.033	nonzero	0.000	0.000	1.236	pg1322_o2nofp.cx10a_c32r128
0.000	0.562	98.796	0.273	0.281	0.061	0.028	0.000	0.000	0.000	0.945	pg1323_o2nofp.cx10a_c32r128
0.000	0.534	98.935	0.207	0.227	0.066	0.031	0.000	0.000	0.000	0.914	pg1419_o2nofp.cx10a_c32r128
0.000	0.592	98.929	0.189	0.206	0.045	0.039	nonzero	0.000	0.000	1.039	pg1420_o2nofp.cx10a_c32r128
0.000	0.695	98.719	0.195	0.264	0.092	0.034	nonzero	0.000	0.000	1.013	pg1514_o2nofp.cx10a_c32r128
0.000	1.374	98.112	0.188	0.236	0.051	0.038	0.000	0.000	0.000	0.728	pg1515_o2nofp.cx10a_c32r128
0.000	0.651	98.778	0.242	0.238	0.063	0.028	0.000	0.000	0.000	0.739	pg1610_o2nofp.cx10a_c32r128
0.000	0.941	98.496	0.230	0.243	0.056	0.033	0.000	0.000	0.000	0.616	pg1611_o2nofp.cx10a_c32r128
0.000	0.690	98.755	0.260	0.214	0.049	0.031	0.000	0.000	0.000	0.900	pg176_o2nofp.cx10a_c32r128
0.000	1.219	98.204	0.222	0.251	0.077	0.028	0.000	0.000	0.000	0.827	pg177_o2nofp.cx10a_c32r128
0.000	0.856	98.580	0.227	0.241	0.066	0.030	0.000	0.000	0.000	0.622	pg180_o2nofp.cx10b_c32r128
0.000	1.001	98.400	0.243	0.263	0.064	0.030	0.000	0.000	0.000	0.853	pg180_o2nofp.cx10c_c32r128
0.000	1.425	98.028	0.189	0.256	0.070	0.032	0.000	0.000	0.000	0.607	pg180_o2nofp.cx10d_c32r128
0.000	0.805	98.611	0.245	0.238	0.066	0.035	0.000	0.000	0.000	0.675	pg181_o2nofp.cx10b_c32r128
0.000	1.090	98.291	0.257	0.264	0.067	0.030	0.000	0.000	0.000	0.834	pg181_o2nofp.cx10d_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	29.717	68.922	0.992	0.268	0.060	0.040	nonzero	0.000	0.000	1.077	pg1222_o2nofp.cx10a_c32r128
0.000	28.406	70.343	0.912	0.242	0.062	0.035	nonzero	0.000	0.000	1.236	pg1322_o2nofp.cx10a_c32r128
0.000	27.481	71.290	0.870	0.265	0.064	0.030	0.000	0.000	0.000	0.946	pg1323_o2nofp.cx10a_c32r128
0.000	24.151	74.781	0.762	0.212	0.061	0.032	0.000	0.000	0.000	0.915	pg1419_o2nofp.cx10a_c32r128
0.000	26.032	73.140	0.552	0.193	0.043	0.040	nonzero	0.000	0.000	1.039	pg1420_o2nofp.cx10a_c32r128
0.000	23.788	75.114	0.719	0.256	0.088	0.035	nonzero	0.000	0.000	1.012	pg1514_o2nofp.cx10a_c32r128
0.000	25.449	73.579	0.683	0.201	0.050	0.038	0.000	0.000	0.000	0.728	pg1515_o2nofp.cx10a_c32r128
0.000	25.928	73.080	0.693	0.212	0.058	0.030	0.000	0.000	0.000	0.597	pg1610_o2nofp.cx10a_c32r128
0.000	26.136	72.748	0.801	0.224	0.058	0.034	0.000	0.000	0.000	0.616	pg1611_o2nofp.cx10a_c32r128
0.000	23.146	75.884	0.682	0.206	0.049	0.033	0.000	0.000	0.000	0.900	pg176_o2nofp.cx10a_c32r128
0.000	22.871	76.226	0.562	0.239	0.073	0.030	0.000	0.000	0.000	0.829	pg177_o2nofp.cx10a_c32r128
0.000	24.655	74.594	0.429	0.228	0.065	0.029	0.000	0.000	0.000	0.622	pg180_o2nofp.cx10b_c32r128
0.000	23.281	75.905	0.479	0.242	0.064	0.030	0.000	0.000	0.000	0.790	pg180_o2nofp.cx10c_c32r128
0.000	22.585	76.657	0.433	0.228	0.065	0.032	0.000	0.000	0.000	0.607	pg180_o2nofp.cx10d_c32r128
0.000	23.501	75.672	0.502	0.226	0.062	0.035	0.000	0.000	0.000	0.674	pg181_o2nofp.cx10b_c32r128
0.000	23.885	75.258	0.514	0.245	0.067	0.031	0.000	0.000	0.000	0.833	pg181_o2nofp.cx10d_c32r128

l.i2

l.i2: continue load after secondary indexes created with 5 inserts per transaction
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
35.791	64.184	0.025	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.047	pg1222_o2nofp.cx10a_c32r128
52.001	47.976	0.023	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.097	pg1322_o2nofp.cx10a_c32r128
58.214	41.763	0.022	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.093	pg1323_o2nofp.cx10a_c32r128
37.381	62.616	0.003	nonzero	0.000	nonzero	0.000	0.000	0.000	0.000	0.109	pg1419_o2nofp.cx10a_c32r128
52.774	47.223	0.003	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.091	pg1420_o2nofp.cx10a_c32r128
31.572	68.426	0.002	nonzero	0.000	nonzero	0.000	0.000	0.000	0.000	0.108	pg1514_o2nofp.cx10a_c32r128
54.595	45.402	0.003	0.000	0.000	nonzero	0.000	0.000	0.000	0.000	0.106	pg1515_o2nofp.cx10a_c32r128
30.313	69.684	0.003	nonzero	0.001	nonzero	0.000	0.000	0.000	0.000	0.093	pg1610_o2nofp.cx10a_c32r128
51.325	48.670	0.004	0.001	0.001	nonzero	0.000	0.000	0.000	0.000	0.093	pg1611_o2nofp.cx10a_c32r128
50.841	49.156	0.003	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.098	pg176_o2nofp.cx10a_c32r128
72.144	27.854	0.002	nonzero	0.000	nonzero	0.000	0.000	0.000	0.000	0.094	pg177_o2nofp.cx10a_c32r128
48.486	51.511	0.003	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.104	pg180_o2nofp.cx10b_c32r128
65.088	34.910	0.002	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.114	pg180_o2nofp.cx10c_c32r128
66.178	33.820	0.002	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.093	pg180_o2nofp.cx10d_c32r128
66.195	33.801	0.003	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.095	pg181_o2nofp.cx10b_c32r128
66.441	33.557	0.003	0.000	nonzero	nonzero	0.000	0.000	0.000	0.000	0.101	pg181_o2nofp.cx10d_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.141	63.744	36.102	0.012	0.001	0.000	0.000	0.000	0.000	0.000	0.048	pg1222_o2nofp.cx10a_c32r128
0.120	56.457	43.408	0.014	0.001	nonzero	0.000	0.000	0.000	0.000	0.097	pg1322_o2nofp.cx10a_c32r128
0.179	57.633	42.184	0.004	0.001	nonzero	0.000	0.000	0.000	0.000	0.094	pg1323_o2nofp.cx10a_c32r128
0.063	50.739	49.196	0.003	0.000	nonzero	0.000	0.000	0.000	0.000	0.109	pg1419_o2nofp.cx10a_c32r128
0.071	57.418	42.509	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.091	pg1420_o2nofp.cx10a_c32r128
0.040	52.114	47.844	0.002	0.000	nonzero	0.000	0.000	0.000	0.000	0.108	pg1514_o2nofp.cx10a_c32r128
0.088	59.905	40.004	0.002	0.000	nonzero	0.000	0.000	0.000	0.000	0.106	pg1515_o2nofp.cx10a_c32r128
0.044	49.901	50.051	0.003	0.001	nonzero	0.000	0.000	0.000	0.000	0.093	pg1610_o2nofp.cx10a_c32r128
0.064	56.345	43.587	0.003	0.001	nonzero	0.000	0.000	0.000	0.000	0.093	pg1611_o2nofp.cx10a_c32r128
0.062	49.847	50.090	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.098	pg176_o2nofp.cx10a_c32r128
0.123	54.087	45.790	nonzero	0.000	nonzero	0.000	0.000	0.000	0.000	0.094	pg177_o2nofp.cx10a_c32r128
0.004	51.773	48.219	0.004	0.001	nonzero	0.000	0.000	0.000	0.000	0.104	pg180_o2nofp.cx10b_c32r128
0.008	54.791	45.199	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.115	pg180_o2nofp.cx10c_c32r128
0.010	55.057	44.930	0.003	nonzero	nonzero	0.000	0.000	0.000	0.000	0.093	pg180_o2nofp.cx10d_c32r128
0.013	53.814	46.172	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.095	pg181_o2nofp.cx10b_c32r128
0.014	53.625	46.359	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.101	pg181_o2nofp.cx10d_c32r128

qr100.L1

qr100.L1: range queries with 100 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.999	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg1222_o2nofp.cx10a_c32r128
99.999	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg1322_o2nofp.cx10a_c32r128
99.999	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg1323_o2nofp.cx10a_c32r128
99.999	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg1419_o2nofp.cx10a_c32r128
99.999	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.017	pg1420_o2nofp.cx10a_c32r128
99.999	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg1514_o2nofp.cx10a_c32r128
99.999	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg1515_o2nofp.cx10a_c32r128
99.999	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.007	pg1610_o2nofp.cx10a_c32r128
99.999	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg1611_o2nofp.cx10a_c32r128
99.999	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg176_o2nofp.cx10a_c32r128
99.999	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg177_o2nofp.cx10a_c32r128
99.999	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg180_o2nofp.cx10b_c32r128
99.999	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.006	pg180_o2nofp.cx10c_c32r128
99.999	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg180_o2nofp.cx10d_c32r128
99.999	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg181_o2nofp.cx10b_c32r128
99.999	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg181_o2nofp.cx10d_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	99.845	0.155	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1222_o2nofp.cx10a_c32r128
0.000	0.000	99.859	0.141	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1322_o2nofp.cx10a_c32r128
0.000	0.000	99.852	0.148	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1323_o2nofp.cx10a_c32r128
0.000	0.000	99.845	0.155	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1419_o2nofp.cx10a_c32r128
0.000	0.000	99.845	0.150	0.005	0.000	0.000	0.000	0.000	0.000	0.020	pg1420_o2nofp.cx10a_c32r128
0.000	0.000	99.824	0.176	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg1514_o2nofp.cx10a_c32r128
0.000	0.000	99.836	0.164	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1515_o2nofp.cx10a_c32r128
0.000	0.000	99.840	0.160	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg1610_o2nofp.cx10a_c32r128
0.000	0.000	99.852	0.148	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1611_o2nofp.cx10a_c32r128
0.000	0.000	99.866	0.134	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg176_o2nofp.cx10a_c32r128
0.000	0.000	99.840	0.160	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg177_o2nofp.cx10a_c32r128
0.000	0.000	99.845	0.155	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg180_o2nofp.cx10b_c32r128
0.000	0.000	99.843	0.157	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg180_o2nofp.cx10c_c32r128
0.000	0.000	99.861	0.139	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg180_o2nofp.cx10d_c32r128
0.000	0.000	99.850	0.150	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg181_o2nofp.cx10b_c32r128
0.000	0.000	99.856	0.144	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg181_o2nofp.cx10d_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	68.125	31.875	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg1222_o2nofp.cx10a_c32r128
0.000	63.567	36.433	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg1322_o2nofp.cx10a_c32r128
0.000	64.801	35.199	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg1323_o2nofp.cx10a_c32r128
0.000	61.039	38.961	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg1419_o2nofp.cx10a_c32r128
0.000	66.836	33.164	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg1420_o2nofp.cx10a_c32r128
0.000	65.745	34.255	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg1514_o2nofp.cx10a_c32r128
0.000	66.789	33.211	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg1515_o2nofp.cx10a_c32r128
0.000	61.752	38.245	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg1610_o2nofp.cx10a_c32r128
0.000	68.470	31.530	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg1611_o2nofp.cx10a_c32r128
0.000	60.771	39.229	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg176_o2nofp.cx10a_c32r128
0.000	65.771	34.225	0.005	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg177_o2nofp.cx10a_c32r128
0.000	62.028	37.970	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg180_o2nofp.cx10b_c32r128
0.000	64.917	35.079	0.005	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg180_o2nofp.cx10c_c32r128
0.000	66.324	33.676	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg180_o2nofp.cx10d_c32r128
0.000	65.512	34.488	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg181_o2nofp.cx10b_c32r128
0.000	66.755	33.245	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg181_o2nofp.cx10d_c32r128

qp100.L2

qp100.L2: point queries with 100 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.992	0.008	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg1222_o2nofp.cx10a_c32r128
99.991	0.009	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg1322_o2nofp.cx10a_c32r128
99.992	0.008	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg1323_o2nofp.cx10a_c32r128
99.993	0.007	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg1419_o2nofp.cx10a_c32r128
99.990	0.010	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg1420_o2nofp.cx10a_c32r128
99.993	0.007	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg1514_o2nofp.cx10a_c32r128
99.993	0.007	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg1515_o2nofp.cx10a_c32r128
99.990	0.010	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg1610_o2nofp.cx10a_c32r128
99.991	0.009	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg1611_o2nofp.cx10a_c32r128
99.993	0.007	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg176_o2nofp.cx10a_c32r128
99.992	0.007	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg177_o2nofp.cx10a_c32r128
99.990	0.010	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg180_o2nofp.cx10b_c32r128
99.992	0.008	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg180_o2nofp.cx10c_c32r128
99.992	0.008	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.001	pg180_o2nofp.cx10d_c32r128
99.992	0.008	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg181_o2nofp.cx10b_c32r128
99.992	0.008	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg181_o2nofp.cx10d_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	99.889	0.111	0.000	0.000	0.000	0.000	0.000	0.000	0.007	pg1222_o2nofp.cx10a_c32r128
0.000	0.000	99.877	0.123	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1322_o2nofp.cx10a_c32r128
0.000	0.000	99.891	0.109	0.000	0.000	0.000	0.000	0.000	0.000	0.007	pg1323_o2nofp.cx10a_c32r128
0.000	0.000	99.880	0.120	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1419_o2nofp.cx10a_c32r128
0.000	0.000	99.889	0.111	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1420_o2nofp.cx10a_c32r128
0.000	0.000	99.877	0.123	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1514_o2nofp.cx10a_c32r128
0.000	0.000	99.889	0.111	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1515_o2nofp.cx10a_c32r128
0.000	0.000	99.870	0.130	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1610_o2nofp.cx10a_c32r128
0.000	0.000	99.884	0.116	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1611_o2nofp.cx10a_c32r128
0.000	0.000	99.889	0.111	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg176_o2nofp.cx10a_c32r128
0.000	0.000	99.891	0.109	0.000	0.000	0.000	0.000	0.000	0.000	0.007	pg177_o2nofp.cx10a_c32r128
0.000	0.000	99.882	0.118	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg180_o2nofp.cx10b_c32r128
0.000	0.000	99.870	0.130	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg180_o2nofp.cx10c_c32r128
0.000	0.000	99.889	0.111	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg180_o2nofp.cx10d_c32r128
0.000	0.000	99.875	0.125	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg181_o2nofp.cx10b_c32r128
0.000	0.000	99.894	0.106	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg181_o2nofp.cx10d_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	22.287	77.685	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1222_o2nofp.cx10a_c32r128
0.000	9.889	90.083	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1322_o2nofp.cx10a_c32r128
0.000	24.935	75.037	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1323_o2nofp.cx10a_c32r128
0.000	13.363	86.609	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1419_o2nofp.cx10a_c32r128
0.000	22.201	77.771	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1420_o2nofp.cx10a_c32r128
0.000	7.093	92.880	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1514_o2nofp.cx10a_c32r128
0.000	18.731	81.241	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1515_o2nofp.cx10a_c32r128
0.000	10.236	89.736	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1610_o2nofp.cx10a_c32r128
0.000	19.183	80.787	0.030	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1611_o2nofp.cx10a_c32r128
0.000	8.058	91.914	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg176_o2nofp.cx10a_c32r128
0.000	16.294	83.678	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.007	pg177_o2nofp.cx10a_c32r128
0.000	9.833	90.139	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg180_o2nofp.cx10b_c32r128
0.000	12.845	87.118	0.037	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg180_o2nofp.cx10c_c32r128
0.000	15.359	84.613	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg180_o2nofp.cx10d_c32r128
0.000	13.699	86.273	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg181_o2nofp.cx10b_c32r128
0.000	16.498	83.475	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg181_o2nofp.cx10d_c32r128

qr500.L3

qr500.L3: range queries with 500 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.995	0.004	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.021	pg1222_o2nofp.cx10a_c32r128
99.995	0.004	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.189	pg1322_o2nofp.cx10a_c32r128
99.995	0.004	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.086	pg1323_o2nofp.cx10a_c32r128
99.995	0.004	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.020	pg1419_o2nofp.cx10a_c32r128
99.995	0.005	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.173	pg1420_o2nofp.cx10a_c32r128
99.995	0.004	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.019	pg1514_o2nofp.cx10a_c32r128
99.995	0.004	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.021	pg1515_o2nofp.cx10a_c32r128
99.995	0.005	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.084	pg1610_o2nofp.cx10a_c32r128
99.995	0.004	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.022	pg1611_o2nofp.cx10a_c32r128
99.995	0.004	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.103	pg176_o2nofp.cx10a_c32r128
99.995	0.004	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.020	pg177_o2nofp.cx10a_c32r128
99.994	0.004	nonzero	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.169	pg180_o2nofp.cx10b_c32r128
99.995	0.004	nonzero	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.096	pg180_o2nofp.cx10c_c32r128
99.995	0.004	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.064	pg180_o2nofp.cx10d_c32r128
99.995	0.004	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.019	pg181_o2nofp.cx10b_c32r128
99.995	0.004	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.084	pg181_o2nofp.cx10d_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.013	99.347	0.552	0.088	0.000	0.000	0.000	0.000	0.000	0.026	pg1222_o2nofp.cx10a_c32r128
0.000	0.012	99.051	0.760	0.162	0.016	0.000	0.000	0.000	0.000	0.191	pg1322_o2nofp.cx10a_c32r128
0.000	0.093	99.296	0.537	0.074	0.000	0.000	0.000	0.000	0.000	0.026	pg1323_o2nofp.cx10a_c32r128
0.000	0.001	99.013	0.843	0.144	0.000	0.000	0.000	0.000	0.000	0.025	pg1419_o2nofp.cx10a_c32r128
0.000	0.073	98.850	0.754	0.266	0.057	0.000	0.000	0.000	0.000	0.178	pg1420_o2nofp.cx10a_c32r128
0.000	0.004	99.361	0.591	0.044	0.000	0.000	0.000	0.000	0.000	0.024	pg1514_o2nofp.cx10a_c32r128
0.000	0.118	99.243	0.513	0.126	0.000	0.000	0.000	0.000	0.000	0.025	pg1515_o2nofp.cx10a_c32r128
0.000	0.006	98.964	0.843	0.187	0.000	0.000	0.000	0.000	0.000	0.025	pg1610_o2nofp.cx10a_c32r128
0.000	0.108	98.969	0.773	0.150	0.000	0.000	0.000	0.000	0.000	0.027	pg1611_o2nofp.cx10a_c32r128
0.000	0.090	98.973	0.786	0.150	0.000	0.000	0.000	0.000	0.000	0.028	pg176_o2nofp.cx10a_c32r128
0.000	0.435	98.854	0.610	0.101	0.000	0.000	0.000	0.000	0.000	0.033	pg177_o2nofp.cx10a_c32r128
0.000	0.095	98.599	0.968	0.278	0.060	0.000	0.000	0.000	0.000	0.171	pg180_o2nofp.cx10b_c32r128
0.000	0.205	98.654	0.937	0.204	nonzero	0.000	0.000	0.000	0.000	0.090	pg180_o2nofp.cx10c_c32r128
0.000	0.141	98.897	0.711	0.250	0.000	0.000	0.000	0.000	0.000	0.054	pg180_o2nofp.cx10d_c32r128
0.000	0.269	98.617	0.956	0.159	0.000	0.000	0.000	0.000	0.000	0.041	pg181_o2nofp.cx10b_c32r128
0.000	0.421	98.719	0.747	0.113	0.000	0.000	0.000	0.000	0.000	0.025	pg181_o2nofp.cx10d_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	53.506	46.212	0.254	0.028	0.000	0.000	0.000	0.000	0.000	0.022	pg1222_o2nofp.cx10a_c32r128
0.000	47.151	52.387	0.381	0.068	0.013	0.000	0.000	0.000	0.000	0.190	pg1322_o2nofp.cx10a_c32r128
0.000	51.739	47.987	0.252	0.023	0.000	0.000	0.000	0.000	0.000	0.022	pg1323_o2nofp.cx10a_c32r128
0.000	47.056	52.485	0.399	0.059	0.000	0.000	0.000	0.000	0.000	0.022	pg1419_o2nofp.cx10a_c32r128
0.000	51.257	48.244	0.353	0.115	0.030	0.000	0.000	0.000	0.000	0.178	pg1420_o2nofp.cx10a_c32r128
0.000	46.762	52.913	0.308	0.018	0.000	0.000	0.000	0.000	0.000	0.023	pg1514_o2nofp.cx10a_c32r128
0.000	51.907	47.797	0.260	0.037	0.000	0.000	0.000	0.000	0.000	0.021	pg1515_o2nofp.cx10a_c32r128
0.000	46.115	53.384	0.434	0.067	0.000	0.000	0.000	0.000	0.000	0.023	pg1610_o2nofp.cx10a_c32r128
0.000	50.877	48.731	0.338	0.054	0.000	0.000	0.000	0.000	0.000	0.024	pg1611_o2nofp.cx10a_c32r128
0.000	45.832	53.688	0.420	0.060	0.000	0.000	0.000	0.000	0.000	0.027	pg176_o2nofp.cx10a_c32r128
0.000	51.474	48.175	0.309	0.043	0.000	0.000	0.000	0.000	0.000	0.022	pg177_o2nofp.cx10a_c32r128
0.000	43.964	55.136	0.671	0.187	0.043	0.000	0.000	0.000	0.000	0.170	pg180_o2nofp.cx10b_c32r128
0.000	46.075	53.164	0.660	0.100	0.001	0.000	0.000	0.000	0.000	0.089	pg180_o2nofp.cx10c_c32r128
0.000	47.663	51.729	0.468	0.140	nonzero	0.000	0.000	0.000	0.000	0.065	pg180_o2nofp.cx10d_c32r128
0.000	47.769	51.531	0.617	0.082	0.000	0.000	0.000	0.000	0.000	0.023	pg181_o2nofp.cx10b_c32r128
0.000	50.296	49.193	0.451	0.059	0.000	0.000	0.000	0.000	0.000	0.024	pg181_o2nofp.cx10d_c32r128

qp500.L4

qp500.L4: point queries with 500 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.973	0.027	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.143	pg1222_o2nofp.cx10a_c32r128
99.974	0.026	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.183	pg1322_o2nofp.cx10a_c32r128
99.979	0.021	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.205	pg1323_o2nofp.cx10a_c32r128
99.979	0.020	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.201	pg1419_o2nofp.cx10a_c32r128
99.972	0.028	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.016	pg1420_o2nofp.cx10a_c32r128
99.978	0.022	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.144	pg1514_o2nofp.cx10a_c32r128
99.980	0.020	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.014	pg1515_o2nofp.cx10a_c32r128
99.973	0.026	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.174	pg1610_o2nofp.cx10a_c32r128
99.976	0.024	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.089	pg1611_o2nofp.cx10a_c32r128
99.978	0.022	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.205	pg176_o2nofp.cx10a_c32r128
99.978	0.022	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.102	pg177_o2nofp.cx10a_c32r128
99.973	0.027	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.111	pg180_o2nofp.cx10b_c32r128
99.980	0.020	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.019	pg180_o2nofp.cx10c_c32r128
99.975	0.024	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.171	pg180_o2nofp.cx10d_c32r128
99.979	0.021	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.243	pg181_o2nofp.cx10b_c32r128
99.977	0.022	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.211	pg181_o2nofp.cx10d_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.077	99.185	0.550	0.139	0.048	0.000	0.000	0.000	0.000	0.225	pg1222_o2nofp.cx10a_c32r128
0.000	0.082	99.159	0.621	0.102	0.036	0.000	0.000	0.000	0.000	0.225	pg1322_o2nofp.cx10a_c32r128
0.000	0.099	99.374	0.377	0.030	0.121	0.000	0.000	0.000	0.000	0.218	pg1323_o2nofp.cx10a_c32r128
0.000	0.022	99.322	0.454	0.076	0.126	0.000	0.000	0.000	0.000	0.248	pg1419_o2nofp.cx10a_c32r128
0.000	0.005	99.256	0.635	0.105	0.000	0.000	0.000	0.000	0.000	0.022	pg1420_o2nofp.cx10a_c32r128
0.000	0.002	99.349	0.570	0.079	0.000	0.000	0.000	0.000	0.000	0.025	pg1514_o2nofp.cx10a_c32r128
0.000	0.154	99.236	0.543	0.067	0.000	0.000	0.000	0.000	0.000	0.022	pg1515_o2nofp.cx10a_c32r128
0.000	0.035	99.214	0.524	0.182	0.045	0.000	0.000	0.000	0.000	0.211	pg1610_o2nofp.cx10a_c32r128
0.000	0.180	99.076	0.596	0.148	0.000	0.000	0.000	0.000	0.000	0.025	pg1611_o2nofp.cx10a_c32r128
0.000	0.044	99.031	0.703	0.186	0.036	0.000	0.000	0.000	0.000	0.231	pg176_o2nofp.cx10a_c32r128
0.000	0.108	99.075	0.700	0.117	0.000	0.000	0.000	0.000	0.000	0.022	pg177_o2nofp.cx10a_c32r128
0.000	0.028	98.900	0.887	0.186	0.000	0.000	0.000	0.000	0.000	0.040	pg180_o2nofp.cx10b_c32r128
0.000	0.081	99.188	0.589	0.142	0.000	0.000	0.000	0.000	0.000	0.024	pg180_o2nofp.cx10c_c32r128
0.000	0.134	98.832	0.776	0.202	0.055	0.000	0.000	0.000	0.000	0.191	pg180_o2nofp.cx10d_c32r128
0.000	0.114	99.072	0.601	0.132	0.081	0.000	0.000	0.000	0.000	0.239	pg181_o2nofp.cx10b_c32r128
0.000	0.216	98.806	0.573	0.205	0.200	0.000	0.000	0.000	0.000	0.227	pg181_o2nofp.cx10d_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	52.650	47.095	0.179	0.045	0.031	0.000	0.000	0.000	0.000	0.232	pg1222_o2nofp.cx10a_c32r128
0.000	40.648	59.075	0.222	0.030	0.026	0.000	0.000	0.000	0.000	0.188	pg1322_o2nofp.cx10a_c32r128
0.000	44.821	54.965	0.155	0.012	0.047	0.000	0.000	0.000	0.000	0.200	pg1323_o2nofp.cx10a_c32r128
0.000	42.459	57.291	0.169	0.030	0.052	0.000	0.000	0.000	0.000	0.248	pg1419_o2nofp.cx10a_c32r128
0.000	43.035	56.699	0.233	0.033	0.000	0.000	0.000	0.000	0.000	0.020	pg1420_o2nofp.cx10a_c32r128
0.000	40.719	59.051	0.213	0.017	0.000	0.000	0.000	0.000	0.000	0.022	pg1514_o2nofp.cx10a_c32r128
0.000	44.273	55.522	0.190	0.016	0.000	0.000	0.000	0.000	0.000	0.021	pg1515_o2nofp.cx10a_c32r128
0.000	40.210	59.501	0.186	0.070	0.033	0.000	0.000	0.000	0.000	0.211	pg1610_o2nofp.cx10a_c32r128
0.000	42.888	56.859	0.210	0.044	0.000	0.000	0.000	0.000	0.000	0.024	pg1611_o2nofp.cx10a_c32r128
0.000	38.045	61.624	0.254	0.051	0.025	0.000	0.000	0.000	0.000	0.223	pg176_o2nofp.cx10a_c32r128
0.000	40.851	58.863	0.262	0.024	0.000	0.000	0.000	0.000	0.000	0.020	pg177_o2nofp.cx10a_c32r128
0.000	38.808	60.567	0.542	0.083	0.000	0.000	0.000	0.000	0.000	0.023	pg180_o2nofp.cx10b_c32r128
0.000	40.730	58.809	0.381	0.080	0.000	0.000	0.000	0.000	0.000	0.022	pg180_o2nofp.cx10c_c32r128
0.000	40.080	59.307	0.473	0.097	0.044	0.000	0.000	0.000	0.000	0.190	pg180_o2nofp.cx10d_c32r128
0.000	42.500	57.010	0.368	0.063	0.059	0.000	0.000	0.000	0.000	0.214	pg181_o2nofp.cx10b_c32r128
0.000	42.831	56.562	0.359	0.123	0.125	0.000	0.000	0.000	0.000	0.208	pg181_o2nofp.cx10d_c32r128

qr1000.L5

qr1000.L5: range queries with 1000 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.992	0.007	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.159	pg1222_o2nofp.cx10a_c32r128
99.992	0.007	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.119	pg1322_o2nofp.cx10a_c32r128
99.992	0.007	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.111	pg1323_o2nofp.cx10a_c32r128
99.994	0.006	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.115	pg1419_o2nofp.cx10a_c32r128
99.993	0.006	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.104	pg1420_o2nofp.cx10a_c32r128
99.993	0.006	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.086	pg1514_o2nofp.cx10a_c32r128
99.993	0.007	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.102	pg1515_o2nofp.cx10a_c32r128
99.993	0.006	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.109	pg1610_o2nofp.cx10a_c32r128
99.993	0.006	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.193	pg1611_o2nofp.cx10a_c32r128
99.994	0.005	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.096	pg176_o2nofp.cx10a_c32r128
99.993	0.006	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.134	pg177_o2nofp.cx10a_c32r128
99.991	0.008	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.107	pg180_o2nofp.cx10b_c32r128
99.992	0.007	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.146	pg180_o2nofp.cx10c_c32r128
99.992	0.007	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.119	pg180_o2nofp.cx10d_c32r128
99.992	0.007	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.177	pg181_o2nofp.cx10b_c32r128
99.992	0.007	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.131	pg181_o2nofp.cx10d_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.137	99.247	0.565	0.051	0.000	0.000	0.000	0.000	0.000	0.055	pg1222_o2nofp.cx10a_c32r128
0.000	0.250	99.141	0.543	0.065	0.000	0.000	0.000	0.000	0.000	0.025	pg1322_o2nofp.cx10a_c32r128
0.000	0.237	99.170	0.507	0.087	0.000	0.000	0.000	0.000	0.000	0.036	pg1323_o2nofp.cx10a_c32r128
0.000	0.014	99.478	0.428	0.080	0.000	0.000	0.000	0.000	0.000	0.026	pg1419_o2nofp.cx10a_c32r128
0.000	0.342	99.056	0.522	0.080	0.000	0.000	0.000	0.000	0.000	0.036	pg1420_o2nofp.cx10a_c32r128
0.000	0.033	99.382	0.478	0.108	0.000	0.000	0.000	0.000	0.000	0.026	pg1514_o2nofp.cx10a_c32r128
0.000	0.487	98.857	0.558	0.098	0.000	0.000	0.000	0.000	0.000	0.025	pg1515_o2nofp.cx10a_c32r128
0.000	0.078	99.299	0.529	0.094	0.000	0.000	0.000	0.000	0.000	0.025	pg1610_o2nofp.cx10a_c32r128
0.000	0.507	98.828	0.550	0.092	0.024	0.000	0.000	0.000	0.000	0.196	pg1611_o2nofp.cx10a_c32r128
0.000	0.297	99.094	0.509	0.099	nonzero	0.000	0.000	0.000	0.000	0.072	pg176_o2nofp.cx10a_c32r128
0.000	0.863	98.484	0.556	0.084	0.013	0.000	0.000	0.000	0.000	0.136	pg177_o2nofp.cx10a_c32r128
0.000	0.143	99.265	0.486	0.106	0.000	0.000	0.000	0.000	0.000	0.032	pg180_o2nofp.cx10b_c32r128
0.000	0.345	99.078	0.464	0.104	0.009	0.000	0.000	0.000	0.000	0.148	pg180_o2nofp.cx10c_c32r128
0.000	0.528	98.997	0.390	0.084	0.000	0.000	0.000	0.000	0.000	0.036	pg180_o2nofp.cx10d_c32r128
0.000	0.945	98.506	0.442	0.107	nonzero	0.000	0.000	0.000	0.000	0.134	pg181_o2nofp.cx10b_c32r128
0.000	0.866	98.625	0.407	0.099	0.003	0.000	0.000	0.000	0.000	0.134	pg181_o2nofp.cx10d_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	54.025	45.672	0.283	0.020	0.000	0.000	0.000	0.000	0.000	0.054	pg1222_o2nofp.cx10a_c32r128
0.000	44.365	55.315	0.292	0.027	0.000	0.000	0.000	0.000	0.000	0.023	pg1322_o2nofp.cx10a_c32r128
0.000	47.336	52.377	0.253	0.035	0.000	0.000	0.000	0.000	0.000	0.022	pg1323_o2nofp.cx10a_c32r128
0.000	42.487	57.237	0.241	0.035	0.000	0.000	0.000	0.000	0.000	0.023	pg1419_o2nofp.cx10a_c32r128
0.000	47.170	52.511	0.288	0.031	0.000	0.000	0.000	0.000	0.000	0.023	pg1420_o2nofp.cx10a_c32r128
0.000	42.715	56.988	0.254	0.043	0.000	0.000	0.000	0.000	0.000	0.024	pg1514_o2nofp.cx10a_c32r128
0.000	46.173	53.482	0.312	0.032	0.000	0.000	0.000	0.000	0.000	0.022	pg1515_o2nofp.cx10a_c32r128
0.000	42.341	57.341	0.280	0.038	0.000	0.000	0.000	0.000	0.000	0.023	pg1610_o2nofp.cx10a_c32r128
0.000	45.862	53.809	0.287	0.035	0.006	0.000	0.000	0.000	0.000	0.194	pg1611_o2nofp.cx10a_c32r128
0.000	41.159	58.500	0.303	0.038	nonzero	0.000	0.000	0.000	0.000	0.071	pg176_o2nofp.cx10a_c32r128
0.000	44.479	55.178	0.311	0.030	0.002	0.000	0.000	0.000	0.000	0.135	pg177_o2nofp.cx10a_c32r128
0.000	35.861	63.750	0.325	0.065	0.000	0.000	0.000	0.000	0.000	0.030	pg180_o2nofp.cx10b_c32r128
0.000	38.416	61.160	0.350	0.068	0.006	0.000	0.000	0.000	0.000	0.148	pg180_o2nofp.cx10c_c32r128
0.000	37.276	62.392	0.282	0.051	0.000	0.000	0.000	0.000	0.000	0.036	pg180_o2nofp.cx10d_c32r128
0.000	38.004	61.616	0.316	0.064	nonzero	0.000	0.000	0.000	0.000	0.133	pg181_o2nofp.cx10b_c32r128
0.000	38.951	60.670	0.316	0.062	0.001	0.000	0.000	0.000	0.000	0.134	pg181_o2nofp.cx10d_c32r128

qp1000.L6

qp1000.L6: point queries with 1000 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.947	0.053	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.168	pg1222_o2nofp.cx10a_c32r128
99.949	0.050	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.126	pg1322_o2nofp.cx10a_c32r128
99.947	0.053	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.123	pg1323_o2nofp.cx10a_c32r128
99.949	0.050	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.102	pg1419_o2nofp.cx10a_c32r128
99.950	0.049	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.108	pg1420_o2nofp.cx10a_c32r128
99.951	0.049	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.114	pg1514_o2nofp.cx10a_c32r128
99.954	0.046	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.112	pg1515_o2nofp.cx10a_c32r128
99.951	0.049	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.097	pg1610_o2nofp.cx10a_c32r128
99.951	0.048	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.111	pg1611_o2nofp.cx10a_c32r128
99.957	0.043	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.105	pg176_o2nofp.cx10a_c32r128
99.956	0.043	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.119	pg177_o2nofp.cx10a_c32r128
99.952	0.048	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.111	pg180_o2nofp.cx10b_c32r128
99.952	0.047	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.112	pg180_o2nofp.cx10c_c32r128
99.952	0.048	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.113	pg180_o2nofp.cx10d_c32r128
99.954	0.045	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.119	pg181_o2nofp.cx10b_c32r128
99.954	0.045	nonzero	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.181	pg181_o2nofp.cx10d_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.263	99.107	0.554	0.071	0.006	0.000	0.000	0.000	0.000	0.147	pg1222_o2nofp.cx10a_c32r128
0.000	0.252	99.098	0.561	0.087	0.001	0.000	0.000	0.000	0.000	0.124	pg1322_o2nofp.cx10a_c32r128
0.000	0.414	99.020	0.452	0.102	0.012	0.000	0.000	0.000	0.000	0.131	pg1323_o2nofp.cx10a_c32r128
0.000	0.077	99.237	0.555	0.131	0.001	0.000	0.000	0.000	0.000	0.073	pg1419_o2nofp.cx10a_c32r128
0.000	0.503	98.880	0.508	0.108	nonzero	0.000	0.000	0.000	0.000	0.109	pg1420_o2nofp.cx10a_c32r128
0.000	0.032	99.233	0.593	0.142	nonzero	0.000	0.000	0.000	0.000	0.065	pg1514_o2nofp.cx10a_c32r128
0.000	0.431	98.931	0.533	0.105	0.000	0.000	0.000	0.000	0.000	0.034	pg1515_o2nofp.cx10a_c32r128
0.000	0.166	99.234	0.492	0.108	0.000	0.000	0.000	0.000	0.000	0.037	pg1610_o2nofp.cx10a_c32r128
0.000	0.571	98.825	0.492	0.111	0.000	0.000	0.000	0.000	0.000	0.028	pg1611_o2nofp.cx10a_c32r128
0.000	0.262	99.104	0.487	0.147	0.000	0.000	0.000	0.000	0.000	0.039	pg176_o2nofp.cx10a_c32r128
0.000	0.665	98.707	0.464	0.160	0.005	0.000	0.000	0.000	0.000	0.094	pg177_o2nofp.cx10a_c32r128
0.000	0.197	99.262	0.422	0.119	0.000	0.000	0.000	0.000	0.000	0.037	pg180_o2nofp.cx10b_c32r128
0.000	0.234	99.231	0.425	0.109	0.000	0.000	0.000	0.000	0.000	0.038	pg180_o2nofp.cx10c_c32r128
0.000	0.339	98.956	0.570	0.134	0.001	0.000	0.000	0.000	0.000	0.085	pg180_o2nofp.cx10d_c32r128
0.000	0.578	98.895	0.415	0.112	0.000	0.000	0.000	0.000	0.000	0.040	pg181_o2nofp.cx10b_c32r128
0.000	0.747	98.661	0.454	0.135	0.002	0.000	0.000	0.000	0.000	0.073	pg181_o2nofp.cx10d_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	57.066	42.456	0.424	0.051	0.003	0.000	0.000	0.000	0.000	0.147	pg1222_o2nofp.cx10a_c32r128
0.000	48.459	50.939	0.539	0.060	0.001	0.000	0.000	0.000	0.000	0.124	pg1322_o2nofp.cx10a_c32r128
0.000	50.209	49.313	0.395	0.073	0.011	0.000	0.000	0.000	0.000	0.132	pg1323_o2nofp.cx10a_c32r128
0.000	48.361	51.045	0.493	0.100	nonzero	0.000	0.000	0.000	0.000	0.072	pg1419_o2nofp.cx10a_c32r128
0.000	50.683	48.740	0.499	0.078	nonzero	0.000	0.000	0.000	0.000	0.108	pg1420_o2nofp.cx10a_c32r128
0.000	47.479	51.848	0.558	0.116	0.000	0.000	0.000	0.000	0.000	0.064	pg1514_o2nofp.cx10a_c32r128
0.000	49.848	49.593	0.477	0.083	0.000	0.000	0.000	0.000	0.000	0.027	pg1515_o2nofp.cx10a_c32r128
0.000	47.374	52.062	0.484	0.081	0.000	0.000	0.000	0.000	0.000	0.027	pg1610_o2nofp.cx10a_c32r128
0.000	49.423	50.041	0.452	0.084	0.000	0.000	0.000	0.000	0.000	0.025	pg1611_o2nofp.cx10a_c32r128
0.000	46.262	53.093	0.519	0.126	0.000	0.000	0.000	0.000	0.000	0.028	pg176_o2nofp.cx10a_c32r128
0.000	48.900	50.432	0.518	0.145	0.004	0.000	0.000	0.000	0.000	0.093	pg177_o2nofp.cx10a_c32r128
0.000	37.580	61.876	0.465	0.079	0.000	0.000	0.000	0.000	0.000	0.033	pg180_o2nofp.cx10b_c32r128
0.000	37.621	61.896	0.400	0.083	0.000	0.000	0.000	0.000	0.000	0.027	pg180_o2nofp.cx10c_c32r128
0.000	37.277	62.093	0.531	0.098	0.001	0.000	0.000	0.000	0.000	0.085	pg180_o2nofp.cx10d_c32r128
0.000	39.789	59.755	0.385	0.071	0.000	0.000	0.000	0.000	0.000	0.039	pg181_o2nofp.cx10b_c32r128
0.000	36.846	62.642	0.407	0.103	0.002	0.000	0.000	0.000	0.000	0.073	pg181_o2nofp.cx10d_c32r128

Introduction

Contents

Summary

l.i0

l.x

l.i1

l.i2

qr100.L1

qp100.L2

qr500.L3

qp500.L4

qr1000.L5

qp1000.L6

l.i0

l.x

l.i1

l.i2

qr100.L1

qp100.L2

qr500.L3

qp500.L4

qr1000.L5

qp1000.L6

l.i0

l.x

l.i1

l.i2

qr100.L1

qp100.L2

qr500.L3

qp500.L4

qr1000.L5

qp1000.L6
