Introduction

This is a report for the insert benchmark with 2000M docs and 8 client(s). It is generated by scripts (bash, awk, sed) and Tufte might not be impressed. An overview of the insert benchmark is here and a short update is here. Below, by DBMS, I mean DBMS+version.config. An example is my8020.c10b40 where my means MySQL, 8020 is version 8.0.20 and c10b40 is the name for the configuration file.

The test server has 24 cores, 2 sockets, 64G RAM and 1 NVMe devices. The benchmark was run with 8 clients and there were 1 or 3 connections per client (1 for queries or inserts without rate limits, 1+1 for rate limited inserts+deletes). It uses 8 tables with a table per client. It loads 250M rows per table without secondary indexes, creates 3 secondary indexes per table, then inserts 4m+1m rows per table with a delete per insert to avoid growing the table. It then does 6 read+write tests for 1800s each that do queries as fast as possible with 100,100,500,500,1000,1000 inserts/s and the same for deletes/s per client concurrent with the queries. The database is larger than RAM and most tests are IO-bound except for the range query (qr*) tests that frequently have a cached working set. Clients and the DBMS share one server.

The tested DBMS are:

pg1222_o2nofp.cx10a_c24r64 - Postgres 12.22 with the cx10a_c24r64 config
pg1322_o2nofp.cx10a_c24r64 - Postgres 13.22 with the cx10a_c24r64 config
pg1419_o2nofp.cx10a_c24r64 - Postgres 14.19 with the cx10a_c24r64 config
pg1514_o2nofp.cx10a_c24r64 - Postgres 15.14 with the cx10a_c24r64 config
pg1515_o2nofp.cx10a_c24r64 - Postgres 15.15 with the cx10a_c24r64 config
pg1610_o2nofp.cx10a_c24r64 - Postgres 16.10 with the cx10a_c24r64 config
pg1611_o2nofp.cx10a_c24r64 - Postgres 16.11 with the cx10a_c24r64 config
pg176_o2nofp.cx10a_c24r64 - Postgres 17.6 with the cx10a_c24r64 config
pg177_o2nofp.cx10a_c24r64 - Postgres 17.7 with the cx10a_c24r64 config
pg180_o2nofp.cx10b_c24r64 - Postgres 18.0 with the cx10b_c24r64 config that uses io_method=sync
pg180_o2nofp.cx10c_c24r64 - Postgres 18.0 with the cx10c_c24r64 config that uses io_method=worker
pg180_o2nofp.cx10d_c24r64 - Postgres 18.0 with the cx10d_c24r64 config that uses io_method=io_uring
pg181_o2nofp.cx10b_c24r64 - Postgres 18.1 with the cx10b_c24r64 config that uses io_method=sync
pg181_o2nofp.cx10d_c24r64 - Postgres 18.1 with the cx10d_c24r64 config that uses io_method=io_uring

Summary
l.i0: load without secondary indexes
l.x: create secondary indexes
l.i1: continue load after secondary indexes created with 50 inserts per transaction

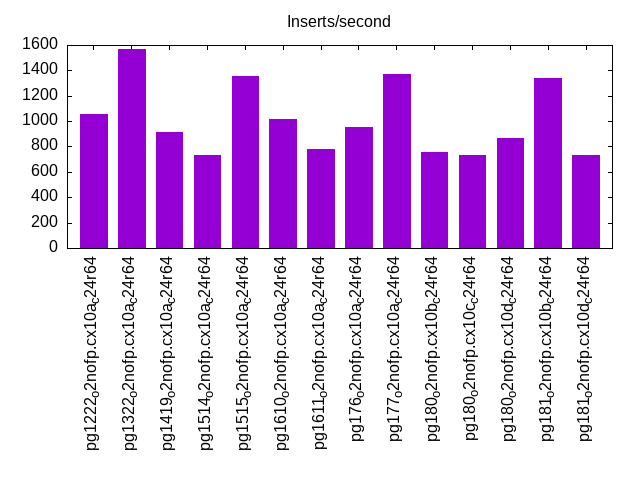

l.i2: continue load after secondary indexes created with 5 inserts per transaction

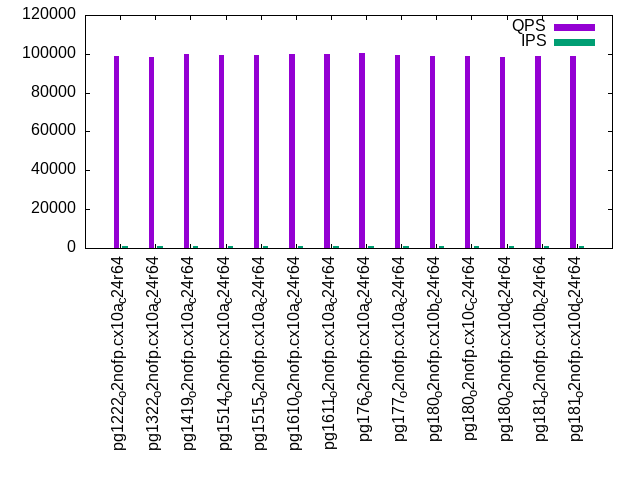

qr100.L1: range queries with 100 insert/s per client

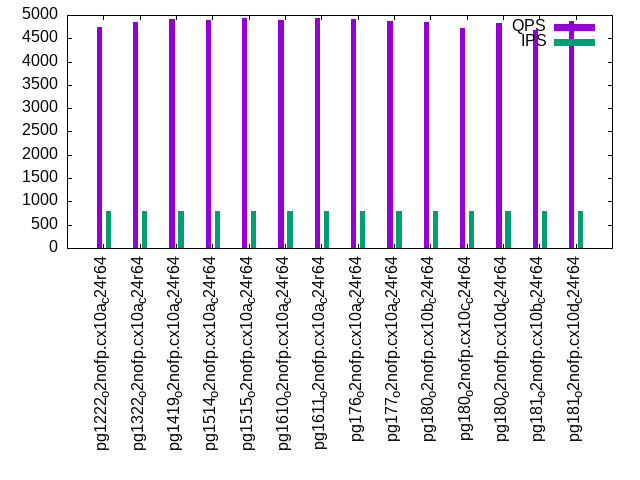

qp100.L2: point queries with 100 insert/s per client

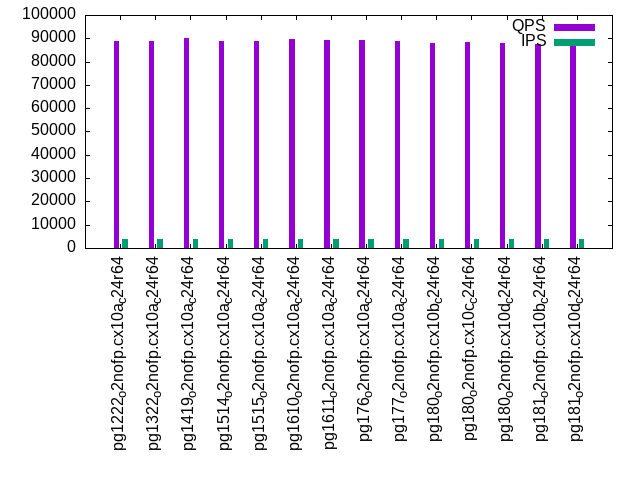

qr500.L3: range queries with 500 insert/s per client

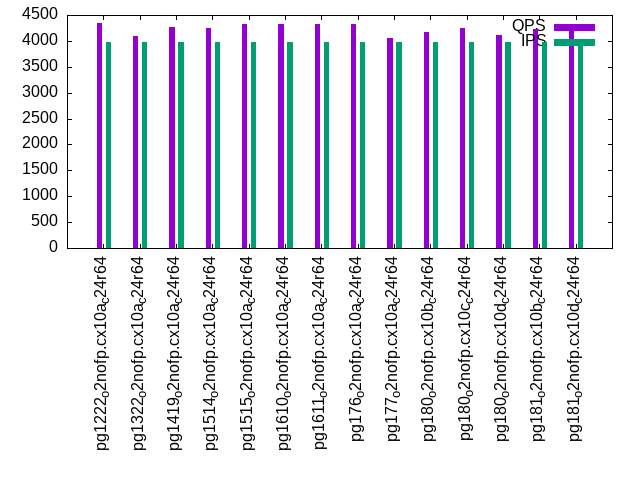

qp500.L4: point queries with 500 insert/s per client

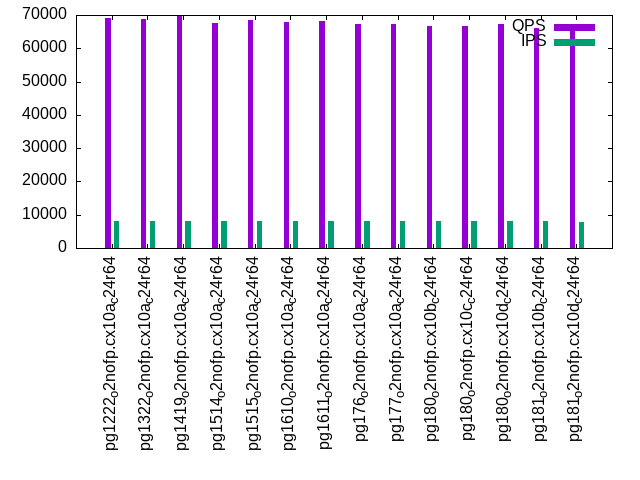

qr1000.L5: range queries with 1000 insert/s per client

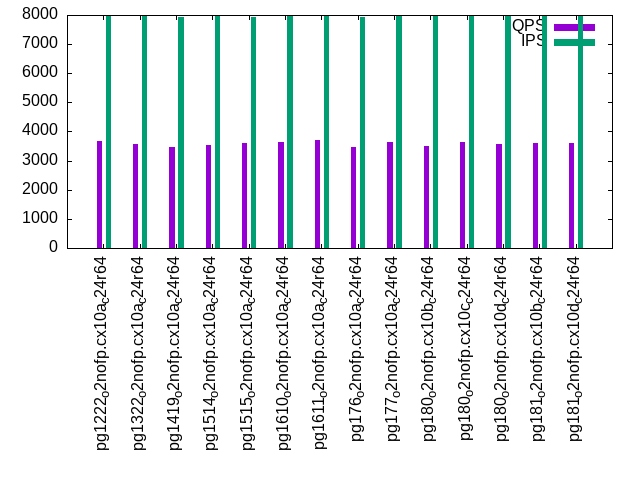

qp1000.L6: point queries with 1000 insert/s per client

Summary

The numbers are inserts/s for l.i0, l.i1 and l.i2, indexed docs (or rows) /s for l.x and queries/s for qr100, qp100 thru qr1000, qp1000" The values are the average rate over the entire test for inserts (IPS) and queries (QPS). The range of values for IPS and QPS is split into 3 parts: bottom 25%, middle 50%, top 25%. Values in the bottom 25% have a red background, values in the top 25% have a green background and values in the middle have no color. A gray background is used for values that can be ignored because the DBMS did not sustain the target insert rate. Red backgrounds are not used when the minimum value is within 80% of the max value.

dbms	l.i0	l.x	l.i1	l.i2	qr100	qp100	qr500	qp500	qr1000	qp1000
pg1222_o2nofp.cx10a_c24r64	732869	1116695	21108	1055	98999	4746	88678	4346	69060	3684
pg1322_o2nofp.cx10a_c24r64	760746	1266624	18497	1572	98413	4853	88758	4088	68762	3561
pg1419_o2nofp.cx10a_c24r64	715308	1273074	16913	911	99930	4907	90005	4262	69886	3462
pg1514_o2nofp.cx10a_c24r64	766284	1152074	14072	730	99263	4898	88955	4257	67630	3549
pg1515_o2nofp.cx10a_c24r64	766577	1201923	19150	1356	99308	4938	88998	4324	68585	3590
pg1610_o2nofp.cx10a_c24r64	762776	1260240	13974	1016	100099	4902	89565	4329	67896	3638
pg1611_o2nofp.cx10a_c24r64	763359	1280410	14072	778	99811	4931	89279	4325	68220	3692
pg176_o2nofp.cx10a_c24r64	757576	1385042	14191	955	100484	4916	89479	4335	67280	3480
pg177_o2nofp.cx10a_c24r64	732601	1398601	17335	1374	99508	4868	88716	4055	67324	3654
pg180_o2nofp.cx10b_c24r64	718649	1341382	13372	755	98670	4842	88089	4181	66626	3519
pg180_o2nofp.cx10c_c24r64	694927	1423488	14311	736	98859	4727	88223	4254	66821	3644
pg180_o2nofp.cx10d_c24r64	722543	1387925	13986	866	98319	4820	87826	4106	67230	3575
pg181_o2nofp.cx10b_c24r64	752729	1356852	13457	1338	98949	4679	87743	4232	66129	3599
pg181_o2nofp.cx10d_c24r64	749906	1409443	13611	735	98674	4879	88127	4310	66925	3609

This table has relative throughput, throughput for the DBMS relative to the DBMS in the first line, using the absolute throughput from the previous table. Values less than 0.95 have a yellow background. Values greater than 1.05 have a blue background.

dbms	l.i0	l.x	l.i1	l.i2	qr100	qp100	qr500	qp500	qr1000	qp1000
pg1222_o2nofp.cx10a_c24r64	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00
pg1322_o2nofp.cx10a_c24r64	1.04	1.13	0.88	1.49	0.99	1.02	1.00	0.94	1.00	0.97
pg1419_o2nofp.cx10a_c24r64	0.98	1.14	0.80	0.86	1.01	1.03	1.01	0.98	1.01	0.94
pg1514_o2nofp.cx10a_c24r64	1.05	1.03	0.67	0.69	1.00	1.03	1.00	0.98	0.98	0.96
pg1515_o2nofp.cx10a_c24r64	1.05	1.08	0.91	1.29	1.00	1.04	1.00	0.99	0.99	0.97
pg1610_o2nofp.cx10a_c24r64	1.04	1.13	0.66	0.96	1.01	1.03	1.01	1.00	0.98	0.99
pg1611_o2nofp.cx10a_c24r64	1.04	1.15	0.67	0.74	1.01	1.04	1.01	1.00	0.99	1.00
pg176_o2nofp.cx10a_c24r64	1.03	1.24	0.67	0.91	1.02	1.04	1.01	1.00	0.97	0.94
pg177_o2nofp.cx10a_c24r64	1.00	1.25	0.82	1.30	1.01	1.03	1.00	0.93	0.97	0.99
pg180_o2nofp.cx10b_c24r64	0.98	1.20	0.63	0.72	1.00	1.02	0.99	0.96	0.96	0.96
pg180_o2nofp.cx10c_c24r64	0.95	1.27	0.68	0.70	1.00	1.00	0.99	0.98	0.97	0.99
pg180_o2nofp.cx10d_c24r64	0.99	1.24	0.66	0.82	0.99	1.02	0.99	0.94	0.97	0.97
pg181_o2nofp.cx10b_c24r64	1.03	1.22	0.64	1.27	1.00	0.99	0.99	0.97	0.96	0.98
pg181_o2nofp.cx10d_c24r64	1.02	1.26	0.64	0.70	1.00	1.03	0.99	0.99	0.97	0.98

This lists the average rate of inserts/s for the tests that do inserts concurrent with queries. For such tests the query rate is listed in the table above. The read+write tests are setup so that the insert rate should match the target rate every second. Cells that are not at least 95% of the target have a red background to indicate a failure to satisfy the target.

dbms	qr100.L1	qp100.L2	qr500.L3	qp500.L4	qr1000.L5	qp1000.L6
pg1222_o2nofp.cx10a_c24r64	797	796	3982	3982	7969	7965
pg1322_o2nofp.cx10a_c24r64	797	796	3982	3982	7965	7965
pg1419_o2nofp.cx10a_c24r64	797	796	3982	3984	7969	7925
pg1514_o2nofp.cx10a_c24r64	796	796	3984	3984	7965	7951
pg1515_o2nofp.cx10a_c24r64	797	796	3982	3982	7965	7947
pg1610_o2nofp.cx10a_c24r64	796	796	3984	3984	7965	7960
pg1611_o2nofp.cx10a_c24r64	797	796	3982	3982	7965	7965
pg176_o2nofp.cx10a_c24r64	797	796	3982	3984	7965	7934
pg177_o2nofp.cx10a_c24r64	796	796	3984	3984	7965	7965
pg180_o2nofp.cx10b_c24r64	796	797	3984	3982	7965	7960
pg180_o2nofp.cx10c_c24r64	797	797	3984	3984	7965	7960
pg180_o2nofp.cx10d_c24r64	796	796	3982	3982	7965	7960
pg181_o2nofp.cx10b_c24r64	796	796	3984	3984	7969	7965
pg181_o2nofp.cx10d_c24r64	797	797	3982	3982	7951	7960
target	800	800	4000	4000	8000	8000

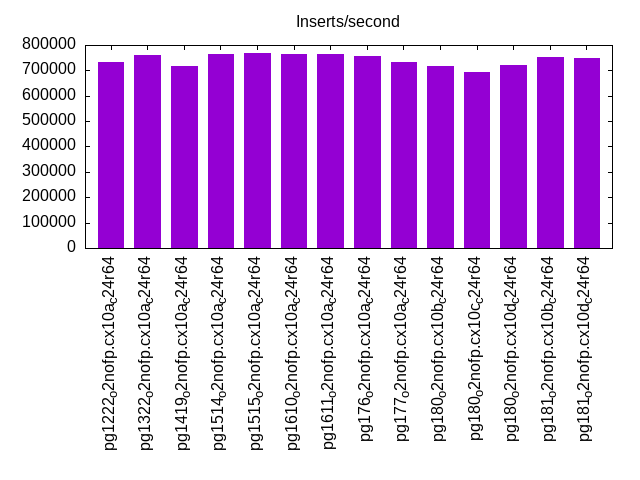

l.i0

l.i0: load without secondary indexes. Graphs for performance per 1-second interval are here.

Average throughput:

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	1ms	4ms	16ms	64ms	256ms	1s	max
pg1222_o2nofp.cx10a_c24r64	1.996	97.979	0.018	0.006	0.001	nonzero	0.853
pg1322_o2nofp.cx10a_c24r64	50.802	49.146	0.038	0.013	0.001	nonzero	0.480
pg1419_o2nofp.cx10a_c24r64	1.207	98.690	0.085	0.017	0.001	nonzero	0.513
pg1514_o2nofp.cx10a_c24r64	47.404	52.564	0.025	0.006	nonzero	nonzero	0.489
pg1515_o2nofp.cx10a_c24r64	50.270	49.701	0.017	0.009	0.002	nonzero	0.510
pg1610_o2nofp.cx10a_c24r64	44.322	55.643	0.026	0.008	0.001	nonzero	0.437
pg1611_o2nofp.cx10a_c24r64	40.486	59.483	0.023	0.007	nonzero	nonzero	0.438
pg176_o2nofp.cx10a_c24r64	29.778	70.186	0.028	0.008	nonzero	nonzero	0.467
pg177_o2nofp.cx10a_c24r64	22.625	77.254	0.082	0.037	0.002	nonzero	0.450
pg180_o2nofp.cx10b_c24r64	10.379	89.474	0.096	0.049	0.002	nonzero	0.454
pg180_o2nofp.cx10c_c24r64	10.069	89.596	0.268	0.063	0.003	nonzero	0.442
pg180_o2nofp.cx10d_c24r64	9.472	90.401	0.093	0.032	0.001	nonzero	0.437
pg181_o2nofp.cx10b_c24r64	25.879	74.086	0.026	0.008	nonzero	nonzero	0.444
pg181_o2nofp.cx10d_c24r64	24.072	75.890	0.029	0.008	0.001	nonzero	0.445

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
732869	0	552	4.6	3306.5	294.0	0.001	0.006	0.005	0.411	83811	52.3	0.114	17	191.4	255.4	48.7	0.853	92689	83089	pg1222_o2nofp.cx10a_c24r64
760746	0	535	4.6	2746.5	304.5	0.001	0.006	0.004	0.410	86721	53.3	0.114	17	191.4	255.4	3.1	0.480	96987	74892	pg1322_o2nofp.cx10a_c24r64
715308	0	505	3.9	2587.8	285.3	0.001	0.006	0.004	0.408	82621	51.4	0.116	17	191.4	255.4	7.7	0.513	92388	54692	pg1419_o2nofp.cx10a_c24r64
766284	0	521	4.1	2758.8	305.9	0.001	0.005	0.004	0.409	86203	53.4	0.112	17	191.4	255.4	11.9	0.489	96788	86790	pg1514_o2nofp.cx10a_c24r64
766577	0	548	4.3	2769.1	307.0	0.001	0.006	0.004	0.410	85692	52.9	0.112	17	191.4	255.4	2.1	0.510	96887	76287	pg1515_o2nofp.cx10a_c24r64
762776	0	547	4.3	2695.9	304.5	0.001	0.006	0.004	0.409	86074	53.3	0.113	17	191.4	255.4	6.5	0.437	96588	82990	pg1610_o2nofp.cx10a_c24r64
763359	0	539	4.2	2712.2	304.4	0.001	0.006	0.004	0.408	85359	52.8	0.112	17	191.4	255.4	4.0	0.438	96487	85490	pg1611_o2nofp.cx10a_c24r64
757576	0	522	4.2	2711.1	304.7	0.001	0.006	0.004	0.412	75205	52.7	0.099	17	191.4	255.4	48.6	0.467	96088	83290	pg176_o2nofp.cx10a_c24r64
732601	0	525	4.2	2642.7	293.8	0.001	0.006	0.004	0.411	73216	51.1	0.100	17	191.4	255.4	48.6	0.450	94689	35694	pg177_o2nofp.cx10a_c24r64
718649	0	524	4.3	2568.4	286.5	0.001	0.006	0.004	0.408	72755	51.0	0.101	17	191.4	255.4	8.8	0.454	93188	48593	pg180_o2nofp.cx10b_c24r64
694927	0	487	3.9	2492.9	278.2	0.001	0.006	0.004	0.410	73034	49.6	0.105	17	191.4	255.4	48.6	0.442	91889	41694	pg180_o2nofp.cx10c_c24r64
722543	0	494	4.0	2587.7	290.1	0.001	0.006	0.004	0.411	74437	51.2	0.103	17	191.4	255.4	9.3	0.437	93189	48492	pg180_o2nofp.cx10d_c24r64
752729	0	543	4.5	2699.7	301.9	0.001	0.006	0.004	0.411	74366	52.2	0.099	17	191.4	255.4	47.5	0.444	95788	83485	pg181_o2nofp.cx10b_c24r64
749906	0	524	4.2	2655.0	298.3	0.001	0.006	0.004	0.407	75750	52.1	0.101	17	191.4	255.4	48.6	0.445	95988	80894	pg181_o2nofp.cx10d_c24r64

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
552.2	4749.6	0.037	0.429	0.969	4.987	3306.5	301047	155.0	3.491	3.059	100.1	2.771	214.7	0.000	0.000	0.283	23.86	0.000	0.000	10.13	19.43		pg1222_o2nofp.cx10a_c24r64
535.3	4680.5	0.067	0.502	0.813	4.986	2746.5	311761	161.1	3.848	2.962	117.1	3.022	209.0	0.000	0.000	0.288	21.91	0.000	0.000	8.808	19.51		pg1322_o2nofp.cx10a_c24r64
504.6	4009.6	0.016	0.262	0.678	8.309	2587.8	292177	104.7	3.017	2.687	117.3	3.036	204.0	0.000	0.000	0.279	20.28	0.000	0.000	8.010	15.89		pg1419_o2nofp.cx10a_c24r64
521.2	4157.6	0.018	0.209	0.730	4.241	2758.8	313219	107.3	2.943	2.739	117.7	0.415	218.4	0.000	0.000	0.119	35.47	0.000	0.000	8.519	16.93		pg1514_o2nofp.cx10a_c24r64
548.3	4368.3	0.030	0.283	1.014	3.585	2769.1	314383	104.4	2.791	3.430	117.9	0.475	259.3	0.000	0.000	0.118	30.62	0.000	0.000	10.88	17.01		pg1515_o2nofp.cx10a_c24r64
547.2	4430.5	0.005	0.058	0.870	4.019	2695.9	311768	105.9	2.888	2.714	119.0	0.420	255.2	0.000	0.000	0.086	50.36	0.000	0.000	8.383	17.15		pg1610_o2nofp.cx10a_c24r64
539.1	4300.9	0.000	0.007	0.787	5.461	2712.2	311678	108.7	3.078	2.871	118.4	0.465	245.1	0.000	0.000	0.108	29.64	0.000	0.000	8.880	17.02		pg1611_o2nofp.cx10a_c24r64
522.1	4259.2	0.039	0.382	0.815	3.865	2711.1	311974	104.8	2.931	2.825	118.4	0.350	199.5	0.000	0.000	0.119	56.41	0.000	0.000	8.695	17.06		pg176_o2nofp.cx10a_c24r64
525.2	4305.1	0.167	1.587	0.759	4.345	2642.7	300848	108.8	3.177	2.643	116.9	0.278	229.6	0.000	0.000	0.077	76.93	0.000	0.000	8.141	16.52		pg177_o2nofp.cx10a_c24r64
523.8	4373.3	0.147	1.508	0.767	4.559	2568.4	293402	110.0	3.306	2.825	117.7	0.276	244.8	0.000	0.000	0.079	75.90	0.000	0.000	8.409	16.23		pg180_o2nofp.cx10b_c24r64
487.1	3998.2	0.001	0.012	0.748	4.495	2492.9	284840	105.5	3.315	2.662	117.5	0.311	165.8	0.000	0.000	0.102	41.95	0.000	0.000	7.939	16.08		pg180_o2nofp.cx10c_c24r64
493.8	4100.5	0.030	0.060	0.771	3.942	2587.7	297024	109.5	3.282	2.842	117.3	0.277	217.5	0.000	0.000	0.095	72.04	0.000	0.000	8.660	15.87		pg180_o2nofp.cx10d_c24r64
542.7	4650.1	0.044	0.272	0.807	4.648	2699.7	309127	115.3	3.341	2.814	117.6	0.297	198.8	0.000	0.000	0.082	78.35	0.000	0.000	8.605	16.96		pg181_o2nofp.cx10b_c24r64
524.3	4281.3	0.000	0.000	0.824	4.124	2655.0	305460	106.5	3.027	2.690	118.2	0.281	206.3	0.000	0.000	0.081	66.89	0.000	0.000	8.192	16.21		pg181_o2nofp.cx10d_c24r64

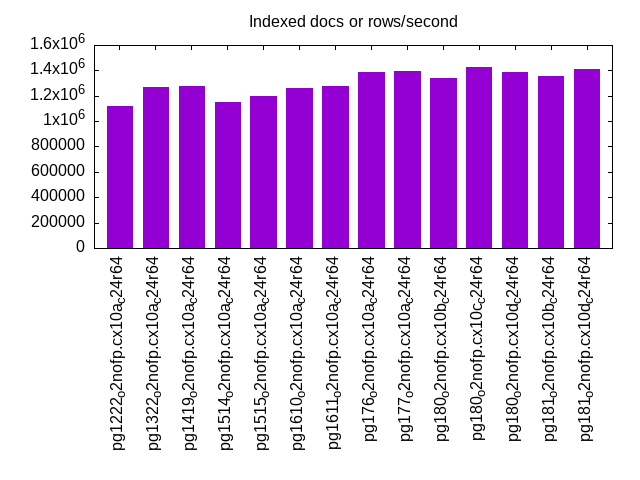

l.x

l.x: create secondary indexes.

Average throughput:

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1116695	0	16532	383.9	5072.9	465.8	0.015	0.352	0.005	0.427	42875	24.5	0.038	5	384.4	448.4	18.6	0.003	NA	NA	pg1222_o2nofp.cx10a_c24r64
1266624	0	18842	418.3	3090.0	375.8	0.015	0.338	0.002	0.304	24624	26.2	0.019	5	384.2	448.3	39.0	0.003	NA	NA	pg1322_o2nofp.cx10a_c24r64
1273074	0	8691	379.0	3086.6	378.2	0.007	0.305	0.002	0.304	25395	26.4	0.020	5	384.2	448.3	11.0	0.004	NA	NA	pg1419_o2nofp.cx10a_c24r64
1152074	0	22111	502.5	3510.4	430.9	0.019	0.447	0.003	0.383	40504	25.1	0.035	5	384.2	448.3	2.4	0.004	NA	NA	pg1514_o2nofp.cx10a_c24r64
1201923	0	10124	493.4	3659.9	450.2	0.008	0.420	0.003	0.384	36605	25.5	0.030	5	384.2	448.3	38.7	0.003	NA	NA	pg1515_o2nofp.cx10a_c24r64
1260240	0	16111	437.0	3288.5	404.0	0.013	0.355	0.003	0.328	26702	25.6	0.021	5	384.2	448.3	38.1	0.003	NA	NA	pg1610_o2nofp.cx10a_c24r64
1280410	0	3475	381.2	3349.4	410.7	0.003	0.305	0.003	0.328	25129	25.8	0.020	5	384.2	448.3	38.3	0.003	NA	NA	pg1611_o2nofp.cx10a_c24r64
1385042	0	9944	406.2	3189.6	393.8	0.007	0.300	0.002	0.291	19049	26.2	0.014	5	384.2	448.3	34.7	0.003	NA	NA	pg176_o2nofp.cx10a_c24r64
1398601	0	3297	366.8	3256.9	398.9	0.002	0.269	0.002	0.292	18321	26.4	0.013	5	384.2	448.3	34.5	0.003	NA	NA	pg177_o2nofp.cx10a_c24r64
1341382	0	7583	370.9	3126.5	382.9	0.006	0.283	0.002	0.292	21686	25.5	0.016	5	384.2	448.3	34.4	0.004	NA	NA	pg180_o2nofp.cx10b_c24r64
1423488	0	10852	407.3	3319.7	405.9	0.008	0.293	0.002	0.292	23885	27.5	0.017	5	384.2	448.3	37.9	0.004	NA	NA	pg180_o2nofp.cx10c_c24r64
1387925	0	18280	432.9	3234.8	395.6	0.013	0.319	0.002	0.292	22397	26.7	0.016	5	384.2	448.3	38.1	0.003	NA	NA	pg180_o2nofp.cx10d_c24r64
1356852	0	7388	380.1	3150.0	385.3	0.005	0.287	0.002	0.291	20692	25.7	0.015	5	384.2	448.3	24.4	0.003	NA	NA	pg181_o2nofp.cx10b_c24r64
1409443	0	5025	381.6	3285.1	404.1	0.004	0.277	0.002	0.294	23831	26.9	0.017	5	384.2	448.1	31.3	0.003	NA	NA	pg181_o2nofp.cx10d_c24r64

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
16531.6	393134	0.052	0.002	0.209	60.47	5072.9	477029	103.1	1.946	14.67	112.6	4.600	100754	0.000	0.000	0.321	4210.3	0.000	0.000	55.83	66.87		pg1222_o2nofp.cx10a_c24r64
18842.3	428370	0.070	0.122	0.273	54.54	3090.0	384837	89.47	1.838	15.87	125.0	4.881	82838.8	0.000	0.000	0.385	1610.3	0.000	0.000	51.46	60.59		pg1322_o2nofp.cx10a_c24r64
8691.0	388087	0.000	0.000	0.328	65.29	3086.6	387320	59.31	1.211	16.24	125.8	5.256	99952.0	0.000	0.000	0.336	1550.9	0.000	0.000	51.39	57.38		pg1419_o2nofp.cx10a_c24r64
22110.9	514542	0.025	0.000	0.316	53.65	3510.4	441206	51.67	0.932	18.30	126.1	2.798	83530.1	0.000	0.000	0.276	1415.5	0.000	0.000	74.63	63.32		pg1514_o2nofp.cx10a_c24r64
10123.9	505243	0.000	0.000	0.354	78.29	3659.9	460980	52.46	0.990	19.37	126.2	2.942	91718.4	0.000	0.000	0.313	2211.8	0.000	0.000	80.82	61.97		pg1515_o2nofp.cx10a_c24r64
16110.7	447446	0.036	0.000	0.336	63.64	3288.5	413704	56.16	1.252	18.48	126.0	2.628	95807.5	0.000	0.000	0.231	5907.5	0.000	0.000	72.26	59.30		pg1610_o2nofp.cx10a_c24r64
3474.6	390308	0.003	0.000	0.425	105.3	3349.4	420564	58.49	1.361	18.87	125.8	2.885	92896.9	0.000	0.000	0.209	1485.7	0.000	0.000	73.73	53.46		pg1611_o2nofp.cx10a_c24r64
9944.5	415982	0.003	0.000	0.309	67.03	3189.6	403291	58.10	1.181	15.87	126.5	3.199	94533.8	0.000	0.000	0.259	1571.7	0.000	0.000	51.39	57.69		pg176_o2nofp.cx10a_c24r64
3296.7	375652	0.000	0.000	0.361	105.1	3256.9	408523	60.23	1.128	15.63	125.9	3.952	125949	0.000	0.000	0.254	1915.3	0.000	0.000	50.31	53.86		pg177_o2nofp.cx10a_c24r64
7583.4	379817	0.362	0.637	0.391	91.12	3126.5	392116	58.14	1.643	15.06	125.2	3.250	109550	0.000	0.000	0.199	1512.7	0.000	0.000	48.97	54.17		pg180_o2nofp.cx10b_c24r64
10852.4	417079	0.003	0.000	0.386	73.67	3319.7	415600	60.54	1.373	15.99	125.3	3.648	122106	0.000	0.000	0.215	1719.3	0.000	0.000	53.27	59.65		pg180_o2nofp.cx10c_c24r64
18280.5	443240	0.003	0.000	0.291	54.38	3234.8	405059	58.99	1.132	15.86	125.6	3.783	118968	0.000	0.000	0.237	1534.8	0.000	0.000	53.58	61.66		pg180_o2nofp.cx10d_c24r64
7387.9	389271	0.052	0.001	0.279	74.71	3150.0	394535	58.06	2.360	14.70	123.9	3.482	98580.5	0.000	0.000	0.280	1597.2	0.000	0.000	48.64	55.66		pg181_o2nofp.cx10b_c24r64
5025.1	390745	0.030	0.001	0.329	104.7	3285.1	413782	61.13	2.044	15.57	125.6	3.074	116729	0.000	0.000	0.275	10162.5	0.000	0.000	52.18	55.46		pg181_o2nofp.cx10d_c24r64

l.i1

l.i1: continue load after secondary indexes created with 50 inserts per transaction. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	16ms	64ms	256ms	1s	4s	max
pg1222_o2nofp.cx10a_c24r64	77.891	22.108		0.001		0.437
pg1322_o2nofp.cx10a_c24r64	74.461	25.524	0.016			0.190
pg1419_o2nofp.cx10a_c24r64	77.030	22.955	0.015			0.131
pg1514_o2nofp.cx10a_c24r64	84.026	15.960	0.013			0.182
pg1515_o2nofp.cx10a_c24r64	78.254	21.737	0.009	nonzero		0.262
pg1610_o2nofp.cx10a_c24r64	83.825	16.162	0.013			0.102
pg1611_o2nofp.cx10a_c24r64	83.109	16.878	0.012	nonzero		0.451
pg176_o2nofp.cx10a_c24r64	83.833	16.165	0.002			0.145
pg177_o2nofp.cx10a_c24r64	82.874	17.118	0.008			0.093
pg180_o2nofp.cx10b_c24r64	77.658	22.005	0.336	0.001		0.279
pg180_o2nofp.cx10c_c24r64	82.241	17.748	0.011			0.116
pg180_o2nofp.cx10d_c24r64	81.864	18.128	0.007	nonzero	nonzero	1.584
pg181_o2nofp.cx10b_c24r64	78.647	21.016	0.290	0.048	nonzero	2.409
pg181_o2nofp.cx10d_c24r64	79.364	20.485	0.148	0.003		0.795

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	1ms	4ms	16ms	64ms	256ms	1s	max
pg1222_o2nofp.cx10a_c24r64	1.156	7.457	31.308	60.078		0.001	0.431
pg1322_o2nofp.cx10a_c24r64	1.190	8.650	28.205	61.948	0.006		0.111
pg1419_o2nofp.cx10a_c24r64	1.280	7.319	33.414	57.984	0.004		0.078
pg1514_o2nofp.cx10a_c24r64	0.943	6.464	20.851	71.739	0.003		0.167
pg1515_o2nofp.cx10a_c24r64	1.144	6.970	26.148	65.733	0.004		0.244
pg1610_o2nofp.cx10a_c24r64	1.086	6.210	20.169	72.527	0.008		0.102
pg1611_o2nofp.cx10a_c24r64	1.048	6.440	21.953	70.556	0.003		0.090
pg176_o2nofp.cx10a_c24r64	0.985	6.452	21.981	70.583			0.053
pg177_o2nofp.cx10a_c24r64	0.989	6.390	20.822	71.795	0.004		0.085
pg180_o2nofp.cx10b_c24r64	0.687	6.060	21.482	71.763	0.007	0.001	0.270
pg180_o2nofp.cx10c_c24r64	0.738	6.326	22.012	70.921	0.003		0.096
pg180_o2nofp.cx10d_c24r64	0.859	6.287	21.775	71.073	0.005		0.100
pg181_o2nofp.cx10b_c24r64	0.779	6.533	19.977	72.702	0.009		0.251
pg181_o2nofp.cx10d_c24r64	0.877	6.215	20.142	72.755	0.012		0.110

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
21108	0	27194	213.7	31005.4	525.6	1.288	10.368	1.469	25.497	66369	40.7	3.144	463	389.6	453.7	48.7	0.437	2550	1700	pg1222_o2nofp.cx10a_c24r64
18497	0	24075	209.4	28262.6	474.4	1.302	11.592	1.528	26.262	59504	37.2	3.217	483	389.4	453.5	2.9	0.190	2500	1700	pg1322_o2nofp.cx10a_c24r64
16913	0	21542	171.7	25266.8	424.7	1.274	10.397	1.494	25.714	52698	33.9	3.116	481	389.5	453.5	1.6	0.131	2549	1700	pg1419_o2nofp.cx10a_c24r64
14072	0	17922	141.9	21272.6	350.8	1.274	10.326	1.512	25.525	43662	35.7	3.103	609	389.4	453.5	1.1	0.182	1450	1100	pg1514_o2nofp.cx10a_c24r64
19150	0	24369	194.1	29067.4	482.7	1.272	10.381	1.518	25.809	59893	38.9	3.128	488	389.4	453.5	1.5	0.262	2450	1600	pg1515_o2nofp.cx10a_c24r64
13974	0	17814	141.8	21146.8	349.7	1.275	10.391	1.513	25.628	43124	33.6	3.086	577	389.4	453.5	2.0	0.102	2200	1500	pg1610_o2nofp.cx10a_c24r64
14072	0	17921	142.8	21234.8	351.2	1.274	10.391	1.509	25.560	43360	32.8	3.081	559	389.4	453.5	48.6	0.451	2200	1550	pg1611_o2nofp.cx10a_c24r64
14191	0	18273	152.9	21223.6	349.3	1.288	11.035	1.496	25.204	42923	33.2	3.025	561	389.4	453.5	48.7	0.145	2150	1450	pg176_o2nofp.cx10a_c24r64
17335	0	22134	175.8	26716.9	437.1	1.277	10.384	1.541	25.818	53162	38.1	3.067	527	389.4	453.5	48.6	0.093	2150	1450	pg177_o2nofp.cx10a_c24r64
13372	0	17124	138.4	20504.3	337.4	1.281	10.600	1.533	25.837	42006	30.7	3.141	551	389.5	453.5	48.6	0.279	2200	1100	pg180_o2nofp.cx10b_c24r64
14311	0	18380	146.0	21837.5	358.5	1.284	10.445	1.526	25.652	44019	33.8	3.076	567	389.5	453.5	48.6	0.116	2300	1700	pg180_o2nofp.cx10c_c24r64
13986	0	17922	142.2	20946.5	347.0	1.281	10.411	1.498	25.404	42824	33.2	3.062	570	389.4	453.5	48.6	1.584	2200	1550	pg180_o2nofp.cx10d_c24r64
13457	0	17245	138.6	20272.2	340.2	1.282	10.548	1.506	25.891	42912	31.6	3.189	564	389.4	453.5	48.5	2.409	2050	700	pg181_o2nofp.cx10b_c24r64
13611	0	17413	138.5	20625.1	341.9	1.279	10.423	1.515	25.719	43389	32.2	3.188	568	389.4	453.5	48.6	0.795	2050	1344	pg181_o2nofp.cx10d_c24r64

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
27193.5	218855	0.000	0.000	0.149	8.047	31005.4	538203	197.4	1.042	0.857	21.06	2.060	1384.5	0.000	0.000	0.262	266.0	0.000	0.000	33.94	97.76		pg1222_o2nofp.cx10a_c24r64
24075.1	214426	0.025	0.000	0.156	8.971	28262.6	485770	197.4	0.880	0.849	20.46	2.063	324.7	0.000	0.000	0.264	97.12	0.000	0.000	32.12	92.75		pg1322_o2nofp.cx10a_c24r64
21542.0	175847	0.003	0.000	0.142	8.161	25266.8	434912	100.5	0.517	0.751	20.09	2.065	185.8	0.000	0.000	0.261	62.37	0.000	0.000	27.77	85.81		pg1419_o2nofp.cx10a_c24r64
17922.3	145304	0.002	0.000	0.123	8.092	21272.6	359195	81.27	0.476	0.504	19.27	0.029	87.75	0.000	0.000	0.025	85.38	0.000	0.000	16.34	83.70		pg1514_o2nofp.cx10a_c24r64
24368.6	198789	0.001	0.000	0.148	8.165	29067.4	494245	116.1	0.481	0.812	19.92	0.056	258.8	0.000	0.000	0.029	256.5	0.000	0.000	29.93	95.87		pg1515_o2nofp.cx10a_c24r64
17814.5	145194	0.002	0.000	0.124	8.189	21146.8	358122	80.23	0.480	0.517	20.00	0.043	837.6	0.000	0.000	0.028	390.4	0.000	0.000	16.72	81.44		pg1610_o2nofp.cx10a_c24r64
17921.3	146225	0.002	0.000	0.126	8.175	21234.8	359680	80.53	0.499	0.560	19.82	0.037	95.18	0.000	0.000	0.022	120.8	0.000	0.000	18.37	80.80		pg1611_o2nofp.cx10a_c24r64
18272.6	156591	0.000	0.000	0.126	8.501	21223.6	357657	78.46	0.452	0.525	19.12	0.022	88.09	0.000	0.000	0.017	138.5	0.000	0.000	17.43	81.71		pg176_o2nofp.cx10a_c24r64
22133.6	180005	0.002	0.000	0.136	8.146	26716.9	447549	98.81	0.449	0.688	19.74	0.028	143.2	0.000	0.000	0.014	198.2	0.000	0.000	24.12	92.97		pg177_o2nofp.cx10a_c24r64
17123.9	141745	0.008	0.000	0.124	8.250	20504.3	345505	80.76	0.470	0.521	20.08	0.025	96.94	0.000	0.000	0.023	125.2	0.000	0.000	17.23	76.19		pg180_o2nofp.cx10b_c24r64
18380.2	149475	0.009	0.000	0.126	8.132	21837.5	367115	80.57	0.445	0.533	19.54	0.027	103.6	0.000	0.000	0.019	173.2	0.000	0.000	18.06	81.32		pg180_o2nofp.cx10c_c24r64
17922.2	145612	0.007	0.000	0.125	8.130	20946.5	355300	78.65	0.470	0.510	19.73	0.029	86.97	0.000	0.000	0.025	137.4	0.000	0.000	16.76	80.41		pg180_o2nofp.cx10d_c24r64
17245.1	141946	0.208	0.001	0.125	8.258	20272.2	348399	92.38	0.535	0.539	19.82	0.352	4975.5	0.000	0.000	0.021	156.7	0.000	0.000	16.30	77.30		pg181_o2nofp.cx10b_c24r64
17413.0	141866	0.002	0.000	0.127	8.154	20625.1	350066	74.17	0.475	0.535	19.93	0.028	627.9	0.000	0.000	0.016	406.7	0.000	0.000	17.45	77.68		pg181_o2nofp.cx10d_c24r64

l.i2

l.i2: continue load after secondary indexes created with 5 inserts per transaction. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c24r64	16.043	83.956	0.001			0.008
pg1322_o2nofp.cx10a_c24r64	20.713	79.278	0.009			0.014
pg1419_o2nofp.cx10a_c24r64	17.116	82.883	nonzero			0.004
pg1514_o2nofp.cx10a_c24r64	16.804	83.195	0.001			0.006
pg1515_o2nofp.cx10a_c24r64	12.683	87.316	0.001			0.005
pg1610_o2nofp.cx10a_c24r64	16.238	83.759	0.002	nonzero	nonzero	0.066
pg1611_o2nofp.cx10a_c24r64	18.499	81.501	nonzero			0.007
pg176_o2nofp.cx10a_c24r64	19.264	80.735	0.001			0.013
pg177_o2nofp.cx10a_c24r64	14.263	85.538	0.113	0.070	0.016	0.146
pg180_o2nofp.cx10b_c24r64	16.619	83.381	0.001			0.005
pg180_o2nofp.cx10c_c24r64	13.434	86.566	0.001			0.006
pg180_o2nofp.cx10d_c24r64	14.771	85.225	0.005	nonzero		0.024
pg181_o2nofp.cx10b_c24r64	13.469	86.530	0.001			0.006
pg181_o2nofp.cx10d_c24r64	14.290	85.709	0.001			0.008

dbms	256us	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c24r64					99.999	0.001	0.150
pg1322_o2nofp.cx10a_c24r64	0.002	0.881	1.059	11.445	86.613	nonzero	0.152
pg1419_o2nofp.cx10a_c24r64					99.999	0.001	0.191
pg1514_o2nofp.cx10a_c24r64					99.997	0.003	0.185
pg1515_o2nofp.cx10a_c24r64					99.847	0.153	0.156
pg1610_o2nofp.cx10a_c24r64					99.997	0.003	0.180
pg1611_o2nofp.cx10a_c24r64					99.998	0.002	0.176
pg176_o2nofp.cx10a_c24r64					99.999	0.001	0.177
pg177_o2nofp.cx10a_c24r64					99.998	0.002	0.161
pg180_o2nofp.cx10b_c24r64					99.998	0.002	0.179
pg180_o2nofp.cx10c_c24r64					99.995	0.005	0.179
pg180_o2nofp.cx10d_c24r64					99.914	0.086	0.177
pg181_o2nofp.cx10b_c24r64					99.999	0.001	0.160
pg181_o2nofp.cx10d_c24r64					99.999	0.001	0.188

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1055	0	1330	10.5	1977.8	29.4	1.261	10.188	1.875	28.549	9137	24.4	8.660	5550	391.0	455.0	48.7	0.008	200	180	pg1222_o2nofp.cx10a_c24r64
1572	0	1985	21.2	2779.9	45.5	1.263	13.829	1.769	29.644	13176	30.1	8.383	4596	390.7	454.7	10.8	0.014	200	170	pg1322_o2nofp.cx10a_c24r64
911	0	1130	8.9	1658.6	25.4	1.240	10.029	1.820	28.515	7619	24.1	8.361	6348	390.8	454.4	48.6	0.004	205	185	pg1419_o2nofp.cx10a_c24r64
730	0	898	7.1	1377.7	21.0	1.231	9.988	1.889	29.529	6138	23.0	8.413	7567	390.8	448.9	48.6	0.006	180	105	pg1514_o2nofp.cx10a_c24r64
1356	0	1705	13.6	2376.7	36.5	1.257	10.300	1.752	27.578	10993	30.7	8.105	5432	390.8	454.8	48.6	0.005	180	165	pg1515_o2nofp.cx10a_c24r64
1016	0	1284	10.3	1877.9	28.7	1.265	10.362	1.849	28.974	8315	25.3	8.187	5979	390.8	454.8	48.6	0.066	175	160	pg1610_o2nofp.cx10a_c24r64
778	0	956	7.6	1466.3	22.5	1.230	9.960	1.885	29.664	6562	22.3	8.436	6880	390.8	454.1	48.6	0.007	175	160	pg1611_o2nofp.cx10a_c24r64
955	0	1195	9.5	1816.9	27.2	1.251	10.230	1.902	29.175	7175	24.3	7.510	6105	390.8	454.8	48.7	0.013	175	150	pg176_o2nofp.cx10a_c24r64
1374	0	1719	13.8	2353.0	36.7	1.252	10.281	1.713	27.333	10530	33.3	7.666	5818	390.8	454.8	43.9	0.146	170	155	pg177_o2nofp.cx10a_c24r64
755	0	925	7.4	1421.8	21.6	1.225	10.011	1.882	29.313	5763	21.3	7.629	6767	390.8	449.6	48.6	0.005	175	155	pg180_o2nofp.cx10b_c24r64
736	0	925	7.3	1379.2	21.2	1.257	10.156	1.875	29.470	5693	24.4	7.738	7960	390.8	449.1	48.6	0.006	170	80	pg180_o2nofp.cx10c_c24r64
866	0	1095	8.6	1610.4	24.7	1.264	10.218	1.860	29.183	6594	23.9	7.614	6624	390.8	454.2	48.6	0.024	175	150	pg180_o2nofp.cx10d_c24r64
1338	0	1684	13.5	2314.9	36.0	1.259	10.312	1.730	27.533	9906	32.4	7.405	5813	390.8	454.8	48.5	0.006	170	150	pg181_o2nofp.cx10b_c24r64
735	0	909	7.2	1360.8	21.1	1.237	10.010	1.851	29.455	5757	23.9	7.832	7804	390.8	449.0	48.6	0.008	155	140	pg181_o2nofp.cx10d_c24r64

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
1330.5	10749.6	0.005	0.001	0.087	8.108	1977.8	30121.6	16.63	1.058	0.047	15.97	2.031	12.13	0.000	0.000	0.255	5.609	0.000	0.000	0.210	12.78		pg1222_o2nofp.cx10a_c24r64
1984.6	21735.2	0.000	0.000	0.092	9.900	2779.9	46591.6	18.38	0.644	0.102	16.72	2.032	12.51	0.000	0.000	0.252	5.281	0.000	0.000	0.793	19.21		pg1322_o2nofp.cx10a_c24r64
1129.6	9138.8	0.000	0.000	0.085	8.098	1658.6	25982.5	13.98	1.274	0.054	18.89	2.036	68.24	0.000	0.000	0.253	10.19	0.000	0.000	0.175	11.03		pg1419_o2nofp.cx10a_c24r64
898.2	7286.1	0.000	0.000	0.085	8.133	1377.7	21541.7	10.72	1.232	0.050	18.83	0.085	564.9	0.000	0.000	0.033	14.13	0.000	0.000	0.139	8.935		pg1514_o2nofp.cx10a_c24r64
1704.6	13969.9	0.000	0.000	0.089	8.176	2376.7	37404.2	13.46	0.490	0.058	15.67	0.036	2.014	0.000	0.000	0.027	1.464	0.000	0.000	0.317	16.39		pg1515_o2nofp.cx10a_c24r64
1284.2	10523.4	0.000	0.000	0.085	8.145	1877.9	29426.4	12.22	0.829	0.056	16.57	0.027	1.561	0.000	0.000	0.015	0.547	0.000	0.000	0.230	12.36		pg1610_o2nofp.cx10a_c24r64
956.5	7747.5	0.000	0.000	0.084	8.126	1466.3	23075.4	10.66	1.011	0.047	17.56	0.033	76.15	0.000	0.000	0.009	5.012	0.000	0.000	0.149	9.491		pg1611_o2nofp.cx10a_c24r64
1195.3	9773.1	0.000	0.000	0.086	8.171	1816.9	27870.5	10.87	0.678	0.045	15.98	0.014	0.349	0.000	0.000	0.014	0.804	0.000	0.000	0.189	11.59		pg176_o2nofp.cx10a_c24r64
1719.3	14121.8	0.002	0.000	0.085	8.174	2353.0	37544.0	12.27	0.439	0.057	16.13	0.018	0.277	0.000	0.000	0.022	0.611	0.000	0.000	0.312	16.41		pg177_o2nofp.cx10a_c24r64
925.0	7562.4	0.000	0.000	0.085	8.190	1421.8	22143.0	10.55	1.279	0.048	18.98	0.043	521.6	0.000	0.000	0.010	13.98	0.000	0.000	0.145	9.174		pg180_o2nofp.cx10b_c24r64
924.9	7471.8	0.000	0.000	0.084	8.091	1379.2	21680.9	9.576	1.074	0.054	19.34	0.056	553.4	0.000	0.000	0.024	14.36	0.000	0.000	0.143	9.163		pg180_o2nofp.cx10c_c24r64
1094.9	8848.5	0.000	0.000	0.084	8.094	1610.4	25272.8	10.13	0.900	0.051	18.06	0.017	69.43	0.000	0.000	0.013	8.534	0.000	0.000	0.171	10.68		pg180_o2nofp.cx10d_c24r64
1684.1	13794.8	0.001	0.000	0.087	8.181	2314.9	36831.5	12.59	0.470	0.051	16.12	0.015	0.267	0.000	0.000	0.015	0.501	0.000	0.000	0.263	16.08		pg181_o2nofp.cx10b_c24r64
908.9	7357.2	0.000	0.000	0.085	8.103	1360.8	21649.2	10.07	1.227	0.054	19.50	0.060	565.0	0.000	0.000	0.028	14.07	0.000	0.000	0.143	9.175		pg181_o2nofp.cx10d_c24r64

qr100.L1

qr100.L1: range queries with 100 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

Query response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	max
pg1222_o2nofp.cx10a_c24r64	99.994	0.006	nonzero			0.003
pg1322_o2nofp.cx10a_c24r64	99.993	0.007	nonzero			0.004
pg1419_o2nofp.cx10a_c24r64	99.994	0.006	nonzero			0.002
pg1514_o2nofp.cx10a_c24r64	99.994	0.006	nonzero			0.002
pg1515_o2nofp.cx10a_c24r64	99.995	0.005	nonzero			0.003
pg1610_o2nofp.cx10a_c24r64	99.992	0.008	nonzero			0.003
pg1611_o2nofp.cx10a_c24r64	99.994	0.006	nonzero	nonzero		0.006
pg176_o2nofp.cx10a_c24r64	99.995	0.004	nonzero			0.002
pg177_o2nofp.cx10a_c24r64	99.995	0.005	nonzero			0.004
pg180_o2nofp.cx10b_c24r64	99.994	0.006	nonzero			0.003
pg180_o2nofp.cx10c_c24r64	99.994	0.006	nonzero	nonzero	nonzero	0.048
pg180_o2nofp.cx10d_c24r64	99.994	0.006	nonzero			0.003
pg181_o2nofp.cx10b_c24r64	99.994	0.006	nonzero			0.003
pg181_o2nofp.cx10d_c24r64	99.994	0.006	nonzero			0.003

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	16ms	64ms	max
pg1222_o2nofp.cx10a_c24r64	99.934	0.066	0.019
pg1322_o2nofp.cx10a_c24r64	98.681	1.319	0.023
pg1419_o2nofp.cx10a_c24r64	99.819	0.181	0.021
pg1514_o2nofp.cx10a_c24r64	99.840	0.160	0.021
pg1515_o2nofp.cx10a_c24r64	99.868	0.132	0.021
pg1610_o2nofp.cx10a_c24r64	99.882	0.118	0.023
pg1611_o2nofp.cx10a_c24r64	99.885	0.115	0.020
pg176_o2nofp.cx10a_c24r64	99.944	0.056	0.021
pg177_o2nofp.cx10a_c24r64	99.924	0.076	0.020
pg180_o2nofp.cx10b_c24r64	99.830	0.170	0.021
pg180_o2nofp.cx10c_c24r64	99.826	0.174	0.026
pg180_o2nofp.cx10d_c24r64	99.837	0.163	0.022
pg181_o2nofp.cx10b_c24r64	99.819	0.181	0.021
pg181_o2nofp.cx10d_c24r64	99.854	0.146	0.022

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	1ms	4ms	16ms	max
pg1222_o2nofp.cx10a_c24r64	26.049	73.951		0.003
pg1322_o2nofp.cx10a_c24r64	25.247	74.740	0.014	0.005
pg1419_o2nofp.cx10a_c24r64	24.899	75.101		0.004
pg1514_o2nofp.cx10a_c24r64	19.944	80.052	0.003	0.004
pg1515_o2nofp.cx10a_c24r64	27.809	72.191		0.004
pg1610_o2nofp.cx10a_c24r64	20.868	79.122	0.010	0.004
pg1611_o2nofp.cx10a_c24r64	22.420	77.576	0.003	0.004
pg176_o2nofp.cx10a_c24r64	24.135	75.865		0.004
pg177_o2nofp.cx10a_c24r64	24.552	75.448		0.004
pg180_o2nofp.cx10b_c24r64	19.743	80.253	0.003	0.004
pg180_o2nofp.cx10c_c24r64	19.361	80.625	0.014	0.004
pg180_o2nofp.cx10d_c24r64	19.194	80.799	0.007	0.004
pg181_o2nofp.cx10b_c24r64	19.719	80.260	0.021	0.005
pg181_o2nofp.cx10d_c24r64	19.806	80.188	0.007	0.004

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
797	98999	1057	9.1	389.6	13.8	0.011	0.094	0.489	17.762	380682	33.4	3.845	81	391.1	455.1	48.7	0.003	12478	11870	pg1222_o2nofp.cx10a_c24r64
797	98413	1058	8.8	544.4	15.2	0.011	0.092	0.683	19.537	378467	33.6	3.846	82	390.8	454.8	48.7	0.004	12414	11854	pg1322_o2nofp.cx10a_c24r64
797	99930	1055	8.5	540.7	15.2	0.011	0.087	0.678	19.497	384072	33.3	3.843	80	390.9	454.9	48.6	0.002	12606	11918	pg1419_o2nofp.cx10a_c24r64
796	99263	1064	8.5	535.9	15.1	0.011	0.088	0.673	19.454	381600	33.5	3.844	81	390.9	454.9	48.6	0.002	12462	11902	pg1514_o2nofp.cx10a_c24r64
797	99308	1051	8.5	540.6	15.2	0.011	0.088	0.678	19.470	381749	33.6	3.844	81	390.8	454.9	48.6	0.003	12414	12126	pg1515_o2nofp.cx10a_c24r64
796	100099	1080	8.7	518.6	15.0	0.011	0.089	0.651	19.259	384834	33.4	3.845	80	390.8	454.9	47.5	0.003	12558	11982	pg1610_o2nofp.cx10a_c24r64
797	99811	1079	8.7	532.4	15.1	0.011	0.089	0.668	19.384	383654	33.6	3.844	81	390.8	454.9	48.6	0.006	12574	11983	pg1611_o2nofp.cx10a_c24r64
797	100484	1082	8.7	534.0	15.1	0.011	0.088	0.670	19.405	386123	33.4	3.843	80	390.8	454.9	48.7	0.002	12638	11998	pg176_o2nofp.cx10a_c24r64
796	99508	1083	8.9	538.4	15.1	0.011	0.092	0.676	19.447	382740	33.4	3.846	81	390.8	454.9	48.6	0.004	12446	11886	pg177_o2nofp.cx10a_c24r64
796	98670	1066	8.6	534.1	15.1	0.011	0.089	0.671	19.425	379305	33.5	3.844	81	390.9	454.9	48.6	0.003	12478	11870	pg180_o2nofp.cx10b_c24r64
797	98859	1075	8.9	529.4	15.1	0.011	0.093	0.664	19.340	380190	33.5	3.846	81	390.8	454.9	48.6	0.048	12446	11966	pg180_o2nofp.cx10c_c24r64
796	98319	1070	8.8	534.4	15.1	0.011	0.091	0.671	19.428	377995	33.4	3.845	82	390.9	454.9	48.6	0.003	12398	11774	pg180_o2nofp.cx10d_c24r64
796	98949	1070	8.8	538.6	15.1	0.011	0.091	0.676	19.449	380488	33.5	3.845	81	390.8	454.9	48.6	0.003	12414	11838	pg181_o2nofp.cx10b_c24r64
797	98674	1060	8.5	534.5	15.1	0.011	0.088	0.671	19.422	379220	33.5	3.843	81	390.9	454.9	48.6	0.003	12414	11822	pg181_o2nofp.cx10d_c24r64

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
1057.4	9338.6	0.000	0.000	0.091	8.811	389.6	14154.4	10.69	4.980	0.136	62.24	1.998	10.39	0.000	0.000	0.254	5.197	0.000	0.000	0.128	4.473		pg1222_o2nofp.cx10a_c24r64
1058.0	9014.0	0.000	0.000	0.109	8.418	544.4	15569.3	8.785	3.375	0.220	53.85	2.000	10.81	0.000	0.000	0.254	5.403	0.000	0.000	0.187	4.235		pg1322_o2nofp.cx10a_c24r64
1054.8	8696.9	0.000	0.000	0.107	8.169	540.7	15537.4	9.757	3.773	0.248	54.20	2.001	10.79	0.000	0.000	0.253	5.396	0.000	0.000	0.183	4.247		pg1419_o2nofp.cx10a_c24r64
1064.4	8708.3	0.000	0.000	0.101	8.151	535.9	15492.8	6.645	2.609	0.133	55.41	0.001	0.002	0.000	0.000	0.000	0.011	0.000	0.000	0.142	4.862		pg1514_o2nofp.cx10a_c24r64
1051.3	8697.7	0.000	0.000	0.095	8.238	540.6	15515.6	5.929	2.313	0.107	54.61	0.001	0.002	0.000	0.000	0.003	0.011	0.000	0.000	0.131	4.490		pg1515_o2nofp.cx10a_c24r64
1079.9	8957.6	0.000	0.000	0.100	8.229	518.6	15337.5	6.350	2.618	0.131	56.86	0.001	0.002	0.000	0.000	0.003	0.011	0.000	0.000	0.140	4.455		pg1610_o2nofp.cx10a_c24r64
1079.0	8925.8	0.000	0.000	0.099	8.196	532.4	15446.9	6.299	2.519	0.120	55.48	0.001	0.002	0.000	0.000	0.000	0.011	0.000	0.000	0.140	3.968		pg1611_o2nofp.cx10a_c24r64
1081.8	8862.1	0.000	0.000	0.090	8.156	534.0	15463.8	5.347	2.133	0.109	55.41	0.001	0.002	0.000	0.000	0.000	0.011	0.000	0.000	0.129	4.809		pg176_o2nofp.cx10a_c24r64
1082.6	9161.9	0.000	0.000	0.090	8.421	538.4	15487.6	4.353	1.761	0.116	54.80	0.001	0.002	0.000	0.000	0.000	0.011	0.000	0.000	0.132	4.692		pg177_o2nofp.cx10a_c24r64
1065.5	8762.3	0.000	0.000	0.100	8.209	534.1	15469.8	6.018	2.400	0.123	55.61	0.001	0.002	0.000	0.000	0.000	0.011	0.000	0.000	0.139	5.220		pg180_o2nofp.cx10b_c24r64
1074.8	9162.1	0.000	0.000	0.099	8.520	529.4	15412.0	4.817	1.996	0.122	55.87	0.001	0.002	0.000	0.000	0.003	0.011	0.000	0.000	0.140	4.759		pg180_o2nofp.cx10c_c24r64
1069.6	8963.8	0.000	0.000	0.100	8.374	534.4	15472.6	5.384	2.163	0.157	55.31	0.001	0.002	0.000	0.000	0.000	0.011	0.000	0.000	0.145	3.537		pg180_o2nofp.cx10d_c24r64
1069.5	9033.6	0.000	0.000	0.099	8.440	538.6	15489.6	4.613	1.882	0.140	54.77	0.001	0.002	0.000	0.000	0.000	0.011	0.000	0.000	0.146	4.289		pg181_o2nofp.cx10b_c24r64
1060.5	8702.8	0.000	0.000	0.099	8.190	534.5	15477.4	5.213	2.111	0.116	55.70	0.001	0.002	0.000	0.000	0.000	0.011	0.000	0.000	0.137	5.159		pg181_o2nofp.cx10d_c24r64

qp100.L2

qp100.L2: point queries with 100 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	1ms	4ms	16ms	64ms	256ms	1s	max
pg1222_o2nofp.cx10a_c24r64	1.540	98.031	0.394	0.025	0.011		0.228
pg1322_o2nofp.cx10a_c24r64	1.485	98.475	0.040				0.010
pg1419_o2nofp.cx10a_c24r64	1.655	98.324	0.021				0.011
pg1514_o2nofp.cx10a_c24r64	1.563	98.424	0.013				0.010
pg1515_o2nofp.cx10a_c24r64	1.714	98.266	0.020				0.010
pg1610_o2nofp.cx10a_c24r64	1.578	98.400	0.022	nonzero			0.049
pg1611_o2nofp.cx10a_c24r64	1.645	98.338	0.016				0.010
pg176_o2nofp.cx10a_c24r64	1.596	98.388	0.016				0.010
pg177_o2nofp.cx10a_c24r64	1.458	98.520	0.021				0.010
pg180_o2nofp.cx10b_c24r64	1.357	98.622	0.021				0.010
pg180_o2nofp.cx10c_c24r64	1.204	98.629	0.146	0.015	0.006		0.193
pg180_o2nofp.cx10d_c24r64	1.306	98.673	0.020				0.010
pg181_o2nofp.cx10b_c24r64	1.205	98.488	0.275	0.024	0.008	nonzero	0.668
pg181_o2nofp.cx10d_c24r64	1.434	98.549	0.018				0.011

dbms	16ms	64ms	256ms	1s	max
pg1222_o2nofp.cx10a_c24r64	51.028	48.111	0.799	0.062	0.354
pg1322_o2nofp.cx10a_c24r64	27.201	72.799			0.033
pg1419_o2nofp.cx10a_c24r64	58.153	41.847			0.032
pg1514_o2nofp.cx10a_c24r64	82.163	17.837			0.028
pg1515_o2nofp.cx10a_c24r64	40.337	59.663			0.028
pg1610_o2nofp.cx10a_c24r64	35.170	64.830			0.029
pg1611_o2nofp.cx10a_c24r64	50.931	49.069			0.025
pg176_o2nofp.cx10a_c24r64	49.569	50.431			0.027
pg177_o2nofp.cx10a_c24r64	48.674	51.326			0.027
pg180_o2nofp.cx10b_c24r64	42.604	57.396			0.026
pg180_o2nofp.cx10c_c24r64	39.816	59.861	0.312	0.010	0.295
pg180_o2nofp.cx10d_c24r64	48.833	51.167			0.028
pg181_o2nofp.cx10b_c24r64	58.885	40.517	0.500	0.097	0.341
pg181_o2nofp.cx10d_c24r64	47.163	52.837			0.027

dbms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c24r64	79.191	20.729	0.080		0.051
pg1322_o2nofp.cx10a_c24r64	72.868	27.128	0.003		0.016
pg1419_o2nofp.cx10a_c24r64	81.698	18.299	0.003		0.016
pg1514_o2nofp.cx10a_c24r64	73.444	26.556			0.015
pg1515_o2nofp.cx10a_c24r64	78.715	21.278	0.007		0.017
pg1610_o2nofp.cx10a_c24r64	58.174	41.826			0.015
pg1611_o2nofp.cx10a_c24r64	68.295	31.705			0.015
pg176_o2nofp.cx10a_c24r64	66.212	33.788			0.015
pg177_o2nofp.cx10a_c24r64	66.233	33.764	0.003		0.016
pg180_o2nofp.cx10b_c24r64	62.521	37.472	0.007		0.016
pg180_o2nofp.cx10c_c24r64	57.771	42.212	0.017		0.029
pg180_o2nofp.cx10d_c24r64	60.677	39.319	0.003		0.016
pg181_o2nofp.cx10b_c24r64	65.656	34.253	0.083	0.007	0.075
pg181_o2nofp.cx10d_c24r64	52.059	47.941			0.016

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
796	4746	65631	514.0	2823.4	32.4	13.828	110.903	3.545	41.709	146721	12.2	30.913	617	391.2	455.3	48.7	0.228	624	224	pg1222_o2nofp.cx10a_c24r64
796	4853	67058	524.5	2681.5	31.3	13.817	110.666	3.367	40.247	148318	11.9	30.560	588	390.9	454.9	48.7	0.010	624	416	pg1322_o2nofp.cx10a_c24r64
796	4907	67707	529.2	2685.7	31.3	13.798	110.442	3.372	40.272	149591	11.6	30.486	567	390.9	452.3	48.6	0.011	624	432	pg1419_o2nofp.cx10a_c24r64
796	4898	67593	528.5	2683.9	31.3	13.799	110.477	3.370	40.247	148978	11.7	30.414	573	390.9	452.6	48.6	0.010	624	432	pg1514_o2nofp.cx10a_c24r64
796	4938	68121	532.0	2680.8	31.3	13.796	110.338	3.366	40.207	150049	11.7	30.389	569	390.9	454.7	48.6	0.010	624	448	pg1515_o2nofp.cx10a_c24r64
796	4902	67615	527.8	2695.2	31.4	13.793	110.245	3.384	40.355	149035	11.8	30.403	578	390.9	454.9	47.8	0.049	624	432	pg1610_o2nofp.cx10a_c24r64
796	4931	68037	531.3	2686.2	31.3	13.797	110.322	3.373	40.258	149782	11.6	30.374	565	390.9	452.7	48.6	0.010	624	448	pg1611_o2nofp.cx10a_c24r64
796	4916	67803	530.1	2684.4	31.3	13.793	110.423	3.371	40.229	149337	11.8	30.379	576	390.9	453.2	48.7	0.010	624	448	pg176_o2nofp.cx10a_c24r64
796	4868	67194	525.5	2680.2	31.3	13.803	110.532	3.365	40.196	147939	12.0	30.389	592	390.9	454.7	48.6	0.010	608	432	pg177_o2nofp.cx10a_c24r64
797	4842	66794	522.3	2682.7	31.3	13.796	110.472	3.366	40.196	147124	11.7	30.388	580	390.9	452.4	48.6	0.010	608	432	pg180_o2nofp.cx10b_c24r64
797	4727	65288	510.4	2684.6	31.3	13.812	110.578	3.369	40.204	144770	12.4	30.627	630	390.9	452.7	48.6	0.193	608	272	pg180_o2nofp.cx10c_c24r64
796	4820	66542	520.4	2683.2	31.3	13.806	110.556	3.369	40.236	146553	11.8	30.407	588	390.9	452.6	48.6	0.010	608	448	pg180_o2nofp.cx10d_c24r64
796	4679	64656	505.5	2677.2	31.2	13.819	110.621	3.362	40.149	144145	12.2	30.807	626	390.9	454.7	48.6	0.668	608	288	pg181_o2nofp.cx10b_c24r64
797	4879	67270	525.9	2684.4	31.3	13.788	110.379	3.369	40.221	148116	11.9	30.360	585	390.9	452.7	48.6	0.011	624	448	pg181_o2nofp.cx10d_c24r64

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
65631.0	526368	0.013	0.000	0.081	8.022	2823.4	33217.0	15.77	0.806	0.062	13.69	2.003	10.58	0.000	0.000	0.243	5.257	0.000	0.000	5.644	98.72		pg1222_o2nofp.cx10a_c24r64
67058.4	537094	0.000	0.000	0.081	8.010	2681.5	32052.9	13.63	0.704	0.068	13.61	1.999	10.93	0.000	0.000	0.242	5.017	0.000	0.000	5.939	99.95		pg1322_o2nofp.cx10a_c24r64
67707.3	541927	0.000	0.000	0.081	8.003	2685.7	32073.0	13.63	0.682	0.058	13.60	2.110	1572.2	0.000	0.000	0.243	47.01	0.000	0.000	5.928	99.96		pg1419_o2nofp.cx10a_c24r64
67593.1	541148	0.000	0.000	0.080	8.007	2683.9	32052.6	11.28	0.566	0.026	13.62	0.107	1388.9	0.000	0.000	0.006	81.53	0.000	0.000	5.646	99.96		pg1514_o2nofp.cx10a_c24r64
68121.4	544803	0.000	0.000	0.081	7.999	2680.8	32021.2	9.546	0.482	0.030	13.62	0.012	154.8	0.000	0.000	0.003	38.62	0.000	0.000	5.766	99.96		pg1515_o2nofp.cx10a_c24r64
67615.4	540419	0.000	0.000	0.080	7.993	2695.2	32139.0	10.50	0.533	0.030	13.63	0.002	0.144	0.000	0.000	0.000	0.366	0.000	0.000	5.699	99.96		pg1610_o2nofp.cx10a_c24r64
68037.0	544020	0.000	0.000	0.080	7.996	2686.2	32061.1	10.94	0.552	0.030	13.62	0.089	1270.9	0.000	0.000	0.003	39.98	0.000	0.000	5.765	99.96		pg1611_o2nofp.cx10a_c24r64
67802.9	542816	0.000	0.000	0.080	8.006	2684.4	32038.6	9.461	0.473	0.030	13.62	0.069	998.6	0.000	0.000	0.003	40.61	0.000	0.000	5.657	99.95		pg176_o2nofp.cx10a_c24r64
67193.9	538094	0.000	0.000	0.080	8.010	2680.2	32012.0	8.029	0.406	0.031	13.63	0.011	127.2	0.000	0.000	0.001	35.35	0.000	0.000	5.722	99.95		pg177_o2nofp.cx10a_c24r64
66793.7	534851	0.000	0.000	0.080	8.009	2682.7	32032.2	10.47	0.519	0.030	13.62	0.117	1488.8	0.000	0.000	0.001	35.64	0.000	0.000	5.615	99.96		pg180_o2nofp.cx10b_c24r64
65287.5	522691	0.000	0.000	0.080	8.008	2684.6	32038.7	8.819	0.441	0.030	13.70	0.099	1316.3	0.000	0.000	0.001	37.19	0.000	0.000	5.449	99.33		pg180_o2nofp.cx10c_c24r64
66542.1	532848	0.000	0.000	0.080	8.009	2683.2	32044.2	9.966	0.484	0.032	13.61	0.096	1370.8	0.000	0.000	0.001	39.86	0.000	0.000	5.586	99.95		pg180_o2nofp.cx10d_c24r64
64655.8	517584	0.002	0.000	0.080	8.006	2677.2	31974.3	8.634	0.445	0.031	13.77	0.011	136.3	0.000	0.000	0.001	35.88	0.000	0.000	5.428	98.94		pg181_o2nofp.cx10b_c24r64
67269.9	538508	0.000	0.000	0.080	8.005	2684.4	32052.3	9.920	0.490	0.031	13.62	0.093	1307.2	0.000	0.000	0.003	39.15	0.000	0.000	5.617	99.95		pg181_o2nofp.cx10d_c24r64

qr500.L3

qr500.L3: range queries with 500 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	1s	max
pg1222_o2nofp.cx10a_c24r64	99.913	0.086	0.001	nonzero	nonzero		0.048
pg1322_o2nofp.cx10a_c24r64	99.923	0.076	0.001	nonzero	nonzero		0.056
pg1419_o2nofp.cx10a_c24r64	99.928	0.071	0.001	nonzero	nonzero		0.051
pg1514_o2nofp.cx10a_c24r64	99.905	0.094	0.001	nonzero	nonzero		0.048
pg1515_o2nofp.cx10a_c24r64	99.904	0.095	0.001	nonzero	nonzero		0.039
pg1610_o2nofp.cx10a_c24r64	99.914	0.085	nonzero	nonzero	nonzero		0.051
pg1611_o2nofp.cx10a_c24r64	99.906	0.093	0.001	nonzero	nonzero		0.053
pg176_o2nofp.cx10a_c24r64	99.920	0.079	0.001	nonzero	nonzero		0.052
pg177_o2nofp.cx10a_c24r64	99.906	0.094	0.001	nonzero	nonzero		0.052
pg180_o2nofp.cx10b_c24r64	99.908	0.091	0.001	nonzero	nonzero	nonzero	0.295
pg180_o2nofp.cx10c_c24r64	99.912	0.087	0.001	nonzero	nonzero		0.053
pg180_o2nofp.cx10d_c24r64	99.897	0.102	0.001	nonzero	nonzero		0.051
pg181_o2nofp.cx10b_c24r64	99.895	0.104	0.001	nonzero	nonzero		0.048
pg181_o2nofp.cx10d_c24r64	99.918	0.081	0.001	nonzero	nonzero		0.050

dbms	16ms	64ms	256ms	1s	max
pg1222_o2nofp.cx10a_c24r64	67.018	32.978	0.004		0.069
pg1322_o2nofp.cx10a_c24r64	58.610	41.348	0.033	0.008	0.281
pg1419_o2nofp.cx10a_c24r64	63.742	36.258			0.042
pg1514_o2nofp.cx10a_c24r64	83.370	16.630			0.062
pg1515_o2nofp.cx10a_c24r64	85.190	14.810			0.036
pg1610_o2nofp.cx10a_c24r64	86.355	13.645			0.030
pg1611_o2nofp.cx10a_c24r64	86.536	13.460	0.003		0.071
pg176_o2nofp.cx10a_c24r64	88.388	11.611	0.001		0.067
pg177_o2nofp.cx10a_c24r64	84.474	15.519	0.001	0.006	0.317
pg180_o2nofp.cx10b_c24r64	84.169	15.825		0.006	0.328
pg180_o2nofp.cx10c_c24r64	83.651	16.344	0.005		0.123
pg180_o2nofp.cx10d_c24r64	82.119	17.881			0.045
pg181_o2nofp.cx10b_c24r64	80.472	19.528			0.063
pg181_o2nofp.cx10d_c24r64	86.082	13.912	0.006		0.067

dbms	4ms	16ms	64ms	256ms	1s	max
pg1222_o2nofp.cx10a_c24r64	3.980	78.303	17.717			0.042
pg1322_o2nofp.cx10a_c24r64	3.385	88.246	8.369			0.026
pg1419_o2nofp.cx10a_c24r64	3.444	90.542	6.015			0.026
pg1514_o2nofp.cx10a_c24r64	0.865	71.791	27.344			0.062
pg1515_o2nofp.cx10a_c24r64	2.849	74.910	22.241			0.034
pg1610_o2nofp.cx10a_c24r64	1.003	74.113	24.883			0.027
pg1611_o2nofp.cx10a_c24r64	1.106	70.837	28.055	0.002		0.070
pg176_o2nofp.cx10a_c24r64	1.407	71.683	26.910			0.058
pg177_o2nofp.cx10a_c24r64	1.105	69.254	29.637	0.004		0.066
pg180_o2nofp.cx10b_c24r64	1.169	69.831	28.998		0.001	0.304
pg180_o2nofp.cx10c_c24r64	0.883	70.535	28.577	0.004		0.118
pg180_o2nofp.cx10d_c24r64	0.748	69.610	29.642			0.037
pg181_o2nofp.cx10b_c24r64	0.513	70.298	29.189			0.061
pg181_o2nofp.cx10d_c24r64	1.024	71.154	27.817	0.005		0.067

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
3982	88678	5707	45.7	5279.3	92.0	0.064	0.528	1.326	23.646	346856	39.4	3.911	107	391.9	455.9	43.3	0.048	11149	10398	pg1222_o2nofp.cx10a_c24r64
3982	88758	5857	47.6	5284.9	91.7	0.066	0.549	1.327	23.590	349271	39.1	3.935	106	391.4	455.4	48.0	0.056	11102	10398	pg1322_o2nofp.cx10a_c24r64
3982	90005	5813	46.8	5296.0	93.2	0.065	0.533	1.330	23.961	353645	38.8	3.929	103	391.3	455.4	48.6	0.051	11294	10494	pg1419_o2nofp.cx10a_c24r64
3984	88955	5814	46.5	5286.4	93.0	0.065	0.535	1.327	23.893	348073	39.5	3.913	107	391.3	455.3	48.6	0.048	11150	10462	pg1514_o2nofp.cx10a_c24r64
3982	88998	5726	46.0	5277.6	91.8	0.064	0.529	1.325	23.601	348880	39.4	3.920	106	391.2	455.2	48.6	0.039	11119	10479	pg1515_o2nofp.cx10a_c24r64
3984	89565	5711	46.0	5270.0	90.5	0.064	0.526	1.323	23.246	349210	39.5	3.899	106	391.1	455.1	48.3	0.051	11246	10478	pg1610_o2nofp.cx10a_c24r64
3982	89279	5713	46.0	5288.6	92.9	0.064	0.528	1.328	23.885	349373	39.6	3.913	106	391.1	455.1	48.6	0.053	11214	10511	pg1611_o2nofp.cx10a_c24r64
3982	89479	5708	46.4	5287.5	92.6	0.064	0.531	1.328	23.819	348899	39.4	3.899	106	391.1	455.1	48.7	0.052	11214	10414	pg176_o2nofp.cx10a_c24r64
3984	88716	5736	46.9	5283.3	91.8	0.065	0.542	1.326	23.596	345729	39.7	3.897	107	391.1	455.1	48.6	0.052	11150	10430	pg177_o2nofp.cx10a_c24r64
3984	88089	5730	46.0	5295.3	93.2	0.065	0.535	1.329	23.939	344678	39.6	3.913	108	391.2	455.2	48.6	0.295	11018	10222	pg180_o2nofp.cx10b_c24r64
3984	88223	5743	46.6	5293.8	93.0	0.065	0.541	1.329	23.896	343181	39.6	3.890	108	391.1	455.1	45.4	0.053	11134	10382	pg180_o2nofp.cx10c_c24r64
3982	87826	5818	46.8	5291.2	93.0	0.066	0.546	1.329	23.918	343046	39.8	3.906	109	391.3	455.3	48.6	0.051	11022	10252	pg180_o2nofp.cx10d_c24r64
3984	87743	5751	46.5	5281.4	91.8	0.066	0.543	1.325	23.597	342485	39.9	3.903	109	391.1	455.2	47.8	0.048	10926	10142	pg181_o2nofp.cx10b_c24r64
3982	88127	5703	45.7	5292.3	93.0	0.065	0.531	1.329	23.920	343603	39.5	3.899	108	391.3	455.4	48.6	0.050	11103	10302	pg181_o2nofp.cx10d_c24r64

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
5706.9	46847.8	0.000	0.000	0.131	8.192	5279.3	94163.7	29.47	0.820	0.446	30.50	2.054	682.4	0.000	0.000	0.253	38.72	0.000	0.000	3.276	19.48		pg1222_o2nofp.cx10a_c24r64
5857.2	48744.3	0.000	0.000	0.141	8.288	5284.9	93943.6	30.36	0.828	0.532	30.06	2.092	1306.6	0.000	0.000	0.253	45.81	0.000	0.000	3.827	20.17		pg1322_o2nofp.cx10a_c24r64
5812.7	47946.7	0.001	0.000	0.141	8.220	5296.0	95419.9	32.27	0.835	0.591	30.35	2.096	1272.9	0.000	0.000	0.259	41.90	0.000	0.000	4.294	20.17		pg1419_o2nofp.cx10a_c24r64
5813.8	47597.9	0.001	0.000	0.117	8.170	5286.4	95200.7	28.87	0.694	0.333	30.54	0.102	1280.2	0.000	0.000	0.007	36.93	0.000	0.000	2.800	18.23		pg1514_o2nofp.cx10a_c24r64
5726.3	47107.6	0.001	0.000	0.115	8.209	5277.6	93987.3	23.25	0.590	0.381	30.47	0.099	1398.2	0.000	0.000	0.004	41.28	0.000	0.000	3.078	18.41		pg1515_o2nofp.cx10a_c24r64
5711.2	47071.5	0.000	0.000	0.115	8.224	5270.0	92622.8	20.88	0.620	0.288	30.15	0.009	0.357	0.000	0.000	0.002	0.283	0.000	0.000	2.330	17.83		pg1610_o2nofp.cx10a_c24r64
5713.4	47110.3	0.000	0.000	0.114	8.228	5288.6	95117.4	27.84	0.657	0.323	30.50	0.098	1298.4	0.000	0.000	0.007	45.13	0.000	0.000	2.722	18.29		pg1611_o2nofp.cx10a_c24r64
5708.4	47499.1	0.000	0.000	0.113	8.313	5287.5	94854.0	25.39	0.601	0.308	30.37	0.092	1334.5	0.000	0.000	0.004	59.66	0.000	0.000	2.613	17.99		pg176_o2nofp.cx10a_c24r64
5735.6	48076.3	0.000	0.000	0.114	8.379	5283.3	94018.0	22.03	0.554	0.268	30.13	0.098	1404.4	0.000	0.000	0.003	40.91	0.000	0.000	2.319	18.28		pg177_o2nofp.cx10a_c24r64
5730.4	47127.0	0.000	0.000	0.116	8.203	5295.3	95386.3	27.45	0.637	0.312	30.33	0.095	1289.2	0.000	0.000	0.004	56.78	0.000	0.000	2.673	18.60		pg180_o2nofp.cx10b_c24r64
5742.9	47734.7	0.001	0.000	0.114	8.298	5293.8	95214.0	24.39	0.575	0.291	30.34	0.092	1298.2	0.000	0.000	0.004	58.52	0.000	0.000	2.497	18.62		pg180_o2nofp.cx10c_c24r64
5818.0	47930.4	0.000	0.000	0.113	8.213	5291.2	95248.7	26.13	0.622	0.247	30.34	0.094	1289.2	0.000	0.000	0.001	61.81	0.000	0.000	2.217	18.99		pg180_o2nofp.cx10d_c24r64
5750.7	47617.0	0.000	0.000	0.116	8.268	5281.4	94022.9	21.99	0.555	0.308	30.27	0.095	1407.2	0.000	0.000	0.002	57.15	0.000	0.000	2.528	18.95		pg181_o2nofp.cx10b_c24r64
5703.0	46837.8	0.000	0.000	0.116	8.191	5292.3	95254.7	24.81	0.603	0.330	30.40	0.091	1289.2	0.000	0.000	0.002	40.28	0.000	0.000	2.764	18.38		pg181_o2nofp.cx10d_c24r64

qp500.L4

qp500.L4: point queries with 500 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	1ms	4ms	16ms	64ms	256ms	1s	max
pg1222_o2nofp.cx10a_c24r64	0.702	98.992	0.307				0.011
pg1322_o2nofp.cx10a_c24r64	0.443	98.711	0.814	0.026	0.007	nonzero	0.659
pg1419_o2nofp.cx10a_c24r64	0.558	99.082	0.361				0.011
pg1514_o2nofp.cx10a_c24r64	0.520	99.161	0.318				0.011
pg1515_o2nofp.cx10a_c24r64	0.641	99.086	0.273				0.012
pg1610_o2nofp.cx10a_c24r64	0.616	99.141	0.243				0.012
pg1611_o2nofp.cx10a_c24r64	0.619	99.132	0.249	nonzero			0.053
pg176_o2nofp.cx10a_c24r64	0.626	99.106	0.268				0.012
pg177_o2nofp.cx10a_c24r64	0.462	98.352	1.122	0.053	0.011	nonzero	0.308
pg180_o2nofp.cx10b_c24r64	0.424	99.252	0.322	0.001	nonzero		0.076
pg180_o2nofp.cx10c_c24r64	0.508	99.201	0.291				0.011
pg180_o2nofp.cx10d_c24r64	0.388	99.133	0.463	0.012	0.005		0.229
pg181_o2nofp.cx10b_c24r64	0.491	99.181	0.328				0.016
pg181_o2nofp.cx10d_c24r64	0.585	99.137	0.278	nonzero			0.041

dbms	16ms	64ms	256ms	1s	max
pg1222_o2nofp.cx10a_c24r64	18.604	81.394	0.001		0.076
pg1322_o2nofp.cx10a_c24r64	18.116	81.621	0.263		0.238
pg1419_o2nofp.cx10a_c24r64	18.628	81.369	0.002		0.083
pg1514_o2nofp.cx10a_c24r64	21.074	78.924	0.001		0.067
pg1515_o2nofp.cx10a_c24r64	24.955	75.045			0.058
pg1610_o2nofp.cx10a_c24r64	26.074	73.924	0.001		0.071
pg1611_o2nofp.cx10a_c24r64	29.492	70.503	0.005		0.072
pg176_o2nofp.cx10a_c24r64	30.903	69.094	0.003		0.099
pg177_o2nofp.cx10a_c24r64	22.312	77.038	0.583	0.067	0.584
pg180_o2nofp.cx10b_c24r64	20.808	79.176	0.017		0.100
pg180_o2nofp.cx10c_c24r64	21.267	78.731	0.002		0.099
pg180_o2nofp.cx10d_c24r64	18.586	81.263	0.141	0.010	0.371
pg181_o2nofp.cx10b_c24r64	21.614	78.384	0.002		0.089
pg181_o2nofp.cx10d_c24r64	27.755	72.244	0.001		0.068

dbms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c24r64	2.003	97.991	0.006	0.079
pg1322_o2nofp.cx10a_c24r64	1.186	98.804	0.010	0.083
pg1419_o2nofp.cx10a_c24r64	5.828	94.165	0.007	0.081
pg1514_o2nofp.cx10a_c24r64	0.377	99.617	0.006	0.089
pg1515_o2nofp.cx10a_c24r64	0.574	99.421	0.006	0.086
pg1610_o2nofp.cx10a_c24r64	0.070	99.924	0.006	0.081
pg1611_o2nofp.cx10a_c24r64	0.090	99.903	0.007	0.081
pg176_o2nofp.cx10a_c24r64	0.059	99.934	0.007	0.093
pg177_o2nofp.cx10a_c24r64	0.353	99.606	0.041	0.174
pg180_o2nofp.cx10b_c24r64	0.272	99.721	0.007	0.083
pg180_o2nofp.cx10c_c24r64	0.031	99.961	0.008	0.104
pg180_o2nofp.cx10d_c24r64	0.032	99.958	0.010	0.092
pg181_o2nofp.cx10b_c24r64	0.060	99.934	0.006	0.084
pg181_o2nofp.cx10d_c24r64	0.030	99.965	0.006	0.079

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
3982	4346	68483	535.0	9743.9	125.4	15.759	126.067	2.447	32.245	152180	20.9	35.019	1154	392.5	456.5	48.5	0.011	560	368	pg1222_o2nofp.cx10a_c24r64
3982	4088	65088	510.9	9722.4	125.5	15.921	127.979	2.441	32.274	146033	21.1	35.721	1239	391.9	455.9	47.6	0.659	528	176	pg1322_o2nofp.cx10a_c24r64
3984	4262	67392	527.0	9751.0	125.6	15.811	126.595	2.447	32.274	149211	20.7	35.006	1166	391.7	455.8	48.6	0.011	544	352	pg1419_o2nofp.cx10a_c24r64
3984	4257	67406	528.4	9744.7	125.5	15.834	127.113	2.446	32.266	148886	22.0	34.974	1240	391.7	455.7	48.6	0.011	544	368	pg1514_o2nofp.cx10a_c24r64
3982	4324	68204	533.3	9757.0	125.6	15.773	126.303	2.450	32.292	150752	21.1	34.863	1171	391.4	455.5	48.6	0.012	560	368	pg1515_o2nofp.cx10a_c24r64
3984	4329	68269	532.8	9747.3	125.4	15.771	126.035	2.446	32.237	150413	21.9	34.747	1214	391.4	455.4	48.4	0.012	544	368	pg1610_o2nofp.cx10a_c24r64
3982	4325	68202	533.2	9753.0	125.5	15.770	126.250	2.449	32.268	150138	21.4	34.716	1188	391.3	455.4	48.6	0.053	544	368	pg1611_o2nofp.cx10a_c24r64
3984	4335	68333	534.4	9755.6	125.6	15.762	126.215	2.448	32.267	150207	21.7	34.647	1201	391.3	455.3	48.7	0.012	544	368	pg176_o2nofp.cx10a_c24r64
3984	4055	64653	507.9	9640.2	124.6	15.944	128.268	2.419	32.017	143807	21.9	35.464	1296	391.3	455.4	48.6	0.308	528	144	pg177_o2nofp.cx10a_c24r64
3982	4181	66342	518.5	9727.0	125.3	15.869	127.003	2.443	32.216	145744	22.6	34.862	1297	391.4	455.5	48.7	0.076	528	368	pg180_o2nofp.cx10b_c24r64
3984	4254	67246	526.0	9737.3	125.4	15.808	126.615	2.444	32.215	147801	22.6	34.744	1275	391.4	455.4	48.2	0.011	528	368	pg180_o2nofp.cx10c_c24r64
3982	4106	65356	511.9	9719.8	125.3	15.917	127.655	2.441	32.211	144597	22.7	35.216	1327	391.6	455.6	48.2	0.229	528	320	pg180_o2nofp.cx10d_c24r64
3984	4232	66934	524.6	9733.7	125.4	15.817	126.947	2.443	32.223	146952	22.6	34.726	1282	391.4	455.4	48.0	0.016	528	368	pg181_o2nofp.cx10b_c24r64
3982	4310	68009	531.8	9749.3	125.6	15.781	126.366	2.448	32.291	149302	22.0	34.644	1225	391.7	455.8	48.7	0.041	544	368	pg181_o2nofp.cx10d_c24r64

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
68483.0	547839	0.000	0.000	0.092	8.000	9743.9	128411	43.86	0.387	0.100	13.66	2.013	20.02	0.000	0.000	0.245	7.613	0.000	0.000	7.955	99.96		pg1222_o2nofp.cx10a_c24r64
65087.7	523205	0.002	0.000	0.098	8.040	9722.4	128525	47.53	0.380	0.118	13.81	2.014	47.54	0.000	0.000	0.251	15.05	0.000	0.000	8.093	99.25		pg1322_o2nofp.cx10a_c24r64
67391.7	539599	0.000	0.000	0.096	8.007	9751.0	128595	35.06	0.308	0.105	13.65	2.011	29.38	0.000	0.000	0.245	11.06	0.000	0.000	8.076	99.96		pg1419_o2nofp.cx10a_c24r64
67405.7	541121	0.000	0.000	0.094	8.029	9744.7	128562	31.08	0.264	0.107	13.67	0.015	27.68	0.000	0.000	0.007	17.38	0.000	0.000	7.943	99.95		pg1514_o2nofp.cx10a_c24r64
68204.5	546146	0.000	0.000	0.094	8.008	9757.0	128598	31.73	0.264	0.103	13.65	0.013	0.450	0.000	0.000	0.007	0.427	0.000	0.000	7.989	99.96		pg1515_o2nofp.cx10a_c24r64
68269.1	545578	0.000	0.000	0.092	7.991	9747.3	128446	30.19	0.260	0.095	13.67	0.014	9.560	0.000	0.000	0.010	6.899	0.000	0.000	7.926	99.96		pg1610_o2nofp.cx10a_c24r64
68202.3	546007	0.000	0.000	0.094	8.006	9753.0	128502	31.98	0.273	0.090	13.66	0.011	0.454	0.000	0.000	0.009	0.534	0.000	0.000	7.866	99.96		pg1611_o2nofp.cx10a_c24r64
68333.3	547179	0.000	0.000	0.092	8.008	9755.6	128568	28.52	0.239	0.099	13.66	0.008	45.61	0.000	0.000	0.004	57.88	0.000	0.000	7.974	99.96		pg176_o2nofp.cx10a_c24r64
64652.7	520126	0.064	0.000	0.096	8.045	9640.2	127571	27.72	0.245	0.124	14.03	0.006	18.43	0.000	0.000	0.005	23.22	0.000	0.000	7.927	98.59		pg177_o2nofp.cx10a_c24r64
66341.9	530949	0.007	0.000	0.094	8.003	9727.0	128295	29.70	0.256	0.088	13.66	0.005	0.277	0.000	0.000	0.006	0.709	0.000	0.000	7.702	99.94		pg180_o2nofp.cx10b_c24r64
67246.4	538621	0.000	0.000	0.092	8.010	9737.3	128361	28.29	0.241	0.099	13.66	0.006	9.381	0.000	0.000	0.004	15.74	0.000	0.000	7.865	99.96		pg180_o2nofp.cx10c_c24r64
65356.3	524153	0.000	0.000	0.094	8.020	9719.8	128273	29.18	0.246	0.107	13.73	0.007	27.47	0.000	0.000	0.003	38.28	0.000	0.000	7.828	99.53		pg180_o2nofp.cx10d_c24r64
66933.7	537214	0.167	0.000	0.094	8.027	9733.7	128392	30.52	0.256	0.102	13.66	0.007	36.58	0.000	0.000	0.007	45.86	0.000	0.000	7.935	99.94		pg181_o2nofp.cx10b_c24r64
68008.8	544586	0.000	0.000	0.093	8.008	9749.3	128592	30.27	0.260	0.112	13.67	0.007	36.59	0.000	0.000	0.003	53.38	0.000	0.000	8.013	99.96		pg181_o2nofp.cx10d_c24r64

qr1000.L5

qr1000.L5: range queries with 1000 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	max
pg1222_o2nofp.cx10a_c24r64	99.228	0.766	0.005	0.001	nonzero	nonzero	nonzero	0.270
pg1322_o2nofp.cx10a_c24r64	99.338	0.657	0.005	0.001	nonzero	nonzero	nonzero	0.258
pg1419_o2nofp.cx10a_c24r64	99.334	0.661	0.005	0.001	nonzero	nonzero	nonzero	0.293
pg1514_o2nofp.cx10a_c24r64	98.847	1.147	0.005	0.001	nonzero	nonzero	nonzero	0.267
pg1515_o2nofp.cx10a_c24r64	98.794	1.200	0.005	0.001	nonzero	nonzero	nonzero	0.257
pg1610_o2nofp.cx10a_c24r64	99.145	0.850	0.004	0.001	nonzero	nonzero	nonzero	0.285
pg1611_o2nofp.cx10a_c24r64	98.997	0.997	0.004	0.001	nonzero	nonzero	nonzero	0.263
pg176_o2nofp.cx10a_c24r64	99.068	0.927	0.004	0.001	nonzero	nonzero	nonzero	0.270
pg177_o2nofp.cx10a_c24r64	98.755	1.240	0.005	0.001	nonzero	nonzero		0.242
pg180_o2nofp.cx10b_c24r64	98.706	1.289	0.005	0.001	nonzero	nonzero	nonzero	0.260
pg180_o2nofp.cx10c_c24r64	99.035	0.959	0.004	0.001	nonzero	nonzero	nonzero	0.284
pg180_o2nofp.cx10d_c24r64	98.916	1.079	0.005	0.001	nonzero	nonzero	nonzero	0.262
pg181_o2nofp.cx10b_c24r64	98.662	1.333	0.004	0.001	nonzero	nonzero	nonzero	0.280
pg181_o2nofp.cx10d_c24r64	99.092	0.903	0.005	0.001	nonzero	nonzero	nonzero	0.269

dbms	16ms	64ms	256ms	1s	max
pg1222_o2nofp.cx10a_c24r64	58.753	41.247			0.036
pg1322_o2nofp.cx10a_c24r64	56.142	43.858			0.044
pg1419_o2nofp.cx10a_c24r64	58.432	41.568			0.037
pg1514_o2nofp.cx10a_c24r64	62.525	37.473	0.002		0.082
pg1515_o2nofp.cx10a_c24r64	64.554	35.446			0.034
pg1610_o2nofp.cx10a_c24r64	70.538	29.462			0.040
pg1611_o2nofp.cx10a_c24r64	70.139	29.861			0.048
pg176_o2nofp.cx10a_c24r64	71.785	28.215			0.045
pg177_o2nofp.cx10a_c24r64	68.598	31.399	0.003		0.146
pg180_o2nofp.cx10b_c24r64	62.358	37.642			0.039
pg180_o2nofp.cx10c_c24r64	67.945	32.055			0.049
pg180_o2nofp.cx10d_c24r64	65.125	34.873	0.002		0.120
pg181_o2nofp.cx10b_c24r64	70.907	29.091	0.002		0.072
pg181_o2nofp.cx10d_c24r64	72.605	27.150	0.204	0.041	0.596

dbms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c24r64	0.649	99.348	0.003	0.124
pg1322_o2nofp.cx10a_c24r64	0.702	99.295	0.003	0.121
pg1419_o2nofp.cx10a_c24r64	0.936	99.061	0.003	0.119
pg1514_o2nofp.cx10a_c24r64	0.117	99.880	0.003	0.127
pg1515_o2nofp.cx10a_c24r64	1.289	98.708	0.003	0.131
pg1610_o2nofp.cx10a_c24r64	0.003	99.994	0.003	0.129
pg1611_o2nofp.cx10a_c24r64	0.040	99.957	0.003	0.126
pg176_o2nofp.cx10a_c24r64	0.007	99.990	0.003	0.126
pg177_o2nofp.cx10a_c24r64	0.165	99.830	0.005	0.132
pg180_o2nofp.cx10b_c24r64	0.110	99.887	0.003	0.125
pg180_o2nofp.cx10c_c24r64	0.055	99.943	0.003	0.131
pg180_o2nofp.cx10d_c24r64	0.044	99.951	0.005	0.126
pg181_o2nofp.cx10b_c24r64	0.037	99.960	0.003	0.124
pg181_o2nofp.cx10d_c24r64	0.190	99.770	0.040	0.143

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
7969	69060	10802	86.7	12460.3	198.5	0.156	1.286	1.564	25.504	274241	54.3	3.971	189	393.8	457.8	48.7	0.270	8750	7967	pg1222_o2nofp.cx10a_c24r64
7965	68762	10771	86.6	12449.4	198.0	0.157	1.289	1.563	25.453	270889	54.0	3.940	188	393.1	457.1	48.5	0.258	8750	7903	pg1322_o2nofp.cx10a_c24r64
7969	69886	10879	87.1	12449.2	197.9	0.156	1.277	1.562	25.431	277458	54.1	3.970	186	392.9	456.9	48.6	0.293	8863	8095	pg1419_o2nofp.cx10a_c24r64
7965	67630	10950	88.6	12443.1	197.9	0.162	1.342	1.562	25.450	268432	55.9	3.969	198	393.0	457.0	48.6	0.267	8542	7742	pg1514_o2nofp.cx10a_c24r64
7965	68585	10852	87.2	12439.2	197.8	0.158	1.302	1.562	25.429	272593	54.8	3.975	192	392.6	456.6	48.6	0.257	8719	7871	pg1515_o2nofp.cx10a_c24r64
7965	67896	10776	86.5	12443.8	198.0	0.159	1.305	1.562	25.452	265787	55.8	3.915	197	392.6	456.7	48.6	0.285	8590	7790	pg1610_o2nofp.cx10a_c24r64
7965	68220	10798	86.9	12440.3	197.9	0.158	1.304	1.562	25.443	269959	56.4	3.957	198	392.5	456.5	48.6	0.263	8654	7855	pg1611_o2nofp.cx10a_c24r64
7965	67280	10805	89.0	12438.8	197.8	0.161	1.355	1.562	25.431	263072	55.6	3.910	198	392.4	456.5	48.7	0.270	8542	7695	pg176_o2nofp.cx10a_c24r64
7965	67324	10757	86.6	12502.8	198.3	0.160	1.317	1.570	25.500	263897	55.8	3.920	199	392.5	456.5	48.5	0.242	8558	7567	pg177_o2nofp.cx10a_c24r64
7965	66626	10952	88.8	12449.5	197.9	0.164	1.365	1.563	25.445	260957	55.8	3.917	201	392.6	456.6	48.7	0.260	8446	7615	pg180_o2nofp.cx10b_c24r64
7965	66821	10818	87.7	12452.2	197.9	0.162	1.344	1.563	25.447	262094	55.6	3.922	200	392.5	456.5	48.6	0.284	8447	7583	pg180_o2nofp.cx10c_c24r64
7965	67230	10856	87.4	12443.8	197.9	0.161	1.331	1.562	25.438	265751	55.2	3.953	197	392.7	456.8	48.5	0.262	8479	7663	pg180_o2nofp.cx10d_c24r64
7969	66129	10909	89.5	12447.3	197.9	0.165	1.386	1.562	25.427	261421	56.9	3.953	207	392.5	456.6	48.6	0.280	8367	7519	pg181_o2nofp.cx10b_c24r64
7951	66925	10768	87.0	12420.6	197.4	0.161	1.331	1.562	25.421	269625	56.3	4.029	202	392.9	456.9	48.4	0.269	8462	7679	pg181_o2nofp.cx10d_c24r64

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
10801.7	88778.2	0.000	0.000	0.136	8.175	12460.3	203238	66.48	0.629	0.495	18.31	2.039	65.91	0.000	0.000	0.259	21.15	0.000	0.000	8.167	37.83		pg1222_o2nofp.cx10a_c24r64
10771.0	88663.5	0.000	0.000	0.144	8.187	12449.4	202721	69.58	0.575	0.505	17.94	2.031	38.97	0.000	0.000	0.268	13.73	0.000	0.000	8.324	38.33		pg1322_o2nofp.cx10a_c24r64
10879.3	89241.0	0.000	0.000	0.138	8.157	12449.2	202656	53.47	0.464	0.514	17.98	2.027	38.94	0.000	0.000	0.266	14.35	0.000	0.000	8.447	37.63		pg1419_o2nofp.cx10a_c24r64
10950.3	90741.9	0.000	0.000	0.126	8.250	12443.1	202695	49.73	0.434	0.423	18.02	0.025	55.19	0.000	0.000	0.017	49.45	0.000	0.000	7.115	38.24		pg1514_o2nofp.cx10a_c24r64
10851.7	89303.8	0.001	0.000	0.126	8.184	12439.2	202535	45.84	0.409	0.458	18.00	0.018	19.00	0.000	0.000	0.010	19.25	0.000	0.000	7.582	37.51		pg1515_o2nofp.cx10a_c24r64
10776.3	88590.8	0.000	0.000	0.125	8.176	12443.8	202718	48.13	0.431	0.469	18.21	0.020	28.01	0.000	0.000	0.015	30.68	0.000	0.000	7.728	37.42		pg1610_o2nofp.cx10a_c24r64
10798.4	88954.7	0.000	0.000	0.125	8.192	12440.3	202640	51.85	0.452	0.462	18.08	0.019	37.01	0.000	0.000	0.009	31.88	0.000	0.000	7.619	38.45		pg1611_o2nofp.cx10a_c24r64
10804.6	91146.4	0.000	0.000	0.128	8.401	12438.8	202551	47.36	0.417	0.486	18.04	0.011	9.491	0.000	0.000	0.011	23.78	0.000	0.000	7.989	37.34		pg176_o2nofp.cx10a_c24r64
10757.4	88641.9	0.012	0.000	0.123	8.195	12502.8	203100	47.74	0.414	0.399	17.83	0.014	36.69	0.000	0.000	0.021	41.77	0.000	0.000	6.706	38.09		pg177_o2nofp.cx10a_c24r64
10952.1	90959.6	0.002	0.000	0.126	8.263	12449.5	202660	49.63	0.437	0.401	18.01	0.018	54.89	0.000	0.000	0.015	64.43	0.000	0.000	6.741	38.17		pg180_o2nofp.cx10b_c24r64
10817.6	89840.7	0.001	0.000	0.126	8.265	12452.2	202672	48.36	0.419	0.437	18.06	0.016	54.90	0.000	0.000	0.010	67.65	0.000	0.000	7.282	38.02		pg180_o2nofp.cx10c_c24r64
10856.1	89513.1	0.000	0.000	0.125	8.202	12443.8	202605	45.90	0.406	0.433	18.01	0.018	27.67	0.000	0.000	0.021	30.75	0.000	0.000	7.228	37.40		pg180_o2nofp.cx10d_c24r64
10908.6	91655.0	0.001	0.000	0.122	8.368	12447.3	202624	47.57	0.409	0.378	18.00	0.013	27.78	0.000	0.000	0.009	38.85	0.000	0.000	6.371	41.32		pg181_o2nofp.cx10b_c24r64
10767.9	89095.6	0.138	0.001	0.114	8.232	12420.6	202134	46.40	0.409	0.322	18.05	0.018	18.60	0.000	0.000	0.017	39.06	0.000	0.000	5.556	47.57		pg181_o2nofp.cx10d_c24r64

qp1000.L6

qp1000.L6: point queries with 1000 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	1ms	4ms	16ms	64ms	256ms	1s	max
pg1222_o2nofp.cx10a_c24r64	0.164	98.294	1.541	nonzero			0.021
pg1322_o2nofp.cx10a_c24r64	0.125	97.509	2.367				0.015
pg1419_o2nofp.cx10a_c24r64	0.102	97.297	2.525	0.064	0.012	nonzero	0.337
pg1514_o2nofp.cx10a_c24r64	0.097	98.126	1.759	0.015	0.003	nonzero	0.306
pg1515_o2nofp.cx10a_c24r64	0.094	98.611	1.270	0.018	0.007	nonzero	0.324
pg1610_o2nofp.cx10a_c24r64	0.110	98.636	1.254	nonzero			0.031
pg1611_o2nofp.cx10a_c24r64	0.139	98.535	1.326	nonzero			0.018
pg176_o2nofp.cx10a_c24r64	0.099	97.452	2.363	0.080	0.006	nonzero	0.277
pg177_o2nofp.cx10a_c24r64	0.123	98.517	1.360	nonzero			0.022
pg180_o2nofp.cx10b_c24r64	0.076	98.132	1.791	nonzero			0.020
pg180_o2nofp.cx10c_c24r64	0.115	98.538	1.347	nonzero			0.027
pg180_o2nofp.cx10d_c24r64	0.096	98.271	1.633				0.012
pg181_o2nofp.cx10b_c24r64	0.097	98.439	1.464				0.014
pg181_o2nofp.cx10d_c24r64	0.097	98.502	1.402	nonzero			0.019

dbms	16ms	64ms	256ms	1s	max
pg1222_o2nofp.cx10a_c24r64	19.860	80.140			0.053
pg1322_o2nofp.cx10a_c24r64	14.507	85.493			0.054
pg1419_o2nofp.cx10a_c24r64	24.945	74.441	0.568	0.046	0.516
pg1514_o2nofp.cx10a_c24r64	31.501	68.370	0.118	0.011	0.904
pg1515_o2nofp.cx10a_c24r64	52.728	47.121	0.125	0.026	0.568
pg1610_o2nofp.cx10a_c24r64	26.392	73.608			0.054
pg1611_o2nofp.cx10a_c24r64	29.976	70.024			0.044
pg176_o2nofp.cx10a_c24r64	30.289	68.925	0.778	0.008	0.308
pg177_o2nofp.cx10a_c24r64	30.391	69.609			0.039
pg180_o2nofp.cx10b_c24r64	22.475	77.523	0.002		0.081
pg180_o2nofp.cx10c_c24r64	26.908	73.092			0.043
pg180_o2nofp.cx10d_c24r64	23.269	76.731			0.039
pg181_o2nofp.cx10b_c24r64	26.950	73.050			0.051
pg181_o2nofp.cx10d_c24r64	29.410	70.590			0.040

dbms	64ms	256ms	max
pg1222_o2nofp.cx10a_c24r64	99.997	0.003	0.170
pg1322_o2nofp.cx10a_c24r64	99.997	0.003	0.165
pg1419_o2nofp.cx10a_c24r64	99.963	0.037	0.168
pg1514_o2nofp.cx10a_c24r64	99.994	0.006	0.168
pg1515_o2nofp.cx10a_c24r64	99.980	0.020	0.179
pg1610_o2nofp.cx10a_c24r64	99.997	0.003	0.166
pg1611_o2nofp.cx10a_c24r64	99.996	0.004	0.175
pg176_o2nofp.cx10a_c24r64	99.980	0.020	0.161
pg177_o2nofp.cx10a_c24r64	99.997	0.003	0.161
pg180_o2nofp.cx10b_c24r64	99.997	0.003	0.168
pg180_o2nofp.cx10c_c24r64	99.997	0.003	0.163
pg180_o2nofp.cx10d_c24r64	99.997	0.003	0.171
pg181_o2nofp.cx10b_c24r64	99.997	0.003	0.170
pg181_o2nofp.cx10d_c24r64	99.997	0.003	0.165

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
7965	3684	68835	538.8	17205.5	236.4	18.685	149.761	2.160	30.393	155515	36.5	42.215	2378	395.5	459.5	48.7	0.021	464	320	pg1222_o2nofp.cx10a_c24r64
7965	3561	67051	525.2	17156.0	236.4	18.828	151.032	2.154	30.399	152134	36.7	42.720	2473	394.8	458.9	48.5	0.015	464	288	pg1322_o2nofp.cx10a_c24r64
7925	3462	65688	514.6	17028.7	234.5	18.977	152.241	2.149	30.306	149845	36.3	43.289	2517	394.6	458.7	48.6	0.337	448	80	pg1419_o2nofp.cx10a_c24r64
7951	3549	67109	530.3	17108.1	235.6	18.909	153.002	2.152	30.336	151415	39.9	42.664	2698	394.7	458.7	48.6	0.306	448	240	pg1514_o2nofp.cx10a_c24r64
7947	3590	67346	528.2	17148.0	235.8	18.758	150.643	2.158	30.380	151662	37.3	42.243	2493	394.3	458.4	48.6	0.324	464	176	pg1515_o2nofp.cx10a_c24r64
7960	3638	68206	534.2	17182.5	236.3	18.746	150.340	2.159	30.398	152283	40.4	41.853	2665	394.3	458.4	48.6	0.031	464	336	pg1610_o2nofp.cx10a_c24r64
7965	3692	68924	539.3	17212.3	236.6	18.671	149.606	2.161	30.425	153042	39.5	41.458	2568	394.2	458.2	48.6	0.018	464	336	pg1611_o2nofp.cx10a_c24r64
7934	3480	65894	517.6	17041.9	234.7	18.937	152.329	2.148	30.288	148375	40.0	42.640	2759	394.2	458.2	48.7	0.277	464	80	pg176_o2nofp.cx10a_c24r64
7965	3654	68303	535.3	17200.4	236.5	18.690	149.990	2.160	30.401	151466	39.9	41.447	2620	394.2	458.3	48.5	0.022	464	304	pg177_o2nofp.cx10a_c24r64
7960	3519	66783	526.1	17115.9	235.8	18.978	153.097	2.150	30.329	147758	41.1	41.989	2803	394.3	458.4	48.7	0.020	448	288	pg180_o2nofp.cx10b_c24r64
7960	3644	68345	534.9	17195.6	236.5	18.756	150.317	2.160	30.422	151315	40.2	41.526	2648	394.2	458.2	48.6	0.027	464	320	pg180_o2nofp.cx10c_c24r64
7960	3575	67440	528.7	17153.1	236.1	18.865	151.454	2.155	30.376	149490	40.4	41.816	2712	394.5	458.5	48.5	0.012	464	288	pg180_o2nofp.cx10d_c24r64
7965	3599	67735	533.0	17164.0	236.2	18.819	151.638	2.155	30.372	149852	40.8	41.635	2721	394.3	458.3	48.6	0.014	448	320	pg181_o2nofp.cx10b_c24r64
7960	3609	67892	535.3	17169.5	236.2	18.810	151.876	2.157	30.392	150164	41.1	41.605	2733	394.6	458.7	48.5	0.019	464	320	pg181_o2nofp.cx10d_c24r64

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
68834.7	551704	0.000	0.000	0.113	8.015	17205.5	242070	112.0	0.529	0.274	14.24	2.024	102.1	0.000	0.000	0.256	29.83	0.000	0.000	13.00	99.97		pg1222_o2nofp.cx10a_c24r64
67050.6	537854	0.000	0.000	0.117	8.022	17156.0	242118	107.7	0.521	0.335	14.29	2.037	93.46	0.000	0.000	0.253	28.95	0.000	0.000	14.40	99.97		pg1322_o2nofp.cx10a_c24r64
65687.7	526982	0.005	0.000	0.114	8.023	17028.7	240175	65.69	0.322	0.302	14.50	2.027	111.0	0.000	0.000	0.251	33.47	0.000	0.000	13.55	98.93		pg1419_o2nofp.cx10a_c24r64
67109.0	543006	0.076	0.000	0.112	8.090	17108.1	241214	58.48	0.294	0.267	14.36	0.035	109.7	0.000	0.000	0.021	67.05	0.000	0.000	12.95	99.62		pg1514_o2nofp.cx10a_c24r64
67345.6	540837	0.070	0.000	0.109	8.032	17148.0	241430	56.74	0.292	0.203	14.33	0.024	28.18	0.000	0.000	0.015	23.52	0.000	0.000	11.47	99.36		pg1515_o2nofp.cx10a_c24r64
68205.8	547013	0.042	0.000	0.111	8.020	17182.5	241969	61.03	0.296	0.277	14.30	0.038	55.96	0.000	0.000	0.027	45.81	0.000	0.000	13.21	99.96		pg1610_o2nofp.cx10a_c24r64
68923.8	552270	0.000	0.000	0.112	8.013	17212.3	242323	62.88	0.311	0.271	14.26	0.032	82.71	0.000	0.000	0.016	58.88	0.000	0.000	13.12	99.97		pg1611_o2nofp.cx10a_c24r64
65893.7	530061	0.172	0.000	0.111	8.044	17041.9	240300	58.96	0.282	0.284	14.58	0.020	90.86	0.000	0.000	0.012	88.44	0.000	0.000	13.14	98.88		pg176_o2nofp.cx10a_c24r64
68303.1	548140	0.000	0.000	0.112	8.025	17200.4	242134	57.09	0.275	0.290	14.27	0.018	18.81	0.000	0.000	0.017	24.23	0.000	0.000	13.42	99.97		pg177_o2nofp.cx10a_c24r64
66783.3	538748	0.007	0.000	0.113	8.066	17115.9	241422	62.46	0.305	0.279	14.31	0.016	55.14	0.000	0.000	0.015	79.97	0.000	0.000	13.20	99.96		pg180_o2nofp.cx10b_c24r64
68345.4	547739	0.000	0.000	0.112	8.014	17195.6	242165	59.36	0.281	0.270	14.27	0.022	100.4	0.000	0.000	0.017	127.3	0.000	0.000	13.01	99.97		pg180_o2nofp.cx10c_c24r64
67439.6	541433	0.000	0.000	0.112	8.029	17153.1	241797	56.45	0.279	0.296	14.31	0.016	64.20	0.000	0.000	0.013	95.19	0.000	0.000	13.50	99.96		pg180_o2nofp.cx10d_c24r64
67734.9	545775	0.000	0.000	0.112	8.057	17164.0	241898	59.99	0.299	0.280	14.28	0.024	64.29	0.000	0.000	0.017	65.63	0.000	0.000	13.13	99.96		pg181_o2nofp.cx10b_c24r64
67892.2	548165	0.019	0.000	0.112	8.073	17169.5	241920	60.61	0.305	0.284	14.28	0.016	73.26	0.000	0.000	0.014	83.66	0.000	0.000	13.27	99.96		pg181_o2nofp.cx10d_c24r64

l.i0

l.i0: load without secondary indexes

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
732869	0	552	4.6	3306.5	294.0	0.001	0.006	0.005	0.411	83811	52.3	0.114	17	191.4	255.4	48.7	0.853	92689	83089	pg1222_o2nofp.cx10a_c24r64
760746	0	535	4.6	2746.5	304.5	0.001	0.006	0.004	0.410	86721	53.3	0.114	17	191.4	255.4	3.1	0.480	96987	74892	pg1322_o2nofp.cx10a_c24r64
715308	0	505	3.9	2587.8	285.3	0.001	0.006	0.004	0.408	82621	51.4	0.116	17	191.4	255.4	7.7	0.513	92388	54692	pg1419_o2nofp.cx10a_c24r64
766284	0	521	4.1	2758.8	305.9	0.001	0.005	0.004	0.409	86203	53.4	0.112	17	191.4	255.4	11.9	0.489	96788	86790	pg1514_o2nofp.cx10a_c24r64
766577	0	548	4.3	2769.1	307.0	0.001	0.006	0.004	0.410	85692	52.9	0.112	17	191.4	255.4	2.1	0.510	96887	76287	pg1515_o2nofp.cx10a_c24r64
762776	0	547	4.3	2695.9	304.5	0.001	0.006	0.004	0.409	86074	53.3	0.113	17	191.4	255.4	6.5	0.437	96588	82990	pg1610_o2nofp.cx10a_c24r64
763359	0	539	4.2	2712.2	304.4	0.001	0.006	0.004	0.408	85359	52.8	0.112	17	191.4	255.4	4.0	0.438	96487	85490	pg1611_o2nofp.cx10a_c24r64
757576	0	522	4.2	2711.1	304.7	0.001	0.006	0.004	0.412	75205	52.7	0.099	17	191.4	255.4	48.6	0.467	96088	83290	pg176_o2nofp.cx10a_c24r64
732601	0	525	4.2	2642.7	293.8	0.001	0.006	0.004	0.411	73216	51.1	0.100	17	191.4	255.4	48.6	0.450	94689	35694	pg177_o2nofp.cx10a_c24r64
718649	0	524	4.3	2568.4	286.5	0.001	0.006	0.004	0.408	72755	51.0	0.101	17	191.4	255.4	8.8	0.454	93188	48593	pg180_o2nofp.cx10b_c24r64
694927	0	487	3.9	2492.9	278.2	0.001	0.006	0.004	0.410	73034	49.6	0.105	17	191.4	255.4	48.6	0.442	91889	41694	pg180_o2nofp.cx10c_c24r64
722543	0	494	4.0	2587.7	290.1	0.001	0.006	0.004	0.411	74437	51.2	0.103	17	191.4	255.4	9.3	0.437	93189	48492	pg180_o2nofp.cx10d_c24r64
752729	0	543	4.5	2699.7	301.9	0.001	0.006	0.004	0.411	74366	52.2	0.099	17	191.4	255.4	47.5	0.444	95788	83485	pg181_o2nofp.cx10b_c24r64
749906	0	524	4.2	2655.0	298.3	0.001	0.006	0.004	0.407	75750	52.1	0.101	17	191.4	255.4	48.6	0.445	95988	80894	pg181_o2nofp.cx10d_c24r64

l.x

l.x: create secondary indexes

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1116695	0	16532	383.9	5072.9	465.8	0.015	0.352	0.005	0.427	42875	24.5	0.038	5	384.4	448.4	18.6	0.003	NA	NA	pg1222_o2nofp.cx10a_c24r64
1266624	0	18842	418.3	3090.0	375.8	0.015	0.338	0.002	0.304	24624	26.2	0.019	5	384.2	448.3	39.0	0.003	NA	NA	pg1322_o2nofp.cx10a_c24r64
1273074	0	8691	379.0	3086.6	378.2	0.007	0.305	0.002	0.304	25395	26.4	0.020	5	384.2	448.3	11.0	0.004	NA	NA	pg1419_o2nofp.cx10a_c24r64
1152074	0	22111	502.5	3510.4	430.9	0.019	0.447	0.003	0.383	40504	25.1	0.035	5	384.2	448.3	2.4	0.004	NA	NA	pg1514_o2nofp.cx10a_c24r64
1201923	0	10124	493.4	3659.9	450.2	0.008	0.420	0.003	0.384	36605	25.5	0.030	5	384.2	448.3	38.7	0.003	NA	NA	pg1515_o2nofp.cx10a_c24r64
1260240	0	16111	437.0	3288.5	404.0	0.013	0.355	0.003	0.328	26702	25.6	0.021	5	384.2	448.3	38.1	0.003	NA	NA	pg1610_o2nofp.cx10a_c24r64
1280410	0	3475	381.2	3349.4	410.7	0.003	0.305	0.003	0.328	25129	25.8	0.020	5	384.2	448.3	38.3	0.003	NA	NA	pg1611_o2nofp.cx10a_c24r64
1385042	0	9944	406.2	3189.6	393.8	0.007	0.300	0.002	0.291	19049	26.2	0.014	5	384.2	448.3	34.7	0.003	NA	NA	pg176_o2nofp.cx10a_c24r64
1398601	0	3297	366.8	3256.9	398.9	0.002	0.269	0.002	0.292	18321	26.4	0.013	5	384.2	448.3	34.5	0.003	NA	NA	pg177_o2nofp.cx10a_c24r64
1341382	0	7583	370.9	3126.5	382.9	0.006	0.283	0.002	0.292	21686	25.5	0.016	5	384.2	448.3	34.4	0.004	NA	NA	pg180_o2nofp.cx10b_c24r64
1423488	0	10852	407.3	3319.7	405.9	0.008	0.293	0.002	0.292	23885	27.5	0.017	5	384.2	448.3	37.9	0.004	NA	NA	pg180_o2nofp.cx10c_c24r64
1387925	0	18280	432.9	3234.8	395.6	0.013	0.319	0.002	0.292	22397	26.7	0.016	5	384.2	448.3	38.1	0.003	NA	NA	pg180_o2nofp.cx10d_c24r64
1356852	0	7388	380.1	3150.0	385.3	0.005	0.287	0.002	0.291	20692	25.7	0.015	5	384.2	448.3	24.4	0.003	NA	NA	pg181_o2nofp.cx10b_c24r64
1409443	0	5025	381.6	3285.1	404.1	0.004	0.277	0.002	0.294	23831	26.9	0.017	5	384.2	448.1	31.3	0.003	NA	NA	pg181_o2nofp.cx10d_c24r64

l.i1

l.i1: continue load after secondary indexes created with 50 inserts per transaction

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
21108	0	27194	213.7	31005.4	525.6	1.288	10.368	1.469	25.497	66369	40.7	3.144	463	389.6	453.7	48.7	0.437	2550	1700	pg1222_o2nofp.cx10a_c24r64
18497	0	24075	209.4	28262.6	474.4	1.302	11.592	1.528	26.262	59504	37.2	3.217	483	389.4	453.5	2.9	0.190	2500	1700	pg1322_o2nofp.cx10a_c24r64
16913	0	21542	171.7	25266.8	424.7	1.274	10.397	1.494	25.714	52698	33.9	3.116	481	389.5	453.5	1.6	0.131	2549	1700	pg1419_o2nofp.cx10a_c24r64
14072	0	17922	141.9	21272.6	350.8	1.274	10.326	1.512	25.525	43662	35.7	3.103	609	389.4	453.5	1.1	0.182	1450	1100	pg1514_o2nofp.cx10a_c24r64
19150	0	24369	194.1	29067.4	482.7	1.272	10.381	1.518	25.809	59893	38.9	3.128	488	389.4	453.5	1.5	0.262	2450	1600	pg1515_o2nofp.cx10a_c24r64
13974	0	17814	141.8	21146.8	349.7	1.275	10.391	1.513	25.628	43124	33.6	3.086	577	389.4	453.5	2.0	0.102	2200	1500	pg1610_o2nofp.cx10a_c24r64
14072	0	17921	142.8	21234.8	351.2	1.274	10.391	1.509	25.560	43360	32.8	3.081	559	389.4	453.5	48.6	0.451	2200	1550	pg1611_o2nofp.cx10a_c24r64
14191	0	18273	152.9	21223.6	349.3	1.288	11.035	1.496	25.204	42923	33.2	3.025	561	389.4	453.5	48.7	0.145	2150	1450	pg176_o2nofp.cx10a_c24r64
17335	0	22134	175.8	26716.9	437.1	1.277	10.384	1.541	25.818	53162	38.1	3.067	527	389.4	453.5	48.6	0.093	2150	1450	pg177_o2nofp.cx10a_c24r64
13372	0	17124	138.4	20504.3	337.4	1.281	10.600	1.533	25.837	42006	30.7	3.141	551	389.5	453.5	48.6	0.279	2200	1100	pg180_o2nofp.cx10b_c24r64
14311	0	18380	146.0	21837.5	358.5	1.284	10.445	1.526	25.652	44019	33.8	3.076	567	389.5	453.5	48.6	0.116	2300	1700	pg180_o2nofp.cx10c_c24r64
13986	0	17922	142.2	20946.5	347.0	1.281	10.411	1.498	25.404	42824	33.2	3.062	570	389.4	453.5	48.6	1.584	2200	1550	pg180_o2nofp.cx10d_c24r64
13457	0	17245	138.6	20272.2	340.2	1.282	10.548	1.506	25.891	42912	31.6	3.189	564	389.4	453.5	48.5	2.409	2050	700	pg181_o2nofp.cx10b_c24r64
13611	0	17413	138.5	20625.1	341.9	1.279	10.423	1.515	25.719	43389	32.2	3.188	568	389.4	453.5	48.6	0.795	2050	1344	pg181_o2nofp.cx10d_c24r64

l.i2

l.i2: continue load after secondary indexes created with 5 inserts per transaction

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1055	0	1330	10.5	1977.8	29.4	1.261	10.188	1.875	28.549	9137	24.4	8.660	5550	391.0	455.0	48.7	0.008	200	180	pg1222_o2nofp.cx10a_c24r64
1572	0	1985	21.2	2779.9	45.5	1.263	13.829	1.769	29.644	13176	30.1	8.383	4596	390.7	454.7	10.8	0.014	200	170	pg1322_o2nofp.cx10a_c24r64
911	0	1130	8.9	1658.6	25.4	1.240	10.029	1.820	28.515	7619	24.1	8.361	6348	390.8	454.4	48.6	0.004	205	185	pg1419_o2nofp.cx10a_c24r64
730	0	898	7.1	1377.7	21.0	1.231	9.988	1.889	29.529	6138	23.0	8.413	7567	390.8	448.9	48.6	0.006	180	105	pg1514_o2nofp.cx10a_c24r64
1356	0	1705	13.6	2376.7	36.5	1.257	10.300	1.752	27.578	10993	30.7	8.105	5432	390.8	454.8	48.6	0.005	180	165	pg1515_o2nofp.cx10a_c24r64
1016	0	1284	10.3	1877.9	28.7	1.265	10.362	1.849	28.974	8315	25.3	8.187	5979	390.8	454.8	48.6	0.066	175	160	pg1610_o2nofp.cx10a_c24r64
778	0	956	7.6	1466.3	22.5	1.230	9.960	1.885	29.664	6562	22.3	8.436	6880	390.8	454.1	48.6	0.007	175	160	pg1611_o2nofp.cx10a_c24r64
955	0	1195	9.5	1816.9	27.2	1.251	10.230	1.902	29.175	7175	24.3	7.510	6105	390.8	454.8	48.7	0.013	175	150	pg176_o2nofp.cx10a_c24r64
1374	0	1719	13.8	2353.0	36.7	1.252	10.281	1.713	27.333	10530	33.3	7.666	5818	390.8	454.8	43.9	0.146	170	155	pg177_o2nofp.cx10a_c24r64
755	0	925	7.4	1421.8	21.6	1.225	10.011	1.882	29.313	5763	21.3	7.629	6767	390.8	449.6	48.6	0.005	175	155	pg180_o2nofp.cx10b_c24r64
736	0	925	7.3	1379.2	21.2	1.257	10.156	1.875	29.470	5693	24.4	7.738	7960	390.8	449.1	48.6	0.006	170	80	pg180_o2nofp.cx10c_c24r64
866	0	1095	8.6	1610.4	24.7	1.264	10.218	1.860	29.183	6594	23.9	7.614	6624	390.8	454.2	48.6	0.024	175	150	pg180_o2nofp.cx10d_c24r64
1338	0	1684	13.5	2314.9	36.0	1.259	10.312	1.730	27.533	9906	32.4	7.405	5813	390.8	454.8	48.5	0.006	170	150	pg181_o2nofp.cx10b_c24r64
735	0	909	7.2	1360.8	21.1	1.237	10.010	1.851	29.455	5757	23.9	7.832	7804	390.8	449.0	48.6	0.008	155	140	pg181_o2nofp.cx10d_c24r64

qr100.L1

qr100.L1: range queries with 100 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
797	98999	1057	9.1	389.6	13.8	0.011	0.094	0.489	17.762	380682	33.4	3.845	81	391.1	455.1	48.7	0.003	12478	11870	pg1222_o2nofp.cx10a_c24r64
797	98413	1058	8.8	544.4	15.2	0.011	0.092	0.683	19.537	378467	33.6	3.846	82	390.8	454.8	48.7	0.004	12414	11854	pg1322_o2nofp.cx10a_c24r64
797	99930	1055	8.5	540.7	15.2	0.011	0.087	0.678	19.497	384072	33.3	3.843	80	390.9	454.9	48.6	0.002	12606	11918	pg1419_o2nofp.cx10a_c24r64
796	99263	1064	8.5	535.9	15.1	0.011	0.088	0.673	19.454	381600	33.5	3.844	81	390.9	454.9	48.6	0.002	12462	11902	pg1514_o2nofp.cx10a_c24r64
797	99308	1051	8.5	540.6	15.2	0.011	0.088	0.678	19.470	381749	33.6	3.844	81	390.8	454.9	48.6	0.003	12414	12126	pg1515_o2nofp.cx10a_c24r64
796	100099	1080	8.7	518.6	15.0	0.011	0.089	0.651	19.259	384834	33.4	3.845	80	390.8	454.9	47.5	0.003	12558	11982	pg1610_o2nofp.cx10a_c24r64
797	99811	1079	8.7	532.4	15.1	0.011	0.089	0.668	19.384	383654	33.6	3.844	81	390.8	454.9	48.6	0.006	12574	11983	pg1611_o2nofp.cx10a_c24r64
797	100484	1082	8.7	534.0	15.1	0.011	0.088	0.670	19.405	386123	33.4	3.843	80	390.8	454.9	48.7	0.002	12638	11998	pg176_o2nofp.cx10a_c24r64
796	99508	1083	8.9	538.4	15.1	0.011	0.092	0.676	19.447	382740	33.4	3.846	81	390.8	454.9	48.6	0.004	12446	11886	pg177_o2nofp.cx10a_c24r64
796	98670	1066	8.6	534.1	15.1	0.011	0.089	0.671	19.425	379305	33.5	3.844	81	390.9	454.9	48.6	0.003	12478	11870	pg180_o2nofp.cx10b_c24r64
797	98859	1075	8.9	529.4	15.1	0.011	0.093	0.664	19.340	380190	33.5	3.846	81	390.8	454.9	48.6	0.048	12446	11966	pg180_o2nofp.cx10c_c24r64
796	98319	1070	8.8	534.4	15.1	0.011	0.091	0.671	19.428	377995	33.4	3.845	82	390.9	454.9	48.6	0.003	12398	11774	pg180_o2nofp.cx10d_c24r64
796	98949	1070	8.8	538.6	15.1	0.011	0.091	0.676	19.449	380488	33.5	3.845	81	390.8	454.9	48.6	0.003	12414	11838	pg181_o2nofp.cx10b_c24r64
797	98674	1060	8.5	534.5	15.1	0.011	0.088	0.671	19.422	379220	33.5	3.843	81	390.9	454.9	48.6	0.003	12414	11822	pg181_o2nofp.cx10d_c24r64

qp100.L2

qp100.L2: point queries with 100 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
796	4746	65631	514.0	2823.4	32.4	13.828	110.903	3.545	41.709	146721	12.2	30.913	617	391.2	455.3	48.7	0.228	624	224	pg1222_o2nofp.cx10a_c24r64
796	4853	67058	524.5	2681.5	31.3	13.817	110.666	3.367	40.247	148318	11.9	30.560	588	390.9	454.9	48.7	0.010	624	416	pg1322_o2nofp.cx10a_c24r64
796	4907	67707	529.2	2685.7	31.3	13.798	110.442	3.372	40.272	149591	11.6	30.486	567	390.9	452.3	48.6	0.011	624	432	pg1419_o2nofp.cx10a_c24r64
796	4898	67593	528.5	2683.9	31.3	13.799	110.477	3.370	40.247	148978	11.7	30.414	573	390.9	452.6	48.6	0.010	624	432	pg1514_o2nofp.cx10a_c24r64
796	4938	68121	532.0	2680.8	31.3	13.796	110.338	3.366	40.207	150049	11.7	30.389	569	390.9	454.7	48.6	0.010	624	448	pg1515_o2nofp.cx10a_c24r64
796	4902	67615	527.8	2695.2	31.4	13.793	110.245	3.384	40.355	149035	11.8	30.403	578	390.9	454.9	47.8	0.049	624	432	pg1610_o2nofp.cx10a_c24r64
796	4931	68037	531.3	2686.2	31.3	13.797	110.322	3.373	40.258	149782	11.6	30.374	565	390.9	452.7	48.6	0.010	624	448	pg1611_o2nofp.cx10a_c24r64
796	4916	67803	530.1	2684.4	31.3	13.793	110.423	3.371	40.229	149337	11.8	30.379	576	390.9	453.2	48.7	0.010	624	448	pg176_o2nofp.cx10a_c24r64
796	4868	67194	525.5	2680.2	31.3	13.803	110.532	3.365	40.196	147939	12.0	30.389	592	390.9	454.7	48.6	0.010	608	432	pg177_o2nofp.cx10a_c24r64
797	4842	66794	522.3	2682.7	31.3	13.796	110.472	3.366	40.196	147124	11.7	30.388	580	390.9	452.4	48.6	0.010	608	432	pg180_o2nofp.cx10b_c24r64
797	4727	65288	510.4	2684.6	31.3	13.812	110.578	3.369	40.204	144770	12.4	30.627	630	390.9	452.7	48.6	0.193	608	272	pg180_o2nofp.cx10c_c24r64
796	4820	66542	520.4	2683.2	31.3	13.806	110.556	3.369	40.236	146553	11.8	30.407	588	390.9	452.6	48.6	0.010	608	448	pg180_o2nofp.cx10d_c24r64
796	4679	64656	505.5	2677.2	31.2	13.819	110.621	3.362	40.149	144145	12.2	30.807	626	390.9	454.7	48.6	0.668	608	288	pg181_o2nofp.cx10b_c24r64
797	4879	67270	525.9	2684.4	31.3	13.788	110.379	3.369	40.221	148116	11.9	30.360	585	390.9	452.7	48.6	0.011	624	448	pg181_o2nofp.cx10d_c24r64

qr500.L3

qr500.L3: range queries with 500 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
3982	88678	5707	45.7	5279.3	92.0	0.064	0.528	1.326	23.646	346856	39.4	3.911	107	391.9	455.9	43.3	0.048	11149	10398	pg1222_o2nofp.cx10a_c24r64
3982	88758	5857	47.6	5284.9	91.7	0.066	0.549	1.327	23.590	349271	39.1	3.935	106	391.4	455.4	48.0	0.056	11102	10398	pg1322_o2nofp.cx10a_c24r64
3982	90005	5813	46.8	5296.0	93.2	0.065	0.533	1.330	23.961	353645	38.8	3.929	103	391.3	455.4	48.6	0.051	11294	10494	pg1419_o2nofp.cx10a_c24r64
3984	88955	5814	46.5	5286.4	93.0	0.065	0.535	1.327	23.893	348073	39.5	3.913	107	391.3	455.3	48.6	0.048	11150	10462	pg1514_o2nofp.cx10a_c24r64
3982	88998	5726	46.0	5277.6	91.8	0.064	0.529	1.325	23.601	348880	39.4	3.920	106	391.2	455.2	48.6	0.039	11119	10479	pg1515_o2nofp.cx10a_c24r64
3984	89565	5711	46.0	5270.0	90.5	0.064	0.526	1.323	23.246	349210	39.5	3.899	106	391.1	455.1	48.3	0.051	11246	10478	pg1610_o2nofp.cx10a_c24r64
3982	89279	5713	46.0	5288.6	92.9	0.064	0.528	1.328	23.885	349373	39.6	3.913	106	391.1	455.1	48.6	0.053	11214	10511	pg1611_o2nofp.cx10a_c24r64
3982	89479	5708	46.4	5287.5	92.6	0.064	0.531	1.328	23.819	348899	39.4	3.899	106	391.1	455.1	48.7	0.052	11214	10414	pg176_o2nofp.cx10a_c24r64
3984	88716	5736	46.9	5283.3	91.8	0.065	0.542	1.326	23.596	345729	39.7	3.897	107	391.1	455.1	48.6	0.052	11150	10430	pg177_o2nofp.cx10a_c24r64
3984	88089	5730	46.0	5295.3	93.2	0.065	0.535	1.329	23.939	344678	39.6	3.913	108	391.2	455.2	48.6	0.295	11018	10222	pg180_o2nofp.cx10b_c24r64
3984	88223	5743	46.6	5293.8	93.0	0.065	0.541	1.329	23.896	343181	39.6	3.890	108	391.1	455.1	45.4	0.053	11134	10382	pg180_o2nofp.cx10c_c24r64
3982	87826	5818	46.8	5291.2	93.0	0.066	0.546	1.329	23.918	343046	39.8	3.906	109	391.3	455.3	48.6	0.051	11022	10252	pg180_o2nofp.cx10d_c24r64
3984	87743	5751	46.5	5281.4	91.8	0.066	0.543	1.325	23.597	342485	39.9	3.903	109	391.1	455.2	47.8	0.048	10926	10142	pg181_o2nofp.cx10b_c24r64
3982	88127	5703	45.7	5292.3	93.0	0.065	0.531	1.329	23.920	343603	39.5	3.899	108	391.3	455.4	48.6	0.050	11103	10302	pg181_o2nofp.cx10d_c24r64

qp500.L4

qp500.L4: point queries with 500 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
3982	4346	68483	535.0	9743.9	125.4	15.759	126.067	2.447	32.245	152180	20.9	35.019	1154	392.5	456.5	48.5	0.011	560	368	pg1222_o2nofp.cx10a_c24r64
3982	4088	65088	510.9	9722.4	125.5	15.921	127.979	2.441	32.274	146033	21.1	35.721	1239	391.9	455.9	47.6	0.659	528	176	pg1322_o2nofp.cx10a_c24r64
3984	4262	67392	527.0	9751.0	125.6	15.811	126.595	2.447	32.274	149211	20.7	35.006	1166	391.7	455.8	48.6	0.011	544	352	pg1419_o2nofp.cx10a_c24r64
3984	4257	67406	528.4	9744.7	125.5	15.834	127.113	2.446	32.266	148886	22.0	34.974	1240	391.7	455.7	48.6	0.011	544	368	pg1514_o2nofp.cx10a_c24r64
3982	4324	68204	533.3	9757.0	125.6	15.773	126.303	2.450	32.292	150752	21.1	34.863	1171	391.4	455.5	48.6	0.012	560	368	pg1515_o2nofp.cx10a_c24r64
3984	4329	68269	532.8	9747.3	125.4	15.771	126.035	2.446	32.237	150413	21.9	34.747	1214	391.4	455.4	48.4	0.012	544	368	pg1610_o2nofp.cx10a_c24r64
3982	4325	68202	533.2	9753.0	125.5	15.770	126.250	2.449	32.268	150138	21.4	34.716	1188	391.3	455.4	48.6	0.053	544	368	pg1611_o2nofp.cx10a_c24r64
3984	4335	68333	534.4	9755.6	125.6	15.762	126.215	2.448	32.267	150207	21.7	34.647	1201	391.3	455.3	48.7	0.012	544	368	pg176_o2nofp.cx10a_c24r64
3984	4055	64653	507.9	9640.2	124.6	15.944	128.268	2.419	32.017	143807	21.9	35.464	1296	391.3	455.4	48.6	0.308	528	144	pg177_o2nofp.cx10a_c24r64
3982	4181	66342	518.5	9727.0	125.3	15.869	127.003	2.443	32.216	145744	22.6	34.862	1297	391.4	455.5	48.7	0.076	528	368	pg180_o2nofp.cx10b_c24r64
3984	4254	67246	526.0	9737.3	125.4	15.808	126.615	2.444	32.215	147801	22.6	34.744	1275	391.4	455.4	48.2	0.011	528	368	pg180_o2nofp.cx10c_c24r64
3982	4106	65356	511.9	9719.8	125.3	15.917	127.655	2.441	32.211	144597	22.7	35.216	1327	391.6	455.6	48.2	0.229	528	320	pg180_o2nofp.cx10d_c24r64
3984	4232	66934	524.6	9733.7	125.4	15.817	126.947	2.443	32.223	146952	22.6	34.726	1282	391.4	455.4	48.0	0.016	528	368	pg181_o2nofp.cx10b_c24r64
3982	4310	68009	531.8	9749.3	125.6	15.781	126.366	2.448	32.291	149302	22.0	34.644	1225	391.7	455.8	48.7	0.041	544	368	pg181_o2nofp.cx10d_c24r64

qr1000.L5

qr1000.L5: range queries with 1000 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
7969	69060	10802	86.7	12460.3	198.5	0.156	1.286	1.564	25.504	274241	54.3	3.971	189	393.8	457.8	48.7	0.270	8750	7967	pg1222_o2nofp.cx10a_c24r64
7965	68762	10771	86.6	12449.4	198.0	0.157	1.289	1.563	25.453	270889	54.0	3.940	188	393.1	457.1	48.5	0.258	8750	7903	pg1322_o2nofp.cx10a_c24r64
7969	69886	10879	87.1	12449.2	197.9	0.156	1.277	1.562	25.431	277458	54.1	3.970	186	392.9	456.9	48.6	0.293	8863	8095	pg1419_o2nofp.cx10a_c24r64
7965	67630	10950	88.6	12443.1	197.9	0.162	1.342	1.562	25.450	268432	55.9	3.969	198	393.0	457.0	48.6	0.267	8542	7742	pg1514_o2nofp.cx10a_c24r64
7965	68585	10852	87.2	12439.2	197.8	0.158	1.302	1.562	25.429	272593	54.8	3.975	192	392.6	456.6	48.6	0.257	8719	7871	pg1515_o2nofp.cx10a_c24r64
7965	67896	10776	86.5	12443.8	198.0	0.159	1.305	1.562	25.452	265787	55.8	3.915	197	392.6	456.7	48.6	0.285	8590	7790	pg1610_o2nofp.cx10a_c24r64
7965	68220	10798	86.9	12440.3	197.9	0.158	1.304	1.562	25.443	269959	56.4	3.957	198	392.5	456.5	48.6	0.263	8654	7855	pg1611_o2nofp.cx10a_c24r64
7965	67280	10805	89.0	12438.8	197.8	0.161	1.355	1.562	25.431	263072	55.6	3.910	198	392.4	456.5	48.7	0.270	8542	7695	pg176_o2nofp.cx10a_c24r64
7965	67324	10757	86.6	12502.8	198.3	0.160	1.317	1.570	25.500	263897	55.8	3.920	199	392.5	456.5	48.5	0.242	8558	7567	pg177_o2nofp.cx10a_c24r64
7965	66626	10952	88.8	12449.5	197.9	0.164	1.365	1.563	25.445	260957	55.8	3.917	201	392.6	456.6	48.7	0.260	8446	7615	pg180_o2nofp.cx10b_c24r64
7965	66821	10818	87.7	12452.2	197.9	0.162	1.344	1.563	25.447	262094	55.6	3.922	200	392.5	456.5	48.6	0.284	8447	7583	pg180_o2nofp.cx10c_c24r64
7965	67230	10856	87.4	12443.8	197.9	0.161	1.331	1.562	25.438	265751	55.2	3.953	197	392.7	456.8	48.5	0.262	8479	7663	pg180_o2nofp.cx10d_c24r64
7969	66129	10909	89.5	12447.3	197.9	0.165	1.386	1.562	25.427	261421	56.9	3.953	207	392.5	456.6	48.6	0.280	8367	7519	pg181_o2nofp.cx10b_c24r64
7951	66925	10768	87.0	12420.6	197.4	0.161	1.331	1.562	25.421	269625	56.3	4.029	202	392.9	456.9	48.4	0.269	8462	7679	pg181_o2nofp.cx10d_c24r64

qp1000.L6

qp1000.L6: point queries with 1000 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
7965	3684	68835	538.8	17205.5	236.4	18.685	149.761	2.160	30.393	155515	36.5	42.215	2378	395.5	459.5	48.7	0.021	464	320	pg1222_o2nofp.cx10a_c24r64
7965	3561	67051	525.2	17156.0	236.4	18.828	151.032	2.154	30.399	152134	36.7	42.720	2473	394.8	458.9	48.5	0.015	464	288	pg1322_o2nofp.cx10a_c24r64
7925	3462	65688	514.6	17028.7	234.5	18.977	152.241	2.149	30.306	149845	36.3	43.289	2517	394.6	458.7	48.6	0.337	448	80	pg1419_o2nofp.cx10a_c24r64
7951	3549	67109	530.3	17108.1	235.6	18.909	153.002	2.152	30.336	151415	39.9	42.664	2698	394.7	458.7	48.6	0.306	448	240	pg1514_o2nofp.cx10a_c24r64
7947	3590	67346	528.2	17148.0	235.8	18.758	150.643	2.158	30.380	151662	37.3	42.243	2493	394.3	458.4	48.6	0.324	464	176	pg1515_o2nofp.cx10a_c24r64
7960	3638	68206	534.2	17182.5	236.3	18.746	150.340	2.159	30.398	152283	40.4	41.853	2665	394.3	458.4	48.6	0.031	464	336	pg1610_o2nofp.cx10a_c24r64
7965	3692	68924	539.3	17212.3	236.6	18.671	149.606	2.161	30.425	153042	39.5	41.458	2568	394.2	458.2	48.6	0.018	464	336	pg1611_o2nofp.cx10a_c24r64
7934	3480	65894	517.6	17041.9	234.7	18.937	152.329	2.148	30.288	148375	40.0	42.640	2759	394.2	458.2	48.7	0.277	464	80	pg176_o2nofp.cx10a_c24r64
7965	3654	68303	535.3	17200.4	236.5	18.690	149.990	2.160	30.401	151466	39.9	41.447	2620	394.2	458.3	48.5	0.022	464	304	pg177_o2nofp.cx10a_c24r64
7960	3519	66783	526.1	17115.9	235.8	18.978	153.097	2.150	30.329	147758	41.1	41.989	2803	394.3	458.4	48.7	0.020	448	288	pg180_o2nofp.cx10b_c24r64
7960	3644	68345	534.9	17195.6	236.5	18.756	150.317	2.160	30.422	151315	40.2	41.526	2648	394.2	458.2	48.6	0.027	464	320	pg180_o2nofp.cx10c_c24r64
7960	3575	67440	528.7	17153.1	236.1	18.865	151.454	2.155	30.376	149490	40.4	41.816	2712	394.5	458.5	48.5	0.012	464	288	pg180_o2nofp.cx10d_c24r64
7965	3599	67735	533.0	17164.0	236.2	18.819	151.638	2.155	30.372	149852	40.8	41.635	2721	394.3	458.3	48.6	0.014	448	320	pg181_o2nofp.cx10b_c24r64
7960	3609	67892	535.3	17169.5	236.2	18.810	151.876	2.157	30.392	150164	41.1	41.605	2733	394.6	458.7	48.5	0.019	464	320	pg181_o2nofp.cx10d_c24r64

l.i0

l.i0: load without secondary indexes
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	1.996	97.979	0.018	0.006	0.001	nonzero	0.000	0.000	0.000	0.853	pg1222_o2nofp.cx10a_c24r64
0.000	50.802	49.146	0.038	0.013	0.001	nonzero	0.000	0.000	0.000	0.480	pg1322_o2nofp.cx10a_c24r64
0.000	1.207	98.690	0.085	0.017	0.001	nonzero	0.000	0.000	0.000	0.513	pg1419_o2nofp.cx10a_c24r64
0.000	47.404	52.564	0.025	0.006	nonzero	nonzero	0.000	0.000	0.000	0.489	pg1514_o2nofp.cx10a_c24r64
0.000	50.270	49.701	0.017	0.009	0.002	nonzero	0.000	0.000	0.000	0.510	pg1515_o2nofp.cx10a_c24r64
0.000	44.322	55.643	0.026	0.008	0.001	nonzero	0.000	0.000	0.000	0.437	pg1610_o2nofp.cx10a_c24r64
0.000	40.486	59.483	0.023	0.007	nonzero	nonzero	0.000	0.000	0.000	0.438	pg1611_o2nofp.cx10a_c24r64
0.000	29.778	70.186	0.028	0.008	nonzero	nonzero	0.000	0.000	0.000	0.467	pg176_o2nofp.cx10a_c24r64
0.000	22.625	77.254	0.082	0.037	0.002	nonzero	0.000	0.000	0.000	0.450	pg177_o2nofp.cx10a_c24r64
0.000	10.379	89.474	0.096	0.049	0.002	nonzero	0.000	0.000	0.000	0.454	pg180_o2nofp.cx10b_c24r64
0.000	10.069	89.596	0.268	0.063	0.003	nonzero	0.000	0.000	0.000	0.442	pg180_o2nofp.cx10c_c24r64
0.000	9.472	90.401	0.093	0.032	0.001	nonzero	0.000	0.000	0.000	0.437	pg180_o2nofp.cx10d_c24r64
0.000	25.879	74.086	0.026	0.008	nonzero	nonzero	0.000	0.000	0.000	0.444	pg181_o2nofp.cx10b_c24r64
0.000	24.072	75.890	0.029	0.008	0.001	nonzero	0.000	0.000	0.000	0.445	pg181_o2nofp.cx10d_c24r64

l.x

l.x: create secondary indexes
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

TODO - determine whether there is data for create index response time

l.i1

l.i1: continue load after secondary indexes created with 50 inserts per transaction
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	77.891	22.108	0.000	0.001	0.000	0.000	0.000	0.437	pg1222_o2nofp.cx10a_c24r64
0.000	0.000	0.000	74.461	25.524	0.016	0.000	0.000	0.000	0.000	0.190	pg1322_o2nofp.cx10a_c24r64
0.000	0.000	0.000	77.030	22.955	0.015	0.000	0.000	0.000	0.000	0.131	pg1419_o2nofp.cx10a_c24r64
0.000	0.000	0.000	84.026	15.960	0.013	0.000	0.000	0.000	0.000	0.182	pg1514_o2nofp.cx10a_c24r64
0.000	0.000	0.000	78.254	21.737	0.009	nonzero	0.000	0.000	0.000	0.262	pg1515_o2nofp.cx10a_c24r64
0.000	0.000	0.000	83.825	16.162	0.013	0.000	0.000	0.000	0.000	0.102	pg1610_o2nofp.cx10a_c24r64
0.000	0.000	0.000	83.109	16.878	0.012	nonzero	0.000	0.000	0.000	0.451	pg1611_o2nofp.cx10a_c24r64
0.000	0.000	0.000	83.833	16.165	0.002	0.000	0.000	0.000	0.000	0.145	pg176_o2nofp.cx10a_c24r64
0.000	0.000	0.000	82.874	17.118	0.008	0.000	0.000	0.000	0.000	0.093	pg177_o2nofp.cx10a_c24r64
0.000	0.000	0.000	77.658	22.005	0.336	0.001	0.000	0.000	0.000	0.279	pg180_o2nofp.cx10b_c24r64
0.000	0.000	0.000	82.241	17.748	0.011	0.000	0.000	0.000	0.000	0.116	pg180_o2nofp.cx10c_c24r64
0.000	0.000	0.000	81.864	18.128	0.007	nonzero	nonzero	0.000	0.000	1.584	pg180_o2nofp.cx10d_c24r64
0.000	0.000	0.000	78.647	21.016	0.290	0.048	nonzero	0.000	0.000	2.409	pg181_o2nofp.cx10b_c24r64
0.000	0.000	0.000	79.364	20.485	0.148	0.003	0.000	0.000	0.000	0.795	pg181_o2nofp.cx10d_c24r64

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	1.156	7.457	31.308	60.078	0.000	0.001	0.000	0.000	0.000	0.431	pg1222_o2nofp.cx10a_c24r64
0.000	1.190	8.650	28.205	61.948	0.006	0.000	0.000	0.000	0.000	0.111	pg1322_o2nofp.cx10a_c24r64
0.000	1.280	7.319	33.414	57.984	0.004	0.000	0.000	0.000	0.000	0.078	pg1419_o2nofp.cx10a_c24r64
0.000	0.943	6.464	20.851	71.739	0.003	0.000	0.000	0.000	0.000	0.167	pg1514_o2nofp.cx10a_c24r64
0.000	1.144	6.970	26.148	65.733	0.004	0.000	0.000	0.000	0.000	0.244	pg1515_o2nofp.cx10a_c24r64
0.000	1.086	6.210	20.169	72.527	0.008	0.000	0.000	0.000	0.000	0.102	pg1610_o2nofp.cx10a_c24r64
0.000	1.048	6.440	21.953	70.556	0.003	0.000	0.000	0.000	0.000	0.090	pg1611_o2nofp.cx10a_c24r64
0.000	0.985	6.452	21.981	70.583	0.000	0.000	0.000	0.000	0.000	0.053	pg176_o2nofp.cx10a_c24r64
0.000	0.989	6.390	20.822	71.795	0.004	0.000	0.000	0.000	0.000	0.085	pg177_o2nofp.cx10a_c24r64
0.000	0.687	6.060	21.482	71.763	0.007	0.001	0.000	0.000	0.000	0.270	pg180_o2nofp.cx10b_c24r64
0.000	0.738	6.326	22.012	70.921	0.003	0.000	0.000	0.000	0.000	0.096	pg180_o2nofp.cx10c_c24r64
0.000	0.859	6.287	21.775	71.073	0.005	0.000	0.000	0.000	0.000	0.100	pg180_o2nofp.cx10d_c24r64
0.000	0.779	6.533	19.977	72.702	0.009	0.000	0.000	0.000	0.000	0.251	pg181_o2nofp.cx10b_c24r64
0.000	0.877	6.215	20.142	72.755	0.012	0.000	0.000	0.000	0.000	0.110	pg181_o2nofp.cx10d_c24r64

l.i2

l.i2: continue load after secondary indexes created with 5 inserts per transaction
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	16.043	83.956	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1222_o2nofp.cx10a_c24r64
0.000	20.713	79.278	0.009	0.000	0.000	0.000	0.000	0.000	0.000	0.014	pg1322_o2nofp.cx10a_c24r64
0.000	17.116	82.883	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg1419_o2nofp.cx10a_c24r64
0.000	16.804	83.195	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.006	pg1514_o2nofp.cx10a_c24r64
0.000	12.683	87.316	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg1515_o2nofp.cx10a_c24r64
0.000	16.238	83.759	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.066	pg1610_o2nofp.cx10a_c24r64
0.000	18.499	81.501	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.007	pg1611_o2nofp.cx10a_c24r64
0.000	19.264	80.735	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg176_o2nofp.cx10a_c24r64
0.000	14.263	85.538	0.113	0.070	0.016	0.000	0.000	0.000	0.000	0.146	pg177_o2nofp.cx10a_c24r64
0.000	16.619	83.381	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg180_o2nofp.cx10b_c24r64
0.000	13.434	86.566	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.006	pg180_o2nofp.cx10c_c24r64
0.000	14.771	85.225	0.005	nonzero	0.000	0.000	0.000	0.000	0.000	0.024	pg180_o2nofp.cx10d_c24r64
0.000	13.469	86.530	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.006	pg181_o2nofp.cx10b_c24r64
0.000	14.290	85.709	0.001	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg181_o2nofp.cx10d_c24r64

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.150	pg1222_o2nofp.cx10a_c24r64
0.002	0.881	1.059	11.445	86.613	nonzero	0.000	0.000	0.000	0.000	0.152	pg1322_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.191	pg1419_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.185	pg1514_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.000	99.847	0.153	0.000	0.000	0.000	0.000	0.156	pg1515_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.180	pg1610_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.000	99.998	0.002	0.000	0.000	0.000	0.000	0.176	pg1611_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.177	pg176_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.000	99.998	0.002	0.000	0.000	0.000	0.000	0.161	pg177_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.000	99.998	0.002	0.000	0.000	0.000	0.000	0.179	pg180_o2nofp.cx10b_c24r64
0.000	0.000	0.000	0.000	99.995	0.005	0.000	0.000	0.000	0.000	0.179	pg180_o2nofp.cx10c_c24r64
0.000	0.000	0.000	0.000	99.914	0.086	0.000	0.000	0.000	0.000	0.177	pg180_o2nofp.cx10d_c24r64
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.160	pg181_o2nofp.cx10b_c24r64
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.188	pg181_o2nofp.cx10d_c24r64

qr100.L1

qr100.L1: range queries with 100 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.994	0.006	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg1222_o2nofp.cx10a_c24r64
99.993	0.007	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg1322_o2nofp.cx10a_c24r64
99.994	0.006	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg1419_o2nofp.cx10a_c24r64
99.994	0.006	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg1514_o2nofp.cx10a_c24r64
99.995	0.005	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg1515_o2nofp.cx10a_c24r64
99.992	0.008	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg1610_o2nofp.cx10a_c24r64
99.994	0.006	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.006	pg1611_o2nofp.cx10a_c24r64
99.995	0.004	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	pg176_o2nofp.cx10a_c24r64
99.995	0.005	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg177_o2nofp.cx10a_c24r64
99.994	0.006	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg180_o2nofp.cx10b_c24r64
99.994	0.006	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.048	pg180_o2nofp.cx10c_c24r64
99.994	0.006	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg180_o2nofp.cx10d_c24r64
99.994	0.006	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg181_o2nofp.cx10b_c24r64
99.994	0.006	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg181_o2nofp.cx10d_c24r64

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	99.934	0.066	0.000	0.000	0.000	0.000	0.000	0.019	pg1222_o2nofp.cx10a_c24r64
0.000	0.000	0.000	98.681	1.319	0.000	0.000	0.000	0.000	0.000	0.023	pg1322_o2nofp.cx10a_c24r64
0.000	0.000	0.000	99.819	0.181	0.000	0.000	0.000	0.000	0.000	0.021	pg1419_o2nofp.cx10a_c24r64
0.000	0.000	0.000	99.840	0.160	0.000	0.000	0.000	0.000	0.000	0.021	pg1514_o2nofp.cx10a_c24r64
0.000	0.000	0.000	99.868	0.132	0.000	0.000	0.000	0.000	0.000	0.021	pg1515_o2nofp.cx10a_c24r64
0.000	0.000	0.000	99.882	0.118	0.000	0.000	0.000	0.000	0.000	0.023	pg1610_o2nofp.cx10a_c24r64
0.000	0.000	0.000	99.885	0.115	0.000	0.000	0.000	0.000	0.000	0.020	pg1611_o2nofp.cx10a_c24r64
0.000	0.000	0.000	99.944	0.056	0.000	0.000	0.000	0.000	0.000	0.021	pg176_o2nofp.cx10a_c24r64
0.000	0.000	0.000	99.924	0.076	0.000	0.000	0.000	0.000	0.000	0.020	pg177_o2nofp.cx10a_c24r64
0.000	0.000	0.000	99.830	0.170	0.000	0.000	0.000	0.000	0.000	0.021	pg180_o2nofp.cx10b_c24r64
0.000	0.000	0.000	99.826	0.174	0.000	0.000	0.000	0.000	0.000	0.026	pg180_o2nofp.cx10c_c24r64
0.000	0.000	0.000	99.837	0.163	0.000	0.000	0.000	0.000	0.000	0.022	pg180_o2nofp.cx10d_c24r64
0.000	0.000	0.000	99.819	0.181	0.000	0.000	0.000	0.000	0.000	0.021	pg181_o2nofp.cx10b_c24r64
0.000	0.000	0.000	99.854	0.146	0.000	0.000	0.000	0.000	0.000	0.022	pg181_o2nofp.cx10d_c24r64

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	26.049	73.951	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.003	pg1222_o2nofp.cx10a_c24r64
0.000	25.247	74.740	0.014	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg1322_o2nofp.cx10a_c24r64
0.000	24.899	75.101	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg1419_o2nofp.cx10a_c24r64
0.000	19.944	80.052	0.003	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg1514_o2nofp.cx10a_c24r64
0.000	27.809	72.191	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg1515_o2nofp.cx10a_c24r64
0.000	20.868	79.122	0.010	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg1610_o2nofp.cx10a_c24r64
0.000	22.420	77.576	0.003	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg1611_o2nofp.cx10a_c24r64
0.000	24.135	75.865	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg176_o2nofp.cx10a_c24r64
0.000	24.552	75.448	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg177_o2nofp.cx10a_c24r64
0.000	19.743	80.253	0.003	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg180_o2nofp.cx10b_c24r64
0.000	19.361	80.625	0.014	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg180_o2nofp.cx10c_c24r64
0.000	19.194	80.799	0.007	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg180_o2nofp.cx10d_c24r64
0.000	19.719	80.260	0.021	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg181_o2nofp.cx10b_c24r64
0.000	19.806	80.188	0.007	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg181_o2nofp.cx10d_c24r64

qp100.L2

qp100.L2: point queries with 100 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	1.540	98.031	0.394	0.025	0.011	0.000	0.000	0.000	0.000	0.228	pg1222_o2nofp.cx10a_c24r64
0.000	1.485	98.475	0.040	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg1322_o2nofp.cx10a_c24r64
0.000	1.655	98.324	0.021	0.000	0.000	0.000	0.000	0.000	0.000	0.011	pg1419_o2nofp.cx10a_c24r64
0.000	1.563	98.424	0.013	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg1514_o2nofp.cx10a_c24r64
0.000	1.714	98.266	0.020	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg1515_o2nofp.cx10a_c24r64
0.000	1.578	98.400	0.022	nonzero	0.000	0.000	0.000	0.000	0.000	0.049	pg1610_o2nofp.cx10a_c24r64
0.000	1.645	98.338	0.016	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg1611_o2nofp.cx10a_c24r64
0.000	1.596	98.388	0.016	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg176_o2nofp.cx10a_c24r64
0.000	1.458	98.520	0.021	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg177_o2nofp.cx10a_c24r64
0.000	1.357	98.622	0.021	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg180_o2nofp.cx10b_c24r64
0.000	1.204	98.629	0.146	0.015	0.006	0.000	0.000	0.000	0.000	0.193	pg180_o2nofp.cx10c_c24r64
0.000	1.306	98.673	0.020	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg180_o2nofp.cx10d_c24r64
0.000	1.205	98.488	0.275	0.024	0.008	nonzero	0.000	0.000	0.000	0.668	pg181_o2nofp.cx10b_c24r64
0.000	1.434	98.549	0.018	0.000	0.000	0.000	0.000	0.000	0.000	0.011	pg181_o2nofp.cx10d_c24r64

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	51.028	48.111	0.799	0.062	0.000	0.000	0.000	0.354	pg1222_o2nofp.cx10a_c24r64
0.000	0.000	0.000	27.201	72.799	0.000	0.000	0.000	0.000	0.000	0.033	pg1322_o2nofp.cx10a_c24r64
0.000	0.000	0.000	58.153	41.847	0.000	0.000	0.000	0.000	0.000	0.032	pg1419_o2nofp.cx10a_c24r64
0.000	0.000	0.000	82.163	17.837	0.000	0.000	0.000	0.000	0.000	0.028	pg1514_o2nofp.cx10a_c24r64
0.000	0.000	0.000	40.337	59.663	0.000	0.000	0.000	0.000	0.000	0.028	pg1515_o2nofp.cx10a_c24r64
0.000	0.000	0.000	35.170	64.830	0.000	0.000	0.000	0.000	0.000	0.029	pg1610_o2nofp.cx10a_c24r64
0.000	0.000	0.000	50.931	49.069	0.000	0.000	0.000	0.000	0.000	0.025	pg1611_o2nofp.cx10a_c24r64
0.000	0.000	0.000	49.569	50.431	0.000	0.000	0.000	0.000	0.000	0.027	pg176_o2nofp.cx10a_c24r64
0.000	0.000	0.000	48.674	51.326	0.000	0.000	0.000	0.000	0.000	0.027	pg177_o2nofp.cx10a_c24r64
0.000	0.000	0.000	42.604	57.396	0.000	0.000	0.000	0.000	0.000	0.026	pg180_o2nofp.cx10b_c24r64
0.000	0.000	0.000	39.816	59.861	0.312	0.010	0.000	0.000	0.000	0.295	pg180_o2nofp.cx10c_c24r64
0.000	0.000	0.000	48.833	51.167	0.000	0.000	0.000	0.000	0.000	0.028	pg180_o2nofp.cx10d_c24r64
0.000	0.000	0.000	58.885	40.517	0.500	0.097	0.000	0.000	0.000	0.341	pg181_o2nofp.cx10b_c24r64
0.000	0.000	0.000	47.163	52.837	0.000	0.000	0.000	0.000	0.000	0.027	pg181_o2nofp.cx10d_c24r64

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	79.191	20.729	0.080	0.000	0.000	0.000	0.000	0.000	0.051	pg1222_o2nofp.cx10a_c24r64
0.000	0.000	72.868	27.128	0.003	0.000	0.000	0.000	0.000	0.000	0.016	pg1322_o2nofp.cx10a_c24r64
0.000	0.000	81.698	18.299	0.003	0.000	0.000	0.000	0.000	0.000	0.016	pg1419_o2nofp.cx10a_c24r64
0.000	0.000	73.444	26.556	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg1514_o2nofp.cx10a_c24r64
0.000	0.000	78.715	21.278	0.007	0.000	0.000	0.000	0.000	0.000	0.017	pg1515_o2nofp.cx10a_c24r64
0.000	0.000	58.174	41.826	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg1610_o2nofp.cx10a_c24r64
0.000	0.000	68.295	31.705	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg1611_o2nofp.cx10a_c24r64
0.000	0.000	66.212	33.788	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg176_o2nofp.cx10a_c24r64
0.000	0.000	66.233	33.764	0.003	0.000	0.000	0.000	0.000	0.000	0.016	pg177_o2nofp.cx10a_c24r64
0.000	0.000	62.521	37.472	0.007	0.000	0.000	0.000	0.000	0.000	0.016	pg180_o2nofp.cx10b_c24r64
0.000	0.000	57.771	42.212	0.017	0.000	0.000	0.000	0.000	0.000	0.029	pg180_o2nofp.cx10c_c24r64
0.000	0.000	60.677	39.319	0.003	0.000	0.000	0.000	0.000	0.000	0.016	pg180_o2nofp.cx10d_c24r64
0.000	0.000	65.656	34.253	0.083	0.007	0.000	0.000	0.000	0.000	0.075	pg181_o2nofp.cx10b_c24r64
0.000	0.000	52.059	47.941	0.000	0.000	0.000	0.000	0.000	0.000	0.016	pg181_o2nofp.cx10d_c24r64

qr500.L3

qr500.L3: range queries with 500 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.913	0.086	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.048	pg1222_o2nofp.cx10a_c24r64
99.923	0.076	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.056	pg1322_o2nofp.cx10a_c24r64
99.928	0.071	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.051	pg1419_o2nofp.cx10a_c24r64
99.905	0.094	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.048	pg1514_o2nofp.cx10a_c24r64
99.904	0.095	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.039	pg1515_o2nofp.cx10a_c24r64
99.914	0.085	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.051	pg1610_o2nofp.cx10a_c24r64
99.906	0.093	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.053	pg1611_o2nofp.cx10a_c24r64
99.920	0.079	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.052	pg176_o2nofp.cx10a_c24r64
99.906	0.094	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.052	pg177_o2nofp.cx10a_c24r64
99.908	0.091	0.001	nonzero	nonzero	0.000	nonzero	0.000	0.000	0.000	0.295	pg180_o2nofp.cx10b_c24r64
99.912	0.087	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.053	pg180_o2nofp.cx10c_c24r64
99.897	0.102	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.051	pg180_o2nofp.cx10d_c24r64
99.895	0.104	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.048	pg181_o2nofp.cx10b_c24r64
99.918	0.081	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.050	pg181_o2nofp.cx10d_c24r64

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	67.018	32.978	0.004	0.000	0.000	0.000	0.000	0.069	pg1222_o2nofp.cx10a_c24r64
0.000	0.000	0.000	58.610	41.348	0.033	0.008	0.000	0.000	0.000	0.281	pg1322_o2nofp.cx10a_c24r64
0.000	0.000	0.000	63.742	36.258	0.000	0.000	0.000	0.000	0.000	0.042	pg1419_o2nofp.cx10a_c24r64
0.000	0.000	0.000	83.370	16.630	0.000	0.000	0.000	0.000	0.000	0.062	pg1514_o2nofp.cx10a_c24r64
0.000	0.000	0.000	85.190	14.810	0.000	0.000	0.000	0.000	0.000	0.036	pg1515_o2nofp.cx10a_c24r64
0.000	0.000	0.000	86.355	13.645	0.000	0.000	0.000	0.000	0.000	0.030	pg1610_o2nofp.cx10a_c24r64
0.000	0.000	0.000	86.536	13.460	0.003	0.000	0.000	0.000	0.000	0.071	pg1611_o2nofp.cx10a_c24r64
0.000	0.000	0.000	88.388	11.611	0.001	0.000	0.000	0.000	0.000	0.067	pg176_o2nofp.cx10a_c24r64
0.000	0.000	0.000	84.474	15.519	0.001	0.006	0.000	0.000	0.000	0.317	pg177_o2nofp.cx10a_c24r64
0.000	0.000	0.000	84.169	15.825	0.000	0.006	0.000	0.000	0.000	0.328	pg180_o2nofp.cx10b_c24r64
0.000	0.000	0.000	83.651	16.344	0.005	0.000	0.000	0.000	0.000	0.123	pg180_o2nofp.cx10c_c24r64
0.000	0.000	0.000	82.119	17.881	0.000	0.000	0.000	0.000	0.000	0.045	pg180_o2nofp.cx10d_c24r64
0.000	0.000	0.000	80.472	19.528	0.000	0.000	0.000	0.000	0.000	0.063	pg181_o2nofp.cx10b_c24r64
0.000	0.000	0.000	86.082	13.912	0.006	0.000	0.000	0.000	0.000	0.067	pg181_o2nofp.cx10d_c24r64

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	3.980	78.303	17.717	0.000	0.000	0.000	0.000	0.000	0.042	pg1222_o2nofp.cx10a_c24r64
0.000	0.000	3.385	88.246	8.369	0.000	0.000	0.000	0.000	0.000	0.026	pg1322_o2nofp.cx10a_c24r64
0.000	0.000	3.444	90.542	6.015	0.000	0.000	0.000	0.000	0.000	0.026	pg1419_o2nofp.cx10a_c24r64
0.000	0.000	0.865	71.791	27.344	0.000	0.000	0.000	0.000	0.000	0.062	pg1514_o2nofp.cx10a_c24r64
0.000	0.000	2.849	74.910	22.241	0.000	0.000	0.000	0.000	0.000	0.034	pg1515_o2nofp.cx10a_c24r64
0.000	0.000	1.003	74.113	24.883	0.000	0.000	0.000	0.000	0.000	0.027	pg1610_o2nofp.cx10a_c24r64
0.000	0.000	1.106	70.837	28.055	0.002	0.000	0.000	0.000	0.000	0.070	pg1611_o2nofp.cx10a_c24r64
0.000	0.000	1.407	71.683	26.910	0.000	0.000	0.000	0.000	0.000	0.058	pg176_o2nofp.cx10a_c24r64
0.000	0.000	1.105	69.254	29.637	0.004	0.000	0.000	0.000	0.000	0.066	pg177_o2nofp.cx10a_c24r64
0.000	0.000	1.169	69.831	28.998	0.000	0.001	0.000	0.000	0.000	0.304	pg180_o2nofp.cx10b_c24r64
0.000	0.000	0.883	70.535	28.577	0.004	0.000	0.000	0.000	0.000	0.118	pg180_o2nofp.cx10c_c24r64
0.000	0.000	0.748	69.610	29.642	0.000	0.000	0.000	0.000	0.000	0.037	pg180_o2nofp.cx10d_c24r64
0.000	0.000	0.513	70.298	29.189	0.000	0.000	0.000	0.000	0.000	0.061	pg181_o2nofp.cx10b_c24r64
0.000	0.000	1.024	71.154	27.817	0.005	0.000	0.000	0.000	0.000	0.067	pg181_o2nofp.cx10d_c24r64

qp500.L4

qp500.L4: point queries with 500 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.702	98.992	0.307	0.000	0.000	0.000	0.000	0.000	0.000	0.011	pg1222_o2nofp.cx10a_c24r64
0.000	0.443	98.711	0.814	0.026	0.007	nonzero	0.000	0.000	0.000	0.659	pg1322_o2nofp.cx10a_c24r64
0.000	0.558	99.082	0.361	0.000	0.000	0.000	0.000	0.000	0.000	0.011	pg1419_o2nofp.cx10a_c24r64
0.000	0.520	99.161	0.318	0.000	0.000	0.000	0.000	0.000	0.000	0.011	pg1514_o2nofp.cx10a_c24r64
0.000	0.641	99.086	0.273	0.000	0.000	0.000	0.000	0.000	0.000	0.012	pg1515_o2nofp.cx10a_c24r64
0.000	0.616	99.141	0.243	0.000	0.000	0.000	0.000	0.000	0.000	0.012	pg1610_o2nofp.cx10a_c24r64
0.000	0.619	99.132	0.249	nonzero	0.000	0.000	0.000	0.000	0.000	0.053	pg1611_o2nofp.cx10a_c24r64
0.000	0.626	99.106	0.268	0.000	0.000	0.000	0.000	0.000	0.000	0.012	pg176_o2nofp.cx10a_c24r64
0.000	0.462	98.352	1.122	0.053	0.011	nonzero	0.000	0.000	0.000	0.308	pg177_o2nofp.cx10a_c24r64
0.000	0.424	99.252	0.322	0.001	nonzero	0.000	0.000	0.000	0.000	0.076	pg180_o2nofp.cx10b_c24r64
0.000	0.508	99.201	0.291	0.000	0.000	0.000	0.000	0.000	0.000	0.011	pg180_o2nofp.cx10c_c24r64
0.000	0.388	99.133	0.463	0.012	0.005	0.000	0.000	0.000	0.000	0.229	pg180_o2nofp.cx10d_c24r64
0.000	0.491	99.181	0.328	0.000	0.000	0.000	0.000	0.000	0.000	0.016	pg181_o2nofp.cx10b_c24r64
0.000	0.585	99.137	0.278	nonzero	0.000	0.000	0.000	0.000	0.000	0.041	pg181_o2nofp.cx10d_c24r64

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	18.604	81.394	0.001	0.000	0.000	0.000	0.000	0.076	pg1222_o2nofp.cx10a_c24r64
0.000	0.000	0.000	18.116	81.621	0.263	0.000	0.000	0.000	0.000	0.238	pg1322_o2nofp.cx10a_c24r64
0.000	0.000	0.000	18.628	81.369	0.002	0.000	0.000	0.000	0.000	0.083	pg1419_o2nofp.cx10a_c24r64
0.000	0.000	0.000	21.074	78.924	0.001	0.000	0.000	0.000	0.000	0.067	pg1514_o2nofp.cx10a_c24r64
0.000	0.000	0.000	24.955	75.045	0.000	0.000	0.000	0.000	0.000	0.058	pg1515_o2nofp.cx10a_c24r64
0.000	0.000	0.000	26.074	73.924	0.001	0.000	0.000	0.000	0.000	0.071	pg1610_o2nofp.cx10a_c24r64
0.000	0.000	0.000	29.492	70.503	0.005	0.000	0.000	0.000	0.000	0.072	pg1611_o2nofp.cx10a_c24r64
0.000	0.000	0.000	30.903	69.094	0.003	0.000	0.000	0.000	0.000	0.099	pg176_o2nofp.cx10a_c24r64
0.000	0.000	0.000	22.312	77.038	0.583	0.067	0.000	0.000	0.000	0.584	pg177_o2nofp.cx10a_c24r64
0.000	0.000	0.000	20.808	79.176	0.017	0.000	0.000	0.000	0.000	0.100	pg180_o2nofp.cx10b_c24r64
0.000	0.000	0.000	21.267	78.731	0.002	0.000	0.000	0.000	0.000	0.099	pg180_o2nofp.cx10c_c24r64
0.000	0.000	0.000	18.586	81.263	0.141	0.010	0.000	0.000	0.000	0.371	pg180_o2nofp.cx10d_c24r64
0.000	0.000	0.000	21.614	78.384	0.002	0.000	0.000	0.000	0.000	0.089	pg181_o2nofp.cx10b_c24r64
0.000	0.000	0.000	27.755	72.244	0.001	0.000	0.000	0.000	0.000	0.068	pg181_o2nofp.cx10d_c24r64

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	2.003	97.991	0.006	0.000	0.000	0.000	0.000	0.079	pg1222_o2nofp.cx10a_c24r64
0.000	0.000	0.000	1.186	98.804	0.010	0.000	0.000	0.000	0.000	0.083	pg1322_o2nofp.cx10a_c24r64
0.000	0.000	0.000	5.828	94.165	0.007	0.000	0.000	0.000	0.000	0.081	pg1419_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.377	99.617	0.006	0.000	0.000	0.000	0.000	0.089	pg1514_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.574	99.421	0.006	0.000	0.000	0.000	0.000	0.086	pg1515_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.070	99.924	0.006	0.000	0.000	0.000	0.000	0.081	pg1610_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.090	99.903	0.007	0.000	0.000	0.000	0.000	0.081	pg1611_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.059	99.934	0.007	0.000	0.000	0.000	0.000	0.093	pg176_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.353	99.606	0.041	0.000	0.000	0.000	0.000	0.174	pg177_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.272	99.721	0.007	0.000	0.000	0.000	0.000	0.083	pg180_o2nofp.cx10b_c24r64
0.000	0.000	0.000	0.031	99.961	0.008	0.000	0.000	0.000	0.000	0.104	pg180_o2nofp.cx10c_c24r64
0.000	0.000	0.000	0.032	99.958	0.010	0.000	0.000	0.000	0.000	0.092	pg180_o2nofp.cx10d_c24r64
0.000	0.000	0.000	0.060	99.934	0.006	0.000	0.000	0.000	0.000	0.084	pg181_o2nofp.cx10b_c24r64
0.000	0.000	0.000	0.030	99.965	0.006	0.000	0.000	0.000	0.000	0.079	pg181_o2nofp.cx10d_c24r64

qr1000.L5

qr1000.L5: range queries with 1000 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.228	0.766	0.005	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.270	pg1222_o2nofp.cx10a_c24r64
99.338	0.657	0.005	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.258	pg1322_o2nofp.cx10a_c24r64
99.334	0.661	0.005	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.293	pg1419_o2nofp.cx10a_c24r64
98.847	1.147	0.005	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.267	pg1514_o2nofp.cx10a_c24r64
98.794	1.200	0.005	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.257	pg1515_o2nofp.cx10a_c24r64
99.145	0.850	0.004	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.285	pg1610_o2nofp.cx10a_c24r64
98.997	0.997	0.004	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.263	pg1611_o2nofp.cx10a_c24r64
99.068	0.927	0.004	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.270	pg176_o2nofp.cx10a_c24r64
98.755	1.240	0.005	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.242	pg177_o2nofp.cx10a_c24r64
98.706	1.289	0.005	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.260	pg180_o2nofp.cx10b_c24r64
99.035	0.959	0.004	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.284	pg180_o2nofp.cx10c_c24r64
98.916	1.079	0.005	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.262	pg180_o2nofp.cx10d_c24r64
98.662	1.333	0.004	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.280	pg181_o2nofp.cx10b_c24r64
99.092	0.903	0.005	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.269	pg181_o2nofp.cx10d_c24r64

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	58.753	41.247	0.000	0.000	0.000	0.000	0.000	0.036	pg1222_o2nofp.cx10a_c24r64
0.000	0.000	0.000	56.142	43.858	0.000	0.000	0.000	0.000	0.000	0.044	pg1322_o2nofp.cx10a_c24r64
0.000	0.000	0.000	58.432	41.568	0.000	0.000	0.000	0.000	0.000	0.037	pg1419_o2nofp.cx10a_c24r64
0.000	0.000	0.000	62.525	37.473	0.002	0.000	0.000	0.000	0.000	0.082	pg1514_o2nofp.cx10a_c24r64
0.000	0.000	0.000	64.554	35.446	0.000	0.000	0.000	0.000	0.000	0.034	pg1515_o2nofp.cx10a_c24r64
0.000	0.000	0.000	70.538	29.462	0.000	0.000	0.000	0.000	0.000	0.040	pg1610_o2nofp.cx10a_c24r64
0.000	0.000	0.000	70.139	29.861	0.000	0.000	0.000	0.000	0.000	0.048	pg1611_o2nofp.cx10a_c24r64
0.000	0.000	0.000	71.785	28.215	0.000	0.000	0.000	0.000	0.000	0.045	pg176_o2nofp.cx10a_c24r64
0.000	0.000	0.000	68.598	31.399	0.003	0.000	0.000	0.000	0.000	0.146	pg177_o2nofp.cx10a_c24r64
0.000	0.000	0.000	62.358	37.642	0.000	0.000	0.000	0.000	0.000	0.039	pg180_o2nofp.cx10b_c24r64
0.000	0.000	0.000	67.945	32.055	0.000	0.000	0.000	0.000	0.000	0.049	pg180_o2nofp.cx10c_c24r64
0.000	0.000	0.000	65.125	34.873	0.002	0.000	0.000	0.000	0.000	0.120	pg180_o2nofp.cx10d_c24r64
0.000	0.000	0.000	70.907	29.091	0.002	0.000	0.000	0.000	0.000	0.072	pg181_o2nofp.cx10b_c24r64
0.000	0.000	0.000	72.605	27.150	0.204	0.041	0.000	0.000	0.000	0.596	pg181_o2nofp.cx10d_c24r64

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	0.649	99.348	0.003	0.000	0.000	0.000	0.000	0.124	pg1222_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.702	99.295	0.003	0.000	0.000	0.000	0.000	0.121	pg1322_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.936	99.061	0.003	0.000	0.000	0.000	0.000	0.119	pg1419_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.117	99.880	0.003	0.000	0.000	0.000	0.000	0.127	pg1514_o2nofp.cx10a_c24r64
0.000	0.000	0.000	1.289	98.708	0.003	0.000	0.000	0.000	0.000	0.131	pg1515_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.003	99.994	0.003	0.000	0.000	0.000	0.000	0.129	pg1610_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.040	99.957	0.003	0.000	0.000	0.000	0.000	0.126	pg1611_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.007	99.990	0.003	0.000	0.000	0.000	0.000	0.126	pg176_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.165	99.830	0.005	0.000	0.000	0.000	0.000	0.132	pg177_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.110	99.887	0.003	0.000	0.000	0.000	0.000	0.125	pg180_o2nofp.cx10b_c24r64
0.000	0.000	0.000	0.055	99.943	0.003	0.000	0.000	0.000	0.000	0.131	pg180_o2nofp.cx10c_c24r64
0.000	0.000	0.000	0.044	99.951	0.005	0.000	0.000	0.000	0.000	0.126	pg180_o2nofp.cx10d_c24r64
0.000	0.000	0.000	0.037	99.960	0.003	0.000	0.000	0.000	0.000	0.124	pg181_o2nofp.cx10b_c24r64
0.000	0.000	0.000	0.190	99.770	0.040	0.000	0.000	0.000	0.000	0.143	pg181_o2nofp.cx10d_c24r64

qp1000.L6

qp1000.L6: point queries with 1000 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.164	98.294	1.541	nonzero	0.000	0.000	0.000	0.000	0.000	0.021	pg1222_o2nofp.cx10a_c24r64
0.000	0.125	97.509	2.367	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg1322_o2nofp.cx10a_c24r64
0.000	0.102	97.297	2.525	0.064	0.012	nonzero	0.000	0.000	0.000	0.337	pg1419_o2nofp.cx10a_c24r64
0.000	0.097	98.126	1.759	0.015	0.003	nonzero	0.000	0.000	0.000	0.306	pg1514_o2nofp.cx10a_c24r64
0.000	0.094	98.611	1.270	0.018	0.007	nonzero	0.000	0.000	0.000	0.324	pg1515_o2nofp.cx10a_c24r64
0.000	0.110	98.636	1.254	nonzero	0.000	0.000	0.000	0.000	0.000	0.031	pg1610_o2nofp.cx10a_c24r64
0.000	0.139	98.535	1.326	nonzero	0.000	0.000	0.000	0.000	0.000	0.018	pg1611_o2nofp.cx10a_c24r64
0.000	0.099	97.452	2.363	0.080	0.006	nonzero	0.000	0.000	0.000	0.277	pg176_o2nofp.cx10a_c24r64
0.000	0.123	98.517	1.360	nonzero	0.000	0.000	0.000	0.000	0.000	0.022	pg177_o2nofp.cx10a_c24r64
0.000	0.076	98.132	1.791	nonzero	0.000	0.000	0.000	0.000	0.000	0.020	pg180_o2nofp.cx10b_c24r64
0.000	0.115	98.538	1.347	nonzero	0.000	0.000	0.000	0.000	0.000	0.027	pg180_o2nofp.cx10c_c24r64
0.000	0.096	98.271	1.633	0.000	0.000	0.000	0.000	0.000	0.000	0.012	pg180_o2nofp.cx10d_c24r64
0.000	0.097	98.439	1.464	0.000	0.000	0.000	0.000	0.000	0.000	0.014	pg181_o2nofp.cx10b_c24r64
0.000	0.097	98.502	1.402	nonzero	0.000	0.000	0.000	0.000	0.000	0.019	pg181_o2nofp.cx10d_c24r64

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	19.860	80.140	0.000	0.000	0.000	0.000	0.000	0.053	pg1222_o2nofp.cx10a_c24r64
0.000	0.000	0.000	14.507	85.493	0.000	0.000	0.000	0.000	0.000	0.054	pg1322_o2nofp.cx10a_c24r64
0.000	0.000	0.000	24.945	74.441	0.568	0.046	0.000	0.000	0.000	0.516	pg1419_o2nofp.cx10a_c24r64
0.000	0.000	0.000	31.501	68.370	0.118	0.011	0.000	0.000	0.000	0.904	pg1514_o2nofp.cx10a_c24r64
0.000	0.000	0.000	52.728	47.121	0.125	0.026	0.000	0.000	0.000	0.568	pg1515_o2nofp.cx10a_c24r64
0.000	0.000	0.000	26.392	73.608	0.000	0.000	0.000	0.000	0.000	0.054	pg1610_o2nofp.cx10a_c24r64
0.000	0.000	0.000	29.976	70.024	0.000	0.000	0.000	0.000	0.000	0.044	pg1611_o2nofp.cx10a_c24r64
0.000	0.000	0.000	30.289	68.925	0.778	0.008	0.000	0.000	0.000	0.308	pg176_o2nofp.cx10a_c24r64
0.000	0.000	0.000	30.391	69.609	0.000	0.000	0.000	0.000	0.000	0.039	pg177_o2nofp.cx10a_c24r64
0.000	0.000	0.000	22.475	77.523	0.002	0.000	0.000	0.000	0.000	0.081	pg180_o2nofp.cx10b_c24r64
0.000	0.000	0.000	26.908	73.092	0.000	0.000	0.000	0.000	0.000	0.043	pg180_o2nofp.cx10c_c24r64
0.000	0.000	0.000	23.269	76.731	0.000	0.000	0.000	0.000	0.000	0.039	pg180_o2nofp.cx10d_c24r64
0.000	0.000	0.000	26.950	73.050	0.000	0.000	0.000	0.000	0.000	0.051	pg181_o2nofp.cx10b_c24r64
0.000	0.000	0.000	29.410	70.590	0.000	0.000	0.000	0.000	0.000	0.040	pg181_o2nofp.cx10d_c24r64

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.170	pg1222_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.165	pg1322_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.000	99.963	0.037	0.000	0.000	0.000	0.000	0.168	pg1419_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.000	99.994	0.006	0.000	0.000	0.000	0.000	0.168	pg1514_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.000	99.980	0.020	0.000	0.000	0.000	0.000	0.179	pg1515_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.166	pg1610_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.000	99.996	0.004	0.000	0.000	0.000	0.000	0.175	pg1611_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.000	99.980	0.020	0.000	0.000	0.000	0.000	0.161	pg176_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.161	pg177_o2nofp.cx10a_c24r64
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.168	pg180_o2nofp.cx10b_c24r64
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.163	pg180_o2nofp.cx10c_c24r64
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.171	pg180_o2nofp.cx10d_c24r64
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.170	pg181_o2nofp.cx10b_c24r64
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.165	pg181_o2nofp.cx10d_c24r64

Introduction

Contents

Summary

l.i0

l.x

l.i1

l.i2

qr100.L1

qp100.L2

qr500.L3

qp500.L4

qr1000.L5

qp1000.L6

l.i0

l.x

l.i1

l.i2

qr100.L1

qp100.L2

qr500.L3

qp500.L4

qr1000.L5

qp1000.L6

l.i0

l.x

l.i1

l.i2

qr100.L1

qp100.L2

qr500.L3

qp500.L4

qr1000.L5

qp1000.L6
