Introduction

This is a report for the insert benchmark with 3600M docs and 12 client(s). It is generated by scripts (bash, awk, sed) and Tufte might not be impressed. An overview of the insert benchmark is here and a short update is here. Below, by DBMS, I mean DBMS+version.config. An example is my8020.c10b40 where my means MySQL, 8020 is version 8.0.20 and c10b40 is the name for the configuration file.

The test server has 32 cores, 128G RAM and 1 NVMe devices. The benchmark was run with 8 clients and there were 1 or 3 connections per client (1 for queries or inserts without rate limits, 1+1 for rate limited inserts+deletes). It uses 8 tables with a table per client. It loads 300M rows per table without secondary indexes, creates 3 secondary indexes per table, then inserts 4m+1m rows per table with a delete per insert to avoid growing the table. It then does 6 read+write tests for 1800s each that do queries as fast as possible with 100,100,500,500,1000,1000 inserts/s and the same for deletes/s per client concurrent with the queries. The database is larger than RAM and most tests are IO-bound except for the range query (qr*) tests that frequently have a cached working set. Clients and the DBMS share one server.

The tested DBMS are:

pg1222_o2nofp.cx10a_c32r128 - Postgres 12.22 with the cx10a_c32r128 config
pg1322_o2nofp.cx10a_c32r128 - Postgres 13.22 with the cx10a_c32r128 config
pg1323_o2nofp.cx10a_c32r128 - Postgres 13.23 with the cx10a_c32r128 config
pg1419_o2nofp.cx10a_c32r128 - Postgres 14.19 with the cx10a_c32r128 config
pg1420_o2nofp.cx10a_c32r128 - Postgres 14.20 with the cx10a_c32r128 config
pg1514_o2nofp.cx10a_c32r128 - Postgres 15.14 with the cx10a_c32r128 config
pg1515_o2nofp.cx10a_c32r128 - Postgres 15.15 with the cx10a_c32r128 config
pg1610_o2nofp.cx10a_c32r128 - Postgres 16.10 with the cx10a_c32r128 config
pg1611_o2nofp.cx10a_c32r128 - Postgres 16.11 with the cx10a_c32r128 config
pg176_o2nofp.cx10a_c32r128 - Postgres 17.6 with the cx10a_c32r128 config
pg177_o2nofp.cx10a_c32r128 - Postgres 17.7 with the cx10a_c32r128 config
pg180_o2nofp.cx10b_c32r128 - Postgres 18.0 with the cx10b_c32r128 config that uses io_method=sync
pg180_o2nofp.cx10c_c32r128 - Postgres 18.0 with the cx10c_c32r128 config that uses io_method=io_worker
pg180_o2nofp.cx10d_c32r128 - Postgres 18.0 with the cx10d_c32r128 config that uses io_method=io_uring
pg181_o2nofp.cx10b_c32r128 - Postgres 18.1 with the cx10b_c32r128 config that uses io_method=sync
pg181_o2nofp.cx10d_c32r128 - Postgres 18.1 with the cx10d_c32r128 config that uses io_method=io_uring

Summary
l.i0: load without secondary indexes
l.x: create secondary indexes

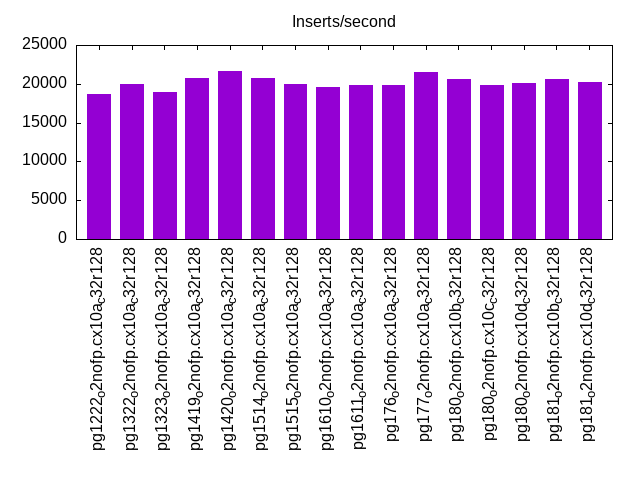

l.i1: continue load after secondary indexes created with 50 inserts per transaction

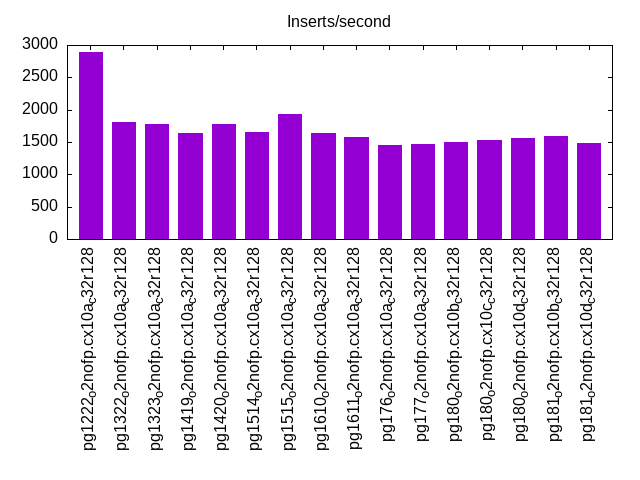

l.i2: continue load after secondary indexes created with 5 inserts per transaction

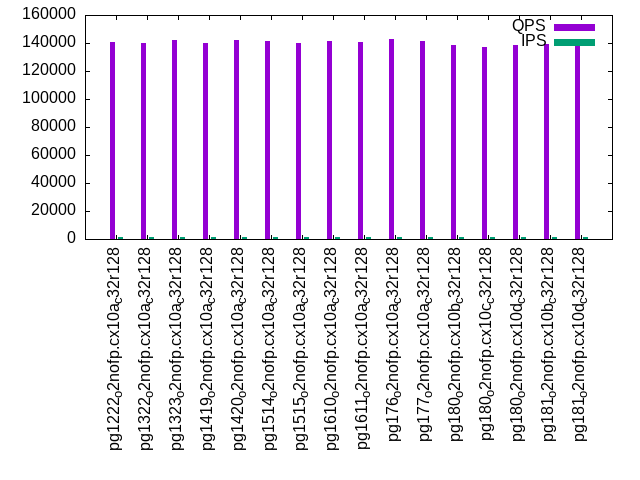

qr100.L1: range queries with 100 insert/s per client

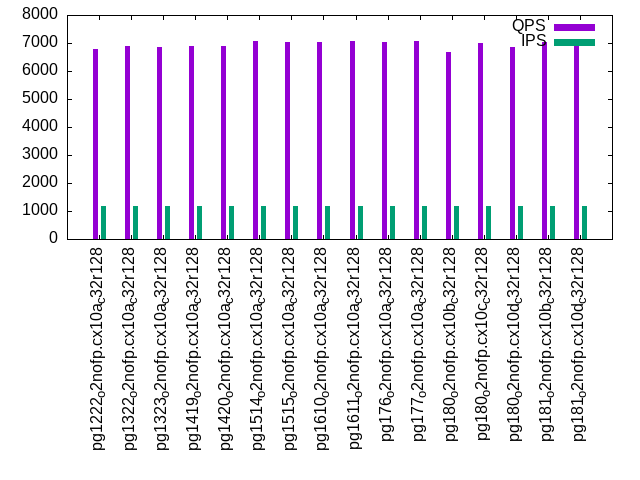

qp100.L2: point queries with 100 insert/s per client

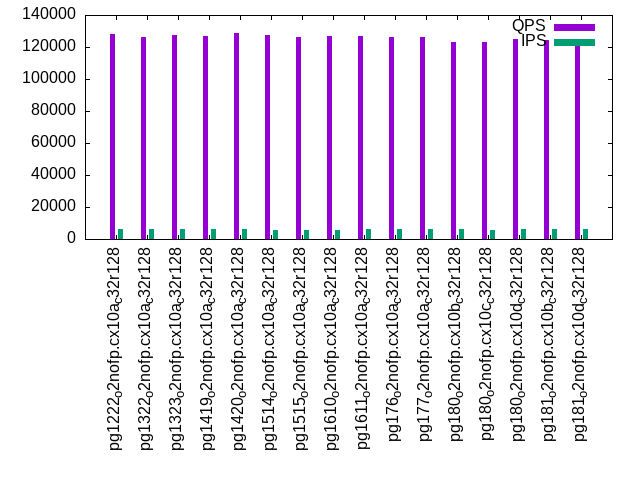

qr500.L3: range queries with 500 insert/s per client

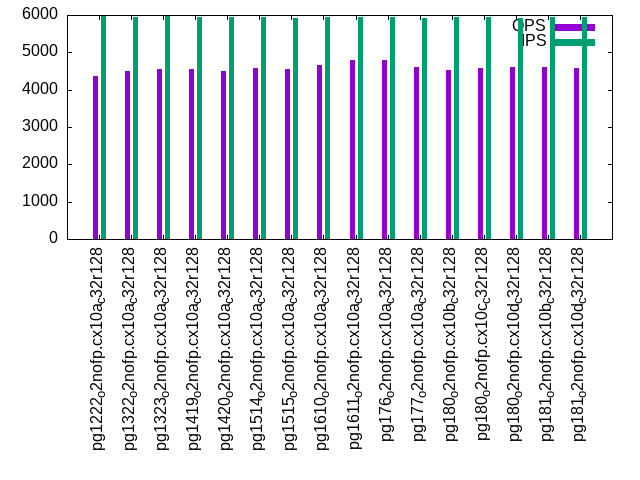

qp500.L4: point queries with 500 insert/s per client
qr1000.L5: range queries with 1000 insert/s per client

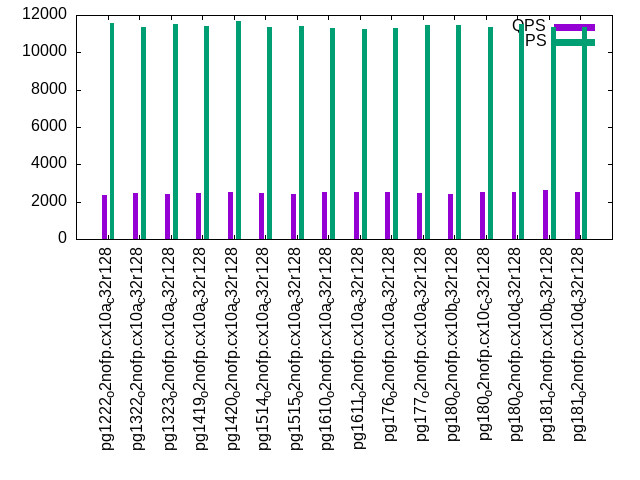

qp1000.L6: point queries with 1000 insert/s per client

Summary

The numbers are inserts/s for l.i0, l.i1 and l.i2, indexed docs (or rows) /s for l.x and queries/s for qr100, qp100 thru qr1000, qp1000" The values are the average rate over the entire test for inserts (IPS) and queries (QPS). The range of values for IPS and QPS is split into 3 parts: bottom 25%, middle 50%, top 25%. Values in the bottom 25% have a red background, values in the top 25% have a green background and values in the middle have no color. A gray background is used for values that can be ignored because the DBMS did not sustain the target insert rate. Red backgrounds are not used when the minimum value is within 80% of the max value.

dbms	l.i0	l.x	l.i1	l.i2	qr100	qp100	qr500	qp500	qr1000	qp1000
pg1222_o2nofp.cx10a_c32r128	1190476	871249	18626	2889	140612	6795	128116	4367	90900	2378
pg1322_o2nofp.cx10a_c32r128	1171112	1324503	19958	1807	140305	6878	126343	4511	89388	2443
pg1323_o2nofp.cx10a_c32r128	1253046	1231190	18965	1786	141921	6845	127531	4542	89831	2417
pg1419_o2nofp.cx10a_c32r128	1200000	1144310	20788	1639	140271	6907	126999	4547	89622	2452
pg1420_o2nofp.cx10a_c32r128	1125704	1167694	21670	1781	142137	6888	128896	4488	91285	2543
pg1514_o2nofp.cx10a_c32r128	1199200	1143220	20788	1658	141556	7062	127253	4572	89698	2456
pg1515_o2nofp.cx10a_c32r128	1250000	1136722	19942	1927	140122	7050	126156	4542	90608	2399
pg1610_o2nofp.cx10a_c32r128	1243953	1196411	19536	1646	141533	7051	126692	4654	89759	2501
pg1611_o2nofp.cx10a_c32r128	1255230	1188119	19884	1580	140488	7067	126844	4783	89961	2504
pg176_o2nofp.cx10a_c32r128	1229928	1343284	19786	1447	142565	7043	126199	4786	87565	2530
pg177_o2nofp.cx10a_c32r128	1238816	1252610	21525	1463	141252	7072	126363	4601	88811	2458
pg180_o2nofp.cx10b_c32r128	1237964	1323529	20654	1499	138567	6676	123088	4520	87363	2418
pg180_o2nofp.cx10c_c32r128	1232877	1297765	19900	1538	137424	6998	123078	4570	88107	2531
pg180_o2nofp.cx10d_c32r128	1245244	1371429	20134	1556	138890	6842	125002	4606	88368	2505
pg181_o2nofp.cx10b_c32r128	1232877	1351351	20601	1598	139408	7024	124342	4603	88467	2600
pg181_o2nofp.cx10d_c32r128	1253046	1299639	20210	1488	138173	7001	124279	4588	88054	2512

This table has relative throughput, throughput for the DBMS relative to the DBMS in the first line, using the absolute throughput from the previous table. Values less than 0.95 have a yellow background. Values greater than 1.05 have a blue background.

dbms	l.i0	l.x	l.i1	l.i2	qr100	qp100	qr500	qp500	qr1000	qp1000
pg1222_o2nofp.cx10a_c32r128	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00
pg1322_o2nofp.cx10a_c32r128	0.98	1.52	1.07	0.63	1.00	1.01	0.99	1.03	0.98	1.03
pg1323_o2nofp.cx10a_c32r128	1.05	1.41	1.02	0.62	1.01	1.01	1.00	1.04	0.99	1.02
pg1419_o2nofp.cx10a_c32r128	1.01	1.31	1.12	0.57	1.00	1.02	0.99	1.04	0.99	1.03
pg1420_o2nofp.cx10a_c32r128	0.95	1.34	1.16	0.62	1.01	1.01	1.01	1.03	1.00	1.07
pg1514_o2nofp.cx10a_c32r128	1.01	1.31	1.12	0.57	1.01	1.04	0.99	1.05	0.99	1.03
pg1515_o2nofp.cx10a_c32r128	1.05	1.30	1.07	0.67	1.00	1.04	0.98	1.04	1.00	1.01
pg1610_o2nofp.cx10a_c32r128	1.04	1.37	1.05	0.57	1.01	1.04	0.99	1.07	0.99	1.05
pg1611_o2nofp.cx10a_c32r128	1.05	1.36	1.07	0.55	1.00	1.04	0.99	1.10	0.99	1.05
pg176_o2nofp.cx10a_c32r128	1.03	1.54	1.06	0.50	1.01	1.04	0.99	1.10	0.96	1.06
pg177_o2nofp.cx10a_c32r128	1.04	1.44	1.16	0.51	1.00	1.04	0.99	1.05	0.98	1.03
pg180_o2nofp.cx10b_c32r128	1.04	1.52	1.11	0.52	0.99	0.98	0.96	1.04	0.96	1.02
pg180_o2nofp.cx10c_c32r128	1.04	1.49	1.07	0.53	0.98	1.03	0.96	1.05	0.97	1.06
pg180_o2nofp.cx10d_c32r128	1.05	1.57	1.08	0.54	0.99	1.01	0.98	1.05	0.97	1.05
pg181_o2nofp.cx10b_c32r128	1.04	1.55	1.11	0.55	0.99	1.03	0.97	1.05	0.97	1.09
pg181_o2nofp.cx10d_c32r128	1.05	1.49	1.09	0.52	0.98	1.03	0.97	1.05	0.97	1.06

This lists the average rate of inserts/s for the tests that do inserts concurrent with queries. For such tests the query rate is listed in the table above. The read+write tests are setup so that the insert rate should match the target rate every second. Cells that are not at least 95% of the target have a red background to indicate a failure to satisfy the target.

dbms	qr100.L1	qp100.L2	qr500.L3	qp500.L4	qr1000.L5	qp1000.L6
pg1222_o2nofp.cx10a_c32r128	1193	1192	5940	5960	10730	11563
pg1322_o2nofp.cx10a_c32r128	1193	1192	5940	5957	10593	11344
pg1323_o2nofp.cx10a_c32r128	1193	1193	5950	5964	10688	11495
pg1419_o2nofp.cx10a_c32r128	1193	1193	5944	5957	10557	11386
pg1420_o2nofp.cx10a_c32r128	1192	1192	5944	5934	10480	11688
pg1514_o2nofp.cx10a_c32r128	1192	1192	5937	5957	10521	11333
pg1515_o2nofp.cx10a_c32r128	1192	1192	5937	5921	10568	11428
pg1610_o2nofp.cx10a_c32r128	1192	1192	5934	5944	10599	11279
pg1611_o2nofp.cx10a_c32r128	1193	1193	5950	5940	10455	11273
pg176_o2nofp.cx10a_c32r128	1193	1193	5947	5944	10562	11297
pg177_o2nofp.cx10a_c32r128	1193	1193	5947	5931	10578	11459
pg180_o2nofp.cx10b_c32r128	1192	1191	5947	5937	10568	11447
pg180_o2nofp.cx10c_c32r128	1193	1193	5937	5940	10557	11368
pg180_o2nofp.cx10d_c32r128	1193	1193	5950	5918	10619	11520
pg181_o2nofp.cx10b_c32r128	1192	1192	5944	5937	10578	11380
pg181_o2nofp.cx10d_c32r128	1192	1192	5944	5934	10573	11344
target	1200	1200	6000	6000	12000	12000

l.i0

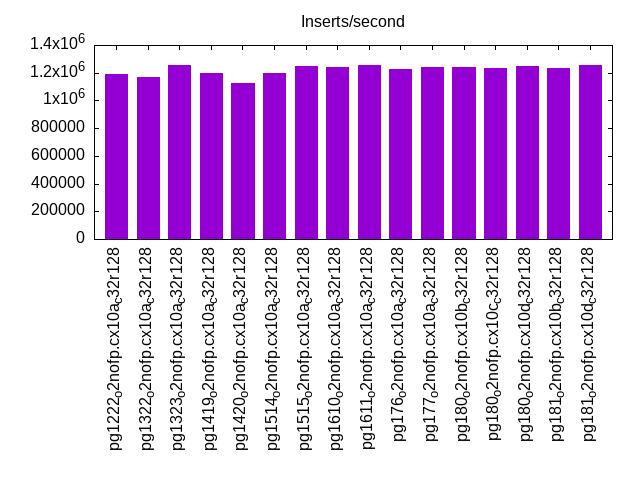

l.i0: load without secondary indexes. Graphs for performance per 1-second interval are here.

Average throughput:

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	max
pg1222_o2nofp.cx10a_c32r128	89.822	10.079	0.040	0.038	0.015	0.006	0.001		2.190
pg1322_o2nofp.cx10a_c32r128	95.901	3.885	0.113	0.059	0.031	0.011	0.001		3.798
pg1323_o2nofp.cx10a_c32r128	98.684	1.161	0.076	0.055	0.018	0.005	0.001		2.825
pg1419_o2nofp.cx10a_c32r128	95.540	4.302	0.089	0.047	0.017	0.005	0.001		3.072
pg1420_o2nofp.cx10a_c32r128	94.211	5.549	0.133	0.058	0.038	0.010	0.001		2.401
pg1514_o2nofp.cx10a_c32r128	93.454	6.381	0.083	0.056	0.021	0.006	0.001		2.058
pg1515_o2nofp.cx10a_c32r128	98.551	1.287	0.082	0.053	0.021	0.006	nonzero		1.888
pg1610_o2nofp.cx10a_c32r128	98.313	1.521	0.087	0.055	0.017	0.007	nonzero		1.584
pg1611_o2nofp.cx10a_c32r128	98.666	1.163	0.083	0.060	0.023	0.006	nonzero		1.819
pg176_o2nofp.cx10a_c32r128	97.422	2.384	0.112	0.057	0.019	0.006	nonzero		1.905
pg177_o2nofp.cx10a_c32r128	98.335	1.492	0.097	0.052	0.018	0.006	nonzero		2.093
pg180_o2nofp.cx10b_c32r128	98.485	1.328	0.098	0.057	0.025	0.006	nonzero		2.252
pg180_o2nofp.cx10c_c32r128	98.440	1.382	0.087	0.055	0.029	0.006	nonzero		2.129
pg180_o2nofp.cx10d_c32r128	98.539	1.302	0.082	0.053	0.018	0.006	0.001		1.804
pg181_o2nofp.cx10b_c32r128	98.378	1.445	0.095	0.055	0.021	0.006	0.001		1.767
pg181_o2nofp.cx10d_c32r128	98.460	1.389	0.083	0.044	0.016	0.006	nonzero	nonzero	4.082

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1190476	0	677	5.4	5492.7	475.9	0.001	0.005	0.005	0.409	128901	55.5	0.108	15	344.4	440.5	97.3	2.190	103887	7999	pg1222_o2nofp.cx10a_c32r128
1171112	0	599	4.8	4403.7	470.7	0.001	0.004	0.004	0.412	128835	52.2	0.110	14	344.4	440.5	11.5	3.798	113788	4999	pg1322_o2nofp.cx10a_c32r128
1253046	0	637	5.1	4648.4	500.7	0.001	0.004	0.004	0.409	136208	55.3	0.109	14	344.4	440.5	10.1	2.825	114387	8098	pg1323_o2nofp.cx10a_c32r128
1200000	0	621	4.8	4467.6	482.2	0.001	0.004	0.004	0.411	129851	54.2	0.108	14	344.4	440.5	15.7	3.072	110187	8096	pg1419_o2nofp.cx10a_c32r128
1125704	0	590	4.6	4238.4	453.0	0.001	0.004	0.004	0.412	124585	51.5	0.111	15	344.4	440.5	5.3	2.401	108788	5899	pg1420_o2nofp.cx10a_c32r128
1199200	0	649	5.1	4453.5	477.5	0.001	0.004	0.004	0.408	129554	54.8	0.108	15	344.4	440.5	8.8	2.058	108987	7799	pg1514_o2nofp.cx10a_c32r128
1250000	0	646	5.0	4664.7	502.0	0.001	0.004	0.004	0.411	134764	54.9	0.108	14	344.4	440.5	7.4	1.888	113987	13698	pg1515_o2nofp.cx10a_c32r128
1243953	0	650	5.1	4575.4	498.1	0.001	0.004	0.004	0.410	134045	54.8	0.108	14	344.4	440.5	2.5	1.584	113987	10999	pg1610_o2nofp.cx10a_c32r128
1255230	0	626	4.9	4612.9	502.5	0.000	0.004	0.004	0.410	136587	54.7	0.109	14	344.4	440.5	10.3	1.819	115487	9298	pg1611_o2nofp.cx10a_c32r128
1229928	0	622	4.9	4588.9	494.0	0.001	0.004	0.004	0.411	124113	54.3	0.101	14	344.4	440.5	97.2	1.905	112886	10398	pg176_o2nofp.cx10a_c32r128
1238816	0	641	5.1	4588.6	496.8	0.001	0.004	0.004	0.411	124989	54.6	0.101	14	344.4	440.5	97.2	2.093	113087	9599	pg177_o2nofp.cx10a_c32r128
1237964	0	626	5.0	4599.9	495.1	0.001	0.004	0.004	0.410	124705	54.0	0.101	14	344.4	440.5	97.2	2.252	114187	12798	pg180_o2nofp.cx10b_c32r128
1232877	0	625	5.0	4570.5	494.3	0.001	0.004	0.004	0.411	125875	53.9	0.102	14	344.4	440.5	97.2	2.129	113886	13097	pg180_o2nofp.cx10c_c32r128
1245244	0	645	5.1	4626.2	497.4	0.001	0.004	0.004	0.409	127552	54.6	0.102	14	344.4	440.5	97.2	1.804	113786	7999	pg180_o2nofp.cx10d_c32r128
1232877	0	636	5.0	4557.1	493.8	0.001	0.004	0.004	0.410	124047	54.3	0.101	14	344.4	440.5	97.2	1.767	113286	7799	pg181_o2nofp.cx10b_c32r128
1253046	0	654	5.2	4620.3	500.2	0.001	0.004	0.004	0.409	128481	55.1	0.103	14	344.4	440.5	97.2	4.082	113584	12298	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
677.1	5527.1	0.019	0.157	0.355	3.390	5492.7	487346	670.8	8.569	3.812	96.14	3.197	2636.3	0.000	0.000	5.044	108.5	223.7	1.198	12.00	46.68		pg1222_o2nofp.cx10a_c32r128
598.8	4886.6	0.069	0.935	1.321	4.466	4403.7	482037	599.1	8.344	6.011	110.5	3.607	2187.6	0.000	0.000	6.478	90.81	215.0	1.777	14.00	46.82		pg1322_o2nofp.cx10a_c32r128
637.3	5202.8	0.005	0.114	0.403	3.353	4648.4	512762	599.1	7.944	4.560	112.2	3.550	1208.2	0.000	0.000	4.865	70.98	228.2	1.282	12.92	46.21		pg1323_o2nofp.cx10a_c32r128
620.8	4962.3	0.000	0.000	0.897	4.028	4467.6	493796	560.3	6.875	3.576	112.4	3.623	1425.6	0.000	0.000	4.466	78.76	220.4	1.262	10.81	43.57		pg1419_o2nofp.cx10a_c32r128
590.5	4721.6	0.078	0.828	1.006	4.251	4238.4	463852	479.9	6.566	5.868	110.5	3.469	1207.9	0.000	0.000	6.893	76.09	206.8	1.840	13.98	44.24		pg1420_o2nofp.cx10a_c32r128
648.8	5187.4	0.000	0.000	0.652	4.323	4453.5	488913	468.4	5.960	3.817	112.1	0.707	822.1	0.000	0.000	1.670	92.75	218.8	1.277	11.06	42.70		pg1514_o2nofp.cx10a_c32r128
646.0	5164.4	0.000	0.000	0.512	4.137	4664.7	514060	556.4	6.821	3.683	112.4	0.776	1816.6	0.000	0.000	2.004	107.4	228.5	1.274	11.40	45.12		pg1515_o2nofp.cx10a_c32r128
650.1	5196.1	0.000	0.000	0.650	4.019	4575.4	510071	501.7	6.098	3.931	113.1	0.707	921.2	0.000	0.000	1.585	85.03	225.8	1.344	11.24	44.62		pg1610_o2nofp.cx10a_c32r128
626.1	5004.6	0.000	0.000	0.640	3.816	4612.9	514527	457.0	6.058	4.006	113.1	0.735	645.5	0.000	0.000	1.925	66.87	228.6	1.321	11.77	44.94		pg1611_o2nofp.cx10a_c32r128
621.5	5050.6	0.004	0.118	0.748	3.619	4588.9	505865	427.6	5.949	3.854	111.9	0.490	849.2	0.000	0.000	1.223	130.7	223.2	1.228	10.55	43.64		pg176_o2nofp.cx10a_c32r128
640.6	5204.4	0.000	0.000	0.750	4.111	4588.6	508743	412.9	5.646	3.664	112.6	0.480	581.7	0.000	0.000	0.922	134.8	224.9	1.261	10.96	43.65		pg177_o2nofp.cx10a_c32r128
626.4	5092.5	0.062	0.349	0.400	2.942	4599.9	506961	457.8	5.942	4.442	112.2	0.482	940.3	0.000	0.000	1.636	143.2	225.5	1.320	12.50	43.73		pg180_o2nofp.cx10b_c32r128
624.9	5078.7	0.000	0.000	0.624	4.361	4570.5	506206	525.1	6.558	4.082	112.7	0.590	1884.8	0.000	0.000	1.702	190.2	224.7	1.424	11.39	46.03		pg180_o2nofp.cx10c_c32r128
645.0	5241.5	0.002	0.000	0.741	4.205	4626.2	509299	467.3	5.946	3.751	112.2	0.615	826.6	0.000	0.000	1.445	158.2	228.0	1.264	10.93	42.76		pg180_o2nofp.cx10d_c32r128
636.0	5167.7	0.007	0.076	0.883	4.002	4557.1	505656	503.0	6.549	4.007	112.5	0.534	1039.5	0.000	0.000	1.374	165.0	226.2	1.375	11.12	44.03		pg181_o2nofp.cx10b_c32r128
653.6	5310.0	0.000	0.008	0.513	4.089	4620.3	512182	488.4	6.708	3.539	112.3	0.628	1389.6	0.000	0.000	1.779	156.4	229.4	1.234	10.90	43.84		pg181_o2nofp.cx10d_c32r128

l.x

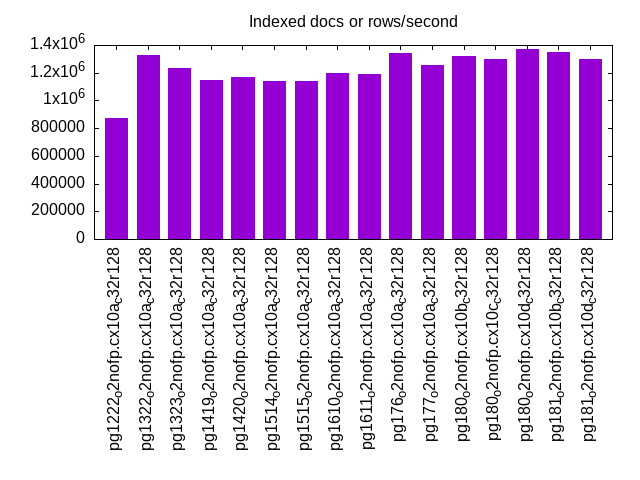

l.x: create secondary indexes.

Average throughput:

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
871249	0	2407	297.9	4018.0	378.9	0.003	0.350	0.005	0.445	51675	12.5	0.059	5	691.9	788.0	64.0	0.004	NA	NA	pg1222_o2nofp.cx10a_c32r128
1324503	0	3647	453.0	3551.5	410.5	0.003	0.350	0.003	0.317	46600	17.7	0.035	4	691.5	787.6	50.5	0.003	NA	NA	pg1322_o2nofp.cx10a_c32r128
1231190	0	3385	420.5	3305.4	383.1	0.003	0.350	0.003	0.319	43901	16.6	0.036	4	691.5	787.6	55.1	0.159	NA	NA	pg1323_o2nofp.cx10a_c32r128
1144310	0	3146	390.7	3068.4	354.5	0.003	0.350	0.003	0.317	39752	15.3	0.035	4	691.5	787.6	54.6	0.004	NA	NA	pg1419_o2nofp.cx10a_c32r128
1167694	0	3213	399.1	3119.6	361.6	0.003	0.350	0.003	0.317	41790	15.6	0.036	4	691.5	787.6	52.6	0.006	NA	NA	pg1420_o2nofp.cx10a_c32r128
1143220	0	3742	464.0	3662.8	427.8	0.003	0.416	0.003	0.383	41672	15.2	0.036	4	691.5	787.6	37.9	0.003	NA	NA	pg1514_o2nofp.cx10a_c32r128
1136722	0	3722	461.6	3647.0	424.9	0.003	0.416	0.003	0.383	41543	15.0	0.037	4	691.5	787.6	38.6	0.005	NA	NA	pg1515_o2nofp.cx10a_c32r128
1196411	0	3903	484.9	3845.3	447.4	0.003	0.415	0.003	0.383	41428	15.8	0.035	4	691.5	787.6	29.5	0.003	NA	NA	pg1610_o2nofp.cx10a_c32r128
1188119	0	3875	481.6	3809.0	445.0	0.003	0.415	0.003	0.384	43715	15.5	0.037	4	691.5	787.6	31.0	0.004	NA	NA	pg1611_o2nofp.cx10a_c32r128
1343284	0	3794	472.3	3707.2	430.1	0.003	0.360	0.003	0.328	19572	16.0	0.015	4	691.5	787.6	53.7	0.003	NA	NA	pg176_o2nofp.cx10a_c32r128
1252610	0	3538	440.4	3426.2	400.4	0.003	0.360	0.003	0.327	18896	15.1	0.015	4	691.5	787.6	54.1	0.003	NA	NA	pg177_o2nofp.cx10a_c32r128
1323529	0	3739	465.3	3668.7	423.8	0.003	0.360	0.003	0.328	19719	16.0	0.015	4	691.5	787.6	53.6	0.004	NA	NA	pg180_o2nofp.cx10b_c32r128
1297765	0	3723	457.2	3621.6	415.9	0.003	0.361	0.003	0.328	23507	15.7	0.018	4	691.5	787.6	77.4	0.004	NA	NA	pg180_o2nofp.cx10c_c32r128
1371429	0	3877	482.3	3744.8	437.9	0.003	0.360	0.003	0.327	24617	16.6	0.018	4	691.5	787.6	54.6	0.005	NA	NA	pg180_o2nofp.cx10d_c32r128
1351351	0	3817	475.1	3705.7	433.1	0.003	0.360	0.003	0.328	19725	16.3	0.015	4	691.5	787.6	53.5	0.003	NA	NA	pg181_o2nofp.cx10b_c32r128
1299639	0	3675	457.0	3556.7	415.8	0.003	0.360	0.003	0.328	23726	16.0	0.018	4	691.5	787.6	39.9	0.828	NA	NA	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
2407.2	305043	0.000	0.000	1.361	127.0	4018.0	388007	171.7	3.058	37.52	108.3	4.382	76090.2	0.000	0.000	26.34	1783.2	34.60	10.33	75.77	91.01		pg1222_o2nofp.cx10a_c32r128
3646.6	463858	0.006	0.002	1.158	127.4	3551.5	420308	173.0	3.496	22.86	121.8	5.488	117565	0.000	0.000	19.36	2168.2	32.88	6.066	42.49	85.68		pg1322_o2nofp.cx10a_c32r128
3385.1	430546	0.001	0.000	1.199	127.2	3305.4	392272	130.2	2.894	27.76	122.5	5.113	111537	0.000	0.000	22.29	1860.8	30.43	7.614	51.30	86.93		pg1323_o2nofp.cx10a_c32r128
3145.6	400097	0.005	0.000	1.180	127.4	3068.4	362987	89.88	2.296	32.49	122.2	4.682	96833.8	0.000	0.000	24.62	1434.7	27.67	8.561	55.76	88.56		pg1419_o2nofp.cx10a_c32r128
3212.8	408665	0.003	0.000	1.121	127.4	3119.6	370246	90.73	2.119	31.34	122.5	4.585	84204.1	0.000	0.000	24.20	1286.4	28.17	7.858	52.32	87.94		pg1420_o2nofp.cx10a_c32r128
3741.9	475135	0.010	0.001	0.852	126.9	3662.8	438103	92.87	1.778	40.61	122.5	2.839	102939	0.000	0.000	15.85	2262.0	27.89	12.40	80.16	87.89		pg1514_o2nofp.cx10a_c32r128
3721.9	472651	0.004	0.000	0.782	126.8	3647.0	435116	119.5	2.167	37.54	122.4	2.323	85803.4	0.000	0.000	20.55	3330.1	27.92	11.88	74.84	88.33		pg1515_o2nofp.cx10a_c32r128
3903.4	496519	0.008	0.006	0.692	127.1	3845.3	458177	105.8	2.142	39.47	122.3	3.100	107784	0.000	0.000	17.60	3003.5	29.13	8.755	65.98	88.38		pg1610_o2nofp.cx10a_c32r128
3875.0	493141	0.007	0.000	4.412	127.1	3809.0	455665	100.5	2.057	62.38	122.3	3.051	107074	0.000	0.000	30.15	2461.9	28.90	23.15	92.05	88.09		pg1611_o2nofp.cx10a_c32r128
3793.7	483647	0.002	0.000	1.081	127.1	3707.2	440389	98.33	2.050	47.07	123.1	3.245	120943	0.000	0.000	15.93	3207.5	32.74	7.649	60.07	90.64		pg176_o2nofp.cx10a_c32r128
3538.2	450971	0.004	0.000	0.912	127.5	3426.2	410056	88.53	1.922	43.96	123.0	3.063	113091	0.000	0.000	19.95	2919.0	30.33	7.623	66.32	90.63		pg177_o2nofp.cx10a_c32r128
3738.7	476463	0.311	0.012	0.853	127.1	3668.7	433945	92.99	2.117	36.13	121.2	2.941	119214	0.000	0.000	17.12	3362.9	31.66	7.386	61.82	89.11		pg180_o2nofp.cx10b_c32r128
3723.3	468138	0.005	0.000	0.792	126.6	3621.6	425922	101.8	1.934	38.59	123.0	2.649	100363	0.000	0.000	19.40	4994.0	31.15	9.954	65.99	91.04		pg180_o2nofp.cx10c_c32r128
3877.0	493845	0.006	0.000	0.974	127.4	3744.8	448432	98.18	1.803	40.86	123.2	3.504	123596	0.000	0.000	15.96	2984.6	33.14	7.329	71.27	90.54		pg180_o2nofp.cx10d_c32r128
3816.8	486533	0.002	0.000	0.743	127.5	3705.7	443485	91.81	1.789	33.99	123.0	3.549	121704	0.000	0.000	14.35	2725.3	32.33	9.429	67.17	89.82		pg181_o2nofp.cx10b_c32r128
3674.7	467961	0.010	0.000	1.607	127.0	3556.7	425798	88.24	1.689	62.20	123.3	3.200	117067	0.000	0.000	18.92	2773.4	31.15	20.50	74.77	90.96		pg181_o2nofp.cx10d_c32r128

l.i1

l.i1: continue load after secondary indexes created with 50 inserts per transaction. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	16ms	64ms	256ms	1s	4s	16s	max
pg1222_o2nofp.cx10a_c32r128	14.359	81.806	3.737	0.067	0.030	0.002	5.656
pg1322_o2nofp.cx10a_c32r128	25.936	71.413	2.543	0.096	0.011		3.753
pg1323_o2nofp.cx10a_c32r128	23.988	72.540	3.289	0.168	0.016		3.487
pg1419_o2nofp.cx10a_c32r128	27.005	69.483	3.470	0.023	0.019		3.927
pg1420_o2nofp.cx10a_c32r128	27.097	68.897	3.978	0.015	0.013		2.745
pg1514_o2nofp.cx10a_c32r128	24.963	71.618	3.378	0.028	0.012	0.001	4.808
pg1515_o2nofp.cx10a_c32r128	20.383	75.793	3.778	0.034	0.012		2.852
pg1610_o2nofp.cx10a_c32r128	21.456	74.133	4.336	0.048	0.027		2.698
pg1611_o2nofp.cx10a_c32r128	22.946	73.842	3.143	0.048	0.021	nonzero	4.040
pg176_o2nofp.cx10a_c32r128	25.240	70.798	3.908	0.041	0.013	nonzero	4.006
pg177_o2nofp.cx10a_c32r128	28.989	68.025	2.966	0.010	0.008	0.001	6.307
pg180_o2nofp.cx10b_c32r128	25.245	71.025	3.667	0.043	0.020		3.004
pg180_o2nofp.cx10c_c32r128	23.650	72.897	3.393	0.040	0.021		3.509
pg180_o2nofp.cx10d_c32r128	23.447	73.093	3.409	0.035	0.014	nonzero	4.032
pg181_o2nofp.cx10b_c32r128	25.833	70.584	3.541	0.025	0.017		3.066
pg181_o2nofp.cx10d_c32r128	22.483	73.876	3.601	0.026	0.015		3.936

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	max
pg1222_o2nofp.cx10a_c32r128	2.513	12.416	37.045	47.336	0.645	0.022	0.023	nonzero	4.127
pg1322_o2nofp.cx10a_c32r128	2.170	13.939	35.924	46.998	0.891	0.070	0.007		2.873
pg1323_o2nofp.cx10a_c32r128	2.256	16.118	37.925	42.468	1.123	0.101	0.010		2.801
pg1419_o2nofp.cx10a_c32r128	2.128	10.567	30.175	56.953	0.151	0.009	0.017		3.121
pg1420_o2nofp.cx10a_c32r128	2.225	11.362	32.407	53.850	0.133	0.013	0.011		2.738
pg1514_o2nofp.cx10a_c32r128	2.172	10.652	30.162	56.800	0.195	0.007	0.011	0.001	4.765
pg1515_o2nofp.cx10a_c32r128	2.235	10.986	29.417	56.859	0.470	0.021	0.011		2.842
pg1610_o2nofp.cx10a_c32r128	2.244	10.449	28.451	58.465	0.349	0.017	0.024		3.432
pg1611_o2nofp.cx10a_c32r128	2.150	10.292	26.767	60.481	0.268	0.023	0.019		3.544
pg176_o2nofp.cx10a_c32r128	2.041	10.226	23.689	63.775	0.243	0.015	0.011	nonzero	4.011
pg177_o2nofp.cx10a_c32r128	2.083	10.362	23.221	64.149	0.168	0.008	0.008	0.001	6.292
pg180_o2nofp.cx10b_c32r128	2.048	10.012	25.857	61.797	0.246	0.021	0.018		3.680
pg180_o2nofp.cx10c_c32r128	2.020	10.182	25.398	62.113	0.252	0.018	0.018		3.327
pg180_o2nofp.cx10d_c32r128	2.065	10.255	27.013	60.424	0.209	0.020	0.013	nonzero	4.042
pg181_o2nofp.cx10b_c32r128	2.059	10.632	27.269	59.731	0.281	0.012	0.015		2.389
pg181_o2nofp.cx10d_c32r128	2.074	10.274	25.602	61.816	0.211	0.012	0.011		3.624

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
18626	0	22558	179.1	28059.4	487.9	1.211	9.844	1.506	26.824	54043	24.2	2.901	416	699.8	795.8	97.4	5.656	1600	50	pg1222_o2nofp.cx10a_c32r128
19958	0	24490	221.1	30938.0	549.6	1.227	11.344	1.550	28.196	58511	26.7	2.932	428	699.3	795.4	4.3	3.753	1650	150	pg1322_o2nofp.cx10a_c32r128
18965	0	23693	245.4	30876.7	547.9	1.249	13.249	1.628	29.584	56532	25.1	2.981	424	699.2	795.3	4.2	3.487	1500	200	pg1323_o2nofp.cx10a_c32r128
20788	0	25192	201.5	31278.7	531.7	1.212	9.925	1.505	26.188	59421	30.3	2.858	466	699.4	795.4	2.5	3.927	1650	250	pg1419_o2nofp.cx10a_c32r128
21670	0	26217	208.6	32529.6	552.7	1.210	9.859	1.501	26.115	62160	29.7	2.868	439	699.4	795.4	2.5	2.745	1750	350	pg1420_o2nofp.cx10a_c32r128
20788	0	25145	200.2	31438.4	532.3	1.210	9.859	1.512	26.220	59728	29.5	2.873	454	699.4	795.4	2.6	4.808	1750	300	pg1514_o2nofp.cx10a_c32r128
19942	0	24181	192.8	30318.5	511.9	1.213	9.902	1.520	26.286	57571	28.8	2.887	462	699.4	795.4	2.5	2.852	1650	350	pg1515_o2nofp.cx10a_c32r128
19536	0	23751	189.9	29553.5	501.0	1.216	9.953	1.513	26.261	55597	28.4	2.846	465	699.4	795.4	97.2	2.698	1750	100	pg1610_o2nofp.cx10a_c32r128
19884	0	24203	193.8	29932.6	509.4	1.217	9.979	1.505	26.232	57003	30.3	2.867	488	699.4	795.4	2.6	4.040	1650	250	pg1611_o2nofp.cx10a_c32r128
19786	0	23972	190.9	30071.7	506.9	1.212	9.878	1.520	26.236	55870	30.5	2.824	493	699.4	795.4	97.2	4.006	1750	300	pg176_o2nofp.cx10a_c32r128
21525	0	26103	209.0	32387.1	557.1	1.213	9.945	1.505	26.505	61099	32.1	2.839	477	699.4	795.4	97.2	6.307	1700	350	pg177_o2nofp.cx10a_c32r128
20654	0	24966	199.3	31138.1	528.2	1.209	9.881	1.508	26.187	58506	30.7	2.833	476	699.4	795.4	97.1	3.004	1700	250	pg180_o2nofp.cx10b_c32r128
19900	0	24192	193.8	30146.6	512.2	1.216	9.972	1.515	26.354	56806	30.3	2.855	487	699.4	795.4	97.2	3.509	1750	200	pg180_o2nofp.cx10c_c32r128
20134	0	24410	194.8	30586.9	516.8	1.212	9.906	1.519	26.284	57221	30.0	2.842	477	699.4	795.4	97.2	4.032	1750	300	pg180_o2nofp.cx10d_c32r128
20601	0	24994	200.1	30940.8	527.7	1.213	9.948	1.502	26.230	58462	30.1	2.838	468	699.4	795.4	97.2	3.066	1800	400	pg181_o2nofp.cx10b_c32r128
20210	0	24498	195.2	30721.4	518.8	1.212	9.892	1.520	26.285	57503	30.0	2.845	475	699.4	795.4	97.2	3.936	1750	350	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
22558.5	183362	0.000	0.000	0.451	8.131	28059.4	499632	1323.0	6.693	3.986	23.19	2.935	13005.7	0.000	0.000	6.570	436.4	155.7	2.780	63.18	99.54		pg1222_o2nofp.cx10a_c32r128
24489.5	226401	0.002	0.000	0.420	10.15	30938.0	562743	1338.7	6.734	1.991	22.66	3.423	19694.7	0.000	0.000	4.928	605.6	199.4	2.416	52.19	98.38		pg1322_o2nofp.cx10a_c32r128
23692.7	251263	0.001	0.000	0.452	11.10	30876.7	561063	729.2	4.130	2.199	22.52	3.455	19661.4	0.000	0.000	5.559	457.1	204.0	2.475	55.97	98.85		pg1323_o2nofp.cx10a_c32r128
25192.0	206313	0.000	0.000	0.445	8.202	31278.7	544410	298.4	2.744	1.231	20.61	2.100	574.0	0.000	0.000	4.284	132.8	196.3	2.286	44.39	98.48		pg1419_o2nofp.cx10a_c32r128
26217.2	213656	0.000	0.000	0.465	8.157	32529.6	565914	293.5	3.169	1.274	20.79	2.184	1900.1	0.000	0.000	4.435	166.0	195.7	2.283	45.92	99.68		pg1420_o2nofp.cx10a_c32r128
25145.2	204958	0.000	0.000	0.448	8.162	31438.4	545076	284.5	2.640	1.326	20.58	0.083	598.1	0.000	0.000	0.310	240.7	193.2	2.311	44.47	97.49		pg1514_o2nofp.cx10a_c32r128
24180.9	197461	0.001	0.000	0.444	8.171	30318.5	524193	321.5	2.872	1.386	20.46	0.076	1832.3	0.000	0.000	0.328	496.3	189.5	2.400	46.74	98.20		pg1515_o2nofp.cx10a_c32r128
23751.4	194446	0.002	0.000	0.465	8.190	29553.5	513042	287.7	2.792	1.544	20.49	0.077	596.1	0.000	0.000	0.301	239.3	180.4	2.454	48.08	97.74		pg1610_o2nofp.cx10a_c32r128
24203.1	198424	0.001	0.000	0.432	8.216	29932.6	521588	278.4	2.611	1.414	20.67	0.089	633.6	0.000	0.000	0.291	248.8	190.2	2.364	46.60	98.42		pg1611_o2nofp.cx10a_c32r128
23971.9	195441	0.000	0.000	0.442	8.167	30071.7	519090	214.6	2.314	1.305	20.63	0.051	521.1	0.000	0.000	0.222	326.2	184.5	2.314	44.10	96.76		pg176_o2nofp.cx10a_c32r128
26103.0	214056	0.001	0.000	0.431	8.214	32387.1	570518	268.4	2.502	1.618	20.81	0.461	6290.0	0.000	0.000	0.641	388.8	193.5	2.348	43.77	98.59		pg177_o2nofp.cx10a_c32r128
24966.2	204082	0.001	0.000	0.447	8.175	31138.1	540876	229.4	2.433	1.488	20.79	0.067	691.5	0.000	0.000	0.200	309.5	184.2	2.411	47.65	98.67		pg180_o2nofp.cx10b_c32r128
24192.2	198443	0.001	0.000	0.434	8.257	30146.6	524449	319.9	2.861	1.417	20.75	0.066	1108.2	0.000	0.000	0.477	556.4	183.6	2.363	45.94	97.65		pg180_o2nofp.cx10c_c32r128
24410.4	199454	0.001	0.000	0.439	8.190	30586.9	529212	235.4	2.385	1.379	20.83	0.067	564.3	0.000	0.000	0.318	301.7	184.0	2.424	46.23	97.61		pg180_o2nofp.cx10d_c32r128
24993.5	204938	0.001	0.000	0.438	8.214	30940.8	540357	223.6	2.279	1.356	20.91	0.069	542.4	0.000	0.000	0.242	292.0	184.6	2.318	45.40	97.28		pg181_o2nofp.cx10b_c32r128
24498.3	199929	0.000	0.000	0.438	8.175	30721.4	531238	270.3	2.489	1.279	20.62	0.077	635.6	0.000	0.000	0.337	284.6	186.4	2.341	45.23	97.38		pg181_o2nofp.cx10d_c32r128

l.i2

l.i2: continue load after secondary indexes created with 5 inserts per transaction. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	max
pg1222_o2nofp.cx10a_c32r128		21.435	74.806	2.373	1.339	0.048		0.237
pg1322_o2nofp.cx10a_c32r128		23.980	73.466	1.633	0.889	0.033	nonzero	0.688
pg1323_o2nofp.cx10a_c32r128	nonzero	27.367	69.087	3.143	0.388	0.016	nonzero	0.576
pg1419_o2nofp.cx10a_c32r128		17.542	80.072	1.461	0.810	0.114	0.001	0.937
pg1420_o2nofp.cx10a_c32r128		17.719	79.587	1.719	0.931	0.044	nonzero	0.540
pg1514_o2nofp.cx10a_c32r128		18.884	78.028	1.992	1.087	0.009	nonzero	0.700
pg1515_o2nofp.cx10a_c32r128		18.613	78.451	1.881	1.028	0.026	0.001	0.958
pg1610_o2nofp.cx10a_c32r128		20.126	76.603	2.153	1.113	0.006		0.109
pg1611_o2nofp.cx10a_c32r128		18.712	78.747	1.688	0.849	0.004		0.122
pg176_o2nofp.cx10a_c32r128		19.997	77.177	1.856	0.967	0.003		0.111
pg177_o2nofp.cx10a_c32r128		21.874	75.784	1.526	0.769	0.045	0.001	0.728
pg180_o2nofp.cx10b_c32r128		18.668	78.665	1.737	0.915	0.014		0.129
pg180_o2nofp.cx10c_c32r128		18.976	78.249	1.831	0.940	0.004	nonzero	0.685
pg180_o2nofp.cx10d_c32r128		20.120	76.787	2.010	1.076	0.007		0.128
pg181_o2nofp.cx10b_c32r128		18.166	79.256	1.707	0.862	0.008	nonzero	0.920
pg181_o2nofp.cx10d_c32r128		19.009	78.568	1.609	0.810	0.003	nonzero	0.932

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	max
pg1222_o2nofp.cx10a_c32r128				0.238	99.761	0.002		0.170
pg1322_o2nofp.cx10a_c32r128			3.044	9.717	87.238	nonzero	0.001	0.704
pg1323_o2nofp.cx10a_c32r128	nonzero	2.297	11.534	30.157	56.009	0.002	0.001	0.594
pg1419_o2nofp.cx10a_c32r128				1.347	98.650	0.001	0.001	0.946
pg1420_o2nofp.cx10a_c32r128				0.046	99.952	0.001	0.001	0.558
pg1514_o2nofp.cx10a_c32r128				0.070	99.926	0.004	0.001	0.864
pg1515_o2nofp.cx10a_c32r128				1.546	98.450	0.003	0.002	0.983
pg1610_o2nofp.cx10a_c32r128				0.456	99.543	0.001		0.193
pg1611_o2nofp.cx10a_c32r128				1.510	98.489	0.001		0.180
pg176_o2nofp.cx10a_c32r128				0.029	99.971	0.001		0.181
pg177_o2nofp.cx10a_c32r128				0.023	99.974	0.001	0.002	0.857
pg180_o2nofp.cx10b_c32r128				0.038	99.961	0.001		0.167
pg180_o2nofp.cx10c_c32r128				0.039	99.960	0.001	0.001	0.709
pg180_o2nofp.cx10d_c32r128				0.029	99.970	0.001		0.177
pg181_o2nofp.cx10b_c32r128				0.040	99.954	0.004	0.002	0.953
pg181_o2nofp.cx10d_c32r128				0.036	99.962	0.001	0.002	0.951

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
2889	0	3344	26.6	4808.2	77.5	1.158	9.414	1.664	27.474	21708	38.3	7.513	4242	701.8	797.8	97.4	0.237	240	210	pg1222_o2nofp.cx10a_c32r128
1807	0	2068	16.5	3395.6	52.1	1.145	9.344	1.880	29.530	13943	24.7	7.718	4375	701.2	797.2	97.3	0.688	840	585	pg1322_o2nofp.cx10a_c32r128
1786	0	2109	23.3	3256.5	53.6	1.181	13.367	1.823	30.744	13834	19.6	7.744	3511	701.0	797.0	9.3	0.576	140	120	pg1323_o2nofp.cx10a_c32r128
1639	0	1884	15.0	3119.9	47.6	1.149	9.386	1.904	29.717	12368	26.5	7.547	5175	701.4	797.4	97.2	0.937	120	110	pg1419_o2nofp.cx10a_c32r128
1781	0	2062	16.4	3476.5	52.4	1.158	9.434	1.952	30.153	13529	27.1	7.598	4870	701.4	797.5	97.1	0.540	225	200	pg1420_o2nofp.cx10a_c32r128
1658	0	1914	15.4	3246.4	49.1	1.155	9.512	1.959	30.330	12371	24.5	7.463	4730	701.4	797.4	97.2	0.700	230	195	pg1514_o2nofp.cx10a_c32r128
1927	0	2226	17.7	3523.3	54.4	1.155	9.408	1.828	28.908	14405	28.9	7.474	4798	701.4	797.4	97.2	0.958	125	110	pg1515_o2nofp.cx10a_c32r128
1646	0	1898	15.3	3148.8	48.3	1.153	9.507	1.913	30.019	12281	26.6	7.461	5171	701.4	797.4	97.2	0.109	220	200	pg1610_o2nofp.cx10a_c32r128
1580	0	1827	14.7	2941.0	45.8	1.156	9.519	1.861	29.655	11958	28.4	7.566	5750	701.4	797.4	97.2	0.122	215	120	pg1611_o2nofp.cx10a_c32r128
1447	0	1674	13.5	2783.9	42.4	1.157	9.536	1.924	29.977	9996	24.6	6.908	5440	701.4	797.4	97.2	0.111	200	185	pg176_o2nofp.cx10a_c32r128
1463	0	1687	13.6	2872.2	43.4	1.153	9.491	1.964	30.397	10209	24.0	6.980	5251	701.4	797.4	97.2	0.728	205	190	pg177_o2nofp.cx10a_c32r128
1499	0	1746	14.3	2901.4	44.8	1.165	9.792	1.936	30.610	10423	25.7	6.955	5488	701.4	797.4	97.1	0.129	120	100	pg180_o2nofp.cx10b_c32r128
1538	0	1783	14.3	2964.8	45.3	1.159	9.548	1.927	30.148	10704	25.5	6.959	5305	701.4	797.4	97.2	0.685	215	190	pg180_o2nofp.cx10c_c32r128
1556	0	1797	14.3	3030.4	45.5	1.155	9.420	1.948	29.962	10838	24.0	6.966	4936	701.4	797.4	97.2	0.128	220	190	pg180_o2nofp.cx10d_c32r128
1598	0	1864	15.3	3066.8	47.6	1.167	9.790	1.919	30.497	11081	27.1	6.934	5427	701.4	797.4	97.2	0.920	215	190	pg181_o2nofp.cx10b_c32r128
1488	0	1716	13.7	2817.5	42.9	1.153	9.403	1.894	29.538	10363	25.7	6.965	5527	701.4	797.4	97.2	0.932	210	185	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
3344.5	27199.5	0.000	0.000	0.190	8.133	4808.2	79384.1	72.08	1.872	1.655	17.70	2.073	603.0	0.000	0.000	4.007	19.33	42.60	1.734	9.695	38.28		pg1222_o2nofp.cx10a_c32r128
2068.3	16881.4	0.000	0.000	0.155	8.213	3395.6	53348.3	48.94	2.698	0.824	18.42	2.032	95.59	0.000	0.000	2.710	9.581	27.72	1.282	3.826	24.53		pg1322_o2nofp.cx10a_c32r128
2109.0	23879.8	0.000	0.000	0.139	9.052	3256.5	54924.3	42.08	2.331	0.355	19.58	2.071	558.3	0.000	0.000	1.890	14.24	32.36	0.935	2.074	23.59		pg1323_o2nofp.cx10a_c32r128
1883.6	15382.3	0.000	0.000	0.163	8.218	3119.9	48699.9	33.26	1.785	0.783	18.48	2.030	36.07	0.000	0.000	2.583	7.381	26.67	1.145	3.390	23.03		pg1419_o2nofp.cx10a_c32r128
2062.4	16797.8	0.000	0.000	0.157	8.184	3476.5	53690.6	34.23	1.582	0.847	17.31	2.027	16.36	0.000	0.000	2.659	6.661	29.23	1.248	4.070	24.58		pg1420_o2nofp.cx10a_c32r128
1913.8	15767.2	0.000	0.000	0.156	8.290	3246.4	50274.3	25.03	1.426	0.832	18.40	0.019	2.557	0.000	0.000	0.074	0.548	28.40	1.252	4.026	22.79		pg1514_o2nofp.cx10a_c32r128
2225.8	18133.9	0.000	0.000	0.157	8.201	3523.3	55716.6	34.93	1.416	0.923	17.21	0.022	23.93	0.000	0.000	0.048	2.938	30.37	1.322	4.390	26.31		pg1515_o2nofp.cx10a_c32r128
1898.1	15648.3	0.000	0.000	0.151	8.251	3148.8	49411.5	27.52	1.359	0.775	18.59	0.024	7.021	0.000	0.000	0.023	2.984	27.08	1.298	3.556	23.48		pg1610_o2nofp.cx10a_c32r128
1827.1	15044.6	0.000	0.000	0.141	8.215	2941.0	46866.3	24.85	1.242	0.684	18.78	0.024	2.354	0.000	0.000	0.039	0.306	24.78	1.262	3.004	22.68		pg1611_o2nofp.cx10a_c32r128
1673.9	13797.9	0.000	0.000	0.144	8.276	2783.9	43376.6	20.77	1.212	0.656	18.63	0.003	2.338	0.000	0.000	0.012	2.952	23.59	1.178	2.941	20.44		pg176_o2nofp.cx10a_c32r128
1686.6	13882.8	0.000	0.000	0.145	8.273	2872.2	44461.7	19.92	1.225	0.667	17.82	0.004	12.33	0.000	0.000	0.017	5.934	24.42	1.110	2.925	20.14		pg177_o2nofp.cx10a_c32r128
1746.1	14673.7	0.000	0.000	0.159	8.343	2901.4	45871.5	19.62	1.161	0.692	18.57	0.003	0.354	0.000	0.000	0.034	0.560	24.45	1.190	3.055	21.44		pg180_o2nofp.cx10b_c32r128
1782.6	14686.0	0.000	0.000	0.144	8.265	2964.8	46374.4	30.14	1.602	0.689	18.09	0.004	2.512	0.000	0.000	0.022	2.701	25.00	1.213	3.054	21.72		pg180_o2nofp.cx10c_c32r128
1797.3	14655.1	0.000	0.000	0.150	8.254	3030.4	46614.9	20.58	1.222	0.835	18.00	0.004	0.407	0.000	0.000	0.024	0.551	25.60	1.264	4.213	21.49		pg180_o2nofp.cx10d_c32r128
1864.1	15644.8	0.000	0.000	0.142	8.328	3066.8	48734.5	20.59	1.046	0.700	18.77	0.003	0.386	0.000	0.000	0.028	0.529	26.02	1.222	3.048	22.71		pg181_o2nofp.cx10b_c32r128
1715.7	13991.1	0.000	0.000	0.137	8.210	2817.5	43949.9	23.91	1.283	0.605	18.50	0.004	0.379	0.000	0.000	0.044	0.478	23.63	1.121	2.707	20.73		pg181_o2nofp.cx10d_c32r128

qr100.L1

qr100.L1: range queries with 100 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

Query response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c32r128	99.984	0.013	0.002	nonzero	nonzero		0.036
pg1322_o2nofp.cx10a_c32r128	99.991	0.008	nonzero		nonzero		0.024
pg1323_o2nofp.cx10a_c32r128	99.991	0.009	nonzero	nonzero			0.006
pg1419_o2nofp.cx10a_c32r128	99.992	0.008	nonzero	nonzero			0.005
pg1420_o2nofp.cx10a_c32r128	99.991	0.008	nonzero	nonzero			0.005
pg1514_o2nofp.cx10a_c32r128	99.992	0.007	nonzero	nonzero	nonzero		0.061
pg1515_o2nofp.cx10a_c32r128	99.991	0.009	nonzero	nonzero	nonzero		0.027
pg1610_o2nofp.cx10a_c32r128	99.991	0.008	0.001	nonzero	nonzero		0.022
pg1611_o2nofp.cx10a_c32r128	99.981	0.016	0.003	nonzero	nonzero		0.035
pg176_o2nofp.cx10a_c32r128	99.993	0.007	nonzero	nonzero	nonzero		0.028
pg177_o2nofp.cx10a_c32r128	99.990	0.009	0.001	nonzero	nonzero		0.036
pg180_o2nofp.cx10b_c32r128	99.989	0.010	0.001	nonzero	nonzero	nonzero	0.096
pg180_o2nofp.cx10c_c32r128	99.978	0.019	0.003	nonzero	nonzero	nonzero	0.120
pg180_o2nofp.cx10d_c32r128	99.992	0.007	0.001	nonzero	nonzero		0.033
pg181_o2nofp.cx10b_c32r128	99.976	0.020	0.003	nonzero	nonzero	nonzero	0.128
pg181_o2nofp.cx10d_c32r128	99.978	0.019	0.003	nonzero	nonzero	nonzero	0.142

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c32r128	96.065	3.546	0.389	0.129
pg1322_o2nofp.cx10a_c32r128	99.630	0.370		0.048
pg1323_o2nofp.cx10a_c32r128	99.440	0.560		0.028
pg1419_o2nofp.cx10a_c32r128	99.620	0.380		0.063
pg1420_o2nofp.cx10a_c32r128	99.650	0.350		0.037
pg1514_o2nofp.cx10a_c32r128	99.521	0.447	0.032	0.110
pg1515_o2nofp.cx10a_c32r128	99.688	0.312		0.050
pg1610_o2nofp.cx10a_c32r128	99.738	0.252	0.009	0.083
pg1611_o2nofp.cx10a_c32r128	95.850	3.688	0.463	0.121
pg176_o2nofp.cx10a_c32r128	97.546	2.245	0.208	0.143
pg177_o2nofp.cx10a_c32r128	98.942	0.921	0.137	0.132
pg180_o2nofp.cx10b_c32r128	97.296	2.470	0.234	0.132
pg180_o2nofp.cx10c_c32r128	92.512	6.796	0.692	0.191
pg180_o2nofp.cx10d_c32r128	98.088	1.831	0.081	0.121
pg181_o2nofp.cx10b_c32r128	98.951	0.931	0.118	0.197
pg181_o2nofp.cx10d_c32r128	95.100	4.329	0.572	0.172

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	1ms	4ms	16ms	64ms	max
pg1222_o2nofp.cx10a_c32r128	45.352	54.632	0.014	0.002	0.016
pg1322_o2nofp.cx10a_c32r128	40.991	59.009			0.004
pg1323_o2nofp.cx10a_c32r128	44.428	55.572			0.004
pg1419_o2nofp.cx10a_c32r128	39.866	60.132	0.002		0.004
pg1420_o2nofp.cx10a_c32r128	46.174	53.826			0.004
pg1514_o2nofp.cx10a_c32r128	41.787	58.211	0.002		0.006
pg1515_o2nofp.cx10a_c32r128	46.725	53.273		0.002	0.024
pg1610_o2nofp.cx10a_c32r128	43.481	56.519			0.004
pg1611_o2nofp.cx10a_c32r128	46.775	53.199	0.016	0.009	0.023
pg176_o2nofp.cx10a_c32r128	40.403	59.593	0.005		0.016
pg177_o2nofp.cx10a_c32r128	45.067	54.931	0.002		0.009
pg180_o2nofp.cx10b_c32r128	39.808	60.139	0.053		0.011
pg180_o2nofp.cx10c_c32r128	38.431	61.551	0.007	0.012	0.022
pg180_o2nofp.cx10d_c32r128	38.780	61.220			0.004
pg181_o2nofp.cx10b_c32r128	43.669	56.292	0.023	0.016	0.023
pg181_o2nofp.cx10d_c32r128	41.708	58.266	0.019	0.007	0.021

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1193	140612	1458	11.8	334.0	18.3	0.010	0.086	0.280	15.738	540179	37.9	3.842	86	702.0	798.0	97.4	0.036	11646	11422	pg1222_o2nofp.cx10a_c32r128
1193	140305	1453	11.8	619.7	21.1	0.010	0.086	0.520	18.090	539036	38.0	3.842	87	701.3	797.4	97.3	0.024	11726	11502	pg1322_o2nofp.cx10a_c32r128
1193	141921	1450	11.9	627.9	21.1	0.010	0.086	0.526	18.111	545253	38.0	3.842	86	701.1	797.1	97.4	0.006	11951	11694	pg1323_o2nofp.cx10a_c32r128
1193	140271	1455	11.8	628.6	21.1	0.010	0.086	0.527	18.091	538681	38.0	3.840	87	701.5	797.5	97.2	0.005	11774	11583	pg1419_o2nofp.cx10a_c32r128
1192	142137	1456	11.8	625.3	21.1	0.010	0.085	0.525	18.091	546203	38.0	3.843	86	701.5	797.6	97.1	0.005	11934	11758	pg1420_o2nofp.cx10a_c32r128
1192	141556	1456	11.7	606.9	20.9	0.010	0.085	0.509	17.926	543764	38.0	3.841	86	701.5	797.5	97.2	0.061	11854	11630	pg1514_o2nofp.cx10a_c32r128
1192	140122	1458	11.8	608.0	20.9	0.010	0.087	0.510	17.947	538442	38.0	3.843	87	701.5	797.5	97.2	0.027	11791	11582	pg1515_o2nofp.cx10a_c32r128
1192	141533	1492	12.2	531.7	20.1	0.011	0.088	0.446	17.300	543757	37.9	3.842	86	701.5	797.5	97.2	0.022	11918	11711	pg1610_o2nofp.cx10a_c32r128
1193	140488	1491	12.1	436.8	19.2	0.011	0.088	0.366	16.512	539566	38.0	3.841	87	701.5	797.5	97.2	0.035	11838	11598	pg1611_o2nofp.cx10a_c32r128
1193	142565	1495	12.3	381.3	18.7	0.010	0.088	0.320	16.057	547320	38.0	3.839	85	701.5	797.0	97.2	0.028	11998	11742	pg176_o2nofp.cx10a_c32r128
1193	141252	1491	12.2	476.7	19.6	0.011	0.088	0.400	16.848	542418	38.0	3.840	86	701.5	797.5	97.2	0.036	11854	11534	pg177_o2nofp.cx10a_c32r128
1192	138567	1477	11.9	454.2	19.4	0.011	0.088	0.381	16.658	532495	37.9	3.843	88	701.5	797.5	97.1	0.096	11695	11519	pg180_o2nofp.cx10b_c32r128
1193	137424	1474	11.9	342.7	18.4	0.011	0.089	0.287	15.766	527805	37.9	3.841	88	701.5	797.5	97.2	0.120	11486	11230	pg180_o2nofp.cx10c_c32r128
1193	138890	1475	11.9	432.6	19.2	0.011	0.088	0.363	16.479	533416	38.0	3.841	88	701.5	797.5	97.2	0.033	11647	11406	pg180_o2nofp.cx10d_c32r128
1192	139408	1475	11.9	534.5	20.2	0.011	0.088	0.448	17.327	535668	37.9	3.842	87	701.5	797.5	97.2	0.128	11598	11310	pg181_o2nofp.cx10b_c32r128
1192	138173	1475	11.9	437.2	19.3	0.011	0.088	0.367	16.539	530974	37.9	3.843	88	701.5	797.5	97.2	0.142	11679	11326	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
1457.9	12045.7	0.000	0.000	0.133	8.234	334.0	18771.3	34.43	10.89	0.937	68.15	1.998	11.18	0.000	0.000	2.052	5.549	15.22	0.985	0.431	6.782		pg1222_o2nofp.cx10a_c32r128
1452.7	12086.8	0.000	0.000	0.110	8.287	619.7	21575.8	34.33	9.522	0.156	61.88	2.000	11.20	0.000	0.000	1.271	5.328	16.10	0.490	0.226	6.619		pg1322_o2nofp.cx10a_c32r128
1449.7	12166.5	0.000	0.000	0.118	8.378	627.9	21600.7	19.41	5.797	0.172	61.90	1.997	11.19	0.000	0.000	1.295	5.384	15.20	0.505	0.246	5.794		pg1323_o2nofp.cx10a_c32r128
1455.2	12041.3	0.000	0.000	0.115	8.247	628.6	21576.6	17.65	5.373	0.173	62.37	1.999	11.59	0.000	0.000	1.288	5.799	13.89	0.507	0.239	5.558		pg1419_o2nofp.cx10a_c32r128
1455.8	12050.5	0.000	0.000	0.121	8.260	625.3	21565.0	18.29	5.551	0.168	62.33	2.001	11.60	0.000	0.000	1.239	5.799	13.78	0.506	0.246	5.578		pg1420_o2nofp.cx10a_c32r128
1456.5	12016.0	0.000	0.000	0.114	8.226	606.9	21368.1	10.62	3.368	0.187	63.71	0.001	0.002	0.000	0.000	0.003	0.011	13.05	0.522	0.268	5.480		pg1514_o2nofp.cx10a_c32r128
1458.0	12127.2	0.000	0.000	0.122	8.303	608.0	21392.3	18.49	5.559	0.168	63.15	0.001	0.002	0.000	0.000	0.003	0.011	14.88	0.505	0.242	5.719		pg1515_o2nofp.cx10a_c32r128
1491.6	12492.7	0.000	0.000	0.115	8.308	531.7	20621.4	11.75	3.825	0.191	64.77	0.001	0.002	0.000	0.000	0.003	0.011	14.60	0.528	0.235	5.546		pg1610_o2nofp.cx10a_c32r128
1491.2	12409.6	0.000	0.000	0.135	8.276	436.8	19693.8	11.38	3.864	1.043	67.27	0.001	0.004	0.000	0.000	0.006	0.022	13.70	1.002	0.476	6.516		pg1611_o2nofp.cx10a_c32r128
1495.4	12580.8	0.000	0.000	0.125	8.355	381.3	19151.4	10.28	3.632	0.613	68.31	0.001	0.002	0.000	0.000	0.003	0.011	12.97	0.761	0.359	5.881		pg176_o2nofp.cx10a_c32r128
1490.9	12453.9	0.000	0.000	0.121	8.292	476.7	20094.1	9.981	3.406	0.286	66.29	0.001	0.002	0.000	0.000	0.003	0.011	13.26	0.636	0.457	6.047		pg177_o2nofp.cx10a_c32r128
1477.1	12227.2	0.000	0.000	0.121	8.277	454.2	19856.8	8.338	2.851	0.603	66.71	0.001	0.002	0.000	0.000	0.003	0.011	15.02	0.790	0.550	7.015		pg180_o2nofp.cx10b_c32r128
1473.5	12177.6	0.000	0.000	0.153	8.264	342.7	18804.4	19.12	6.497	1.758	69.36	0.001	0.002	0.000	0.000	0.003	0.011	12.82	1.451	0.649	6.798		pg180_o2nofp.cx10c_c32r128
1475.2	12203.8	0.000	0.000	0.121	8.272	432.6	19654.3	9.266	3.188	0.457	67.13	0.001	0.002	0.000	0.000	0.003	0.011	13.74	0.697	0.316	5.625		pg180_o2nofp.cx10d_c32r128
1475.2	12198.6	0.000	0.000	0.120	8.268	534.5	20654.3	9.111	3.034	0.448	65.36	0.001	0.002	0.000	0.000	0.003	0.011	14.02	0.652	0.294	5.821		pg181_o2nofp.cx10b_c32r128
1475.0	12185.3	0.000	0.000	0.136	8.259	437.2	19714.1	12.98	4.394	1.115	67.15	0.001	0.002	0.000	0.000	0.003	0.011	13.61	1.087	0.487	6.414		pg181_o2nofp.cx10d_c32r128

qp100.L2

qp100.L2: point queries with 100 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	max
pg1222_o2nofp.cx10a_c32r128		1.295	97.251	1.437	0.016	nonzero				0.103
pg1322_o2nofp.cx10a_c32r128		1.332	97.400	1.267	0.001					0.039
pg1323_o2nofp.cx10a_c32r128		1.323	97.328	1.343	0.005	nonzero	nonzero			0.678
pg1419_o2nofp.cx10a_c32r128		1.358	97.568	1.067	0.006	0.001	nonzero			0.787
pg1420_o2nofp.cx10a_c32r128		1.333	97.532	1.134	0.001					0.057
pg1514_o2nofp.cx10a_c32r128	nonzero	1.364	98.414	0.222	0.001					0.031
pg1515_o2nofp.cx10a_c32r128		1.332	98.485	0.182	0.001					0.030
pg1610_o2nofp.cx10a_c32r128		1.318	98.484	0.196	0.002	nonzero				0.218
pg1611_o2nofp.cx10a_c32r128		1.352	98.433	0.215	nonzero					0.018
pg176_o2nofp.cx10a_c32r128		1.308	98.475	0.217	nonzero					0.022
pg177_o2nofp.cx10a_c32r128	nonzero	1.332	98.500	0.168	nonzero					0.024
pg180_o2nofp.cx10b_c32r128	nonzero	1.120	97.908	0.870	0.097	0.004	nonzero	nonzero	nonzero	9.656
pg180_o2nofp.cx10c_c32r128		1.229	98.540	0.230	0.001					0.029
pg180_o2nofp.cx10d_c32r128	nonzero	1.184	97.684	1.132	nonzero					0.029
pg181_o2nofp.cx10b_c32r128	nonzero	1.238	98.607	0.155	nonzero					0.025
pg181_o2nofp.cx10d_c32r128	nonzero	1.214	98.588	0.198	0.001					0.029

dbms	16ms	64ms	256ms	1s	4s	16s	max
pg1222_o2nofp.cx10a_c32r128	18.266	80.944	0.789				0.137
pg1322_o2nofp.cx10a_c32r128	5.120	94.877	0.002				0.065
pg1323_o2nofp.cx10a_c32r128	16.412	83.431	0.150	0.007			0.737
pg1419_o2nofp.cx10a_c32r128	17.458	82.051	0.248	0.213	0.030		1.579
pg1420_o2nofp.cx10a_c32r128	10.861	88.831	0.308				0.091
pg1514_o2nofp.cx10a_c32r128	10.035	89.896	0.069				0.088
pg1515_o2nofp.cx10a_c32r128	18.498	81.431	0.072				0.071
pg1610_o2nofp.cx10a_c32r128	28.340	71.593	0.039	0.028			0.288
pg1611_o2nofp.cx10a_c32r128	15.130	84.831	0.039				0.067
pg176_o2nofp.cx10a_c32r128	14.634	85.322	0.044				0.069
pg177_o2nofp.cx10a_c32r128	30.093	69.875	0.032				0.069
pg180_o2nofp.cx10b_c32r128	39.208	57.523	3.169	0.046	0.037	0.016	9.674
pg180_o2nofp.cx10c_c32r128	12.782	87.127	0.090				0.075
pg180_o2nofp.cx10d_c32r128	19.500	80.380	0.120				0.086
pg181_o2nofp.cx10b_c32r128	28.456	71.521	0.023				0.068
pg181_o2nofp.cx10d_c32r128	12.023	87.903	0.074				0.091

dbms	4ms	16ms	64ms	256ms	1s	4s	max
pg1222_o2nofp.cx10a_c32r128	98.833	1.150	0.016				0.022
pg1322_o2nofp.cx10a_c32r128	96.366	3.632	0.002				0.017
pg1323_o2nofp.cx10a_c32r128	99.275	0.720	0.005				0.018
pg1419_o2nofp.cx10a_c32r128	96.046	3.815	0.028	0.028	0.079	0.005	1.002
pg1420_o2nofp.cx10a_c32r128	99.120	0.880					0.015
pg1514_o2nofp.cx10a_c32r128	95.037	4.963					0.016
pg1515_o2nofp.cx10a_c32r128	98.926	1.074					0.015
pg1610_o2nofp.cx10a_c32r128	96.861	3.137	0.002				0.017
pg1611_o2nofp.cx10a_c32r128	97.900	2.100					0.015
pg176_o2nofp.cx10a_c32r128	93.583	6.417					0.015
pg177_o2nofp.cx10a_c32r128	98.958	1.042					0.014
pg180_o2nofp.cx10b_c32r128	94.787	4.965	0.190	0.012	0.009	0.037	2.903
pg180_o2nofp.cx10c_c32r128	93.669	6.329	0.002				0.020
pg180_o2nofp.cx10d_c32r128	93.838	6.162					0.016
pg181_o2nofp.cx10b_c32r128	99.100	0.898	0.002				0.019
pg181_o2nofp.cx10d_c32r128	98.169	1.831					0.015

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1192	6795	89510	702.8	4515.9	51.0	13.173	105.906	3.789	43.848	198485	11.3	29.211	532	702.1	798.2	97.4	0.103	608	272	pg1222_o2nofp.cx10a_c32r128
1192	6878	90562	711.3	4212.9	48.7	13.167	105.906	3.534	41.828	200825	11.5	29.199	535	701.5	797.5	97.3	0.039	608	400	pg1322_o2nofp.cx10a_c32r128
1193	6845	90019	706.6	4201.6	48.5	13.151	105.704	3.523	41.640	199771	11.4	29.184	533	701.2	797.2	97.4	0.678	592	400	pg1323_o2nofp.cx10a_c32r128
1193	6907	90867	713.8	4184.0	48.4	13.155	105.812	3.508	41.537	201199	11.4	29.128	528	701.5	797.6	97.2	0.787	608	384	pg1419_o2nofp.cx10a_c32r128
1192	6888	90721	712.5	4199.1	48.4	13.170	105.921	3.523	41.614	201023	11.5	29.182	534	701.6	797.6	97.1	0.057	608	384	pg1420_o2nofp.cx10a_c32r128
1192	7062	92861	729.5	4207.4	48.5	13.149	105.778	3.530	41.646	205475	11.7	29.094	530	701.5	797.6	97.2	0.031	608	400	pg1514_o2nofp.cx10a_c32r128
1192	7050	92706	727.9	4213.4	48.6	13.149	105.720	3.535	41.716	205279	11.7	29.116	531	701.6	797.6	97.2	0.030	608	400	pg1515_o2nofp.cx10a_c32r128
1192	7051	92702	728.3	4291.7	49.1	13.148	105.773	3.600	42.211	204972	11.5	29.072	522	701.5	797.6	97.2	0.218	608	400	pg1610_o2nofp.cx10a_c32r128
1193	7067	92822	728.8	4387.4	49.9	13.134	105.603	3.679	42.834	205367	11.6	29.060	525	701.5	797.6	97.2	0.018	608	414	pg1611_o2nofp.cx10a_c32r128
1193	7043	92541	726.9	4449.3	50.4	13.140	105.691	3.730	43.236	204561	11.6	29.045	527	701.5	793.2	97.2	0.022	608	416	pg176_o2nofp.cx10a_c32r128
1193	7072	92901	729.5	4344.3	49.5	13.136	105.625	3.642	42.539	205470	11.6	29.053	525	701.5	797.6	97.2	0.024	608	415	pg177_o2nofp.cx10a_c32r128
1191	6676	87921	691.7	4371.3	49.7	13.171	106.098	3.671	42.750	195371	12.0	29.267	575	701.5	793.7	79.0	9.656	592	80	pg180_o2nofp.cx10b_c32r128
1193	6998	91920	722.0	4491.4	50.7	13.135	105.643	3.766	43.537	203317	11.6	29.054	530	701.5	797.6	97.2	0.029	592	400	pg180_o2nofp.cx10c_c32r128
1193	6842	90031	707.3	4395.5	49.9	13.159	105.869	3.685	42.868	199131	11.6	29.106	543	701.5	797.6	97.2	0.029	592	400	pg180_o2nofp.cx10d_c32r128
1192	7024	92321	725.0	4286.1	49.1	13.144	105.696	3.596	42.159	204214	11.6	29.075	529	701.5	797.6	97.2	0.025	608	400	pg181_o2nofp.cx10b_c32r128
1192	7001	92047	722.7	4392.5	49.9	13.149	105.717	3.685	42.892	203607	11.6	29.084	530	701.5	797.6	97.2	0.029	608	400	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
89510.4	719617	0.000	0.000	0.106	8.040	4515.9	52267.3	53.31	1.670	0.163	13.44	2.006	11.55	0.000	0.000	1.821	5.996	18.10	1.228	10.05	99.97		pg1222_o2nofp.cx10a_c32r128
90562.3	728399	0.000	0.000	0.104	8.042	4212.9	49859.1	53.59	1.701	0.070	13.49	2.006	11.50	0.000	0.000	1.825	5.664	17.77	1.286	9.670	99.97		pg1322_o2nofp.cx10a_c32r128
90018.8	723566	0.000	0.000	0.103	8.038	4201.6	49663.9	32.65	1.057	0.101	13.46	2.008	11.50	0.000	0.000	1.848	5.657	16.89	1.283	9.908	99.97		pg1323_o2nofp.cx10a_c32r128
90866.9	730888	0.000	0.000	0.102	8.042	4184.0	49540.6	27.92	0.892	0.176	13.44	2.007	11.90	0.000	0.000	1.762	5.862	16.01	1.175	12.30	99.97		pg1419_o2nofp.cx10a_c32r128
90721.1	729635	0.000	0.000	0.104	8.042	4199.1	49604.4	28.40	0.908	0.056	13.46	2.006	11.89	0.000	0.000	1.676	5.867	18.08	1.132	9.412	99.97		pg1420_o2nofp.cx10a_c32r128
92860.9	747049	0.000	0.000	0.100	8.044	4207.4	49642.0	20.06	0.648	0.122	13.46	0.008	0.301	0.000	0.000	0.011	0.145	18.16	0.653	9.342	99.97		pg1514_o2nofp.cx10a_c32r128
92706.0	745378	0.000	0.000	0.100	8.041	4213.4	49725.8	28.65	0.919	0.035	13.47	0.005	0.298	0.000	0.000	0.006	0.196	18.26	0.640	9.176	99.97		pg1515_o2nofp.cx10a_c32r128
92701.5	745767	0.000	0.000	0.100	8.044	4291.7	50315.2	20.62	0.641	0.072	13.43	0.007	0.309	0.000	0.000	0.014	0.161	18.32	0.635	9.211	99.97		pg1610_o2nofp.cx10a_c32r128
92821.9	746307	0.000	0.000	0.100	8.040	4387.4	51088.3	21.04	0.661	0.031	13.42	0.009	0.325	0.000	0.000	0.017	0.136	18.35	0.658	9.172	99.97		pg1611_o2nofp.cx10a_c32r128
92541.1	744363	0.000	0.000	0.100	8.043	4449.3	51567.6	19.50	0.597	0.041	13.39	0.152	2245.2	0.000	0.000	0.015	81.57	18.56	0.645	9.169	99.97		pg176_o2nofp.cx10a_c32r128
92900.8	747014	0.000	0.000	0.100	8.041	4344.3	50736.6	18.34	0.556	0.032	13.42	0.004	0.294	0.000	0.000	0.009	0.254	18.09	0.625	9.118	99.97		pg177_o2nofp.cx10a_c32r128
87921.1	708254	0.314	0.001	0.112	8.056	4371.3	50902.4	18.52	0.607	0.471	13.56	0.153	2230.0	0.000	0.000	0.006	40.41	17.83	1.314	9.950	99.25		pg180_o2nofp.cx10b_c32r128
91920.3	739291	0.000	0.000	0.100	8.042	4491.4	51926.1	30.87	0.982	0.037	13.38	0.004	0.307	0.000	0.000	0.009	0.265	18.62	0.655	9.090	99.96		pg180_o2nofp.cx10c_c32r128
90030.7	724315	0.000	0.000	0.102	8.045	4395.5	51129.2	18.09	0.543	0.058	13.40	0.005	0.301	0.000	0.000	0.022	0.234	17.93	1.223	9.320	99.97		pg180_o2nofp.cx10d_c32r128
92320.8	742365	0.000	0.000	0.099	8.041	4286.1	50253.2	17.48	0.534	0.030	13.41	0.003	0.285	0.000	0.000	0.009	0.365	17.95	0.621	9.029	99.97		pg181_o2nofp.cx10b_c32r128
92047.4	740082	0.000	0.000	0.100	8.041	4392.5	51126.8	22.81	0.733	0.028	13.40	0.003	0.298	0.000	0.000	0.014	0.381	18.48	0.642	9.061	99.97		pg181_o2nofp.cx10d_c32r128

qr500.L3

qr500.L3: range queries with 500 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	max
pg1222_o2nofp.cx10a_c32r128	99.956	0.037	0.003	0.001	0.002	0.001	nonzero	nonzero	1.088
pg1322_o2nofp.cx10a_c32r128	99.934	0.054	0.008	0.001	0.002	0.001	nonzero		0.740
pg1323_o2nofp.cx10a_c32r128	99.941	0.048	0.007	0.001	0.002	0.001	nonzero	nonzero	1.118
pg1419_o2nofp.cx10a_c32r128	99.948	0.044	0.005	0.001	0.002	0.001	nonzero		0.398
pg1420_o2nofp.cx10a_c32r128	99.959	0.036	0.002	0.001	0.001	0.001	nonzero	nonzero	2.183
pg1514_o2nofp.cx10a_c32r128	99.946	0.044	0.006	0.001	0.002	0.001	nonzero		0.336
pg1515_o2nofp.cx10a_c32r128	99.951	0.042	0.004	0.001	0.002	0.001	nonzero		0.560
pg1610_o2nofp.cx10a_c32r128	99.950	0.043	0.003	0.001	0.002	0.002	nonzero		0.344
pg1611_o2nofp.cx10a_c32r128	99.940	0.047	0.009	0.001	0.002	0.001	nonzero		0.381
pg176_o2nofp.cx10a_c32r128	99.940	0.049	0.006	0.001	0.002	0.002	nonzero		0.260
pg177_o2nofp.cx10a_c32r128	99.943	0.046	0.006	0.001	0.002	0.002	nonzero		0.323
pg180_o2nofp.cx10b_c32r128	99.940	0.049	0.007	0.001	0.002	0.002	nonzero		0.317
pg180_o2nofp.cx10c_c32r128	99.941	0.048	0.006	0.001	0.002	0.002	nonzero		0.313
pg180_o2nofp.cx10d_c32r128	99.945	0.045	0.005	0.001	0.002	0.002	nonzero		0.264
pg181_o2nofp.cx10b_c32r128	99.941	0.048	0.005	0.001	0.002	0.002	nonzero		0.281
pg181_o2nofp.cx10d_c32r128	99.945	0.046	0.004	0.001	0.002	0.001	nonzero		0.310

dbms	16ms	64ms	256ms	1s	4s	max
pg1222_o2nofp.cx10a_c32r128	74.318	18.548	6.882	0.249	0.004	1.155
pg1322_o2nofp.cx10a_c32r128	72.852	20.756	6.145	0.247		0.863
pg1323_o2nofp.cx10a_c32r128	74.069	19.156	6.567	0.205	0.003	1.147
pg1419_o2nofp.cx10a_c32r128	71.814	22.212	5.571	0.403		0.424
pg1420_o2nofp.cx10a_c32r128	73.626	21.232	4.722	0.413	0.006	2.217
pg1514_o2nofp.cx10a_c32r128	71.022	21.435	7.133	0.410		0.469
pg1515_o2nofp.cx10a_c32r128	70.983	22.984	5.568	0.465		0.584
pg1610_o2nofp.cx10a_c32r128	68.816	20.147	10.598	0.439		0.445
pg1611_o2nofp.cx10a_c32r128	68.143	21.090	10.435	0.332		0.417
pg176_o2nofp.cx10a_c32r128	67.679	22.254	9.705	0.362		0.353
pg177_o2nofp.cx10a_c32r128	69.817	18.753	11.007	0.423		0.396
pg180_o2nofp.cx10b_c32r128	67.880	23.269	8.468	0.384		0.381
pg180_o2nofp.cx10c_c32r128	69.982	19.552	10.036	0.430		0.555
pg180_o2nofp.cx10d_c32r128	71.287	19.130	9.287	0.297		0.366
pg181_o2nofp.cx10b_c32r128	68.529	19.959	11.087	0.425		0.393
pg181_o2nofp.cx10d_c32r128	69.609	19.558	10.471	0.362		0.477

dbms	4ms	16ms	64ms	256ms	1s	4s	max
pg1222_o2nofp.cx10a_c32r128	53.311	45.031	0.688	0.951	0.019	nonzero	1.021
pg1322_o2nofp.cx10a_c32r128	38.150	60.223	0.721	0.893	0.013		0.789
pg1323_o2nofp.cx10a_c32r128	40.536	57.716	0.776	0.966	0.004	0.003	1.127
pg1419_o2nofp.cx10a_c32r128	32.920	65.601	0.573	0.899	0.007		0.297
pg1420_o2nofp.cx10a_c32r128	40.584	58.005	0.536	0.848	0.022	0.005	2.190
pg1514_o2nofp.cx10a_c32r128	34.384	63.997	0.627	0.970	0.021		0.348
pg1515_o2nofp.cx10a_c32r128	36.372	62.140	0.600	0.874	0.014		0.565
pg1610_o2nofp.cx10a_c32r128	30.179	67.969	0.763	1.072	0.017		0.350
pg1611_o2nofp.cx10a_c32r128	31.623	66.932	0.587	0.850	0.008		0.394
pg176_o2nofp.cx10a_c32r128	22.697	75.295	0.821	1.179	0.008		0.302
pg177_o2nofp.cx10a_c32r128	33.381	64.704	0.825	1.069	0.021		0.326
pg180_o2nofp.cx10b_c32r128	21.021	77.129	0.736	1.111	0.003		0.320
pg180_o2nofp.cx10c_c32r128	30.100	67.984	0.815	1.091	0.009		0.320
pg180_o2nofp.cx10d_c32r128	27.156	71.153	0.716	0.968	0.007		0.274
pg181_o2nofp.cx10b_c32r128	31.900	66.184	0.805	1.106	0.005		0.304
pg181_o2nofp.cx10d_c32r128	31.252	67.197	0.664	0.881	0.006		0.322

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
5940	128116	8555	68.5	7528.1	137.9	0.067	0.547	1.267	23.763	508054	40.7	3.966	102	703.1	799.2	97.4	1.088	11102	6207	pg1222_o2nofp.cx10a_c32r128
5940	126343	8549	68.6	7382.9	136.1	0.068	0.556	1.243	23.467	500742	40.9	3.963	104	702.3	798.4	97.3	0.740	10927	5007	pg1322_o2nofp.cx10a_c32r128
5950	127531	8545	68.7	7367.8	135.7	0.067	0.552	1.238	23.357	504741	40.9	3.958	103	701.8	797.8	97.4	1.118	11022	5919	pg1323_o2nofp.cx10a_c32r128
5944	126999	8564	69.0	7368.1	135.5	0.067	0.557	1.240	23.347	502569	41.0	3.957	103	701.9	798.0	97.2	0.398	10927	5231	pg1419_o2nofp.cx10a_c32r128
5944	128896	8560	69.0	7368.5	135.5	0.066	0.548	1.240	23.350	510267	40.9	3.959	102	702.0	798.0	97.1	2.183	11134	5039	pg1420_o2nofp.cx10a_c32r128
5937	127253	8560	69.0	7373.9	135.6	0.067	0.556	1.242	23.385	504270	40.7	3.963	102	701.9	797.9	97.2	0.336	11022	4399	pg1514_o2nofp.cx10a_c32r128
5937	126156	8559	69.0	7379.0	135.6	0.068	0.560	1.243	23.392	499879	40.8	3.962	103	701.9	797.9	97.2	0.560	10894	5375	pg1515_o2nofp.cx10a_c32r128
5934	126692	8540	68.9	7401.4	135.8	0.067	0.557	1.247	23.435	500504	40.9	3.951	103	701.9	797.9	97.2	0.344	10879	4528	pg1610_o2nofp.cx10a_c32r128
5950	126844	8564	69.1	7470.6	136.7	0.068	0.558	1.255	23.532	501496	40.8	3.954	103	701.8	797.9	97.2	0.381	11007	5695	pg1611_o2nofp.cx10a_c32r128
5947	126199	8560	69.0	7528.1	141.3	0.068	0.560	1.266	24.327	498610	41.0	3.951	104	701.9	797.9	97.2	0.260	10991	5071	pg176_o2nofp.cx10a_c32r128
5947	126363	8563	69.1	7454.1	136.5	0.068	0.560	1.253	23.505	499929	40.7	3.956	103	701.8	797.9	97.2	0.323	10974	4959	pg177_o2nofp.cx10a_c32r128
5947	123088	8558	69.1	7485.1	140.5	0.070	0.575	1.259	24.197	486928	41.1	3.956	107	701.8	797.9	79.1	0.317	10639	3967	pg180_o2nofp.cx10b_c32r128
5937	123078	8539	68.9	7491.1	136.9	0.069	0.573	1.262	23.611	486643	40.9	3.954	106	701.8	797.9	97.2	0.313	10766	5903	pg180_o2nofp.cx10c_c32r128
5950	125002	8559	69.1	7469.7	136.7	0.068	0.566	1.255	23.521	494432	40.9	3.955	105	701.8	797.9	97.2	0.264	10783	5743	pg180_o2nofp.cx10d_c32r128
5944	124342	8561	69.1	7418.4	136.2	0.069	0.569	1.248	23.464	492199	40.9	3.958	105	701.8	797.9	97.2	0.281	10815	5999	pg181_o2nofp.cx10b_c32r128
5944	124279	8561	69.0	7469.1	136.7	0.069	0.569	1.257	23.556	492175	40.9	3.960	105	701.9	797.9	97.2	0.310	10687	5727	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
8555.4	70140.6	0.000	0.000	0.166	8.190	7528.1	141163	83.24	1.977	3.143	35.76	2.011	11.76	0.000	0.000	6.091	6.043	62.92	2.105	21.05	48.69		pg1222_o2nofp.cx10a_c32r128
8549.4	70254.2	0.000	0.000	0.177	8.212	7382.9	139408	83.08	2.268	2.721	35.65	2.019	65.85	0.000	0.000	5.581	15.02	63.67	1.833	19.89	45.61		pg1322_o2nofp.cx10a_c32r128
8544.8	70362.2	0.000	0.000	0.164	8.229	7367.8	138985	49.45	1.387	2.878	35.43	2.015	29.72	0.000	0.000	5.643	9.617	62.54	1.917	20.03	45.19		pg1323_o2nofp.cx10a_c32r128
8564.3	70697.1	0.000	0.000	0.165	8.249	7368.1	138771	40.57	1.149	2.665	35.78	2.014	12.05	0.000	0.000	5.516	5.884	63.51	1.891	19.51	47.48		pg1419_o2nofp.cx10a_c32r128
8560.2	70643.0	0.001	0.000	0.162	8.245	7368.5	138789	41.16	1.156	2.443	35.82	2.012	12.04	0.000	0.000	5.222	5.891	64.15	1.788	19.05	46.77		pg1420_o2nofp.cx10a_c32r128
8560.2	70705.0	0.000	0.000	0.175	8.253	7373.9	138842	33.75	0.952	3.478	35.78	0.013	0.458	0.000	0.000	0.029	0.327	61.49	2.393	22.96	49.68		pg1514_o2nofp.cx10a_c32r128
8558.8	70647.9	0.000	0.000	0.163	8.248	7379.0	138886	43.06	1.166	2.678	35.87	0.014	0.456	0.000	0.000	0.040	0.385	63.20	1.968	20.70	48.64		pg1515_o2nofp.cx10a_c32r128
8539.6	70528.6	0.000	0.000	0.194	8.251	7401.4	139064	35.38	0.920	4.309	36.14	0.013	0.490	0.000	0.000	0.030	0.408	58.84	2.872	23.24	49.34		pg1610_o2nofp.cx10a_c32r128
8564.2	70739.8	0.000	0.000	0.192	8.255	7470.6	140022	35.62	0.927	4.264	35.70	0.014	9.532	0.000	0.000	0.072	5.323	59.07	2.800	23.54	52.43		pg1611_o2nofp.cx10a_c32r128
8560.4	70694.5	0.000	0.000	0.192	8.252	7528.1	144673	42.33	1.003	4.192	36.51	0.125	1814.6	0.000	0.000	0.017	41.14	58.12	2.767	22.83	50.15		pg176_o2nofp.cx10a_c32r128
8563.3	70721.3	0.000	0.000	0.192	8.252	7454.1	139784	32.42	0.855	4.327	35.82	0.003	0.167	0.000	0.000	0.076	0.430	58.85	2.894	22.89	51.25		pg177_o2nofp.cx10a_c32r128
8558.5	70769.0	0.016	0.000	0.179	8.267	7485.1	143900	41.03	0.975	3.614	36.08	0.127	1859.7	0.000	0.000	0.029	63.82	60.72	2.494	22.15	49.82		pg180_o2nofp.cx10b_c32r128
8539.1	70556.1	0.000	0.000	0.192	8.257	7491.1	140187	54.46	1.273	4.050	35.73	0.003	0.198	0.000	0.000	0.021	0.505	59.97	2.743	22.29	51.30		pg180_o2nofp.cx10c_c32r128
8559.1	70728.1	0.000	0.000	0.181	8.258	7469.7	139961	31.87	0.821	3.897	35.89	0.003	0.181	0.000	0.000	0.019	0.463	60.34	2.643	20.04	51.64		pg180_o2nofp.cx10d_c32r128
8561.3	70721.6	0.000	0.000	0.194	8.254	7418.4	139465	31.61	0.795	4.309	36.07	0.011	117.5	0.000	0.000	0.018	51.37	58.53	2.834	23.52	48.94		pg181_o2nofp.cx10b_c32r128
8560.7	70654.4	0.000	0.000	0.189	8.247	7469.1	140010	35.61	0.977	4.348	35.82	0.003	0.176	0.000	0.000	0.062	0.452	58.79	2.770	22.15	51.17		pg181_o2nofp.cx10d_c32r128

qp500.L4

qp500.L4: point queries with 500 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	1ms	4ms	16ms	64ms	256ms	1s	4s	max
pg1222_o2nofp.cx10a_c32r128	0.324	82.781	16.510	0.384	0.001			0.194
pg1322_o2nofp.cx10a_c32r128	0.337	83.742	15.665	0.253	0.004	0.001		0.856
pg1323_o2nofp.cx10a_c32r128	0.343	83.739	15.710	0.206	0.002	nonzero	nonzero	1.350
pg1419_o2nofp.cx10a_c32r128	0.337	83.813	15.583	0.264	0.003	nonzero	nonzero	1.119
pg1420_o2nofp.cx10a_c32r128	0.327	83.270	16.104	0.296	0.003			0.225
pg1514_o2nofp.cx10a_c32r128	0.349	83.823	15.615	0.212	0.002			0.246
pg1515_o2nofp.cx10a_c32r128	0.320	84.301	14.919	0.456	0.004	nonzero	nonzero	1.435
pg1610_o2nofp.cx10a_c32r128	0.339	85.113	14.257	0.290	0.001	nonzero		0.678
pg1611_o2nofp.cx10a_c32r128	0.355	86.638	12.702	0.304	0.001	nonzero	nonzero	1.212
pg176_o2nofp.cx10a_c32r128	0.342	86.494	12.872	0.292	0.001			0.132
pg177_o2nofp.cx10a_c32r128	0.351	84.464	14.827	0.351	0.006	0.001	nonzero	1.282
pg180_o2nofp.cx10b_c32r128	0.259	83.956	15.370	0.407	0.007	0.001	nonzero	1.149
pg180_o2nofp.cx10c_c32r128	0.296	84.286	14.950	0.468	nonzero	nonzero		0.616
pg180_o2nofp.cx10d_c32r128	0.277	84.999	14.195	0.527	0.002			0.171
pg181_o2nofp.cx10b_c32r128	0.329	84.772	14.534	0.363	0.001			0.179
pg181_o2nofp.cx10d_c32r128	0.286	84.728	14.499	0.484	0.002	nonzero		0.673

dbms	16ms	64ms	256ms	1s	4s	max
pg1222_o2nofp.cx10a_c32r128	2.915	91.799	5.285	0.001		0.278
pg1322_o2nofp.cx10a_c32r128	5.735	91.311	2.917	0.037	nonzero	1.111
pg1323_o2nofp.cx10a_c32r128	4.268	93.226	2.487	0.010	0.009	1.388
pg1419_o2nofp.cx10a_c32r128	11.219	86.362	2.385	0.030	0.005	1.176
pg1420_o2nofp.cx10a_c32r128	6.487	90.770	2.688	0.054		0.403
pg1514_o2nofp.cx10a_c32r128	3.475	94.563	1.952	0.011		0.367
pg1515_o2nofp.cx10a_c32r128	18.400	77.614	3.901	0.081	0.004	1.474
pg1610_o2nofp.cx10a_c32r128	11.127	86.174	2.685	0.014		0.795
pg1611_o2nofp.cx10a_c32r128	15.743	81.698	2.536	0.018	0.006	1.240
pg176_o2nofp.cx10a_c32r128	17.164	80.379	2.456	0.001		0.260
pg177_o2nofp.cx10a_c32r128	7.823	88.807	3.290	0.065	0.015	1.324
pg180_o2nofp.cx10b_c32r128	31.472	65.319	3.116	0.083	0.010	1.171
pg180_o2nofp.cx10c_c32r128	19.163	77.256	3.571	0.008	0.001	1.230
pg180_o2nofp.cx10d_c32r128	35.066	61.108	3.788	0.038		0.382
pg181_o2nofp.cx10b_c32r128	5.956	90.708	3.336			0.238
pg181_o2nofp.cx10d_c32r128	20.348	75.726	3.892	0.034		0.699

dbms	16ms	64ms	256ms	1s	4s	max
pg1222_o2nofp.cx10a_c32r128	65.571	34.415	0.014			0.136
pg1322_o2nofp.cx10a_c32r128	73.445	26.495	0.048	0.012		0.877
pg1323_o2nofp.cx10a_c32r128	55.760	44.186	0.037	0.011	0.006	1.363
pg1419_o2nofp.cx10a_c32r128	61.719	38.250	0.020	0.011		0.947
pg1420_o2nofp.cx10a_c32r128	57.357	42.605	0.038			0.128
pg1514_o2nofp.cx10a_c32r128	51.523	48.457	0.019			0.185
pg1515_o2nofp.cx10a_c32r128	86.825	12.978	0.192	0.006		0.811
pg1610_o2nofp.cx10a_c32r128	60.756	39.198	0.041	0.006		0.762
pg1611_o2nofp.cx10a_c32r128	67.247	32.703	0.039	0.006	0.006	1.232
pg176_o2nofp.cx10a_c32r128	51.749	48.223	0.029			0.136
pg177_o2nofp.cx10a_c32r128	37.432	62.319	0.227	0.022		0.956
pg180_o2nofp.cx10b_c32r128	79.518	20.135	0.288	0.052	0.008	1.166
pg180_o2nofp.cx10c_c32r128	68.528	31.450	0.016	0.006		0.657
pg180_o2nofp.cx10d_c32r128	81.467	18.516	0.017			0.178
pg181_o2nofp.cx10b_c32r128	45.935	54.029	0.036			0.086
pg181_o2nofp.cx10d_c32r128	74.824	25.106	0.058	0.012		0.686

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
5960	4367	70858	555.6	13986.0	185.6	16.225	130.281	2.347	31.894	156066	16.2	35.735	1187	704.1	800.1	97.4	0.194	384	80	pg1222_o2nofp.cx10a_c32r128
5957	4511	72696	570.2	14155.5	186.9	16.116	129.441	2.376	32.132	160193	16.0	35.514	1135	703.2	799.3	97.3	0.856	384	96	pg1322_o2nofp.cx10a_c32r128
5964	4542	73008	572.6	14163.2	186.4	16.073	129.082	2.375	32.005	161021	16.8	35.449	1184	702.5	798.6	97.4	1.350	384	112	pg1323_o2nofp.cx10a_c32r128
5957	4547	73142	574.0	14147.0	186.0	16.086	129.258	2.375	31.967	160690	16.4	35.340	1154	702.4	798.5	97.2	1.119	384	48	pg1419_o2nofp.cx10a_c32r128
5934	4488	72289	567.4	14106.4	185.2	16.108	129.459	2.377	31.953	158923	16.6	35.412	1184	702.4	798.5	97.1	0.225	384	48	pg1420_o2nofp.cx10a_c32r128
5957	4572	73504	576.9	14130.5	185.9	16.076	129.207	2.372	31.957	161349	17.0	35.289	1190	702.3	798.4	97.2	0.246	384	80	pg1514_o2nofp.cx10a_c32r128
5921	4542	72922	572.3	14133.2	185.2	16.055	129.020	2.387	32.035	160654	15.3	35.372	1078	702.3	798.3	97.2	1.435	384	48	pg1515_o2nofp.cx10a_c32r128
5944	4654	74549	585.0	14106.4	185.3	16.017	128.697	2.373	31.919	163234	16.7	35.072	1148	702.5	798.5	97.2	0.678	384	64	pg1610_o2nofp.cx10a_c32r128
5940	4783	76225	598.0	14136.2	185.4	15.938	128.034	2.380	31.966	167093	16.6	34.938	1111	702.4	798.5	97.2	1.212	400	48	pg1611_o2nofp.cx10a_c32r128
5944	4786	76256	598.4	14100.0	185.1	15.932	128.022	2.372	31.889	166624	17.1	34.812	1143	702.4	798.4	97.2	0.132	400	48	pg176_o2nofp.cx10a_c32r128
5931	4601	73805	579.2	14038.1	184.4	16.042	128.913	2.367	31.833	161293	17.3	35.058	1203	702.2	798.2	97.3	1.282	400	48	pg177_o2nofp.cx10a_c32r128
5937	4520	72530	569.8	14057.4	184.4	16.046	129.093	2.368	31.799	158690	15.9	35.108	1126	702.1	798.2	95.6	1.149	384	48	pg180_o2nofp.cx10b_c32r128
5940	4570	73460	576.5	14029.5	184.9	16.074	129.182	2.362	31.876	160653	16.2	35.153	1134	702.3	798.3	97.2	0.616	384	48	pg180_o2nofp.cx10c_c32r128
5918	4606	73795	579.1	14075.4	184.4	16.023	128.762	2.378	31.906	161458	15.7	35.057	1091	702.3	798.4	97.2	0.171	384	48	pg180_o2nofp.cx10d_c32r128
5937	4603	73935	580.2	14091.7	184.9	16.062	129.073	2.373	31.895	161574	17.3	35.100	1203	702.2	798.2	97.2	0.179	400	48	pg181_o2nofp.cx10b_c32r128
5934	4588	73625	577.5	14105.2	185.0	16.048	128.912	2.377	31.928	161055	16.0	35.106	1116	702.6	798.7	97.2	0.673	384	48	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
70857.9	568978	0.000	0.000	0.210	8.031	13986.0	190094	372.7	1.963	0.754	13.94	2.026	120.5	0.000	0.000	3.329	28.01	75.31	2.345	23.20	99.98		pg1222_o2nofp.cx10a_c32r128
72695.6	583868	0.000	0.000	0.191	8.032	14155.5	191405	316.1	1.691	0.569	13.91	2.025	57.34	0.000	0.000	3.116	15.53	76.24	2.173	20.80	99.97		pg1322_o2nofp.cx10a_c32r128
73008.5	586331	0.000	0.000	0.185	8.032	14163.2	190864	173.5	1.031	0.541	13.87	2.025	48.28	0.000	0.000	3.000	13.04	75.74	2.166	20.43	99.97		pg1323_o2nofp.cx10a_c32r128
73141.5	587738	0.000	0.000	0.190	8.036	14147.0	190426	134.1	0.770	0.525	13.86	2.027	84.88	0.000	0.000	3.070	21.05	76.62	2.176	20.11	99.97		pg1419_o2nofp.cx10a_c32r128
72289.4	580985	0.000	0.000	0.200	8.038	14106.4	189612	131.8	0.789	0.534	13.85	2.027	75.48	0.000	0.000	2.992	19.01	76.20	2.204	20.23	99.90		pg1420_o2nofp.cx10a_c32r128
73504.1	590762	0.000	0.000	0.188	8.038	14130.5	190367	111.6	0.610	0.451	13.86	0.025	55.18	0.000	0.000	0.055	21.67	76.40	2.189	19.19	99.97		pg1514_o2nofp.cx10a_c32r128
72922.4	585997	0.000	0.000	0.205	8.037	14133.2	189681	169.7	1.005	0.727	13.92	0.025	45.77	0.000	0.000	0.084	17.58	77.35	2.229	21.79	99.91		pg1515_o2nofp.cx10a_c32r128
74549.3	598996	0.000	0.000	0.188	8.035	14106.4	189721	119.0	0.681	0.577	13.94	0.024	46.02	0.000	0.000	0.062	17.05	77.02	2.144	19.70	99.98		pg1610_o2nofp.cx10a_c32r128
76225.2	612337	0.000	0.000	0.183	8.034	14136.2	189896	121.5	0.715	0.530	13.97	0.022	45.92	0.000	0.000	0.068	15.91	78.06	1.966	19.00	99.97		pg1611_o2nofp.cx10a_c32r128
76256.3	612764	0.000	0.000	0.181	8.036	14100.0	189540	104.0	0.612	0.443	13.95	0.012	99.62	0.000	0.000	0.045	83.25	76.68	1.958	18.07	99.97		pg176_o2nofp.cx10a_c32r128
73804.6	593102	0.000	0.000	0.200	8.037	14038.1	188794	104.7	0.641	0.570	13.95	0.010	63.45	0.000	0.000	0.046	58.95	74.92	2.173	19.70	99.97		pg177_o2nofp.cx10a_c32r128
72530.3	583515	0.000	0.000	0.187	8.045	14057.4	188803	98.84	0.592	0.677	13.77	0.008	45.45	0.000	0.000	0.056	53.12	77.93	2.122	22.94	99.91		pg180_o2nofp.cx10b_c32r128
73459.9	590375	0.000	0.000	0.197	8.037	14029.5	189358	167.2	0.920	0.515	13.88	0.011	99.60	0.000	0.000	0.037	36.37	77.54	2.111	19.27	99.97		pg180_o2nofp.cx10c_c32r128
73794.6	593024	0.000	0.000	0.202	8.037	14075.4	188812	111.9	0.684	0.492	13.81	0.008	45.19	0.000	0.000	0.048	57.36	79.82	2.014	18.65	99.93		pg180_o2nofp.cx10d_c32r128
73934.8	594148	0.000	0.000	0.198	8.037	14091.7	189370	94.11	0.606	0.511	13.90	0.008	36.52	0.000	0.000	0.043	38.95	74.85	2.167	19.43	99.97		pg181_o2nofp.cx10b_c32r128
73625.3	591409	0.000	0.000	0.199	8.035	14105.2	189461	117.5	0.764	0.523	13.83	0.008	54.32	0.000	0.000	0.053	68.71	77.65	2.061	19.32	99.95		pg181_o2nofp.cx10d_c32r128

qr1000.L5

qr1000.L5: range queries with 1000 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	max
pg1222_o2nofp.cx10a_c32r128	99.543	0.420	0.011	0.006	0.011	0.009	nonzero		0.980
pg1322_o2nofp.cx10a_c32r128	99.532	0.423	0.019	0.005	0.011	0.010	nonzero		0.627
pg1323_o2nofp.cx10a_c32r128	99.544	0.411	0.019	0.006	0.011	0.009	nonzero	nonzero	1.333
pg1419_o2nofp.cx10a_c32r128	99.509	0.460	0.009	0.004	0.008	0.009	nonzero		0.547
pg1420_o2nofp.cx10a_c32r128	99.564	0.406	0.009	0.004	0.008	0.009	nonzero		0.518
pg1514_o2nofp.cx10a_c32r128	99.518	0.450	0.010	0.005	0.008	0.009	nonzero	nonzero	1.408
pg1515_o2nofp.cx10a_c32r128	99.603	0.359	0.017	0.004	0.008	0.009	nonzero	nonzero	1.166
pg1610_o2nofp.cx10a_c32r128	99.531	0.439	0.009	0.004	0.008	0.009	nonzero	nonzero	1.033
pg1611_o2nofp.cx10a_c32r128	99.596	0.371	0.010	0.005	0.008	0.009	nonzero		0.746
pg176_o2nofp.cx10a_c32r128	99.592	0.369	0.014	0.006	0.009	0.010	nonzero	nonzero	1.275
pg177_o2nofp.cx10a_c32r128	99.553	0.407	0.018	0.005	0.008	0.009	nonzero	nonzero	1.079
pg180_o2nofp.cx10b_c32r128	99.435	0.525	0.018	0.005	0.008	0.009	nonzero	nonzero	1.456
pg180_o2nofp.cx10c_c32r128	99.464	0.498	0.017	0.005	0.008	0.009	nonzero	nonzero	1.093
pg180_o2nofp.cx10d_c32r128	99.500	0.461	0.017	0.005	0.008	0.009	nonzero	nonzero	1.510
pg181_o2nofp.cx10b_c32r128	99.537	0.423	0.017	0.005	0.008	0.009	nonzero	nonzero	1.043
pg181_o2nofp.cx10d_c32r128	99.516	0.449	0.013	0.005	0.009	0.009	nonzero	nonzero	1.106

dbms	16ms	64ms	256ms	1s	4s	max
pg1222_o2nofp.cx10a_c32r128	46.030	43.818	9.806	0.342	0.003	1.503
pg1322_o2nofp.cx10a_c32r128	51.796	37.705	10.128	0.371		0.677
pg1323_o2nofp.cx10a_c32r128	50.388	40.149	9.027	0.432	0.003	2.520
pg1419_o2nofp.cx10a_c32r128	49.732	41.384	8.151	0.733		0.630
pg1420_o2nofp.cx10a_c32r128	51.256	39.951	7.950	0.842	nonzero	1.036
pg1514_o2nofp.cx10a_c32r128	50.871	40.625	7.631	0.864	0.008	1.452
pg1515_o2nofp.cx10a_c32r128	56.010	35.270	8.063	0.653	0.003	1.359
pg1610_o2nofp.cx10a_c32r128	49.983	41.368	7.965	0.681	0.003	1.125
pg1611_o2nofp.cx10a_c32r128	55.096	35.638	8.437	0.830		0.805
pg176_o2nofp.cx10a_c32r128	65.491	25.808	7.967	0.732	0.003	1.301
pg177_o2nofp.cx10a_c32r128	52.009	39.376	7.918	0.694	0.003	1.129
pg180_o2nofp.cx10b_c32r128	49.374	42.306	7.566	0.752	0.002	1.494
pg180_o2nofp.cx10c_c32r128	50.960	40.583	7.847	0.607	0.003	1.136
pg180_o2nofp.cx10d_c32r128	51.578	39.864	7.946	0.605	0.007	2.329
pg181_o2nofp.cx10b_c32r128	51.979	39.432	7.876	0.712	0.001	1.092
pg181_o2nofp.cx10d_c32r128	50.957	39.798	8.630	0.613	0.003	1.135

dbms	16ms	64ms	256ms	1s	4s	max
pg1222_o2nofp.cx10a_c32r128	17.756	76.150	6.007	0.086	nonzero	1.002
pg1322_o2nofp.cx10a_c32r128	9.365	83.960	6.598	0.077		0.644
pg1323_o2nofp.cx10a_c32r128	7.556	86.062	6.261	0.116	0.004	2.490
pg1419_o2nofp.cx10a_c32r128	9.306	85.516	5.064	0.113		0.545
pg1420_o2nofp.cx10a_c32r128	12.118	82.926	4.811	0.145		0.556
pg1514_o2nofp.cx10a_c32r128	9.958	84.694	5.138	0.205	0.005	1.449
pg1515_o2nofp.cx10a_c32r128	12.066	82.667	5.169	0.095	0.003	1.364
pg1610_o2nofp.cx10a_c32r128	7.556	86.979	5.365	0.099	0.001	1.058
pg1611_o2nofp.cx10a_c32r128	7.020	87.334	5.500	0.145		0.669
pg176_o2nofp.cx10a_c32r128	3.193	91.072	5.577	0.155	0.002	1.311
pg177_o2nofp.cx10a_c32r128	2.874	91.658	5.312	0.154	0.003	1.112
pg180_o2nofp.cx10b_c32r128	5.344	89.424	5.064	0.166	0.002	1.499
pg180_o2nofp.cx10c_c32r128	8.786	86.154	4.965	0.092	0.003	1.115
pg180_o2nofp.cx10d_c32r128	6.359	88.422	5.125	0.089	0.005	2.278
pg181_o2nofp.cx10b_c32r128	4.419	89.999	5.436	0.144	0.002	1.090
pg181_o2nofp.cx10d_c32r128	4.919	89.293	5.696	0.090	0.003	1.135

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
10730	90900	13944	112.3	16009.7	269.8	0.153	1.265	1.492	25.751	354001	52.2	3.894	184	706.0	802.1	97.4	0.980	8543	2592	pg1222_o2nofp.cx10a_c32r128
10593	89388	13757	110.8	15669.6	265.2	0.154	1.270	1.479	25.638	347077	53.2	3.883	190	705.2	801.2	97.3	0.627	8367	2480	pg1322_o2nofp.cx10a_c32r128
10688	89831	13858	111.6	15859.2	267.4	0.154	1.272	1.484	25.623	348667	54.0	3.881	192	704.5	800.5	97.4	1.333	8431	2064	pg1323_o2nofp.cx10a_c32r128
10557	89622	13704	110.4	15653.8	263.6	0.153	1.261	1.483	25.571	347915	53.5	3.882	191	704.3	800.4	97.2	0.547	8319	2784	pg1419_o2nofp.cx10a_c32r128
10480	91285	13599	109.6	15512.4	261.3	0.149	1.230	1.480	25.533	355706	52.6	3.897	184	704.2	800.2	97.1	0.518	8495	2592	pg1420_o2nofp.cx10a_c32r128
10521	89698	13664	110.1	15805.8	264.9	0.152	1.257	1.502	25.786	348893	52.9	3.890	189	704.2	800.2	97.2	1.408	8477	1792	pg1514_o2nofp.cx10a_c32r128
10568	90608	13740	110.8	15650.3	263.4	0.152	1.252	1.481	25.524	355503	52.7	3.924	186	704.0	800.0	97.2	1.166	8511	2336	pg1515_o2nofp.cx10a_c32r128
10599	89759	13767	111.0	15729.9	264.6	0.153	1.266	1.484	25.566	347615	54.0	3.873	193	704.2	800.3	97.2	1.033	8319	2496	pg1610_o2nofp.cx10a_c32r128
10455	89961	13592	109.5	15491.2	261.0	0.151	1.246	1.482	25.564	350915	53.4	3.901	190	704.3	800.4	97.2	0.746	8415	2512	pg1611_o2nofp.cx10a_c32r128
10562	87565	13701	110.4	15658.9	263.6	0.156	1.291	1.483	25.555	345438	53.8	3.945	197	704.3	800.3	97.2	1.275	8287	2304	pg176_o2nofp.cx10a_c32r128
10578	88811	13737	110.7	15701.6	264.1	0.155	1.276	1.484	25.564	343208	54.1	3.864	195	704.0	800.0	97.3	1.079	8367	2000	pg177_o2nofp.cx10a_c32r128
10568	87363	13704	110.6	15657.4	263.5	0.157	1.297	1.482	25.531	334715	54.2	3.831	199	703.8	799.8	97.0	1.456	8175	2128	pg180_o2nofp.cx10b_c32r128
10557	88107	13709	110.5	15627.9	263.4	0.156	1.284	1.480	25.552	340495	53.2	3.865	193	704.0	800.1	97.2	1.093	8175	2304	pg180_o2nofp.cx10c_c32r128
10619	88368	13783	111.1	15690.6	264.5	0.156	1.287	1.478	25.500	341899	53.9	3.869	195	704.2	800.2	97.2	1.510	8271	2352	pg180_o2nofp.cx10d_c32r128
10578	88467	13740	110.7	15807.1	265.4	0.155	1.282	1.494	25.697	342275	54.2	3.869	196	703.9	799.9	97.2	1.043	8271	2096	pg181_o2nofp.cx10b_c32r128
10573	88054	13732	110.6	15638.2	263.7	0.156	1.286	1.479	25.541	339241	54.2	3.853	197	704.5	800.6	97.2	1.106	8223	2528	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
13944.2	114981	0.000	0.000	0.229	8.220	16009.7	276309	324.0	2.337	4.884	20.21	2.043	314.0	0.000	0.000	9.870	60.37	104.3	2.954	50.40	75.64		pg1222_o2nofp.cx10a_c32r128
13757.1	113482	0.000	0.000	0.229	8.224	15669.6	271593	371.6	2.521	4.983	19.90	2.036	181.7	0.000	0.000	9.834	44.53	109.7	2.840	47.75	75.02		pg1322_o2nofp.cx10a_c32r128
13857.8	114258	0.000	0.000	0.231	8.220	15859.2	273847	226.6	1.891	4.875	19.77	2.045	272.2	0.000	0.000	9.357	49.26	109.3	2.790	47.81	75.45		pg1323_o2nofp.cx10a_c32r128
13704.0	113035	0.000	0.000	0.243	8.221	15653.8	269950	154.6	1.210	5.061	19.72	2.039	205.2	0.000	0.000	9.956	44.11	109.9	2.986	47.72	74.96		pg1419_o2nofp.cx10a_c32r128
13599.4	112279	0.000	0.000	0.255	8.228	15512.4	267589	150.0	1.424	5.122	19.80	2.036	172.0	0.000	0.000	9.983	39.14	112.1	3.099	47.58	75.08		pg1420_o2nofp.cx10a_c32r128
13663.6	112731	0.000	0.000	0.239	8.224	15805.8	271297	130.2	1.077	5.060	19.28	0.040	265.0	0.000	0.000	0.167	124.3	108.8	3.153	47.68	74.37		pg1514_o2nofp.cx10a_c32r128
13739.7	113431	0.000	0.000	0.234	8.228	15650.3	269727	164.3	1.295	4.848	19.74	0.031	121.9	0.000	0.000	0.417	55.01	112.5	3.099	46.84	76.41		pg1515_o2nofp.cx10a_c32r128
13767.1	113663	0.000	0.000	0.240	8.228	15729.9	270960	153.9	1.208	4.906	19.80	0.035	170.4	0.000	0.000	0.330	65.78	109.0	3.116	47.30	75.65		pg1610_o2nofp.cx10a_c32r128
13592.0	112087	0.001	0.000	0.260	8.221	15491.2	267272	145.9	1.562	5.046	20.49	0.042	310.8	0.000	0.000	0.043	98.18	111.9	3.119	47.63	77.53		pg1611_o2nofp.cx10a_c32r128
13701.0	113033	0.000	0.000	0.232	8.229	15658.9	269917	118.4	1.075	4.770	20.21	0.021	208.9	0.000	0.000	0.052	147.3	110.6	2.988	47.45	82.23		pg176_o2nofp.cx10a_c32r128
13736.6	113367	0.000	0.000	0.240	8.225	15701.6	270416	120.4	1.070	4.967	19.98	0.027	281.6	0.000	0.000	0.165	136.6	108.8	3.045	46.79	74.66		pg177_o2nofp.cx10a_c32r128
13704.2	113293	0.000	0.000	0.235	8.237	15657.4	269798	124.0	1.012	4.828	19.90	0.027	289.0	0.000	0.000	0.243	139.7	106.5	3.074	46.42	73.05		pg180_o2nofp.cx10b_c32r128
13708.9	113166	0.000	0.000	0.237	8.227	15627.9	269751	176.2	1.306	4.752	19.66	0.022	192.8	0.000	0.000	0.106	121.4	106.1	3.037	46.88	73.24		pg180_o2nofp.cx10c_c32r128
13782.6	113748	0.000	0.000	0.231	8.227	15690.6	270798	122.5	0.958	4.745	20.09	0.021	217.9	0.000	0.000	0.076	120.7	107.3	3.035	46.98	75.43		pg180_o2nofp.cx10d_c32r128
13739.7	113408	0.000	0.000	0.233	8.226	15807.1	271816	115.0	0.935	4.909	19.34	0.017	137.0	0.000	0.000	0.050	75.49	108.8	3.154	47.09	76.05		pg181_o2nofp.cx10b_c32r128
13732.1	113232	0.000	0.000	0.237	8.219	15638.2	270036	136.9	1.144	4.885	20.16	0.021	193.3	0.000	0.000	0.073	132.6	107.7	3.056	47.80	73.87		pg181_o2nofp.cx10d_c32r128

qp1000.L6

qp1000.L6: point queries with 1000 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	1ms	4ms	16ms	64ms	256ms	1s	4s	max
pg1222_o2nofp.cx10a_c32r128	0.010	46.537	51.842	1.595	0.016	0.001	nonzero	2.047
pg1322_o2nofp.cx10a_c32r128	0.013	52.314	45.540	2.121	0.010	0.001	0.001	2.336
pg1323_o2nofp.cx10a_c32r128	0.011	49.171	48.995	1.818	0.003	0.001	0.001	2.206
pg1419_o2nofp.cx10a_c32r128	0.012	51.637	46.281	2.053	0.015	nonzero	0.001	1.710
pg1420_o2nofp.cx10a_c32r128	0.011	51.512	47.286	1.184	0.007	nonzero	0.001	2.795
pg1514_o2nofp.cx10a_c32r128	0.011	51.611	45.890	2.485	0.002		0.001	2.401
pg1515_o2nofp.cx10a_c32r128	0.010	47.186	50.758	2.032	0.013	nonzero	0.001	2.917
pg1610_o2nofp.cx10a_c32r128	0.012	53.092	44.598	2.278	0.018	0.001	0.001	2.268
pg1611_o2nofp.cx10a_c32r128	0.014	53.009	44.606	2.357	0.011	0.001	0.001	2.250
pg176_o2nofp.cx10a_c32r128	0.014	53.754	44.079	2.135	0.015	nonzero	0.001	2.576
pg177_o2nofp.cx10a_c32r128	0.012	48.601	49.457	1.921	0.010	nonzero	0.001	1.982
pg180_o2nofp.cx10b_c32r128	0.010	47.935	50.075	1.973	0.006	nonzero	0.001	1.656
pg180_o2nofp.cx10c_c32r128	0.012	53.853	43.918	2.207	0.008	nonzero	0.001	1.493
pg180_o2nofp.cx10d_c32r128	0.011	51.104	47.269	1.609	0.006	nonzero	nonzero	2.940
pg181_o2nofp.cx10b_c32r128	0.015	54.949	43.263	1.751	0.022	0.001	nonzero	2.857
pg181_o2nofp.cx10d_c32r128	0.013	52.904	45.028	2.037	0.016	0.001	0.001	1.997

dbms	16ms	64ms	256ms	1s	4s	16s	max
pg1222_o2nofp.cx10a_c32r128	8.244	86.181	5.557	0.013	0.006		2.912
pg1322_o2nofp.cx10a_c32r128	12.614	78.436	8.933	0.008	0.009		3.502
pg1323_o2nofp.cx10a_c32r128	10.162	82.566	7.260	0.008	0.004		3.420
pg1419_o2nofp.cx10a_c32r128	11.349	83.072	5.558	0.013	0.008		3.093
pg1420_o2nofp.cx10a_c32r128	11.515	84.905	3.566	0.009	0.006		2.866
pg1514_o2nofp.cx10a_c32r128	12.524	81.409	6.056	0.003	0.006	0.001	4.644
pg1515_o2nofp.cx10a_c32r128	10.250	84.531	5.206	0.009	0.004	0.001	4.269
pg1610_o2nofp.cx10a_c32r128	13.936	79.545	6.475	0.036	0.008		2.545
pg1611_o2nofp.cx10a_c32r128	11.489	82.000	6.482	0.017	0.011		3.006
pg176_o2nofp.cx10a_c32r128	12.372	81.519	6.075	0.027	0.009		3.757
pg177_o2nofp.cx10a_c32r128	11.731	83.144	5.113	0.006	0.006		2.554
pg180_o2nofp.cx10b_c32r128	7.945	87.042	5.000	0.007	0.006		3.179
pg180_o2nofp.cx10c_c32r128	14.043	79.930	6.017	0.002	0.008		2.891
pg180_o2nofp.cx10d_c32r128	10.779	84.715	4.490	0.010	0.006		3.119
pg181_o2nofp.cx10b_c32r128	15.353	79.456	5.151	0.035	0.005		2.919
pg181_o2nofp.cx10d_c32r128	11.975	82.258	5.730	0.025	0.012		3.041

dbms	16ms	64ms	256ms	1s	4s	max
pg1222_o2nofp.cx10a_c32r128	1.998	97.915	0.080	0.003	0.004	2.849
pg1322_o2nofp.cx10a_c32r128	1.635	98.080	0.271	0.003	0.011	2.344
pg1323_o2nofp.cx10a_c32r128	0.202	99.744	0.043	0.008	0.003	3.120
pg1419_o2nofp.cx10a_c32r128	0.111	99.566	0.312	0.003	0.008	3.088
pg1420_o2nofp.cx10a_c32r128	0.057	99.906	0.031		0.006	2.816
pg1514_o2nofp.cx10a_c32r128	0.022	99.882	0.089		0.007	2.420
pg1515_o2nofp.cx10a_c32r128	0.899	98.779	0.317	nonzero	0.005	2.930
pg1610_o2nofp.cx10a_c32r128	0.353	99.330	0.288	0.020	0.008	2.302
pg1611_o2nofp.cx10a_c32r128	0.040	99.725	0.218	0.006	0.011	2.281
pg176_o2nofp.cx10a_c32r128	0.009	99.596	0.383	0.002	0.009	3.751
pg177_o2nofp.cx10a_c32r128	0.005	99.710	0.278	0.002	0.005	2.168
pg180_o2nofp.cx10b_c32r128	0.013	99.831	0.150		0.006	3.152
pg180_o2nofp.cx10c_c32r128	0.021	99.861	0.108	0.002	0.008	1.513
pg180_o2nofp.cx10d_c32r128	0.013	99.829	0.150	0.003	0.006	2.957
pg181_o2nofp.cx10b_c32r128	0.046	99.786	0.161	0.004	0.002	2.857
pg181_o2nofp.cx10d_c32r128	0.010	99.643	0.332	0.003	0.012	2.019

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
11563	2378	55449	435.3	22618.8	331.2	23.319	187.463	1.956	29.328	122874	27.1	51.673	3647	708.6	804.6	97.4	2.047	192	48	pg1222_o2nofp.cx10a_c32r128
11344	2443	56039	439.9	22354.3	326.2	22.942	184.416	1.970	29.443	124183	27.9	50.840	3655	707.9	804.0	97.3	2.336	192	48	pg1322_o2nofp.cx10a_c32r128
11495	2417	56090	440.1	22721.1	329.7	23.208	186.471	1.977	29.370	124311	28.2	51.434	3734	707.4	803.4	97.4	2.206	192	48	pg1323_o2nofp.cx10a_c32r128
11386	2452	56279	441.9	22353.9	324.9	22.952	184.526	1.963	29.222	123839	28.1	50.505	3667	706.9	803.0	97.2	1.710	192	32	pg1419_o2nofp.cx10a_c32r128
11688	2543	58120	456.2	22856.6	332.6	22.859	183.743	1.956	29.140	128446	28.9	50.518	3637	706.7	802.8	97.1	2.795	192	48	pg1420_o2nofp.cx10a_c32r128
11333	2456	56271	441.7	22319.0	322.6	22.909	184.156	1.969	29.148	123907	27.6	50.444	3596	706.8	802.8	97.2	2.401	192	48	pg1514_o2nofp.cx10a_c32r128
11428	2399	55664	436.9	22574.4	327.2	23.203	186.476	1.975	29.317	122683	27.5	51.139	3668	706.6	802.6	97.2	2.917	192	48	pg1515_o2nofp.cx10a_c32r128
11279	2501	56861	446.3	22342.9	323.6	22.735	182.735	1.981	29.378	124273	27.7	49.689	3544	706.8	802.9	97.2	2.268	208	48	pg1610_o2nofp.cx10a_c32r128
11273	2504	56912	446.7	22260.4	322.5	22.733	182.716	1.975	29.290	124415	28.4	49.696	3630	706.9	803.0	97.2	2.250	208	32	pg1611_o2nofp.cx10a_c32r128
11297	2530	57314	450.0	22186.4	322.1	22.651	182.094	1.964	29.193	124548	29.9	49.222	3781	706.9	802.9	97.3	2.576	208	32	pg176_o2nofp.cx10a_c32r128
11459	2458	56545	443.9	22695.8	328.0	23.000	184.874	1.981	29.315	123266	29.4	50.139	3827	706.6	802.6	97.3	1.982	208	48	pg177_o2nofp.cx10a_c32r128
11447	2418	55931	439.2	22498.3	326.7	23.131	186.010	1.965	29.223	121866	29.5	50.399	3904	706.4	802.4	97.1	1.656	192	48	pg180_o2nofp.cx10b_c32r128
11368	2531	57412	450.6	22632.9	326.6	22.686	182.331	1.991	29.418	124930	28.7	49.366	3629	706.6	802.7	97.3	1.493	208	48	pg180_o2nofp.cx10c_c32r128
11520	2505	57374	450.4	22586.1	328.3	22.907	184.135	1.961	29.182	124867	29.4	49.853	3756	706.8	802.8	97.3	2.940	208	32	pg180_o2nofp.cx10d_c32r128
11380	2600	58440	458.7	22284.8	323.5	22.479	180.669	1.958	29.106	127214	28.6	48.934	3520	706.5	802.5	97.2	2.857	208	32	pg181_o2nofp.cx10b_c32r128
11344	2512	57064	447.9	22294.0	323.5	22.714	182.569	1.965	29.201	124096	29.0	49.395	3694	707.1	803.2	97.3	1.997	208	32	pg181_o2nofp.cx10d_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
55449.2	445769	0.000	0.000	0.359	8.041	22618.8	339117	798.8	2.887	1.176	15.22	2.085	608.9	0.000	0.000	4.103	88.67	148.5	2.562	41.33	99.89		pg1222_o2nofp.cx10a_c32r128
56039.2	450454	0.000	0.000	0.367	8.041	22354.3	334017	872.5	3.392	1.241	15.14	2.054	184.6	0.000	0.000	4.205	43.86	146.3	2.437	42.04	99.90		pg1322_o2nofp.cx10a_c32r128
56090.3	450682	0.000	0.000	0.360	8.037	22721.1	337620	441.5	1.894	1.122	15.03	2.057	309.7	0.000	0.000	4.115	63.54	149.1	2.483	40.54	99.99		pg1323_o2nofp.cx10a_c32r128
56278.8	452459	0.000	0.000	0.378	8.042	22353.9	332726	337.5	1.454	1.235	15.10	2.043	263.6	0.000	0.000	3.996	59.79	147.5	2.471	40.46	99.97		pg1419_o2nofp.cx10a_c32r128
58120.2	467184	0.000	0.000	0.335	8.040	22856.6	340597	300.0	1.159	1.119	15.12	2.048	269.7	0.000	0.000	3.920	61.54	153.1	2.442	37.56	99.91		pg1420_o2nofp.cx10a_c32r128
56270.6	452342	0.000	0.000	0.383	8.041	22319.0	330328	305.9	1.324	1.123	14.93	0.033	147.5	0.000	0.000	0.184	77.15	147.7	2.443	39.60	99.97		pg1514_o2nofp.cx10a_c32r128
55663.6	447357	0.000	0.000	0.375	8.039	22574.4	335052	414.5	1.711	1.068	15.04	0.042	184.7	0.000	0.000	0.409	92.51	148.3	2.469	39.31	99.99		pg1515_o2nofp.cx10a_c32r128
56861.1	457019	0.000	0.000	0.379	8.040	22342.9	331364	281.7	1.309	1.236	15.02	0.080	771.3	0.000	0.000	0.177	112.9	145.5	2.470	41.35	99.98		pg1610_o2nofp.cx10a_c32r128
56911.9	457428	0.000	0.000	0.382	8.040	22260.4	330201	315.5	1.397	1.126	15.01	0.032	129.7	0.000	0.000	0.135	67.25	145.5	2.443	40.80	99.97		pg1611_o2nofp.cx10a_c32r128
57314.4	460752	0.000	0.000	0.380	8.041	22186.4	329794	227.3	1.081	1.155	15.08	0.020	172.0	0.000	0.000	0.125	156.0	143.0	2.462	40.49	99.98		pg176_o2nofp.cx10a_c32r128
56545.3	454513	0.000	0.000	0.362	8.040	22695.8	335913	227.5	0.978	1.012	14.97	0.031	243.9	0.000	0.000	0.161	141.1	146.1	2.491	38.93	99.97		pg177_o2nofp.cx10a_c32r128
55931.0	449772	0.000	0.000	0.371	8.043	22498.3	334508	226.6	1.015	1.038	15.08	0.036	356.9	0.000	0.000	0.151	154.3	145.7	2.521	38.84	99.98		pg180_o2nofp.cx10b_c32r128
57412.2	461425	0.000	0.000	0.367	8.040	22632.9	334441	347.2	1.572	1.081	14.98	0.025	250.5	0.000	0.000	0.130	177.4	145.2	2.453	38.92	99.92		pg180_o2nofp.cx10c_c32r128
57374.1	461204	0.000	0.000	0.355	8.040	22586.1	336177	248.5	1.072	1.025	15.10	0.035	341.4	0.000	0.000	0.157	161.2	146.3	2.454	38.30	99.97		pg180_o2nofp.cx10d_c32r128
58439.5	469685	0.000	0.000	0.369	8.040	22284.8	331239	227.0	1.064	1.203	15.11	0.029	285.8	0.000	0.000	0.204	162.3	146.4	2.476	39.24	99.99		pg181_o2nofp.cx10b_c32r128
57064.0	458667	0.000	0.000	0.375	8.040	22294.0	331267	276.6	1.254	1.089	15.06	0.026	164.0	0.000	0.000	0.185	148.3	144.2	2.437	39.57	99.92		pg181_o2nofp.cx10d_c32r128

l.i0

l.i0: load without secondary indexes

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1190476	0	677	5.4	5492.7	475.9	0.001	0.005	0.005	0.409	128901	55.5	0.108	15	344.4	440.5	97.3	2.190	103887	7999	pg1222_o2nofp.cx10a_c32r128
1171112	0	599	4.8	4403.7	470.7	0.001	0.004	0.004	0.412	128835	52.2	0.110	14	344.4	440.5	11.5	3.798	113788	4999	pg1322_o2nofp.cx10a_c32r128
1253046	0	637	5.1	4648.4	500.7	0.001	0.004	0.004	0.409	136208	55.3	0.109	14	344.4	440.5	10.1	2.825	114387	8098	pg1323_o2nofp.cx10a_c32r128
1200000	0	621	4.8	4467.6	482.2	0.001	0.004	0.004	0.411	129851	54.2	0.108	14	344.4	440.5	15.7	3.072	110187	8096	pg1419_o2nofp.cx10a_c32r128
1125704	0	590	4.6	4238.4	453.0	0.001	0.004	0.004	0.412	124585	51.5	0.111	15	344.4	440.5	5.3	2.401	108788	5899	pg1420_o2nofp.cx10a_c32r128
1199200	0	649	5.1	4453.5	477.5	0.001	0.004	0.004	0.408	129554	54.8	0.108	15	344.4	440.5	8.8	2.058	108987	7799	pg1514_o2nofp.cx10a_c32r128
1250000	0	646	5.0	4664.7	502.0	0.001	0.004	0.004	0.411	134764	54.9	0.108	14	344.4	440.5	7.4	1.888	113987	13698	pg1515_o2nofp.cx10a_c32r128
1243953	0	650	5.1	4575.4	498.1	0.001	0.004	0.004	0.410	134045	54.8	0.108	14	344.4	440.5	2.5	1.584	113987	10999	pg1610_o2nofp.cx10a_c32r128
1255230	0	626	4.9	4612.9	502.5	0.000	0.004	0.004	0.410	136587	54.7	0.109	14	344.4	440.5	10.3	1.819	115487	9298	pg1611_o2nofp.cx10a_c32r128
1229928	0	622	4.9	4588.9	494.0	0.001	0.004	0.004	0.411	124113	54.3	0.101	14	344.4	440.5	97.2	1.905	112886	10398	pg176_o2nofp.cx10a_c32r128
1238816	0	641	5.1	4588.6	496.8	0.001	0.004	0.004	0.411	124989	54.6	0.101	14	344.4	440.5	97.2	2.093	113087	9599	pg177_o2nofp.cx10a_c32r128
1237964	0	626	5.0	4599.9	495.1	0.001	0.004	0.004	0.410	124705	54.0	0.101	14	344.4	440.5	97.2	2.252	114187	12798	pg180_o2nofp.cx10b_c32r128
1232877	0	625	5.0	4570.5	494.3	0.001	0.004	0.004	0.411	125875	53.9	0.102	14	344.4	440.5	97.2	2.129	113886	13097	pg180_o2nofp.cx10c_c32r128
1245244	0	645	5.1	4626.2	497.4	0.001	0.004	0.004	0.409	127552	54.6	0.102	14	344.4	440.5	97.2	1.804	113786	7999	pg180_o2nofp.cx10d_c32r128
1232877	0	636	5.0	4557.1	493.8	0.001	0.004	0.004	0.410	124047	54.3	0.101	14	344.4	440.5	97.2	1.767	113286	7799	pg181_o2nofp.cx10b_c32r128
1253046	0	654	5.2	4620.3	500.2	0.001	0.004	0.004	0.409	128481	55.1	0.103	14	344.4	440.5	97.2	4.082	113584	12298	pg181_o2nofp.cx10d_c32r128

l.x

l.x: create secondary indexes

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
871249	0	2407	297.9	4018.0	378.9	0.003	0.350	0.005	0.445	51675	12.5	0.059	5	691.9	788.0	64.0	0.004	NA	NA	pg1222_o2nofp.cx10a_c32r128
1324503	0	3647	453.0	3551.5	410.5	0.003	0.350	0.003	0.317	46600	17.7	0.035	4	691.5	787.6	50.5	0.003	NA	NA	pg1322_o2nofp.cx10a_c32r128
1231190	0	3385	420.5	3305.4	383.1	0.003	0.350	0.003	0.319	43901	16.6	0.036	4	691.5	787.6	55.1	0.159	NA	NA	pg1323_o2nofp.cx10a_c32r128
1144310	0	3146	390.7	3068.4	354.5	0.003	0.350	0.003	0.317	39752	15.3	0.035	4	691.5	787.6	54.6	0.004	NA	NA	pg1419_o2nofp.cx10a_c32r128
1167694	0	3213	399.1	3119.6	361.6	0.003	0.350	0.003	0.317	41790	15.6	0.036	4	691.5	787.6	52.6	0.006	NA	NA	pg1420_o2nofp.cx10a_c32r128
1143220	0	3742	464.0	3662.8	427.8	0.003	0.416	0.003	0.383	41672	15.2	0.036	4	691.5	787.6	37.9	0.003	NA	NA	pg1514_o2nofp.cx10a_c32r128
1136722	0	3722	461.6	3647.0	424.9	0.003	0.416	0.003	0.383	41543	15.0	0.037	4	691.5	787.6	38.6	0.005	NA	NA	pg1515_o2nofp.cx10a_c32r128
1196411	0	3903	484.9	3845.3	447.4	0.003	0.415	0.003	0.383	41428	15.8	0.035	4	691.5	787.6	29.5	0.003	NA	NA	pg1610_o2nofp.cx10a_c32r128
1188119	0	3875	481.6	3809.0	445.0	0.003	0.415	0.003	0.384	43715	15.5	0.037	4	691.5	787.6	31.0	0.004	NA	NA	pg1611_o2nofp.cx10a_c32r128
1343284	0	3794	472.3	3707.2	430.1	0.003	0.360	0.003	0.328	19572	16.0	0.015	4	691.5	787.6	53.7	0.003	NA	NA	pg176_o2nofp.cx10a_c32r128
1252610	0	3538	440.4	3426.2	400.4	0.003	0.360	0.003	0.327	18896	15.1	0.015	4	691.5	787.6	54.1	0.003	NA	NA	pg177_o2nofp.cx10a_c32r128
1323529	0	3739	465.3	3668.7	423.8	0.003	0.360	0.003	0.328	19719	16.0	0.015	4	691.5	787.6	53.6	0.004	NA	NA	pg180_o2nofp.cx10b_c32r128
1297765	0	3723	457.2	3621.6	415.9	0.003	0.361	0.003	0.328	23507	15.7	0.018	4	691.5	787.6	77.4	0.004	NA	NA	pg180_o2nofp.cx10c_c32r128
1371429	0	3877	482.3	3744.8	437.9	0.003	0.360	0.003	0.327	24617	16.6	0.018	4	691.5	787.6	54.6	0.005	NA	NA	pg180_o2nofp.cx10d_c32r128
1351351	0	3817	475.1	3705.7	433.1	0.003	0.360	0.003	0.328	19725	16.3	0.015	4	691.5	787.6	53.5	0.003	NA	NA	pg181_o2nofp.cx10b_c32r128
1299639	0	3675	457.0	3556.7	415.8	0.003	0.360	0.003	0.328	23726	16.0	0.018	4	691.5	787.6	39.9	0.828	NA	NA	pg181_o2nofp.cx10d_c32r128

l.i1

l.i1: continue load after secondary indexes created with 50 inserts per transaction

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
18626	0	22558	179.1	28059.4	487.9	1.211	9.844	1.506	26.824	54043	24.2	2.901	416	699.8	795.8	97.4	5.656	1600	50	pg1222_o2nofp.cx10a_c32r128
19958	0	24490	221.1	30938.0	549.6	1.227	11.344	1.550	28.196	58511	26.7	2.932	428	699.3	795.4	4.3	3.753	1650	150	pg1322_o2nofp.cx10a_c32r128
18965	0	23693	245.4	30876.7	547.9	1.249	13.249	1.628	29.584	56532	25.1	2.981	424	699.2	795.3	4.2	3.487	1500	200	pg1323_o2nofp.cx10a_c32r128
20788	0	25192	201.5	31278.7	531.7	1.212	9.925	1.505	26.188	59421	30.3	2.858	466	699.4	795.4	2.5	3.927	1650	250	pg1419_o2nofp.cx10a_c32r128
21670	0	26217	208.6	32529.6	552.7	1.210	9.859	1.501	26.115	62160	29.7	2.868	439	699.4	795.4	2.5	2.745	1750	350	pg1420_o2nofp.cx10a_c32r128
20788	0	25145	200.2	31438.4	532.3	1.210	9.859	1.512	26.220	59728	29.5	2.873	454	699.4	795.4	2.6	4.808	1750	300	pg1514_o2nofp.cx10a_c32r128
19942	0	24181	192.8	30318.5	511.9	1.213	9.902	1.520	26.286	57571	28.8	2.887	462	699.4	795.4	2.5	2.852	1650	350	pg1515_o2nofp.cx10a_c32r128
19536	0	23751	189.9	29553.5	501.0	1.216	9.953	1.513	26.261	55597	28.4	2.846	465	699.4	795.4	97.2	2.698	1750	100	pg1610_o2nofp.cx10a_c32r128
19884	0	24203	193.8	29932.6	509.4	1.217	9.979	1.505	26.232	57003	30.3	2.867	488	699.4	795.4	2.6	4.040	1650	250	pg1611_o2nofp.cx10a_c32r128
19786	0	23972	190.9	30071.7	506.9	1.212	9.878	1.520	26.236	55870	30.5	2.824	493	699.4	795.4	97.2	4.006	1750	300	pg176_o2nofp.cx10a_c32r128
21525	0	26103	209.0	32387.1	557.1	1.213	9.945	1.505	26.505	61099	32.1	2.839	477	699.4	795.4	97.2	6.307	1700	350	pg177_o2nofp.cx10a_c32r128
20654	0	24966	199.3	31138.1	528.2	1.209	9.881	1.508	26.187	58506	30.7	2.833	476	699.4	795.4	97.1	3.004	1700	250	pg180_o2nofp.cx10b_c32r128
19900	0	24192	193.8	30146.6	512.2	1.216	9.972	1.515	26.354	56806	30.3	2.855	487	699.4	795.4	97.2	3.509	1750	200	pg180_o2nofp.cx10c_c32r128
20134	0	24410	194.8	30586.9	516.8	1.212	9.906	1.519	26.284	57221	30.0	2.842	477	699.4	795.4	97.2	4.032	1750	300	pg180_o2nofp.cx10d_c32r128
20601	0	24994	200.1	30940.8	527.7	1.213	9.948	1.502	26.230	58462	30.1	2.838	468	699.4	795.4	97.2	3.066	1800	400	pg181_o2nofp.cx10b_c32r128
20210	0	24498	195.2	30721.4	518.8	1.212	9.892	1.520	26.285	57503	30.0	2.845	475	699.4	795.4	97.2	3.936	1750	350	pg181_o2nofp.cx10d_c32r128

l.i2

l.i2: continue load after secondary indexes created with 5 inserts per transaction

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
2889	0	3344	26.6	4808.2	77.5	1.158	9.414	1.664	27.474	21708	38.3	7.513	4242	701.8	797.8	97.4	0.237	240	210	pg1222_o2nofp.cx10a_c32r128
1807	0	2068	16.5	3395.6	52.1	1.145	9.344	1.880	29.530	13943	24.7	7.718	4375	701.2	797.2	97.3	0.688	840	585	pg1322_o2nofp.cx10a_c32r128
1786	0	2109	23.3	3256.5	53.6	1.181	13.367	1.823	30.744	13834	19.6	7.744	3511	701.0	797.0	9.3	0.576	140	120	pg1323_o2nofp.cx10a_c32r128
1639	0	1884	15.0	3119.9	47.6	1.149	9.386	1.904	29.717	12368	26.5	7.547	5175	701.4	797.4	97.2	0.937	120	110	pg1419_o2nofp.cx10a_c32r128
1781	0	2062	16.4	3476.5	52.4	1.158	9.434	1.952	30.153	13529	27.1	7.598	4870	701.4	797.5	97.1	0.540	225	200	pg1420_o2nofp.cx10a_c32r128
1658	0	1914	15.4	3246.4	49.1	1.155	9.512	1.959	30.330	12371	24.5	7.463	4730	701.4	797.4	97.2	0.700	230	195	pg1514_o2nofp.cx10a_c32r128
1927	0	2226	17.7	3523.3	54.4	1.155	9.408	1.828	28.908	14405	28.9	7.474	4798	701.4	797.4	97.2	0.958	125	110	pg1515_o2nofp.cx10a_c32r128
1646	0	1898	15.3	3148.8	48.3	1.153	9.507	1.913	30.019	12281	26.6	7.461	5171	701.4	797.4	97.2	0.109	220	200	pg1610_o2nofp.cx10a_c32r128
1580	0	1827	14.7	2941.0	45.8	1.156	9.519	1.861	29.655	11958	28.4	7.566	5750	701.4	797.4	97.2	0.122	215	120	pg1611_o2nofp.cx10a_c32r128
1447	0	1674	13.5	2783.9	42.4	1.157	9.536	1.924	29.977	9996	24.6	6.908	5440	701.4	797.4	97.2	0.111	200	185	pg176_o2nofp.cx10a_c32r128
1463	0	1687	13.6	2872.2	43.4	1.153	9.491	1.964	30.397	10209	24.0	6.980	5251	701.4	797.4	97.2	0.728	205	190	pg177_o2nofp.cx10a_c32r128
1499	0	1746	14.3	2901.4	44.8	1.165	9.792	1.936	30.610	10423	25.7	6.955	5488	701.4	797.4	97.1	0.129	120	100	pg180_o2nofp.cx10b_c32r128
1538	0	1783	14.3	2964.8	45.3	1.159	9.548	1.927	30.148	10704	25.5	6.959	5305	701.4	797.4	97.2	0.685	215	190	pg180_o2nofp.cx10c_c32r128
1556	0	1797	14.3	3030.4	45.5	1.155	9.420	1.948	29.962	10838	24.0	6.966	4936	701.4	797.4	97.2	0.128	220	190	pg180_o2nofp.cx10d_c32r128
1598	0	1864	15.3	3066.8	47.6	1.167	9.790	1.919	30.497	11081	27.1	6.934	5427	701.4	797.4	97.2	0.920	215	190	pg181_o2nofp.cx10b_c32r128
1488	0	1716	13.7	2817.5	42.9	1.153	9.403	1.894	29.538	10363	25.7	6.965	5527	701.4	797.4	97.2	0.932	210	185	pg181_o2nofp.cx10d_c32r128

qr100.L1

qr100.L1: range queries with 100 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1193	140612	1458	11.8	334.0	18.3	0.010	0.086	0.280	15.738	540179	37.9	3.842	86	702.0	798.0	97.4	0.036	11646	11422	pg1222_o2nofp.cx10a_c32r128
1193	140305	1453	11.8	619.7	21.1	0.010	0.086	0.520	18.090	539036	38.0	3.842	87	701.3	797.4	97.3	0.024	11726	11502	pg1322_o2nofp.cx10a_c32r128
1193	141921	1450	11.9	627.9	21.1	0.010	0.086	0.526	18.111	545253	38.0	3.842	86	701.1	797.1	97.4	0.006	11951	11694	pg1323_o2nofp.cx10a_c32r128
1193	140271	1455	11.8	628.6	21.1	0.010	0.086	0.527	18.091	538681	38.0	3.840	87	701.5	797.5	97.2	0.005	11774	11583	pg1419_o2nofp.cx10a_c32r128
1192	142137	1456	11.8	625.3	21.1	0.010	0.085	0.525	18.091	546203	38.0	3.843	86	701.5	797.6	97.1	0.005	11934	11758	pg1420_o2nofp.cx10a_c32r128
1192	141556	1456	11.7	606.9	20.9	0.010	0.085	0.509	17.926	543764	38.0	3.841	86	701.5	797.5	97.2	0.061	11854	11630	pg1514_o2nofp.cx10a_c32r128
1192	140122	1458	11.8	608.0	20.9	0.010	0.087	0.510	17.947	538442	38.0	3.843	87	701.5	797.5	97.2	0.027	11791	11582	pg1515_o2nofp.cx10a_c32r128
1192	141533	1492	12.2	531.7	20.1	0.011	0.088	0.446	17.300	543757	37.9	3.842	86	701.5	797.5	97.2	0.022	11918	11711	pg1610_o2nofp.cx10a_c32r128
1193	140488	1491	12.1	436.8	19.2	0.011	0.088	0.366	16.512	539566	38.0	3.841	87	701.5	797.5	97.2	0.035	11838	11598	pg1611_o2nofp.cx10a_c32r128
1193	142565	1495	12.3	381.3	18.7	0.010	0.088	0.320	16.057	547320	38.0	3.839	85	701.5	797.0	97.2	0.028	11998	11742	pg176_o2nofp.cx10a_c32r128
1193	141252	1491	12.2	476.7	19.6	0.011	0.088	0.400	16.848	542418	38.0	3.840	86	701.5	797.5	97.2	0.036	11854	11534	pg177_o2nofp.cx10a_c32r128
1192	138567	1477	11.9	454.2	19.4	0.011	0.088	0.381	16.658	532495	37.9	3.843	88	701.5	797.5	97.1	0.096	11695	11519	pg180_o2nofp.cx10b_c32r128
1193	137424	1474	11.9	342.7	18.4	0.011	0.089	0.287	15.766	527805	37.9	3.841	88	701.5	797.5	97.2	0.120	11486	11230	pg180_o2nofp.cx10c_c32r128
1193	138890	1475	11.9	432.6	19.2	0.011	0.088	0.363	16.479	533416	38.0	3.841	88	701.5	797.5	97.2	0.033	11647	11406	pg180_o2nofp.cx10d_c32r128
1192	139408	1475	11.9	534.5	20.2	0.011	0.088	0.448	17.327	535668	37.9	3.842	87	701.5	797.5	97.2	0.128	11598	11310	pg181_o2nofp.cx10b_c32r128
1192	138173	1475	11.9	437.2	19.3	0.011	0.088	0.367	16.539	530974	37.9	3.843	88	701.5	797.5	97.2	0.142	11679	11326	pg181_o2nofp.cx10d_c32r128

qp100.L2

qp100.L2: point queries with 100 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1192	6795	89510	702.8	4515.9	51.0	13.173	105.906	3.789	43.848	198485	11.3	29.211	532	702.1	798.2	97.4	0.103	608	272	pg1222_o2nofp.cx10a_c32r128
1192	6878	90562	711.3	4212.9	48.7	13.167	105.906	3.534	41.828	200825	11.5	29.199	535	701.5	797.5	97.3	0.039	608	400	pg1322_o2nofp.cx10a_c32r128
1193	6845	90019	706.6	4201.6	48.5	13.151	105.704	3.523	41.640	199771	11.4	29.184	533	701.2	797.2	97.4	0.678	592	400	pg1323_o2nofp.cx10a_c32r128
1193	6907	90867	713.8	4184.0	48.4	13.155	105.812	3.508	41.537	201199	11.4	29.128	528	701.5	797.6	97.2	0.787	608	384	pg1419_o2nofp.cx10a_c32r128
1192	6888	90721	712.5	4199.1	48.4	13.170	105.921	3.523	41.614	201023	11.5	29.182	534	701.6	797.6	97.1	0.057	608	384	pg1420_o2nofp.cx10a_c32r128
1192	7062	92861	729.5	4207.4	48.5	13.149	105.778	3.530	41.646	205475	11.7	29.094	530	701.5	797.6	97.2	0.031	608	400	pg1514_o2nofp.cx10a_c32r128
1192	7050	92706	727.9	4213.4	48.6	13.149	105.720	3.535	41.716	205279	11.7	29.116	531	701.6	797.6	97.2	0.030	608	400	pg1515_o2nofp.cx10a_c32r128
1192	7051	92702	728.3	4291.7	49.1	13.148	105.773	3.600	42.211	204972	11.5	29.072	522	701.5	797.6	97.2	0.218	608	400	pg1610_o2nofp.cx10a_c32r128
1193	7067	92822	728.8	4387.4	49.9	13.134	105.603	3.679	42.834	205367	11.6	29.060	525	701.5	797.6	97.2	0.018	608	414	pg1611_o2nofp.cx10a_c32r128
1193	7043	92541	726.9	4449.3	50.4	13.140	105.691	3.730	43.236	204561	11.6	29.045	527	701.5	793.2	97.2	0.022	608	416	pg176_o2nofp.cx10a_c32r128
1193	7072	92901	729.5	4344.3	49.5	13.136	105.625	3.642	42.539	205470	11.6	29.053	525	701.5	797.6	97.2	0.024	608	415	pg177_o2nofp.cx10a_c32r128
1191	6676	87921	691.7	4371.3	49.7	13.171	106.098	3.671	42.750	195371	12.0	29.267	575	701.5	793.7	79.0	9.656	592	80	pg180_o2nofp.cx10b_c32r128
1193	6998	91920	722.0	4491.4	50.7	13.135	105.643	3.766	43.537	203317	11.6	29.054	530	701.5	797.6	97.2	0.029	592	400	pg180_o2nofp.cx10c_c32r128
1193	6842	90031	707.3	4395.5	49.9	13.159	105.869	3.685	42.868	199131	11.6	29.106	543	701.5	797.6	97.2	0.029	592	400	pg180_o2nofp.cx10d_c32r128
1192	7024	92321	725.0	4286.1	49.1	13.144	105.696	3.596	42.159	204214	11.6	29.075	529	701.5	797.6	97.2	0.025	608	400	pg181_o2nofp.cx10b_c32r128
1192	7001	92047	722.7	4392.5	49.9	13.149	105.717	3.685	42.892	203607	11.6	29.084	530	701.5	797.6	97.2	0.029	608	400	pg181_o2nofp.cx10d_c32r128

qr500.L3

qr500.L3: range queries with 500 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
5940	128116	8555	68.5	7528.1	137.9	0.067	0.547	1.267	23.763	508054	40.7	3.966	102	703.1	799.2	97.4	1.088	11102	6207	pg1222_o2nofp.cx10a_c32r128
5940	126343	8549	68.6	7382.9	136.1	0.068	0.556	1.243	23.467	500742	40.9	3.963	104	702.3	798.4	97.3	0.740	10927	5007	pg1322_o2nofp.cx10a_c32r128
5950	127531	8545	68.7	7367.8	135.7	0.067	0.552	1.238	23.357	504741	40.9	3.958	103	701.8	797.8	97.4	1.118	11022	5919	pg1323_o2nofp.cx10a_c32r128
5944	126999	8564	69.0	7368.1	135.5	0.067	0.557	1.240	23.347	502569	41.0	3.957	103	701.9	798.0	97.2	0.398	10927	5231	pg1419_o2nofp.cx10a_c32r128
5944	128896	8560	69.0	7368.5	135.5	0.066	0.548	1.240	23.350	510267	40.9	3.959	102	702.0	798.0	97.1	2.183	11134	5039	pg1420_o2nofp.cx10a_c32r128
5937	127253	8560	69.0	7373.9	135.6	0.067	0.556	1.242	23.385	504270	40.7	3.963	102	701.9	797.9	97.2	0.336	11022	4399	pg1514_o2nofp.cx10a_c32r128
5937	126156	8559	69.0	7379.0	135.6	0.068	0.560	1.243	23.392	499879	40.8	3.962	103	701.9	797.9	97.2	0.560	10894	5375	pg1515_o2nofp.cx10a_c32r128
5934	126692	8540	68.9	7401.4	135.8	0.067	0.557	1.247	23.435	500504	40.9	3.951	103	701.9	797.9	97.2	0.344	10879	4528	pg1610_o2nofp.cx10a_c32r128
5950	126844	8564	69.1	7470.6	136.7	0.068	0.558	1.255	23.532	501496	40.8	3.954	103	701.8	797.9	97.2	0.381	11007	5695	pg1611_o2nofp.cx10a_c32r128
5947	126199	8560	69.0	7528.1	141.3	0.068	0.560	1.266	24.327	498610	41.0	3.951	104	701.9	797.9	97.2	0.260	10991	5071	pg176_o2nofp.cx10a_c32r128
5947	126363	8563	69.1	7454.1	136.5	0.068	0.560	1.253	23.505	499929	40.7	3.956	103	701.8	797.9	97.2	0.323	10974	4959	pg177_o2nofp.cx10a_c32r128
5947	123088	8558	69.1	7485.1	140.5	0.070	0.575	1.259	24.197	486928	41.1	3.956	107	701.8	797.9	79.1	0.317	10639	3967	pg180_o2nofp.cx10b_c32r128
5937	123078	8539	68.9	7491.1	136.9	0.069	0.573	1.262	23.611	486643	40.9	3.954	106	701.8	797.9	97.2	0.313	10766	5903	pg180_o2nofp.cx10c_c32r128
5950	125002	8559	69.1	7469.7	136.7	0.068	0.566	1.255	23.521	494432	40.9	3.955	105	701.8	797.9	97.2	0.264	10783	5743	pg180_o2nofp.cx10d_c32r128
5944	124342	8561	69.1	7418.4	136.2	0.069	0.569	1.248	23.464	492199	40.9	3.958	105	701.8	797.9	97.2	0.281	10815	5999	pg181_o2nofp.cx10b_c32r128
5944	124279	8561	69.0	7469.1	136.7	0.069	0.569	1.257	23.556	492175	40.9	3.960	105	701.9	797.9	97.2	0.310	10687	5727	pg181_o2nofp.cx10d_c32r128

qp500.L4

qp500.L4: point queries with 500 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
5960	4367	70858	555.6	13986.0	185.6	16.225	130.281	2.347	31.894	156066	16.2	35.735	1187	704.1	800.1	97.4	0.194	384	80	pg1222_o2nofp.cx10a_c32r128
5957	4511	72696	570.2	14155.5	186.9	16.116	129.441	2.376	32.132	160193	16.0	35.514	1135	703.2	799.3	97.3	0.856	384	96	pg1322_o2nofp.cx10a_c32r128
5964	4542	73008	572.6	14163.2	186.4	16.073	129.082	2.375	32.005	161021	16.8	35.449	1184	702.5	798.6	97.4	1.350	384	112	pg1323_o2nofp.cx10a_c32r128
5957	4547	73142	574.0	14147.0	186.0	16.086	129.258	2.375	31.967	160690	16.4	35.340	1154	702.4	798.5	97.2	1.119	384	48	pg1419_o2nofp.cx10a_c32r128
5934	4488	72289	567.4	14106.4	185.2	16.108	129.459	2.377	31.953	158923	16.6	35.412	1184	702.4	798.5	97.1	0.225	384	48	pg1420_o2nofp.cx10a_c32r128
5957	4572	73504	576.9	14130.5	185.9	16.076	129.207	2.372	31.957	161349	17.0	35.289	1190	702.3	798.4	97.2	0.246	384	80	pg1514_o2nofp.cx10a_c32r128
5921	4542	72922	572.3	14133.2	185.2	16.055	129.020	2.387	32.035	160654	15.3	35.372	1078	702.3	798.3	97.2	1.435	384	48	pg1515_o2nofp.cx10a_c32r128
5944	4654	74549	585.0	14106.4	185.3	16.017	128.697	2.373	31.919	163234	16.7	35.072	1148	702.5	798.5	97.2	0.678	384	64	pg1610_o2nofp.cx10a_c32r128
5940	4783	76225	598.0	14136.2	185.4	15.938	128.034	2.380	31.966	167093	16.6	34.938	1111	702.4	798.5	97.2	1.212	400	48	pg1611_o2nofp.cx10a_c32r128
5944	4786	76256	598.4	14100.0	185.1	15.932	128.022	2.372	31.889	166624	17.1	34.812	1143	702.4	798.4	97.2	0.132	400	48	pg176_o2nofp.cx10a_c32r128
5931	4601	73805	579.2	14038.1	184.4	16.042	128.913	2.367	31.833	161293	17.3	35.058	1203	702.2	798.2	97.3	1.282	400	48	pg177_o2nofp.cx10a_c32r128
5937	4520	72530	569.8	14057.4	184.4	16.046	129.093	2.368	31.799	158690	15.9	35.108	1126	702.1	798.2	95.6	1.149	384	48	pg180_o2nofp.cx10b_c32r128
5940	4570	73460	576.5	14029.5	184.9	16.074	129.182	2.362	31.876	160653	16.2	35.153	1134	702.3	798.3	97.2	0.616	384	48	pg180_o2nofp.cx10c_c32r128
5918	4606	73795	579.1	14075.4	184.4	16.023	128.762	2.378	31.906	161458	15.7	35.057	1091	702.3	798.4	97.2	0.171	384	48	pg180_o2nofp.cx10d_c32r128
5937	4603	73935	580.2	14091.7	184.9	16.062	129.073	2.373	31.895	161574	17.3	35.100	1203	702.2	798.2	97.2	0.179	400	48	pg181_o2nofp.cx10b_c32r128
5934	4588	73625	577.5	14105.2	185.0	16.048	128.912	2.377	31.928	161055	16.0	35.106	1116	702.6	798.7	97.2	0.673	384	48	pg181_o2nofp.cx10d_c32r128

qr1000.L5

qr1000.L5: range queries with 1000 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
10730	90900	13944	112.3	16009.7	269.8	0.153	1.265	1.492	25.751	354001	52.2	3.894	184	706.0	802.1	97.4	0.980	8543	2592	pg1222_o2nofp.cx10a_c32r128
10593	89388	13757	110.8	15669.6	265.2	0.154	1.270	1.479	25.638	347077	53.2	3.883	190	705.2	801.2	97.3	0.627	8367	2480	pg1322_o2nofp.cx10a_c32r128
10688	89831	13858	111.6	15859.2	267.4	0.154	1.272	1.484	25.623	348667	54.0	3.881	192	704.5	800.5	97.4	1.333	8431	2064	pg1323_o2nofp.cx10a_c32r128
10557	89622	13704	110.4	15653.8	263.6	0.153	1.261	1.483	25.571	347915	53.5	3.882	191	704.3	800.4	97.2	0.547	8319	2784	pg1419_o2nofp.cx10a_c32r128
10480	91285	13599	109.6	15512.4	261.3	0.149	1.230	1.480	25.533	355706	52.6	3.897	184	704.2	800.2	97.1	0.518	8495	2592	pg1420_o2nofp.cx10a_c32r128
10521	89698	13664	110.1	15805.8	264.9	0.152	1.257	1.502	25.786	348893	52.9	3.890	189	704.2	800.2	97.2	1.408	8477	1792	pg1514_o2nofp.cx10a_c32r128
10568	90608	13740	110.8	15650.3	263.4	0.152	1.252	1.481	25.524	355503	52.7	3.924	186	704.0	800.0	97.2	1.166	8511	2336	pg1515_o2nofp.cx10a_c32r128
10599	89759	13767	111.0	15729.9	264.6	0.153	1.266	1.484	25.566	347615	54.0	3.873	193	704.2	800.3	97.2	1.033	8319	2496	pg1610_o2nofp.cx10a_c32r128
10455	89961	13592	109.5	15491.2	261.0	0.151	1.246	1.482	25.564	350915	53.4	3.901	190	704.3	800.4	97.2	0.746	8415	2512	pg1611_o2nofp.cx10a_c32r128
10562	87565	13701	110.4	15658.9	263.6	0.156	1.291	1.483	25.555	345438	53.8	3.945	197	704.3	800.3	97.2	1.275	8287	2304	pg176_o2nofp.cx10a_c32r128
10578	88811	13737	110.7	15701.6	264.1	0.155	1.276	1.484	25.564	343208	54.1	3.864	195	704.0	800.0	97.3	1.079	8367	2000	pg177_o2nofp.cx10a_c32r128
10568	87363	13704	110.6	15657.4	263.5	0.157	1.297	1.482	25.531	334715	54.2	3.831	199	703.8	799.8	97.0	1.456	8175	2128	pg180_o2nofp.cx10b_c32r128
10557	88107	13709	110.5	15627.9	263.4	0.156	1.284	1.480	25.552	340495	53.2	3.865	193	704.0	800.1	97.2	1.093	8175	2304	pg180_o2nofp.cx10c_c32r128
10619	88368	13783	111.1	15690.6	264.5	0.156	1.287	1.478	25.500	341899	53.9	3.869	195	704.2	800.2	97.2	1.510	8271	2352	pg180_o2nofp.cx10d_c32r128
10578	88467	13740	110.7	15807.1	265.4	0.155	1.282	1.494	25.697	342275	54.2	3.869	196	703.9	799.9	97.2	1.043	8271	2096	pg181_o2nofp.cx10b_c32r128
10573	88054	13732	110.6	15638.2	263.7	0.156	1.286	1.479	25.541	339241	54.2	3.853	197	704.5	800.6	97.2	1.106	8223	2528	pg181_o2nofp.cx10d_c32r128

qp1000.L6

qp1000.L6: point queries with 1000 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
11563	2378	55449	435.3	22618.8	331.2	23.319	187.463	1.956	29.328	122874	27.1	51.673	3647	708.6	804.6	97.4	2.047	192	48	pg1222_o2nofp.cx10a_c32r128
11344	2443	56039	439.9	22354.3	326.2	22.942	184.416	1.970	29.443	124183	27.9	50.840	3655	707.9	804.0	97.3	2.336	192	48	pg1322_o2nofp.cx10a_c32r128
11495	2417	56090	440.1	22721.1	329.7	23.208	186.471	1.977	29.370	124311	28.2	51.434	3734	707.4	803.4	97.4	2.206	192	48	pg1323_o2nofp.cx10a_c32r128
11386	2452	56279	441.9	22353.9	324.9	22.952	184.526	1.963	29.222	123839	28.1	50.505	3667	706.9	803.0	97.2	1.710	192	32	pg1419_o2nofp.cx10a_c32r128
11688	2543	58120	456.2	22856.6	332.6	22.859	183.743	1.956	29.140	128446	28.9	50.518	3637	706.7	802.8	97.1	2.795	192	48	pg1420_o2nofp.cx10a_c32r128
11333	2456	56271	441.7	22319.0	322.6	22.909	184.156	1.969	29.148	123907	27.6	50.444	3596	706.8	802.8	97.2	2.401	192	48	pg1514_o2nofp.cx10a_c32r128
11428	2399	55664	436.9	22574.4	327.2	23.203	186.476	1.975	29.317	122683	27.5	51.139	3668	706.6	802.6	97.2	2.917	192	48	pg1515_o2nofp.cx10a_c32r128
11279	2501	56861	446.3	22342.9	323.6	22.735	182.735	1.981	29.378	124273	27.7	49.689	3544	706.8	802.9	97.2	2.268	208	48	pg1610_o2nofp.cx10a_c32r128
11273	2504	56912	446.7	22260.4	322.5	22.733	182.716	1.975	29.290	124415	28.4	49.696	3630	706.9	803.0	97.2	2.250	208	32	pg1611_o2nofp.cx10a_c32r128
11297	2530	57314	450.0	22186.4	322.1	22.651	182.094	1.964	29.193	124548	29.9	49.222	3781	706.9	802.9	97.3	2.576	208	32	pg176_o2nofp.cx10a_c32r128
11459	2458	56545	443.9	22695.8	328.0	23.000	184.874	1.981	29.315	123266	29.4	50.139	3827	706.6	802.6	97.3	1.982	208	48	pg177_o2nofp.cx10a_c32r128
11447	2418	55931	439.2	22498.3	326.7	23.131	186.010	1.965	29.223	121866	29.5	50.399	3904	706.4	802.4	97.1	1.656	192	48	pg180_o2nofp.cx10b_c32r128
11368	2531	57412	450.6	22632.9	326.6	22.686	182.331	1.991	29.418	124930	28.7	49.366	3629	706.6	802.7	97.3	1.493	208	48	pg180_o2nofp.cx10c_c32r128
11520	2505	57374	450.4	22586.1	328.3	22.907	184.135	1.961	29.182	124867	29.4	49.853	3756	706.8	802.8	97.3	2.940	208	32	pg180_o2nofp.cx10d_c32r128
11380	2600	58440	458.7	22284.8	323.5	22.479	180.669	1.958	29.106	127214	28.6	48.934	3520	706.5	802.5	97.2	2.857	208	32	pg181_o2nofp.cx10b_c32r128
11344	2512	57064	447.9	22294.0	323.5	22.714	182.569	1.965	29.201	124096	29.0	49.395	3694	707.1	803.2	97.3	1.997	208	32	pg181_o2nofp.cx10d_c32r128

l.i0

l.i0: load without secondary indexes
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	89.822	10.079	0.040	0.038	0.015	0.006	0.001	0.000	0.000	2.190	pg1222_o2nofp.cx10a_c32r128
0.000	95.901	3.885	0.113	0.059	0.031	0.011	0.001	0.000	0.000	3.798	pg1322_o2nofp.cx10a_c32r128
0.000	98.684	1.161	0.076	0.055	0.018	0.005	0.001	0.000	0.000	2.825	pg1323_o2nofp.cx10a_c32r128
0.000	95.540	4.302	0.089	0.047	0.017	0.005	0.001	0.000	0.000	3.072	pg1419_o2nofp.cx10a_c32r128
0.000	94.211	5.549	0.133	0.058	0.038	0.010	0.001	0.000	0.000	2.401	pg1420_o2nofp.cx10a_c32r128
0.000	93.454	6.381	0.083	0.056	0.021	0.006	0.001	0.000	0.000	2.058	pg1514_o2nofp.cx10a_c32r128
0.000	98.551	1.287	0.082	0.053	0.021	0.006	nonzero	0.000	0.000	1.888	pg1515_o2nofp.cx10a_c32r128
0.000	98.313	1.521	0.087	0.055	0.017	0.007	nonzero	0.000	0.000	1.584	pg1610_o2nofp.cx10a_c32r128
0.000	98.666	1.163	0.083	0.060	0.023	0.006	nonzero	0.000	0.000	1.819	pg1611_o2nofp.cx10a_c32r128
0.000	97.422	2.384	0.112	0.057	0.019	0.006	nonzero	0.000	0.000	1.905	pg176_o2nofp.cx10a_c32r128
0.000	98.335	1.492	0.097	0.052	0.018	0.006	nonzero	0.000	0.000	2.093	pg177_o2nofp.cx10a_c32r128
0.000	98.485	1.328	0.098	0.057	0.025	0.006	nonzero	0.000	0.000	2.252	pg180_o2nofp.cx10b_c32r128
0.000	98.440	1.382	0.087	0.055	0.029	0.006	nonzero	0.000	0.000	2.129	pg180_o2nofp.cx10c_c32r128
0.000	98.539	1.302	0.082	0.053	0.018	0.006	0.001	0.000	0.000	1.804	pg180_o2nofp.cx10d_c32r128
0.000	98.378	1.445	0.095	0.055	0.021	0.006	0.001	0.000	0.000	1.767	pg181_o2nofp.cx10b_c32r128
0.000	98.460	1.389	0.083	0.044	0.016	0.006	nonzero	nonzero	0.000	4.082	pg181_o2nofp.cx10d_c32r128

l.x

l.x: create secondary indexes
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

TODO - determine whether there is data for create index response time

l.i1

l.i1: continue load after secondary indexes created with 50 inserts per transaction
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	14.359	81.806	3.737	0.067	0.030	0.002	0.000	5.656	pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	25.936	71.413	2.543	0.096	0.011	0.000	0.000	3.753	pg1322_o2nofp.cx10a_c32r128
0.000	0.000	0.000	23.988	72.540	3.289	0.168	0.016	0.000	0.000	3.487	pg1323_o2nofp.cx10a_c32r128
0.000	0.000	0.000	27.005	69.483	3.470	0.023	0.019	0.000	0.000	3.927	pg1419_o2nofp.cx10a_c32r128
0.000	0.000	0.000	27.097	68.897	3.978	0.015	0.013	0.000	0.000	2.745	pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	24.963	71.618	3.378	0.028	0.012	0.001	0.000	4.808	pg1514_o2nofp.cx10a_c32r128
0.000	0.000	0.000	20.383	75.793	3.778	0.034	0.012	0.000	0.000	2.852	pg1515_o2nofp.cx10a_c32r128
0.000	0.000	0.000	21.456	74.133	4.336	0.048	0.027	0.000	0.000	2.698	pg1610_o2nofp.cx10a_c32r128
0.000	0.000	0.000	22.946	73.842	3.143	0.048	0.021	nonzero	0.000	4.040	pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	25.240	70.798	3.908	0.041	0.013	nonzero	0.000	4.006	pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	28.989	68.025	2.966	0.010	0.008	0.001	0.000	6.307	pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	25.245	71.025	3.667	0.043	0.020	0.000	0.000	3.004	pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	23.650	72.897	3.393	0.040	0.021	0.000	0.000	3.509	pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	23.447	73.093	3.409	0.035	0.014	nonzero	0.000	4.032	pg180_o2nofp.cx10d_c32r128
0.000	0.000	0.000	25.833	70.584	3.541	0.025	0.017	0.000	0.000	3.066	pg181_o2nofp.cx10b_c32r128
0.000	0.000	0.000	22.483	73.876	3.601	0.026	0.015	0.000	0.000	3.936	pg181_o2nofp.cx10d_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	2.513	12.416	37.045	47.336	0.645	0.022	0.023	nonzero	0.000	4.127	pg1222_o2nofp.cx10a_c32r128
0.000	2.170	13.939	35.924	46.998	0.891	0.070	0.007	0.000	0.000	2.873	pg1322_o2nofp.cx10a_c32r128
0.000	2.256	16.118	37.925	42.468	1.123	0.101	0.010	0.000	0.000	2.801	pg1323_o2nofp.cx10a_c32r128
0.000	2.128	10.567	30.175	56.953	0.151	0.009	0.017	0.000	0.000	3.121	pg1419_o2nofp.cx10a_c32r128
0.000	2.225	11.362	32.407	53.850	0.133	0.013	0.011	0.000	0.000	2.738	pg1420_o2nofp.cx10a_c32r128
0.000	2.172	10.652	30.162	56.800	0.195	0.007	0.011	0.001	0.000	4.765	pg1514_o2nofp.cx10a_c32r128
0.000	2.235	10.986	29.417	56.859	0.470	0.021	0.011	0.000	0.000	2.842	pg1515_o2nofp.cx10a_c32r128
0.000	2.244	10.449	28.451	58.465	0.349	0.017	0.024	0.000	0.000	3.432	pg1610_o2nofp.cx10a_c32r128
0.000	2.150	10.292	26.767	60.481	0.268	0.023	0.019	0.000	0.000	3.544	pg1611_o2nofp.cx10a_c32r128
0.000	2.041	10.226	23.689	63.775	0.243	0.015	0.011	nonzero	0.000	4.011	pg176_o2nofp.cx10a_c32r128
0.000	2.083	10.362	23.221	64.149	0.168	0.008	0.008	0.001	0.000	6.292	pg177_o2nofp.cx10a_c32r128
0.000	2.048	10.012	25.857	61.797	0.246	0.021	0.018	0.000	0.000	3.680	pg180_o2nofp.cx10b_c32r128
0.000	2.020	10.182	25.398	62.113	0.252	0.018	0.018	0.000	0.000	3.327	pg180_o2nofp.cx10c_c32r128
0.000	2.065	10.255	27.013	60.424	0.209	0.020	0.013	nonzero	0.000	4.042	pg180_o2nofp.cx10d_c32r128
0.000	2.059	10.632	27.269	59.731	0.281	0.012	0.015	0.000	0.000	2.389	pg181_o2nofp.cx10b_c32r128
0.000	2.074	10.274	25.602	61.816	0.211	0.012	0.011	0.000	0.000	3.624	pg181_o2nofp.cx10d_c32r128

l.i2

l.i2: continue load after secondary indexes created with 5 inserts per transaction
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	21.435	74.806	2.373	1.339	0.048	0.000	0.000	0.000	0.000	0.237	pg1222_o2nofp.cx10a_c32r128
0.000	23.980	73.466	1.633	0.889	0.033	nonzero	0.000	0.000	0.000	0.688	pg1322_o2nofp.cx10a_c32r128
nonzero	27.367	69.087	3.143	0.388	0.016	nonzero	0.000	0.000	0.000	0.576	pg1323_o2nofp.cx10a_c32r128
0.000	17.542	80.072	1.461	0.810	0.114	0.001	0.000	0.000	0.000	0.937	pg1419_o2nofp.cx10a_c32r128
0.000	17.719	79.587	1.719	0.931	0.044	nonzero	0.000	0.000	0.000	0.540	pg1420_o2nofp.cx10a_c32r128
0.000	18.884	78.028	1.992	1.087	0.009	nonzero	0.000	0.000	0.000	0.700	pg1514_o2nofp.cx10a_c32r128
0.000	18.613	78.451	1.881	1.028	0.026	0.001	0.000	0.000	0.000	0.958	pg1515_o2nofp.cx10a_c32r128
0.000	20.126	76.603	2.153	1.113	0.006	0.000	0.000	0.000	0.000	0.109	pg1610_o2nofp.cx10a_c32r128
0.000	18.712	78.747	1.688	0.849	0.004	0.000	0.000	0.000	0.000	0.122	pg1611_o2nofp.cx10a_c32r128
0.000	19.997	77.177	1.856	0.967	0.003	0.000	0.000	0.000	0.000	0.111	pg176_o2nofp.cx10a_c32r128
0.000	21.874	75.784	1.526	0.769	0.045	0.001	0.000	0.000	0.000	0.728	pg177_o2nofp.cx10a_c32r128
0.000	18.668	78.665	1.737	0.915	0.014	0.000	0.000	0.000	0.000	0.129	pg180_o2nofp.cx10b_c32r128
0.000	18.976	78.249	1.831	0.940	0.004	nonzero	0.000	0.000	0.000	0.685	pg180_o2nofp.cx10c_c32r128
0.000	20.120	76.787	2.010	1.076	0.007	0.000	0.000	0.000	0.000	0.128	pg180_o2nofp.cx10d_c32r128
0.000	18.166	79.256	1.707	0.862	0.008	nonzero	0.000	0.000	0.000	0.920	pg181_o2nofp.cx10b_c32r128
0.000	19.009	78.568	1.609	0.810	0.003	nonzero	0.000	0.000	0.000	0.932	pg181_o2nofp.cx10d_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	0.238	99.761	0.002	0.000	0.000	0.000	0.000	0.170	pg1222_o2nofp.cx10a_c32r128
0.000	0.000	3.044	9.717	87.238	nonzero	0.001	0.000	0.000	0.000	0.704	pg1322_o2nofp.cx10a_c32r128
nonzero	2.297	11.534	30.157	56.009	0.002	0.001	0.000	0.000	0.000	0.594	pg1323_o2nofp.cx10a_c32r128
0.000	0.000	0.000	1.347	98.650	0.001	0.001	0.000	0.000	0.000	0.946	pg1419_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.046	99.952	0.001	0.001	0.000	0.000	0.000	0.558	pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.070	99.926	0.004	0.001	0.000	0.000	0.000	0.864	pg1514_o2nofp.cx10a_c32r128
0.000	0.000	0.000	1.546	98.450	0.003	0.002	0.000	0.000	0.000	0.983	pg1515_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.456	99.543	0.001	0.000	0.000	0.000	0.000	0.193	pg1610_o2nofp.cx10a_c32r128
0.000	0.000	0.000	1.510	98.489	0.001	0.000	0.000	0.000	0.000	0.180	pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.029	99.971	0.001	0.000	0.000	0.000	0.000	0.181	pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.023	99.974	0.001	0.002	0.000	0.000	0.000	0.857	pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.038	99.961	0.001	0.000	0.000	0.000	0.000	0.167	pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	0.039	99.960	0.001	0.001	0.000	0.000	0.000	0.709	pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	0.029	99.970	0.001	0.000	0.000	0.000	0.000	0.177	pg180_o2nofp.cx10d_c32r128
0.000	0.000	0.000	0.040	99.954	0.004	0.002	0.000	0.000	0.000	0.953	pg181_o2nofp.cx10b_c32r128
0.000	0.000	0.000	0.036	99.962	0.001	0.002	0.000	0.000	0.000	0.951	pg181_o2nofp.cx10d_c32r128

qr100.L1

qr100.L1: range queries with 100 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.984	0.013	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.036	pg1222_o2nofp.cx10a_c32r128
99.991	0.008	nonzero	0.000	nonzero	0.000	0.000	0.000	0.000	0.000	0.024	pg1322_o2nofp.cx10a_c32r128
99.991	0.009	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.006	pg1323_o2nofp.cx10a_c32r128
99.992	0.008	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg1419_o2nofp.cx10a_c32r128
99.991	0.008	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.005	pg1420_o2nofp.cx10a_c32r128
99.992	0.007	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.061	pg1514_o2nofp.cx10a_c32r128
99.991	0.009	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.027	pg1515_o2nofp.cx10a_c32r128
99.991	0.008	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.022	pg1610_o2nofp.cx10a_c32r128
99.981	0.016	0.003	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.035	pg1611_o2nofp.cx10a_c32r128
99.993	0.007	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.028	pg176_o2nofp.cx10a_c32r128
99.990	0.009	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.036	pg177_o2nofp.cx10a_c32r128
99.989	0.010	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.096	pg180_o2nofp.cx10b_c32r128
99.978	0.019	0.003	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.120	pg180_o2nofp.cx10c_c32r128
99.992	0.007	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.033	pg180_o2nofp.cx10d_c32r128
99.976	0.020	0.003	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.128	pg181_o2nofp.cx10b_c32r128
99.978	0.019	0.003	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.142	pg181_o2nofp.cx10d_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	96.065	3.546	0.389	0.000	0.000	0.000	0.000	0.129	pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	99.630	0.370	0.000	0.000	0.000	0.000	0.000	0.048	pg1322_o2nofp.cx10a_c32r128
0.000	0.000	0.000	99.440	0.560	0.000	0.000	0.000	0.000	0.000	0.028	pg1323_o2nofp.cx10a_c32r128
0.000	0.000	0.000	99.620	0.380	0.000	0.000	0.000	0.000	0.000	0.063	pg1419_o2nofp.cx10a_c32r128
0.000	0.000	0.000	99.650	0.350	0.000	0.000	0.000	0.000	0.000	0.037	pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	99.521	0.447	0.032	0.000	0.000	0.000	0.000	0.110	pg1514_o2nofp.cx10a_c32r128
0.000	0.000	0.000	99.688	0.312	0.000	0.000	0.000	0.000	0.000	0.050	pg1515_o2nofp.cx10a_c32r128
0.000	0.000	0.000	99.738	0.252	0.009	0.000	0.000	0.000	0.000	0.083	pg1610_o2nofp.cx10a_c32r128
0.000	0.000	0.000	95.850	3.688	0.463	0.000	0.000	0.000	0.000	0.121	pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	97.546	2.245	0.208	0.000	0.000	0.000	0.000	0.143	pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	98.942	0.921	0.137	0.000	0.000	0.000	0.000	0.132	pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	97.296	2.470	0.234	0.000	0.000	0.000	0.000	0.132	pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	92.512	6.796	0.692	0.000	0.000	0.000	0.000	0.191	pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	98.088	1.831	0.081	0.000	0.000	0.000	0.000	0.121	pg180_o2nofp.cx10d_c32r128
0.000	0.000	0.000	98.951	0.931	0.118	0.000	0.000	0.000	0.000	0.197	pg181_o2nofp.cx10b_c32r128
0.000	0.000	0.000	95.100	4.329	0.572	0.000	0.000	0.000	0.000	0.172	pg181_o2nofp.cx10d_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	45.352	54.632	0.014	0.002	0.000	0.000	0.000	0.000	0.000	0.016	pg1222_o2nofp.cx10a_c32r128
0.000	40.991	59.009	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg1322_o2nofp.cx10a_c32r128
0.000	44.428	55.572	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg1323_o2nofp.cx10a_c32r128
0.000	39.866	60.132	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg1419_o2nofp.cx10a_c32r128
0.000	46.174	53.826	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg1420_o2nofp.cx10a_c32r128
0.000	41.787	58.211	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.006	pg1514_o2nofp.cx10a_c32r128
0.000	46.725	53.273	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.024	pg1515_o2nofp.cx10a_c32r128
0.000	43.481	56.519	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg1610_o2nofp.cx10a_c32r128
0.000	46.775	53.199	0.016	0.009	0.000	0.000	0.000	0.000	0.000	0.023	pg1611_o2nofp.cx10a_c32r128
0.000	40.403	59.593	0.005	0.000	0.000	0.000	0.000	0.000	0.000	0.016	pg176_o2nofp.cx10a_c32r128
0.000	45.067	54.931	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg177_o2nofp.cx10a_c32r128
0.000	39.808	60.139	0.053	0.000	0.000	0.000	0.000	0.000	0.000	0.011	pg180_o2nofp.cx10b_c32r128
0.000	38.431	61.551	0.007	0.012	0.000	0.000	0.000	0.000	0.000	0.022	pg180_o2nofp.cx10c_c32r128
0.000	38.780	61.220	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	pg180_o2nofp.cx10d_c32r128
0.000	43.669	56.292	0.023	0.016	0.000	0.000	0.000	0.000	0.000	0.023	pg181_o2nofp.cx10b_c32r128
0.000	41.708	58.266	0.019	0.007	0.000	0.000	0.000	0.000	0.000	0.021	pg181_o2nofp.cx10d_c32r128

qp100.L2

qp100.L2: point queries with 100 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	1.295	97.251	1.437	0.016	nonzero	0.000	0.000	0.000	0.000	0.103	pg1222_o2nofp.cx10a_c32r128
0.000	1.332	97.400	1.267	0.001	0.000	0.000	0.000	0.000	0.000	0.039	pg1322_o2nofp.cx10a_c32r128
0.000	1.323	97.328	1.343	0.005	nonzero	nonzero	0.000	0.000	0.000	0.678	pg1323_o2nofp.cx10a_c32r128
0.000	1.358	97.568	1.067	0.006	0.001	nonzero	0.000	0.000	0.000	0.787	pg1419_o2nofp.cx10a_c32r128
0.000	1.333	97.532	1.134	0.001	0.000	0.000	0.000	0.000	0.000	0.057	pg1420_o2nofp.cx10a_c32r128
nonzero	1.364	98.414	0.222	0.001	0.000	0.000	0.000	0.000	0.000	0.031	pg1514_o2nofp.cx10a_c32r128
0.000	1.332	98.485	0.182	0.001	0.000	0.000	0.000	0.000	0.000	0.030	pg1515_o2nofp.cx10a_c32r128
0.000	1.318	98.484	0.196	0.002	nonzero	0.000	0.000	0.000	0.000	0.218	pg1610_o2nofp.cx10a_c32r128
0.000	1.352	98.433	0.215	nonzero	0.000	0.000	0.000	0.000	0.000	0.018	pg1611_o2nofp.cx10a_c32r128
0.000	1.308	98.475	0.217	nonzero	0.000	0.000	0.000	0.000	0.000	0.022	pg176_o2nofp.cx10a_c32r128
nonzero	1.332	98.500	0.168	nonzero	0.000	0.000	0.000	0.000	0.000	0.024	pg177_o2nofp.cx10a_c32r128
nonzero	1.120	97.908	0.870	0.097	0.004	nonzero	nonzero	nonzero	0.000	9.656	pg180_o2nofp.cx10b_c32r128
0.000	1.229	98.540	0.230	0.001	0.000	0.000	0.000	0.000	0.000	0.029	pg180_o2nofp.cx10c_c32r128
nonzero	1.184	97.684	1.132	nonzero	0.000	0.000	0.000	0.000	0.000	0.029	pg180_o2nofp.cx10d_c32r128
nonzero	1.238	98.607	0.155	nonzero	0.000	0.000	0.000	0.000	0.000	0.025	pg181_o2nofp.cx10b_c32r128
nonzero	1.214	98.588	0.198	0.001	0.000	0.000	0.000	0.000	0.000	0.029	pg181_o2nofp.cx10d_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	18.266	80.944	0.789	0.000	0.000	0.000	0.000	0.137	pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	5.120	94.877	0.002	0.000	0.000	0.000	0.000	0.065	pg1322_o2nofp.cx10a_c32r128
0.000	0.000	0.000	16.412	83.431	0.150	0.007	0.000	0.000	0.000	0.737	pg1323_o2nofp.cx10a_c32r128
0.000	0.000	0.000	17.458	82.051	0.248	0.213	0.030	0.000	0.000	1.579	pg1419_o2nofp.cx10a_c32r128
0.000	0.000	0.000	10.861	88.831	0.308	0.000	0.000	0.000	0.000	0.091	pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	10.035	89.896	0.069	0.000	0.000	0.000	0.000	0.088	pg1514_o2nofp.cx10a_c32r128
0.000	0.000	0.000	18.498	81.431	0.072	0.000	0.000	0.000	0.000	0.071	pg1515_o2nofp.cx10a_c32r128
0.000	0.000	0.000	28.340	71.593	0.039	0.028	0.000	0.000	0.000	0.288	pg1610_o2nofp.cx10a_c32r128
0.000	0.000	0.000	15.130	84.831	0.039	0.000	0.000	0.000	0.000	0.067	pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	14.634	85.322	0.044	0.000	0.000	0.000	0.000	0.069	pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	30.093	69.875	0.032	0.000	0.000	0.000	0.000	0.069	pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	39.208	57.523	3.169	0.046	0.037	0.016	0.000	9.674	pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	12.782	87.127	0.090	0.000	0.000	0.000	0.000	0.075	pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	19.500	80.380	0.120	0.000	0.000	0.000	0.000	0.086	pg180_o2nofp.cx10d_c32r128
0.000	0.000	0.000	28.456	71.521	0.023	0.000	0.000	0.000	0.000	0.068	pg181_o2nofp.cx10b_c32r128
0.000	0.000	0.000	12.023	87.903	0.074	0.000	0.000	0.000	0.000	0.091	pg181_o2nofp.cx10d_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	98.833	1.150	0.016	0.000	0.000	0.000	0.000	0.000	0.022	pg1222_o2nofp.cx10a_c32r128
0.000	0.000	96.366	3.632	0.002	0.000	0.000	0.000	0.000	0.000	0.017	pg1322_o2nofp.cx10a_c32r128
0.000	0.000	99.275	0.720	0.005	0.000	0.000	0.000	0.000	0.000	0.018	pg1323_o2nofp.cx10a_c32r128
0.000	0.000	96.046	3.815	0.028	0.028	0.079	0.005	0.000	0.000	1.002	pg1419_o2nofp.cx10a_c32r128
0.000	0.000	99.120	0.880	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg1420_o2nofp.cx10a_c32r128
0.000	0.000	95.037	4.963	0.000	0.000	0.000	0.000	0.000	0.000	0.016	pg1514_o2nofp.cx10a_c32r128
0.000	0.000	98.926	1.074	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg1515_o2nofp.cx10a_c32r128
0.000	0.000	96.861	3.137	0.002	0.000	0.000	0.000	0.000	0.000	0.017	pg1610_o2nofp.cx10a_c32r128
0.000	0.000	97.900	2.100	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg1611_o2nofp.cx10a_c32r128
0.000	0.000	93.583	6.417	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg176_o2nofp.cx10a_c32r128
0.000	0.000	98.958	1.042	0.000	0.000	0.000	0.000	0.000	0.000	0.014	pg177_o2nofp.cx10a_c32r128
0.000	0.000	94.787	4.965	0.190	0.012	0.009	0.037	0.000	0.000	2.903	pg180_o2nofp.cx10b_c32r128
0.000	0.000	93.669	6.329	0.002	0.000	0.000	0.000	0.000	0.000	0.020	pg180_o2nofp.cx10c_c32r128
0.000	0.000	93.838	6.162	0.000	0.000	0.000	0.000	0.000	0.000	0.016	pg180_o2nofp.cx10d_c32r128
0.000	0.000	99.100	0.898	0.002	0.000	0.000	0.000	0.000	0.000	0.019	pg181_o2nofp.cx10b_c32r128
0.000	0.000	98.169	1.831	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg181_o2nofp.cx10d_c32r128

qr500.L3

qr500.L3: range queries with 500 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.956	0.037	0.003	0.001	0.002	0.001	nonzero	nonzero	0.000	0.000	1.088	pg1222_o2nofp.cx10a_c32r128
99.934	0.054	0.008	0.001	0.002	0.001	nonzero	0.000	0.000	0.000	0.740	pg1322_o2nofp.cx10a_c32r128
99.941	0.048	0.007	0.001	0.002	0.001	nonzero	nonzero	0.000	0.000	1.118	pg1323_o2nofp.cx10a_c32r128
99.948	0.044	0.005	0.001	0.002	0.001	nonzero	0.000	0.000	0.000	0.398	pg1419_o2nofp.cx10a_c32r128
99.959	0.036	0.002	0.001	0.001	0.001	nonzero	nonzero	0.000	0.000	2.183	pg1420_o2nofp.cx10a_c32r128
99.946	0.044	0.006	0.001	0.002	0.001	nonzero	0.000	0.000	0.000	0.336	pg1514_o2nofp.cx10a_c32r128
99.951	0.042	0.004	0.001	0.002	0.001	nonzero	0.000	0.000	0.000	0.560	pg1515_o2nofp.cx10a_c32r128
99.950	0.043	0.003	0.001	0.002	0.002	nonzero	0.000	0.000	0.000	0.344	pg1610_o2nofp.cx10a_c32r128
99.940	0.047	0.009	0.001	0.002	0.001	nonzero	0.000	0.000	0.000	0.381	pg1611_o2nofp.cx10a_c32r128
99.940	0.049	0.006	0.001	0.002	0.002	nonzero	0.000	0.000	0.000	0.260	pg176_o2nofp.cx10a_c32r128
99.943	0.046	0.006	0.001	0.002	0.002	nonzero	0.000	0.000	0.000	0.323	pg177_o2nofp.cx10a_c32r128
99.940	0.049	0.007	0.001	0.002	0.002	nonzero	0.000	0.000	0.000	0.317	pg180_o2nofp.cx10b_c32r128
99.941	0.048	0.006	0.001	0.002	0.002	nonzero	0.000	0.000	0.000	0.313	pg180_o2nofp.cx10c_c32r128
99.945	0.045	0.005	0.001	0.002	0.002	nonzero	0.000	0.000	0.000	0.264	pg180_o2nofp.cx10d_c32r128
99.941	0.048	0.005	0.001	0.002	0.002	nonzero	0.000	0.000	0.000	0.281	pg181_o2nofp.cx10b_c32r128
99.945	0.046	0.004	0.001	0.002	0.001	nonzero	0.000	0.000	0.000	0.310	pg181_o2nofp.cx10d_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	74.318	18.548	6.882	0.249	0.004	0.000	0.000	1.155	pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	72.852	20.756	6.145	0.247	0.000	0.000	0.000	0.863	pg1322_o2nofp.cx10a_c32r128
0.000	0.000	0.000	74.069	19.156	6.567	0.205	0.003	0.000	0.000	1.147	pg1323_o2nofp.cx10a_c32r128
0.000	0.000	0.000	71.814	22.212	5.571	0.403	0.000	0.000	0.000	0.424	pg1419_o2nofp.cx10a_c32r128
0.000	0.000	0.000	73.626	21.232	4.722	0.413	0.006	0.000	0.000	2.217	pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	71.022	21.435	7.133	0.410	0.000	0.000	0.000	0.469	pg1514_o2nofp.cx10a_c32r128
0.000	0.000	0.000	70.983	22.984	5.568	0.465	0.000	0.000	0.000	0.584	pg1515_o2nofp.cx10a_c32r128
0.000	0.000	0.000	68.816	20.147	10.598	0.439	0.000	0.000	0.000	0.445	pg1610_o2nofp.cx10a_c32r128
0.000	0.000	0.000	68.143	21.090	10.435	0.332	0.000	0.000	0.000	0.417	pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	67.679	22.254	9.705	0.362	0.000	0.000	0.000	0.353	pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	69.817	18.753	11.007	0.423	0.000	0.000	0.000	0.396	pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	67.880	23.269	8.468	0.384	0.000	0.000	0.000	0.381	pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	69.982	19.552	10.036	0.430	0.000	0.000	0.000	0.555	pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	71.287	19.130	9.287	0.297	0.000	0.000	0.000	0.366	pg180_o2nofp.cx10d_c32r128
0.000	0.000	0.000	68.529	19.959	11.087	0.425	0.000	0.000	0.000	0.393	pg181_o2nofp.cx10b_c32r128
0.000	0.000	0.000	69.609	19.558	10.471	0.362	0.000	0.000	0.000	0.477	pg181_o2nofp.cx10d_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	53.311	45.031	0.688	0.951	0.019	nonzero	0.000	0.000	1.021	pg1222_o2nofp.cx10a_c32r128
0.000	0.000	38.150	60.223	0.721	0.893	0.013	0.000	0.000	0.000	0.789	pg1322_o2nofp.cx10a_c32r128
0.000	0.000	40.536	57.716	0.776	0.966	0.004	0.003	0.000	0.000	1.127	pg1323_o2nofp.cx10a_c32r128
0.000	0.000	32.920	65.601	0.573	0.899	0.007	0.000	0.000	0.000	0.297	pg1419_o2nofp.cx10a_c32r128
0.000	0.000	40.584	58.005	0.536	0.848	0.022	0.005	0.000	0.000	2.190	pg1420_o2nofp.cx10a_c32r128
0.000	0.000	34.384	63.997	0.627	0.970	0.021	0.000	0.000	0.000	0.348	pg1514_o2nofp.cx10a_c32r128
0.000	0.000	36.372	62.140	0.600	0.874	0.014	0.000	0.000	0.000	0.565	pg1515_o2nofp.cx10a_c32r128
0.000	0.000	30.179	67.969	0.763	1.072	0.017	0.000	0.000	0.000	0.350	pg1610_o2nofp.cx10a_c32r128
0.000	0.000	31.623	66.932	0.587	0.850	0.008	0.000	0.000	0.000	0.394	pg1611_o2nofp.cx10a_c32r128
0.000	0.000	22.697	75.295	0.821	1.179	0.008	0.000	0.000	0.000	0.302	pg176_o2nofp.cx10a_c32r128
0.000	0.000	33.381	64.704	0.825	1.069	0.021	0.000	0.000	0.000	0.326	pg177_o2nofp.cx10a_c32r128
0.000	0.000	21.021	77.129	0.736	1.111	0.003	0.000	0.000	0.000	0.320	pg180_o2nofp.cx10b_c32r128
0.000	0.000	30.100	67.984	0.815	1.091	0.009	0.000	0.000	0.000	0.320	pg180_o2nofp.cx10c_c32r128
0.000	0.000	27.156	71.153	0.716	0.968	0.007	0.000	0.000	0.000	0.274	pg180_o2nofp.cx10d_c32r128
0.000	0.000	31.900	66.184	0.805	1.106	0.005	0.000	0.000	0.000	0.304	pg181_o2nofp.cx10b_c32r128
0.000	0.000	31.252	67.197	0.664	0.881	0.006	0.000	0.000	0.000	0.322	pg181_o2nofp.cx10d_c32r128

qp500.L4

qp500.L4: point queries with 500 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.324	82.781	16.510	0.384	0.001	0.000	0.000	0.000	0.000	0.194	pg1222_o2nofp.cx10a_c32r128
0.000	0.337	83.742	15.665	0.253	0.004	0.001	0.000	0.000	0.000	0.856	pg1322_o2nofp.cx10a_c32r128
0.000	0.343	83.739	15.710	0.206	0.002	nonzero	nonzero	0.000	0.000	1.350	pg1323_o2nofp.cx10a_c32r128
0.000	0.337	83.813	15.583	0.264	0.003	nonzero	nonzero	0.000	0.000	1.119	pg1419_o2nofp.cx10a_c32r128
0.000	0.327	83.270	16.104	0.296	0.003	0.000	0.000	0.000	0.000	0.225	pg1420_o2nofp.cx10a_c32r128
0.000	0.349	83.823	15.615	0.212	0.002	0.000	0.000	0.000	0.000	0.246	pg1514_o2nofp.cx10a_c32r128
0.000	0.320	84.301	14.919	0.456	0.004	nonzero	nonzero	0.000	0.000	1.435	pg1515_o2nofp.cx10a_c32r128
0.000	0.339	85.113	14.257	0.290	0.001	nonzero	0.000	0.000	0.000	0.678	pg1610_o2nofp.cx10a_c32r128
0.000	0.355	86.638	12.702	0.304	0.001	nonzero	nonzero	0.000	0.000	1.212	pg1611_o2nofp.cx10a_c32r128
0.000	0.342	86.494	12.872	0.292	0.001	0.000	0.000	0.000	0.000	0.132	pg176_o2nofp.cx10a_c32r128
0.000	0.351	84.464	14.827	0.351	0.006	0.001	nonzero	0.000	0.000	1.282	pg177_o2nofp.cx10a_c32r128
0.000	0.259	83.956	15.370	0.407	0.007	0.001	nonzero	0.000	0.000	1.149	pg180_o2nofp.cx10b_c32r128
0.000	0.296	84.286	14.950	0.468	nonzero	nonzero	0.000	0.000	0.000	0.616	pg180_o2nofp.cx10c_c32r128
0.000	0.277	84.999	14.195	0.527	0.002	0.000	0.000	0.000	0.000	0.171	pg180_o2nofp.cx10d_c32r128
0.000	0.329	84.772	14.534	0.363	0.001	0.000	0.000	0.000	0.000	0.179	pg181_o2nofp.cx10b_c32r128
0.000	0.286	84.728	14.499	0.484	0.002	nonzero	0.000	0.000	0.000	0.673	pg181_o2nofp.cx10d_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	2.915	91.799	5.285	0.001	0.000	0.000	0.000	0.278	pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	5.735	91.311	2.917	0.037	nonzero	0.000	0.000	1.111	pg1322_o2nofp.cx10a_c32r128
0.000	0.000	0.000	4.268	93.226	2.487	0.010	0.009	0.000	0.000	1.388	pg1323_o2nofp.cx10a_c32r128
0.000	0.000	0.000	11.219	86.362	2.385	0.030	0.005	0.000	0.000	1.176	pg1419_o2nofp.cx10a_c32r128
0.000	0.000	0.000	6.487	90.770	2.688	0.054	0.000	0.000	0.000	0.403	pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	3.475	94.563	1.952	0.011	0.000	0.000	0.000	0.367	pg1514_o2nofp.cx10a_c32r128
0.000	0.000	0.000	18.400	77.614	3.901	0.081	0.004	0.000	0.000	1.474	pg1515_o2nofp.cx10a_c32r128
0.000	0.000	0.000	11.127	86.174	2.685	0.014	0.000	0.000	0.000	0.795	pg1610_o2nofp.cx10a_c32r128
0.000	0.000	0.000	15.743	81.698	2.536	0.018	0.006	0.000	0.000	1.240	pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	17.164	80.379	2.456	0.001	0.000	0.000	0.000	0.260	pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	7.823	88.807	3.290	0.065	0.015	0.000	0.000	1.324	pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	31.472	65.319	3.116	0.083	0.010	0.000	0.000	1.171	pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	19.163	77.256	3.571	0.008	0.001	0.000	0.000	1.230	pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	35.066	61.108	3.788	0.038	0.000	0.000	0.000	0.382	pg180_o2nofp.cx10d_c32r128
0.000	0.000	0.000	5.956	90.708	3.336	0.000	0.000	0.000	0.000	0.238	pg181_o2nofp.cx10b_c32r128
0.000	0.000	0.000	20.348	75.726	3.892	0.034	0.000	0.000	0.000	0.699	pg181_o2nofp.cx10d_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	65.571	34.415	0.014	0.000	0.000	0.000	0.000	0.136	pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	73.445	26.495	0.048	0.012	0.000	0.000	0.000	0.877	pg1322_o2nofp.cx10a_c32r128
0.000	0.000	0.000	55.760	44.186	0.037	0.011	0.006	0.000	0.000	1.363	pg1323_o2nofp.cx10a_c32r128
0.000	0.000	0.000	61.719	38.250	0.020	0.011	0.000	0.000	0.000	0.947	pg1419_o2nofp.cx10a_c32r128
0.000	0.000	0.000	57.357	42.605	0.038	0.000	0.000	0.000	0.000	0.128	pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	51.523	48.457	0.019	0.000	0.000	0.000	0.000	0.185	pg1514_o2nofp.cx10a_c32r128
0.000	0.000	0.000	86.825	12.978	0.192	0.006	0.000	0.000	0.000	0.811	pg1515_o2nofp.cx10a_c32r128
0.000	0.000	0.000	60.756	39.198	0.041	0.006	0.000	0.000	0.000	0.762	pg1610_o2nofp.cx10a_c32r128
0.000	0.000	0.000	67.247	32.703	0.039	0.006	0.006	0.000	0.000	1.232	pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	51.749	48.223	0.029	0.000	0.000	0.000	0.000	0.136	pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	37.432	62.319	0.227	0.022	0.000	0.000	0.000	0.956	pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	79.518	20.135	0.288	0.052	0.008	0.000	0.000	1.166	pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	68.528	31.450	0.016	0.006	0.000	0.000	0.000	0.657	pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	81.467	18.516	0.017	0.000	0.000	0.000	0.000	0.178	pg180_o2nofp.cx10d_c32r128
0.000	0.000	0.000	45.935	54.029	0.036	0.000	0.000	0.000	0.000	0.086	pg181_o2nofp.cx10b_c32r128
0.000	0.000	0.000	74.824	25.106	0.058	0.012	0.000	0.000	0.000	0.686	pg181_o2nofp.cx10d_c32r128

qr1000.L5

qr1000.L5: range queries with 1000 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.543	0.420	0.011	0.006	0.011	0.009	nonzero	0.000	0.000	0.000	0.980	pg1222_o2nofp.cx10a_c32r128
99.532	0.423	0.019	0.005	0.011	0.010	nonzero	0.000	0.000	0.000	0.627	pg1322_o2nofp.cx10a_c32r128
99.544	0.411	0.019	0.006	0.011	0.009	nonzero	nonzero	0.000	0.000	1.333	pg1323_o2nofp.cx10a_c32r128
99.509	0.460	0.009	0.004	0.008	0.009	nonzero	0.000	0.000	0.000	0.547	pg1419_o2nofp.cx10a_c32r128
99.564	0.406	0.009	0.004	0.008	0.009	nonzero	0.000	0.000	0.000	0.518	pg1420_o2nofp.cx10a_c32r128
99.518	0.450	0.010	0.005	0.008	0.009	nonzero	nonzero	0.000	0.000	1.408	pg1514_o2nofp.cx10a_c32r128
99.603	0.359	0.017	0.004	0.008	0.009	nonzero	nonzero	0.000	0.000	1.166	pg1515_o2nofp.cx10a_c32r128
99.531	0.439	0.009	0.004	0.008	0.009	nonzero	nonzero	0.000	0.000	1.033	pg1610_o2nofp.cx10a_c32r128
99.596	0.371	0.010	0.005	0.008	0.009	nonzero	0.000	0.000	0.000	0.746	pg1611_o2nofp.cx10a_c32r128
99.592	0.369	0.014	0.006	0.009	0.010	nonzero	nonzero	0.000	0.000	1.275	pg176_o2nofp.cx10a_c32r128
99.553	0.407	0.018	0.005	0.008	0.009	nonzero	nonzero	0.000	0.000	1.079	pg177_o2nofp.cx10a_c32r128
99.435	0.525	0.018	0.005	0.008	0.009	nonzero	nonzero	0.000	0.000	1.456	pg180_o2nofp.cx10b_c32r128
99.464	0.498	0.017	0.005	0.008	0.009	nonzero	nonzero	0.000	0.000	1.093	pg180_o2nofp.cx10c_c32r128
99.500	0.461	0.017	0.005	0.008	0.009	nonzero	nonzero	0.000	0.000	1.510	pg180_o2nofp.cx10d_c32r128
99.537	0.423	0.017	0.005	0.008	0.009	nonzero	nonzero	0.000	0.000	1.043	pg181_o2nofp.cx10b_c32r128
99.516	0.449	0.013	0.005	0.009	0.009	nonzero	nonzero	0.000	0.000	1.106	pg181_o2nofp.cx10d_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	46.030	43.818	9.806	0.342	0.003	0.000	0.000	1.503	pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	51.796	37.705	10.128	0.371	0.000	0.000	0.000	0.677	pg1322_o2nofp.cx10a_c32r128
0.000	0.000	0.000	50.388	40.149	9.027	0.432	0.003	0.000	0.000	2.520	pg1323_o2nofp.cx10a_c32r128
0.000	0.000	0.000	49.732	41.384	8.151	0.733	0.000	0.000	0.000	0.630	pg1419_o2nofp.cx10a_c32r128
0.000	0.000	0.000	51.256	39.951	7.950	0.842	nonzero	0.000	0.000	1.036	pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	50.871	40.625	7.631	0.864	0.008	0.000	0.000	1.452	pg1514_o2nofp.cx10a_c32r128
0.000	0.000	0.000	56.010	35.270	8.063	0.653	0.003	0.000	0.000	1.359	pg1515_o2nofp.cx10a_c32r128
0.000	0.000	0.000	49.983	41.368	7.965	0.681	0.003	0.000	0.000	1.125	pg1610_o2nofp.cx10a_c32r128
0.000	0.000	0.000	55.096	35.638	8.437	0.830	0.000	0.000	0.000	0.805	pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	65.491	25.808	7.967	0.732	0.003	0.000	0.000	1.301	pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	52.009	39.376	7.918	0.694	0.003	0.000	0.000	1.129	pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	49.374	42.306	7.566	0.752	0.002	0.000	0.000	1.494	pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	50.960	40.583	7.847	0.607	0.003	0.000	0.000	1.136	pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	51.578	39.864	7.946	0.605	0.007	0.000	0.000	2.329	pg180_o2nofp.cx10d_c32r128
0.000	0.000	0.000	51.979	39.432	7.876	0.712	0.001	0.000	0.000	1.092	pg181_o2nofp.cx10b_c32r128
0.000	0.000	0.000	50.957	39.798	8.630	0.613	0.003	0.000	0.000	1.135	pg181_o2nofp.cx10d_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	17.756	76.150	6.007	0.086	nonzero	0.000	0.000	1.002	pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	9.365	83.960	6.598	0.077	0.000	0.000	0.000	0.644	pg1322_o2nofp.cx10a_c32r128
0.000	0.000	0.000	7.556	86.062	6.261	0.116	0.004	0.000	0.000	2.490	pg1323_o2nofp.cx10a_c32r128
0.000	0.000	0.000	9.306	85.516	5.064	0.113	0.000	0.000	0.000	0.545	pg1419_o2nofp.cx10a_c32r128
0.000	0.000	0.000	12.118	82.926	4.811	0.145	0.000	0.000	0.000	0.556	pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	9.958	84.694	5.138	0.205	0.005	0.000	0.000	1.449	pg1514_o2nofp.cx10a_c32r128
0.000	0.000	0.000	12.066	82.667	5.169	0.095	0.003	0.000	0.000	1.364	pg1515_o2nofp.cx10a_c32r128
0.000	0.000	0.000	7.556	86.979	5.365	0.099	0.001	0.000	0.000	1.058	pg1610_o2nofp.cx10a_c32r128
0.000	0.000	0.000	7.020	87.334	5.500	0.145	0.000	0.000	0.000	0.669	pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	3.193	91.072	5.577	0.155	0.002	0.000	0.000	1.311	pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	2.874	91.658	5.312	0.154	0.003	0.000	0.000	1.112	pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	5.344	89.424	5.064	0.166	0.002	0.000	0.000	1.499	pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	8.786	86.154	4.965	0.092	0.003	0.000	0.000	1.115	pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	6.359	88.422	5.125	0.089	0.005	0.000	0.000	2.278	pg180_o2nofp.cx10d_c32r128
0.000	0.000	0.000	4.419	89.999	5.436	0.144	0.002	0.000	0.000	1.090	pg181_o2nofp.cx10b_c32r128
0.000	0.000	0.000	4.919	89.293	5.696	0.090	0.003	0.000	0.000	1.135	pg181_o2nofp.cx10d_c32r128

qp1000.L6

qp1000.L6: point queries with 1000 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.010	46.537	51.842	1.595	0.016	0.001	nonzero	0.000	0.000	2.047	pg1222_o2nofp.cx10a_c32r128
0.000	0.013	52.314	45.540	2.121	0.010	0.001	0.001	0.000	0.000	2.336	pg1322_o2nofp.cx10a_c32r128
0.000	0.011	49.171	48.995	1.818	0.003	0.001	0.001	0.000	0.000	2.206	pg1323_o2nofp.cx10a_c32r128
0.000	0.012	51.637	46.281	2.053	0.015	nonzero	0.001	0.000	0.000	1.710	pg1419_o2nofp.cx10a_c32r128
0.000	0.011	51.512	47.286	1.184	0.007	nonzero	0.001	0.000	0.000	2.795	pg1420_o2nofp.cx10a_c32r128
0.000	0.011	51.611	45.890	2.485	0.002	0.000	0.001	0.000	0.000	2.401	pg1514_o2nofp.cx10a_c32r128
0.000	0.010	47.186	50.758	2.032	0.013	nonzero	0.001	0.000	0.000	2.917	pg1515_o2nofp.cx10a_c32r128
0.000	0.012	53.092	44.598	2.278	0.018	0.001	0.001	0.000	0.000	2.268	pg1610_o2nofp.cx10a_c32r128
0.000	0.014	53.009	44.606	2.357	0.011	0.001	0.001	0.000	0.000	2.250	pg1611_o2nofp.cx10a_c32r128
0.000	0.014	53.754	44.079	2.135	0.015	nonzero	0.001	0.000	0.000	2.576	pg176_o2nofp.cx10a_c32r128
0.000	0.012	48.601	49.457	1.921	0.010	nonzero	0.001	0.000	0.000	1.982	pg177_o2nofp.cx10a_c32r128
0.000	0.010	47.935	50.075	1.973	0.006	nonzero	0.001	0.000	0.000	1.656	pg180_o2nofp.cx10b_c32r128
0.000	0.012	53.853	43.918	2.207	0.008	nonzero	0.001	0.000	0.000	1.493	pg180_o2nofp.cx10c_c32r128
0.000	0.011	51.104	47.269	1.609	0.006	nonzero	nonzero	0.000	0.000	2.940	pg180_o2nofp.cx10d_c32r128
0.000	0.015	54.949	43.263	1.751	0.022	0.001	nonzero	0.000	0.000	2.857	pg181_o2nofp.cx10b_c32r128
0.000	0.013	52.904	45.028	2.037	0.016	0.001	0.001	0.000	0.000	1.997	pg181_o2nofp.cx10d_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	8.244	86.181	5.557	0.013	0.006	0.000	0.000	2.912	pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	12.614	78.436	8.933	0.008	0.009	0.000	0.000	3.502	pg1322_o2nofp.cx10a_c32r128
0.000	0.000	0.000	10.162	82.566	7.260	0.008	0.004	0.000	0.000	3.420	pg1323_o2nofp.cx10a_c32r128
0.000	0.000	0.000	11.349	83.072	5.558	0.013	0.008	0.000	0.000	3.093	pg1419_o2nofp.cx10a_c32r128
0.000	0.000	0.000	11.515	84.905	3.566	0.009	0.006	0.000	0.000	2.866	pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	12.524	81.409	6.056	0.003	0.006	0.001	0.000	4.644	pg1514_o2nofp.cx10a_c32r128
0.000	0.000	0.000	10.250	84.531	5.206	0.009	0.004	0.001	0.000	4.269	pg1515_o2nofp.cx10a_c32r128
0.000	0.000	0.000	13.936	79.545	6.475	0.036	0.008	0.000	0.000	2.545	pg1610_o2nofp.cx10a_c32r128
0.000	0.000	0.000	11.489	82.000	6.482	0.017	0.011	0.000	0.000	3.006	pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	12.372	81.519	6.075	0.027	0.009	0.000	0.000	3.757	pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	11.731	83.144	5.113	0.006	0.006	0.000	0.000	2.554	pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	7.945	87.042	5.000	0.007	0.006	0.000	0.000	3.179	pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	14.043	79.930	6.017	0.002	0.008	0.000	0.000	2.891	pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	10.779	84.715	4.490	0.010	0.006	0.000	0.000	3.119	pg180_o2nofp.cx10d_c32r128
0.000	0.000	0.000	15.353	79.456	5.151	0.035	0.005	0.000	0.000	2.919	pg181_o2nofp.cx10b_c32r128
0.000	0.000	0.000	11.975	82.258	5.730	0.025	0.012	0.000	0.000	3.041	pg181_o2nofp.cx10d_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	1.998	97.915	0.080	0.003	0.004	0.000	0.000	2.849	pg1222_o2nofp.cx10a_c32r128
0.000	0.000	0.000	1.635	98.080	0.271	0.003	0.011	0.000	0.000	2.344	pg1322_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.202	99.744	0.043	0.008	0.003	0.000	0.000	3.120	pg1323_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.111	99.566	0.312	0.003	0.008	0.000	0.000	3.088	pg1419_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.057	99.906	0.031	0.000	0.006	0.000	0.000	2.816	pg1420_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.022	99.882	0.089	0.000	0.007	0.000	0.000	2.420	pg1514_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.899	98.779	0.317	nonzero	0.005	0.000	0.000	2.930	pg1515_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.353	99.330	0.288	0.020	0.008	0.000	0.000	2.302	pg1610_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.040	99.725	0.218	0.006	0.011	0.000	0.000	2.281	pg1611_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.009	99.596	0.383	0.002	0.009	0.000	0.000	3.751	pg176_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.005	99.710	0.278	0.002	0.005	0.000	0.000	2.168	pg177_o2nofp.cx10a_c32r128
0.000	0.000	0.000	0.013	99.831	0.150	0.000	0.006	0.000	0.000	3.152	pg180_o2nofp.cx10b_c32r128
0.000	0.000	0.000	0.021	99.861	0.108	0.002	0.008	0.000	0.000	1.513	pg180_o2nofp.cx10c_c32r128
0.000	0.000	0.000	0.013	99.829	0.150	0.003	0.006	0.000	0.000	2.957	pg180_o2nofp.cx10d_c32r128
0.000	0.000	0.000	0.046	99.786	0.161	0.004	0.002	0.000	0.000	2.857	pg181_o2nofp.cx10b_c32r128
0.000	0.000	0.000	0.010	99.643	0.332	0.003	0.012	0.000	0.000	2.019	pg181_o2nofp.cx10d_c32r128

Introduction

Contents

Summary

l.i0

l.x

l.i1

l.i2

qr100.L1

qp100.L2

qr500.L3

qp500.L4

qr1000.L5

qp1000.L6

l.i0

l.x

l.i1

l.i2

qr100.L1

qp100.L2

qr500.L3

qp500.L4

qr1000.L5

qp1000.L6

l.i0

l.x

l.i1

l.i2

qr100.L1

qp100.L2

qr500.L3

qp500.L4

qr1000.L5

qp1000.L6
