Introduction
This is a report for the insert benchmark with 3600M docs and 12 client(s). It is generated by scripts (bash, awk, sed) and Tufte might not be impressed. An overview of the insert benchmark is here and a short update is here. Below, by DBMS, I mean DBMS+version.config. An example is my8020.c10b40 where my means MySQL, 8020 is version 8.0.20 and c10b40 is the name for the configuration file.
The test server has 32 cores, 128G RAM and 1 NVMe device. The benchmark was run with 12 clients and there were 1 or 3 connections per client (1 for queries or inserts without rate limits, 1+1 for rate limited inserts+deletes). It uses 8 tables with a table per client. It loads 300M rows per table without secondary indexes, creates 3 secondary indexes per table, then inserts 4m+1m rows per table with a delete per insert to avoid growing the table. It then does 6 read+write tests for 1800s each that do queries as fast as possible with 100,100,500,500,1000,1000 inserts/s and the same for deletes/s per client concurrent with the queries. The database is larger than RAM and most tests are IO-bound except for the range query (qr*) tests that frequently have a cached working set. Clients and the DBMS share one server.
The tested DBMS are:
- ma120300_rel_withdbg.cz12b_sync_c32r128 - MariaDB 12.3.0 with the z12b_config that adds sync_binlog=1 and innodb_flush_log_at_trx_commit=1 to z12b
- ma120300_rel_withdbg.cz12c_sync_c32r128 - MariaDB 12.3.0 with the z12c_config that adds innodb_flush_log_at_trx_commit=1 to z12c
Contents
- Summary
- l.i0: load without secondary indexes
- l.x: create secondary indexes
- l.i1: continue load after secondary indexes created with 50 inserts per transaction
- l.i2: continue load after secondary indexes created with 5 inserts per transaction
- qr100.L1: range queries with 100 insert/s per client
- qp100.L2: point queries with 100 insert/s per client
- qr500.L3: range queries with 500 insert/s per client
- qp500.L4: point queries with 500 insert/s per client
- qr1000.L5: range queries with 1000 insert/s per client
- qp1000.L6: point queries with 1000 insert/s per client
Summary
The numbers are inserts/s for l.i0, l.i1 and l.i2, indexed docs (or rows) /s for l.x and queries/s for qr100, qp100 thru qr1000, qp1000" The values are the average rate over the entire test for inserts (IPS) and queries (QPS). The range of values for IPS and QPS is split into 3 parts: bottom 25%, middle 50%, top 25%. Values in the bottom 25% have a red background, values in the top 25% have a green background and values in the middle have no color. A gray background is used for values that can be ignored because the DBMS did not sustain the target insert rate. Red backgrounds are not used when the minimum value is within 80% of the max value.
| dbms | l.i0 | l.x | l.i1 | l.i2 | qr100 | qp100 | qr500 | qp500 | qr1000 | qp1000 |
|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 153022 | 684671 | 1522 | 685 | 76784 | 1899 | 37954 | 564 | 45510 | 1003 |
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 471081 | 764169 | 1864 | 1095 | 80859 | 3788 | 37825 | 738 | 45628 | 1242 |
This table has relative throughput, throughput for the DBMS relative to the DBMS in the first line, using the absolute throughput from the previous table. Values less than 0.95 have a yellow background. Values greater than 1.05 have a blue background.
| dbms | l.i0 | l.x | l.i1 | l.i2 | qr100 | qp100 | qr500 | qp500 | qr1000 | qp1000 |
|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 3.08 | 1.12 | 1.22 | 1.60 | 1.05 | 1.99 | 1.00 | 1.31 | 1.00 | 1.24 |
This lists the average rate of inserts/s for the tests that do inserts concurrent with queries. For such tests the query rate is listed in the table above. The read+write tests are setup so that the insert rate should match the target rate every second. Cells that are not at least 95% of the target have a red background to indicate a failure to satisfy the target.
| dbms | qr100.L1 | qp100.L2 | qr500.L3 | qp500.L4 | qr1000.L5 | qp1000.L6 |
|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 1193 | 1185 | 2005 | 1505 | 1461 | 1121 |
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 1193 | 1192 | 2802 | 1910 | 1852 | 1362 |
| target | 1200 | 1200 | 6000 | 6000 | 12000 | 12000 |
l.i0
l.i0: load without secondary indexes. Graphs for performance per 1-second interval are here.

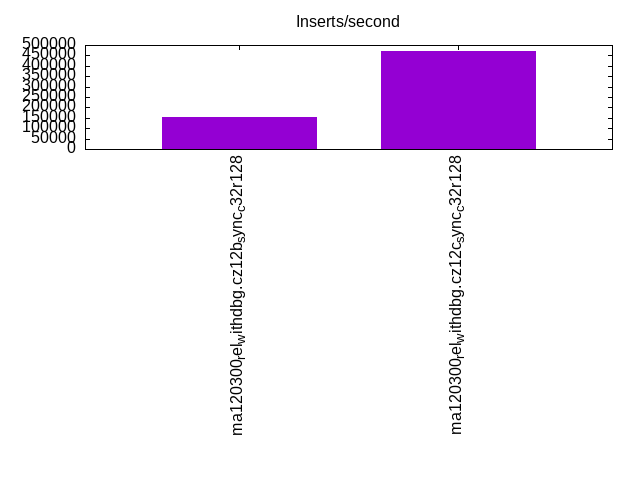

Average throughput:
Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 0.070 | 98.002 | 1.739 | 0.190 | nonzero | 0.353 | |||||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 98.272 | 0.860 | 0.827 | 0.040 | nonzero | nonzero | 1.047 |
Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 153022 0 0 0.0 3842.6 62.5 0.000 0.000 0.025 0.418 46329 7.8 0.303 16 236.8 337.6 101.2 0.353 12898 1899 ma120300_rel_withdbg.cz12b_sync_c32r128 471081 0 1 0.0 5097.0 184.7 0.000 0.000 0.011 0.402 88894 23.3 0.189 16 236.8 338.1 101.2 1.047 46194 6897 ma120300_rel_withdbg.cz12c_sync_c32r128
Average values from iostat.
r/s rkB/s rrqm/s %rrqm r_await rareq-s w/s wkB/s wrqm/s %wrqm w_await wareq-s d/s dkB/s drqm/s %drqm d_await dareq-s f/s f_await aqu-sz %util 0.257 1.703 0.001 0.016 0.310 3.147 3842.6 63970.6 3538.3 48.02 0.771 16.62 23.12 2771.0 0.000 0.000 0.682 42.15 1265.2 0.675 2.892 97.20 ma120300_rel_withdbg.cz12b_sync_c32r128 0.725 5.017 0.000 0.000 0.366 4.182 5097.0 189150 558.4 7.216 3.053 37.79 1.485 162.5 0.000 0.000 2.589 129.3 1102.2 0.821 8.888 74.23 ma120300_rel_withdbg.cz12c_sync_c32r128
l.x
l.x: create secondary indexes.

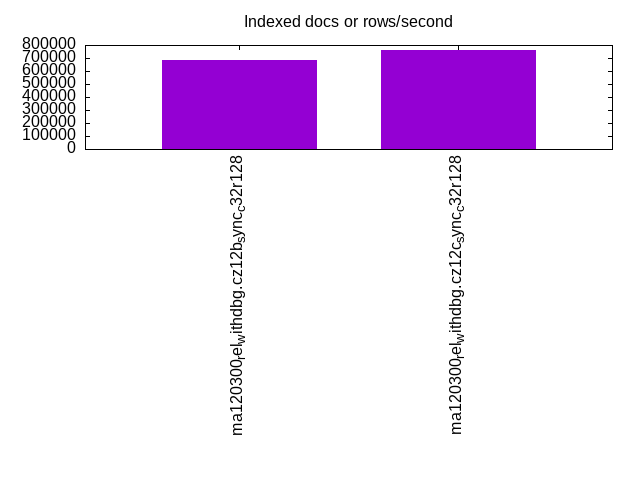

Average throughput:
Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 684671 0 7664 634.5 7947.8 702.5 0.011 0.949 0.012 1.051 28172 16.8 0.041 8 501.7 602.5 101.5 1.339 NA NA ma120300_rel_withdbg.cz12b_sync_c32r128 764169 0 8596 711.8 8817.5 782.9 0.011 0.954 0.012 1.049 31038 19.2 0.041 8 501.7 603.0 101.5 0.116 NA NA ma120300_rel_withdbg.cz12c_sync_c32r128
Average values from iostat.
r/s rkB/s rrqm/s %rrqm r_await rareq-s w/s wkB/s wrqm/s %wrqm w_await wareq-s d/s dkB/s drqm/s %drqm d_await dareq-s f/s f_await aqu-sz %util 7664.5 649718 0.000 0.000 4.945 109.1 7947.8 719319 167.0 2.134 64.47 99.63 6.951 56337.1 0.000 0.000 0.191 270.4 32.20 16.29 227.7 94.53 ma120300_rel_withdbg.cz12b_sync_c32r128 8596.0 728899 0.006 0.000 1.666 110.4 8817.5 801682 192.2 1.866 35.30 102.0 7.363 65506.6 0.000 0.000 0.077 142.8 37.80 17.44 184.3 94.12 ma120300_rel_withdbg.cz12c_sync_c32r128
l.i1
l.i1: continue load after secondary indexes created with 50 inserts per transaction. Graphs for performance per 1-second interval are here.

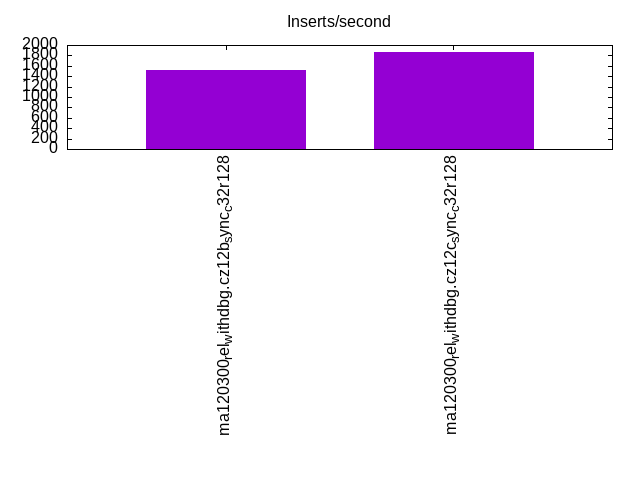

Average throughput:
Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 0.022 | 15.585 | 81.178 | 3.204 | 0.012 | 6.908 | |||||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 0.018 | 47.091 | 51.759 | 1.129 | 0.004 | 5.789 |
Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 0.758 | 53.447 | 44.432 | 1.352 | 0.010 | 6.855 | |||||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 0.001 | 1.334 | 63.899 | 34.355 | 0.409 | 0.002 | 4.839 |
Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 1522 0 7972 124.6 8590.4 212.1 5.239 83.825 5.646 142.714 108292 3.5 71.170 736 645.8 748.2 101.3 6.908 150 0 ma120300_rel_withdbg.cz12b_sync_c32r128 1864 0 9858 154.0 10290.0 260.1 5.288 84.610 5.520 142.900 136776 4.1 73.378 704 647.3 750.2 100.3 5.789 150 50 ma120300_rel_withdbg.cz12c_sync_c32r128
Average values from iostat.
r/s rkB/s rrqm/s %rrqm r_await rareq-s w/s wkB/s wrqm/s %wrqm w_await wareq-s d/s dkB/s drqm/s %drqm d_await dareq-s f/s f_await aqu-sz %util 7971.7 127548 0.000 0.000 1.348 16.00 8590.4 217154 685.2 7.203 1.384 25.28 0.006 0.075 0.000 0.000 0.163 0.367 780.0 1.735 19.78 98.65 ma120300_rel_withdbg.cz12b_sync_c32r128 9857.8 157714 0.000 0.000 1.081 16.00 10290.0 266366 519.4 4.428 1.022 25.92 0.253 184.9 0.000 0.000 2.654 419.8 836.6 1.234 17.97 97.85 ma120300_rel_withdbg.cz12c_sync_c32r128
l.i2
l.i2: continue load after secondary indexes created with 5 inserts per transaction. Graphs for performance per 1-second interval are here.

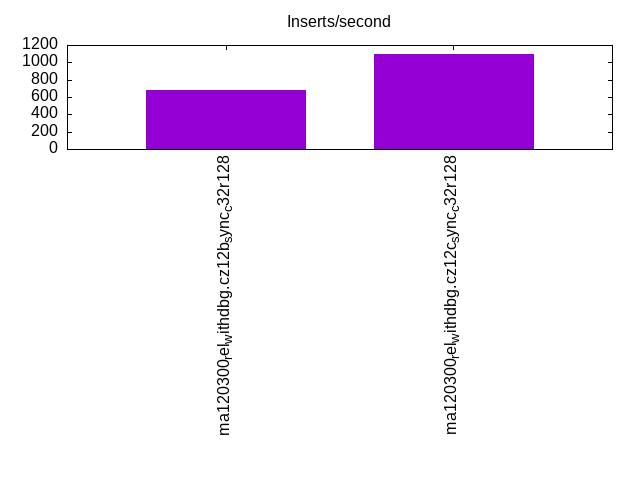

Average throughput:
Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 0.006 | 44.333 | 54.961 | 0.699 | 0.001 | 1.587 | |||||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | nonzero | 6.515 | 63.050 | 30.391 | 0.043 | 0.947 |
Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 0.018 | 49.140 | 50.433 | 0.409 | 0.001 | 1.507 | |||||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 0.001 | 11.096 | 60.221 | 28.649 | 0.034 | 0.970 |
Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 685 0 5529 86.4 5825.9 136.6 8.075 129.207 8.509 204.356 63720 2.3 93.062 1075 645.8 748.2 101.3 1.587 45 20 ma120300_rel_withdbg.cz12b_sync_c32r128 1095 0 8788 137.3 8554.4 212.8 8.024 128.383 7.811 198.984 102640 3.6 93.718 1052 647.3 750.2 100.3 0.947 65 30 ma120300_rel_withdbg.cz12c_sync_c32r128
Average values from iostat.
r/s rkB/s rrqm/s %rrqm r_await rareq-s w/s wkB/s wrqm/s %wrqm w_await wareq-s d/s dkB/s drqm/s %drqm d_await dareq-s f/s f_await aqu-sz %util 5529.3 88468.3 0.000 0.000 1.952 16.00 5825.9 139922 423.1 6.866 2.725 24.00 0.003 0.017 0.000 0.000 0.083 0.079 719.5 2.594 24.12 99.86 ma120300_rel_withdbg.cz12b_sync_c32r128 8787.9 140606 0.000 0.000 1.301 16.00 8554.4 217928 28.04 0.329 1.651 25.48 0.105 0.420 0.000 0.000 1.327 1.105 873.6 1.803 21.55 99.52 ma120300_rel_withdbg.cz12c_sync_c32r128
qr100.L1
qr100.L1: range queries with 100 insert/s per client. Graphs for performance per 1-second interval are here.

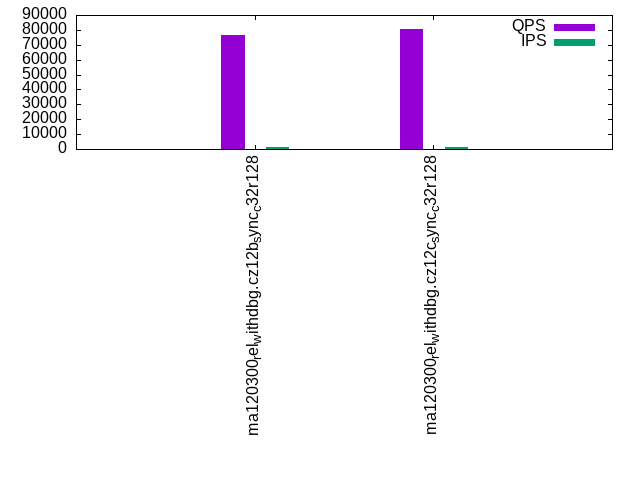

Average throughput:
Query response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 99.217 | 0.550 | 0.182 | 0.030 | 0.018 | 0.003 | nonzero | 0.785 | |||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 99.343 | 0.506 | 0.123 | 0.020 | 0.008 | 0.001 | nonzero | 0.439 |
Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 0.042 | 70.359 | 20.764 | 8.303 | 0.532 | 1.890 | |||||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 4.681 | 80.241 | 11.731 | 3.301 | 0.046 | 1.430 |
Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 1.875 | 79.062 | 11.208 | 7.644 | 0.211 | 1.863 | |||||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 14.539 | 71.759 | 11.382 | 2.292 | 0.028 | 1.377 |
Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 1193 76784 5454 85.2 3261.9 82.5 0.071 1.137 2.735 70.870 480554 36.9 6.258 154 645.8 748.2 101.3 0.785 6991 464 ma120300_rel_withdbg.cz12b_sync_c32r128 1193 80859 5436 84.9 3117.2 82.1 0.067 1.076 2.614 70.483 501670 38.4 6.204 152 647.3 750.2 100.3 0.439 7087 2480 ma120300_rel_withdbg.cz12c_sync_c32r128
Average values from iostat.
r/s rkB/s rrqm/s %rrqm r_await rareq-s w/s wkB/s wrqm/s %wrqm w_await wareq-s d/s dkB/s drqm/s %drqm d_await dareq-s f/s f_await aqu-sz %util 5454.5 87271.7 0.000 0.000 0.675 16.00 3261.9 84526.9 206.4 12.18 0.780 25.99 0.007 0.126 0.000 0.000 0.073 0.575 335.0 1.051 5.951 37.95 ma120300_rel_withdbg.cz12b_sync_c32r128 5435.7 86970.0 0.000 0.000 0.416 16.00 3117.2 84064.9 18.20 1.685 0.417 30.61 0.003 0.044 0.000 0.000 0.023 0.188 270.8 0.770 3.677 32.06 ma120300_rel_withdbg.cz12c_sync_c32r128
qp100.L2
qp100.L2: point queries with 100 insert/s per client. Graphs for performance per 1-second interval are here.

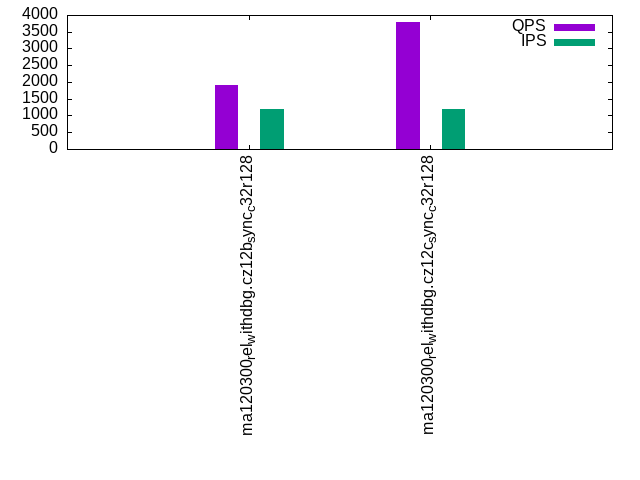

Average throughput:
Query response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | nonzero | 7.992 | 36.983 | 49.997 | 4.494 | 0.525 | 0.009 | nonzero | 1.184 | ||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 0.002 | 21.524 | 52.092 | 24.778 | 1.518 | 0.083 | 0.003 | 0.954 |
Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 0.002 | 10.130 | 71.681 | 16.595 | 1.593 | 2.230 | |||||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 0.023 | 48.565 | 44.560 | 6.574 | 0.278 | 1.586 |
Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 0.002 | 18.410 | 64.465 | 16.282 | 0.840 | 2.001 | |||||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 1.234 | 63.553 | 29.722 | 5.391 | 0.100 | 1.430 |
Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 1185 1899 20830 325.5 8351.5 208.8 10.970 175.517 7.049 180.444 122007 4.9 64.251 826 645.8 748.2 101.3 1.184 144 16 ma120300_rel_withdbg.cz12b_sync_c32r128 1192 3788 32940 514.7 8741.9 224.9 8.697 139.146 7.334 193.165 156880 6.5 41.418 549 647.3 750.2 100.3 0.954 304 16 ma120300_rel_withdbg.cz12c_sync_c32r128
Average values from iostat.
r/s rkB/s rrqm/s %rrqm r_await rareq-s w/s wkB/s wrqm/s %wrqm w_await wareq-s d/s dkB/s drqm/s %drqm d_await dareq-s f/s f_await aqu-sz %util 20830.5 333288 0.000 0.000 1.058 16.00 8351.5 213790 269.2 3.482 1.397 25.61 0.012 0.149 0.000 0.000 0.191 0.654 674.3 1.845 25.30 99.48 ma120300_rel_withdbg.cz12b_sync_c32r128 32940.1 527042 0.000 0.000 0.550 16.00 8741.9 230253 54.43 0.685 0.860 26.47 0.003 0.013 0.000 0.000 0.050 0.066 565.2 1.406 19.93 99.42 ma120300_rel_withdbg.cz12c_sync_c32r128
qr500.L3
qr500.L3: range queries with 500 insert/s per client. Graphs for performance per 1-second interval are here.
Average throughput:
Query response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 94.226 | 3.583 | 1.469 | 0.470 | 0.235 | 0.016 | nonzero | 0.865 | |||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 93.610 | 4.006 | 1.590 | 0.582 | 0.201 | 0.011 | nonzero | 0.592 |
Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 0.095 | 51.491 | 47.737 | 0.677 | 2.630 | ||||||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 0.001 | 1.864 | 81.623 | 16.436 | 0.075 | 1.504 |
Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 0.421 | 73.971 | 25.378 | 0.230 | 2.233 | ||||||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 0.017 | 2.457 | 85.262 | 12.234 | 0.031 | 1.409 |
Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 2005 37954 7739 120.9 7922.1 194.4 0.204 3.262 3.951 99.269 340309 25.0 8.966 211 645.8 748.2 101.3 0.865 3168 336 ma120300_rel_withdbg.cz12b_sync_c32r128 2802 37825 10749 168.0 10319.1 261.9 0.284 4.547 3.683 95.731 389351 26.7 10.293 226 647.3 750.2 100.3 0.592 3168 592 ma120300_rel_withdbg.cz12c_sync_c32r128
Average values from iostat.
r/s rkB/s rrqm/s %rrqm r_await rareq-s w/s wkB/s wrqm/s %wrqm w_await wareq-s d/s dkB/s drqm/s %drqm d_await dareq-s f/s f_await aqu-sz %util 7739.0 123823 0.000 0.000 1.498 16.00 7922.1 199044 406.4 4.924 1.553 25.14 0.008 0.039 0.000 0.000 0.189 0.176 799.8 1.889 21.22 98.67 ma120300_rel_withdbg.cz12b_sync_c32r128 10749.0 171983 0.000 0.000 1.123 16.00 10319.1 268190 37.48 0.368 1.143 26.02 0.004 0.021 0.000 0.000 0.113 0.088 910.4 1.289 20.47 97.54 ma120300_rel_withdbg.cz12c_sync_c32r128
qp500.L4
qp500.L4: point queries with 500 insert/s per client. Graphs for performance per 1-second interval are here.

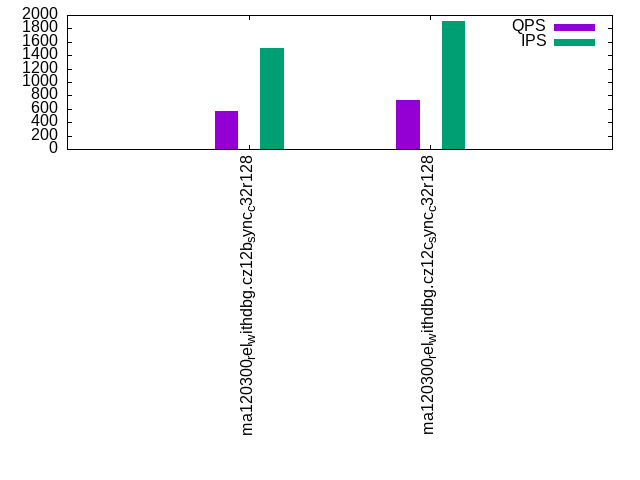

Average throughput:
Query response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | nonzero | 0.031 | 3.429 | 46.396 | 46.632 | 3.498 | 0.014 | 0.986 | |||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 0.049 | 4.564 | 58.661 | 34.462 | 2.257 | 0.006 | 0.680 |
Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | nonzero | 18.431 | 78.400 | 3.168 | 2.559 | ||||||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 0.019 | 57.745 | 41.487 | 0.750 | 2.094 |
Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 0.002 | 37.925 | 59.978 | 2.095 | 2.538 | ||||||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 0.001 | 0.020 | 60.796 | 38.769 | 0.413 | 2.012 |
Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 1505 564 11942 186.6 8271.8 203.1 21.155 338.479 5.495 138.168 138280 4.1 244.960 2324 645.9 748.3 101.3 0.986 32 0 ma120300_rel_withdbg.cz12b_sync_c32r128 1910 738 15390 240.5 10222.8 257.7 20.862 333.785 5.353 138.158 177278 5.1 240.311 2212 647.4 750.3 100.3 0.680 48 16 ma120300_rel_withdbg.cz12c_sync_c32r128
Average values from iostat.
r/s rkB/s rrqm/s %rrqm r_await rareq-s w/s wkB/s wrqm/s %wrqm w_await wareq-s d/s dkB/s drqm/s %drqm d_await dareq-s f/s f_await aqu-sz %util 11942.0 191072 0.000 0.000 1.375 16.00 8271.8 207998 327.9 3.839 1.334 25.14 0.005 0.024 0.000 0.000 0.128 0.111 800.0 1.747 24.46 99.00 ma120300_rel_withdbg.cz12b_sync_c32r128 15389.6 246233 0.000 0.000 1.192 16.00 10222.8 263854 38.00 0.373 1.193 25.81 0.004 0.021 0.000 0.000 0.195 0.097 889.6 1.250 26.49 98.46 ma120300_rel_withdbg.cz12c_sync_c32r128
qr1000.L5
qr1000.L5: range queries with 1000 insert/s per client. Graphs for performance per 1-second interval are here.
Average throughput:
Query response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 93.177 | 4.722 | 1.697 | 0.309 | 0.092 | 0.003 | nonzero | nonzero | 3.044 | ||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 92.643 | 5.306 | 1.608 | 0.360 | 0.080 | 0.003 | nonzero | nonzero | nonzero | 4.550 |
Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | nonzero | 21.627 | 75.236 | 3.125 | 0.012 | 5.333 | |||||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 0.013 | 44.922 | 54.411 | 0.641 | 0.014 | 5.539 |
Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 0.001 | 32.086 | 66.276 | 1.628 | 0.009 | 5.253 | |||||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 0.036 | 46.441 | 53.147 | 0.365 | 0.012 | 5.462 |
Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 1461 45510 8619 134.7 8425.5 209.3 0.189 3.030 5.766 146.695 366897 30.6 8.062 215 645.9 748.3 101.3 3.044 3967 1344 ma120300_rel_withdbg.cz12b_sync_c32r128 1852 45628 10862 169.7 10305.4 262.4 0.238 3.809 5.563 145.039 396875 32.0 8.698 224 647.4 750.3 100.3 4.550 4015 1184 ma120300_rel_withdbg.cz12c_sync_c32r128
Average values from iostat.
r/s rkB/s rrqm/s %rrqm r_await rareq-s w/s wkB/s wrqm/s %wrqm w_await wareq-s d/s dkB/s drqm/s %drqm d_await dareq-s f/s f_await aqu-sz %util 8619.1 137906 0.000 0.000 1.287 16.00 8425.5 214366 331.8 3.849 1.292 25.43 0.004 0.039 0.000 0.000 0.120 0.191 811.0 1.693 18.92 98.92 ma120300_rel_withdbg.cz12b_sync_c32r128 10862.5 173800 0.000 0.000 1.003 16.00 10305.4 268669 35.54 0.345 0.925 26.07 0.125 0.523 0.000 0.000 1.375 1.160 897.4 1.221 17.54 98.27 ma120300_rel_withdbg.cz12c_sync_c32r128
qp1000.L6
qp1000.L6: point queries with 1000 insert/s per client. Graphs for performance per 1-second interval are here.

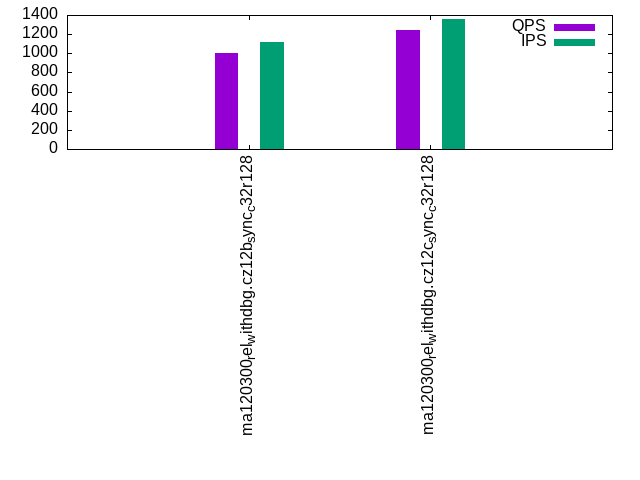

Average throughput:
Query response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | nonzero | 0.102 | 7.353 | 72.663 | 19.244 | 0.636 | 0.001 | nonzero | 1.367 | ||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | nonzero | 0.119 | 8.753 | 81.725 | 9.296 | 0.107 | 0.001 | nonzero | 2.587 |
Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 0.002 | 0.071 | 91.477 | 8.451 | 2.774 | ||||||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 0.012 | 3.285 | 95.880 | 0.824 | 3.425 |
Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.
| dbms | 256us | 1ms | 4ms | 16ms | 64ms | 256ms | 1s | 4s | 16s | gt | max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ma120300_rel_withdbg.cz12b_sync_c32r128 | 0.003 | 0.137 | 93.868 | 5.992 | 2.647 | ||||||
| ma120300_rel_withdbg.cz12c_sync_c32r128 | 0.017 | 3.381 | 96.258 | 0.345 | 3.420 |
Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 1121 1003 15993 249.9 8119.6 201.6 15.942 255.066 7.242 184.156 129111 4.5 128.699 1435 645.9 748.5 101.3 1.367 96 16 ma120300_rel_withdbg.cz12b_sync_c32r128 1362 1242 19682 307.5 9647.7 244.8 15.841 253.464 7.081 184.018 155661 5.0 125.291 1288 647.4 750.5 100.3 2.587 128 32 ma120300_rel_withdbg.cz12c_sync_c32r128
Average values from iostat.
r/s rkB/s rrqm/s %rrqm r_await rareq-s w/s wkB/s wrqm/s %wrqm w_await wareq-s d/s dkB/s drqm/s %drqm d_await dareq-s f/s f_await aqu-sz %util 15992.6 255882 0.000 0.000 1.224 16.00 8119.6 206475 272.8 3.308 1.171 25.42 0.004 0.019 0.000 0.000 0.105 0.088 763.8 1.713 25.67 99.41 ma120300_rel_withdbg.cz12b_sync_c32r128 19681.5 314904 0.000 0.000 1.034 16.00 9647.7 250725 35.66 0.370 0.928 25.99 0.155 0.662 0.000 0.000 1.655 1.547 831.6 1.283 25.80 99.13 ma120300_rel_withdbg.cz12c_sync_c32r128
l.i0
l.i0: load without secondary indexes
Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 153022 0 0 0.0 3842.6 62.5 0.000 0.000 0.025 0.418 46329 7.8 0.303 16 236.8 337.6 101.2 0.353 12898 1899 ma120300_rel_withdbg.cz12b_sync_c32r128 471081 0 1 0.0 5097.0 184.7 0.000 0.000 0.011 0.402 88894 23.3 0.189 16 236.8 338.1 101.2 1.047 46194 6897 ma120300_rel_withdbg.cz12c_sync_c32r128
l.x
l.x: create secondary indexes
Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 684671 0 7664 634.5 7947.8 702.5 0.011 0.949 0.012 1.051 28172 16.8 0.041 8 501.7 602.5 101.5 1.339 NA NA ma120300_rel_withdbg.cz12b_sync_c32r128 764169 0 8596 711.8 8817.5 782.9 0.011 0.954 0.012 1.049 31038 19.2 0.041 8 501.7 603.0 101.5 0.116 NA NA ma120300_rel_withdbg.cz12c_sync_c32r128
l.i1
l.i1: continue load after secondary indexes created with 50 inserts per transaction
Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 1522 0 7972 124.6 8590.4 212.1 5.239 83.825 5.646 142.714 108292 3.5 71.170 736 645.8 748.2 101.3 6.908 150 0 ma120300_rel_withdbg.cz12b_sync_c32r128 1864 0 9858 154.0 10290.0 260.1 5.288 84.610 5.520 142.900 136776 4.1 73.378 704 647.3 750.2 100.3 5.789 150 50 ma120300_rel_withdbg.cz12c_sync_c32r128
l.i2
l.i2: continue load after secondary indexes created with 5 inserts per transaction
Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 685 0 5529 86.4 5825.9 136.6 8.075 129.207 8.509 204.356 63720 2.3 93.062 1075 645.8 748.2 101.3 1.587 45 20 ma120300_rel_withdbg.cz12b_sync_c32r128 1095 0 8788 137.3 8554.4 212.8 8.024 128.383 7.811 198.984 102640 3.6 93.718 1052 647.3 750.2 100.3 0.947 65 30 ma120300_rel_withdbg.cz12c_sync_c32r128
qr100.L1
qr100.L1: range queries with 100 insert/s per client
Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 1193 76784 5454 85.2 3261.9 82.5 0.071 1.137 2.735 70.870 480554 36.9 6.258 154 645.8 748.2 101.3 0.785 6991 464 ma120300_rel_withdbg.cz12b_sync_c32r128 1193 80859 5436 84.9 3117.2 82.1 0.067 1.076 2.614 70.483 501670 38.4 6.204 152 647.3 750.2 100.3 0.439 7087 2480 ma120300_rel_withdbg.cz12c_sync_c32r128
qp100.L2
qp100.L2: point queries with 100 insert/s per client
Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 1185 1899 20830 325.5 8351.5 208.8 10.970 175.517 7.049 180.444 122007 4.9 64.251 826 645.8 748.2 101.3 1.184 144 16 ma120300_rel_withdbg.cz12b_sync_c32r128 1192 3788 32940 514.7 8741.9 224.9 8.697 139.146 7.334 193.165 156880 6.5 41.418 549 647.3 750.2 100.3 0.954 304 16 ma120300_rel_withdbg.cz12c_sync_c32r128
qr500.L3
qr500.L3: range queries with 500 insert/s per client
Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 2005 37954 7739 120.9 7922.1 194.4 0.204 3.262 3.951 99.269 340309 25.0 8.966 211 645.8 748.2 101.3 0.865 3168 336 ma120300_rel_withdbg.cz12b_sync_c32r128 2802 37825 10749 168.0 10319.1 261.9 0.284 4.547 3.683 95.731 389351 26.7 10.293 226 647.3 750.2 100.3 0.592 3168 592 ma120300_rel_withdbg.cz12c_sync_c32r128
qp500.L4
qp500.L4: point queries with 500 insert/s per client
Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 1505 564 11942 186.6 8271.8 203.1 21.155 338.479 5.495 138.168 138280 4.1 244.960 2324 645.9 748.3 101.3 0.986 32 0 ma120300_rel_withdbg.cz12b_sync_c32r128 1910 738 15390 240.5 10222.8 257.7 20.862 333.785 5.353 138.158 177278 5.1 240.311 2212 647.4 750.3 100.3 0.680 48 16 ma120300_rel_withdbg.cz12c_sync_c32r128
qr1000.L5
qr1000.L5: range queries with 1000 insert/s per client
Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 1461 45510 8619 134.7 8425.5 209.3 0.189 3.030 5.766 146.695 366897 30.6 8.062 215 645.9 748.3 101.3 3.044 3967 1344 ma120300_rel_withdbg.cz12b_sync_c32r128 1852 45628 10862 169.7 10305.4 262.4 0.238 3.809 5.563 145.039 396875 32.0 8.698 224 647.4 750.3 100.3 4.550 4015 1184 ma120300_rel_withdbg.cz12c_sync_c32r128
qp1000.L6
qp1000.L6: point queries with 1000 insert/s per client
Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.
ips qps rps rmbps wps wmbps rpq rkbpq wpi wkbpi csps cpups cspq cpupq dbgb1 dbgb2 rss maxop p50 p99 tag 1121 1003 15993 249.9 8119.6 201.6 15.942 255.066 7.242 184.156 129111 4.5 128.699 1435 645.9 748.5 101.3 1.367 96 16 ma120300_rel_withdbg.cz12b_sync_c32r128 1362 1242 19682 307.5 9647.7 244.8 15.841 253.464 7.081 184.018 155661 5.0 125.291 1288 647.4 750.5 100.3 2.587 128 32 ma120300_rel_withdbg.cz12c_sync_c32r128
l.i0
- l.i0: load without secondary indexes
- Legend for results is here.
- Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).
Insert response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 0.000 0.000 0.070 98.002 1.739 0.190 nonzero 0.000 0.000 0.000 0.353 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.000 98.272 0.860 0.827 0.040 nonzero nonzero 0.000 0.000 1.047 ma120300_rel_withdbg.cz12c_sync_c32r128
l.x
- l.x: create secondary indexes
- Legend for results is here.
- Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).
TODO - determine whether there is data for create index response time
l.i1
- l.i1: continue load after secondary indexes created with 50 inserts per transaction
- Legend for results is here.
- Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).
Insert response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 0.000 0.000 0.000 0.000 0.022 15.585 81.178 3.204 0.012 0.000 6.908 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.000 0.000 0.000 0.018 47.091 51.759 1.129 0.004 0.000 5.789 ma120300_rel_withdbg.cz12c_sync_c32r128
Delete response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 0.000 0.000 0.000 0.000 0.758 53.447 44.432 1.352 0.010 0.000 6.855 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.000 0.000 0.001 1.334 63.899 34.355 0.409 0.002 0.000 4.839 ma120300_rel_withdbg.cz12c_sync_c32r128
l.i2
- l.i2: continue load after secondary indexes created with 5 inserts per transaction
- Legend for results is here.
- Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).
Insert response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 0.000 0.000 0.000 0.006 44.333 54.961 0.699 0.001 0.000 0.000 1.587 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.000 nonzero 6.515 63.050 30.391 0.043 0.000 0.000 0.000 0.947 ma120300_rel_withdbg.cz12c_sync_c32r128
Delete response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 0.000 0.000 0.000 0.018 49.140 50.433 0.409 0.001 0.000 0.000 1.507 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.000 0.001 11.096 60.221 28.649 0.034 0.000 0.000 0.000 0.970 ma120300_rel_withdbg.cz12c_sync_c32r128
qr100.L1
- qr100.L1: range queries with 100 insert/s per client
- Legend for results is here.
- Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).
Query response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 99.217 0.550 0.182 0.030 0.018 0.003 nonzero 0.000 0.000 0.000 0.785 ma120300_rel_withdbg.cz12b_sync_c32r128 99.343 0.506 0.123 0.020 0.008 0.001 nonzero 0.000 0.000 0.000 0.439 ma120300_rel_withdbg.cz12c_sync_c32r128
Insert response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 0.000 0.000 0.000 0.042 70.359 20.764 8.303 0.532 0.000 0.000 1.890 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.000 0.000 4.681 80.241 11.731 3.301 0.046 0.000 0.000 1.430 ma120300_rel_withdbg.cz12c_sync_c32r128
Delete response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 0.000 0.000 0.000 1.875 79.062 11.208 7.644 0.211 0.000 0.000 1.863 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.000 0.000 14.539 71.759 11.382 2.292 0.028 0.000 0.000 1.377 ma120300_rel_withdbg.cz12c_sync_c32r128
qp100.L2
- qp100.L2: point queries with 100 insert/s per client
- Legend for results is here.
- Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).
Query response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag nonzero 7.992 36.983 49.997 4.494 0.525 0.009 nonzero 0.000 0.000 1.184 ma120300_rel_withdbg.cz12b_sync_c32r128 0.002 21.524 52.092 24.778 1.518 0.083 0.003 0.000 0.000 0.000 0.954 ma120300_rel_withdbg.cz12c_sync_c32r128
Insert response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 0.000 0.000 0.000 0.002 10.130 71.681 16.595 1.593 0.000 0.000 2.230 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.000 0.000 0.023 48.565 44.560 6.574 0.278 0.000 0.000 1.586 ma120300_rel_withdbg.cz12c_sync_c32r128
Delete response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 0.000 0.000 0.000 0.002 18.410 64.465 16.282 0.840 0.000 0.000 2.001 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.000 0.000 1.234 63.553 29.722 5.391 0.100 0.000 0.000 1.430 ma120300_rel_withdbg.cz12c_sync_c32r128
qr500.L3
- qr500.L3: range queries with 500 insert/s per client
- Legend for results is here.
- Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).
Query response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 94.226 3.583 1.469 0.470 0.235 0.016 nonzero 0.000 0.000 0.000 0.865 ma120300_rel_withdbg.cz12b_sync_c32r128 93.610 4.006 1.590 0.582 0.201 0.011 nonzero 0.000 0.000 0.000 0.592 ma120300_rel_withdbg.cz12c_sync_c32r128
Insert response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 0.000 0.000 0.000 0.000 0.095 51.491 47.737 0.677 0.000 0.000 2.630 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.000 0.000 0.001 1.864 81.623 16.436 0.075 0.000 0.000 1.504 ma120300_rel_withdbg.cz12c_sync_c32r128
Delete response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 0.000 0.000 0.000 0.000 0.421 73.971 25.378 0.230 0.000 0.000 2.233 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.000 0.000 0.017 2.457 85.262 12.234 0.031 0.000 0.000 1.409 ma120300_rel_withdbg.cz12c_sync_c32r128
qp500.L4
- qp500.L4: point queries with 500 insert/s per client
- Legend for results is here.
- Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).
Query response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag nonzero 0.031 3.429 46.396 46.632 3.498 0.014 0.000 0.000 0.000 0.986 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.049 4.564 58.661 34.462 2.257 0.006 0.000 0.000 0.000 0.680 ma120300_rel_withdbg.cz12c_sync_c32r128
Insert response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 0.000 0.000 0.000 0.000 nonzero 18.431 78.400 3.168 0.000 0.000 2.559 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.000 0.000 0.000 0.019 57.745 41.487 0.750 0.000 0.000 2.094 ma120300_rel_withdbg.cz12c_sync_c32r128
Delete response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 0.000 0.000 0.000 0.000 0.002 37.925 59.978 2.095 0.000 0.000 2.538 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.000 0.000 0.001 0.020 60.796 38.769 0.413 0.000 0.000 2.012 ma120300_rel_withdbg.cz12c_sync_c32r128
qr1000.L5
- qr1000.L5: range queries with 1000 insert/s per client
- Legend for results is here.
- Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).
Query response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 93.177 4.722 1.697 0.309 0.092 0.003 nonzero nonzero 0.000 0.000 3.044 ma120300_rel_withdbg.cz12b_sync_c32r128 92.643 5.306 1.608 0.360 0.080 0.003 nonzero nonzero nonzero 0.000 4.550 ma120300_rel_withdbg.cz12c_sync_c32r128
Insert response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 0.000 0.000 0.000 0.000 nonzero 21.627 75.236 3.125 0.012 0.000 5.333 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.000 0.000 0.000 0.013 44.922 54.411 0.641 0.014 0.000 5.539 ma120300_rel_withdbg.cz12c_sync_c32r128
Delete response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 0.000 0.000 0.000 0.000 0.001 32.086 66.276 1.628 0.009 0.000 5.253 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.000 0.000 0.000 0.036 46.441 53.147 0.365 0.012 0.000 5.462 ma120300_rel_withdbg.cz12c_sync_c32r128
qp1000.L6
- qp1000.L6: point queries with 1000 insert/s per client
- Legend for results is here.
- Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).
Query response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag nonzero 0.102 7.353 72.663 19.244 0.636 0.001 nonzero 0.000 0.000 1.367 ma120300_rel_withdbg.cz12b_sync_c32r128 nonzero 0.119 8.753 81.725 9.296 0.107 0.001 nonzero 0.000 0.000 2.587 ma120300_rel_withdbg.cz12c_sync_c32r128
Insert response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 0.000 0.000 0.000 0.000 0.002 0.071 91.477 8.451 0.000 0.000 2.774 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.000 0.000 0.000 0.012 3.285 95.880 0.824 0.000 0.000 3.425 ma120300_rel_withdbg.cz12c_sync_c32r128
Delete response time histogram
256us 1ms 4ms 16ms 64ms 256ms 1s 4s 16s gt max tag 0.000 0.000 0.000 0.000 0.003 0.137 93.868 5.992 0.000 0.000 2.647 ma120300_rel_withdbg.cz12b_sync_c32r128 0.000 0.000 0.000 0.000 0.017 3.381 96.258 0.345 0.000 0.000 3.420 ma120300_rel_withdbg.cz12c_sync_c32r128
