Introduction

This is a report for the insert benchmark with 800M docs and 1 client(s). It is generated by scripts (bash, awk, sed) and Tufte might not be impressed. An overview of the insert benchmark is here and a short update is here. Below, by DBMS, I mean DBMS+version.config. An example is my8020.c10b40 where my means MySQL, 8020 is version 8.0.20 and c10b40 is the name for the configuration file.

The test server has 8 AMD cores, 32G RAM and an NVMe device for the database. The benchmark was run with 1 client and there were 1 or 3 connections per client (1 for queries or inserts without rate limits, 1+1 for rate limited inserts+deletes). It uses 1 table with a table per client. It loads 800M rows per table without secondary indexes, creates 3 secondary indexes per table, then inserts 4m+1m rows per table with a delete per insert to avoid growing the table. It then does 6 read+write tests for 1800s each that do queries as fast as possible with 100,100,500,500,1000,1000 inserts/s and the same for deletes/s per client concurrent with the queries. The database is larger than memory and the workload is IO-bound for except for the range query tests (qr*). Clients and the DBMS share one server.

The tested DBMS are:

pg1222_o2nofp.cx10a_c8r32 - Postgres 12.22 with the x10a_c8r32 config
pg1322_o2nofp.cx10a_c8r32 - Postgres 13.22 with the x10a_c8r32 config
pg1323_o2nofp.cx10a_c8r32 - Postgres 13.23 with the x10a_c8r32 config
pg1419_o2nofp.cx10a_c8r32 - Postgres 14.19 with the x10a_c8r32 config
pg1420_o2nofp.cx10a_c8r32 - Postgres 14.20 with the x10a_c8r32 config
pg1514_o2nofp.cx10a_c8r32 - Postgres 15.14 with the x10a_c8r32 config
pg1515_o2nofp.cx10a_c8r32 - Postgres 15.15 with the x10a_c8r32 config
pg1610_o2nofp.cx10a_c8r32 - Postgres 16.10 with the x10a_c8r32 config
pg1611_o2nofp.cx10a_c8r32 - Postgres 16.11 with the x10a_c8r32 config
pg176_o2nofp.cx10a_c8r32 - Postgres 17.6 with the x10b_c8r32 config
pg177_o2nofp.cx10a_c8r32 - Postgres 17.7 with the x10b_c8r32 config
pg180_o2nofp.cx10b_c8r32 - Postgres 18.0 with the x10b_c8r32 config
pg180_o2nofp.cx10c_c8r32 - Postgres 18.0 with the x10c_c8r32 config
pg180_o2nofp.cx10d_c8r32 - Postgres 18.0 with the x10d_c8r32 config
pg181_o2nofp.cx10b_c8r32 - Postgres 18.1 with the x10b_c8r32 config

Summary
l.i0: load without secondary indexes
l.x: create secondary indexes
l.i1: continue load after secondary indexes created with 50 inserts per transaction

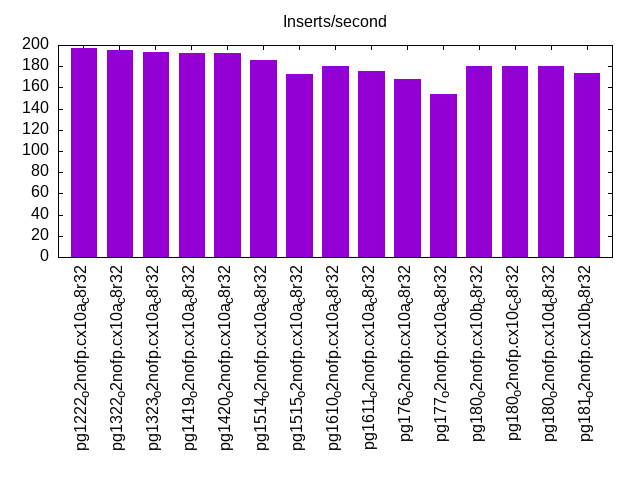

l.i2: continue load after secondary indexes created with 5 inserts per transaction
qr100.L1: range queries with 100 insert/s per client

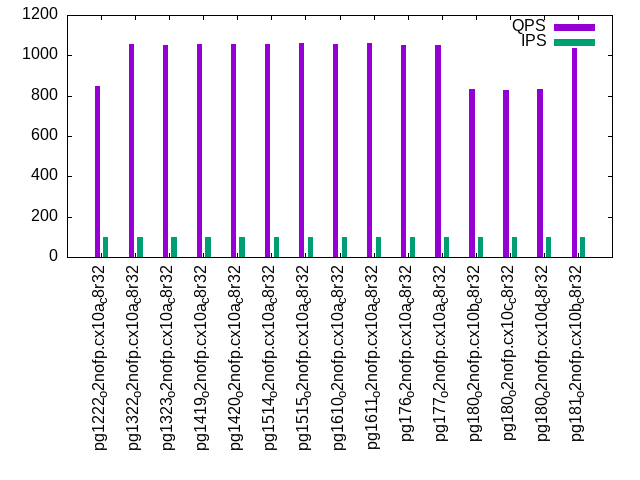

qp100.L2: point queries with 100 insert/s per client

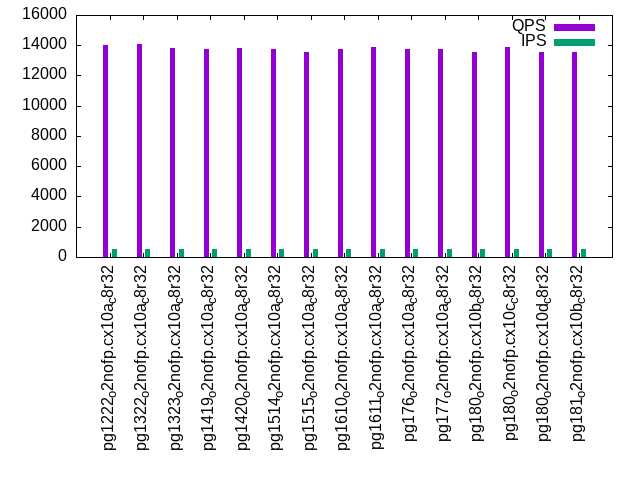

qr500.L3: range queries with 500 insert/s per client

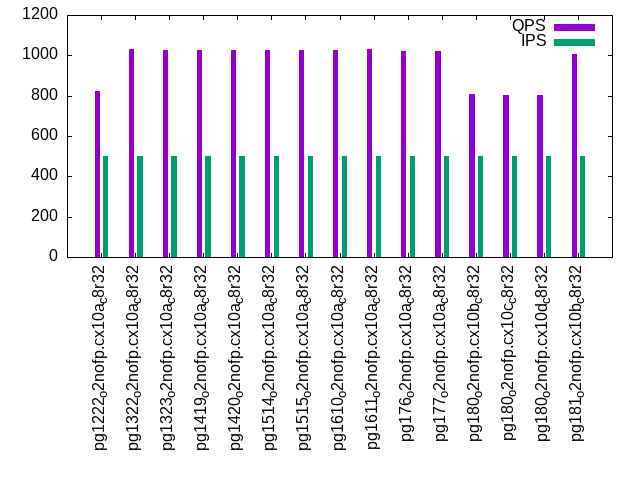

qp500.L4: point queries with 500 insert/s per client

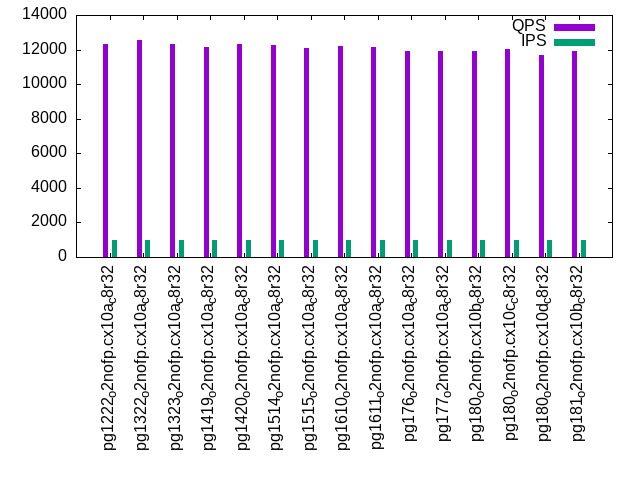

qr1000.L5: range queries with 1000 insert/s per client
qp1000.L6: point queries with 1000 insert/s per client

Summary

The numbers are inserts/s for l.i0, l.i1 and l.i2, indexed docs (or rows) /s for l.x and queries/s for qr100, qp100 thru qr1000, qp1000" The values are the average rate over the entire test for inserts (IPS) and queries (QPS). The range of values for IPS and QPS is split into 3 parts: bottom 25%, middle 50%, top 25%. Values in the bottom 25% have a red background, values in the top 25% have a green background and values in the middle have no color. A gray background is used for values that can be ignored because the DBMS did not sustain the target insert rate. Red backgrounds are not used when the minimum value is within 80% of the max value.

dbms	l.i0	l.x	l.i1	l.i2	qr100	qp100	qr500	qp500	qr1000	qp1000
pg1222_o2nofp.cx10a_c8r32	144144	278746	4048	197	14589	847	14035	823	12298	785
pg1322_o2nofp.cx10a_c8r32	146466	284900	3972	195	14865	1057	14065	1030	12563	984
pg1323_o2nofp.cx10a_c8r32	144718	282187	3868	193	14566	1053	13816	1024	12331	985
pg1419_o2nofp.cx10a_c8r32	139982	279330	3925	192	14613	1055	13778	1025	12145	972
pg1420_o2nofp.cx10a_c8r32	140130	285205	3876	192	14450	1055	13828	1026	12317	985
pg1514_o2nofp.cx10a_c8r32	144692	303605	3824	186	14461	1056	13766	1026	12292	971
pg1515_o2nofp.cx10a_c8r32	146843	307102	3617	173	14416	1060	13580	1027	12086	987
pg1610_o2nofp.cx10a_c8r32	146440	303951	3710	180	14585	1058	13744	1027	12213	984
pg1611_o2nofp.cx10a_c8r32	146493	311526	3575	175	14454	1059	13886	1030	12165	983
pg176_o2nofp.cx10a_c8r32	143498	314713	3549	168	14459	1053	13754	1021	11932	982
pg177_o2nofp.cx10a_c8r32	144980	313480	3241	154	14404	1051	13724	1023	11946	983
pg180_o2nofp.cx10b_c8r32	144665	309717	3673	180	14215	831	13525	806	11924	767
pg180_o2nofp.cx10c_c8r32	144404	327734	3643	180	14542	830	13885	804	12018	766
pg180_o2nofp.cx10d_c8r32	144326	321414	3660	180	14172	834	13553	805	11689	768
pg181_o2nofp.cx10b_c8r32	142577	315085	3607	174	14323	1037	13557	1006	11899	964

This table has relative throughput, throughput for the DBMS relative to the DBMS in the first line, using the absolute throughput from the previous table. Values less than 0.95 have a yellow background. Values greater than 1.05 have a blue background.

dbms	l.i0	l.x	l.i1	l.i2	qr100	qp100	qr500	qp500	qr1000	qp1000
pg1222_o2nofp.cx10a_c8r32	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00
pg1322_o2nofp.cx10a_c8r32	1.02	1.02	0.98	0.99	1.02	1.25	1.00	1.25	1.02	1.25
pg1323_o2nofp.cx10a_c8r32	1.00	1.01	0.96	0.98	1.00	1.24	0.98	1.24	1.00	1.25
pg1419_o2nofp.cx10a_c8r32	0.97	1.00	0.97	0.97	1.00	1.25	0.98	1.25	0.99	1.24
pg1420_o2nofp.cx10a_c8r32	0.97	1.02	0.96	0.97	0.99	1.25	0.99	1.25	1.00	1.25
pg1514_o2nofp.cx10a_c8r32	1.00	1.09	0.94	0.94	0.99	1.25	0.98	1.25	1.00	1.24
pg1515_o2nofp.cx10a_c8r32	1.02	1.10	0.89	0.88	0.99	1.25	0.97	1.25	0.98	1.26
pg1610_o2nofp.cx10a_c8r32	1.02	1.09	0.92	0.91	1.00	1.25	0.98	1.25	0.99	1.25
pg1611_o2nofp.cx10a_c8r32	1.02	1.12	0.88	0.89	0.99	1.25	0.99	1.25	0.99	1.25
pg176_o2nofp.cx10a_c8r32	1.00	1.13	0.88	0.85	0.99	1.24	0.98	1.24	0.97	1.25
pg177_o2nofp.cx10a_c8r32	1.01	1.12	0.80	0.78	0.99	1.24	0.98	1.24	0.97	1.25
pg180_o2nofp.cx10b_c8r32	1.00	1.11	0.91	0.91	0.97	0.98	0.96	0.98	0.97	0.98
pg180_o2nofp.cx10c_c8r32	1.00	1.18	0.90	0.91	1.00	0.98	0.99	0.98	0.98	0.98
pg180_o2nofp.cx10d_c8r32	1.00	1.15	0.90	0.91	0.97	0.98	0.97	0.98	0.95	0.98
pg181_o2nofp.cx10b_c8r32	0.99	1.13	0.89	0.88	0.98	1.22	0.97	1.22	0.97	1.23

This lists the average rate of inserts/s for the tests that do inserts concurrent with queries. For such tests the query rate is listed in the table above. The read+write tests are setup so that the insert rate should match the target rate every second. Cells that are not at least 95% of the target have a red background to indicate a failure to satisfy the target.

dbms	qr100.L1	qp100.L2	qr500.L3	qp500.L4	qr1000.L5	qp1000.L6
pg1222_o2nofp.cx10a_c8r32	100	100	500	500	999	999
pg1322_o2nofp.cx10a_c8r32	100	100	500	500	999	999
pg1323_o2nofp.cx10a_c8r32	100	100	500	500	999	999
pg1419_o2nofp.cx10a_c8r32	100	100	500	500	999	999
pg1420_o2nofp.cx10a_c8r32	100	100	500	500	999	999
pg1514_o2nofp.cx10a_c8r32	100	100	500	500	999	999
pg1515_o2nofp.cx10a_c8r32	100	100	500	500	999	999
pg1610_o2nofp.cx10a_c8r32	100	100	500	500	999	999
pg1611_o2nofp.cx10a_c8r32	100	100	500	500	999	999
pg176_o2nofp.cx10a_c8r32	100	100	500	500	999	999
pg177_o2nofp.cx10a_c8r32	100	100	500	500	999	999
pg180_o2nofp.cx10b_c8r32	100	100	500	500	999	999
pg180_o2nofp.cx10c_c8r32	100	100	500	500	999	999
pg180_o2nofp.cx10d_c8r32	100	100	500	500	999	999
pg181_o2nofp.cx10b_c8r32	100	100	500	500	999	999
target	100	100	500	500	1000	1000

l.i0

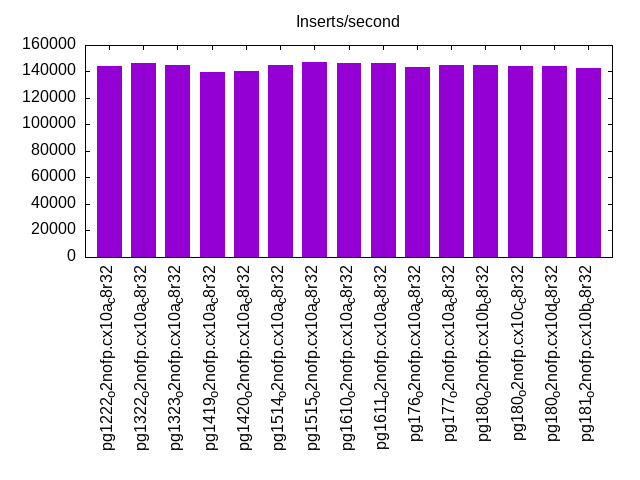

l.i0: load without secondary indexes. Graphs for performance per 1-second interval are here.

Average throughput:

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c8r32	99.966	0.033	nonzero	nonzero		0.036
pg1322_o2nofp.cx10a_c8r32	99.964	0.035	0.001	nonzero		0.036
pg1323_o2nofp.cx10a_c8r32	99.955	0.042	0.003	0.001		0.037
pg1419_o2nofp.cx10a_c8r32	99.800	0.193	0.005	0.001	nonzero	0.069
pg1420_o2nofp.cx10a_c8r32	99.969	0.028	0.002	nonzero		0.037
pg1514_o2nofp.cx10a_c8r32	99.976	0.021	0.003	nonzero		0.036
pg1515_o2nofp.cx10a_c8r32	99.970	0.025	0.004	nonzero		0.039
pg1610_o2nofp.cx10a_c8r32	99.975	0.022	0.003	nonzero		0.040
pg1611_o2nofp.cx10a_c8r32	99.973	0.024	0.002	nonzero		0.037
pg176_o2nofp.cx10a_c8r32	99.850	0.144	0.005	0.001	nonzero	0.070
pg177_o2nofp.cx10a_c8r32	99.973	0.024	0.003	nonzero		0.036
pg180_o2nofp.cx10b_c8r32	99.971	0.025	0.004	0.001		0.046
pg180_o2nofp.cx10c_c8r32	99.969	0.026	0.004	0.001		0.042
pg180_o2nofp.cx10d_c8r32	99.966	0.030	0.004	0.001		0.037
pg181_o2nofp.cx10b_c8r32	99.876	0.111	0.013	nonzero	nonzero	0.064

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
144144	0	29	0.2	587.2	59.2	0.000	0.002	0.004	0.420	17475	20.5	0.121	11	76.5	116.6	19.1	0.036	144782	141784	pg1222_o2nofp.cx10a_c8r32
146466	0	27	0.2	551.0	60.3	0.000	0.002	0.004	0.421	17732	20.6	0.121	11	76.5	116.6	2.5	0.036	147082	144282	pg1322_o2nofp.cx10a_c8r32
144718	0	25	0.2	542.7	59.7	0.000	0.001	0.004	0.422	17566	20.9	0.121	12	76.5	116.6	19.3	0.037	145250	142382	pg1323_o2nofp.cx10a_c8r32
139982	0	25	0.2	527.6	58.0	0.000	0.001	0.004	0.424	16560	20.1	0.118	11	76.5	116.6	2.7	0.069	140983	130086	pg1419_o2nofp.cx10a_c8r32
140130	0	25	0.2	524.0	57.5	0.000	0.001	0.004	0.420	16501	20.2	0.118	12	76.5	116.6	4.1	0.037	140482	138081	pg1420_o2nofp.cx10a_c8r32
144692	0	27	0.2	543.2	59.7	0.000	0.001	0.004	0.422	16985	20.5	0.117	11	76.5	116.6	2.6	0.036	145381	142681	pg1514_o2nofp.cx10a_c8r32
146843	0	28	0.2	555.2	60.9	0.000	0.002	0.004	0.425	17213	20.6	0.117	11	76.5	116.6	2.5	0.039	147280	144583	pg1515_o2nofp.cx10a_c8r32
146440	0	28	0.2	548.7	60.2	0.000	0.001	0.004	0.421	17173	20.5	0.117	11	76.5	116.6	2.5	0.040	147083	144378	pg1610_o2nofp.cx10a_c8r32
146493	0	28	0.2	548.7	60.2	0.000	0.002	0.004	0.421	17169	20.7	0.117	11	76.5	116.6	18.2	0.037	146883	144280	pg1611_o2nofp.cx10a_c8r32
143498	0	26	0.2	536.9	59.0	0.000	0.001	0.004	0.421	14385	20.4	0.100	11	76.5	116.6	19.1	0.070	144781	132984	pg176_o2nofp.cx10a_c8r32
144980	0	27	0.2	543.3	59.6	0.000	0.001	0.004	0.421	14438	20.4	0.100	11	76.5	116.6	18.5	0.036	145381	142682	pg177_o2nofp.cx10a_c8r32
144665	0	26	0.2	542.9	59.6	0.000	0.001	0.004	0.422	14392	20.3	0.099	11	76.5	116.6	18.8	0.046	145480	142378	pg180_o2nofp.cx10b_c8r32
144404	0	25	0.2	540.1	59.5	0.000	0.001	0.004	0.422	14468	20.4	0.100	11	76.5	116.6	19.5	0.042	145281	141983	pg180_o2nofp.cx10c_c8r32
144326	0	26	0.2	541.3	59.5	0.000	0.001	0.004	0.422	14468	20.4	0.100	11	76.5	116.6	19.0	0.037	144981	142283	pg180_o2nofp.cx10d_c8r32
142577	0	26	0.2	533.0	58.9	0.000	0.001	0.004	0.423	14427	20.4	0.101	11	76.5	116.6	2.3	0.064	144082	121486	pg181_o2nofp.cx10b_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
28.66	231.6	0.031	0.402	0.055	2.160	587.3	60603.2	26.93	3.672	0.224	106.8	2.142	21.28	0.000	0.000	0.418	7.207	30.55	1.138	0.171	7.109		pg1222_o2nofp.cx10a_c8r32
27.38	220.4	0.003	0.087	0.061	2.140	551.1	61710.6	27.58	3.739	0.239	111.7	2.168	20.54	0.000	0.000	0.479	6.826	30.26	1.257	0.178	7.418		pg1322_o2nofp.cx10a_c8r32
25.39	204.4	0.026	0.340	0.053	2.156	542.8	61123.8	28.02	3.962	0.232	112.2	2.182	18.65	0.000	0.000	0.435	6.456	29.93	1.186	0.172	7.252		pg1323_o2nofp.cx10a_c8r32
24.85	198.4	0.037	0.622	0.067	2.132	527.7	59422.5	26.49	3.639	0.230	112.2	2.178	18.51	0.000	0.000	0.409	6.155	29.01	1.127	0.164	6.691		pg1419_o2nofp.cx10a_c8r32
24.85	198.3	0.008	0.110	0.048	1.767	524.1	58893.9	26.82	3.749	0.230	112.1	2.162	17.82	0.000	0.000	0.403	6.129	28.98	1.119	0.163	6.621		pg1420_o2nofp.cx10a_c8r32
26.67	213.4	0.014	0.133	0.050	2.085	543.4	61107.5	23.74	2.946	0.230	112.5	0.116	11.87	0.000	0.000	0.066	5.014	30.01	1.110	0.168	6.716		pg1514_o2nofp.cx10a_c8r32
27.75	221.5	0.010	0.253	0.053	1.971	555.4	62424.2	25.03	3.135	0.227	112.3	0.104	6.350	0.000	0.000	0.079	2.721	30.49	1.124	0.171	6.889		pg1515_o2nofp.cx10a_c8r32
27.50	219.8	0.031	0.294	0.053	2.124	548.9	61678.8	24.01	3.109	0.233	112.3	0.123	61.63	0.000	0.000	0.060	47.34	30.33	1.137	0.172	6.933		pg1610_o2nofp.cx10a_c8r32
27.65	220.9	0.007	0.129	0.048	2.057	548.9	61650.5	23.86	3.161	0.232	112.2	0.111	7.373	0.000	0.000	0.102	4.335	30.34	1.124	0.170	6.853		pg1611_o2nofp.cx10a_c8r32
25.62	205.8	0.053	0.636	0.054	2.206	537.0	60442.8	21.03	2.813	0.227	112.5	0.094	4.376	0.000	0.000	0.061	3.767	29.74	1.073	0.161	6.441		pg176_o2nofp.cx10a_c8r32
26.82	215.6	0.002	0.055	0.056	2.019	543.4	61071.5	21.11	2.767	0.237	112.3	0.095	4.711	0.000	0.000	0.070	4.173	30.04	1.125	0.172	6.691		pg177_o2nofp.cx10a_c8r32
26.55	213.8	0.011	0.235	0.059	2.124	543.0	61034.2	20.64	2.870	0.263	112.3	0.096	16.62	0.000	0.000	0.098	16.98	29.99	1.471	0.198	7.767		pg180_o2nofp.cx10b_c8r32
25.00	201.0	0.006	0.070	0.058	2.077	540.2	60990.3	19.76	2.748	0.269	112.6	0.085	4.174	0.000	0.000	0.104	4.272	29.95	1.517	0.199	7.976		pg180_o2nofp.cx10c_c8r32
26.48	213.3	0.014	0.134	0.060	2.206	541.5	60921.9	20.00	2.709	0.269	112.5	0.095	6.171	0.000	0.000	0.111	3.693	29.93	1.514	0.202	7.912		pg180_o2nofp.cx10d_c8r32
25.56	205.7	0.043	0.443	0.059	2.203	533.1	60284.1	20.22	2.732	0.231	112.8	0.090	5.555	0.000	0.000	0.060	2.783	29.60	1.123	0.164	6.590		pg181_o2nofp.cx10b_c8r32

l.x

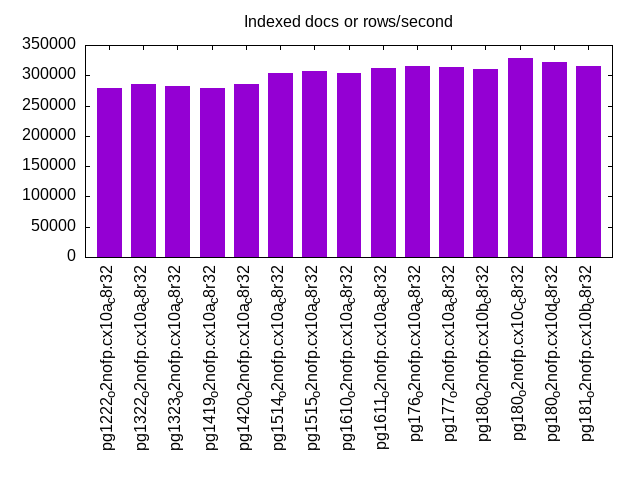

l.x: create secondary indexes.

Average throughput:

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
278746	0	779	94.0	1365.0	140.0	0.003	0.345	0.005	0.514	627	13.6	0.002	4	153.8	193.8	23.5	0.003	NA	NA	pg1222_o2nofp.cx10a_c8r32
284900	0	754	93.5	871.1	104.0	0.003	0.336	0.003	0.374	674	13.0	0.002	4	153.6	193.7	23.4	0.004	NA	NA	pg1322_o2nofp.cx10a_c8r32
282187	0	747	92.6	860.1	103.2	0.003	0.336	0.003	0.375	542	13.0	0.002	4	153.6	193.7	23.4	0.004	NA	NA	pg1323_o2nofp.cx10a_c8r32
279330	0	738	91.6	849.7	101.6	0.003	0.336	0.003	0.372	505	13.0	0.002	4	153.6	193.7	23.4	0.004	NA	NA	pg1419_o2nofp.cx10a_c8r32
285205	0	755	93.6	881.4	104.1	0.003	0.336	0.003	0.374	505	13.0	0.002	4	153.6	193.7	23.4	0.004	NA	NA	pg1420_o2nofp.cx10a_c8r32
303605	0	825	102.3	954.8	113.2	0.003	0.345	0.003	0.382	652	12.9	0.002	3	153.6	193.7	23.4	0.004	NA	NA	pg1514_o2nofp.cx10a_c8r32
307102	0	834	103.4	956.6	114.5	0.003	0.345	0.003	0.382	658	13.0	0.002	3	153.6	193.7	23.4	0.004	NA	NA	pg1515_o2nofp.cx10a_c8r32
303951	0	824	102.3	951.4	113.4	0.003	0.345	0.003	0.382	630	13.0	0.002	3	153.6	193.7	23.5	0.003	NA	NA	pg1610_o2nofp.cx10a_c8r32
311526	0	845	104.9	969.8	116.2	0.003	0.345	0.003	0.382	650	13.1	0.002	3	153.6	193.7	23.5	0.004	NA	NA	pg1611_o2nofp.cx10a_c8r32
314713	0	852	105.8	993.6	117.7	0.003	0.344	0.003	0.383	660	13.1	0.002	3	153.6	193.7	23.4	0.003	NA	NA	pg176_o2nofp.cx10a_c8r32
313480	0	849	105.5	994.6	117.1	0.003	0.345	0.003	0.383	661	13.1	0.002	3	153.6	193.7	23.4	0.003	NA	NA	pg177_o2nofp.cx10a_c8r32
309717	0	828	102.9	981.1	115.5	0.003	0.340	0.003	0.382	869	12.9	0.003	3	153.6	193.7	17.0	0.004	NA	NA	pg180_o2nofp.cx10b_c8r32
327734	0	889	110.3	1047.9	122.5	0.003	0.345	0.003	0.383	1511	13.5	0.005	3	153.6	193.7	23.4	0.004	NA	NA	pg180_o2nofp.cx10c_c8r32
321414	0	871	108.2	1022.5	119.9	0.003	0.345	0.003	0.382	1240	13.5	0.004	3	153.6	193.7	23.4	0.005	NA	NA	pg180_o2nofp.cx10d_c8r32
315085	0	853	106.0	999.2	117.6	0.003	0.345	0.003	0.382	663	13.1	0.002	3	153.6	193.7	23.4	0.005	NA	NA	pg181_o2nofp.cx10b_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
779.4	96225.5	0.014	0.002	0.119	109.1	1367.4	143616	30.46	10.91	0.552	98.75	2.652	16657.3	0.000	0.000	0.737	617.6	12.45	1.166	0.421	15.01		pg1222_o2nofp.cx10a_c8r32
754.2	95771.9	0.001	0.000	0.096	106.7	872.6	106638	21.07	15.52	0.754	96.67	2.647	17458.2	0.000	0.000	0.866	723.5	7.530	1.197	0.316	12.33		pg1322_o2nofp.cx10a_c8r32
746.6	94824.2	0.007	0.001	0.120	106.8	861.3	105853	20.67	13.50	0.767	99.53	2.890	22929.8	0.000	0.000	0.920	299.7	7.467	1.222	0.339	12.09		pg1323_o2nofp.cx10a_c8r32
738.5	93798.1	0.008	0.001	0.102	106.4	851.2	104181	19.99	15.48	0.828	92.63	2.754	15384.9	0.000	0.000	0.958	204.1	7.356	1.335	0.310	12.14		pg1419_o2nofp.cx10a_c8r32
754.9	95878.3	0.000	0.000	0.092	106.6	883.0	106749	20.81	13.64	0.749	97.27	2.722	15704.7	0.000	0.000	0.890	188.0	7.514	1.246	0.326	12.08		pg1420_o2nofp.cx10a_c8r32
825.3	104726	0.000	0.000	0.097	107.3	956.6	116177	18.90	12.70	1.301	103.7	0.867	16712.7	0.000	0.000	0.127	278.1	7.697	1.274	0.334	13.05		pg1514_o2nofp.cx10a_c8r32
834.5	105903	0.002	0.000	0.106	107.6	958.5	117482	19.06	11.50	1.235	105.3	0.927	26152.7	0.000	0.000	0.149	526.1	7.828	1.279	0.347	13.35		pg1515_o2nofp.cx10a_c8r32
824.3	104790	0.000	0.000	0.099	107.4	953.2	116328	19.19	12.84	1.279	105.9	0.830	16871.2	0.000	0.000	0.118	445.7	7.687	1.255	0.331	12.98		pg1610_o2nofp.cx10a_c8r32
844.9	107393	0.001	0.000	0.110	107.7	971.7	119270	19.64	11.26	1.198	109.0	0.803	17137.8	0.000	0.000	0.145	294.6	7.862	1.352	0.343	13.30		pg1611_o2nofp.cx10a_c8r32
852.1	108393	0.004	0.000	0.092	108.0	995.6	120721	19.65	11.52	1.124	106.2	0.663	20451.1	0.000	0.000	0.123	2313.0	7.962	1.167	0.358	13.16		pg176_o2nofp.cx10a_c8r32
849.3	108072	0.000	0.000	0.104	108.2	996.5	120143	19.71	11.45	1.161	107.7	0.808	18894.2	0.000	0.000	0.134	466.9	7.898	1.179	0.350	13.16		pg177_o2nofp.cx10a_c8r32
827.7	105322	0.152	0.018	0.112	106.8	983.0	118518	19.52	13.13	1.526	106.8	0.755	17052.6	0.000	0.000	0.183	271.1	7.799	1.866	0.382	13.29		pg180_o2nofp.cx10b_c8r32
888.8	112926	0.000	0.000	0.107	106.9	1050.0	125694	20.58	11.47	1.200	107.1	0.931	26633.3	0.000	0.000	0.206	637.6	8.223	1.873	0.428	14.43		pg180_o2nofp.cx10c_c8r32
870.5	110771	0.008	0.001	0.136	107.7	1024.3	122953	20.72	11.76	1.233	106.6	0.754	17708.0	0.000	0.000	0.211	526.9	8.272	1.992	0.456	14.15		pg180_o2nofp.cx10d_c8r32
853.1	108560	0.003	0.000	0.094	108.1	1000.8	120578	19.65	12.48	1.152	106.3	0.806	17331.7	0.000	0.000	0.136	258.4	7.933	1.287	0.336	13.16		pg181_o2nofp.cx10b_c8r32

l.i1

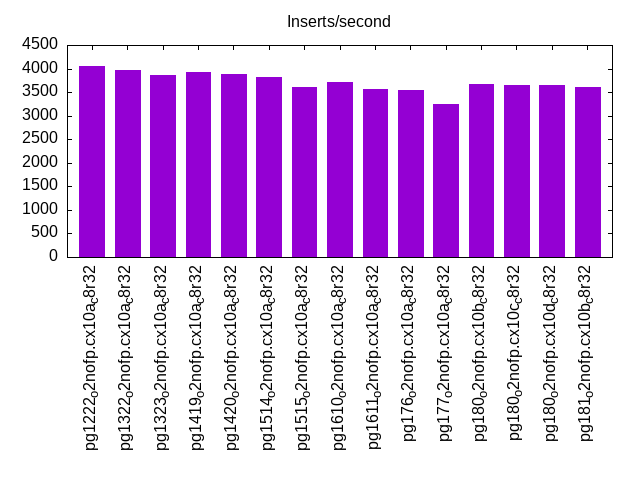

l.i1: continue load after secondary indexes created with 50 inserts per transaction. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c8r32	0.016	99.897	0.085	0.001	0.075
pg1322_o2nofp.cx10a_c8r32		99.922	0.077		0.043
pg1323_o2nofp.cx10a_c8r32		99.941	0.059		0.037
pg1419_o2nofp.cx10a_c8r32		99.843	0.158		0.055
pg1420_o2nofp.cx10a_c8r32		99.951	0.049		0.036
pg1514_o2nofp.cx10a_c8r32		99.945	0.055		0.039
pg1515_o2nofp.cx10a_c8r32		99.944	0.056		0.036
pg1610_o2nofp.cx10a_c8r32		99.933	0.068		0.034
pg1611_o2nofp.cx10a_c8r32		99.926	0.074		0.035
pg176_o2nofp.cx10a_c8r32		99.942	0.057		0.038
pg177_o2nofp.cx10a_c8r32		99.954	0.046		0.036
pg180_o2nofp.cx10b_c8r32		99.799	0.200	0.001	0.075
pg180_o2nofp.cx10c_c8r32		99.845	0.155		0.063
pg180_o2nofp.cx10d_c8r32		99.853	0.147		0.042
pg181_o2nofp.cx10b_c8r32		99.946	0.054		0.040

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c8r32	1.144	18.168	54.024	26.664	0.001	0.074
pg1322_o2nofp.cx10a_c8r32	1.475	16.081	52.170	30.274		0.030
pg1323_o2nofp.cx10a_c8r32	0.925	16.724	50.331	32.020		0.031
pg1419_o2nofp.cx10a_c8r32	0.609	17.956	51.135	30.300		0.030
pg1420_o2nofp.cx10a_c8r32	0.666	16.635	50.273	32.426		0.030
pg1514_o2nofp.cx10a_c8r32	0.775	15.934	51.031	32.260		0.030
pg1515_o2nofp.cx10a_c8r32	1.348	16.081	45.806	36.765		0.032
pg1610_o2nofp.cx10a_c8r32	0.487	16.665	46.754	36.094		0.033
pg1611_o2nofp.cx10a_c8r32	0.571	16.061	45.495	37.872		0.032
pg176_o2nofp.cx10a_c8r32	0.510	15.868	44.035	39.587		0.034
pg177_o2nofp.cx10a_c8r32	0.537	16.544	38.741	44.177		0.035
pg180_o2nofp.cx10b_c8r32	1.443	15.961	46.271	36.324	0.001	0.068
pg180_o2nofp.cx10c_c8r32	0.761	16.109	46.926	36.204		0.037
pg180_o2nofp.cx10d_c8r32	0.476	16.299	47.450	35.775		0.028
pg181_o2nofp.cx10b_c8r32	0.589	16.305	44.462	38.644		0.034

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
4048	0	5154	40.8	4652.9	81.7	1.273	10.326	1.149	20.663	12526	16.3	3.094	322	154.4	194.5	23.4	0.075	3350	2150	pg1222_o2nofp.cx10a_c8r32
3972	0	5713	45.2	4707.0	80.9	1.438	11.659	1.185	20.855	13576	16.4	3.418	330	154.3	194.3	22.9	0.043	3300	2200	pg1322_o2nofp.cx10a_c8r32
3868	0	5566	44.0	4565.2	78.3	1.439	11.656	1.180	20.729	13298	16.6	3.438	343	154.3	194.3	22.9	0.037	3150	2150	pg1323_o2nofp.cx10a_c8r32
3925	0	5652	44.7	4609.5	79.0	1.440	11.672	1.174	20.607	13023	16.4	3.318	334	154.3	194.3	23.1	0.055	3200	2150	pg1419_o2nofp.cx10a_c8r32
3876	0	5573	44.1	4597.8	79.1	1.438	11.654	1.186	20.908	12814	16.6	3.306	343	154.3	194.3	22.9	0.036	3200	2100	pg1420_o2nofp.cx10a_c8r32
3824	0	5494	43.5	4500.9	77.2	1.437	11.648	1.177	20.684	12587	16.3	3.292	341	154.3	194.3	23.0	0.039	3100	2050	pg1514_o2nofp.cx10a_c8r32
3617	0	5198	41.1	4242.9	72.6	1.437	11.648	1.173	20.548	11927	16.3	3.298	361	154.3	194.3	23.2	0.036	2850	1950	pg1515_o2nofp.cx10a_c8r32
3710	0	5339	42.3	4407.4	75.7	1.439	11.668	1.188	20.886	12192	16.3	3.286	351	154.3	194.3	22.9	0.034	2900	2000	pg1610_o2nofp.cx10a_c8r32
3575	0	5144	40.7	4253.8	73.0	1.439	11.665	1.190	20.922	11782	16.3	3.296	365	154.3	194.3	22.8	0.035	2750	1900	pg1611_o2nofp.cx10a_c8r32
3549	0	5102	40.4	4201.0	72.1	1.437	11.655	1.184	20.816	11502	15.9	3.241	358	154.3	194.3	22.7	0.038	2800	1900	pg176_o2nofp.cx10a_c8r32
3241	0	4666	36.9	3865.5	66.3	1.440	11.666	1.193	20.930	10540	15.9	3.252	392	154.3	194.3	22.6	0.036	2450	1700	pg177_o2nofp.cx10a_c8r32
3673	0	5273	41.8	4353.8	74.5	1.436	11.653	1.185	20.778	11886	15.9	3.236	346	154.3	194.3	21.9	0.075	2900	2000	pg180_o2nofp.cx10b_c8r32
3643	0	5240	41.5	4387.1	81.0	1.439	11.667	1.204	22.766	11835	16.0	3.249	351	154.3	194.3	23.3	0.063	2900	1950	pg180_o2nofp.cx10c_c8r32
3660	0	5264	41.7	4361.2	75.3	1.438	11.662	1.192	21.065	11854	15.9	3.239	348	154.3	194.3	23.1	0.042	2900	1950	pg180_o2nofp.cx10d_c8r32
3607	0	5188	41.1	4252.1	72.8	1.439	11.661	1.179	20.672	11713	16.1	3.248	357	154.3	194.3	23.0	0.040	2850	1950	pg181_o2nofp.cx10b_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
5122.4	41551.1	0.000	0.000	0.051	8.124	4673.7	83792.0	18.69	0.756	0.102	44.67	2.024	14.83	0.000	0.000	0.418	6.961	41.17	1.169	0.617	34.03		pg1222_o2nofp.cx10a_c8r32
5681.0	46055.1	0.000	0.000	0.052	8.109	4727.9	82957.5	20.12	0.912	0.105	38.57	2.012	9.736	0.000	0.000	0.410	4.833	42.41	1.172	0.726	36.34		pg1322_o2nofp.cx10a_c8r32
5534.3	44836.9	0.000	0.000	0.051	8.104	4585.0	80293.3	19.41	1.021	0.108	40.47	2.012	9.740	0.000	0.000	0.431	4.834	41.08	1.172	0.684	35.35		pg1323_o2nofp.cx10a_c8r32
5620.4	45562.3	0.000	0.000	0.053	8.109	4629.7	80996.6	26.87	1.633	0.129	41.56	2.032	10.29	0.000	0.000	0.439	5.052	44.99	1.179	0.720	37.08		pg1419_o2nofp.cx10a_c8r32
5541.0	44913.4	0.000	0.000	0.052	8.107	4617.6	81141.1	22.88	0.928	0.097	38.09	2.008	10.11	0.000	0.000	0.413	5.027	41.41	1.172	0.694	35.24		pg1420_o2nofp.cx10a_c8r32
5461.8	44283.3	0.000	0.000	0.052	8.110	4520.0	79188.4	16.82	0.816	0.104	40.68	0.014	0.123	0.000	0.000	0.030	0.301	40.59	1.168	0.668	34.78		pg1514_o2nofp.cx10a_c8r32
5165.4	41868.2	0.000	0.000	0.052	8.108	4259.7	74375.9	21.75	1.484	0.120	41.38	0.011	0.196	0.000	0.000	0.014	0.382	41.06	1.167	0.644	33.41		pg1515_o2nofp.cx10a_c8r32
5306.9	43034.4	0.000	0.000	0.052	8.111	4425.5	77578.7	16.74	0.775	0.100	38.40	0.009	0.176	0.000	0.000	0.017	0.411	39.64	1.158	0.657	34.17		pg1610_o2nofp.cx10a_c8r32
5111.8	41439.3	0.000	0.000	0.052	8.109	4270.5	74852.1	16.95	0.759	0.103	38.28	0.019	0.195	0.000	0.000	0.029	0.658	38.16	1.202	0.647	32.72		pg1611_o2nofp.cx10a_c8r32
5069.9	41110.0	0.000	0.000	0.051	8.111	4217.4	73941.9	13.14	0.745	0.095	38.97	0.014	0.168	0.000	0.000	0.028	0.554	37.34	1.092	0.584	32.03		pg176_o2nofp.cx10a_c8r32
4635.1	37565.4	0.000	0.000	0.051	8.107	3879.1	67874.5	11.70	0.706	0.095	37.71	0.016	0.372	0.000	0.000	0.033	1.633	34.24	1.148	0.540	29.54		pg177_o2nofp.cx10a_c8r32
5245.4	42578.6	0.000	0.000	0.053	8.119	4371.6	76419.7	18.57	1.081	0.133	39.19	0.008	0.111	0.000	0.000	0.019	0.247	38.92	1.518	0.796	35.02		pg180_o2nofp.cx10b_c8r32
5210.1	42258.8	0.000	0.000	0.054	8.113	4404.9	83050.0	21.95	1.586	0.161	43.14	0.010	15.23	0.000	0.000	0.031	25.43	42.21	1.535	0.837	35.94		pg180_o2nofp.cx10c_c8r32
5233.0	42433.5	0.000	0.000	0.053	8.110	4378.9	77175.3	17.70	0.644	0.129	36.92	0.007	0.129	0.000	0.000	0.010	0.273	39.00	1.551	0.886	35.11		pg180_o2nofp.cx10d_c8r32
5156.9	41805.4	0.000	0.000	0.052	8.109	4269.0	74628.4	19.28	1.272	0.116	40.64	0.014	0.313	0.000	0.000	0.024	1.055	40.66	1.151	0.634	33.43		pg181_o2nofp.cx10b_c8r32

l.i2

l.i2: continue load after secondary indexes created with 5 inserts per transaction. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	1ms	4ms	16ms	64ms	max
pg1222_o2nofp.cx10a_c8r32	52.012	47.952	0.036		0.013
pg1322_o2nofp.cx10a_c8r32	53.900	46.045	0.054		0.013
pg1323_o2nofp.cx10a_c8r32	55.883	44.048	0.069		0.016
pg1419_o2nofp.cx10a_c8r32	52.101	47.855	0.044	0.001	0.017
pg1420_o2nofp.cx10a_c8r32	53.168	46.767	0.065		0.013
pg1514_o2nofp.cx10a_c8r32	51.335	48.599	0.066		0.013
pg1515_o2nofp.cx10a_c8r32	50.270	49.679	0.051		0.013
pg1610_o2nofp.cx10a_c8r32	49.185	50.760	0.054		0.013
pg1611_o2nofp.cx10a_c8r32	47.752	52.190	0.057		0.013
pg176_o2nofp.cx10a_c8r32	57.825	42.157	0.018		0.010
pg177_o2nofp.cx10a_c8r32	57.098	42.874	0.027		0.012
pg180_o2nofp.cx10b_c8r32	56.746	43.217	0.037		0.012
pg180_o2nofp.cx10c_c8r32	54.093	45.872	0.035		0.011
pg180_o2nofp.cx10d_c8r32	55.834	44.128	0.038		0.010
pg181_o2nofp.cx10b_c8r32	57.139	42.847	0.014		0.012

dbms	64ms	256ms	max
pg1222_o2nofp.cx10a_c8r32	99.999	0.001	0.098
pg1322_o2nofp.cx10a_c8r32	99.999	0.001	0.101
pg1323_o2nofp.cx10a_c8r32	99.999	0.001	0.104
pg1419_o2nofp.cx10a_c8r32	99.999	0.001	0.101
pg1420_o2nofp.cx10a_c8r32	99.999	0.001	0.101
pg1514_o2nofp.cx10a_c8r32	99.999	0.001	0.099
pg1515_o2nofp.cx10a_c8r32	99.999	0.001	0.100
pg1610_o2nofp.cx10a_c8r32	99.999	0.001	0.096
pg1611_o2nofp.cx10a_c8r32	99.999	0.001	0.099
pg176_o2nofp.cx10a_c8r32	99.999	0.001	0.099
pg177_o2nofp.cx10a_c8r32	99.999	0.001	0.098
pg180_o2nofp.cx10b_c8r32	99.999	0.001	0.106
pg180_o2nofp.cx10c_c8r32	99.999	0.001	0.099
pg180_o2nofp.cx10d_c8r32	99.999	0.001	0.102
pg181_o2nofp.cx10b_c8r32	99.999	0.001	0.103

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
197	0	212	1.7	506.4	7.0	1.075	8.775	2.575	36.610	1823	13.1	9.267	5328	154.6	194.6	23.4	0.013	195	175	pg1222_o2nofp.cx10a_c8r32
195	0	209	1.7	559.6	7.6	1.073	8.771	2.867	39.939	1809	13.0	9.265	5328	154.4	194.5	23.4	0.013	195	175	pg1322_o2nofp.cx10a_c8r32
193	0	207	1.7	557.6	7.6	1.072	8.753	2.888	40.181	1856	13.0	9.612	5386	154.4	194.5	23.4	0.016	190	170	pg1323_o2nofp.cx10a_c8r32
192	0	206	1.6	548.3	7.7	1.072	8.773	2.858	40.861	1491	12.9	7.772	5381	154.5	194.5	23.3	0.017	190	170	pg1419_o2nofp.cx10a_c8r32
192	0	206	1.6	553.2	7.5	1.071	8.754	2.881	40.172	1513	12.9	7.881	5375	154.5	194.5	23.3	0.013	190	170	pg1420_o2nofp.cx10a_c8r32
186	0	199	1.6	535.0	7.3	1.070	8.757	2.883	40.484	1396	12.8	7.520	5517	154.4	194.5	23.3	0.013	185	165	pg1514_o2nofp.cx10a_c8r32
173	0	186	1.5	503.4	7.0	1.072	8.766	2.907	41.636	1304	12.8	7.527	5912	154.4	194.5	23.3	0.013	170	155	pg1515_o2nofp.cx10a_c8r32
180	0	193	1.5	517.7	7.2	1.071	8.763	2.878	40.767	1354	12.8	7.525	5692	154.4	194.5	23.3	0.013	180	160	pg1610_o2nofp.cx10a_c8r32
175	0	188	1.5	502.3	7.0	1.073	8.775	2.866	41.072	1328	12.8	7.576	5841	154.4	194.5	23.3	0.013	175	150	pg1611_o2nofp.cx10a_c8r32
168	0	180	1.4	489.9	6.8	1.071	8.765	2.918	41.511	1150	12.7	6.847	6051	154.4	194.5	23.3	0.010	165	150	pg176_o2nofp.cx10a_c8r32
154	0	166	1.3	450.8	6.3	1.073	8.771	2.920	41.861	1078	12.7	6.983	6580	154.4	191.5	23.4	0.012	155	135	pg177_o2nofp.cx10a_c8r32
180	0	192	1.5	518.7	7.2	1.068	8.748	2.887	40.903	1238	12.7	6.888	5654	154.4	194.5	23.3	0.012	180	160	pg180_o2nofp.cx10b_c8r32
180	0	193	1.5	515.6	7.3	1.073	8.783	2.864	41.595	1228	12.8	6.825	5689	154.4	192.2	23.4	0.011	180	160	pg180_o2nofp.cx10c_c8r32
180	0	193	1.5	518.8	7.1	1.071	8.760	2.879	40.600	1233	12.7	6.842	5638	154.4	194.5	23.4	0.010	180	160	pg180_o2nofp.cx10d_c8r32
174	0	186	1.5	505.6	7.0	1.071	8.759	2.904	41.165	1189	12.8	6.827	5882	154.5	194.5	23.3	0.012	175	145	pg181_o2nofp.cx10b_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
211.5	1725.9	0.000	0.000	0.077	8.160	506.2	7199.5	6.600	1.849	0.051	17.40	2.008	9.770	0.000	0.000	0.383	4.822	5.871	1.165	0.043	2.864		pg1222_o2nofp.cx10a_c8r32
209.4	1712.0	0.000	0.000	0.078	8.176	560.1	7800.0	7.344	2.238	0.064	19.22	2.008	9.820	0.000	0.000	0.387	4.839	6.422	1.191	0.047	3.057		pg1322_o2nofp.cx10a_c8r32
206.9	1690.0	0.000	0.000	0.078	8.166	558.1	7763.6	7.266	2.410	0.069	19.53	2.009	9.878	0.000	0.000	0.398	4.846	6.426	1.190	0.046	3.070		pg1323_o2nofp.cx10a_c8r32
205.7	1682.4	0.000	0.000	0.078	8.180	548.8	7842.9	5.804	2.030	0.059	19.91	2.007	10.22	0.000	0.000	0.388	5.199	5.831	1.184	0.043	2.847		pg1419_o2nofp.cx10a_c8r32
205.7	1680.6	0.000	0.000	0.079	8.171	553.7	7718.5	7.775	2.304	0.061	19.10	2.010	10.22	0.000	0.000	0.393	5.034	6.423	1.183	0.046	3.091		pg1420_o2nofp.cx10a_c8r32
198.6	1625.2	0.000	0.000	0.079	8.181	535.5	7518.0	5.113	1.581	0.067	20.02	0.007	0.257	0.000	0.000	0.003	0.171	6.393	1.177	0.044	2.876		pg1514_o2nofp.cx10a_c8r32
185.6	1518.0	0.000	0.000	0.081	8.180	503.9	7215.2	3.773	1.406	0.064	20.24	0.003	0.164	0.000	0.000	0.002	0.137	5.710	1.186	0.040	2.607		pg1515_o2nofp.cx10a_c8r32
192.7	1576.3	0.000	0.000	0.080	8.181	518.1	7338.8	5.270	1.567	0.063	19.39	0.008	0.213	0.000	0.000	0.003	0.106	6.313	1.173	0.043	2.799		pg1610_o2nofp.cx10a_c8r32
188.0	1538.0	0.000	0.000	0.081	8.178	502.8	7204.6	5.184	1.559	0.065	19.46	0.008	0.203	0.000	0.000	0.005	0.108	6.213	1.195	0.043	2.771		pg1611_o2nofp.cx10a_c8r32
179.9	1471.4	0.000	0.000	0.058	8.180	490.3	6974.0	4.161	1.237	0.064	19.02	0.002	0.092	0.000	0.000	0.001	0.235	6.210	1.119	0.038	2.606		pg176_o2nofp.cx10a_c8r32
165.7	1354.1	0.000	0.000	0.060	8.172	451.1	6467.1	4.051	1.364	0.078	20.26	0.040	489.4	0.000	0.000	0.020	12.58	6.173	1.178	0.039	2.589		pg177_o2nofp.cx10a_c8r32
191.9	1571.8	0.000	0.000	0.060	8.189	519.1	7355.0	4.872	1.473	0.081	19.96	0.002	0.158	0.000	0.000	0.004	0.400	6.293	1.524	0.048	3.016		pg180_o2nofp.cx10b_c8r32
193.0	1580.8	0.000	0.000	0.060	8.186	515.8	7488.3	3.973	1.244	0.077	19.53	0.029	428.5	0.000	0.000	0.002	13.96	5.918	1.534	0.046	2.910		pg180_o2nofp.cx10c_c8r32
193.0	1578.4	0.000	0.000	0.060	8.179	519.2	7320.8	4.764	1.366	0.081	19.12	0.001	0.125	0.000	0.000	0.004	0.433	6.263	1.563	0.048	3.020		pg180_o2nofp.cx10d_c8r32
186.4	1524.8	0.000	0.000	0.059	8.179	506.0	7171.4	3.249	1.262	0.067	19.71	0.001	0.122	0.000	0.000	0.002	0.241	5.763	1.181	0.038	2.597		pg181_o2nofp.cx10b_c8r32

qr100.L1

qr100.L1: range queries with 100 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

Query response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	max
pg1222_o2nofp.cx10a_c8r32	99.997	0.002	nonzero	nonzero	0.009
pg1322_o2nofp.cx10a_c8r32	99.998	0.002	nonzero	nonzero	0.009
pg1323_o2nofp.cx10a_c8r32	99.998	0.002	nonzero	nonzero	0.009
pg1419_o2nofp.cx10a_c8r32	99.998	0.002	nonzero	nonzero	0.009
pg1420_o2nofp.cx10a_c8r32	99.998	0.002	nonzero	nonzero	0.009
pg1514_o2nofp.cx10a_c8r32	99.998	0.002	nonzero	nonzero	0.009
pg1515_o2nofp.cx10a_c8r32	99.998	0.002	nonzero	nonzero	0.010
pg1610_o2nofp.cx10a_c8r32	99.998	0.002	nonzero	nonzero	0.009
pg1611_o2nofp.cx10a_c8r32	99.998	0.002	nonzero	nonzero	0.009
pg176_o2nofp.cx10a_c8r32	99.998	0.002	nonzero	nonzero	0.009
pg177_o2nofp.cx10a_c8r32	99.998	0.002	nonzero	nonzero	0.009
pg180_o2nofp.cx10b_c8r32	99.998	0.001	nonzero	nonzero	0.010
pg180_o2nofp.cx10c_c8r32	99.998	0.001	nonzero	nonzero	0.013
pg180_o2nofp.cx10d_c8r32	99.993	0.005	0.002	nonzero	0.011
pg181_o2nofp.cx10b_c8r32	99.999	nonzero	nonzero	nonzero	0.010

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	4ms	16ms	64ms	max
pg1222_o2nofp.cx10a_c8r32		58.111	41.889	0.021
pg1322_o2nofp.cx10a_c8r32	0.028	80.611	19.361	0.023
pg1323_o2nofp.cx10a_c8r32		76.000	24.000	0.021
pg1419_o2nofp.cx10a_c8r32		75.333	24.667	0.021
pg1420_o2nofp.cx10a_c8r32		76.250	23.750	0.022
pg1514_o2nofp.cx10a_c8r32		76.000	24.000	0.024
pg1515_o2nofp.cx10a_c8r32	0.028	79.917	20.056	0.023
pg1610_o2nofp.cx10a_c8r32		81.639	18.361	0.021
pg1611_o2nofp.cx10a_c8r32	0.056	72.778	27.167	0.022
pg176_o2nofp.cx10a_c8r32	0.028	99.861	0.111	0.021
pg177_o2nofp.cx10a_c8r32		99.750	0.250	0.021
pg180_o2nofp.cx10b_c8r32		88.889	11.111	0.026
pg180_o2nofp.cx10c_c8r32		92.389	7.611	0.025
pg180_o2nofp.cx10d_c8r32		88.500	11.500	0.030
pg181_o2nofp.cx10b_c8r32	0.056	99.667	0.278	0.023

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	1ms	4ms	16ms	max
pg1222_o2nofp.cx10a_c8r32	44.000	55.972	0.028	0.010
pg1322_o2nofp.cx10a_c8r32	42.611	57.361	0.028	0.009
pg1323_o2nofp.cx10a_c8r32	54.444	45.528	0.028	0.010
pg1419_o2nofp.cx10a_c8r32	45.611	54.333	0.056	0.010
pg1420_o2nofp.cx10a_c8r32	54.750	45.194	0.056	0.010
pg1514_o2nofp.cx10a_c8r32	36.194	63.750	0.056	0.010
pg1515_o2nofp.cx10a_c8r32	50.444	49.500	0.056	0.010
pg1610_o2nofp.cx10a_c8r32	39.472	60.472	0.056	0.010
pg1611_o2nofp.cx10a_c8r32	52.944	47.000	0.056	0.010
pg176_o2nofp.cx10a_c8r32	44.722	55.222	0.056	0.010
pg177_o2nofp.cx10a_c8r32	50.694	49.250	0.056	0.010
pg180_o2nofp.cx10b_c8r32	42.889	57.056	0.056	0.010
pg180_o2nofp.cx10c_c8r32	35.694	64.222	0.083	0.010
pg180_o2nofp.cx10d_c8r32	41.667	58.278	0.056	0.010
pg181_o2nofp.cx10b_c8r32	48.889	51.056	0.056	0.010

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
100	14589	113	0.9	24.1	1.5	0.008	0.065	0.241	15.600	56024	11.1	3.840	61	154.6	194.7	23.4	0.009	14558	14318	pg1222_o2nofp.cx10a_c8r32
100	14865	112	0.9	57.9	1.8	0.008	0.064	0.580	18.571	57122	11.2	3.843	60	154.5	191.9	23.4	0.009	14894	14622	pg1322_o2nofp.cx10a_c8r32
100	14566	112	0.9	56.8	1.8	0.008	0.065	0.568	18.456	55969	12.6	3.842	69	154.5	192.7	23.4	0.009	14542	14334	pg1323_o2nofp.cx10a_c8r32
100	14613	111	0.9	64.5	1.9	0.008	0.065	0.645	19.092	56066	10.8	3.837	59	154.5	192.0	23.3	0.009	14590	14334	pg1419_o2nofp.cx10a_c8r32
100	14450	112	0.9	64.5	1.9	0.008	0.066	0.645	19.123	55451	12.5	3.837	69	154.5	191.9	23.3	0.009	14462	14142	pg1420_o2nofp.cx10a_c8r32
100	14461	111	0.9	62.2	1.8	0.008	0.066	0.622	18.907	55478	10.9	3.836	60	154.5	192.0	23.3	0.009	14478	14190	pg1514_o2nofp.cx10a_c8r32
100	14416	111	0.9	62.2	1.8	0.008	0.066	0.622	18.892	55280	12.6	3.835	70	154.5	191.9	23.3	0.010	14398	14174	pg1515_o2nofp.cx10a_c8r32
100	14585	112	0.9	62.1	1.8	0.008	0.065	0.621	18.904	55949	11.1	3.836	61	154.5	191.8	23.3	0.009	14574	14302	pg1610_o2nofp.cx10a_c8r32
100	14454	112	0.9	62.1	1.8	0.008	0.066	0.622	18.909	55459	12.6	3.837	70	154.5	191.7	23.3	0.009	14478	14190	pg1611_o2nofp.cx10a_c8r32
100	14459	112	0.9	66.3	1.9	0.008	0.066	0.663	19.372	55430	10.8	3.834	60	154.5	192.4	23.3	0.009	14462	14222	pg176_o2nofp.cx10a_c8r32
100	14404	112	0.9	66.2	1.9	0.008	0.066	0.663	19.381	55257	12.5	3.836	69	154.5	190.5	23.4	0.009	14446	14174	pg177_o2nofp.cx10a_c8r32
100	14215	111	0.9	65.3	1.9	0.008	0.065	0.653	19.293	54505	10.6	3.834	60	154.5	192.1	23.3	0.010	14238	13934	pg180_o2nofp.cx10b_c8r32
100	14542	111	0.9	66.9	1.9	0.008	0.063	0.670	19.448	55785	10.8	3.836	59	154.5	189.5	23.4	0.013	14574	14286	pg180_o2nofp.cx10c_c8r32
100	14172	111	0.9	66.5	1.9	0.008	0.065	0.665	19.390	54340	11.3	3.834	64	154.5	192.2	23.4	0.011	14206	13902	pg180_o2nofp.cx10d_c8r32
100	14323	111	0.9	66.8	1.9	0.008	0.064	0.668	19.416	54917	12.5	3.834	70	154.5	193.1	23.3	0.010	14350	14046	pg181_o2nofp.cx10b_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
109.7	924.1	0.000	0.000	0.163	8.423	24.08	1559.7	4.230	15.14	1.622	66.55	2.000	9.598	0.000	0.000	1.536	4.799	3.706	1.613	0.065	3.737		pg1222_o2nofp.cx10a_c8r32
108.5	924.7	0.000	0.000	0.128	8.522	58.02	1855.7	4.005	11.92	2.289	56.97	2.000	9.595	0.000	0.000	1.638	5.299	3.700	1.371	0.231	3.879		pg1322_o2nofp.cx10a_c8r32
108.6	923.2	0.000	0.000	0.139	8.497	56.89	1846.1	4.114	12.34	2.235	57.26	2.000	9.595	0.000	0.000	1.420	4.798	3.713	1.420	0.218	3.917		pg1323_o2nofp.cx10a_c8r32
108.4	923.5	0.000	0.000	0.137	8.517	64.59	1909.9	3.813	10.65	2.657	53.98	2.001	9.999	0.000	0.000	1.657	4.998	3.700	1.436	0.292	4.163		pg1419_o2nofp.cx10a_c8r32
108.6	927.3	0.000	0.000	0.136	8.534	64.66	1912.9	4.556	12.49	2.547	54.00	2.001	9.997	0.000	0.000	1.163	5.457	3.709	1.402	0.284	3.971		pg1420_o2nofp.cx10a_c8r32
108.2	923.6	0.000	0.000	0.137	8.527	62.29	1889.5	1.719	5.561	2.816	58.53	0.001	0.002	0.000	0.000	0.003	0.011	3.713	1.436	0.306	3.950		pg1514_o2nofp.cx10a_c8r32
108.4	921.8	0.000	0.000	0.134	8.501	62.35	1889.9	1.792	5.798	2.885	58.83	0.001	0.002	0.000	0.000	0.003	0.011	3.675	1.394	0.320	3.889		pg1515_o2nofp.cx10a_c8r32
108.6	925.3	0.000	0.000	0.136	8.521	62.18	1889.2	1.804	5.769	2.834	58.91	0.001	0.002	0.000	0.000	0.000	0.011	3.694	1.322	0.306	3.894		pg1610_o2nofp.cx10a_c8r32
108.8	920.0	0.000	0.000	0.140	8.448	62.20	1889.7	1.803	5.857	2.653	59.59	0.001	0.002	0.000	0.000	0.000	0.011	3.700	1.518	0.275	3.846		pg1611_o2nofp.cx10a_c8r32
108.5	925.5	0.000	0.000	0.122	8.521	66.45	1938.0	1.518	4.951	2.779	60.13	0.001	0.002	0.000	0.000	0.003	0.011	2.842	1.185	0.314	3.836		pg176_o2nofp.cx10a_c8r32
108.5	895.4	0.000	0.000	0.121	8.254	66.31	1936.7	1.467	4.995	2.690	61.28	0.001	0.002	0.000	0.000	0.000	0.011	2.781	1.374	0.306	3.790		pg177_o2nofp.cx10a_c8r32
107.8	901.5	0.000	0.000	0.143	8.365	65.42	1930.0	1.847	6.016	2.650	61.50	0.001	0.002	0.000	0.000	0.003	0.011	2.787	1.871	0.297	4.028		pg180_o2nofp.cx10b_c8r32
108.0	898.0	0.000	0.000	0.141	8.314	67.08	1943.6	1.652	5.281	2.851	59.79	0.001	0.002	0.000	0.000	0.003	0.011	2.837	1.975	0.314	4.163		pg180_o2nofp.cx10c_c8r32
108.2	898.5	0.000	0.000	0.142	8.302	66.64	1939.8	1.759	5.593	2.831	59.90	0.001	0.002	0.000	0.000	0.000	0.011	2.846	1.903	0.317	4.210		pg180_o2nofp.cx10d_c8r32
108.0	897.8	0.000	0.000	0.123	8.315	66.95	1942.4	1.621	5.312	2.696	60.29	0.001	0.002	0.000	0.000	0.000	0.011	2.804	1.347	0.302	3.755		pg181_o2nofp.cx10b_c8r32

qp100.L2

qp100.L2: point queries with 100 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	max
pg1222_o2nofp.cx10a_c8r32		22.661	77.330	0.009		0.014
pg1322_o2nofp.cx10a_c8r32	nonzero	68.630	31.364	0.006	nonzero	0.017
pg1323_o2nofp.cx10a_c8r32		68.011	31.984	0.006		0.013
pg1419_o2nofp.cx10a_c8r32	nonzero	68.093	31.903	0.004		0.014
pg1420_o2nofp.cx10a_c8r32	nonzero	68.450	31.546	0.004		0.015
pg1514_o2nofp.cx10a_c8r32		68.665	31.331	0.004		0.013
pg1515_o2nofp.cx10a_c8r32	nonzero	69.079	30.916	0.005		0.013
pg1610_o2nofp.cx10a_c8r32	nonzero	68.661	31.335	0.004		0.014
pg1611_o2nofp.cx10a_c8r32	nonzero	69.461	30.517	0.017	0.005	0.019
pg176_o2nofp.cx10a_c8r32	nonzero	67.724	32.272	0.004		0.015
pg177_o2nofp.cx10a_c8r32	nonzero	67.738	32.259	0.003		0.013
pg180_o2nofp.cx10b_c8r32		20.290	79.686	0.024	nonzero	0.018
pg180_o2nofp.cx10c_c8r32		19.789	80.180	0.030	nonzero	0.018
pg180_o2nofp.cx10d_c8r32	nonzero	20.449	79.531	0.020		0.016
pg181_o2nofp.cx10b_c8r32	nonzero	65.091	34.893	0.009	0.006	0.021

dbms	16ms	64ms	max
pg1222_o2nofp.cx10a_c8r32	99.528	0.472	0.023
pg1322_o2nofp.cx10a_c8r32	99.861	0.139	0.030
pg1323_o2nofp.cx10a_c8r32	99.917	0.083	0.024
pg1419_o2nofp.cx10a_c8r32	99.833	0.167	0.023
pg1420_o2nofp.cx10a_c8r32	99.889	0.111	0.023
pg1514_o2nofp.cx10a_c8r32	99.833	0.167	0.021
pg1515_o2nofp.cx10a_c8r32	99.806	0.194	0.022
pg1610_o2nofp.cx10a_c8r32	99.833	0.167	0.021
pg1611_o2nofp.cx10a_c8r32	99.806	0.194	0.019
pg176_o2nofp.cx10a_c8r32	100.000		0.013
pg177_o2nofp.cx10a_c8r32	99.972	0.028	0.020
pg180_o2nofp.cx10b_c8r32	99.944	0.056	0.024
pg180_o2nofp.cx10c_c8r32	99.944	0.056	0.019
pg180_o2nofp.cx10d_c8r32	99.972	0.028	0.022
pg181_o2nofp.cx10b_c8r32	99.778	0.222	0.022

dbms	1ms	4ms	16ms	max
pg1222_o2nofp.cx10a_c8r32	6.250	93.694	0.056	0.008
pg1322_o2nofp.cx10a_c8r32	0.028	99.944	0.028	0.009
pg1323_o2nofp.cx10a_c8r32	0.167	99.806	0.028	0.009
pg1419_o2nofp.cx10a_c8r32		99.972	0.028	0.008
pg1420_o2nofp.cx10a_c8r32	0.194	99.778	0.028	0.009
pg1514_o2nofp.cx10a_c8r32	0.028	99.917	0.056	0.009
pg1515_o2nofp.cx10a_c8r32	0.361	99.611	0.028	0.009
pg1610_o2nofp.cx10a_c8r32		99.917	0.083	0.010
pg1611_o2nofp.cx10a_c8r32		99.861	0.139	0.010
pg176_o2nofp.cx10a_c8r32		99.861	0.139	0.009
pg177_o2nofp.cx10a_c8r32		99.972	0.028	0.009
pg180_o2nofp.cx10b_c8r32		99.944	0.056	0.009
pg180_o2nofp.cx10c_c8r32		99.972	0.028	0.010
pg180_o2nofp.cx10d_c8r32		99.972	0.028	0.010
pg181_o2nofp.cx10b_c8r32		99.806	0.194	0.010

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
100	847	10669	83.8	403.8	4.5	12.602	101.382	4.038	46.075	23904	3.9	28.236	369	154.6	193.6	23.4	0.014	880	560	pg1222_o2nofp.cx10a_c8r32
100	1057	13169	103.5	372.4	4.3	12.456	100.282	3.728	43.626	29490	4.1	27.891	310	154.5	191.9	23.4	0.017	1088	688	pg1322_o2nofp.cx10a_c8r32
100	1053	13120	103.0	373.5	4.3	12.462	100.225	3.739	43.727	29392	5.4	27.918	410	154.5	192.7	23.4	0.013	1088	688	pg1323_o2nofp.cx10a_c8r32
100	1055	13194	103.7	366.0	4.2	12.506	100.690	3.660	43.071	29426	4.1	27.892	311	154.5	192.1	23.3	0.014	1088	688	pg1419_o2nofp.cx10a_c8r32
100	1055	13143	103.3	366.0	4.2	12.454	100.245	3.663	43.139	29334	5.3	27.795	402	154.5	191.9	23.3	0.015	1088	704	pg1420_o2nofp.cx10a_c8r32
100	1056	13159	103.5	364.1	4.2	12.458	100.318	3.645	42.930	29313	4.0	27.751	303	154.5	192.0	23.3	0.013	1088	688	pg1514_o2nofp.cx10a_c8r32
100	1060	13179	103.6	363.9	4.2	12.439	100.143	3.639	42.876	29364	5.2	27.715	393	154.5	191.9	23.3	0.013	1088	704	pg1515_o2nofp.cx10a_c8r32
100	1058	13163	103.5	363.9	4.2	12.445	100.229	3.639	42.890	29318	4.0	27.719	303	154.5	191.8	23.3	0.014	1088	704	pg1610_o2nofp.cx10a_c8r32
100	1059	13181	103.7	364.4	4.2	12.447	100.265	3.644	42.928	29367	5.5	27.731	415	154.5	191.7	23.3	0.019	1088	704	pg1611_o2nofp.cx10a_c8r32
100	1053	13166	103.5	357.3	4.1	12.504	100.698	3.573	42.413	29295	4.0	27.823	304	154.5	192.4	23.3	0.015	1088	688	pg176_o2nofp.cx10a_c8r32
100	1051	13092	102.9	357.6	4.1	12.460	100.284	3.579	42.463	29151	5.5	27.744	419	154.5	190.6	23.4	0.013	1088	688	pg177_o2nofp.cx10a_c8r32
100	831	10510	82.6	354.9	4.1	12.641	101.782	3.552	42.291	23385	3.9	28.127	375	154.5	192.1	23.3	0.018	864	544	pg180_o2nofp.cx10b_c8r32
100	830	10470	82.3	352.7	4.1	12.621	101.643	3.530	42.107	23310	3.9	28.098	376	154.5	189.5	23.4	0.018	864	560	pg180_o2nofp.cx10c_c8r32
100	834	10512	82.7	353.1	4.1	12.613	101.557	3.535	42.138	23403	3.9	28.078	374	154.5	192.2	23.4	0.016	864	560	pg180_o2nofp.cx10d_c8r32
100	1037	12962	102.0	356.6	4.1	12.497	100.682	3.566	42.355	28851	5.7	27.816	440	154.5	193.1	23.3	0.021	1072	688	pg181_o2nofp.cx10b_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
10669.0	85830.3	0.000	0.000	0.066	8.045	402.8	4597.9	5.897	2.452	0.051	14.26	2.041	648.5	0.000	0.000	0.369	42.82	4.163	1.206	0.715	70.66		pg1222_o2nofp.cx10a_c8r32
13169.2	106029	0.000	0.000	0.050	8.051	371.2	4348.8	5.305	2.176	0.048	13.99	2.001	9.598	0.000	0.000	0.369	4.798	4.316	1.210	0.648	64.68		pg1322_o2nofp.cx10a_c8r32
13120.2	105517	0.000	0.000	0.050	8.042	372.2	4358.2	5.705	2.361	0.049	14.03	2.001	18.73	0.000	0.000	0.375	8.945	4.286	1.221	0.646	60.47		pg1323_o2nofp.cx10a_c8r32
13194.1	106231	0.000	0.000	0.050	8.051	364.9	4299.0	5.290	2.199	0.050	14.02	2.001	9.999	0.000	0.000	0.375	4.998	4.321	1.225	0.647	64.46		pg1419_o2nofp.cx10a_c8r32
13143.4	105800	0.000	0.000	0.050	8.049	364.8	4300.7	6.204	2.570	0.049	14.02	2.002	19.12	0.000	0.000	0.373	8.797	4.301	1.223	0.646	60.35		pg1420_o2nofp.cx10a_c8r32
13159.2	105966	0.000	0.000	0.050	8.053	362.9	4279.4	2.847	1.194	0.055	14.05	0.001	0.002	0.000	0.000	0.000	0.011	4.327	1.203	0.645	64.26		pg1514_o2nofp.cx10a_c8r32
13178.9	106101	0.000	0.000	0.050	8.051	362.8	4278.9	3.050	1.271	0.048	14.06	0.001	0.002	0.000	0.000	0.000	0.011	4.335	1.227	0.645	60.38		pg1515_o2nofp.cx10a_c8r32
13162.4	106011	0.000	0.000	0.050	8.054	362.8	4280.2	3.266	1.388	0.052	14.18	0.001	0.002	0.000	0.000	0.003	0.011	4.315	1.186	0.645	63.92		pg1610_o2nofp.cx10a_c8r32
13181.0	106182	0.000	0.000	0.050	8.056	363.2	4283.7	3.384	1.432	0.050	14.12	0.001	0.002	0.000	0.000	0.000	0.011	4.324	1.228	0.643	60.11		pg1611_o2nofp.cx10a_c8r32
13165.7	106026	0.000	0.000	0.050	8.053	356.2	4233.2	2.402	1.034	0.048	14.31	0.001	0.002	0.000	0.000	0.000	0.011	3.630	1.163	0.642	64.16		pg176_o2nofp.cx10a_c8r32
13091.6	105370	0.000	0.000	0.050	8.049	356.5	4234.0	2.364	0.990	0.049	14.18	0.002	9.132	0.000	0.000	0.003	45.66	3.643	1.214	0.641	60.42		pg177_o2nofp.cx10a_c8r32
10509.5	84620.4	0.000	0.000	0.070	8.052	354.1	4218.9	2.978	1.379	0.063	14.83	0.001	0.002	0.000	0.000	0.000	0.011	3.537	1.593	0.708	70.07		pg180_o2nofp.cx10b_c8r32
10470.3	84322.6	0.000	0.000	0.070	8.054	352.0	4201.0	2.602	1.187	0.066	14.80	0.001	9.130	0.000	0.000	0.003	45.65	3.543	1.655	0.707	69.72		pg180_o2nofp.cx10c_c8r32
10512.4	84647.9	0.000	0.000	0.069	8.052	352.4	4204.0	2.799	1.262	0.062	14.69	0.001	0.002	0.000	0.000	0.003	0.011	3.539	1.596	0.707	69.82		pg180_o2nofp.cx10d_c8r32
12961.7	104428	0.000	0.000	0.050	8.056	355.6	4227.8	2.383	1.032	0.048	14.25	0.001	0.002	0.000	0.000	0.003	0.011	3.631	1.215	0.631	59.88		pg181_o2nofp.cx10b_c8r32

qr500.L3

qr500.L3: range queries with 500 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	max
pg1222_o2nofp.cx10a_c8r32	99.992	0.007	nonzero	0.001	nonzero	0.033
pg1322_o2nofp.cx10a_c8r32	99.995	0.004	nonzero	0.001	nonzero	0.024
pg1323_o2nofp.cx10a_c8r32	99.994	0.005	nonzero	0.001	nonzero	0.042
pg1419_o2nofp.cx10a_c8r32	99.994	0.005	nonzero	nonzero	nonzero	0.025
pg1420_o2nofp.cx10a_c8r32	99.995	0.004	nonzero	0.001	nonzero	0.022
pg1514_o2nofp.cx10a_c8r32	99.994	0.005	nonzero	0.001	nonzero	0.019
pg1515_o2nofp.cx10a_c8r32	99.994	0.005	0.001	0.001	nonzero	0.026
pg1610_o2nofp.cx10a_c8r32	99.994	0.005	0.001	0.001	nonzero	0.022
pg1611_o2nofp.cx10a_c8r32	99.995	0.005	nonzero	nonzero	nonzero	0.024
pg176_o2nofp.cx10a_c8r32	99.995	0.005	nonzero	nonzero	nonzero	0.021
pg177_o2nofp.cx10a_c8r32	99.995	0.004	nonzero	nonzero	nonzero	0.022
pg180_o2nofp.cx10b_c8r32	99.991	0.008	0.001	nonzero	nonzero	0.019
pg180_o2nofp.cx10c_c8r32	99.992	0.007	0.001	nonzero	nonzero	0.018
pg180_o2nofp.cx10d_c8r32	99.991	0.008	0.001	nonzero	nonzero	0.021
pg181_o2nofp.cx10b_c8r32	99.995	0.004	nonzero	nonzero	nonzero	0.030

dbms	16ms	64ms	max
pg1222_o2nofp.cx10a_c8r32	91.728	8.272	0.023
pg1322_o2nofp.cx10a_c8r32	92.839	7.161	0.032
pg1323_o2nofp.cx10a_c8r32	93.306	6.694	0.025
pg1419_o2nofp.cx10a_c8r32	93.789	6.211	0.022
pg1420_o2nofp.cx10a_c8r32	93.633	6.367	0.024
pg1514_o2nofp.cx10a_c8r32	93.300	6.700	0.024
pg1515_o2nofp.cx10a_c8r32	93.361	6.639	0.030
pg1610_o2nofp.cx10a_c8r32	93.244	6.756	0.025
pg1611_o2nofp.cx10a_c8r32	93.200	6.800	0.024
pg176_o2nofp.cx10a_c8r32	94.050	5.950	0.019
pg177_o2nofp.cx10a_c8r32	94.083	5.917	0.023
pg180_o2nofp.cx10b_c8r32	93.517	6.483	0.053
pg180_o2nofp.cx10c_c8r32	93.856	6.144	0.025
pg180_o2nofp.cx10d_c8r32	93.733	6.267	0.045
pg181_o2nofp.cx10b_c8r32	94.161	5.839	0.025

dbms	4ms	16ms	64ms	max
pg1222_o2nofp.cx10a_c8r32	49.756	50.244		0.015
pg1322_o2nofp.cx10a_c8r32	41.922	58.078		0.015
pg1323_o2nofp.cx10a_c8r32	46.100	53.900		0.016
pg1419_o2nofp.cx10a_c8r32	45.650	54.350		0.016
pg1420_o2nofp.cx10a_c8r32	45.972	54.028		0.015
pg1514_o2nofp.cx10a_c8r32	33.422	66.578		0.016
pg1515_o2nofp.cx10a_c8r32	40.822	59.178		0.015
pg1610_o2nofp.cx10a_c8r32	39.094	60.906		0.015
pg1611_o2nofp.cx10a_c8r32	45.050	54.950		0.015
pg176_o2nofp.cx10a_c8r32	36.183	63.817		0.015
pg177_o2nofp.cx10a_c8r32	42.761	57.239		0.015
pg180_o2nofp.cx10b_c8r32	32.072	67.917	0.011	0.041
pg180_o2nofp.cx10c_c8r32	37.006	62.994		0.016
pg180_o2nofp.cx10d_c8r32	41.128	58.872		0.016
pg181_o2nofp.cx10b_c8r32	45.367	54.633		0.015

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
500	14035	874	7.0	195.3	7.6	0.062	0.508	0.391	15.593	55596	12.1	3.961	69	154.7	191.1	23.4	0.033	14046	13519	pg1222_o2nofp.cx10a_c8r32
500	14065	876	7.0	303.8	8.9	0.062	0.508	0.608	18.183	55715	12.1	3.961	69	154.6	190.2	23.4	0.024	14078	13614	pg1322_o2nofp.cx10a_c8r32
500	13816	876	7.0	300.2	8.8	0.063	0.517	0.601	18.126	54804	13.6	3.967	79	154.6	190.5	23.4	0.042	13822	13358	pg1323_o2nofp.cx10a_c8r32
500	13778	876	7.0	325.1	9.1	0.064	0.519	0.650	18.659	54517	12.3	3.957	71	154.6	190.2	23.3	0.025	13758	13294	pg1419_o2nofp.cx10a_c8r32
500	13828	876	7.0	325.1	9.1	0.063	0.517	0.651	18.680	54737	13.6	3.958	79	154.6	190.1	23.3	0.022	13854	13342	pg1420_o2nofp.cx10a_c8r32
500	13766	876	7.0	322.1	9.1	0.064	0.519	0.644	18.597	54433	12.3	3.954	71	154.6	190.3	23.3	0.019	13774	13342	pg1514_o2nofp.cx10a_c8r32
500	13580	876	7.0	322.7	9.1	0.065	0.526	0.645	18.615	53723	13.7	3.956	81	154.6	190.3	23.3	0.026	13582	13086	pg1515_o2nofp.cx10a_c8r32
500	13744	877	7.0	321.4	9.1	0.064	0.521	0.643	18.606	54345	12.4	3.954	72	154.6	190.3	23.3	0.022	13742	13262	pg1610_o2nofp.cx10a_c8r32
500	13886	875	7.0	321.6	9.1	0.063	0.515	0.643	18.588	54891	13.7	3.953	79	154.6	190.3	23.3	0.024	13902	13438	pg1611_o2nofp.cx10a_c8r32
500	13754	875	7.0	339.9	9.3	0.064	0.520	0.680	19.007	54383	12.4	3.954	72	154.6	190.4	23.3	0.021	13758	13262	pg176_o2nofp.cx10a_c8r32
500	13724	875	7.0	339.0	9.3	0.064	0.520	0.678	18.975	54240	13.7	3.952	80	154.6	190.1	23.4	0.022	13742	13230	pg177_o2nofp.cx10a_c8r32
500	13525	870	6.9	338.6	9.3	0.064	0.525	0.678	18.973	53503	12.5	3.956	74	154.6	190.3	23.3	0.019	13534	13086	pg180_o2nofp.cx10b_c8r32
500	13885	873	7.0	343.8	9.3	0.063	0.513	0.688	19.078	54847	12.4	3.950	71	154.6	189.6	23.4	0.018	13886	13406	pg180_o2nofp.cx10c_c8r32
500	13553	873	7.0	342.4	9.3	0.064	0.526	0.685	19.064	53619	12.4	3.956	73	154.6	190.3	23.4	0.021	13566	13086	pg180_o2nofp.cx10d_c8r32
500	13557	874	7.0	341.5	9.3	0.065	0.527	0.684	19.037	53635	13.7	3.956	81	154.6	190.6	23.3	0.030	13567	13134	pg181_o2nofp.cx10b_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
866.0	7032.1	0.000	0.000	0.080	8.121	195.4	7791.6	5.700	4.358	0.697	68.69	2.099	1488.4	0.000	0.000	1.384	67.17	8.127	1.223	0.155	9.322		pg1222_o2nofp.cx10a_c8r32
867.0	7052.5	0.000	0.000	0.063	8.136	304.2	9092.9	5.604	4.713	0.612	70.11	2.079	1095.9	0.000	0.000	1.270	41.24	8.279	1.266	0.148	7.703		pg1322_o2nofp.cx10a_c8r32
867.2	7046.2	0.000	0.000	0.063	8.127	300.7	9057.9	5.802	4.753	0.614	70.13	2.091	1342.3	0.000	0.000	1.038	43.53	8.229	1.256	0.150	7.672		pg1323_o2nofp.cx10a_c8r32
867.1	7053.0	0.000	0.000	0.062	8.135	325.6	9330.5	5.334	4.251	0.575	68.11	2.074	1160.2	0.000	0.000	0.949	48.90	8.280	1.228	0.142	7.492		pg1419_o2nofp.cx10a_c8r32
867.2	7056.2	0.000	0.000	0.063	8.138	325.7	9337.5	6.416	5.090	0.588	68.15	2.069	1068.9	0.000	0.000	1.125	44.79	8.264	1.250	0.154	7.595		pg1420_o2nofp.cx10a_c8r32
867.2	7056.6	0.000	0.000	0.062	8.139	322.6	9301.3	3.103	2.459	0.603	69.77	0.069	1004.2	0.000	0.000	0.002	80.73	8.309	1.231	0.141	7.409		pg1514_o2nofp.cx10a_c8r32
867.2	7051.8	0.000	0.000	0.062	8.134	323.1	9307.0	3.071	2.392	0.594	69.82	0.067	985.9	0.000	0.000	0.002	86.93	8.254	1.270	0.142	7.386		pg1515_o2nofp.cx10a_c8r32
868.0	7061.6	0.000	0.000	0.062	8.137	321.9	9304.5	3.295	2.463	0.582	70.22	0.064	922.0	0.000	0.000	0.001	41.18	8.302	1.213	0.137	7.379		pg1610_o2nofp.cx10a_c8r32
866.6	7051.5	0.000	0.000	0.062	8.139	322.0	9295.8	3.198	2.427	0.590	70.25	0.061	885.5	0.000	0.000	0.004	41.01	8.286	1.262	0.142	7.430		pg1611_o2nofp.cx10a_c8r32
866.9	7055.3	0.000	0.000	0.058	8.141	340.5	9501.0	2.851	2.036	0.528	66.29	0.083	1232.3	0.000	0.000	0.004	41.94	7.686	1.104	0.136	7.063		pg176_o2nofp.cx10a_c8r32
866.7	7048.5	0.000	0.000	0.059	8.135	339.5	9490.5	2.366	1.759	0.550	66.86	0.025	328.7	0.000	0.000	0.001	38.24	7.665	1.229	0.143	7.209		pg177_o2nofp.cx10a_c8r32
862.4	7017.9	0.000	0.000	0.077	8.140	339.2	9484.2	3.364	2.447	0.569	65.55	0.075	1095.4	0.000	0.000	0.008	41.20	7.599	1.640	0.158	8.817		pg180_o2nofp.cx10b_c8r32
865.2	7045.1	0.000	0.000	0.077	8.145	344.4	9542.8	2.676	2.036	0.533	64.09	0.005	0.120	0.000	0.000	0.008	0.105	7.639	1.587	0.158	8.753		pg180_o2nofp.cx10c_c8r32
865.7	7047.5	0.000	0.000	0.077	8.142	343.0	9529.3	3.183	2.250	0.553	64.63	0.079	1113.7	0.000	0.000	0.008	40.08	7.565	1.634	0.158	8.815		pg180_o2nofp.cx10d_c8r32
866.3	7055.3	0.000	0.000	0.059	8.146	342.2	9516.4	2.888	1.957	0.524	65.76	0.099	1478.8	0.000	0.000	0.005	42.30	7.593	1.217	0.141	7.156		pg181_o2nofp.cx10b_c8r32

qp500.L4

qp500.L4: point queries with 500 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	max
pg1222_o2nofp.cx10a_c8r32		17.474	82.511	0.015		0.016
pg1322_o2nofp.cx10a_c8r32		63.002	36.991	0.006		0.016
pg1323_o2nofp.cx10a_c8r32	nonzero	61.825	38.167	0.007		0.014
pg1419_o2nofp.cx10a_c8r32	nonzero	62.098	37.895	0.006	nonzero	0.016
pg1420_o2nofp.cx10a_c8r32	nonzero	62.646	37.346	0.008		0.013
pg1514_o2nofp.cx10a_c8r32	nonzero	62.456	37.537	0.007		0.014
pg1515_o2nofp.cx10a_c8r32		62.777	37.217	0.006	nonzero	0.019
pg1610_o2nofp.cx10a_c8r32		62.497	37.496	0.007		0.015
pg1611_o2nofp.cx10a_c8r32	nonzero	63.329	36.646	0.021	0.004	0.019
pg176_o2nofp.cx10a_c8r32		61.371	38.618	0.011	nonzero	0.018
pg177_o2nofp.cx10a_c8r32	nonzero	62.004	37.990	0.006	nonzero	0.023
pg180_o2nofp.cx10b_c8r32		15.220	84.710	0.070	nonzero	0.018
pg180_o2nofp.cx10c_c8r32		14.963	84.964	0.072	nonzero	0.016
pg180_o2nofp.cx10d_c8r32		15.085	84.860	0.055	nonzero	0.017
pg181_o2nofp.cx10b_c8r32		57.592	42.400	0.007		0.014

dbms	16ms	64ms	max
pg1222_o2nofp.cx10a_c8r32	99.911	0.089	0.023
pg1322_o2nofp.cx10a_c8r32	99.939	0.061	0.024
pg1323_o2nofp.cx10a_c8r32	99.933	0.067	0.023
pg1419_o2nofp.cx10a_c8r32	99.950	0.050	0.023
pg1420_o2nofp.cx10a_c8r32	99.967	0.033	0.030
pg1514_o2nofp.cx10a_c8r32	99.950	0.050	0.023
pg1515_o2nofp.cx10a_c8r32	99.961	0.039	0.024
pg1610_o2nofp.cx10a_c8r32	99.950	0.050	0.021
pg1611_o2nofp.cx10a_c8r32	99.789	0.211	0.023
pg176_o2nofp.cx10a_c8r32	99.928	0.072	0.021
pg177_o2nofp.cx10a_c8r32	99.917	0.083	0.028
pg180_o2nofp.cx10b_c8r32	99.789	0.211	0.044
pg180_o2nofp.cx10c_c8r32	99.767	0.233	0.023
pg180_o2nofp.cx10d_c8r32	99.844	0.156	0.025
pg181_o2nofp.cx10b_c8r32	99.939	0.061	0.020

dbms	16ms	64ms	max
pg1222_o2nofp.cx10a_c8r32	99.917	0.083	0.042
pg1322_o2nofp.cx10a_c8r32	98.528	1.472	0.043
pg1323_o2nofp.cx10a_c8r32	98.156	1.844	0.045
pg1419_o2nofp.cx10a_c8r32	98.033	1.967	0.043
pg1420_o2nofp.cx10a_c8r32	98.300	1.700	0.043
pg1514_o2nofp.cx10a_c8r32	98.378	1.622	0.042
pg1515_o2nofp.cx10a_c8r32	99.072	0.928	0.043
pg1610_o2nofp.cx10a_c8r32	97.600	2.400	0.041
pg1611_o2nofp.cx10a_c8r32	97.983	2.017	0.043
pg176_o2nofp.cx10a_c8r32	93.794	6.206	0.042
pg177_o2nofp.cx10a_c8r32	95.572	4.428	0.042
pg180_o2nofp.cx10b_c8r32	97.450	2.550	0.046
pg180_o2nofp.cx10c_c8r32	97.083	2.917	0.043
pg180_o2nofp.cx10d_c8r32	97.500	2.500	0.043
pg181_o2nofp.cx10b_c8r32	97.822	2.178	0.043

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
500	823	11341	89.0	1760.9	19.9	13.773	110.664	3.522	40.746	25322	5.6	30.753	544	154.8	189.2	23.4	0.016	848	640	pg1222_o2nofp.cx10a_c8r32
500	1030	13806	108.4	1652.1	19.1	13.405	107.770	3.304	39.046	30830	6.7	29.935	520	154.6	188.7	23.4	0.016	1056	784	pg1322_o2nofp.cx10a_c8r32
500	1024	13730	107.7	1655.5	19.1	13.414	107.761	3.311	39.106	30683	7.0	29.975	547	154.6	189.0	23.4	0.014	1040	784	pg1323_o2nofp.cx10a_c8r32
500	1025	13814	108.5	1630.3	18.9	13.473	108.318	3.262	38.720	30671	6.7	29.914	523	154.6	188.6	23.3	0.016	1040	784	pg1419_o2nofp.cx10a_c8r32
500	1026	13771	108.1	1630.6	18.9	13.416	107.843	3.263	38.725	30595	6.9	29.805	538	154.6	188.6	23.3	0.013	1056	784	pg1420_o2nofp.cx10a_c8r32
500	1026	13755	108.0	1628.6	18.9	13.408	107.809	3.257	38.654	30510	6.7	29.739	522	154.6	188.7	23.3	0.014	1040	784	pg1514_o2nofp.cx10a_c8r32
500	1027	13775	108.1	1628.0	18.9	13.411	107.808	3.258	38.682	30551	7.0	29.745	545	154.6	188.7	23.3	0.019	1056	784	pg1515_o2nofp.cx10a_c8r32
500	1027	13767	108.1	1629.6	18.9	13.406	107.773	3.259	38.677	30535	6.8	29.735	530	154.6	188.7	23.3	0.015	1056	800	pg1610_o2nofp.cx10a_c8r32
500	1030	13799	108.4	1629.2	18.9	13.404	107.794	3.258	38.664	30608	7.7	29.731	598	154.6	188.7	23.3	0.019	1056	800	pg1611_o2nofp.cx10a_c8r32
500	1021	13763	108.1	1612.3	18.7	13.480	108.393	3.227	38.396	30471	6.8	29.845	533	154.6	188.7	23.3	0.018	1040	784	pg176_o2nofp.cx10a_c8r32
500	1023	13730	107.8	1613.7	18.7	13.421	107.867	3.229	38.416	30417	7.2	29.733	563	154.6	188.4	23.4	0.023	1040	784	pg177_o2nofp.cx10a_c8r32
500	806	11150	87.5	1594.3	18.6	13.838	111.233	3.189	38.060	24665	5.7	30.610	566	154.6	188.7	23.3	0.018	832	640	pg180_o2nofp.cx10b_c8r32
500	804	11118	87.3	1589.2	18.5	13.827	111.165	3.180	38.000	24596	5.7	30.589	567	154.6	188.2	23.4	0.016	832	624	pg180_o2nofp.cx10c_c8r32
500	805	11130	87.4	1590.6	18.6	13.820	111.091	3.181	38.011	24626	5.8	30.576	576	154.6	188.6	23.4	0.017	832	640	pg180_o2nofp.cx10d_c8r32
500	1006	13567	106.6	1609.5	18.7	13.485	108.451	3.221	38.343	30042	7.1	29.860	565	154.6	188.8	23.3	0.014	1024	784	pg181_o2nofp.cx10b_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
11343.7	91143.7	0.000	0.000	0.069	8.035	1746.6	20243.5	7.955	0.611	0.036	13.23	2.079	1205.3	0.000	0.000	0.369	48.75	9.321	1.172	0.811	72.45		pg1222_o2nofp.cx10a_c8r32
13809.2	111023	0.000	0.000	0.050	8.040	1638.0	19409.9	7.365	0.583	0.033	13.35	2.057	922.3	0.000	0.000	0.374	45.84	9.314	1.173	0.730	66.41		pg1322_o2nofp.cx10a_c8r32
13733.8	110334	0.000	0.000	0.050	8.033	1641.2	19438.6	7.570	0.593	0.037	13.35	2.061	940.6	0.000	0.000	0.385	79.48	9.300	1.189	0.732	62.87		pg1323_o2nofp.cx10a_c8r32
13817.7	111089	0.000	0.000	0.050	8.040	1617.7	19248.0	7.427	0.604	0.034	13.37	2.063	986.6	0.000	0.000	0.399	49.11	9.292	1.176	0.730	65.88		pg1419_o2nofp.cx10a_c8r32
13774.6	110730	0.000	0.000	0.050	8.039	1617.7	19248.4	7.883	0.630	0.035	13.36	2.060	977.5	0.000	0.000	0.384	43.04	9.294	1.192	0.730	62.49		pg1420_o2nofp.cx10a_c8r32
13758.9	110632	0.000	0.000	0.050	8.041	1615.8	19224.8	4.869	0.383	0.035	13.37	0.067	976.7	0.000	0.000	0.001	40.70	9.306	1.159	0.726	66.16		pg1514_o2nofp.cx10a_c8r32
13778.1	110758	0.000	0.000	0.050	8.039	1615.3	19228.7	4.937	0.396	0.035	13.38	0.062	976.7	0.000	0.000	0.001	44.00	9.301	1.185	0.727	62.46		pg1515_o2nofp.cx10a_c8r32
13770.0	110700	0.000	0.000	0.050	8.039	1616.6	19235.8	5.234	0.407	0.034	13.37	0.065	976.7	0.000	0.000	0.005	84.91	9.284	1.163	0.726	65.58		pg1610_o2nofp.cx10a_c8r32
13802.4	110999	0.000	0.000	0.050	8.042	1616.1	19228.0	5.362	0.427	0.033	13.38	0.061	985.8	0.000	0.000	0.004	45.23	9.290	1.170	0.725	61.99		pg1611_o2nofp.cx10a_c8r32
13766.0	110697	0.000	0.000	0.050	8.041	1601.5	19101.3	4.299	0.340	0.037	13.37	0.069	1049.7	0.000	0.000	0.004	88.65	9.841	1.108	0.729	65.94		pg176_o2nofp.cx10a_c8r32
13733.3	110375	0.000	0.000	0.050	8.037	1602.8	19110.9	4.196	0.340	0.037	13.37	0.068	1031.4	0.000	0.000	0.001	42.63	9.838	1.181	0.731	62.56		pg177_o2nofp.cx10a_c8r32
11152.7	89651.8	0.000	0.000	0.070	8.039	1585.6	18961.5	4.924	0.388	0.050	13.35	0.066	1022.3	0.000	0.000	0.004	87.60	9.863	1.568	0.826	71.99		pg180_o2nofp.cx10b_c8r32
11120.8	89410.4	0.000	0.000	0.070	8.040	1581.0	18923.8	4.331	0.346	0.051	13.36	0.055	848.9	0.000	0.000	0.002	43.77	9.862	1.580	0.824	71.75		pg180_o2nofp.cx10c_c8r32
11132.7	89494.0	0.000	0.000	0.070	8.039	1582.1	18938.5	4.598	0.364	0.050	13.36	0.068	1049.7	0.000	0.000	0.002	43.39	9.833	1.537	0.823	71.72		pg180_o2nofp.cx10d_c8r32
13570.0	109138	0.000	0.000	0.050	8.042	1598.9	19076.8	4.346	0.343	0.040	13.37	0.074	1140.9	0.000	0.000	0.005	86.15	9.919	1.179	0.726	62.84		pg181_o2nofp.cx10b_c8r32

qr1000.L5

qr1000.L5: range queries with 1000 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c8r32	99.978	0.018	0.003	0.002	nonzero	nonzero	0.093
pg1322_o2nofp.cx10a_c8r32	99.987	0.009	0.003	0.001	nonzero	nonzero	0.100
pg1323_o2nofp.cx10a_c8r32	99.986	0.010	0.003	0.002	nonzero	nonzero	0.089
pg1419_o2nofp.cx10a_c8r32	99.984	0.012	0.003	0.001	nonzero	nonzero	0.096
pg1420_o2nofp.cx10a_c8r32	99.986	0.009	0.003	0.001	nonzero	nonzero	0.094
pg1514_o2nofp.cx10a_c8r32	99.984	0.011	0.003	0.001	nonzero	nonzero	0.103
pg1515_o2nofp.cx10a_c8r32	99.982	0.013	0.003	0.001	nonzero	nonzero	0.088
pg1610_o2nofp.cx10a_c8r32	99.983	0.012	0.003	0.002	nonzero	nonzero	0.087
pg1611_o2nofp.cx10a_c8r32	99.982	0.014	0.003	0.002	nonzero	nonzero	0.093
pg176_o2nofp.cx10a_c8r32	99.984	0.012	0.003	0.001	nonzero	nonzero	0.086
pg177_o2nofp.cx10a_c8r32	99.983	0.013	0.003	0.001	nonzero	nonzero	0.106
pg180_o2nofp.cx10b_c8r32	99.973	0.023	0.003	0.001	nonzero	nonzero	0.102
pg180_o2nofp.cx10c_c8r32	99.975	0.021	0.003	0.001	nonzero	nonzero	0.090
pg180_o2nofp.cx10d_c8r32	99.973	0.022	0.003	0.001	nonzero	nonzero	0.079
pg181_o2nofp.cx10b_c8r32	99.984	0.012	0.003	0.001	nonzero	nonzero	0.099

dbms	4ms	16ms	64ms	max
pg1222_o2nofp.cx10a_c8r32		97.681	2.319	0.029
pg1322_o2nofp.cx10a_c8r32	0.008	98.525	1.467	0.022
pg1323_o2nofp.cx10a_c8r32		98.342	1.658	0.022
pg1419_o2nofp.cx10a_c8r32	0.003	98.489	1.508	0.020
pg1420_o2nofp.cx10a_c8r32		98.225	1.775	0.024
pg1514_o2nofp.cx10a_c8r32	0.006	98.192	1.803	0.023
pg1515_o2nofp.cx10a_c8r32		98.264	1.736	0.027
pg1610_o2nofp.cx10a_c8r32		98.275	1.725	0.027
pg1611_o2nofp.cx10a_c8r32	0.003	98.239	1.758	0.027
pg176_o2nofp.cx10a_c8r32	0.003	98.072	1.925	0.026
pg177_o2nofp.cx10a_c8r32		98.050	1.950	0.030
pg180_o2nofp.cx10b_c8r32		96.939	3.061	0.047
pg180_o2nofp.cx10c_c8r32		96.878	3.122	0.051
pg180_o2nofp.cx10d_c8r32		96.947	3.053	0.022
pg181_o2nofp.cx10b_c8r32		98.031	1.969	0.022

dbms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c8r32	32.397	67.603		0.064
pg1322_o2nofp.cx10a_c8r32	25.597	74.400	0.003	0.065
pg1323_o2nofp.cx10a_c8r32	23.097	76.900	0.003	0.065
pg1419_o2nofp.cx10a_c8r32	28.178	71.819	0.003	0.064
pg1420_o2nofp.cx10a_c8r32	22.725	77.275		0.064
pg1514_o2nofp.cx10a_c8r32	20.861	79.139		0.063
pg1515_o2nofp.cx10a_c8r32	20.303	79.697		0.063
pg1610_o2nofp.cx10a_c8r32	16.947	83.053		0.061
pg1611_o2nofp.cx10a_c8r32	13.956	86.044		0.063
pg176_o2nofp.cx10a_c8r32	8.489	91.511		0.063
pg177_o2nofp.cx10a_c8r32	4.461	95.539		0.061
pg180_o2nofp.cx10b_c8r32	20.456	79.542	0.003	0.065
pg180_o2nofp.cx10c_c8r32	20.972	79.028		0.063
pg180_o2nofp.cx10d_c8r32	19.536	80.464		0.064
pg181_o2nofp.cx10b_c8r32	14.536	85.461	0.003	0.065

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
999	12298	1503	12.0	767.0	16.8	0.122	1.003	0.768	17.199	50596	16.9	4.114	110	154.9	188.3	23.4	0.093	12303	11630	pg1222_o2nofp.cx10a_c8r32
999	12563	1507	12.1	899.8	18.7	0.120	0.985	0.900	19.125	51595	17.2	4.107	110	154.8	187.8	23.4	0.100	12574	11902	pg1322_o2nofp.cx10a_c8r32
999	12331	1505	12.1	896.2	18.6	0.122	1.002	0.897	19.076	50739	18.5	4.115	120	154.8	188.1	23.4	0.089	12334	11662	pg1323_o2nofp.cx10a_c8r32
999	12145	1506	12.1	916.1	18.9	0.124	1.018	0.917	19.372	49826	17.2	4.103	113	154.8	187.7	23.3	0.096	12159	11487	pg1419_o2nofp.cx10a_c8r32
999	12317	1506	12.1	916.5	18.9	0.122	1.004	0.917	19.364	50458	18.5	4.097	120	154.8	187.7	23.3	0.094	12319	11614	pg1420_o2nofp.cx10a_c8r32
999	12292	1506	12.1	914.8	18.9	0.123	1.007	0.915	19.343	50313	17.4	4.093	113	154.8	187.9	23.3	0.103	12302	11614	pg1514_o2nofp.cx10a_c8r32
999	12086	1506	12.1	913.4	18.9	0.125	1.023	0.914	19.333	49531	18.6	4.098	123	154.8	187.8	23.3	0.088	12094	11454	pg1515_o2nofp.cx10a_c8r32
999	12213	1506	12.1	914.4	18.9	0.123	1.013	0.915	19.340	50008	17.6	4.095	115	154.8	187.8	23.3	0.087	12222	11551	pg1610_o2nofp.cx10a_c8r32
999	12165	1506	12.1	914.8	18.9	0.124	1.018	0.916	19.357	49855	18.8	4.098	124	154.8	187.8	23.3	0.093	12190	11518	pg1611_o2nofp.cx10a_c8r32
999	11932	1505	12.1	921.6	19.0	0.126	1.037	0.923	19.473	48900	18.0	4.098	121	154.8	187.8	23.3	0.086	11950	11262	pg176_o2nofp.cx10a_c8r32
999	11946	1506	12.1	921.9	19.0	0.126	1.036	0.923	19.484	48954	19.3	4.098	129	154.8	187.6	23.4	0.106	11966	11247	pg177_o2nofp.cx10a_c8r32
999	11924	1496	12.0	930.6	19.1	0.126	1.032	0.931	19.528	48824	17.5	4.095	117	154.8	187.8	23.3	0.102	11950	11182	pg180_o2nofp.cx10b_c8r32
999	12018	1501	12.1	930.6	19.1	0.125	1.027	0.932	19.558	49224	17.5	4.096	116	154.8	187.4	23.4	0.090	12030	11342	pg180_o2nofp.cx10c_c8r32
999	11689	1501	12.0	929.3	19.1	0.128	1.055	0.930	19.543	47964	17.5	4.103	120	154.8	187.8	23.4	0.079	11710	11070	pg180_o2nofp.cx10d_c8r32
999	11899	1506	12.1	921.4	19.0	0.127	1.040	0.922	19.463	48756	18.9	4.097	127	154.8	187.9	23.3	0.099	11919	11262	pg181_o2nofp.cx10b_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
1493.5	12161.2	0.000	0.000	0.069	8.146	766.8	17157.1	8.052	1.362	0.195	33.39	2.043	630.4	0.000	0.000	0.926	41.30	13.10	1.201	0.219	13.36		pg1222_o2nofp.cx10a_c8r32
1496.9	12203.3	0.000	0.000	0.059	8.158	900.2	19099.1	8.102	1.502	0.188	35.64	2.040	603.0	0.000	0.000	0.770	41.42	13.37	1.207	0.206	12.10		pg1322_o2nofp.cx10a_c8r32
1495.7	12185.9	0.000	0.000	0.059	8.152	897.1	19056.1	8.183	1.470	0.190	35.16	2.042	621.3	0.000	0.000	0.792	41.20	13.34	1.228	0.208	12.16		pg1323_o2nofp.cx10a_c8r32
1495.7	12195.0	0.000	0.000	0.060	8.159	917.0	19341.3	8.042	1.457	0.188	34.72	2.040	603.4	0.000	0.000	1.001	42.07	13.44	1.217	0.210	12.19		pg1419_o2nofp.cx10a_c8r32
1496.1	12194.6	0.000	0.000	0.059	8.157	916.9	19342.0	8.418	1.537	0.188	35.70	2.038	603.4	0.000	0.000	0.890	43.03	13.47	1.224	0.210	12.27		pg1420_o2nofp.cx10a_c8r32
1496.4	12201.4	0.000	0.000	0.059	8.159	915.1	19317.4	5.511	0.891	0.190	35.40	0.041	602.5	0.000	0.000	0.004	41.28	13.50	1.227	0.205	12.08		pg1514_o2nofp.cx10a_c8r32
1495.8	12196.0	0.000	0.000	0.059	8.159	913.9	19310.1	5.629	0.922	0.185	34.90	0.041	602.5	0.000	0.000	0.004	41.28	13.50	1.234	0.209	12.15		pg1515_o2nofp.cx10a_c8r32
1496.0	12196.1	0.000	0.000	0.059	8.158	915.1	19318.8	5.771	0.958	0.184	35.36	0.040	602.5	0.000	0.000	0.004	87.49	13.42	1.188	0.200	12.09		pg1610_o2nofp.cx10a_c8r32
1496.0	12204.5	0.000	0.000	0.059	8.164	915.3	19322.8	5.802	0.972	0.181	35.22	0.042	593.4	0.000	0.000	0.004	40.11	13.45	1.241	0.204	12.11		pg1611_o2nofp.cx10a_c8r32
1495.8	12202.9	0.000	0.000	0.058	8.164	922.6	19444.4	4.835	0.796	0.171	36.21	0.042	593.4	0.000	0.000	0.004	39.57	13.54	1.118	0.195	11.95		pg176_o2nofp.cx10a_c8r32
1496.5	12201.4	0.000	0.000	0.059	8.159	922.8	19452.5	4.647	0.728	0.168	35.33	0.041	584.3	0.000	0.000	0.001	40.59	13.55	1.228	0.199	12.14		pg177_o2nofp.cx10a_c8r32
1487.1	12134.9	0.000	0.000	0.070	8.165	931.0	19503.8	5.533	0.843	0.191	32.46	0.041	602.5	0.000	0.000	0.006	83.40	13.53	1.618	0.249	13.94		pg180_o2nofp.cx10b_c8r32
1491.6	12165.7	0.000	0.000	0.070	8.162	931.0	19522.0	5.055	0.770	0.196	33.06	0.041	575.2	0.000	0.000	0.004	39.95	13.57	1.615	0.249	13.93		pg180_o2nofp.cx10c_c8r32
1491.4	12159.5	0.000	0.000	0.070	8.158	929.7	19507.0	5.302	0.826	0.194	32.78	0.043	602.5	0.000	0.000	0.005	39.65	13.55	1.634	0.251	13.96		pg180_o2nofp.cx10d_c8r32
1496.0	12201.1	0.000	0.000	0.060	8.161	922.2	19442.2	4.894	0.816	0.188	36.46	0.041	611.7	0.000	0.000	0.002	42.49	13.55	1.200	0.207	12.26		pg181_o2nofp.cx10b_c8r32

qp1000.L6

qp1000.L6: point queries with 1000 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	max
pg1222_o2nofp.cx10a_c8r32		12.350	87.618	0.033	nonzero		0.017
pg1322_o2nofp.cx10a_c8r32		54.483	45.505	0.012			0.013
pg1323_o2nofp.cx10a_c8r32	nonzero	54.511	45.477	0.012	nonzero		0.017
pg1419_o2nofp.cx10a_c8r32		50.666	49.321	0.013	nonzero	nonzero	0.239
pg1420_o2nofp.cx10a_c8r32		54.998	44.986	0.016	nonzero		0.017
pg1514_o2nofp.cx10a_c8r32		52.633	47.334	0.033	nonzero	nonzero	0.191
pg1515_o2nofp.cx10a_c8r32		55.046	44.944	0.011	nonzero		0.016
pg1610_o2nofp.cx10a_c8r32		54.509	45.474	0.017			0.013
pg1611_o2nofp.cx10a_c8r32		54.667	45.303	0.027	0.003		0.019
pg176_o2nofp.cx10a_c8r32	nonzero	53.660	46.329	0.010			0.015
pg177_o2nofp.cx10a_c8r32	nonzero	54.033	45.955	0.012			0.015
pg180_o2nofp.cx10b_c8r32		10.407	89.477	0.117	nonzero		0.021
pg180_o2nofp.cx10c_c8r32		10.135	89.757	0.108	nonzero		0.016
pg180_o2nofp.cx10d_c8r32		10.438	89.458	0.103	0.001		0.021
pg181_o2nofp.cx10b_c8r32		48.609	51.377	0.014	nonzero		0.019

dbms	16ms	64ms	max
pg1222_o2nofp.cx10a_c8r32	99.931	0.069	0.032
pg1322_o2nofp.cx10a_c8r32	99.969	0.031	0.028
pg1323_o2nofp.cx10a_c8r32	99.958	0.042	0.031
pg1419_o2nofp.cx10a_c8r32	99.928	0.072	0.022
pg1420_o2nofp.cx10a_c8r32	99.911	0.089	0.024
pg1514_o2nofp.cx10a_c8r32	99.639	0.361	0.054
pg1515_o2nofp.cx10a_c8r32	99.961	0.039	0.024
pg1610_o2nofp.cx10a_c8r32	99.925	0.075	0.023
pg1611_o2nofp.cx10a_c8r32	99.803	0.197	0.025
pg176_o2nofp.cx10a_c8r32	99.967	0.033	0.020
pg177_o2nofp.cx10a_c8r32	99.953	0.047	0.025
pg180_o2nofp.cx10b_c8r32	99.867	0.133	0.055
pg180_o2nofp.cx10c_c8r32	99.889	0.111	0.022
pg180_o2nofp.cx10d_c8r32	99.903	0.097	0.046
pg181_o2nofp.cx10b_c8r32	99.939	0.061	0.026

dbms	64ms	256ms	max
pg1222_o2nofp.cx10a_c8r32	99.997	0.003	0.099
pg1322_o2nofp.cx10a_c8r32	99.997	0.003	0.101
pg1323_o2nofp.cx10a_c8r32	99.997	0.003	0.104
pg1419_o2nofp.cx10a_c8r32	99.997	0.003	0.102
pg1420_o2nofp.cx10a_c8r32	99.997	0.003	0.100
pg1514_o2nofp.cx10a_c8r32	99.997	0.003	0.099
pg1515_o2nofp.cx10a_c8r32	99.997	0.003	0.099
pg1610_o2nofp.cx10a_c8r32	99.997	0.003	0.098
pg1611_o2nofp.cx10a_c8r32	99.997	0.003	0.099
pg176_o2nofp.cx10a_c8r32	99.997	0.003	0.101
pg177_o2nofp.cx10a_c8r32	99.997	0.003	0.098
pg180_o2nofp.cx10b_c8r32	99.997	0.003	0.107
pg180_o2nofp.cx10c_c8r32	99.997	0.003	0.100
pg180_o2nofp.cx10d_c8r32	99.997	0.003	0.101
pg181_o2nofp.cx10b_c8r32	99.997	0.003	0.104

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
999	785	12163	95.4	3011.9	37.2	15.502	124.492	3.016	38.179	27183	12.5	34.646	1275	155.2	193.6	23.4	0.017	816	544	pg1222_o2nofp.cx10a_c8r32
999	984	14589	114.5	2875.4	35.5	14.829	119.140	2.877	36.387	32605	13.3	33.142	1082	155.0	191.9	23.4	0.013	1008	672	pg1322_o2nofp.cx10a_c8r32
999	985	14607	114.5	2878.5	35.4	14.826	119.051	2.880	36.320	32675	14.4	33.166	1169	155.0	192.0	23.4	0.017	1008	687	pg1323_o2nofp.cx10a_c8r32
999	972	14484	113.8	2856.6	35.2	14.909	119.907	2.860	36.059	32071	13.8	33.012	1136	155.0	191.4	23.3	0.239	992	672	pg1419_o2nofp.cx10a_c8r32
999	985	14610	114.6	2860.8	35.2	14.826	119.109	2.864	36.099	32365	14.4	32.845	1169	155.0	191.4	23.3	0.017	1008	672	pg1420_o2nofp.cx10a_c8r32
999	971	14448	113.4	2840.1	35.0	14.873	119.518	2.844	35.854	32087	13.7	33.031	1128	155.0	191.4	23.3	0.191	1008	640	pg1514_o2nofp.cx10a_c8r32
999	987	14618	114.7	2857.5	35.1	14.817	119.016	2.859	35.972	32335	14.6	32.774	1184	155.0	191.4	23.3	0.016	1008	687	pg1515_o2nofp.cx10a_c8r32
999	984	14591	114.5	2857.9	35.1	14.833	119.172	2.861	36.024	32263	13.9	32.798	1130	155.0	191.4	23.3	0.013	1008	688	pg1610_o2nofp.cx10a_c8r32
999	983	14587	114.5	2856.4	35.1	14.834	119.196	2.860	36.006	32287	15.3	32.832	1245	155.0	191.4	23.3	0.019	1008	688	pg1611_o2nofp.cx10a_c8r32
999	982	14624	114.7	2855.7	34.8	14.889	119.630	2.857	35.671	32216	14.6	32.800	1189	155.0	190.9	23.3	0.015	1008	688	pg176_o2nofp.cx10a_c8r32
999	983	14578	114.3	2855.4	35.0	14.836	119.160	2.859	35.842	32132	15.8	32.701	1286	155.0	190.9	23.4	0.015	1008	688	pg177_o2nofp.cx10a_c8r32
999	767	11971	93.9	2808.6	34.5	15.612	125.418	2.812	35.359	26341	13.2	34.352	1377	155.0	190.9	23.3	0.021	784	544	pg180_o2nofp.cx10b_c8r32
999	766	11929	93.6	2812.3	34.6	15.577	125.146	2.814	35.464	26251	13.3	34.280	1389	155.0	190.7	23.4	0.016	784	544	pg180_o2nofp.cx10c_c8r32
999	768	11956	93.8	2811.1	34.4	15.575	125.125	2.813	35.286	26315	13.2	34.282	1376	155.0	190.8	23.4	0.021	784	544	pg180_o2nofp.cx10d_c8r32
999	964	14392	112.9	2852.3	34.7	14.921	119.879	2.854	35.569	31708	15.1	32.875	1252	155.0	190.8	23.3	0.019	992	672	pg181_o2nofp.cx10b_c8r32

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
12166.6	97707.3	0.000	0.000	0.062	8.031	2981.0	37868.8	14.64	0.622	0.041	14.02	1.999	9.736	0.000	0.000	0.372	4.850	14.21	1.164	0.915	73.48		pg1222_o2nofp.cx10a_c8r32
14593.4	117246	0.000	0.000	0.050	8.034	2846.2	36136.6	12.38	0.518	0.038	13.82	1.999	9.711	0.000	0.000	0.370	5.371	14.01	1.155	0.834	68.15		pg1322_o2nofp.cx10a_c8r32
14611.1	117325	0.000	0.000	0.050	8.030	2848.6	36064.1	12.88	0.545	0.039	13.78	2.002	9.723	0.000	0.000	0.377	4.847	13.95	1.160	0.836	66.43		pg1323_o2nofp.cx10a_c8r32
14488.1	116522	0.155	0.001	0.050	8.043	2829.4	35803.4	12.54	0.530	0.037	13.76	2.002	10.10	0.000	0.000	0.379	5.039	13.93	1.150	0.823	67.48		pg1419_o2nofp.cx10a_c8r32
14614.3	117406	0.000	0.000	0.050	8.034	2833.8	35846.4	13.22	0.566	0.038	13.75	2.003	10.12	0.000	0.000	0.385	5.044	13.89	1.164	0.835	66.31		pg1420_o2nofp.cx10a_c8r32
14452.0	116133	0.108	0.001	0.050	8.036	2813.0	35600.0	9.148	0.397	0.040	13.78	0.002	0.109	0.000	0.000	0.003	0.279	13.92	1.149	0.825	67.15		pg1514_o2nofp.cx10a_c8r32
14622.2	117454	0.000	0.000	0.050	8.033	2830.5	35741.3	9.364	0.390	0.038	13.73	0.001	0.109	0.000	0.000	0.003	0.546	13.88	1.145	0.830	66.00		pg1515_o2nofp.cx10a_c8r32
14594.9	117258	0.000	0.000	0.050	8.034	2830.9	35771.8	9.696	0.419	0.038	13.74	0.001	0.109	0.000	0.000	0.003	0.546	13.88	1.121	0.830	67.62		pg1610_o2nofp.cx10a_c8r32
14591.2	117248	0.000	0.000	0.050	8.036	2828.9	35748.7	9.756	0.415	0.039	13.74	0.002	0.114	0.000	0.000	0.003	0.568	13.80	1.156	0.830	65.84		pg1611_o2nofp.cx10a_c8r32
14627.4	117532	0.000	0.000	0.050	8.035	2831.6	35464.5	7.717	0.324	0.035	13.60	0.002	0.100	0.000	0.000	0.003	0.256	13.87	1.095	0.823	67.54		pg176_o2nofp.cx10a_c8r32
14581.4	117116	0.000	0.000	0.050	8.032	2831.1	35612.7	7.568	0.316	0.038	13.67	0.003	0.105	0.000	0.000	0.004	0.279	13.82	1.147	0.828	66.50		pg177_o2nofp.cx10a_c8r32
11974.6	96196.5	0.000	0.000	0.067	8.034	2788.2	35161.0	8.851	0.386	0.053	13.69	0.002	0.100	0.000	0.000	0.003	0.256	14.04	1.509	0.941	73.05		pg180_o2nofp.cx10b_c8r32
11932.2	95864.4	0.000	0.000	0.068	8.034	2792.9	35295.8	8.266	0.363	0.052	13.72	0.002	0.096	0.000	0.000	0.003	0.245	14.04	1.508	0.937	72.87		pg180_o2nofp.cx10c_c8r32
11958.8	96073.5	0.000	0.000	0.067	8.033	2791.3	35114.2	8.358	0.365	0.054	13.66	0.002	0.100	0.000	0.000	0.003	0.256	14.05	1.502	0.942	72.84		pg180_o2nofp.cx10d_c8r32
14395.3	115653	0.000	0.000	0.050	8.034	2828.5	35364.6	7.658	0.323	0.039	13.58	0.002	0.096	0.000	0.000	0.003	0.245	13.92	1.137	0.825	66.08		pg181_o2nofp.cx10b_c8r32

l.i0

l.i0: load without secondary indexes

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
144144	0	29	0.2	587.2	59.2	0.000	0.002	0.004	0.420	17475	20.5	0.121	11	76.5	116.6	19.1	0.036	144782	141784	pg1222_o2nofp.cx10a_c8r32
146466	0	27	0.2	551.0	60.3	0.000	0.002	0.004	0.421	17732	20.6	0.121	11	76.5	116.6	2.5	0.036	147082	144282	pg1322_o2nofp.cx10a_c8r32
144718	0	25	0.2	542.7	59.7	0.000	0.001	0.004	0.422	17566	20.9	0.121	12	76.5	116.6	19.3	0.037	145250	142382	pg1323_o2nofp.cx10a_c8r32
139982	0	25	0.2	527.6	58.0	0.000	0.001	0.004	0.424	16560	20.1	0.118	11	76.5	116.6	2.7	0.069	140983	130086	pg1419_o2nofp.cx10a_c8r32
140130	0	25	0.2	524.0	57.5	0.000	0.001	0.004	0.420	16501	20.2	0.118	12	76.5	116.6	4.1	0.037	140482	138081	pg1420_o2nofp.cx10a_c8r32
144692	0	27	0.2	543.2	59.7	0.000	0.001	0.004	0.422	16985	20.5	0.117	11	76.5	116.6	2.6	0.036	145381	142681	pg1514_o2nofp.cx10a_c8r32
146843	0	28	0.2	555.2	60.9	0.000	0.002	0.004	0.425	17213	20.6	0.117	11	76.5	116.6	2.5	0.039	147280	144583	pg1515_o2nofp.cx10a_c8r32
146440	0	28	0.2	548.7	60.2	0.000	0.001	0.004	0.421	17173	20.5	0.117	11	76.5	116.6	2.5	0.040	147083	144378	pg1610_o2nofp.cx10a_c8r32
146493	0	28	0.2	548.7	60.2	0.000	0.002	0.004	0.421	17169	20.7	0.117	11	76.5	116.6	18.2	0.037	146883	144280	pg1611_o2nofp.cx10a_c8r32
143498	0	26	0.2	536.9	59.0	0.000	0.001	0.004	0.421	14385	20.4	0.100	11	76.5	116.6	19.1	0.070	144781	132984	pg176_o2nofp.cx10a_c8r32
144980	0	27	0.2	543.3	59.6	0.000	0.001	0.004	0.421	14438	20.4	0.100	11	76.5	116.6	18.5	0.036	145381	142682	pg177_o2nofp.cx10a_c8r32
144665	0	26	0.2	542.9	59.6	0.000	0.001	0.004	0.422	14392	20.3	0.099	11	76.5	116.6	18.8	0.046	145480	142378	pg180_o2nofp.cx10b_c8r32
144404	0	25	0.2	540.1	59.5	0.000	0.001	0.004	0.422	14468	20.4	0.100	11	76.5	116.6	19.5	0.042	145281	141983	pg180_o2nofp.cx10c_c8r32
144326	0	26	0.2	541.3	59.5	0.000	0.001	0.004	0.422	14468	20.4	0.100	11	76.5	116.6	19.0	0.037	144981	142283	pg180_o2nofp.cx10d_c8r32
142577	0	26	0.2	533.0	58.9	0.000	0.001	0.004	0.423	14427	20.4	0.101	11	76.5	116.6	2.3	0.064	144082	121486	pg181_o2nofp.cx10b_c8r32

l.x

l.x: create secondary indexes

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
278746	0	779	94.0	1365.0	140.0	0.003	0.345	0.005	0.514	627	13.6	0.002	4	153.8	193.8	23.5	0.003	NA	NA	pg1222_o2nofp.cx10a_c8r32
284900	0	754	93.5	871.1	104.0	0.003	0.336	0.003	0.374	674	13.0	0.002	4	153.6	193.7	23.4	0.004	NA	NA	pg1322_o2nofp.cx10a_c8r32
282187	0	747	92.6	860.1	103.2	0.003	0.336	0.003	0.375	542	13.0	0.002	4	153.6	193.7	23.4	0.004	NA	NA	pg1323_o2nofp.cx10a_c8r32
279330	0	738	91.6	849.7	101.6	0.003	0.336	0.003	0.372	505	13.0	0.002	4	153.6	193.7	23.4	0.004	NA	NA	pg1419_o2nofp.cx10a_c8r32
285205	0	755	93.6	881.4	104.1	0.003	0.336	0.003	0.374	505	13.0	0.002	4	153.6	193.7	23.4	0.004	NA	NA	pg1420_o2nofp.cx10a_c8r32
303605	0	825	102.3	954.8	113.2	0.003	0.345	0.003	0.382	652	12.9	0.002	3	153.6	193.7	23.4	0.004	NA	NA	pg1514_o2nofp.cx10a_c8r32
307102	0	834	103.4	956.6	114.5	0.003	0.345	0.003	0.382	658	13.0	0.002	3	153.6	193.7	23.4	0.004	NA	NA	pg1515_o2nofp.cx10a_c8r32
303951	0	824	102.3	951.4	113.4	0.003	0.345	0.003	0.382	630	13.0	0.002	3	153.6	193.7	23.5	0.003	NA	NA	pg1610_o2nofp.cx10a_c8r32
311526	0	845	104.9	969.8	116.2	0.003	0.345	0.003	0.382	650	13.1	0.002	3	153.6	193.7	23.5	0.004	NA	NA	pg1611_o2nofp.cx10a_c8r32
314713	0	852	105.8	993.6	117.7	0.003	0.344	0.003	0.383	660	13.1	0.002	3	153.6	193.7	23.4	0.003	NA	NA	pg176_o2nofp.cx10a_c8r32
313480	0	849	105.5	994.6	117.1	0.003	0.345	0.003	0.383	661	13.1	0.002	3	153.6	193.7	23.4	0.003	NA	NA	pg177_o2nofp.cx10a_c8r32
309717	0	828	102.9	981.1	115.5	0.003	0.340	0.003	0.382	869	12.9	0.003	3	153.6	193.7	17.0	0.004	NA	NA	pg180_o2nofp.cx10b_c8r32
327734	0	889	110.3	1047.9	122.5	0.003	0.345	0.003	0.383	1511	13.5	0.005	3	153.6	193.7	23.4	0.004	NA	NA	pg180_o2nofp.cx10c_c8r32
321414	0	871	108.2	1022.5	119.9	0.003	0.345	0.003	0.382	1240	13.5	0.004	3	153.6	193.7	23.4	0.005	NA	NA	pg180_o2nofp.cx10d_c8r32
315085	0	853	106.0	999.2	117.6	0.003	0.345	0.003	0.382	663	13.1	0.002	3	153.6	193.7	23.4	0.005	NA	NA	pg181_o2nofp.cx10b_c8r32

l.i1

l.i1: continue load after secondary indexes created with 50 inserts per transaction

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
4048	0	5154	40.8	4652.9	81.7	1.273	10.326	1.149	20.663	12526	16.3	3.094	322	154.4	194.5	23.4	0.075	3350	2150	pg1222_o2nofp.cx10a_c8r32
3972	0	5713	45.2	4707.0	80.9	1.438	11.659	1.185	20.855	13576	16.4	3.418	330	154.3	194.3	22.9	0.043	3300	2200	pg1322_o2nofp.cx10a_c8r32
3868	0	5566	44.0	4565.2	78.3	1.439	11.656	1.180	20.729	13298	16.6	3.438	343	154.3	194.3	22.9	0.037	3150	2150	pg1323_o2nofp.cx10a_c8r32
3925	0	5652	44.7	4609.5	79.0	1.440	11.672	1.174	20.607	13023	16.4	3.318	334	154.3	194.3	23.1	0.055	3200	2150	pg1419_o2nofp.cx10a_c8r32
3876	0	5573	44.1	4597.8	79.1	1.438	11.654	1.186	20.908	12814	16.6	3.306	343	154.3	194.3	22.9	0.036	3200	2100	pg1420_o2nofp.cx10a_c8r32
3824	0	5494	43.5	4500.9	77.2	1.437	11.648	1.177	20.684	12587	16.3	3.292	341	154.3	194.3	23.0	0.039	3100	2050	pg1514_o2nofp.cx10a_c8r32
3617	0	5198	41.1	4242.9	72.6	1.437	11.648	1.173	20.548	11927	16.3	3.298	361	154.3	194.3	23.2	0.036	2850	1950	pg1515_o2nofp.cx10a_c8r32
3710	0	5339	42.3	4407.4	75.7	1.439	11.668	1.188	20.886	12192	16.3	3.286	351	154.3	194.3	22.9	0.034	2900	2000	pg1610_o2nofp.cx10a_c8r32
3575	0	5144	40.7	4253.8	73.0	1.439	11.665	1.190	20.922	11782	16.3	3.296	365	154.3	194.3	22.8	0.035	2750	1900	pg1611_o2nofp.cx10a_c8r32
3549	0	5102	40.4	4201.0	72.1	1.437	11.655	1.184	20.816	11502	15.9	3.241	358	154.3	194.3	22.7	0.038	2800	1900	pg176_o2nofp.cx10a_c8r32
3241	0	4666	36.9	3865.5	66.3	1.440	11.666	1.193	20.930	10540	15.9	3.252	392	154.3	194.3	22.6	0.036	2450	1700	pg177_o2nofp.cx10a_c8r32
3673	0	5273	41.8	4353.8	74.5	1.436	11.653	1.185	20.778	11886	15.9	3.236	346	154.3	194.3	21.9	0.075	2900	2000	pg180_o2nofp.cx10b_c8r32
3643	0	5240	41.5	4387.1	81.0	1.439	11.667	1.204	22.766	11835	16.0	3.249	351	154.3	194.3	23.3	0.063	2900	1950	pg180_o2nofp.cx10c_c8r32
3660	0	5264	41.7	4361.2	75.3	1.438	11.662	1.192	21.065	11854	15.9	3.239	348	154.3	194.3	23.1	0.042	2900	1950	pg180_o2nofp.cx10d_c8r32
3607	0	5188	41.1	4252.1	72.8	1.439	11.661	1.179	20.672	11713	16.1	3.248	357	154.3	194.3	23.0	0.040	2850	1950	pg181_o2nofp.cx10b_c8r32

l.i2

l.i2: continue load after secondary indexes created with 5 inserts per transaction

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
197	0	212	1.7	506.4	7.0	1.075	8.775	2.575	36.610	1823	13.1	9.267	5328	154.6	194.6	23.4	0.013	195	175	pg1222_o2nofp.cx10a_c8r32
195	0	209	1.7	559.6	7.6	1.073	8.771	2.867	39.939	1809	13.0	9.265	5328	154.4	194.5	23.4	0.013	195	175	pg1322_o2nofp.cx10a_c8r32
193	0	207	1.7	557.6	7.6	1.072	8.753	2.888	40.181	1856	13.0	9.612	5386	154.4	194.5	23.4	0.016	190	170	pg1323_o2nofp.cx10a_c8r32
192	0	206	1.6	548.3	7.7	1.072	8.773	2.858	40.861	1491	12.9	7.772	5381	154.5	194.5	23.3	0.017	190	170	pg1419_o2nofp.cx10a_c8r32
192	0	206	1.6	553.2	7.5	1.071	8.754	2.881	40.172	1513	12.9	7.881	5375	154.5	194.5	23.3	0.013	190	170	pg1420_o2nofp.cx10a_c8r32
186	0	199	1.6	535.0	7.3	1.070	8.757	2.883	40.484	1396	12.8	7.520	5517	154.4	194.5	23.3	0.013	185	165	pg1514_o2nofp.cx10a_c8r32
173	0	186	1.5	503.4	7.0	1.072	8.766	2.907	41.636	1304	12.8	7.527	5912	154.4	194.5	23.3	0.013	170	155	pg1515_o2nofp.cx10a_c8r32
180	0	193	1.5	517.7	7.2	1.071	8.763	2.878	40.767	1354	12.8	7.525	5692	154.4	194.5	23.3	0.013	180	160	pg1610_o2nofp.cx10a_c8r32
175	0	188	1.5	502.3	7.0	1.073	8.775	2.866	41.072	1328	12.8	7.576	5841	154.4	194.5	23.3	0.013	175	150	pg1611_o2nofp.cx10a_c8r32
168	0	180	1.4	489.9	6.8	1.071	8.765	2.918	41.511	1150	12.7	6.847	6051	154.4	194.5	23.3	0.010	165	150	pg176_o2nofp.cx10a_c8r32
154	0	166	1.3	450.8	6.3	1.073	8.771	2.920	41.861	1078	12.7	6.983	6580	154.4	191.5	23.4	0.012	155	135	pg177_o2nofp.cx10a_c8r32
180	0	192	1.5	518.7	7.2	1.068	8.748	2.887	40.903	1238	12.7	6.888	5654	154.4	194.5	23.3	0.012	180	160	pg180_o2nofp.cx10b_c8r32
180	0	193	1.5	515.6	7.3	1.073	8.783	2.864	41.595	1228	12.8	6.825	5689	154.4	192.2	23.4	0.011	180	160	pg180_o2nofp.cx10c_c8r32
180	0	193	1.5	518.8	7.1	1.071	8.760	2.879	40.600	1233	12.7	6.842	5638	154.4	194.5	23.4	0.010	180	160	pg180_o2nofp.cx10d_c8r32
174	0	186	1.5	505.6	7.0	1.071	8.759	2.904	41.165	1189	12.8	6.827	5882	154.5	194.5	23.3	0.012	175	145	pg181_o2nofp.cx10b_c8r32

qr100.L1

qr100.L1: range queries with 100 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
100	14589	113	0.9	24.1	1.5	0.008	0.065	0.241	15.600	56024	11.1	3.840	61	154.6	194.7	23.4	0.009	14558	14318	pg1222_o2nofp.cx10a_c8r32
100	14865	112	0.9	57.9	1.8	0.008	0.064	0.580	18.571	57122	11.2	3.843	60	154.5	191.9	23.4	0.009	14894	14622	pg1322_o2nofp.cx10a_c8r32
100	14566	112	0.9	56.8	1.8	0.008	0.065	0.568	18.456	55969	12.6	3.842	69	154.5	192.7	23.4	0.009	14542	14334	pg1323_o2nofp.cx10a_c8r32
100	14613	111	0.9	64.5	1.9	0.008	0.065	0.645	19.092	56066	10.8	3.837	59	154.5	192.0	23.3	0.009	14590	14334	pg1419_o2nofp.cx10a_c8r32
100	14450	112	0.9	64.5	1.9	0.008	0.066	0.645	19.123	55451	12.5	3.837	69	154.5	191.9	23.3	0.009	14462	14142	pg1420_o2nofp.cx10a_c8r32
100	14461	111	0.9	62.2	1.8	0.008	0.066	0.622	18.907	55478	10.9	3.836	60	154.5	192.0	23.3	0.009	14478	14190	pg1514_o2nofp.cx10a_c8r32
100	14416	111	0.9	62.2	1.8	0.008	0.066	0.622	18.892	55280	12.6	3.835	70	154.5	191.9	23.3	0.010	14398	14174	pg1515_o2nofp.cx10a_c8r32
100	14585	112	0.9	62.1	1.8	0.008	0.065	0.621	18.904	55949	11.1	3.836	61	154.5	191.8	23.3	0.009	14574	14302	pg1610_o2nofp.cx10a_c8r32
100	14454	112	0.9	62.1	1.8	0.008	0.066	0.622	18.909	55459	12.6	3.837	70	154.5	191.7	23.3	0.009	14478	14190	pg1611_o2nofp.cx10a_c8r32
100	14459	112	0.9	66.3	1.9	0.008	0.066	0.663	19.372	55430	10.8	3.834	60	154.5	192.4	23.3	0.009	14462	14222	pg176_o2nofp.cx10a_c8r32
100	14404	112	0.9	66.2	1.9	0.008	0.066	0.663	19.381	55257	12.5	3.836	69	154.5	190.5	23.4	0.009	14446	14174	pg177_o2nofp.cx10a_c8r32
100	14215	111	0.9	65.3	1.9	0.008	0.065	0.653	19.293	54505	10.6	3.834	60	154.5	192.1	23.3	0.010	14238	13934	pg180_o2nofp.cx10b_c8r32
100	14542	111	0.9	66.9	1.9	0.008	0.063	0.670	19.448	55785	10.8	3.836	59	154.5	189.5	23.4	0.013	14574	14286	pg180_o2nofp.cx10c_c8r32
100	14172	111	0.9	66.5	1.9	0.008	0.065	0.665	19.390	54340	11.3	3.834	64	154.5	192.2	23.4	0.011	14206	13902	pg180_o2nofp.cx10d_c8r32
100	14323	111	0.9	66.8	1.9	0.008	0.064	0.668	19.416	54917	12.5	3.834	70	154.5	193.1	23.3	0.010	14350	14046	pg181_o2nofp.cx10b_c8r32

qp100.L2

qp100.L2: point queries with 100 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
100	847	10669	83.8	403.8	4.5	12.602	101.382	4.038	46.075	23904	3.9	28.236	369	154.6	193.6	23.4	0.014	880	560	pg1222_o2nofp.cx10a_c8r32
100	1057	13169	103.5	372.4	4.3	12.456	100.282	3.728	43.626	29490	4.1	27.891	310	154.5	191.9	23.4	0.017	1088	688	pg1322_o2nofp.cx10a_c8r32
100	1053	13120	103.0	373.5	4.3	12.462	100.225	3.739	43.727	29392	5.4	27.918	410	154.5	192.7	23.4	0.013	1088	688	pg1323_o2nofp.cx10a_c8r32
100	1055	13194	103.7	366.0	4.2	12.506	100.690	3.660	43.071	29426	4.1	27.892	311	154.5	192.1	23.3	0.014	1088	688	pg1419_o2nofp.cx10a_c8r32
100	1055	13143	103.3	366.0	4.2	12.454	100.245	3.663	43.139	29334	5.3	27.795	402	154.5	191.9	23.3	0.015	1088	704	pg1420_o2nofp.cx10a_c8r32
100	1056	13159	103.5	364.1	4.2	12.458	100.318	3.645	42.930	29313	4.0	27.751	303	154.5	192.0	23.3	0.013	1088	688	pg1514_o2nofp.cx10a_c8r32
100	1060	13179	103.6	363.9	4.2	12.439	100.143	3.639	42.876	29364	5.2	27.715	393	154.5	191.9	23.3	0.013	1088	704	pg1515_o2nofp.cx10a_c8r32
100	1058	13163	103.5	363.9	4.2	12.445	100.229	3.639	42.890	29318	4.0	27.719	303	154.5	191.8	23.3	0.014	1088	704	pg1610_o2nofp.cx10a_c8r32
100	1059	13181	103.7	364.4	4.2	12.447	100.265	3.644	42.928	29367	5.5	27.731	415	154.5	191.7	23.3	0.019	1088	704	pg1611_o2nofp.cx10a_c8r32
100	1053	13166	103.5	357.3	4.1	12.504	100.698	3.573	42.413	29295	4.0	27.823	304	154.5	192.4	23.3	0.015	1088	688	pg176_o2nofp.cx10a_c8r32
100	1051	13092	102.9	357.6	4.1	12.460	100.284	3.579	42.463	29151	5.5	27.744	419	154.5	190.6	23.4	0.013	1088	688	pg177_o2nofp.cx10a_c8r32
100	831	10510	82.6	354.9	4.1	12.641	101.782	3.552	42.291	23385	3.9	28.127	375	154.5	192.1	23.3	0.018	864	544	pg180_o2nofp.cx10b_c8r32
100	830	10470	82.3	352.7	4.1	12.621	101.643	3.530	42.107	23310	3.9	28.098	376	154.5	189.5	23.4	0.018	864	560	pg180_o2nofp.cx10c_c8r32
100	834	10512	82.7	353.1	4.1	12.613	101.557	3.535	42.138	23403	3.9	28.078	374	154.5	192.2	23.4	0.016	864	560	pg180_o2nofp.cx10d_c8r32
100	1037	12962	102.0	356.6	4.1	12.497	100.682	3.566	42.355	28851	5.7	27.816	440	154.5	193.1	23.3	0.021	1072	688	pg181_o2nofp.cx10b_c8r32

qr500.L3

qr500.L3: range queries with 500 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
500	14035	874	7.0	195.3	7.6	0.062	0.508	0.391	15.593	55596	12.1	3.961	69	154.7	191.1	23.4	0.033	14046	13519	pg1222_o2nofp.cx10a_c8r32
500	14065	876	7.0	303.8	8.9	0.062	0.508	0.608	18.183	55715	12.1	3.961	69	154.6	190.2	23.4	0.024	14078	13614	pg1322_o2nofp.cx10a_c8r32
500	13816	876	7.0	300.2	8.8	0.063	0.517	0.601	18.126	54804	13.6	3.967	79	154.6	190.5	23.4	0.042	13822	13358	pg1323_o2nofp.cx10a_c8r32
500	13778	876	7.0	325.1	9.1	0.064	0.519	0.650	18.659	54517	12.3	3.957	71	154.6	190.2	23.3	0.025	13758	13294	pg1419_o2nofp.cx10a_c8r32
500	13828	876	7.0	325.1	9.1	0.063	0.517	0.651	18.680	54737	13.6	3.958	79	154.6	190.1	23.3	0.022	13854	13342	pg1420_o2nofp.cx10a_c8r32
500	13766	876	7.0	322.1	9.1	0.064	0.519	0.644	18.597	54433	12.3	3.954	71	154.6	190.3	23.3	0.019	13774	13342	pg1514_o2nofp.cx10a_c8r32
500	13580	876	7.0	322.7	9.1	0.065	0.526	0.645	18.615	53723	13.7	3.956	81	154.6	190.3	23.3	0.026	13582	13086	pg1515_o2nofp.cx10a_c8r32
500	13744	877	7.0	321.4	9.1	0.064	0.521	0.643	18.606	54345	12.4	3.954	72	154.6	190.3	23.3	0.022	13742	13262	pg1610_o2nofp.cx10a_c8r32
500	13886	875	7.0	321.6	9.1	0.063	0.515	0.643	18.588	54891	13.7	3.953	79	154.6	190.3	23.3	0.024	13902	13438	pg1611_o2nofp.cx10a_c8r32
500	13754	875	7.0	339.9	9.3	0.064	0.520	0.680	19.007	54383	12.4	3.954	72	154.6	190.4	23.3	0.021	13758	13262	pg176_o2nofp.cx10a_c8r32
500	13724	875	7.0	339.0	9.3	0.064	0.520	0.678	18.975	54240	13.7	3.952	80	154.6	190.1	23.4	0.022	13742	13230	pg177_o2nofp.cx10a_c8r32
500	13525	870	6.9	338.6	9.3	0.064	0.525	0.678	18.973	53503	12.5	3.956	74	154.6	190.3	23.3	0.019	13534	13086	pg180_o2nofp.cx10b_c8r32
500	13885	873	7.0	343.8	9.3	0.063	0.513	0.688	19.078	54847	12.4	3.950	71	154.6	189.6	23.4	0.018	13886	13406	pg180_o2nofp.cx10c_c8r32
500	13553	873	7.0	342.4	9.3	0.064	0.526	0.685	19.064	53619	12.4	3.956	73	154.6	190.3	23.4	0.021	13566	13086	pg180_o2nofp.cx10d_c8r32
500	13557	874	7.0	341.5	9.3	0.065	0.527	0.684	19.037	53635	13.7	3.956	81	154.6	190.6	23.3	0.030	13567	13134	pg181_o2nofp.cx10b_c8r32

qp500.L4

qp500.L4: point queries with 500 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
500	823	11341	89.0	1760.9	19.9	13.773	110.664	3.522	40.746	25322	5.6	30.753	544	154.8	189.2	23.4	0.016	848	640	pg1222_o2nofp.cx10a_c8r32
500	1030	13806	108.4	1652.1	19.1	13.405	107.770	3.304	39.046	30830	6.7	29.935	520	154.6	188.7	23.4	0.016	1056	784	pg1322_o2nofp.cx10a_c8r32
500	1024	13730	107.7	1655.5	19.1	13.414	107.761	3.311	39.106	30683	7.0	29.975	547	154.6	189.0	23.4	0.014	1040	784	pg1323_o2nofp.cx10a_c8r32
500	1025	13814	108.5	1630.3	18.9	13.473	108.318	3.262	38.720	30671	6.7	29.914	523	154.6	188.6	23.3	0.016	1040	784	pg1419_o2nofp.cx10a_c8r32
500	1026	13771	108.1	1630.6	18.9	13.416	107.843	3.263	38.725	30595	6.9	29.805	538	154.6	188.6	23.3	0.013	1056	784	pg1420_o2nofp.cx10a_c8r32
500	1026	13755	108.0	1628.6	18.9	13.408	107.809	3.257	38.654	30510	6.7	29.739	522	154.6	188.7	23.3	0.014	1040	784	pg1514_o2nofp.cx10a_c8r32
500	1027	13775	108.1	1628.0	18.9	13.411	107.808	3.258	38.682	30551	7.0	29.745	545	154.6	188.7	23.3	0.019	1056	784	pg1515_o2nofp.cx10a_c8r32
500	1027	13767	108.1	1629.6	18.9	13.406	107.773	3.259	38.677	30535	6.8	29.735	530	154.6	188.7	23.3	0.015	1056	800	pg1610_o2nofp.cx10a_c8r32
500	1030	13799	108.4	1629.2	18.9	13.404	107.794	3.258	38.664	30608	7.7	29.731	598	154.6	188.7	23.3	0.019	1056	800	pg1611_o2nofp.cx10a_c8r32
500	1021	13763	108.1	1612.3	18.7	13.480	108.393	3.227	38.396	30471	6.8	29.845	533	154.6	188.7	23.3	0.018	1040	784	pg176_o2nofp.cx10a_c8r32
500	1023	13730	107.8	1613.7	18.7	13.421	107.867	3.229	38.416	30417	7.2	29.733	563	154.6	188.4	23.4	0.023	1040	784	pg177_o2nofp.cx10a_c8r32
500	806	11150	87.5	1594.3	18.6	13.838	111.233	3.189	38.060	24665	5.7	30.610	566	154.6	188.7	23.3	0.018	832	640	pg180_o2nofp.cx10b_c8r32
500	804	11118	87.3	1589.2	18.5	13.827	111.165	3.180	38.000	24596	5.7	30.589	567	154.6	188.2	23.4	0.016	832	624	pg180_o2nofp.cx10c_c8r32
500	805	11130	87.4	1590.6	18.6	13.820	111.091	3.181	38.011	24626	5.8	30.576	576	154.6	188.6	23.4	0.017	832	640	pg180_o2nofp.cx10d_c8r32
500	1006	13567	106.6	1609.5	18.7	13.485	108.451	3.221	38.343	30042	7.1	29.860	565	154.6	188.8	23.3	0.014	1024	784	pg181_o2nofp.cx10b_c8r32

qr1000.L5

qr1000.L5: range queries with 1000 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
999	12298	1503	12.0	767.0	16.8	0.122	1.003	0.768	17.199	50596	16.9	4.114	110	154.9	188.3	23.4	0.093	12303	11630	pg1222_o2nofp.cx10a_c8r32
999	12563	1507	12.1	899.8	18.7	0.120	0.985	0.900	19.125	51595	17.2	4.107	110	154.8	187.8	23.4	0.100	12574	11902	pg1322_o2nofp.cx10a_c8r32
999	12331	1505	12.1	896.2	18.6	0.122	1.002	0.897	19.076	50739	18.5	4.115	120	154.8	188.1	23.4	0.089	12334	11662	pg1323_o2nofp.cx10a_c8r32
999	12145	1506	12.1	916.1	18.9	0.124	1.018	0.917	19.372	49826	17.2	4.103	113	154.8	187.7	23.3	0.096	12159	11487	pg1419_o2nofp.cx10a_c8r32
999	12317	1506	12.1	916.5	18.9	0.122	1.004	0.917	19.364	50458	18.5	4.097	120	154.8	187.7	23.3	0.094	12319	11614	pg1420_o2nofp.cx10a_c8r32
999	12292	1506	12.1	914.8	18.9	0.123	1.007	0.915	19.343	50313	17.4	4.093	113	154.8	187.9	23.3	0.103	12302	11614	pg1514_o2nofp.cx10a_c8r32
999	12086	1506	12.1	913.4	18.9	0.125	1.023	0.914	19.333	49531	18.6	4.098	123	154.8	187.8	23.3	0.088	12094	11454	pg1515_o2nofp.cx10a_c8r32
999	12213	1506	12.1	914.4	18.9	0.123	1.013	0.915	19.340	50008	17.6	4.095	115	154.8	187.8	23.3	0.087	12222	11551	pg1610_o2nofp.cx10a_c8r32
999	12165	1506	12.1	914.8	18.9	0.124	1.018	0.916	19.357	49855	18.8	4.098	124	154.8	187.8	23.3	0.093	12190	11518	pg1611_o2nofp.cx10a_c8r32
999	11932	1505	12.1	921.6	19.0	0.126	1.037	0.923	19.473	48900	18.0	4.098	121	154.8	187.8	23.3	0.086	11950	11262	pg176_o2nofp.cx10a_c8r32
999	11946	1506	12.1	921.9	19.0	0.126	1.036	0.923	19.484	48954	19.3	4.098	129	154.8	187.6	23.4	0.106	11966	11247	pg177_o2nofp.cx10a_c8r32
999	11924	1496	12.0	930.6	19.1	0.126	1.032	0.931	19.528	48824	17.5	4.095	117	154.8	187.8	23.3	0.102	11950	11182	pg180_o2nofp.cx10b_c8r32
999	12018	1501	12.1	930.6	19.1	0.125	1.027	0.932	19.558	49224	17.5	4.096	116	154.8	187.4	23.4	0.090	12030	11342	pg180_o2nofp.cx10c_c8r32
999	11689	1501	12.0	929.3	19.1	0.128	1.055	0.930	19.543	47964	17.5	4.103	120	154.8	187.8	23.4	0.079	11710	11070	pg180_o2nofp.cx10d_c8r32
999	11899	1506	12.1	921.4	19.0	0.127	1.040	0.922	19.463	48756	18.9	4.097	127	154.8	187.9	23.3	0.099	11919	11262	pg181_o2nofp.cx10b_c8r32

qp1000.L6

qp1000.L6: point queries with 1000 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
999	785	12163	95.4	3011.9	37.2	15.502	124.492	3.016	38.179	27183	12.5	34.646	1275	155.2	193.6	23.4	0.017	816	544	pg1222_o2nofp.cx10a_c8r32
999	984	14589	114.5	2875.4	35.5	14.829	119.140	2.877	36.387	32605	13.3	33.142	1082	155.0	191.9	23.4	0.013	1008	672	pg1322_o2nofp.cx10a_c8r32
999	985	14607	114.5	2878.5	35.4	14.826	119.051	2.880	36.320	32675	14.4	33.166	1169	155.0	192.0	23.4	0.017	1008	687	pg1323_o2nofp.cx10a_c8r32
999	972	14484	113.8	2856.6	35.2	14.909	119.907	2.860	36.059	32071	13.8	33.012	1136	155.0	191.4	23.3	0.239	992	672	pg1419_o2nofp.cx10a_c8r32
999	985	14610	114.6	2860.8	35.2	14.826	119.109	2.864	36.099	32365	14.4	32.845	1169	155.0	191.4	23.3	0.017	1008	672	pg1420_o2nofp.cx10a_c8r32
999	971	14448	113.4	2840.1	35.0	14.873	119.518	2.844	35.854	32087	13.7	33.031	1128	155.0	191.4	23.3	0.191	1008	640	pg1514_o2nofp.cx10a_c8r32
999	987	14618	114.7	2857.5	35.1	14.817	119.016	2.859	35.972	32335	14.6	32.774	1184	155.0	191.4	23.3	0.016	1008	687	pg1515_o2nofp.cx10a_c8r32
999	984	14591	114.5	2857.9	35.1	14.833	119.172	2.861	36.024	32263	13.9	32.798	1130	155.0	191.4	23.3	0.013	1008	688	pg1610_o2nofp.cx10a_c8r32
999	983	14587	114.5	2856.4	35.1	14.834	119.196	2.860	36.006	32287	15.3	32.832	1245	155.0	191.4	23.3	0.019	1008	688	pg1611_o2nofp.cx10a_c8r32
999	982	14624	114.7	2855.7	34.8	14.889	119.630	2.857	35.671	32216	14.6	32.800	1189	155.0	190.9	23.3	0.015	1008	688	pg176_o2nofp.cx10a_c8r32
999	983	14578	114.3	2855.4	35.0	14.836	119.160	2.859	35.842	32132	15.8	32.701	1286	155.0	190.9	23.4	0.015	1008	688	pg177_o2nofp.cx10a_c8r32
999	767	11971	93.9	2808.6	34.5	15.612	125.418	2.812	35.359	26341	13.2	34.352	1377	155.0	190.9	23.3	0.021	784	544	pg180_o2nofp.cx10b_c8r32
999	766	11929	93.6	2812.3	34.6	15.577	125.146	2.814	35.464	26251	13.3	34.280	1389	155.0	190.7	23.4	0.016	784	544	pg180_o2nofp.cx10c_c8r32
999	768	11956	93.8	2811.1	34.4	15.575	125.125	2.813	35.286	26315	13.2	34.282	1376	155.0	190.8	23.4	0.021	784	544	pg180_o2nofp.cx10d_c8r32
999	964	14392	112.9	2852.3	34.7	14.921	119.879	2.854	35.569	31708	15.1	32.875	1252	155.0	190.8	23.3	0.019	992	672	pg181_o2nofp.cx10b_c8r32

l.i0

l.i0: load without secondary indexes
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	99.966	0.033	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.036	pg1222_o2nofp.cx10a_c8r32
0.000	99.964	0.035	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.036	pg1322_o2nofp.cx10a_c8r32
0.000	99.955	0.042	0.003	0.001	0.000	0.000	0.000	0.000	0.000	0.037	pg1323_o2nofp.cx10a_c8r32
0.000	99.800	0.193	0.005	0.001	nonzero	0.000	0.000	0.000	0.000	0.069	pg1419_o2nofp.cx10a_c8r32
0.000	99.969	0.028	0.002	nonzero	0.000	0.000	0.000	0.000	0.000	0.037	pg1420_o2nofp.cx10a_c8r32
0.000	99.976	0.021	0.003	nonzero	0.000	0.000	0.000	0.000	0.000	0.036	pg1514_o2nofp.cx10a_c8r32
0.000	99.970	0.025	0.004	nonzero	0.000	0.000	0.000	0.000	0.000	0.039	pg1515_o2nofp.cx10a_c8r32
0.000	99.975	0.022	0.003	nonzero	0.000	0.000	0.000	0.000	0.000	0.040	pg1610_o2nofp.cx10a_c8r32
0.000	99.973	0.024	0.002	nonzero	0.000	0.000	0.000	0.000	0.000	0.037	pg1611_o2nofp.cx10a_c8r32
0.000	99.850	0.144	0.005	0.001	nonzero	0.000	0.000	0.000	0.000	0.070	pg176_o2nofp.cx10a_c8r32
0.000	99.973	0.024	0.003	nonzero	0.000	0.000	0.000	0.000	0.000	0.036	pg177_o2nofp.cx10a_c8r32
0.000	99.971	0.025	0.004	0.001	0.000	0.000	0.000	0.000	0.000	0.046	pg180_o2nofp.cx10b_c8r32
0.000	99.969	0.026	0.004	0.001	0.000	0.000	0.000	0.000	0.000	0.042	pg180_o2nofp.cx10c_c8r32
0.000	99.966	0.030	0.004	0.001	0.000	0.000	0.000	0.000	0.000	0.037	pg180_o2nofp.cx10d_c8r32
0.000	99.876	0.111	0.013	nonzero	nonzero	0.000	0.000	0.000	0.000	0.064	pg181_o2nofp.cx10b_c8r32

l.x

l.x: create secondary indexes
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

TODO - determine whether there is data for create index response time

l.i1

l.i1: continue load after secondary indexes created with 50 inserts per transaction
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.016	99.897	0.085	0.001	0.000	0.000	0.000	0.000	0.075	pg1222_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.922	0.077	0.000	0.000	0.000	0.000	0.000	0.043	pg1322_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.941	0.059	0.000	0.000	0.000	0.000	0.000	0.037	pg1323_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.843	0.158	0.000	0.000	0.000	0.000	0.000	0.055	pg1419_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.951	0.049	0.000	0.000	0.000	0.000	0.000	0.036	pg1420_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.945	0.055	0.000	0.000	0.000	0.000	0.000	0.039	pg1514_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.944	0.056	0.000	0.000	0.000	0.000	0.000	0.036	pg1515_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.933	0.068	0.000	0.000	0.000	0.000	0.000	0.034	pg1610_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.926	0.074	0.000	0.000	0.000	0.000	0.000	0.035	pg1611_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.942	0.057	0.000	0.000	0.000	0.000	0.000	0.038	pg176_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.954	0.046	0.000	0.000	0.000	0.000	0.000	0.036	pg177_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.799	0.200	0.001	0.000	0.000	0.000	0.000	0.075	pg180_o2nofp.cx10b_c8r32
0.000	0.000	0.000	99.845	0.155	0.000	0.000	0.000	0.000	0.000	0.063	pg180_o2nofp.cx10c_c8r32
0.000	0.000	0.000	99.853	0.147	0.000	0.000	0.000	0.000	0.000	0.042	pg180_o2nofp.cx10d_c8r32
0.000	0.000	0.000	99.946	0.054	0.000	0.000	0.000	0.000	0.000	0.040	pg181_o2nofp.cx10b_c8r32

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	1.144	18.168	54.024	26.664	0.001	0.000	0.000	0.000	0.000	0.074	pg1222_o2nofp.cx10a_c8r32
0.000	1.475	16.081	52.170	30.274	0.000	0.000	0.000	0.000	0.000	0.030	pg1322_o2nofp.cx10a_c8r32
0.000	0.925	16.724	50.331	32.020	0.000	0.000	0.000	0.000	0.000	0.031	pg1323_o2nofp.cx10a_c8r32
0.000	0.609	17.956	51.135	30.300	0.000	0.000	0.000	0.000	0.000	0.030	pg1419_o2nofp.cx10a_c8r32
0.000	0.666	16.635	50.273	32.426	0.000	0.000	0.000	0.000	0.000	0.030	pg1420_o2nofp.cx10a_c8r32
0.000	0.775	15.934	51.031	32.260	0.000	0.000	0.000	0.000	0.000	0.030	pg1514_o2nofp.cx10a_c8r32
0.000	1.348	16.081	45.806	36.765	0.000	0.000	0.000	0.000	0.000	0.032	pg1515_o2nofp.cx10a_c8r32
0.000	0.487	16.665	46.754	36.094	0.000	0.000	0.000	0.000	0.000	0.033	pg1610_o2nofp.cx10a_c8r32
0.000	0.571	16.061	45.495	37.872	0.000	0.000	0.000	0.000	0.000	0.032	pg1611_o2nofp.cx10a_c8r32
0.000	0.510	15.868	44.035	39.587	0.000	0.000	0.000	0.000	0.000	0.034	pg176_o2nofp.cx10a_c8r32
0.000	0.537	16.544	38.741	44.177	0.000	0.000	0.000	0.000	0.000	0.035	pg177_o2nofp.cx10a_c8r32
0.000	1.443	15.961	46.271	36.324	0.001	0.000	0.000	0.000	0.000	0.068	pg180_o2nofp.cx10b_c8r32
0.000	0.761	16.109	46.926	36.204	0.000	0.000	0.000	0.000	0.000	0.037	pg180_o2nofp.cx10c_c8r32
0.000	0.476	16.299	47.450	35.775	0.000	0.000	0.000	0.000	0.000	0.028	pg180_o2nofp.cx10d_c8r32
0.000	0.589	16.305	44.462	38.644	0.000	0.000	0.000	0.000	0.000	0.034	pg181_o2nofp.cx10b_c8r32

l.i2

l.i2: continue load after secondary indexes created with 5 inserts per transaction
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	52.012	47.952	0.036	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg1222_o2nofp.cx10a_c8r32
0.000	53.900	46.045	0.054	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg1322_o2nofp.cx10a_c8r32
0.000	55.883	44.048	0.069	0.000	0.000	0.000	0.000	0.000	0.000	0.016	pg1323_o2nofp.cx10a_c8r32
0.000	52.101	47.855	0.044	0.001	0.000	0.000	0.000	0.000	0.000	0.017	pg1419_o2nofp.cx10a_c8r32
0.000	53.168	46.767	0.065	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg1420_o2nofp.cx10a_c8r32
0.000	51.335	48.599	0.066	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg1514_o2nofp.cx10a_c8r32
0.000	50.270	49.679	0.051	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg1515_o2nofp.cx10a_c8r32
0.000	49.185	50.760	0.054	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg1610_o2nofp.cx10a_c8r32
0.000	47.752	52.190	0.057	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg1611_o2nofp.cx10a_c8r32
0.000	57.825	42.157	0.018	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg176_o2nofp.cx10a_c8r32
0.000	57.098	42.874	0.027	0.000	0.000	0.000	0.000	0.000	0.000	0.012	pg177_o2nofp.cx10a_c8r32
0.000	56.746	43.217	0.037	0.000	0.000	0.000	0.000	0.000	0.000	0.012	pg180_o2nofp.cx10b_c8r32
0.000	54.093	45.872	0.035	0.000	0.000	0.000	0.000	0.000	0.000	0.011	pg180_o2nofp.cx10c_c8r32
0.000	55.834	44.128	0.038	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg180_o2nofp.cx10d_c8r32
0.000	57.139	42.847	0.014	0.000	0.000	0.000	0.000	0.000	0.000	0.012	pg181_o2nofp.cx10b_c8r32

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.098	pg1222_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.101	pg1322_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.104	pg1323_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.101	pg1419_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.101	pg1420_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.099	pg1514_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.100	pg1515_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.096	pg1610_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.099	pg1611_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.099	pg176_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.098	pg177_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.106	pg180_o2nofp.cx10b_c8r32
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.099	pg180_o2nofp.cx10c_c8r32
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.102	pg180_o2nofp.cx10d_c8r32
0.000	0.000	0.000	0.000	99.999	0.001	0.000	0.000	0.000	0.000	0.103	pg181_o2nofp.cx10b_c8r32

qr100.L1

qr100.L1: range queries with 100 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.997	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg1222_o2nofp.cx10a_c8r32
99.998	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg1322_o2nofp.cx10a_c8r32
99.998	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg1323_o2nofp.cx10a_c8r32
99.998	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg1419_o2nofp.cx10a_c8r32
99.998	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg1420_o2nofp.cx10a_c8r32
99.998	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg1514_o2nofp.cx10a_c8r32
99.998	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg1515_o2nofp.cx10a_c8r32
99.998	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg1610_o2nofp.cx10a_c8r32
99.998	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg1611_o2nofp.cx10a_c8r32
99.998	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg176_o2nofp.cx10a_c8r32
99.998	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg177_o2nofp.cx10a_c8r32
99.998	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg180_o2nofp.cx10b_c8r32
99.998	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg180_o2nofp.cx10c_c8r32
99.993	0.005	0.002	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.011	pg180_o2nofp.cx10d_c8r32
99.999	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg181_o2nofp.cx10b_c8r32

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	58.111	41.889	0.000	0.000	0.000	0.000	0.000	0.021	pg1222_o2nofp.cx10a_c8r32
0.000	0.000	0.028	80.611	19.361	0.000	0.000	0.000	0.000	0.000	0.023	pg1322_o2nofp.cx10a_c8r32
0.000	0.000	0.000	76.000	24.000	0.000	0.000	0.000	0.000	0.000	0.021	pg1323_o2nofp.cx10a_c8r32
0.000	0.000	0.000	75.333	24.667	0.000	0.000	0.000	0.000	0.000	0.021	pg1419_o2nofp.cx10a_c8r32
0.000	0.000	0.000	76.250	23.750	0.000	0.000	0.000	0.000	0.000	0.022	pg1420_o2nofp.cx10a_c8r32
0.000	0.000	0.000	76.000	24.000	0.000	0.000	0.000	0.000	0.000	0.024	pg1514_o2nofp.cx10a_c8r32
0.000	0.000	0.028	79.917	20.056	0.000	0.000	0.000	0.000	0.000	0.023	pg1515_o2nofp.cx10a_c8r32
0.000	0.000	0.000	81.639	18.361	0.000	0.000	0.000	0.000	0.000	0.021	pg1610_o2nofp.cx10a_c8r32
0.000	0.000	0.056	72.778	27.167	0.000	0.000	0.000	0.000	0.000	0.022	pg1611_o2nofp.cx10a_c8r32
0.000	0.000	0.028	99.861	0.111	0.000	0.000	0.000	0.000	0.000	0.021	pg176_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.750	0.250	0.000	0.000	0.000	0.000	0.000	0.021	pg177_o2nofp.cx10a_c8r32
0.000	0.000	0.000	88.889	11.111	0.000	0.000	0.000	0.000	0.000	0.026	pg180_o2nofp.cx10b_c8r32
0.000	0.000	0.000	92.389	7.611	0.000	0.000	0.000	0.000	0.000	0.025	pg180_o2nofp.cx10c_c8r32
0.000	0.000	0.000	88.500	11.500	0.000	0.000	0.000	0.000	0.000	0.030	pg180_o2nofp.cx10d_c8r32
0.000	0.000	0.056	99.667	0.278	0.000	0.000	0.000	0.000	0.000	0.023	pg181_o2nofp.cx10b_c8r32

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	44.000	55.972	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg1222_o2nofp.cx10a_c8r32
0.000	42.611	57.361	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg1322_o2nofp.cx10a_c8r32
0.000	54.444	45.528	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg1323_o2nofp.cx10a_c8r32
0.000	45.611	54.333	0.056	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg1419_o2nofp.cx10a_c8r32
0.000	54.750	45.194	0.056	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg1420_o2nofp.cx10a_c8r32
0.000	36.194	63.750	0.056	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg1514_o2nofp.cx10a_c8r32
0.000	50.444	49.500	0.056	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg1515_o2nofp.cx10a_c8r32
0.000	39.472	60.472	0.056	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg1610_o2nofp.cx10a_c8r32
0.000	52.944	47.000	0.056	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg1611_o2nofp.cx10a_c8r32
0.000	44.722	55.222	0.056	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg176_o2nofp.cx10a_c8r32
0.000	50.694	49.250	0.056	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg177_o2nofp.cx10a_c8r32
0.000	42.889	57.056	0.056	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg180_o2nofp.cx10b_c8r32
0.000	35.694	64.222	0.083	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg180_o2nofp.cx10c_c8r32
0.000	41.667	58.278	0.056	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg180_o2nofp.cx10d_c8r32
0.000	48.889	51.056	0.056	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg181_o2nofp.cx10b_c8r32

qp100.L2

qp100.L2: point queries with 100 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	22.661	77.330	0.009	0.000	0.000	0.000	0.000	0.000	0.000	0.014	pg1222_o2nofp.cx10a_c8r32
nonzero	68.630	31.364	0.006	nonzero	0.000	0.000	0.000	0.000	0.000	0.017	pg1322_o2nofp.cx10a_c8r32
0.000	68.011	31.984	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg1323_o2nofp.cx10a_c8r32
nonzero	68.093	31.903	0.004	0.000	0.000	0.000	0.000	0.000	0.000	0.014	pg1419_o2nofp.cx10a_c8r32
nonzero	68.450	31.546	0.004	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg1420_o2nofp.cx10a_c8r32
0.000	68.665	31.331	0.004	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg1514_o2nofp.cx10a_c8r32
nonzero	69.079	30.916	0.005	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg1515_o2nofp.cx10a_c8r32
nonzero	68.661	31.335	0.004	0.000	0.000	0.000	0.000	0.000	0.000	0.014	pg1610_o2nofp.cx10a_c8r32
nonzero	69.461	30.517	0.017	0.005	0.000	0.000	0.000	0.000	0.000	0.019	pg1611_o2nofp.cx10a_c8r32
nonzero	67.724	32.272	0.004	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg176_o2nofp.cx10a_c8r32
nonzero	67.738	32.259	0.003	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg177_o2nofp.cx10a_c8r32
0.000	20.290	79.686	0.024	nonzero	0.000	0.000	0.000	0.000	0.000	0.018	pg180_o2nofp.cx10b_c8r32
0.000	19.789	80.180	0.030	nonzero	0.000	0.000	0.000	0.000	0.000	0.018	pg180_o2nofp.cx10c_c8r32
nonzero	20.449	79.531	0.020	0.000	0.000	0.000	0.000	0.000	0.000	0.016	pg180_o2nofp.cx10d_c8r32
nonzero	65.091	34.893	0.009	0.006	0.000	0.000	0.000	0.000	0.000	0.021	pg181_o2nofp.cx10b_c8r32

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	99.528	0.472	0.000	0.000	0.000	0.000	0.000	0.023	pg1222_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.861	0.139	0.000	0.000	0.000	0.000	0.000	0.030	pg1322_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.917	0.083	0.000	0.000	0.000	0.000	0.000	0.024	pg1323_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.833	0.167	0.000	0.000	0.000	0.000	0.000	0.023	pg1419_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.889	0.111	0.000	0.000	0.000	0.000	0.000	0.023	pg1420_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.833	0.167	0.000	0.000	0.000	0.000	0.000	0.021	pg1514_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.806	0.194	0.000	0.000	0.000	0.000	0.000	0.022	pg1515_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.833	0.167	0.000	0.000	0.000	0.000	0.000	0.021	pg1610_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.806	0.194	0.000	0.000	0.000	0.000	0.000	0.019	pg1611_o2nofp.cx10a_c8r32
0.000	0.000	0.000	100.000	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg176_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.972	0.028	0.000	0.000	0.000	0.000	0.000	0.020	pg177_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.944	0.056	0.000	0.000	0.000	0.000	0.000	0.024	pg180_o2nofp.cx10b_c8r32
0.000	0.000	0.000	99.944	0.056	0.000	0.000	0.000	0.000	0.000	0.019	pg180_o2nofp.cx10c_c8r32
0.000	0.000	0.000	99.972	0.028	0.000	0.000	0.000	0.000	0.000	0.022	pg180_o2nofp.cx10d_c8r32
0.000	0.000	0.000	99.778	0.222	0.000	0.000	0.000	0.000	0.000	0.022	pg181_o2nofp.cx10b_c8r32

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	6.250	93.694	0.056	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1222_o2nofp.cx10a_c8r32
0.000	0.028	99.944	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg1322_o2nofp.cx10a_c8r32
0.000	0.167	99.806	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg1323_o2nofp.cx10a_c8r32
0.000	0.000	99.972	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.008	pg1419_o2nofp.cx10a_c8r32
0.000	0.194	99.778	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg1420_o2nofp.cx10a_c8r32
0.000	0.028	99.917	0.056	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg1514_o2nofp.cx10a_c8r32
0.000	0.361	99.611	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg1515_o2nofp.cx10a_c8r32
0.000	0.000	99.917	0.083	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg1610_o2nofp.cx10a_c8r32
0.000	0.000	99.861	0.139	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg1611_o2nofp.cx10a_c8r32
0.000	0.000	99.861	0.139	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg176_o2nofp.cx10a_c8r32
0.000	0.000	99.972	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg177_o2nofp.cx10a_c8r32
0.000	0.000	99.944	0.056	0.000	0.000	0.000	0.000	0.000	0.000	0.009	pg180_o2nofp.cx10b_c8r32
0.000	0.000	99.972	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg180_o2nofp.cx10c_c8r32
0.000	0.000	99.972	0.028	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg180_o2nofp.cx10d_c8r32
0.000	0.000	99.806	0.194	0.000	0.000	0.000	0.000	0.000	0.000	0.010	pg181_o2nofp.cx10b_c8r32

qr500.L3

qr500.L3: range queries with 500 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.992	0.007	nonzero	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.033	pg1222_o2nofp.cx10a_c8r32
99.995	0.004	nonzero	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.024	pg1322_o2nofp.cx10a_c8r32
99.994	0.005	nonzero	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.042	pg1323_o2nofp.cx10a_c8r32
99.994	0.005	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.025	pg1419_o2nofp.cx10a_c8r32
99.995	0.004	nonzero	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.022	pg1420_o2nofp.cx10a_c8r32
99.994	0.005	nonzero	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.019	pg1514_o2nofp.cx10a_c8r32
99.994	0.005	0.001	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.026	pg1515_o2nofp.cx10a_c8r32
99.994	0.005	0.001	0.001	nonzero	0.000	0.000	0.000	0.000	0.000	0.022	pg1610_o2nofp.cx10a_c8r32
99.995	0.005	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.024	pg1611_o2nofp.cx10a_c8r32
99.995	0.005	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.021	pg176_o2nofp.cx10a_c8r32
99.995	0.004	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.022	pg177_o2nofp.cx10a_c8r32
99.991	0.008	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.019	pg180_o2nofp.cx10b_c8r32
99.992	0.007	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.018	pg180_o2nofp.cx10c_c8r32
99.991	0.008	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.021	pg180_o2nofp.cx10d_c8r32
99.995	0.004	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.000	0.000	0.030	pg181_o2nofp.cx10b_c8r32

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	91.728	8.272	0.000	0.000	0.000	0.000	0.000	0.023	pg1222_o2nofp.cx10a_c8r32
0.000	0.000	0.000	92.839	7.161	0.000	0.000	0.000	0.000	0.000	0.032	pg1322_o2nofp.cx10a_c8r32
0.000	0.000	0.000	93.306	6.694	0.000	0.000	0.000	0.000	0.000	0.025	pg1323_o2nofp.cx10a_c8r32
0.000	0.000	0.000	93.789	6.211	0.000	0.000	0.000	0.000	0.000	0.022	pg1419_o2nofp.cx10a_c8r32
0.000	0.000	0.000	93.633	6.367	0.000	0.000	0.000	0.000	0.000	0.024	pg1420_o2nofp.cx10a_c8r32
0.000	0.000	0.000	93.300	6.700	0.000	0.000	0.000	0.000	0.000	0.024	pg1514_o2nofp.cx10a_c8r32
0.000	0.000	0.000	93.361	6.639	0.000	0.000	0.000	0.000	0.000	0.030	pg1515_o2nofp.cx10a_c8r32
0.000	0.000	0.000	93.244	6.756	0.000	0.000	0.000	0.000	0.000	0.025	pg1610_o2nofp.cx10a_c8r32
0.000	0.000	0.000	93.200	6.800	0.000	0.000	0.000	0.000	0.000	0.024	pg1611_o2nofp.cx10a_c8r32
0.000	0.000	0.000	94.050	5.950	0.000	0.000	0.000	0.000	0.000	0.019	pg176_o2nofp.cx10a_c8r32
0.000	0.000	0.000	94.083	5.917	0.000	0.000	0.000	0.000	0.000	0.023	pg177_o2nofp.cx10a_c8r32
0.000	0.000	0.000	93.517	6.483	0.000	0.000	0.000	0.000	0.000	0.053	pg180_o2nofp.cx10b_c8r32
0.000	0.000	0.000	93.856	6.144	0.000	0.000	0.000	0.000	0.000	0.025	pg180_o2nofp.cx10c_c8r32
0.000	0.000	0.000	93.733	6.267	0.000	0.000	0.000	0.000	0.000	0.045	pg180_o2nofp.cx10d_c8r32
0.000	0.000	0.000	94.161	5.839	0.000	0.000	0.000	0.000	0.000	0.025	pg181_o2nofp.cx10b_c8r32

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	49.756	50.244	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg1222_o2nofp.cx10a_c8r32
0.000	0.000	41.922	58.078	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg1322_o2nofp.cx10a_c8r32
0.000	0.000	46.100	53.900	0.000	0.000	0.000	0.000	0.000	0.000	0.016	pg1323_o2nofp.cx10a_c8r32
0.000	0.000	45.650	54.350	0.000	0.000	0.000	0.000	0.000	0.000	0.016	pg1419_o2nofp.cx10a_c8r32
0.000	0.000	45.972	54.028	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg1420_o2nofp.cx10a_c8r32
0.000	0.000	33.422	66.578	0.000	0.000	0.000	0.000	0.000	0.000	0.016	pg1514_o2nofp.cx10a_c8r32
0.000	0.000	40.822	59.178	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg1515_o2nofp.cx10a_c8r32
0.000	0.000	39.094	60.906	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg1610_o2nofp.cx10a_c8r32
0.000	0.000	45.050	54.950	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg1611_o2nofp.cx10a_c8r32
0.000	0.000	36.183	63.817	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg176_o2nofp.cx10a_c8r32
0.000	0.000	42.761	57.239	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg177_o2nofp.cx10a_c8r32
0.000	0.000	32.072	67.917	0.011	0.000	0.000	0.000	0.000	0.000	0.041	pg180_o2nofp.cx10b_c8r32
0.000	0.000	37.006	62.994	0.000	0.000	0.000	0.000	0.000	0.000	0.016	pg180_o2nofp.cx10c_c8r32
0.000	0.000	41.128	58.872	0.000	0.000	0.000	0.000	0.000	0.000	0.016	pg180_o2nofp.cx10d_c8r32
0.000	0.000	45.367	54.633	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg181_o2nofp.cx10b_c8r32

qp500.L4

qp500.L4: point queries with 500 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	17.474	82.511	0.015	0.000	0.000	0.000	0.000	0.000	0.000	0.016	pg1222_o2nofp.cx10a_c8r32
0.000	63.002	36.991	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.016	pg1322_o2nofp.cx10a_c8r32
nonzero	61.825	38.167	0.007	0.000	0.000	0.000	0.000	0.000	0.000	0.014	pg1323_o2nofp.cx10a_c8r32
nonzero	62.098	37.895	0.006	nonzero	0.000	0.000	0.000	0.000	0.000	0.016	pg1419_o2nofp.cx10a_c8r32
nonzero	62.646	37.346	0.008	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg1420_o2nofp.cx10a_c8r32
nonzero	62.456	37.537	0.007	0.000	0.000	0.000	0.000	0.000	0.000	0.014	pg1514_o2nofp.cx10a_c8r32
0.000	62.777	37.217	0.006	nonzero	0.000	0.000	0.000	0.000	0.000	0.019	pg1515_o2nofp.cx10a_c8r32
0.000	62.497	37.496	0.007	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg1610_o2nofp.cx10a_c8r32
nonzero	63.329	36.646	0.021	0.004	0.000	0.000	0.000	0.000	0.000	0.019	pg1611_o2nofp.cx10a_c8r32
0.000	61.371	38.618	0.011	nonzero	0.000	0.000	0.000	0.000	0.000	0.018	pg176_o2nofp.cx10a_c8r32
nonzero	62.004	37.990	0.006	nonzero	0.000	0.000	0.000	0.000	0.000	0.023	pg177_o2nofp.cx10a_c8r32
0.000	15.220	84.710	0.070	nonzero	0.000	0.000	0.000	0.000	0.000	0.018	pg180_o2nofp.cx10b_c8r32
0.000	14.963	84.964	0.072	nonzero	0.000	0.000	0.000	0.000	0.000	0.016	pg180_o2nofp.cx10c_c8r32
0.000	15.085	84.860	0.055	nonzero	0.000	0.000	0.000	0.000	0.000	0.017	pg180_o2nofp.cx10d_c8r32
0.000	57.592	42.400	0.007	0.000	0.000	0.000	0.000	0.000	0.000	0.014	pg181_o2nofp.cx10b_c8r32

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	99.911	0.089	0.000	0.000	0.000	0.000	0.000	0.023	pg1222_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.939	0.061	0.000	0.000	0.000	0.000	0.000	0.024	pg1322_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.933	0.067	0.000	0.000	0.000	0.000	0.000	0.023	pg1323_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.950	0.050	0.000	0.000	0.000	0.000	0.000	0.023	pg1419_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.967	0.033	0.000	0.000	0.000	0.000	0.000	0.030	pg1420_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.950	0.050	0.000	0.000	0.000	0.000	0.000	0.023	pg1514_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.961	0.039	0.000	0.000	0.000	0.000	0.000	0.024	pg1515_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.950	0.050	0.000	0.000	0.000	0.000	0.000	0.021	pg1610_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.789	0.211	0.000	0.000	0.000	0.000	0.000	0.023	pg1611_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.928	0.072	0.000	0.000	0.000	0.000	0.000	0.021	pg176_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.917	0.083	0.000	0.000	0.000	0.000	0.000	0.028	pg177_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.789	0.211	0.000	0.000	0.000	0.000	0.000	0.044	pg180_o2nofp.cx10b_c8r32
0.000	0.000	0.000	99.767	0.233	0.000	0.000	0.000	0.000	0.000	0.023	pg180_o2nofp.cx10c_c8r32
0.000	0.000	0.000	99.844	0.156	0.000	0.000	0.000	0.000	0.000	0.025	pg180_o2nofp.cx10d_c8r32
0.000	0.000	0.000	99.939	0.061	0.000	0.000	0.000	0.000	0.000	0.020	pg181_o2nofp.cx10b_c8r32

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	99.917	0.083	0.000	0.000	0.000	0.000	0.000	0.042	pg1222_o2nofp.cx10a_c8r32
0.000	0.000	0.000	98.528	1.472	0.000	0.000	0.000	0.000	0.000	0.043	pg1322_o2nofp.cx10a_c8r32
0.000	0.000	0.000	98.156	1.844	0.000	0.000	0.000	0.000	0.000	0.045	pg1323_o2nofp.cx10a_c8r32
0.000	0.000	0.000	98.033	1.967	0.000	0.000	0.000	0.000	0.000	0.043	pg1419_o2nofp.cx10a_c8r32
0.000	0.000	0.000	98.300	1.700	0.000	0.000	0.000	0.000	0.000	0.043	pg1420_o2nofp.cx10a_c8r32
0.000	0.000	0.000	98.378	1.622	0.000	0.000	0.000	0.000	0.000	0.042	pg1514_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.072	0.928	0.000	0.000	0.000	0.000	0.000	0.043	pg1515_o2nofp.cx10a_c8r32
0.000	0.000	0.000	97.600	2.400	0.000	0.000	0.000	0.000	0.000	0.041	pg1610_o2nofp.cx10a_c8r32
0.000	0.000	0.000	97.983	2.017	0.000	0.000	0.000	0.000	0.000	0.043	pg1611_o2nofp.cx10a_c8r32
0.000	0.000	0.000	93.794	6.206	0.000	0.000	0.000	0.000	0.000	0.042	pg176_o2nofp.cx10a_c8r32
0.000	0.000	0.000	95.572	4.428	0.000	0.000	0.000	0.000	0.000	0.042	pg177_o2nofp.cx10a_c8r32
0.000	0.000	0.000	97.450	2.550	0.000	0.000	0.000	0.000	0.000	0.046	pg180_o2nofp.cx10b_c8r32
0.000	0.000	0.000	97.083	2.917	0.000	0.000	0.000	0.000	0.000	0.043	pg180_o2nofp.cx10c_c8r32
0.000	0.000	0.000	97.500	2.500	0.000	0.000	0.000	0.000	0.000	0.043	pg180_o2nofp.cx10d_c8r32
0.000	0.000	0.000	97.822	2.178	0.000	0.000	0.000	0.000	0.000	0.043	pg181_o2nofp.cx10b_c8r32

qr1000.L5

qr1000.L5: range queries with 1000 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.978	0.018	0.003	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.093	pg1222_o2nofp.cx10a_c8r32
99.987	0.009	0.003	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.100	pg1322_o2nofp.cx10a_c8r32
99.986	0.010	0.003	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.089	pg1323_o2nofp.cx10a_c8r32
99.984	0.012	0.003	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.096	pg1419_o2nofp.cx10a_c8r32
99.986	0.009	0.003	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.094	pg1420_o2nofp.cx10a_c8r32
99.984	0.011	0.003	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.103	pg1514_o2nofp.cx10a_c8r32
99.982	0.013	0.003	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.088	pg1515_o2nofp.cx10a_c8r32
99.983	0.012	0.003	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.087	pg1610_o2nofp.cx10a_c8r32
99.982	0.014	0.003	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.093	pg1611_o2nofp.cx10a_c8r32
99.984	0.012	0.003	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.086	pg176_o2nofp.cx10a_c8r32
99.983	0.013	0.003	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.106	pg177_o2nofp.cx10a_c8r32
99.973	0.023	0.003	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.102	pg180_o2nofp.cx10b_c8r32
99.975	0.021	0.003	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.090	pg180_o2nofp.cx10c_c8r32
99.973	0.022	0.003	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.079	pg180_o2nofp.cx10d_c8r32
99.984	0.012	0.003	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.099	pg181_o2nofp.cx10b_c8r32

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	97.681	2.319	0.000	0.000	0.000	0.000	0.000	0.029	pg1222_o2nofp.cx10a_c8r32
0.000	0.000	0.008	98.525	1.467	0.000	0.000	0.000	0.000	0.000	0.022	pg1322_o2nofp.cx10a_c8r32
0.000	0.000	0.000	98.342	1.658	0.000	0.000	0.000	0.000	0.000	0.022	pg1323_o2nofp.cx10a_c8r32
0.000	0.000	0.003	98.489	1.508	0.000	0.000	0.000	0.000	0.000	0.020	pg1419_o2nofp.cx10a_c8r32
0.000	0.000	0.000	98.225	1.775	0.000	0.000	0.000	0.000	0.000	0.024	pg1420_o2nofp.cx10a_c8r32
0.000	0.000	0.006	98.192	1.803	0.000	0.000	0.000	0.000	0.000	0.023	pg1514_o2nofp.cx10a_c8r32
0.000	0.000	0.000	98.264	1.736	0.000	0.000	0.000	0.000	0.000	0.027	pg1515_o2nofp.cx10a_c8r32
0.000	0.000	0.000	98.275	1.725	0.000	0.000	0.000	0.000	0.000	0.027	pg1610_o2nofp.cx10a_c8r32
0.000	0.000	0.003	98.239	1.758	0.000	0.000	0.000	0.000	0.000	0.027	pg1611_o2nofp.cx10a_c8r32
0.000	0.000	0.003	98.072	1.925	0.000	0.000	0.000	0.000	0.000	0.026	pg176_o2nofp.cx10a_c8r32
0.000	0.000	0.000	98.050	1.950	0.000	0.000	0.000	0.000	0.000	0.030	pg177_o2nofp.cx10a_c8r32
0.000	0.000	0.000	96.939	3.061	0.000	0.000	0.000	0.000	0.000	0.047	pg180_o2nofp.cx10b_c8r32
0.000	0.000	0.000	96.878	3.122	0.000	0.000	0.000	0.000	0.000	0.051	pg180_o2nofp.cx10c_c8r32
0.000	0.000	0.000	96.947	3.053	0.000	0.000	0.000	0.000	0.000	0.022	pg180_o2nofp.cx10d_c8r32
0.000	0.000	0.000	98.031	1.969	0.000	0.000	0.000	0.000	0.000	0.022	pg181_o2nofp.cx10b_c8r32

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	32.397	67.603	0.000	0.000	0.000	0.000	0.000	0.064	pg1222_o2nofp.cx10a_c8r32
0.000	0.000	0.000	25.597	74.400	0.003	0.000	0.000	0.000	0.000	0.065	pg1322_o2nofp.cx10a_c8r32
0.000	0.000	0.000	23.097	76.900	0.003	0.000	0.000	0.000	0.000	0.065	pg1323_o2nofp.cx10a_c8r32
0.000	0.000	0.000	28.178	71.819	0.003	0.000	0.000	0.000	0.000	0.064	pg1419_o2nofp.cx10a_c8r32
0.000	0.000	0.000	22.725	77.275	0.000	0.000	0.000	0.000	0.000	0.064	pg1420_o2nofp.cx10a_c8r32
0.000	0.000	0.000	20.861	79.139	0.000	0.000	0.000	0.000	0.000	0.063	pg1514_o2nofp.cx10a_c8r32
0.000	0.000	0.000	20.303	79.697	0.000	0.000	0.000	0.000	0.000	0.063	pg1515_o2nofp.cx10a_c8r32
0.000	0.000	0.000	16.947	83.053	0.000	0.000	0.000	0.000	0.000	0.061	pg1610_o2nofp.cx10a_c8r32
0.000	0.000	0.000	13.956	86.044	0.000	0.000	0.000	0.000	0.000	0.063	pg1611_o2nofp.cx10a_c8r32
0.000	0.000	0.000	8.489	91.511	0.000	0.000	0.000	0.000	0.000	0.063	pg176_o2nofp.cx10a_c8r32
0.000	0.000	0.000	4.461	95.539	0.000	0.000	0.000	0.000	0.000	0.061	pg177_o2nofp.cx10a_c8r32
0.000	0.000	0.000	20.456	79.542	0.003	0.000	0.000	0.000	0.000	0.065	pg180_o2nofp.cx10b_c8r32
0.000	0.000	0.000	20.972	79.028	0.000	0.000	0.000	0.000	0.000	0.063	pg180_o2nofp.cx10c_c8r32
0.000	0.000	0.000	19.536	80.464	0.000	0.000	0.000	0.000	0.000	0.064	pg180_o2nofp.cx10d_c8r32
0.000	0.000	0.000	14.536	85.461	0.003	0.000	0.000	0.000	0.000	0.065	pg181_o2nofp.cx10b_c8r32

qp1000.L6

qp1000.L6: point queries with 1000 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	12.350	87.618	0.033	nonzero	0.000	0.000	0.000	0.000	0.000	0.017	pg1222_o2nofp.cx10a_c8r32
0.000	54.483	45.505	0.012	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg1322_o2nofp.cx10a_c8r32
nonzero	54.511	45.477	0.012	nonzero	0.000	0.000	0.000	0.000	0.000	0.017	pg1323_o2nofp.cx10a_c8r32
0.000	50.666	49.321	0.013	nonzero	nonzero	0.000	0.000	0.000	0.000	0.239	pg1419_o2nofp.cx10a_c8r32
0.000	54.998	44.986	0.016	nonzero	0.000	0.000	0.000	0.000	0.000	0.017	pg1420_o2nofp.cx10a_c8r32
0.000	52.633	47.334	0.033	nonzero	nonzero	0.000	0.000	0.000	0.000	0.191	pg1514_o2nofp.cx10a_c8r32
0.000	55.046	44.944	0.011	nonzero	0.000	0.000	0.000	0.000	0.000	0.016	pg1515_o2nofp.cx10a_c8r32
0.000	54.509	45.474	0.017	0.000	0.000	0.000	0.000	0.000	0.000	0.013	pg1610_o2nofp.cx10a_c8r32
0.000	54.667	45.303	0.027	0.003	0.000	0.000	0.000	0.000	0.000	0.019	pg1611_o2nofp.cx10a_c8r32
nonzero	53.660	46.329	0.010	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg176_o2nofp.cx10a_c8r32
nonzero	54.033	45.955	0.012	0.000	0.000	0.000	0.000	0.000	0.000	0.015	pg177_o2nofp.cx10a_c8r32
0.000	10.407	89.477	0.117	nonzero	0.000	0.000	0.000	0.000	0.000	0.021	pg180_o2nofp.cx10b_c8r32
0.000	10.135	89.757	0.108	nonzero	0.000	0.000	0.000	0.000	0.000	0.016	pg180_o2nofp.cx10c_c8r32
0.000	10.438	89.458	0.103	0.001	0.000	0.000	0.000	0.000	0.000	0.021	pg180_o2nofp.cx10d_c8r32
0.000	48.609	51.377	0.014	nonzero	0.000	0.000	0.000	0.000	0.000	0.019	pg181_o2nofp.cx10b_c8r32

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	99.931	0.069	0.000	0.000	0.000	0.000	0.000	0.032	pg1222_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.969	0.031	0.000	0.000	0.000	0.000	0.000	0.028	pg1322_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.958	0.042	0.000	0.000	0.000	0.000	0.000	0.031	pg1323_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.928	0.072	0.000	0.000	0.000	0.000	0.000	0.022	pg1419_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.911	0.089	0.000	0.000	0.000	0.000	0.000	0.024	pg1420_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.639	0.361	0.000	0.000	0.000	0.000	0.000	0.054	pg1514_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.961	0.039	0.000	0.000	0.000	0.000	0.000	0.024	pg1515_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.925	0.075	0.000	0.000	0.000	0.000	0.000	0.023	pg1610_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.803	0.197	0.000	0.000	0.000	0.000	0.000	0.025	pg1611_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.967	0.033	0.000	0.000	0.000	0.000	0.000	0.020	pg176_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.953	0.047	0.000	0.000	0.000	0.000	0.000	0.025	pg177_o2nofp.cx10a_c8r32
0.000	0.000	0.000	99.867	0.133	0.000	0.000	0.000	0.000	0.000	0.055	pg180_o2nofp.cx10b_c8r32
0.000	0.000	0.000	99.889	0.111	0.000	0.000	0.000	0.000	0.000	0.022	pg180_o2nofp.cx10c_c8r32
0.000	0.000	0.000	99.903	0.097	0.000	0.000	0.000	0.000	0.000	0.046	pg180_o2nofp.cx10d_c8r32
0.000	0.000	0.000	99.939	0.061	0.000	0.000	0.000	0.000	0.000	0.026	pg181_o2nofp.cx10b_c8r32

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.099	pg1222_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.101	pg1322_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.104	pg1323_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.102	pg1419_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.100	pg1420_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.099	pg1514_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.099	pg1515_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.098	pg1610_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.099	pg1611_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.101	pg176_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.098	pg177_o2nofp.cx10a_c8r32
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.107	pg180_o2nofp.cx10b_c8r32
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.100	pg180_o2nofp.cx10c_c8r32
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.101	pg180_o2nofp.cx10d_c8r32
0.000	0.000	0.000	0.000	99.997	0.003	0.000	0.000	0.000	0.000	0.104	pg181_o2nofp.cx10b_c8r32

Introduction

Contents

Summary

l.i0

l.x

l.i1

l.i2

qr100.L1

qp100.L2

qr500.L3

qp500.L4

qr1000.L5

qp1000.L6

l.i0

l.x

l.i1

l.i2

qr100.L1

qp100.L2

qr500.L3

qp500.L4

qr1000.L5

qp1000.L6

l.i0

l.x

l.i1

l.i2

qr100.L1

qp100.L2

qr500.L3

qp500.L4

qr1000.L5

qp1000.L6
