Introduction

This is a report for the insert benchmark with 3600M docs and 12 client(s). It is generated by scripts (bash, awk, sed) and Tufte might not be impressed. An overview of the insert benchmark is here and a short update is here. Below, by DBMS, I mean DBMS+version.config. An example is my8020.c10b40 where my means MySQL, 8020 is version 8.0.20 and c10b40 is the name for the configuration file.

The test server has 32 cores, 128G RAM and 1 NVMe device. The benchmark was run with 12 clients and there were 1 or 3 connections per client (1 for queries or inserts without rate limits, 1+1 for rate limited inserts+deletes). It uses 8 tables with a table per client. It loads 300M rows per table without secondary indexes, creates 3 secondary indexes per table, then inserts 4m+1m rows per table with a delete per insert to avoid growing the table. It then does 6 read+write tests for 1800s each that do queries as fast as possible with 100,100,500,500,1000,1000 inserts/s and the same for deletes/s per client concurrent with the queries. The database is larger than RAM and most tests are IO-bound except for the range query (qr*) tests that frequently have a cached working set. Clients and the DBMS share one server.

The tested DBMS are:

ma100230_rel_withdbg.cz12a_c32r128 - MariaDB 10.2.30 with the z12a config
ma100244_rel_withdbg.cz12a_c32r128 - MariaDB 10.2.44 with the z12a config
ma100339_rel_withdbg.cz12a_c32r128 - MariaDB 10.3.39 with the z12a config
ma100434_rel_withdbg.cz12a_c32r128 - MariaDB 10.4.34 with the z12a config
ma100529_rel_withdbg.cz12a_c32r128 - MariaDB 10.5.29 with the z12a config
ma100625_rel_withdbg.cz12a_c32r128 - MariaDB 10.6.25 with the z12a config
ma101116_rel_withdbg.cz12a_c32r128 - MariaDB 10.11.16 with the z12a config
ma101116_rel_withdbg.cz12b_c32r128 - MariaDB 10.11.16 with the z12b config
ma110410_rel_withdbg.cz12b_c32r128 - MariaDB 11.4.10 with the z12b config
ma110806_rel_withdbg.cz12b_c32r128 - MariaDB 11.8.6 with the z12b config
ma120301_rel_withdbg.cz12b_c32r128 - MariaDB 12.3.1 with the z12b config
ma130000_rel_withdbg.cz12b_c32r128 - MariaDB 13.0.0 with the z12b config

Summary
l.i0: load without secondary indexes
l.x: create secondary indexes
l.i1: continue load after secondary indexes created with 50 inserts per transaction

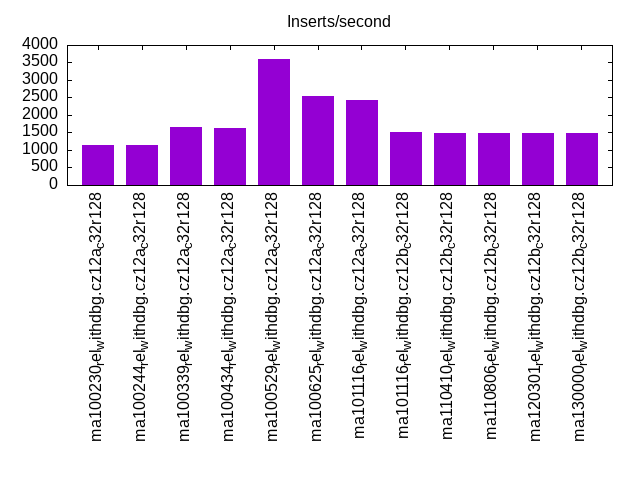

l.i2: continue load after secondary indexes created with 5 inserts per transaction

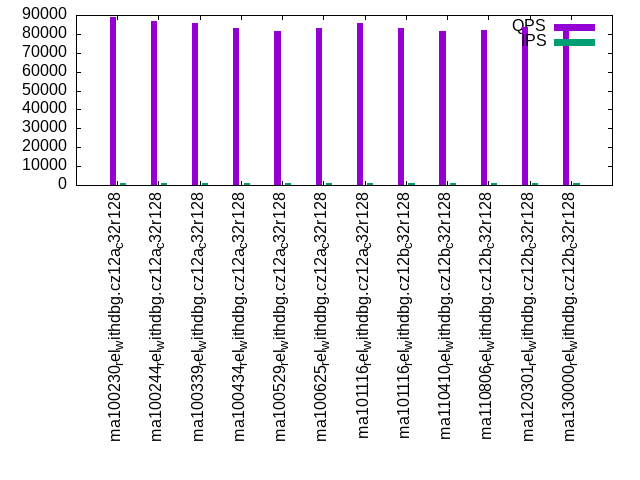

qr100.L1: range queries with 100 insert/s per client

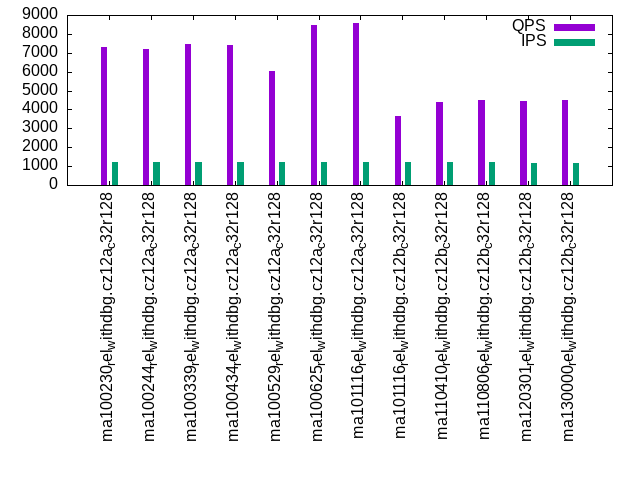

qp100.L2: point queries with 100 insert/s per client

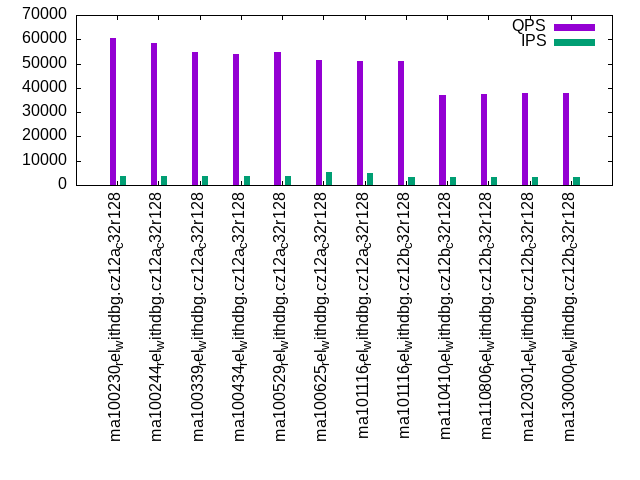

qr500.L3: range queries with 500 insert/s per client

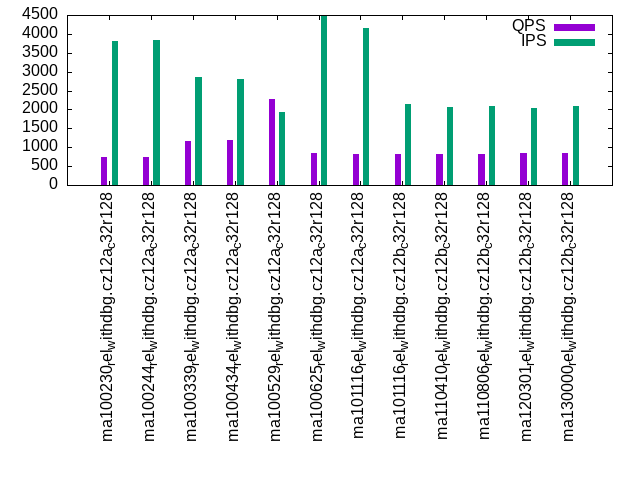

qp500.L4: point queries with 500 insert/s per client

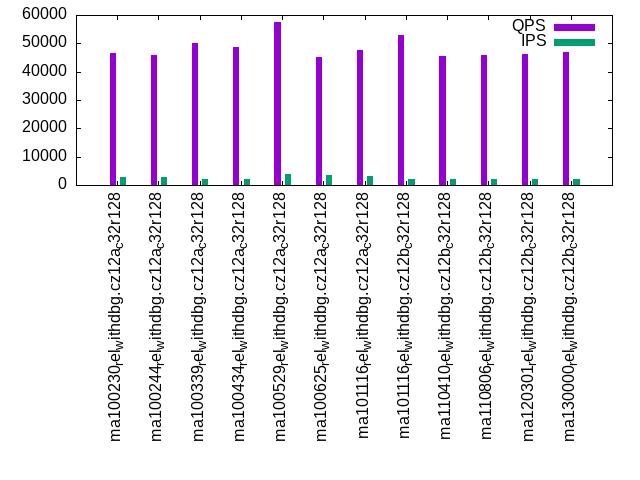

qr1000.L5: range queries with 1000 insert/s per client

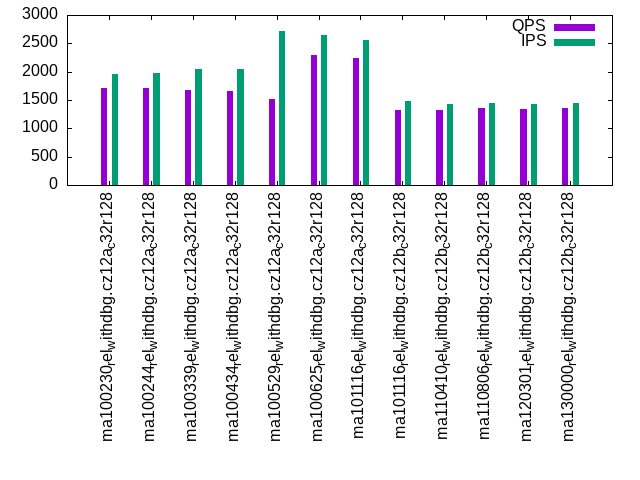

qp1000.L6: point queries with 1000 insert/s per client

Summary

The numbers are inserts/s for l.i0, l.i1 and l.i2, indexed docs (or rows) /s for l.x and queries/s for qr100, qp100 thru qr1000, qp1000" The values are the average rate over the entire test for inserts (IPS) and queries (QPS). The range of values for IPS and QPS is split into 3 parts: bottom 25%, middle 50%, top 25%. Values in the bottom 25% have a red background, values in the top 25% have a green background and values in the middle have no color. A gray background is used for values that can be ignored because the DBMS did not sustain the target insert rate. Red backgrounds are not used when the minimum value is within 80% of the max value.

dbms	l.i0	l.x	l.i1	l.i2	qr100	qp100	qr500	qp500	qr1000	qp1000
ma100230_rel_withdbg.cz12a_c32r128	647016	883002	2920	1138	88968	7286	60528	730	46550	1714
ma100244_rel_withdbg.cz12a_c32r128	577571	695383	2907	1147	86823	7213	58277	731	45882	1714
ma100339_rel_withdbg.cz12a_c32r128	520758	672269	2403	1643	85629	7470	54887	1154	50031	1681
ma100434_rel_withdbg.cz12a_c32r128	518807	675549	2423	1622	82951	7429	53761	1188	48623	1658
ma100529_rel_withdbg.cz12a_c32r128	373057	725222	3093	3601	81395	6045	54823	2283	57398	1523
ma100625_rel_withdbg.cz12a_c32r128	383509	739675	3514	2544	83167	8465	51671	849	45185	2294
ma101116_rel_withdbg.cz12a_c32r128	839161	682723	3544	2421	85572	8596	51077	828	47815	2238
ma101116_rel_withdbg.cz12b_c32r128	836820	679245	2010	1507	83267	3652	50967	826	52878	1329
ma110410_rel_withdbg.cz12b_c32r128	794176	672143	1975	1476	81695	4391	37123	817	45551	1329
ma110806_rel_withdbg.cz12b_c32r128	814480	632800	1989	1484	81816	4523	37600	831	45904	1355
ma120301_rel_withdbg.cz12b_c32r128	799467	671642	1982	1484	83703	4438	37823	845	46389	1342
ma130000_rel_withdbg.cz12b_c32r128	806632	694310	1989	1493	85229	4496	38073	834	46903	1356

This table has relative throughput, throughput for the DBMS relative to the DBMS in the first line, using the absolute throughput from the previous table. Values less than 0.95 have a yellow background. Values greater than 1.05 have a blue background.

dbms	l.i0	l.x	l.i1	l.i2	qr100	qp100	qr500	qp500	qr1000	qp1000
ma100230_rel_withdbg.cz12a_c32r128	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00
ma100244_rel_withdbg.cz12a_c32r128	0.89	0.79	1.00	1.01	0.98	0.99	0.96	1.00	0.99	1.00
ma100339_rel_withdbg.cz12a_c32r128	0.80	0.76	0.82	1.44	0.96	1.03	0.91	1.58	1.07	0.98
ma100434_rel_withdbg.cz12a_c32r128	0.80	0.77	0.83	1.43	0.93	1.02	0.89	1.63	1.04	0.97
ma100529_rel_withdbg.cz12a_c32r128	0.58	0.82	1.06	3.16	0.91	0.83	0.91	3.13	1.23	0.89
ma100625_rel_withdbg.cz12a_c32r128	0.59	0.84	1.20	2.24	0.93	1.16	0.85	1.16	0.97	1.34
ma101116_rel_withdbg.cz12a_c32r128	1.30	0.77	1.21	2.13	0.96	1.18	0.84	1.13	1.03	1.31
ma101116_rel_withdbg.cz12b_c32r128	1.29	0.77	0.69	1.32	0.94	0.50	0.84	1.13	1.14	0.78
ma110410_rel_withdbg.cz12b_c32r128	1.23	0.76	0.68	1.30	0.92	0.60	0.61	1.12	0.98	0.78
ma110806_rel_withdbg.cz12b_c32r128	1.26	0.72	0.68	1.30	0.92	0.62	0.62	1.14	0.99	0.79
ma120301_rel_withdbg.cz12b_c32r128	1.24	0.76	0.68	1.30	0.94	0.61	0.62	1.16	1.00	0.78
ma130000_rel_withdbg.cz12b_c32r128	1.25	0.79	0.68	1.31	0.96	0.62	0.63	1.14	1.01	0.79

This lists the average rate of inserts/s for the tests that do inserts concurrent with queries. For such tests the query rate is listed in the table above. The read+write tests are setup so that the insert rate should match the target rate every second. Cells that are not at least 95% of the target have a red background to indicate a failure to satisfy the target.

dbms	qr100.L1	qp100.L2	qr500.L3	qp500.L4	qr1000.L5	qp1000.L6
ma100230_rel_withdbg.cz12a_c32r128	1192	1192	3764	3804	2825	1950
ma100244_rel_withdbg.cz12a_c32r128	1192	1193	3789	3850	2862	1968
ma100339_rel_withdbg.cz12a_c32r128	1192	1193	3839	2863	2228	2050
ma100434_rel_withdbg.cz12a_c32r128	1193	1193	3865	2811	2237	2052
ma100529_rel_withdbg.cz12a_c32r128	1193	1192	3865	1920	3841	2721
ma100625_rel_withdbg.cz12a_c32r128	1192	1192	5493	4491	3603	2649
ma101116_rel_withdbg.cz12a_c32r128	1192	1192	4852	4157	3202	2561
ma101116_rel_withdbg.cz12b_c32r128	1193	1193	3255	2135	2000	1481
ma110410_rel_withdbg.cz12b_c32r128	1192	1192	3167	2053	1964	1428
ma110806_rel_withdbg.cz12b_c32r128	1193	1192	3232	2082	1984	1446
ma120301_rel_withdbg.cz12b_c32r128	1193	1191	3190	2049	1978	1437
ma130000_rel_withdbg.cz12b_c32r128	1193	1191	3219	2086	1990	1450
target	1200	1200	6000	6000	12000	12000

l.i0

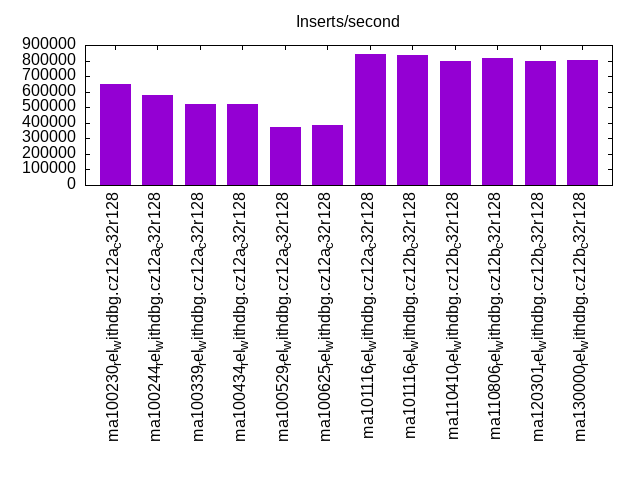

l.i0: load without secondary indexes. Graphs for performance per 1-second interval are here.

Average throughput:

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128	0.749	98.918	0.154	0.084	0.069	0.016	0.010		2.693
ma100244_rel_withdbg.cz12a_c32r128	0.487	99.146	0.193	0.079	0.071	0.014	0.010		3.216
ma100339_rel_withdbg.cz12a_c32r128	0.595	98.991	0.239	0.077	0.070	0.020	0.009		3.268
ma100434_rel_withdbg.cz12a_c32r128	0.639	98.949	0.233	0.077	0.073	0.019	0.010	nonzero	4.795
ma100529_rel_withdbg.cz12a_c32r128	1.120	97.191	1.127	0.389	0.155	0.018	0.002		2.497
ma100625_rel_withdbg.cz12a_c32r128	0.371	98.709	0.763	0.070	0.069	0.012	0.007	nonzero	4.121
ma101116_rel_withdbg.cz12a_c32r128	89.440	10.347	0.065	0.060	0.060	0.020	0.009	0.001	5.757
ma101116_rel_withdbg.cz12b_c32r128	86.130	13.616	0.072	0.087	0.069	0.018	0.008	0.001	5.244
ma110410_rel_withdbg.cz12b_c32r128	74.473	25.251	0.082	0.096	0.070	0.020	0.008	nonzero	4.943
ma110806_rel_withdbg.cz12b_c32r128	80.061	19.664	0.080	0.096	0.071	0.020	0.008	nonzero	4.620
ma120301_rel_withdbg.cz12b_c32r128	76.222	23.503	0.083	0.092	0.072	0.019	0.008	nonzero	5.010
ma130000_rel_withdbg.cz12b_c32r128	77.537	22.194	0.086	0.084	0.073	0.019	0.008	nonzero	4.843

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
647016	0	1	0.0	4218.1	233.0	0.000	0.000	0.007	0.369	83293	40.1	0.129	20	236.8	337.6	104.7	2.693	59592	0	ma100230_rel_withdbg.cz12a_c32r128
577571	0	1	0.0	3809.6	209.3	0.000	0.000	0.007	0.371	74196	39.8	0.128	22	236.8	337.6	104.6	3.216	54193	0	ma100244_rel_withdbg.cz12a_c32r128
520758	0	2	0.0	3701.1	206.0	0.000	0.000	0.007	0.405	65536	58.3	0.126	36	236.8	338.7	104.5	3.268	48694	0	ma100339_rel_withdbg.cz12a_c32r128
518807	0	2	0.0	3678.4	204.3	0.000	0.000	0.007	0.403	65370	57.9	0.126	36	236.8	338.7	NA	4.795	48694	0	ma100434_rel_withdbg.cz12a_c32r128
373057	0	1	0.0	3359.2	128.5	0.000	0.000	0.009	0.353	730017	48.3	1.957	41	236.8	339.1	100.3	2.497	32896	10599	ma100529_rel_withdbg.cz12a_c32r128
383509	0	0	0.0	2324.2	107.6	0.000	0.000	0.006	0.287	758731	50.5	1.978	42	236.8	337.6	101.3	4.121	33296	0	ma100625_rel_withdbg.cz12a_c32r128
839161	0	2	0.0	4558.8	218.1	0.000	0.000	0.005	0.266	137472	37.6	0.164	14	236.8	337.6	101.3	5.757	89689	0	ma101116_rel_withdbg.cz12a_c32r128
836820	0	1	0.0	4318.9	213.5	0.000	0.000	0.005	0.261	142212	37.8	0.170	14	236.8	337.6	101.3	5.244	87689	0	ma101116_rel_withdbg.cz12b_c32r128
794176	0	2	0.0	4098.2	202.6	0.000	0.000	0.005	0.261	176816	37.9	0.223	15	236.8	337.6	101.3	4.943	79390	0	ma110410_rel_withdbg.cz12b_c32r128
814480	0	1	0.0	4193.7	207.6	0.000	0.000	0.005	0.261	173902	37.5	0.214	15	236.8	337.6	101.2	4.620	82487	0	ma110806_rel_withdbg.cz12b_c32r128
799467	0	2	0.0	4133.3	204.1	0.000	0.000	0.005	0.261	180689	37.8	0.226	15	236.8	337.6	101.2	5.010	69391	0	ma120301_rel_withdbg.cz12b_c32r128
806632	0	1	0.0	4156.4	205.7	0.000	0.000	0.005	0.261	175644	37.8	0.218	15	236.8	337.6	101.3	4.843	81290	0	ma130000_rel_withdbg.cz12b_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
1.094	9.224	0.000	0.000	5.081	3.857	4218.1	238619	151.9	3.752	19.07	58.52	2.737	39.47	0.000	0.000	9.768	21.40	13.37	5.352	54.80	40.46		ma100230_rel_withdbg.cz12a_c32r128
1.146	8.955	0.000	0.000	6.526	5.042	3809.6	214292	116.3	3.214	17.85	58.11	3.029	26.71	0.000	0.000	9.416	8.031	12.40	4.836	46.70	36.36		ma100244_rel_withdbg.cz12a_c32r128
2.111	25.01	0.000	0.000	5.849	4.687	3701.1	210934	112.5	3.241	17.68	61.04	1.511	50.82	0.000	0.000	7.839	45.42	11.10	4.720	48.65	34.42		ma100339_rel_withdbg.cz12a_c32r128
2.057	23.22	0.003	0.052	6.598	4.687	3678.4	209187	111.6	3.237	18.45	60.56	2.256	33.54	0.000	0.000	7.439	19.42	11.07	4.799	48.97	34.40		ma100434_rel_withdbg.cz12a_c32r128
0.677	4.110	0.000	0.000	2.817	4.263	3359.2	131574	114.5	3.237	5.278	39.16	2.174	13.37	0.000	0.000	2.752	5.177	23.91	1.903	16.29	18.71		ma100529_rel_withdbg.cz12a_c32r128
0.438	3.548	0.002	0.037	9.330	2.807	2324.2	110209	63.39	3.054	43.81	53.52	1.786	14.52	0.000	0.000	5.746	12.79	15.90	3.891	83.50	18.76		ma100625_rel_withdbg.cz12a_c32r128
1.554	10.60	0.000	0.000	39.76	5.037	4558.8	223287	148.6	3.348	94.73	52.71	3.521	83.86	0.000	0.000	13.83	32.74	31.18	10.86	333.8	43.74		ma101116_rel_withdbg.cz12a_c32r128
0.943	7.928	0.000	0.000	27.79	3.623	4318.9	218614	157.9	3.667	88.10	54.10	3.373	44.12	0.000	0.000	12.30	20.72	74.41	5.811	259.5	44.61		ma101116_rel_withdbg.cz12b_c32r128
1.454	9.687	0.000	0.000	42.62	4.773	4098.2	207459	159.2	3.915	74.53	54.55	3.213	34.29	0.000	0.000	12.95	11.75	70.93	5.662	204.2	42.13		ma110410_rel_withdbg.cz12b_c32r128
1.427	9.920	0.000	0.000	38.33	4.764	4193.7	212611	165.4	4.010	80.03	55.16	2.265	80.45	0.000	0.000	13.28	37.16	69.22	5.958	226.8	43.74		ma110806_rel_withdbg.cz12b_c32r128
1.460	9.961	0.000	0.000	37.47	4.899	4133.3	209025	162.7	3.994	78.13	54.65	2.794	50.94	0.000	0.000	12.52	22.00	67.55	5.964	211.2	42.81		ma120301_rel_withdbg.cz12b_c32r128
1.316	9.366	0.000	0.000	38.59	4.937	4156.4	210627	164.8	4.011	77.18	54.33	3.769	22.03	0.000	0.000	14.35	5.892	67.43	5.811	212.3	43.00		ma130000_rel_withdbg.cz12b_c32r128

l.x

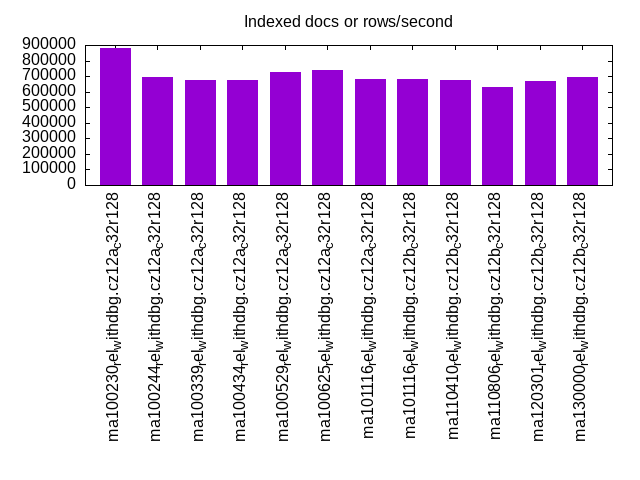

l.x: create secondary indexes.

Average throughput:

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
883002	0	8795	788.0	13652.3	904.0	0.010	0.914	0.015	1.048	61065	19.0	0.069	7	545.2	646.0	105.2	0.005	NA	NA	ma100230_rel_withdbg.cz12a_c32r128
695383	0	7022	636.0	8299.7	750.8	0.010	0.936	0.012	1.106	23562	14.8	0.034	7	545.2	646.0	105.1	0.006	NA	NA	ma100244_rel_withdbg.cz12a_c32r128
672269	0	6806	615.5	8076.6	727.1	0.010	0.938	0.012	1.107	23607	14.5	0.035	7	545.2	647.0	105.0	0.005	NA	NA	ma100339_rel_withdbg.cz12a_c32r128
675549	0	6869	619.3	8109.1	730.8	0.010	0.939	0.012	1.108	21666	14.4	0.032	7	539.6	641.5	NA	0.002	NA	NA	ma100434_rel_withdbg.cz12a_c32r128
725222	0	7287	656.5	8996.2	754.6	0.010	0.927	0.012	1.065	36552	18.6	0.050	8	539.6	641.9	101.5	0.005	NA	NA	ma100529_rel_withdbg.cz12a_c32r128
739675	0	8306	690.1	8696.8	762.6	0.011	0.955	0.012	1.056	30575	17.9	0.041	8	501.7	602.5	101.6	0.005	NA	NA	ma100625_rel_withdbg.cz12a_c32r128
682723	0	7682	632.8	8248.4	705.4	0.011	0.949	0.012	1.058	28888	17.3	0.042	8	501.7	602.5	101.6	0.004	NA	NA	ma101116_rel_withdbg.cz12a_c32r128
679245	0	7606	630.4	8454.4	705.3	0.011	0.950	0.012	1.063	29950	17.4	0.044	8	501.7	602.5	101.6	0.005	NA	NA	ma101116_rel_withdbg.cz12b_c32r128
672143	0	7551	622.4	8372.2	698.2	0.011	0.948	0.012	1.064	29975	17.1	0.045	8	501.7	602.5	101.6	0.004	NA	NA	ma110410_rel_withdbg.cz12b_c32r128
632800	0	7105	584.8	7888.8	657.1	0.011	0.946	0.012	1.063	28962	17.1	0.046	9	501.7	602.5	101.5	0.003	NA	NA	ma110806_rel_withdbg.cz12b_c32r128
671642	0	7515	622.1	8357.5	697.4	0.011	0.949	0.012	1.063	30509	16.7	0.045	8	501.7	602.5	101.5	0.001	NA	NA	ma120301_rel_withdbg.cz12b_c32r128
694310	0	7842	647.4	8636.6	721.0	0.011	0.955	0.012	1.063	31227	17.1	0.045	8	501.7	602.5	101.5	0.005	NA	NA	ma130000_rel_withdbg.cz12b_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
8795.4	806929	0.036	0.000	1.466	92.97	13652.3	925714	199.3	2.484	23.76	107.4	9.073	75039.0	0.000	0.000	0.424	240.9	15.31	27.05	63.88	92.32		ma100230_rel_withdbg.cz12a_c32r128
7022.0	651217	0.000	0.000	1.912	111.6	8299.7	768857	184.6	2.071	37.10	98.11	6.632	57266.8	0.000	0.000	0.376	391.9	12.64	23.72	114.1	93.89		ma100244_rel_withdbg.cz12a_c32r128
6806.3	630312	0.000	0.000	2.072	111.9	8076.6	744537	181.4	1.980	43.05	98.22	6.804	57849.1	0.000	0.000	0.177	334.1	12.94	27.71	118.3	94.05		ma100339_rel_withdbg.cz12a_c32r128
6868.7	634212	0.000	0.000	1.805	111.5	8109.1	748326	180.6	2.117	39.04	97.72	6.404	55688.2	0.000	0.000	0.198	317.1	12.35	29.90	119.3	94.06		ma100434_rel_withdbg.cz12a_c32r128
7286.8	672230	0.035	0.001	2.518	109.9	8996.2	772660	204.2	2.366	37.39	108.5	7.190	62424.3	0.000	0.000	0.156	260.1	30.02	18.97	150.0	87.51		ma100529_rel_withdbg.cz12a_c32r128
8305.7	706626	0.000	0.000	3.113	112.0	8696.8	780862	167.4	1.603	41.05	110.5	7.061	60295.0	0.000	0.000	0.199	216.8	25.05	37.68	195.1	96.62		ma100625_rel_withdbg.cz12a_c32r128
7682.0	647959	0.000	0.000	4.264	107.7	8248.4	722334	142.3	1.719	63.60	97.05	6.577	56220.1	0.000	0.000	0.202	258.4	24.71	29.79	223.1	93.62		ma101116_rel_withdbg.cz12a_c32r128
7605.5	645553	0.000	0.000	2.973	112.2	8454.4	722269	179.6	2.113	57.36	94.71	6.894	58402.4	0.000	0.000	0.215	353.5	36.12	19.13	216.1	95.04		ma101116_rel_withdbg.cz12b_c32r128
7550.9	637317	0.000	0.000	2.541	102.8	8372.2	714913	179.2	2.153	57.45	93.45	6.643	55442.9	0.000	0.000	0.140	266.9	35.19	13.71	227.1	93.55		ma110410_rel_withdbg.cz12b_c32r128
7104.7	598884	0.014	0.001	1.782	111.6	7888.8	672917	169.4	2.456	37.00	92.90	6.462	54408.3	0.000	0.000	0.434	433.4	31.72	15.57	208.2	93.08		ma110806_rel_withdbg.cz12b_c32r128
7514.6	637053	0.000	0.000	2.531	108.3	8357.5	714157	181.2	2.027	49.84	93.88	6.656	57823.6	0.000	0.000	0.232	296.2	34.26	20.86	227.6	94.13		ma120301_rel_withdbg.cz12b_c32r128
7842.3	662911	0.000	0.000	2.511	111.0	8636.6	738260	192.6	1.970	52.18	96.49	6.905	59755.1	0.000	0.000	0.327	292.4	34.77	20.54	241.8	96.93		ma130000_rel_withdbg.cz12b_c32r128

l.i1

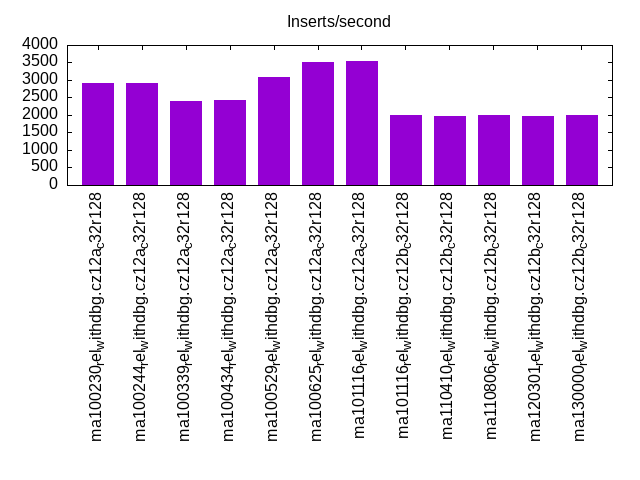

l.i1: continue load after secondary indexes created with 50 inserts per transaction. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128	0.001	1.265	79.988	17.970	0.345	0.431	10.840
ma100244_rel_withdbg.cz12a_c32r128	0.001	0.991	80.671	17.505	0.387	0.444	10.939
ma100339_rel_withdbg.cz12a_c32r128	nonzero	0.525	67.648	30.904	0.408	0.514	11.215
ma100434_rel_withdbg.cz12a_c32r128	nonzero	0.525	68.182	30.381	0.401	0.511	10.699
ma100529_rel_withdbg.cz12a_c32r128	0.011	15.422	59.644	24.368	0.402	0.153	11.047
ma100625_rel_withdbg.cz12a_c32r128	0.001	10.288	71.958	16.936	0.477	0.340	9.262
ma101116_rel_withdbg.cz12a_c32r128	nonzero	6.192	77.509	15.708	0.271	0.320	10.046
ma101116_rel_withdbg.cz12b_c32r128		0.193	57.901	40.999	0.904	0.003	5.498
ma110410_rel_withdbg.cz12b_c32r128		0.148	55.934	42.800	1.111	0.007	5.483
ma110806_rel_withdbg.cz12b_c32r128		0.066	55.907	43.117	0.899	0.011	5.760
ma120301_rel_withdbg.cz12b_c32r128		0.132	56.060	42.776	1.025	0.007	5.810
ma130000_rel_withdbg.cz12b_c32r128		0.125	56.335	42.489	1.041	0.010	6.485

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For the max column values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128	0.031	20.532	69.306	9.545	0.318	0.267	10.224
ma100244_rel_withdbg.cz12a_c32r128	0.007	19.938	70.020	9.429	0.339	0.266	10.900
ma100339_rel_withdbg.cz12a_c32r128	0.002	21.117	55.744	22.447	0.399	0.291	11.170
ma100434_rel_withdbg.cz12a_c32r128	0.005	20.431	56.709	22.185	0.359	0.310	10.540
ma100529_rel_withdbg.cz12a_c32r128	0.041	48.994	33.348	17.249	0.281	0.087	10.985
ma100625_rel_withdbg.cz12a_c32r128	0.472	35.816	46.901	16.194	0.358	0.259	9.253
ma101116_rel_withdbg.cz12a_c32r128	0.257	30.604	53.764	14.858	0.281	0.236	9.254
ma101116_rel_withdbg.cz12b_c32r128	0.018	1.507	65.428	32.750	0.294	0.003	5.436
ma110410_rel_withdbg.cz12b_c32r128	0.034	1.385	65.371	32.708	0.495	0.006	5.401
ma110806_rel_withdbg.cz12b_c32r128	0.004	1.341	65.164	33.127	0.355	0.008	5.658
ma120301_rel_withdbg.cz12b_c32r128	0.026	1.461	65.375	32.688	0.445	0.006	5.777
ma130000_rel_withdbg.cz12b_c32r128	0.040	1.503	65.142	32.902	0.405	0.008	5.914

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
2920	0	13139	205.3	19346.0	477.4	4.500	72.000	6.626	167.439	115641	7.1	39.607	778	727.9	830.7	104.7	10.840	250	0	ma100230_rel_withdbg.cz12a_c32r128
2907	0	13208	206.4	19683.8	485.8	4.543	72.691	6.771	171.119	112501	7.8	38.699	859	727.4	830.2	104.7	10.939	300	0	ma100244_rel_withdbg.cz12a_c32r128
2403	0	12679	198.1	18746.8	471.2	5.276	84.419	7.801	200.771	107953	6.4	44.922	852	707.8	810.1	104.5	11.215	200	0	ma100339_rel_withdbg.cz12a_c32r128
2423	0	12861	201.0	18964.1	476.8	5.309	84.939	7.828	201.544	107953	6.4	44.559	845	707.4	809.8	NA	10.699	200	0	ma100434_rel_withdbg.cz12a_c32r128
3093	0	15524	242.6	17580.6	484.2	5.019	80.305	5.684	160.295	182651	7.7	59.055	797	690.6	793.5	101.8	11.047	250	0	ma100529_rel_withdbg.cz12a_c32r128
3514	0	18557	290.0	18381.8	506.7	5.281	84.497	5.231	147.652	218751	8.2	62.253	747	649.2	751.5	101.3	9.262	300	0	ma100625_rel_withdbg.cz12a_c32r128
3544	0	18664	291.6	18090.7	497.5	5.265	84.247	5.104	143.729	241079	8.1	68.015	731	649.3	751.5	101.3	10.046	350	0	ma101116_rel_withdbg.cz12a_c32r128
2010	0	10576	165.2	10825.6	275.9	5.262	84.199	5.387	140.574	154382	5.2	76.818	828	649.3	751.7	101.3	5.498	150	50	ma101116_rel_withdbg.cz12b_c32r128
1975	0	10504	164.1	10814.4	275.9	5.318	85.090	5.475	143.033	146092	4.5	73.963	729	648.6	751.0	101.3	5.483	150	50	ma110410_rel_withdbg.cz12b_c32r128
1989	0	10580	165.3	10952.3	277.9	5.318	85.080	5.506	143.063	146693	4.4	73.741	708	648.6	751.0	100.3	5.760	150	50	ma110806_rel_withdbg.cz12b_c32r128
1982	0	10541	164.7	10851.9	276.9	5.319	85.102	5.475	143.077	147150	4.4	74.247	710	648.7	751.1	101.3	5.810	150	50	ma120301_rel_withdbg.cz12b_c32r128
1989	0	10577	165.3	10921.9	277.9	5.318	85.081	5.491	143.051	146123	4.4	73.465	708	648.6	751.0	101.3	6.485	150	50	ma130000_rel_withdbg.cz12b_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
13138.8	210218	0.002	0.000	0.730	16.00	19346.0	488871	174.6	1.086	9.688	25.46	0.046	0.363	0.000	0.000	0.748	0.488	5.849	6.637	40.62	99.97		ma100230_rel_withdbg.cz12a_c32r128
13207.5	211319	0.000	0.000	0.727	16.00	19683.8	497460	180.8	1.064	10.43	25.49	0.095	30.24	0.000	0.000	1.741	53.62	5.822	6.428	40.55	99.90		ma100244_rel_withdbg.cz12a_c32r128
12679.3	202868	0.000	0.000	0.720	16.00	18746.8	482473	130.1	0.789	9.882	25.88	0.017	5.698	0.000	0.000	1.912	27.20	4.999	5.995	38.61	99.97		ma100339_rel_withdbg.cz12a_c32r128
12861.4	205782	0.000	0.000	0.688	16.00	18964.1	488280	134.9	0.813	10.03	25.90	0.017	17.48	0.000	0.000	2.032	84.91	5.113	6.124	39.20	99.95		ma100434_rel_withdbg.cz12a_c32r128
15523.8	248375	0.000	0.000	0.510	16.00	17580.6	495776	68.00	0.368	2.071	28.21	0.017	1.377	0.000	0.000	0.750	6.468	11.06	6.769	25.61	97.11		ma100529_rel_withdbg.cz12a_c32r128
18557.1	296913	0.000	0.000	0.594	15.99	18381.8	518834	265.0	1.428	8.213	28.36	0.077	0.367	0.000	0.000	2.394	0.582	12.10	14.26	42.40	98.96		ma100625_rel_withdbg.cz12a_c32r128
18663.5	298614	0.000	0.000	0.640	16.00	18090.7	509448	223.4	1.621	13.40	28.40	0.029	3.256	0.000	0.000	2.994	14.77	12.37	17.81	41.06	98.90		ma101116_rel_withdbg.cz12a_c32r128
10576.0	169215	0.000	0.000	0.888	16.00	10825.6	282511	496.2	4.081	0.636	26.12	0.020	0.104	0.000	0.000	0.489	0.435	814.0	1.034	13.67	97.53		ma101116_rel_withdbg.cz12b_c32r128
10504.4	168069	0.000	0.000	0.866	16.00	10814.4	282519	570.3	4.702	0.596	26.16	0.015	0.172	0.000	0.000	0.335	0.805	815.4	1.029	13.15	97.46		ma110410_rel_withdbg.cz12b_c32r128
10579.7	169251	0.001	0.000	0.855	16.00	10952.3	284594	556.7	4.559	0.598	26.01	0.016	1.373	0.000	0.000	0.395	6.663	820.7	1.013	13.21	97.41		ma110806_rel_withdbg.cz12b_c32r128
10541.4	168663	0.000	0.000	0.859	16.00	10851.9	283565	561.5	4.610	0.611	26.16	0.015	1.762	0.000	0.000	0.401	8.250	818.2	1.023	13.26	97.46		ma120301_rel_withdbg.cz12b_c32r128
10576.6	169226	0.000	0.000	0.861	16.00	10921.9	284529	583.9	4.759	0.606	26.08	0.015	0.072	0.000	0.000	0.351	0.322	821.3	1.019	13.18	97.48		ma130000_rel_withdbg.cz12b_c32r128

l.i2

l.i2: continue load after secondary indexes created with 5 inserts per transaction. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128		0.057	3.300	20.288	47.977	27.599	0.396	0.368	0.016	7.903
ma100244_rel_withdbg.cz12a_c32r128		0.070	3.301	19.493	49.470	26.915	0.383	0.351	0.018	8.282
ma100339_rel_withdbg.cz12a_c32r128		0.220	7.175	30.550	48.931	12.623	0.250	0.235	0.015	8.502
ma100434_rel_withdbg.cz12a_c32r128		0.211	6.853	30.554	48.521	13.362	0.254	0.229	0.016	8.359
ma100529_rel_withdbg.cz12a_c32r128	nonzero	0.072	16.114	54.221	27.499	1.987	0.041	0.063	0.003	7.270
ma100625_rel_withdbg.cz12a_c32r128	nonzero	0.070	10.400	47.541	40.332	1.324	0.223	0.107	0.003	6.396
ma101116_rel_withdbg.cz12a_c32r128	nonzero	0.089	8.501	46.780	43.233	1.068	0.220	0.102	0.007	7.821
ma101116_rel_withdbg.cz12b_c32r128	nonzero	0.061	2.631	20.020	55.572	21.663	0.052	nonzero		1.167
ma110410_rel_withdbg.cz12b_c32r128	nonzero	0.058	2.504	18.881	56.491	22.005	0.057	0.003	nonzero	4.713
ma110806_rel_withdbg.cz12b_c32r128	nonzero	0.066	2.557	18.857	56.744	21.719	0.053	0.003	nonzero	4.806
ma120301_rel_withdbg.cz12b_c32r128		0.067	2.561	18.926	56.576	21.809	0.057	0.003		2.560
ma130000_rel_withdbg.cz12b_c32r128		0.065	2.552	19.029	56.727	21.574	0.050	0.004	nonzero	4.169

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128		0.463	9.079	20.308	44.853	24.770	0.325	0.197	0.005	7.425
ma100244_rel_withdbg.cz12a_c32r128		0.493	8.798	19.991	46.246	23.957	0.316	0.195	0.005	7.941
ma100339_rel_withdbg.cz12a_c32r128	nonzero	1.089	14.070	31.501	43.161	9.821	0.219	0.136	0.004	8.095
ma100434_rel_withdbg.cz12a_c32r128	nonzero	0.986	13.920	31.203	42.852	10.688	0.210	0.136	0.005	7.603
ma100529_rel_withdbg.cz12a_c32r128	nonzero	0.404	31.897	42.171	24.361	1.078	0.040	0.046	0.001	7.254
ma100625_rel_withdbg.cz12a_c32r128	nonzero	0.336	21.727	38.737	38.098	0.797	0.216	0.087	0.002	6.366
ma101116_rel_withdbg.cz12a_c32r128	nonzero	0.445	17.354	42.361	38.855	0.683	0.211	0.086	0.005	7.748
ma101116_rel_withdbg.cz12b_c32r128	nonzero	0.332	6.444	27.458	46.098	19.634	0.034			0.952
ma110410_rel_withdbg.cz12b_c32r128	nonzero	0.266	6.025	25.646	47.848	20.169	0.043	0.003	nonzero	4.795
ma110806_rel_withdbg.cz12b_c32r128	nonzero	0.305	6.105	25.627	47.973	19.949	0.039	0.002	nonzero	4.800
ma120301_rel_withdbg.cz12b_c32r128	nonzero	0.295	6.164	25.715	47.832	19.949	0.044	0.002		2.404
ma130000_rel_withdbg.cz12b_c32r128	nonzero	0.290	6.056	25.864	47.965	19.784	0.039	0.003	nonzero	4.044

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1138	0	13371	208.9	18130.4	481.1	11.755	188.081	15.939	433.112	84055	6.8	73.894	1913	727.9	830.8	104.7	7.903	70	0	ma100230_rel_withdbg.cz12a_c32r128
1147	0	13235	206.8	17989.6	476.6	11.541	184.658	15.687	425.529	83021	7.5	72.394	2093	727.4	830.2	104.7	8.282	70	0	ma100244_rel_withdbg.cz12a_c32r128
1643	0	12559	196.2	17821.7	463.7	7.646	122.328	10.849	289.085	97392	6.7	59.288	1305	707.8	810.1	104.5	8.502	100	0	ma100339_rel_withdbg.cz12a_c32r128
1622	0	12630	197.3	17876.2	465.3	7.788	124.605	11.022	293.780	96383	6.7	59.429	1322	707.4	809.8	NA	8.359	95	0	ma100434_rel_withdbg.cz12a_c32r128
3601	0	15220	237.8	16767.0	465.5	4.226	67.618	4.656	132.365	191552	8.6	53.188	764	690.6	793.5	101.8	7.270	300	0	ma100529_rel_withdbg.cz12a_c32r128
2544	0	19991	312.4	17218.0	485.4	7.856	125.702	6.767	195.361	204589	8.6	80.404	1082	649.2	751.5	101.3	6.396	125	0	ma100625_rel_withdbg.cz12a_c32r128
2421	0	18993	296.8	16366.8	460.9	7.846	125.535	6.761	194.942	217061	8.1	89.665	1071	649.3	751.5	101.3	7.821	135	0	ma101116_rel_withdbg.cz12a_c32r128
1507	0	11860	185.3	10876.6	282.1	7.872	125.947	7.219	191.703	143161	5.5	95.016	1168	649.3	751.7	101.3	1.167	85	40	ma101116_rel_withdbg.cz12b_c32r128
1476	0	11785	184.1	10871.8	282.0	7.985	127.752	7.366	195.649	139915	4.4	94.793	954	648.6	751.0	101.3	4.713	85	35	ma110410_rel_withdbg.cz12b_c32r128
1484	0	11866	185.4	11045.3	284.8	7.998	127.975	7.445	196.548	140796	4.5	94.902	971	648.6	751.0	100.3	4.806	85	40	ma110806_rel_withdbg.cz12b_c32r128
1484	0	11852	185.2	10938.8	283.7	7.985	127.763	7.370	195.757	140981	4.4	94.988	949	648.7	751.1	101.3	2.560	85	40	ma120301_rel_withdbg.cz12b_c32r128
1493	0	11920	186.3	11040.4	285.5	7.984	127.746	7.395	195.818	141019	4.4	94.454	943	648.6	751.0	101.3	4.169	85	40	ma130000_rel_withdbg.cz12b_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
13371.4	213942	0.000	0.000	0.634	16.00	18130.4	492665	24.11	0.211	9.465	27.28	0.004	0.020	0.000	0.000	0.262	0.097	3.100	5.988	34.00	99.92		ma100230_rel_withdbg.cz12a_c32r128
13235.4	211766	0.000	0.000	0.688	16.00	17989.6	487996	18.79	0.169	10.44	27.24	0.004	0.018	0.000	0.000	0.493	0.086	3.094	6.155	33.57	99.92		ma100244_rel_withdbg.cz12a_c32r128
12559.3	200949	0.000	0.000	0.748	16.00	17821.7	474879	18.06	0.173	11.04	26.82	0.005	0.027	0.000	0.000	0.195	0.129	3.071	5.706	35.51	99.96		ma100339_rel_withdbg.cz12a_c32r128
12630.3	202084	0.000	0.000	0.719	16.00	17876.2	476452	18.76	0.177	11.03	26.82	0.008	0.035	0.000	0.000	0.934	0.160	3.094	5.678	35.90	99.95		ma100434_rel_withdbg.cz12a_c32r128
15220.0	243521	0.000	0.000	0.706	16.00	16767.0	476698	8.000	0.064	2.845	28.42	0.032	0.257	0.000	0.000	2.111	1.072	5.741	11.59	23.51	96.89		ma100529_rel_withdbg.cz12a_c32r128
19990.6	319849	0.000	0.000	0.472	16.00	17218.0	497096	1.440	0.020	7.061	28.98	0.006	0.053	0.000	0.000	0.406	0.263	7.623	12.62	32.96	99.27		ma100625_rel_withdbg.cz12a_c32r128
18993.4	303895	0.000	0.000	0.621	16.00	16366.8	471916	1.695	0.033	12.82	29.02	0.007	0.036	0.000	0.000	0.288	0.182	7.169	16.99	35.02	99.19		ma101116_rel_withdbg.cz12a_c32r128
11860.3	189764	0.000	0.000	0.797	16.00	10876.6	288839	1.647	0.018	0.478	26.59	0.005	0.032	0.000	0.000	0.125	0.147	860.0	1.058	12.23	98.52		ma101116_rel_withdbg.cz12b_c32r128
11785.2	188563	0.000	0.000	0.782	16.00	10871.8	288778	34.81	0.323	0.488	26.59	0.005	0.031	0.000	0.000	0.115	0.155	862.0	1.054	12.10	98.46		ma110410_rel_withdbg.cz12b_c32r128
11866.5	189864	0.000	0.000	0.776	16.00	11045.3	291599	2.707	0.027	0.460	26.43	0.005	0.039	0.000	0.000	0.124	0.195	871.0	1.037	12.04	98.47		ma110806_rel_withdbg.cz12b_c32r128
11851.6	189626	0.000	0.000	0.777	16.00	10938.8	290543	2.477	0.025	0.467	26.59	0.005	0.041	0.000	0.000	0.115	0.195	867.4	1.043	12.03	98.45		ma120301_rel_withdbg.cz12b_c32r128
11920.3	190725	0.000	0.000	0.774	16.00	11040.4	292356	35.10	0.320	0.454	26.51	0.005	0.045	0.000	0.000	0.127	0.220	873.1	1.033	12.03	98.49		ma130000_rel_withdbg.cz12b_c32r128

qr100.L1

qr100.L1: range queries with 100 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

Query response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	max
ma100230_rel_withdbg.cz12a_c32r128	99.792	0.158	0.049	0.001	nonzero	nonzero		0.138
ma100244_rel_withdbg.cz12a_c32r128	99.766	0.183	0.050	0.001	nonzero	nonzero		0.196
ma100339_rel_withdbg.cz12a_c32r128	99.751	0.198	0.050	0.001	nonzero	nonzero		0.132
ma100434_rel_withdbg.cz12a_c32r128	99.727	0.219	0.053	0.001	nonzero	nonzero	nonzero	0.936
ma100529_rel_withdbg.cz12a_c32r128	99.752	0.202	0.044	0.002	nonzero	nonzero		0.152
ma100625_rel_withdbg.cz12a_c32r128	99.471	0.457	0.062	0.008	0.001			0.058
ma101116_rel_withdbg.cz12a_c32r128	99.505	0.427	0.060	0.007	0.001	nonzero		0.076
ma101116_rel_withdbg.cz12b_c32r128	99.433	0.463	0.084	0.014	0.006	nonzero	nonzero	0.517
ma110410_rel_withdbg.cz12b_c32r128	99.390	0.494	0.088	0.018	0.010	0.001	nonzero	0.613
ma110806_rel_withdbg.cz12b_c32r128	99.395	0.491	0.090	0.017	0.007	0.001	nonzero	0.823
ma120301_rel_withdbg.cz12b_c32r128	99.421	0.468	0.085	0.017	0.007	0.001	nonzero	0.557
ma130000_rel_withdbg.cz12b_c32r128	99.424	0.466	0.087	0.017	0.006	nonzero	nonzero	0.726

Insert response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	16ms	64ms	256ms	1s	4s	max
ma100230_rel_withdbg.cz12a_c32r128	11.032	86.352	2.613	0.002		0.892
ma100244_rel_withdbg.cz12a_c32r128	12.995	84.303	2.701			0.238
ma100339_rel_withdbg.cz12a_c32r128	25.752	72.917	1.331			0.170
ma100434_rel_withdbg.cz12a_c32r128	20.329	78.495	1.174		0.002	1.074
ma100529_rel_withdbg.cz12a_c32r128	8.306	77.370	14.086	0.238		0.615
ma100625_rel_withdbg.cz12a_c32r128	19.762	79.338	0.900			0.188
ma101116_rel_withdbg.cz12a_c32r128	26.745	72.569	0.685			0.251
ma101116_rel_withdbg.cz12b_c32r128	35.083	54.056	7.613	3.169	0.079	1.583
ma110410_rel_withdbg.cz12b_c32r128	17.194	71.484	7.870	3.435	0.016	1.183
ma110806_rel_withdbg.cz12b_c32r128	22.808	65.854	9.076	2.215	0.046	1.612
ma120301_rel_withdbg.cz12b_c32r128	21.549	67.407	8.440	2.600	0.005	1.050
ma130000_rel_withdbg.cz12b_c32r128	20.581	67.991	9.549	1.852	0.028	1.176

Delete response time histogram: each cell has the percentage of responses that take <= the time in the header and max is the max response time in seconds. For max values in the top 25% of the range have a red background and in the bottom 25% of the range have a green background. The red background is not used when the min value is within 80% of the max value.

dbms	16ms	64ms	256ms	1s	4s	max
ma100230_rel_withdbg.cz12a_c32r128	50.123	49.157	0.720			0.224
ma100244_rel_withdbg.cz12a_c32r128	50.644	48.361	0.995			0.229
ma100339_rel_withdbg.cz12a_c32r128	57.130	42.486	0.384			0.136
ma100434_rel_withdbg.cz12a_c32r128	51.951	47.674	0.375			0.244
ma100529_rel_withdbg.cz12a_c32r128	19.046	71.745	9.134	0.074		0.481
ma100625_rel_withdbg.cz12a_c32r128	50.512	49.058	0.431			0.093
ma101116_rel_withdbg.cz12a_c32r128	62.736	37.000	0.264			0.103
ma101116_rel_withdbg.cz12b_c32r128	53.970	36.808	6.377	2.810	0.035	1.510
ma110410_rel_withdbg.cz12b_c32r128	38.213	51.794	6.694	3.280	0.019	1.326
ma110806_rel_withdbg.cz12b_c32r128	44.056	46.343	7.620	1.931	0.051	1.503
ma120301_rel_withdbg.cz12b_c32r128	43.093	47.630	7.058	2.220		0.901
ma130000_rel_withdbg.cz12b_c32r128	41.903	48.995	7.484	1.590	0.028	1.152

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1192	88968	5643	88.2	8732.4	247.3	0.063	1.015	7.326	212.435	528486	41.6	5.940	150	727.9	830.8	104.7	0.138	7503	5695	ma100230_rel_withdbg.cz12a_c32r128
1192	86823	5633	88.0	7725.7	219.3	0.065	1.038	6.481	188.380	514732	40.7	5.929	150	727.4	830.2	104.7	0.196	7343	5551	ma100244_rel_withdbg.cz12a_c32r128
1192	85629	5414	84.6	8076.9	228.5	0.063	1.012	6.776	196.289	510314	40.6	5.960	152	707.8	810.1	104.5	0.132	7215	5503	ma100339_rel_withdbg.cz12a_c32r128
1193	82951	5480	85.6	8562.0	242.0	0.066	1.057	7.179	207.747	494542	40.7	5.962	157	707.4	809.8	NA	0.936	6991	5295	ma100434_rel_withdbg.cz12a_c32r128
1193	81395	5229	81.7	2250.0	65.5	0.064	1.028	1.886	56.205	506600	40.1	6.224	158	690.6	793.5	101.7	0.152	6895	5615	ma100529_rel_withdbg.cz12a_c32r128
1192	83167	5364	83.8	2698.6	78.3	0.064	1.032	2.264	67.303	510344	39.6	6.136	152	649.2	751.5	101.3	0.058	7023	5823	ma100625_rel_withdbg.cz12a_c32r128
1192	85572	5366	83.8	2673.7	77.6	0.063	1.003	2.243	66.636	522896	39.7	6.111	148	649.3	751.5	101.3	0.076	7215	6063	ma101116_rel_withdbg.cz12a_c32r128
1193	83267	5382	84.1	2881.8	78.1	0.065	1.034	2.416	67.035	511506	38.9	6.143	149	649.3	751.7	101.3	0.517	7215	3344	ma101116_rel_withdbg.cz12b_c32r128
1192	81695	5424	84.8	2987.8	80.1	0.066	1.062	2.507	68.785	506653	38.3	6.202	150	648.6	751.0	101.3	0.613	7183	1168	ma110410_rel_withdbg.cz12b_c32r128
1193	81816	5424	84.7	2999.8	80.1	0.066	1.061	2.515	68.750	506736	38.6	6.194	151	648.6	751.0	100.3	0.823	7119	2224	ma110806_rel_withdbg.cz12b_c32r128
1193	83703	5424	84.8	2984.8	80.1	0.065	1.037	2.503	68.800	517208	39.7	6.179	152	648.7	751.1	101.3	0.557	7279	2240	ma120301_rel_withdbg.cz12b_c32r128
1193	85229	5427	84.8	2999.9	80.2	0.064	1.019	2.515	68.878	525670	39.9	6.168	150	648.6	751.0	101.3	0.726	7391	2512	ma130000_rel_withdbg.cz12b_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
5642.8	90278.2	0.000	0.000	0.241	16.00	8732.4	253223	15.80	0.189	0.793	29.03	0.003	0.024	0.000	0.000	0.026	0.099	2.469	3.090	6.853	37.51		ma100230_rel_withdbg.cz12a_c32r128
5633.4	90135.0	0.000	0.000	0.241	16.00	7725.7	224549	11.05	0.153	1.058	29.15	0.006	0.024	0.000	0.000	0.329	0.099	2.332	3.214	7.262	38.18		ma100244_rel_withdbg.cz12a_c32r128
5413.8	86620.6	0.000	0.000	0.225	16.00	8076.9	233976	12.91	0.169	0.758	29.01	0.004	0.029	0.000	0.000	0.057	0.088	2.328	2.671	6.166	34.77		ma100339_rel_withdbg.cz12a_c32r128
5480.5	87687.6	0.000	0.000	0.235	16.00	8562.0	247780	14.45	0.174	0.686	28.97	0.006	0.024	0.000	0.000	0.210	0.122	2.560	2.673	6.032	34.53		ma100434_rel_withdbg.cz12a_c32r128
5229.4	83670.1	0.000	0.000	0.131	16.00	2250.0	67035.3	1.747	0.305	0.273	45.41	0.011	0.051	0.000	0.000	0.119	0.238	1.206	0.924	1.123	17.87		ma100529_rel_withdbg.cz12a_c32r128
5363.9	85822.8	0.000	0.000	0.145	16.00	2698.6	80225.2	1.058	0.259	0.300	40.61	0.009	0.091	0.000	0.000	0.094	0.381	3.517	1.170	1.896	17.62		ma100625_rel_withdbg.cz12a_c32r128
5365.9	85854.1	0.000	0.000	0.143	16.00	2673.7	79429.9	1.178	0.294	0.286	40.57	0.007	0.071	0.000	0.000	0.084	0.221	3.427	1.134	1.767	17.01		ma101116_rel_withdbg.cz12a_c32r128
5382.1	86111.6	0.000	0.000	0.258	16.00	2881.8	79952.3	1.157	0.224	0.331	35.90	0.006	0.104	0.000	0.000	0.090	0.442	193.6	0.681	2.385	29.04		ma101116_rel_withdbg.cz12b_c32r128
5424.3	86788.8	0.000	0.000	0.274	16.00	2987.8	81991.4	10.16	0.533	0.290	37.07	0.007	0.060	0.000	0.000	0.106	0.254	228.4	0.638	2.423	29.41		ma110410_rel_withdbg.cz12b_c32r128
5423.8	86771.1	0.000	0.000	0.273	16.00	2999.8	81998.3	1.571	0.343	0.317	38.12	0.007	0.071	0.000	0.000	0.130	0.354	222.6	0.647	2.443	29.33		ma110806_rel_withdbg.cz12b_c32r128
5424.0	86784.1	0.000	0.000	0.270	16.00	2984.8	82057.7	1.551	0.328	0.299	37.16	0.008	0.349	0.000	0.000	0.272	1.735	223.1	0.646	2.420	29.10		ma120301_rel_withdbg.cz12b_c32r128
5426.8	86828.1	0.000	0.000	0.276	16.00	2999.9	82150.3	10.21	0.534	0.281	37.16	0.005	0.040	0.000	0.000	0.029	0.160	225.8	0.631	2.473	29.25		ma130000_rel_withdbg.cz12b_c32r128

qp100.L2

qp100.L2: point queries with 100 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	max
ma100230_rel_withdbg.cz12a_c32r128	0.004	30.136	64.725	4.984	0.143	0.009	nonzero		0.377
ma100244_rel_withdbg.cz12a_c32r128	0.003	30.875	63.628	5.320	0.170	0.004	nonzero	nonzero	3.788
ma100339_rel_withdbg.cz12a_c32r128	0.004	30.978	64.257	4.631	0.128	0.002			0.175
ma100434_rel_withdbg.cz12a_c32r128	0.003	29.305	65.832	4.728	0.130	0.002			0.256
ma100529_rel_withdbg.cz12a_c32r128	0.003	19.409	73.479	6.759	0.347	0.002	nonzero		0.318
ma100625_rel_withdbg.cz12a_c32r128	0.005	40.867	55.253	3.802	0.069	0.003	0.002	nonzero	2.141
ma101116_rel_withdbg.cz12a_c32r128	0.005	42.956	53.245	3.725	0.064	0.003	0.002	nonzero	2.328
ma101116_rel_withdbg.cz12b_c32r128	0.002	20.909	51.268	25.973	1.760	0.084	0.005	nonzero	1.217
ma110410_rel_withdbg.cz12b_c32r128	0.003	25.838	51.485	21.496	1.124	0.052	0.003	nonzero	1.039
ma110806_rel_withdbg.cz12b_c32r128	0.003	26.820	51.447	20.669	1.005	0.052	0.003	nonzero	1.338
ma120301_rel_withdbg.cz12b_c32r128	0.003	26.549	51.204	21.082	1.109	0.051	0.003		0.951
ma130000_rel_withdbg.cz12b_c32r128	0.003	27.701	50.460	20.705	1.074	0.056	0.002	nonzero	1.026

dbms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128	0.100	65.130	33.787	0.979	0.005		1.050
ma100244_rel_withdbg.cz12a_c32r128	0.039	63.905	35.368	0.655	0.028	0.005	4.052
ma100339_rel_withdbg.cz12a_c32r128	0.125	67.833	31.620	0.421			0.588
ma100434_rel_withdbg.cz12a_c32r128	0.157	70.113	29.461	0.264	0.005		1.025
ma100529_rel_withdbg.cz12a_c32r128	0.012	64.815	34.037	1.137			0.551
ma100625_rel_withdbg.cz12a_c32r128	0.169	91.958	7.262	0.488	0.106	0.016	5.414
ma101116_rel_withdbg.cz12a_c32r128	0.134	85.278	14.081	0.368	0.106	0.032	4.727
ma101116_rel_withdbg.cz12b_c32r128	0.060	22.627	66.384	10.593	0.336		1.492
ma110410_rel_withdbg.cz12b_c32r128	0.627	60.961	35.044	3.012	0.356		1.839
ma110806_rel_withdbg.cz12b_c32r128	0.750	62.134	33.586	3.183	0.347		1.757
ma120301_rel_withdbg.cz12b_c32r128	0.660	62.729	32.414	3.942	0.255		1.746
ma130000_rel_withdbg.cz12b_c32r128	0.806	60.356	34.009	4.512	0.317		1.700

dbms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128	0.569	76.590	22.162	0.678			0.848
ma100244_rel_withdbg.cz12a_c32r128	0.442	75.343	23.956	0.229	0.030		3.295
ma100339_rel_withdbg.cz12a_c32r128	0.748	76.958	22.062	0.231			0.511
ma100434_rel_withdbg.cz12a_c32r128	0.972	79.375	19.495	0.157			0.819
ma100529_rel_withdbg.cz12a_c32r128	0.062	76.079	23.319	0.539			0.437
ma100625_rel_withdbg.cz12a_c32r128	4.132	91.769	3.775	0.192	0.125	0.007	5.373
ma101116_rel_withdbg.cz12a_c32r128	0.606	91.417	7.646	0.197	0.113	0.021	4.069
ma101116_rel_withdbg.cz12b_c32r128	0.208	33.704	57.546	8.463	0.079		1.284
ma110410_rel_withdbg.cz12b_c32r128	12.118	62.468	22.556	2.683	0.176		1.455
ma110806_rel_withdbg.cz12b_c32r128	12.782	63.738	20.546	2.734	0.199		1.639
ma120301_rel_withdbg.cz12b_c32r128	12.347	64.215	20.005	3.308	0.125		1.410
ma130000_rel_withdbg.cz12b_c32r128	11.951	63.514	20.606	3.741	0.188		1.389

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1192	7286	55799	871.8	11387.7	272.3	7.658	122.526	9.553	233.964	182932	11.1	25.107	488	727.9	830.8	104.7	0.377	656	128	ma100230_rel_withdbg.cz12a_c32r128
1193	7213	55140	861.6	12012.5	288.4	7.645	122.319	10.072	247.604	181420	11.6	25.153	515	727.4	830.2	104.7	3.788	640	112	ma100244_rel_withdbg.cz12a_c32r128
1193	7470	56578	884.0	11328.5	267.5	7.574	121.189	9.498	229.629	188408	11.0	25.223	471	707.8	810.1	104.5	0.175	656	192	ma100339_rel_withdbg.cz12a_c32r128
1193	7429	56915	889.3	10963.9	263.1	7.661	122.582	9.193	225.860	185609	11.1	24.985	478	707.4	809.8	NA	0.256	656	240	ma100434_rel_withdbg.cz12a_c32r128
1192	6045	48056	750.9	8450.3	230.1	7.950	127.198	7.089	197.630	250331	10.4	41.412	551	690.6	793.5	101.7	0.318	528	48	ma100529_rel_withdbg.cz12a_c32r128
1192	8465	61749	964.8	8659.5	238.4	7.295	116.715	7.265	204.792	226448	10.5	26.751	397	649.2	751.5	101.3	2.141	816	80	ma100625_rel_withdbg.cz12a_c32r128
1192	8596	62564	977.6	8677.8	238.9	7.279	116.458	7.280	205.188	238151	10.7	27.706	398	649.3	751.5	101.3	2.328	832	80	ma101116_rel_withdbg.cz12a_c32r128
1193	3652	32276	504.3	8782.9	223.9	8.838	141.400	7.364	192.271	158428	7.0	43.379	613	649.3	751.7	101.3	1.217	304	16	ma101116_rel_withdbg.cz12b_c32r128
1192	4391	36661	572.8	8774.0	227.5	8.349	133.581	7.361	195.478	166921	7.1	38.013	517	648.6	751.0	101.3	1.039	352	16	ma110410_rel_withdbg.cz12b_c32r128
1192	4523	37485	585.7	8834.2	227.9	8.287	132.585	7.411	195.809	171212	7.2	37.852	509	648.6	751.0	100.3	1.338	368	16	ma110806_rel_withdbg.cz12b_c32r128
1191	4438	36959	577.5	8742.5	226.9	8.327	133.237	7.339	195.039	168032	7.1	37.860	512	648.7	751.1	101.3	0.951	352	16	ma120301_rel_withdbg.cz12b_c32r128
1191	4496	37316	583.1	8808.3	227.7	8.299	132.791	7.394	195.732	169171	7.1	37.625	505	648.6	751.0	101.3	1.026	384	16	ma130000_rel_withdbg.cz12b_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
55799.3	892723	0.000	0.000	0.220	16.00	11387.7	278885	9.537	0.090	0.355	24.73	0.004	0.049	0.000	0.000	0.083	0.243	1.695	3.213	15.06	99.97		ma100230_rel_withdbg.cz12a_c32r128
55139.7	882235	0.000	0.000	0.221	16.00	12012.5	295317	7.931	0.070	0.358	24.79	0.003	0.011	0.000	0.000	0.058	0.055	1.384	3.109	15.45	99.97		ma100244_rel_withdbg.cz12a_c32r128
56577.8	905245	0.000	0.000	0.214	16.00	11328.5	273878	10.61	0.099	0.308	24.44	0.003	0.027	0.000	0.000	0.133	0.133	1.491	3.002	14.74	99.97		ma100339_rel_withdbg.cz12a_c32r128
56915.0	910640	0.000	0.000	0.212	16.00	10963.9	269384	11.18	0.108	0.295	24.80	0.008	0.057	0.000	0.000	0.174	0.254	1.619	3.026	14.44	99.97		ma100434_rel_withdbg.cz12a_c32r128
48056.4	768902	0.000	0.000	0.195	16.00	8450.3	235575	8.644	0.113	0.174	27.95	0.012	0.057	0.000	0.000	0.271	0.243	1.225	2.710	9.992	98.05		ma100529_rel_withdbg.cz12a_c32r128
61749.4	987990	0.000	0.000	0.191	16.00	8659.5	244113	1.233	0.017	0.492	28.34	0.004	0.044	0.000	0.000	0.110	0.221	4.013	3.553	15.13	99.07		ma100625_rel_withdbg.cz12a_c32r128
62563.5	1001016	0.000	0.000	0.188	16.00	8677.8	244584	1.315	0.019	0.584	28.34	0.009	0.104	0.000	0.000	0.122	0.403	3.229	3.633	15.48	98.82		ma101116_rel_withdbg.cz12a_c32r128
32276.5	516423	0.000	0.000	0.538	16.00	8782.9	229321	1.438	0.019	0.389	26.19	0.012	0.181	0.000	0.000	0.232	0.787	657.2	1.077	17.09	99.19		ma101116_rel_withdbg.cz12b_c32r128
36661.3	586581	0.000	0.000	0.450	16.00	8774.0	233010	25.68	0.290	0.369	26.73	0.011	0.095	0.000	0.000	0.225	0.448	512.1	1.272	15.88	99.41		ma110410_rel_withdbg.cz12b_c32r128
37484.6	599709	0.000	0.000	0.438	16.00	8834.2	233404	2.360	0.031	0.366	26.59	0.014	0.075	0.000	0.000	0.224	0.365	509.4	1.265	15.70	99.38		ma110806_rel_withdbg.cz12b_c32r128
36959.1	591345	0.000	0.000	0.444	16.00	8742.5	232350	1.869	0.025	0.372	26.75	0.010	0.155	0.000	0.000	0.145	0.514	504.0	1.305	15.72	99.40		ma120301_rel_withdbg.cz12b_c32r128
37315.8	597053	0.000	0.000	0.443	16.00	8808.3	233176	26.08	0.294	0.359	26.64	0.013	0.086	0.000	0.000	0.243	0.409	514.5	1.251	15.74	99.38		ma130000_rel_withdbg.cz12b_c32r128

qr500.L3

qr500.L3: range queries with 500 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128	96.707	2.305	0.897	0.078	0.011	0.001	0.001	nonzero	nonzero	8.962
ma100244_rel_withdbg.cz12a_c32r128	96.399	2.491	1.021	0.075	0.011	0.001	0.001	nonzero	nonzero	8.660
ma100339_rel_withdbg.cz12a_c32r128	96.059	2.585	1.181	0.153	0.019	0.001	0.001	0.001	nonzero	8.961
ma100434_rel_withdbg.cz12a_c32r128	95.987	2.669	1.171	0.149	0.021	0.002	0.001	0.001	nonzero	9.347
ma100529_rel_withdbg.cz12a_c32r128	96.026	2.806	1.052	0.094	0.018	0.003	0.001	nonzero	nonzero	7.417
ma100625_rel_withdbg.cz12a_c32r128	93.512	4.562	1.781	0.111	0.029	0.002	0.003	nonzero	nonzero	4.335
ma101116_rel_withdbg.cz12a_c32r128	94.146	4.269	1.303	0.238	0.039	0.002	0.003	nonzero	nonzero	5.254
ma101116_rel_withdbg.cz12b_c32r128	94.823	3.424	1.395	0.282	0.074	0.003	nonzero			0.382
ma110410_rel_withdbg.cz12b_c32r128	93.511	4.272	1.354	0.634	0.215	0.013	nonzero			0.465
ma110806_rel_withdbg.cz12b_c32r128	93.605	4.374	1.173	0.619	0.217	0.012	nonzero			0.691
ma120301_rel_withdbg.cz12b_c32r128	93.699	4.294	1.168	0.608	0.219	0.013	nonzero			0.561
ma130000_rel_withdbg.cz12b_c32r128	93.753	4.245	1.150	0.626	0.216	0.011	nonzero			0.981

dbms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128	0.451	9.184	83.056	6.724	0.261	0.325	10.443
ma100244_rel_withdbg.cz12a_c32r128	0.676	9.906	82.763	6.075	0.235	0.344	9.341
ma100339_rel_withdbg.cz12a_c32r128	0.286	10.880	81.337	6.934	0.275	0.289	10.785
ma100434_rel_withdbg.cz12a_c32r128	1.196	10.768	80.804	6.674	0.287	0.272	10.536
ma100529_rel_withdbg.cz12a_c32r128	1.477	27.129	58.128	12.815	0.194	0.257	8.062
ma100625_rel_withdbg.cz12a_c32r128	3.894	60.472	34.443	0.950	0.139	0.102	8.644
ma101116_rel_withdbg.cz12a_c32r128	2.720	24.425	71.888	0.567	0.213	0.188	8.565
ma101116_rel_withdbg.cz12b_c32r128	0.833	6.650	79.229	13.258	0.029		1.548
ma110410_rel_withdbg.cz12b_c32r128	0.017	4.830	81.063	14.036	0.055		1.591
ma110806_rel_withdbg.cz12b_c32r128	0.108	6.175	79.756	13.926	0.035		1.590
ma120301_rel_withdbg.cz12b_c32r128	0.026	4.782	81.240	13.908	0.044		1.493
ma130000_rel_withdbg.cz12b_c32r128	0.052	5.554	80.686	13.665	0.044		1.692

dbms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128	1.274	21.812	74.858	1.603	0.243	0.210	10.354
ma100244_rel_withdbg.cz12a_c32r128	1.625	22.329	74.399	1.202	0.215	0.230	9.214
ma100339_rel_withdbg.cz12a_c32r128	0.936	22.308	74.155	2.162	0.241	0.199	10.553
ma100434_rel_withdbg.cz12a_c32r128	2.277	21.279	74.030	1.989	0.249	0.175	10.499
ma100529_rel_withdbg.cz12a_c32r128	2.750	44.746	43.425	8.728	0.156	0.195	7.911
ma100625_rel_withdbg.cz12a_c32r128	7.863	70.190	20.997	0.693	0.171	0.086	8.715
ma101116_rel_withdbg.cz12a_c32r128	6.098	30.413	62.769	0.326	0.272	0.122	8.173
ma101116_rel_withdbg.cz12b_c32r128	1.489	7.888	78.904	11.708	0.012		1.414
ma110410_rel_withdbg.cz12b_c32r128	0.091	8.955	79.400	11.527	0.028		1.555
ma110806_rel_withdbg.cz12b_c32r128	0.393	9.920	78.826	10.848	0.013		1.484
ma120301_rel_withdbg.cz12b_c32r128	0.155	8.463	80.351	11.009	0.022		1.368
ma130000_rel_withdbg.cz12b_c32r128	0.135	8.966	80.181	10.694	0.024		1.548

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
3764	60528	14438	225.6	19460.2	466.9	0.239	3.817	5.170	127.011	460348	42.2	7.606	223	727.9	830.8	104.7	8.962	5455	0	ma100230_rel_withdbg.cz12a_c32r128
3789	58277	14563	227.6	19703.2	470.9	0.250	3.998	5.200	127.245	441640	43.0	7.578	236	727.4	830.3	104.7	8.660	5247	0	ma100244_rel_withdbg.cz12a_c32r128
3839	54887	14216	222.1	19072.9	457.3	0.259	4.144	4.968	121.963	433918	39.6	7.906	231	707.8	810.1	104.5	8.961	4767	0	ma100339_rel_withdbg.cz12a_c32r128
3865	53761	14412	225.2	19294.3	464.2	0.268	4.289	4.992	122.972	427346	40.0	7.949	238	707.4	809.8	NA	9.347	4671	0	ma100434_rel_withdbg.cz12a_c32r128
3865	54823	14732	230.2	16715.4	461.2	0.269	4.300	4.324	122.189	475959	39.6	8.682	231	690.6	793.5	101.8	7.417	4847	0	ma100529_rel_withdbg.cz12a_c32r128
5493	51671	23275	363.7	18371.2	517.1	0.450	7.207	3.344	96.385	517493	38.9	10.015	241	649.2	751.5	101.3	4.335	4495	80	ma100625_rel_withdbg.cz12a_c32r128
4852	51077	18978	296.5	15836.1	443.1	0.372	5.945	3.264	93.520	559407	37.2	10.952	233	649.3	751.5	101.3	5.254	4447	0	ma101116_rel_withdbg.cz12a_c32r128
3255	50967	12186	190.4	11424.5	293.3	0.239	3.826	3.510	92.282	480290	35.1	9.424	220	649.3	751.7	101.3	0.382	4319	896	ma101116_rel_withdbg.cz12b_c32r128
3167	37123	12062	188.5	11323.8	291.3	0.325	5.199	3.575	94.196	410162	26.6	11.049	229	648.6	751.0	101.3	0.465	3072	736	ma110410_rel_withdbg.cz12b_c32r128
3232	37600	12291	192.1	11592.8	296.7	0.327	5.230	3.587	94.010	415623	26.9	11.054	229	648.6	751.0	100.3	0.691	3184	576	ma110806_rel_withdbg.cz12b_c32r128
3190	37823	12115	189.3	11413.0	293.6	0.320	5.125	3.578	94.248	416727	27.3	11.018	231	648.7	751.1	101.3	0.561	3168	704	ma120301_rel_withdbg.cz12b_c32r128
3219	38073	12253	191.4	11523.9	295.6	0.322	5.149	3.580	94.048	416817	27.2	10.948	229	648.6	751.0	101.3	0.981	3200	496	ma130000_rel_withdbg.cz12b_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
14438.0	231007	0.000	0.000	0.634	16.00	19460.2	478107	21.85	0.207	11.89	24.96	0.005	0.036	0.000	0.000	0.502	0.160	2.765	6.362	39.08	99.77		ma100230_rel_withdbg.cz12a_c32r128
14563.4	233015	0.000	0.000	0.668	16.00	19703.2	482182	19.52	0.181	11.16	24.89	0.006	0.022	0.000	0.000	0.800	0.112	2.834	6.261	38.17	99.73		ma100244_rel_withdbg.cz12a_c32r128
14216.1	227458	0.000	0.000	0.599	16.00	19072.9	468252	29.41	0.220	9.547	24.78	0.005	0.030	0.000	0.000	0.214	0.149	2.791	5.446	38.08	99.57		ma100339_rel_withdbg.cz12a_c32r128
14411.7	230587	0.000	0.000	0.631	16.00	19294.3	475335	31.19	0.238	10.14	24.88	0.010	0.056	0.000	0.000	0.720	0.240	3.028	5.858	38.26	99.81		ma100434_rel_withdbg.cz12a_c32r128
14732.0	235712	0.000	0.000	0.627	16.00	16715.4	472309	9.922	0.096	3.924	28.41	0.011	0.056	0.000	0.000	0.488	0.255	4.909	12.64	24.78	97.06		ma100529_rel_withdbg.cz12a_c32r128
23275.3	372404	0.000	0.000	0.471	16.00	18371.2	529469	1.432	0.017	6.295	29.06	0.023	0.193	0.000	0.000	0.850	0.718	7.684	12.69	31.50	97.67		ma100625_rel_withdbg.cz12a_c32r128
18978.0	303648	0.000	0.000	0.482	16.00	15836.1	453732	1.912	0.036	10.56	28.94	0.015	0.138	0.000	0.000	0.740	0.611	5.671	15.69	34.80	97.62		ma101116_rel_withdbg.cz12a_c32r128
12186.3	194980	0.000	0.000	0.782	16.00	11424.5	300369	4.840	0.045	0.517	26.35	0.007	0.110	0.000	0.000	0.152	0.522	905.1	0.977	12.61	96.66		ma101116_rel_withdbg.cz12b_c32r128
12061.9	192990	0.000	0.000	0.781	16.00	11323.8	298328	37.04	0.328	0.483	26.39	0.007	0.144	0.000	0.000	0.190	0.695	897.3	0.991	12.51	96.90		ma110410_rel_withdbg.cz12b_c32r128
12291.4	196663	0.000	0.000	0.763	16.00	11592.8	303793	5.252	0.048	0.457	26.25	0.007	0.104	0.000	0.000	0.115	0.503	906.1	0.973	12.36	96.84		ma110806_rel_withdbg.cz12b_c32r128
12114.7	193835	0.000	0.000	0.763	16.00	11413.0	300613	2.180	0.023	0.505	26.38	0.007	0.219	0.000	0.000	0.142	0.969	904.2	0.967	12.53	96.83		ma120301_rel_withdbg.cz12b_c32r128
12252.7	196044	0.000	0.000	0.760	16.00	11523.9	302742	38.44	0.334	0.488	26.32	0.007	0.131	0.000	0.000	0.172	0.632	908.8	0.968	12.53	96.87		ma130000_rel_withdbg.cz12b_c32r128

qp500.L4

qp500.L4: point queries with 500 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128		0.008	10.159	60.119	29.311	0.200	0.094	0.094	0.015	8.940
ma100244_rel_withdbg.cz12a_c32r128		0.005	8.962	61.800	28.834	0.184	0.107	0.095	0.013	9.212
ma100339_rel_withdbg.cz12a_c32r128		0.113	28.904	57.701	13.037	0.103	0.078	0.058	0.006	9.326
ma100434_rel_withdbg.cz12a_c32r128		0.095	28.809	58.419	12.439	0.100	0.075	0.057	0.006	9.704
ma100529_rel_withdbg.cz12a_c32r128	nonzero	1.182	59.272	35.093	4.194	0.236	0.014	0.009	0.001	6.018
ma100625_rel_withdbg.cz12a_c32r128			3.077	80.163	16.309	0.086	0.330	0.036	nonzero	4.091
ma101116_rel_withdbg.cz12a_c32r128		0.006	4.883	75.603	19.109	0.046	0.310	0.043	nonzero	4.558
ma101116_rel_withdbg.cz12b_c32r128		0.058	6.587	62.132	29.377	1.843	0.002			0.437
ma110410_rel_withdbg.cz12b_c32r128		0.069	6.446	62.241	29.295	1.942	0.007			0.723
ma110806_rel_withdbg.cz12b_c32r128	nonzero	0.076	6.746	62.333	29.251	1.586	0.007			0.711
ma120301_rel_withdbg.cz12b_c32r128		0.084	7.050	63.053	28.155	1.652	0.006			0.655
ma130000_rel_withdbg.cz12b_c32r128	nonzero	0.081	6.783	62.206	29.397	1.528	0.005			0.595

dbms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128	0.005	1.458	96.842	1.037	0.288	0.370	9.433
ma100244_rel_withdbg.cz12a_c32r128	0.002	1.249	97.050	0.995	0.341	0.363	9.590
ma100339_rel_withdbg.cz12a_c32r128	0.003	2.404	75.838	20.891	0.414	0.450	9.659
ma100434_rel_withdbg.cz12a_c32r128	0.020	2.399	73.802	22.859	0.457	0.462	10.349
ma100529_rel_withdbg.cz12a_c32r128		8.895	34.998	55.421	0.532	0.154	6.416
ma100625_rel_withdbg.cz12a_c32r128		1.181	97.926	0.249	0.341	0.303	8.410
ma101116_rel_withdbg.cz12a_c32r128	0.015	0.549	97.687	1.131	0.287	0.331	9.481
ma101116_rel_withdbg.cz12b_c32r128		0.048	60.656	38.756	0.540		1.560
ma110410_rel_withdbg.cz12b_c32r128		0.010	59.946	39.071	0.973		2.057
ma110806_rel_withdbg.cz12b_c32r128		0.056	59.877	39.257	0.809		2.227
ma120301_rel_withdbg.cz12b_c32r128	0.001	0.055	58.618	40.515	0.811		2.073
ma130000_rel_withdbg.cz12b_c32r128		0.047	59.803	39.420	0.730		1.931

dbms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128	0.006	8.092	90.976	0.393	0.262	0.271	9.367
ma100244_rel_withdbg.cz12a_c32r128	0.002	7.819	91.245	0.388	0.287	0.258	9.486
ma100339_rel_withdbg.cz12a_c32r128	0.002	9.594	69.341	20.344	0.405	0.314	9.587
ma100434_rel_withdbg.cz12a_c32r128	0.030	8.962	67.989	22.268	0.430	0.321	10.356
ma100529_rel_withdbg.cz12a_c32r128	0.027	16.969	29.046	53.346	0.483	0.128	6.371
ma100625_rel_withdbg.cz12a_c32r128		6.030	93.181	0.199	0.362	0.229	7.820
ma101116_rel_withdbg.cz12a_c32r128	0.017	2.407	95.938	1.070	0.314	0.253	9.176
ma101116_rel_withdbg.cz12b_c32r128		0.050	61.738	37.939	0.273		1.480
ma110410_rel_withdbg.cz12b_c32r128		0.031	60.774	38.588	0.607		2.057
ma110806_rel_withdbg.cz12b_c32r128	nonzero	0.082	60.718	38.714	0.485		2.116
ma120301_rel_withdbg.cz12b_c32r128	0.001	0.077	59.542	39.888	0.492		1.979
ma130000_rel_withdbg.cz12b_c32r128		0.068	60.699	38.805	0.428		1.902

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
3804	730	20158	315.0	19316.2	454.9	27.610	441.757	5.078	122.446	182903	9.7	250.518	4251	727.9	830.8	104.7	8.940	80	0	ma100230_rel_withdbg.cz12a_c32r128
3850	731	20297	317.1	19554.3	459.5	27.773	444.376	5.079	122.222	174589	10.4	238.901	4554	727.4	830.3	104.7	9.212	80	0	ma100244_rel_withdbg.cz12a_c32r128
2863	1154	23206	362.6	18295.1	447.9	20.105	321.686	6.390	160.190	163087	8.5	141.298	2357	707.8	810.1	104.6	9.326	80	0	ma100339_rel_withdbg.cz12a_c32r128
2811	1188	23538	367.8	18433.7	452.5	19.808	316.928	6.558	164.823	160417	8.6	134.997	2316	707.4	809.8	NA	9.704	80	0	ma100434_rel_withdbg.cz12a_c32r128
1920	2283	33472	523.0	15920.1	442.3	14.659	234.542	8.290	235.850	225078	9.6	98.572	1345	690.6	793.5	101.8	6.018	208	0	ma100529_rel_withdbg.cz12a_c32r128
4491	849	24176	377.7	16762.2	465.1	28.479	455.661	3.733	106.060	296922	9.4	349.772	3543	649.2	751.5	101.3	4.091	80	0	ma100625_rel_withdbg.cz12a_c32r128
4157	828	23025	359.8	16275.9	450.8	27.825	445.201	3.915	111.039	376712	9.3	455.241	3596	649.4	751.7	101.3	4.558	80	0	ma101116_rel_withdbg.cz12a_c32r128
2135	826	16931	264.5	10882.9	277.0	20.490	327.834	5.098	132.872	202637	6.1	245.234	2362	649.4	751.8	101.3	0.437	48	16	ma101116_rel_withdbg.cz12b_c32r128
2053	817	16694	260.8	10870.5	276.6	20.438	327.006	5.295	137.957	190706	5.7	233.479	2233	648.7	751.1	101.3	0.723	48	16	ma110410_rel_withdbg.cz12b_c32r128
2082	831	16946	264.8	11104.1	280.8	20.385	326.165	5.334	138.118	192753	5.7	231.869	2194	648.7	751.1	100.3	0.711	64	16	ma110806_rel_withdbg.cz12b_c32r128
2049	845	17005	265.7	10947.2	278.5	20.125	321.995	5.343	139.208	192427	5.6	227.725	2121	648.8	751.2	101.3	0.655	64	16	ma120301_rel_withdbg.cz12b_c32r128
2086	834	16985	265.4	11087.5	281.2	20.368	325.892	5.316	138.060	192272	5.7	230.570	2187	648.7	751.1	101.3	0.595	64	16	ma130000_rel_withdbg.cz12b_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
20157.9	322526	0.000	0.000	0.640	16.00	19316.2	465799	29.27	0.308	14.11	24.57	0.006	0.069	0.000	0.000	0.155	0.345	1.960	7.861	44.08	99.99		ma100230_rel_withdbg.cz12a_c32r128
20296.9	324750	0.000	0.000	0.622	16.00	19554.3	470578	30.70	0.271	13.03	24.49	0.006	0.029	0.000	0.000	0.904	0.143	2.014	7.968	43.90	99.98		ma100244_rel_withdbg.cz12a_c32r128
23205.7	371290	0.000	0.000	0.608	16.00	18295.1	458657	37.21	0.310	11.26	25.38	0.006	0.082	0.000	0.000	0.682	0.387	2.033	7.205	42.33	100.00		ma100339_rel_withdbg.cz12a_c32r128
23537.9	376606	0.000	0.000	0.586	16.00	18433.7	463318	37.75	0.319	11.33	25.38	0.010	0.061	0.000	0.000	1.635	0.299	2.102	7.527	42.25	99.99		ma100434_rel_withdbg.cz12a_c32r128
33472.1	535553	0.000	0.000	0.404	16.00	15920.1	452903	7.456	0.051	1.144	28.46	0.011	0.048	0.000	0.000	0.403	0.224	8.096	6.027	26.04	98.26		ma100529_rel_withdbg.cz12a_c32r128
24175.7	386811	0.000	0.000	0.761	16.00	16762.2	476273	1.839	0.040	12.92	28.61	0.007	0.075	0.000	0.000	0.595	0.333	5.065	20.15	43.48	98.77		ma100625_rel_withdbg.cz12a_c32r128
23025.2	368404	0.000	0.000	0.696	16.00	16275.9	461587	1.789	0.060	18.37	28.65	0.009	0.108	0.000	0.000	1.271	0.528	4.742	23.11	43.02	98.80		ma101116_rel_withdbg.cz12a_c32r128
16930.6	270889	0.000	0.000	0.948	16.00	10882.9	283655	6.554	0.065	0.509	26.07	0.007	0.092	0.000	0.000	0.162	0.439	883.3	1.042	18.68	98.08		ma101116_rel_withdbg.cz12b_c32r128
16693.6	267098	0.000	0.000	0.933	16.00	10870.5	283199	39.83	0.370	0.516	26.06	0.004	0.078	0.000	0.000	0.088	0.373	881.0	1.043	18.45	98.05		ma110410_rel_withdbg.cz12b_c32r128
16946.3	271141	0.000	0.000	0.919	16.00	11104.1	287520	8.543	0.083	0.478	25.90	0.006	0.061	0.000	0.000	0.140	0.280	894.4	1.019	18.38	98.04		ma110806_rel_withdbg.cz12b_c32r128
17005.4	272086	0.000	0.000	0.924	16.00	10947.2	285223	8.660	0.085	0.492	26.06	0.007	0.252	0.000	0.000	0.210	1.121	887.3	1.028	18.49	98.06		ma120301_rel_withdbg.cz12b_c32r128
16985.1	271762	0.000	0.000	0.921	16.00	11087.5	287952	40.95	0.374	0.469	25.97	0.006	0.057	0.000	0.000	0.189	0.265	895.8	1.018	18.41	98.07		ma130000_rel_withdbg.cz12b_c32r128

qr1000.L5

qr1000.L5: range queries with 1000 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128	76.361	21.511	1.985	0.117	0.023	0.001	0.001	0.001	nonzero	8.176
ma100244_rel_withdbg.cz12a_c32r128	78.334	19.424	2.109	0.106	0.023	0.001	0.001	0.001	nonzero	8.437
ma100339_rel_withdbg.cz12a_c32r128	93.557	4.364	1.967	0.098	0.012	0.001	0.001	0.001	nonzero	8.614
ma100434_rel_withdbg.cz12a_c32r128	93.066	4.860	1.953	0.103	0.014	0.001	0.001	0.001	nonzero	8.558
ma100529_rel_withdbg.cz12a_c32r128	94.694	4.535	0.654	0.094	0.019	0.002	0.001	nonzero	nonzero	7.426
ma100625_rel_withdbg.cz12a_c32r128	90.995	6.657	2.189	0.129	0.023	0.003	0.004	nonzero	nonzero	7.736
ma101116_rel_withdbg.cz12a_c32r128	91.617	6.417	1.849	0.097	0.013	0.003	0.004	nonzero	nonzero	9.045
ma101116_rel_withdbg.cz12b_c32r128	93.378	4.769	1.664	0.159	0.030	0.001	nonzero	nonzero	nonzero	4.258
ma110410_rel_withdbg.cz12b_c32r128	92.896	5.197	1.438	0.377	0.089	0.003	nonzero	nonzero	nonzero	4.229
ma110806_rel_withdbg.cz12b_c32r128	92.911	5.394	1.223	0.381	0.088	0.003	nonzero	nonzero		3.845
ma120301_rel_withdbg.cz12b_c32r128	93.115	5.159	1.258	0.377	0.088	0.003	nonzero	nonzero	nonzero	4.623
ma130000_rel_withdbg.cz12b_c32r128	93.220	5.082	1.235	0.374	0.086	0.002	nonzero	nonzero	nonzero	4.441

dbms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128	0.001	1.584	71.742	25.704	0.481	0.488	9.046
ma100244_rel_withdbg.cz12a_c32r128	0.004	1.700	72.333	24.943	0.537	0.483	8.942
ma100339_rel_withdbg.cz12a_c32r128	0.005	1.090	50.994	46.790	0.529	0.593	9.719
ma100434_rel_withdbg.cz12a_c32r128	0.002	1.047	51.837	46.022	0.501	0.591	10.580
ma100529_rel_withdbg.cz12a_c32r128	0.054	39.297	40.857	19.362	0.256	0.175	8.887
ma100625_rel_withdbg.cz12a_c32r128	0.002	15.197	63.258	20.792	0.378	0.372	8.190
ma101116_rel_withdbg.cz12a_c32r128	0.003	16.992	53.457	28.787	0.303	0.459	9.451
ma101116_rel_withdbg.cz12b_c32r128		0.143	48.536	50.699	0.607	0.015	5.419
ma110410_rel_withdbg.cz12b_c32r128		0.085	48.359	50.766	0.772	0.018	6.500
ma110806_rel_withdbg.cz12b_c32r128		0.114	48.117	51.074	0.681	0.014	5.103
ma120301_rel_withdbg.cz12b_c32r128		0.074	48.468	50.728	0.718	0.012	6.257
ma130000_rel_withdbg.cz12b_c32r128		0.089	48.592	50.686	0.617	0.016	5.259

dbms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128	0.003	7.544	68.660	22.979	0.455	0.360	8.996
ma100244_rel_withdbg.cz12a_c32r128	0.006	8.233	68.413	22.478	0.527	0.345	8.834
ma100339_rel_withdbg.cz12a_c32r128	0.008	8.922	46.142	43.972	0.542	0.415	9.553
ma100434_rel_withdbg.cz12a_c32r128	0.008	7.995	47.850	43.214	0.520	0.413	9.570
ma100529_rel_withdbg.cz12a_c32r128	0.295	53.777	30.028	15.542	0.221	0.138	8.743
ma100625_rel_withdbg.cz12a_c32r128	0.007	28.308	50.498	20.487	0.391	0.309	8.185
ma101116_rel_withdbg.cz12a_c32r128	0.009	30.741	40.181	28.354	0.328	0.386	9.449
ma101116_rel_withdbg.cz12b_c32r128		0.381	49.514	49.788	0.305	0.013	5.308
ma110410_rel_withdbg.cz12b_c32r128	nonzero	0.281	49.436	49.799	0.466	0.016	6.196
ma110806_rel_withdbg.cz12b_c32r128		0.312	49.267	50.001	0.409	0.012	5.120
ma120301_rel_withdbg.cz12b_c32r128		0.254	49.684	49.617	0.436	0.010	6.176
ma130000_rel_withdbg.cz12b_c32r128		0.290	49.779	49.549	0.368	0.014	5.175

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
2825	46550	13385	209.1	19086.1	471.5	0.288	4.601	6.755	170.892	369154	38.7	7.930	266	727.9	830.9	104.7	8.176	4207	0	ma100230_rel_withdbg.cz12a_c32r128
2862	45882	13602	212.5	19391.6	479.3	0.296	4.743	6.776	171.499	359092	39.9	7.826	278	727.4	830.3	104.7	8.437	4159	0	ma100244_rel_withdbg.cz12a_c32r128
2228	50031	12826	200.4	18017.0	458.6	0.256	4.102	8.088	210.817	380890	38.3	7.613	245	707.8	810.1	104.6	8.614	4527	0	ma100339_rel_withdbg.cz12a_c32r128
2237	48623	13019	203.4	18134.2	461.9	0.268	4.284	8.106	211.437	372735	38.1	7.666	251	707.4	809.8	NA	8.558	4415	0	ma100434_rel_withdbg.cz12a_c32r128
3841	57398	16173	252.7	16705.0	464.2	0.282	4.508	4.349	123.739	500120	40.3	8.713	225	690.6	793.6	101.8	7.426	5119	0	ma100529_rel_withdbg.cz12a_c32r128
3603	45185	18150	283.6	17494.2	486.8	0.402	6.427	4.855	138.354	467538	37.3	10.347	264	649.4	751.7	101.3	7.736	4111	0	ma100625_rel_withdbg.cz12a_c32r128
3202	47815	18359	286.9	17027.5	474.6	0.384	6.143	5.318	151.782	481165	37.5	10.063	251	649.4	751.7	101.3	9.045	4335	0	ma101116_rel_withdbg.cz12a_c32r128
2000	52878	11573	180.8	10831.8	278.1	0.219	3.502	5.417	142.433	449045	37.6	8.492	228	649.5	751.8	101.3	4.258	4479	1856	ma101116_rel_withdbg.cz12b_c32r128
1964	45551	11520	180.0	10797.8	277.4	0.253	4.046	5.499	144.646	406810	31.8	8.931	223	648.7	751.1	101.3	4.229	4015	1152	ma110410_rel_withdbg.cz12b_c32r128
1984	45904	11641	181.9	10978.8	280.3	0.254	4.057	5.532	144.645	409807	31.8	8.927	222	648.8	751.1	100.3	3.845	4047	1072	ma110806_rel_withdbg.cz12b_c32r128
1978	46389	11607	181.4	10863.2	279.1	0.250	4.003	5.491	144.463	412910	32.5	8.901	224	648.8	751.2	101.3	4.623	4063	1264	ma120301_rel_withdbg.cz12b_c32r128
1990	46903	11682	182.5	10984.1	281.3	0.249	3.985	5.519	144.734	415549	32.4	8.860	221	648.7	751.1	101.3	4.441	4127	1184	ma130000_rel_withdbg.cz12b_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
13385.4	214167	0.000	0.000	0.631	16.00	19086.1	482822	44.89	0.359	10.57	25.59	0.004	0.040	0.000	0.000	0.249	0.199	2.680	6.748	36.46	99.89		ma100230_rel_withdbg.cz12a_c32r128
13602.3	217637	0.000	0.000	0.620	16.00	19391.6	490760	43.80	0.304	8.828	25.58	0.005	0.028	0.000	0.000	0.473	0.131	2.709	6.770	35.31	99.85		ma100244_rel_withdbg.cz12a_c32r128
12826.0	205215	0.000	0.000	0.588	16.00	18017.0	469637	29.57	0.242	9.714	26.24	0.004	0.041	0.000	0.000	0.407	0.194	2.856	5.698	34.57	99.91		ma100339_rel_withdbg.cz12a_c32r128
13019.2	208307	0.000	0.000	0.582	16.00	18134.2	473007	30.12	0.245	9.340	26.27	0.009	0.047	0.000	0.000	0.970	0.234	2.927	5.977	34.84	99.90		ma100434_rel_withdbg.cz12a_c32r128
16172.6	258761	0.000	0.000	0.569	16.00	16705.0	475320	7.560	0.064	2.984	28.48	0.015	0.229	0.000	0.000	0.480	1.109	6.036	9.393	21.99	96.79		ma100529_rel_withdbg.cz12a_c32r128
18150.5	290408	0.000	0.000	0.558	16.00	17494.2	498491	1.942	0.028	6.864	28.54	0.011	0.091	0.000	0.000	0.482	0.439	5.527	18.60	34.09	99.21		ma100625_rel_withdbg.cz12a_c32r128
18359.2	293746	0.000	0.000	0.565	16.00	17027.5	485976	2.110	0.049	11.01	28.73	0.008	0.054	0.000	0.000	0.485	0.261	5.680	18.65	35.38	99.34		ma101116_rel_withdbg.cz12a_c32r128
11573.4	185174	0.000	0.000	0.845	16.00	10831.8	284809	2.636	0.027	0.474	26.30	0.007	0.133	0.000	0.000	0.181	0.608	879.4	1.024	12.22	97.78		ma101116_rel_withdbg.cz12b_c32r128
11519.7	184315	0.000	0.000	0.824	16.00	10797.8	284026	36.59	0.340	0.474	26.31	0.007	0.115	0.000	0.000	0.176	0.553	877.3	1.028	12.09	97.80		ma110410_rel_withdbg.cz12b_c32r128
11641.0	186255	0.000	0.000	0.815	16.00	10978.8	287047	3.546	0.035	0.452	26.15	0.008	0.133	0.000	0.000	0.188	0.648	886.7	1.008	12.06	97.79		ma110806_rel_withdbg.cz12b_c32r128
11607.4	185718	0.000	0.000	0.815	16.00	10863.2	285777	3.556	0.036	0.454	26.32	0.008	0.124	0.000	0.000	0.217	0.598	882.8	1.013	12.02	97.78		ma120301_rel_withdbg.cz12b_c32r128
11681.6	186905	0.000	0.000	0.815	16.00	10984.1	288050	37.30	0.340	0.434	26.23	0.007	0.105	0.000	0.000	0.185	0.491	889.7	1.003	12.01	97.81		ma130000_rel_withdbg.cz12b_c32r128

qp1000.L6

qp1000.L6: point queries with 1000 insert/s per client. Graphs for performance per 1-second interval are here.

Average throughput:

dbms	256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128	nonzero	0.287	38.533	56.946	4.060	0.065	0.064	0.040	0.003	7.969
ma100244_rel_withdbg.cz12a_c32r128		0.275	37.746	57.701	4.104	0.063	0.068	0.040	0.003	7.317
ma100339_rel_withdbg.cz12a_c32r128	nonzero	0.202	38.275	57.259	4.107	0.045	0.066	0.042	0.003	8.998
ma100434_rel_withdbg.cz12a_c32r128		0.159	36.566	58.902	4.208	0.053	0.066	0.043	0.003	8.980
ma100529_rel_withdbg.cz12a_c32r128		0.066	41.836	48.162	9.622	0.267	0.025	0.022	0.002	6.670
ma100625_rel_withdbg.cz12a_c32r128		0.615	48.771	49.287	1.141	0.039	0.143	0.004	nonzero	6.432
ma101116_rel_withdbg.cz12a_c32r128	nonzero	0.543	50.772	47.341	1.138	0.031	0.169	0.005	nonzero	8.042
ma101116_rel_withdbg.cz12b_c32r128	nonzero	0.133	11.390	79.176	9.183	0.118	nonzero	nonzero	nonzero	5.229
ma110410_rel_withdbg.cz12b_c32r128	nonzero	0.180	12.023	78.587	9.071	0.139	nonzero	nonzero		1.376
ma110806_rel_withdbg.cz12b_c32r128	nonzero	0.200	12.458	78.405	8.845	0.092	nonzero	nonzero	nonzero	4.628
ma120301_rel_withdbg.cz12b_c32r128	nonzero	0.201	12.328	78.361	9.005	0.104	0.001	0.001		3.816
ma130000_rel_withdbg.cz12b_c32r128	nonzero	0.202	12.236	78.676	8.798	0.087	nonzero	nonzero		1.375

dbms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128	0.003	0.907	40.202	57.418	0.782	0.689	8.850
ma100244_rel_withdbg.cz12a_c32r128	0.001	0.734	40.909	56.872	0.839	0.644	8.208
ma100339_rel_withdbg.cz12a_c32r128	0.003	3.145	40.537	55.001	0.642	0.672	9.626
ma100434_rel_withdbg.cz12a_c32r128	0.004	2.881	40.762	55.034	0.660	0.659	9.661
ma100529_rel_withdbg.cz12a_c32r128	nonzero	30.287	33.810	35.278	0.403	0.221	7.665
ma100625_rel_withdbg.cz12a_c32r128	0.005	12.626	42.811	43.672	0.430	0.456	7.485
ma101116_rel_withdbg.cz12a_c32r128	0.002	11.822	43.540	43.795	0.322	0.518	9.127
ma101116_rel_withdbg.cz12b_c32r128	0.001	0.013	11.406	87.635	0.940	0.006	6.043
ma110410_rel_withdbg.cz12b_c32r128		0.034	9.613	88.510	1.843		2.345
ma110806_rel_withdbg.cz12b_c32r128		0.011	8.935	90.182	0.866	0.006	5.436
ma120301_rel_withdbg.cz12b_c32r128		0.026	9.635	89.159	1.172	0.009	4.656
ma130000_rel_withdbg.cz12b_c32r128		0.010	8.991	90.133	0.867		2.403

dbms	16ms	64ms	256ms	1s	4s	16s	max
ma100230_rel_withdbg.cz12a_c32r128	0.004	3.879	37.394	57.513	0.746	0.464	8.800
ma100244_rel_withdbg.cz12a_c32r128	0.001	3.424	38.402	56.953	0.796	0.425	8.130
ma100339_rel_withdbg.cz12a_c32r128	0.005	11.241	32.645	55.003	0.657	0.448	9.657
ma100434_rel_withdbg.cz12a_c32r128	0.006	10.828	32.898	55.176	0.647	0.444	9.564
ma100529_rel_withdbg.cz12a_c32r128	0.003	41.044	25.039	33.371	0.355	0.189	7.473
ma100625_rel_withdbg.cz12a_c32r128	0.010	23.945	31.820	43.384	0.423	0.418	7.490
ma101116_rel_withdbg.cz12a_c32r128	0.003	23.035	32.651	43.501	0.342	0.468	9.120
ma101116_rel_withdbg.cz12b_c32r128	nonzero	0.011	11.621	87.855	0.506	0.005	5.941
ma110410_rel_withdbg.cz12b_c32r128		0.039	9.788	89.085	1.087		2.429
ma110806_rel_withdbg.cz12b_c32r128		0.013	9.135	90.371	0.475	0.005	5.394
ma120301_rel_withdbg.cz12b_c32r128		0.035	9.792	89.514	0.650	0.009	4.628
ma130000_rel_withdbg.cz12b_c32r128		0.011	9.165	90.348	0.476		2.065

Performance metrics for the DBMS listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1950	1714	28251	441.4	18269.3	468.3	16.485	263.766	9.371	245.979	133613	9.0	77.968	1681	727.9	830.9	104.7	7.969	176	0	ma100230_rel_withdbg.cz12a_c32r128
1968	1714	28397	443.7	18394.6	472.5	16.564	265.023	9.345	245.788	131072	9.9	76.454	1848	727.4	830.3	104.7	7.317	176	0	ma100244_rel_withdbg.cz12a_c32r128
2050	1681	27746	433.5	17890.4	456.8	16.503	264.046	8.728	228.210	133377	8.3	79.330	1580	707.8	810.1	104.6	8.998	160	0	ma100339_rel_withdbg.cz12a_c32r128
2052	1658	27747	433.5	17982.6	459.9	16.731	267.701	8.762	229.477	132533	8.3	79.916	1602	707.4	809.8	NA	8.980	160	0	ma100434_rel_withdbg.cz12a_c32r128
2721	1523	27170	424.5	16301.9	451.7	17.840	285.434	5.990	169.973	225220	9.1	147.879	1912	690.6	793.8	101.8	6.670	128	0	ma100529_rel_withdbg.cz12a_c32r128
2649	2294	37263	582.2	16708.6	465.2	16.246	259.935	6.307	179.795	232081	9.6	101.182	1339	649.4	751.8	101.3	6.432	208	0	ma100625_rel_withdbg.cz12a_c32r128
2561	2238	36196	565.6	16148.7	449.5	16.176	258.823	6.306	179.714	253220	9.4	113.166	1344	649.5	751.8	101.3	8.042	208	0	ma101116_rel_withdbg.cz12a_c32r128
1481	1329	21174	330.9	10083.0	257.8	15.931	254.902	6.809	178.268	169329	6.3	127.401	1517	649.5	752.0	101.3	5.229	128	32	ma101116_rel_withdbg.cz12b_c32r128
1428	1329	20842	325.7	10074.1	257.5	15.682	250.906	7.052	184.605	162789	5.5	122.480	1324	648.7	751.3	101.3	1.376	128	32	ma110410_rel_withdbg.cz12b_c32r128
1446	1355	21168	330.8	10274.3	261.0	15.627	250.034	7.106	184.867	165224	5.6	121.972	1323	648.8	751.3	100.3	4.628	128	32	ma110806_rel_withdbg.cz12b_c32r128
1437	1342	21004	328.2	10147.6	259.4	15.646	250.339	7.062	184.855	164270	5.6	122.371	1335	648.8	751.4	101.3	3.816	128	32	ma120301_rel_withdbg.cz12b_c32r128
1450	1356	21212	331.4	10268.9	261.7	15.645	250.320	7.084	184.865	164512	5.6	121.340	1322	648.7	751.3	101.3	1.375	128	32	ma130000_rel_withdbg.cz12b_c32r128

Average values from iostat.

r/s	rkB/s	rrqm/s	%rrqm	r_await	rareq-s	w/s	wkB/s	wrqm/s	%wrqm	w_await	wareq-s	d/s	dkB/s	drqm/s	%drqm	d_await	dareq-s	f/s	f_await	aqu-sz	%util
28251.0	452016	0.000	0.000	0.552	16.00	18269.3	479560	27.53	0.235	7.701	26.39	0.004	0.038	0.000	0.000	0.260	0.178	2.238	7.255	41.80	99.99		ma100230_rel_withdbg.cz12a_c32r128
28397.2	454355	0.000	0.000	0.538	16.00	18394.6	483809	26.00	0.194	6.260	26.43	0.004	0.018	0.000	0.000	0.149	0.083	2.258	7.381	41.35	99.99		ma100244_rel_withdbg.cz12a_c32r128
27746.3	443941	0.000	0.000	0.546	16.00	17890.4	467762	23.99	0.211	9.184	26.28	0.004	0.034	0.000	0.000	0.664	0.151	2.276	7.148	42.11	100.00		ma100339_rel_withdbg.cz12a_c32r128
27747.2	443955	0.000	0.000	0.562	16.00	17982.6	470978	24.84	0.227	9.588	26.34	0.010	0.054	0.000	0.000	0.631	0.255	2.276	7.578	42.35	99.99		ma100434_rel_withdbg.cz12a_c32r128
27169.7	434715	0.000	0.000	0.500	16.00	16301.9	462564	6.857	0.056	2.326	28.40	0.016	0.424	0.000	0.000	1.346	1.817	7.017	8.578	26.21	97.80		ma100529_rel_withdbg.cz12a_c32r128
37263.3	596213	0.000	0.000	0.509	16.00	16708.6	476331	1.482	0.015	3.506	28.53	0.006	0.065	0.000	0.000	0.442	0.323	7.075	12.46	41.33	99.61		ma100625_rel_withdbg.cz12a_c32r128
36196.4	579142	0.000	0.000	0.590	16.00	16148.7	460248	1.773	0.040	9.169	28.62	0.010	0.106	0.000	0.000	0.553	0.468	6.579	18.51	42.03	99.57		ma101116_rel_withdbg.cz12a_c32r128
21174.4	338791	0.000	0.000	0.914	16.00	10083.0	263997	4.257	0.045	0.455	26.19	0.008	0.092	0.000	0.000	0.189	0.420	822.1	1.109	20.86	98.95		ma101116_rel_withdbg.cz12b_c32r128
20842.4	333479	0.000	0.000	0.907	16.00	10074.1	263708	36.50	0.364	0.464	26.18	0.010	0.260	0.000	0.000	0.249	1.263	821.5	1.110	20.55	98.92		ma110410_rel_withdbg.cz12b_c32r128
21168.5	338696	0.000	0.000	0.893	16.00	10274.3	267299	6.027	0.061	0.435	26.02	0.007	0.098	0.000	0.000	0.199	0.481	832.8	1.084	20.63	98.95		ma110806_rel_withdbg.cz12b_c32r128
21003.5	336055	0.000	0.000	0.900	16.00	10147.6	265618	7.020	0.072	0.442	26.18	0.007	0.149	0.000	0.000	0.208	0.733	827.5	1.096	20.57	98.91		ma120301_rel_withdbg.cz12b_c32r128
21211.5	339384	0.000	0.000	0.892	16.00	10268.9	267980	37.05	0.362	0.424	26.10	0.006	0.130	0.000	0.000	0.172	0.524	834.9	1.082	20.59	98.97		ma130000_rel_withdbg.cz12b_c32r128

l.i0

l.i0: load without secondary indexes

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
647016	0	1	0.0	4218.1	233.0	0.000	0.000	0.007	0.369	83293	40.1	0.129	20	236.8	337.6	104.7	2.693	59592	0	ma100230_rel_withdbg.cz12a_c32r128
577571	0	1	0.0	3809.6	209.3	0.000	0.000	0.007	0.371	74196	39.8	0.128	22	236.8	337.6	104.6	3.216	54193	0	ma100244_rel_withdbg.cz12a_c32r128
520758	0	2	0.0	3701.1	206.0	0.000	0.000	0.007	0.405	65536	58.3	0.126	36	236.8	338.7	104.5	3.268	48694	0	ma100339_rel_withdbg.cz12a_c32r128
518807	0	2	0.0	3678.4	204.3	0.000	0.000	0.007	0.403	65370	57.9	0.126	36	236.8	338.7	NA	4.795	48694	0	ma100434_rel_withdbg.cz12a_c32r128
373057	0	1	0.0	3359.2	128.5	0.000	0.000	0.009	0.353	730017	48.3	1.957	41	236.8	339.1	100.3	2.497	32896	10599	ma100529_rel_withdbg.cz12a_c32r128
383509	0	0	0.0	2324.2	107.6	0.000	0.000	0.006	0.287	758731	50.5	1.978	42	236.8	337.6	101.3	4.121	33296	0	ma100625_rel_withdbg.cz12a_c32r128
839161	0	2	0.0	4558.8	218.1	0.000	0.000	0.005	0.266	137472	37.6	0.164	14	236.8	337.6	101.3	5.757	89689	0	ma101116_rel_withdbg.cz12a_c32r128
836820	0	1	0.0	4318.9	213.5	0.000	0.000	0.005	0.261	142212	37.8	0.170	14	236.8	337.6	101.3	5.244	87689	0	ma101116_rel_withdbg.cz12b_c32r128
794176	0	2	0.0	4098.2	202.6	0.000	0.000	0.005	0.261	176816	37.9	0.223	15	236.8	337.6	101.3	4.943	79390	0	ma110410_rel_withdbg.cz12b_c32r128
814480	0	1	0.0	4193.7	207.6	0.000	0.000	0.005	0.261	173902	37.5	0.214	15	236.8	337.6	101.2	4.620	82487	0	ma110806_rel_withdbg.cz12b_c32r128
799467	0	2	0.0	4133.3	204.1	0.000	0.000	0.005	0.261	180689	37.8	0.226	15	236.8	337.6	101.2	5.010	69391	0	ma120301_rel_withdbg.cz12b_c32r128
806632	0	1	0.0	4156.4	205.7	0.000	0.000	0.005	0.261	175644	37.8	0.218	15	236.8	337.6	101.3	4.843	81290	0	ma130000_rel_withdbg.cz12b_c32r128

l.x

l.x: create secondary indexes

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
883002	0	8795	788.0	13652.3	904.0	0.010	0.914	0.015	1.048	61065	19.0	0.069	7	545.2	646.0	105.2	0.005	NA	NA	ma100230_rel_withdbg.cz12a_c32r128
695383	0	7022	636.0	8299.7	750.8	0.010	0.936	0.012	1.106	23562	14.8	0.034	7	545.2	646.0	105.1	0.006	NA	NA	ma100244_rel_withdbg.cz12a_c32r128
672269	0	6806	615.5	8076.6	727.1	0.010	0.938	0.012	1.107	23607	14.5	0.035	7	545.2	647.0	105.0	0.005	NA	NA	ma100339_rel_withdbg.cz12a_c32r128
675549	0	6869	619.3	8109.1	730.8	0.010	0.939	0.012	1.108	21666	14.4	0.032	7	539.6	641.5	NA	0.002	NA	NA	ma100434_rel_withdbg.cz12a_c32r128
725222	0	7287	656.5	8996.2	754.6	0.010	0.927	0.012	1.065	36552	18.6	0.050	8	539.6	641.9	101.5	0.005	NA	NA	ma100529_rel_withdbg.cz12a_c32r128
739675	0	8306	690.1	8696.8	762.6	0.011	0.955	0.012	1.056	30575	17.9	0.041	8	501.7	602.5	101.6	0.005	NA	NA	ma100625_rel_withdbg.cz12a_c32r128
682723	0	7682	632.8	8248.4	705.4	0.011	0.949	0.012	1.058	28888	17.3	0.042	8	501.7	602.5	101.6	0.004	NA	NA	ma101116_rel_withdbg.cz12a_c32r128
679245	0	7606	630.4	8454.4	705.3	0.011	0.950	0.012	1.063	29950	17.4	0.044	8	501.7	602.5	101.6	0.005	NA	NA	ma101116_rel_withdbg.cz12b_c32r128
672143	0	7551	622.4	8372.2	698.2	0.011	0.948	0.012	1.064	29975	17.1	0.045	8	501.7	602.5	101.6	0.004	NA	NA	ma110410_rel_withdbg.cz12b_c32r128
632800	0	7105	584.8	7888.8	657.1	0.011	0.946	0.012	1.063	28962	17.1	0.046	9	501.7	602.5	101.5	0.003	NA	NA	ma110806_rel_withdbg.cz12b_c32r128
671642	0	7515	622.1	8357.5	697.4	0.011	0.949	0.012	1.063	30509	16.7	0.045	8	501.7	602.5	101.5	0.001	NA	NA	ma120301_rel_withdbg.cz12b_c32r128
694310	0	7842	647.4	8636.6	721.0	0.011	0.955	0.012	1.063	31227	17.1	0.045	8	501.7	602.5	101.5	0.005	NA	NA	ma130000_rel_withdbg.cz12b_c32r128

l.i1

l.i1: continue load after secondary indexes created with 50 inserts per transaction

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
2920	0	13139	205.3	19346.0	477.4	4.500	72.000	6.626	167.439	115641	7.1	39.607	778	727.9	830.7	104.7	10.840	250	0	ma100230_rel_withdbg.cz12a_c32r128
2907	0	13208	206.4	19683.8	485.8	4.543	72.691	6.771	171.119	112501	7.8	38.699	859	727.4	830.2	104.7	10.939	300	0	ma100244_rel_withdbg.cz12a_c32r128
2403	0	12679	198.1	18746.8	471.2	5.276	84.419	7.801	200.771	107953	6.4	44.922	852	707.8	810.1	104.5	11.215	200	0	ma100339_rel_withdbg.cz12a_c32r128
2423	0	12861	201.0	18964.1	476.8	5.309	84.939	7.828	201.544	107953	6.4	44.559	845	707.4	809.8	NA	10.699	200	0	ma100434_rel_withdbg.cz12a_c32r128
3093	0	15524	242.6	17580.6	484.2	5.019	80.305	5.684	160.295	182651	7.7	59.055	797	690.6	793.5	101.8	11.047	250	0	ma100529_rel_withdbg.cz12a_c32r128
3514	0	18557	290.0	18381.8	506.7	5.281	84.497	5.231	147.652	218751	8.2	62.253	747	649.2	751.5	101.3	9.262	300	0	ma100625_rel_withdbg.cz12a_c32r128
3544	0	18664	291.6	18090.7	497.5	5.265	84.247	5.104	143.729	241079	8.1	68.015	731	649.3	751.5	101.3	10.046	350	0	ma101116_rel_withdbg.cz12a_c32r128
2010	0	10576	165.2	10825.6	275.9	5.262	84.199	5.387	140.574	154382	5.2	76.818	828	649.3	751.7	101.3	5.498	150	50	ma101116_rel_withdbg.cz12b_c32r128
1975	0	10504	164.1	10814.4	275.9	5.318	85.090	5.475	143.033	146092	4.5	73.963	729	648.6	751.0	101.3	5.483	150	50	ma110410_rel_withdbg.cz12b_c32r128
1989	0	10580	165.3	10952.3	277.9	5.318	85.080	5.506	143.063	146693	4.4	73.741	708	648.6	751.0	100.3	5.760	150	50	ma110806_rel_withdbg.cz12b_c32r128
1982	0	10541	164.7	10851.9	276.9	5.319	85.102	5.475	143.077	147150	4.4	74.247	710	648.7	751.1	101.3	5.810	150	50	ma120301_rel_withdbg.cz12b_c32r128
1989	0	10577	165.3	10921.9	277.9	5.318	85.081	5.491	143.051	146123	4.4	73.465	708	648.6	751.0	101.3	6.485	150	50	ma130000_rel_withdbg.cz12b_c32r128

l.i2

l.i2: continue load after secondary indexes created with 5 inserts per transaction

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1138	0	13371	208.9	18130.4	481.1	11.755	188.081	15.939	433.112	84055	6.8	73.894	1913	727.9	830.8	104.7	7.903	70	0	ma100230_rel_withdbg.cz12a_c32r128
1147	0	13235	206.8	17989.6	476.6	11.541	184.658	15.687	425.529	83021	7.5	72.394	2093	727.4	830.2	104.7	8.282	70	0	ma100244_rel_withdbg.cz12a_c32r128
1643	0	12559	196.2	17821.7	463.7	7.646	122.328	10.849	289.085	97392	6.7	59.288	1305	707.8	810.1	104.5	8.502	100	0	ma100339_rel_withdbg.cz12a_c32r128
1622	0	12630	197.3	17876.2	465.3	7.788	124.605	11.022	293.780	96383	6.7	59.429	1322	707.4	809.8	NA	8.359	95	0	ma100434_rel_withdbg.cz12a_c32r128
3601	0	15220	237.8	16767.0	465.5	4.226	67.618	4.656	132.365	191552	8.6	53.188	764	690.6	793.5	101.8	7.270	300	0	ma100529_rel_withdbg.cz12a_c32r128
2544	0	19991	312.4	17218.0	485.4	7.856	125.702	6.767	195.361	204589	8.6	80.404	1082	649.2	751.5	101.3	6.396	125	0	ma100625_rel_withdbg.cz12a_c32r128
2421	0	18993	296.8	16366.8	460.9	7.846	125.535	6.761	194.942	217061	8.1	89.665	1071	649.3	751.5	101.3	7.821	135	0	ma101116_rel_withdbg.cz12a_c32r128
1507	0	11860	185.3	10876.6	282.1	7.872	125.947	7.219	191.703	143161	5.5	95.016	1168	649.3	751.7	101.3	1.167	85	40	ma101116_rel_withdbg.cz12b_c32r128
1476	0	11785	184.1	10871.8	282.0	7.985	127.752	7.366	195.649	139915	4.4	94.793	954	648.6	751.0	101.3	4.713	85	35	ma110410_rel_withdbg.cz12b_c32r128
1484	0	11866	185.4	11045.3	284.8	7.998	127.975	7.445	196.548	140796	4.5	94.902	971	648.6	751.0	100.3	4.806	85	40	ma110806_rel_withdbg.cz12b_c32r128
1484	0	11852	185.2	10938.8	283.7	7.985	127.763	7.370	195.757	140981	4.4	94.988	949	648.7	751.1	101.3	2.560	85	40	ma120301_rel_withdbg.cz12b_c32r128
1493	0	11920	186.3	11040.4	285.5	7.984	127.746	7.395	195.818	141019	4.4	94.454	943	648.6	751.0	101.3	4.169	85	40	ma130000_rel_withdbg.cz12b_c32r128

qr100.L1

qr100.L1: range queries with 100 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1192	88968	5643	88.2	8732.4	247.3	0.063	1.015	7.326	212.435	528486	41.6	5.940	150	727.9	830.8	104.7	0.138	7503	5695	ma100230_rel_withdbg.cz12a_c32r128
1192	86823	5633	88.0	7725.7	219.3	0.065	1.038	6.481	188.380	514732	40.7	5.929	150	727.4	830.2	104.7	0.196	7343	5551	ma100244_rel_withdbg.cz12a_c32r128
1192	85629	5414	84.6	8076.9	228.5	0.063	1.012	6.776	196.289	510314	40.6	5.960	152	707.8	810.1	104.5	0.132	7215	5503	ma100339_rel_withdbg.cz12a_c32r128
1193	82951	5480	85.6	8562.0	242.0	0.066	1.057	7.179	207.747	494542	40.7	5.962	157	707.4	809.8	NA	0.936	6991	5295	ma100434_rel_withdbg.cz12a_c32r128
1193	81395	5229	81.7	2250.0	65.5	0.064	1.028	1.886	56.205	506600	40.1	6.224	158	690.6	793.5	101.7	0.152	6895	5615	ma100529_rel_withdbg.cz12a_c32r128
1192	83167	5364	83.8	2698.6	78.3	0.064	1.032	2.264	67.303	510344	39.6	6.136	152	649.2	751.5	101.3	0.058	7023	5823	ma100625_rel_withdbg.cz12a_c32r128
1192	85572	5366	83.8	2673.7	77.6	0.063	1.003	2.243	66.636	522896	39.7	6.111	148	649.3	751.5	101.3	0.076	7215	6063	ma101116_rel_withdbg.cz12a_c32r128
1193	83267	5382	84.1	2881.8	78.1	0.065	1.034	2.416	67.035	511506	38.9	6.143	149	649.3	751.7	101.3	0.517	7215	3344	ma101116_rel_withdbg.cz12b_c32r128
1192	81695	5424	84.8	2987.8	80.1	0.066	1.062	2.507	68.785	506653	38.3	6.202	150	648.6	751.0	101.3	0.613	7183	1168	ma110410_rel_withdbg.cz12b_c32r128
1193	81816	5424	84.7	2999.8	80.1	0.066	1.061	2.515	68.750	506736	38.6	6.194	151	648.6	751.0	100.3	0.823	7119	2224	ma110806_rel_withdbg.cz12b_c32r128
1193	83703	5424	84.8	2984.8	80.1	0.065	1.037	2.503	68.800	517208	39.7	6.179	152	648.7	751.1	101.3	0.557	7279	2240	ma120301_rel_withdbg.cz12b_c32r128
1193	85229	5427	84.8	2999.9	80.2	0.064	1.019	2.515	68.878	525670	39.9	6.168	150	648.6	751.0	101.3	0.726	7391	2512	ma130000_rel_withdbg.cz12b_c32r128

qp100.L2

qp100.L2: point queries with 100 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1192	7286	55799	871.8	11387.7	272.3	7.658	122.526	9.553	233.964	182932	11.1	25.107	488	727.9	830.8	104.7	0.377	656	128	ma100230_rel_withdbg.cz12a_c32r128
1193	7213	55140	861.6	12012.5	288.4	7.645	122.319	10.072	247.604	181420	11.6	25.153	515	727.4	830.2	104.7	3.788	640	112	ma100244_rel_withdbg.cz12a_c32r128
1193	7470	56578	884.0	11328.5	267.5	7.574	121.189	9.498	229.629	188408	11.0	25.223	471	707.8	810.1	104.5	0.175	656	192	ma100339_rel_withdbg.cz12a_c32r128
1193	7429	56915	889.3	10963.9	263.1	7.661	122.582	9.193	225.860	185609	11.1	24.985	478	707.4	809.8	NA	0.256	656	240	ma100434_rel_withdbg.cz12a_c32r128
1192	6045	48056	750.9	8450.3	230.1	7.950	127.198	7.089	197.630	250331	10.4	41.412	551	690.6	793.5	101.7	0.318	528	48	ma100529_rel_withdbg.cz12a_c32r128
1192	8465	61749	964.8	8659.5	238.4	7.295	116.715	7.265	204.792	226448	10.5	26.751	397	649.2	751.5	101.3	2.141	816	80	ma100625_rel_withdbg.cz12a_c32r128
1192	8596	62564	977.6	8677.8	238.9	7.279	116.458	7.280	205.188	238151	10.7	27.706	398	649.3	751.5	101.3	2.328	832	80	ma101116_rel_withdbg.cz12a_c32r128
1193	3652	32276	504.3	8782.9	223.9	8.838	141.400	7.364	192.271	158428	7.0	43.379	613	649.3	751.7	101.3	1.217	304	16	ma101116_rel_withdbg.cz12b_c32r128
1192	4391	36661	572.8	8774.0	227.5	8.349	133.581	7.361	195.478	166921	7.1	38.013	517	648.6	751.0	101.3	1.039	352	16	ma110410_rel_withdbg.cz12b_c32r128
1192	4523	37485	585.7	8834.2	227.9	8.287	132.585	7.411	195.809	171212	7.2	37.852	509	648.6	751.0	100.3	1.338	368	16	ma110806_rel_withdbg.cz12b_c32r128
1191	4438	36959	577.5	8742.5	226.9	8.327	133.237	7.339	195.039	168032	7.1	37.860	512	648.7	751.1	101.3	0.951	352	16	ma120301_rel_withdbg.cz12b_c32r128
1191	4496	37316	583.1	8808.3	227.7	8.299	132.791	7.394	195.732	169171	7.1	37.625	505	648.6	751.0	101.3	1.026	384	16	ma130000_rel_withdbg.cz12b_c32r128

qr500.L3

qr500.L3: range queries with 500 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
3764	60528	14438	225.6	19460.2	466.9	0.239	3.817	5.170	127.011	460348	42.2	7.606	223	727.9	830.8	104.7	8.962	5455	0	ma100230_rel_withdbg.cz12a_c32r128
3789	58277	14563	227.6	19703.2	470.9	0.250	3.998	5.200	127.245	441640	43.0	7.578	236	727.4	830.3	104.7	8.660	5247	0	ma100244_rel_withdbg.cz12a_c32r128
3839	54887	14216	222.1	19072.9	457.3	0.259	4.144	4.968	121.963	433918	39.6	7.906	231	707.8	810.1	104.5	8.961	4767	0	ma100339_rel_withdbg.cz12a_c32r128
3865	53761	14412	225.2	19294.3	464.2	0.268	4.289	4.992	122.972	427346	40.0	7.949	238	707.4	809.8	NA	9.347	4671	0	ma100434_rel_withdbg.cz12a_c32r128
3865	54823	14732	230.2	16715.4	461.2	0.269	4.300	4.324	122.189	475959	39.6	8.682	231	690.6	793.5	101.8	7.417	4847	0	ma100529_rel_withdbg.cz12a_c32r128
5493	51671	23275	363.7	18371.2	517.1	0.450	7.207	3.344	96.385	517493	38.9	10.015	241	649.2	751.5	101.3	4.335	4495	80	ma100625_rel_withdbg.cz12a_c32r128
4852	51077	18978	296.5	15836.1	443.1	0.372	5.945	3.264	93.520	559407	37.2	10.952	233	649.3	751.5	101.3	5.254	4447	0	ma101116_rel_withdbg.cz12a_c32r128
3255	50967	12186	190.4	11424.5	293.3	0.239	3.826	3.510	92.282	480290	35.1	9.424	220	649.3	751.7	101.3	0.382	4319	896	ma101116_rel_withdbg.cz12b_c32r128
3167	37123	12062	188.5	11323.8	291.3	0.325	5.199	3.575	94.196	410162	26.6	11.049	229	648.6	751.0	101.3	0.465	3072	736	ma110410_rel_withdbg.cz12b_c32r128
3232	37600	12291	192.1	11592.8	296.7	0.327	5.230	3.587	94.010	415623	26.9	11.054	229	648.6	751.0	100.3	0.691	3184	576	ma110806_rel_withdbg.cz12b_c32r128
3190	37823	12115	189.3	11413.0	293.6	0.320	5.125	3.578	94.248	416727	27.3	11.018	231	648.7	751.1	101.3	0.561	3168	704	ma120301_rel_withdbg.cz12b_c32r128
3219	38073	12253	191.4	11523.9	295.6	0.322	5.149	3.580	94.048	416817	27.2	10.948	229	648.6	751.0	101.3	0.981	3200	496	ma130000_rel_withdbg.cz12b_c32r128

qp500.L4

qp500.L4: point queries with 500 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
3804	730	20158	315.0	19316.2	454.9	27.610	441.757	5.078	122.446	182903	9.7	250.518	4251	727.9	830.8	104.7	8.940	80	0	ma100230_rel_withdbg.cz12a_c32r128
3850	731	20297	317.1	19554.3	459.5	27.773	444.376	5.079	122.222	174589	10.4	238.901	4554	727.4	830.3	104.7	9.212	80	0	ma100244_rel_withdbg.cz12a_c32r128
2863	1154	23206	362.6	18295.1	447.9	20.105	321.686	6.390	160.190	163087	8.5	141.298	2357	707.8	810.1	104.6	9.326	80	0	ma100339_rel_withdbg.cz12a_c32r128
2811	1188	23538	367.8	18433.7	452.5	19.808	316.928	6.558	164.823	160417	8.6	134.997	2316	707.4	809.8	NA	9.704	80	0	ma100434_rel_withdbg.cz12a_c32r128
1920	2283	33472	523.0	15920.1	442.3	14.659	234.542	8.290	235.850	225078	9.6	98.572	1345	690.6	793.5	101.8	6.018	208	0	ma100529_rel_withdbg.cz12a_c32r128
4491	849	24176	377.7	16762.2	465.1	28.479	455.661	3.733	106.060	296922	9.4	349.772	3543	649.2	751.5	101.3	4.091	80	0	ma100625_rel_withdbg.cz12a_c32r128
4157	828	23025	359.8	16275.9	450.8	27.825	445.201	3.915	111.039	376712	9.3	455.241	3596	649.4	751.7	101.3	4.558	80	0	ma101116_rel_withdbg.cz12a_c32r128
2135	826	16931	264.5	10882.9	277.0	20.490	327.834	5.098	132.872	202637	6.1	245.234	2362	649.4	751.8	101.3	0.437	48	16	ma101116_rel_withdbg.cz12b_c32r128
2053	817	16694	260.8	10870.5	276.6	20.438	327.006	5.295	137.957	190706	5.7	233.479	2233	648.7	751.1	101.3	0.723	48	16	ma110410_rel_withdbg.cz12b_c32r128
2082	831	16946	264.8	11104.1	280.8	20.385	326.165	5.334	138.118	192753	5.7	231.869	2194	648.7	751.1	100.3	0.711	64	16	ma110806_rel_withdbg.cz12b_c32r128
2049	845	17005	265.7	10947.2	278.5	20.125	321.995	5.343	139.208	192427	5.6	227.725	2121	648.8	751.2	101.3	0.655	64	16	ma120301_rel_withdbg.cz12b_c32r128
2086	834	16985	265.4	11087.5	281.2	20.368	325.892	5.316	138.060	192272	5.7	230.570	2187	648.7	751.1	101.3	0.595	64	16	ma130000_rel_withdbg.cz12b_c32r128

qr1000.L5

qr1000.L5: range queries with 1000 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
2825	46550	13385	209.1	19086.1	471.5	0.288	4.601	6.755	170.892	369154	38.7	7.930	266	727.9	830.9	104.7	8.176	4207	0	ma100230_rel_withdbg.cz12a_c32r128
2862	45882	13602	212.5	19391.6	479.3	0.296	4.743	6.776	171.499	359092	39.9	7.826	278	727.4	830.3	104.7	8.437	4159	0	ma100244_rel_withdbg.cz12a_c32r128
2228	50031	12826	200.4	18017.0	458.6	0.256	4.102	8.088	210.817	380890	38.3	7.613	245	707.8	810.1	104.6	8.614	4527	0	ma100339_rel_withdbg.cz12a_c32r128
2237	48623	13019	203.4	18134.2	461.9	0.268	4.284	8.106	211.437	372735	38.1	7.666	251	707.4	809.8	NA	8.558	4415	0	ma100434_rel_withdbg.cz12a_c32r128
3841	57398	16173	252.7	16705.0	464.2	0.282	4.508	4.349	123.739	500120	40.3	8.713	225	690.6	793.6	101.8	7.426	5119	0	ma100529_rel_withdbg.cz12a_c32r128
3603	45185	18150	283.6	17494.2	486.8	0.402	6.427	4.855	138.354	467538	37.3	10.347	264	649.4	751.7	101.3	7.736	4111	0	ma100625_rel_withdbg.cz12a_c32r128
3202	47815	18359	286.9	17027.5	474.6	0.384	6.143	5.318	151.782	481165	37.5	10.063	251	649.4	751.7	101.3	9.045	4335	0	ma101116_rel_withdbg.cz12a_c32r128
2000	52878	11573	180.8	10831.8	278.1	0.219	3.502	5.417	142.433	449045	37.6	8.492	228	649.5	751.8	101.3	4.258	4479	1856	ma101116_rel_withdbg.cz12b_c32r128
1964	45551	11520	180.0	10797.8	277.4	0.253	4.046	5.499	144.646	406810	31.8	8.931	223	648.7	751.1	101.3	4.229	4015	1152	ma110410_rel_withdbg.cz12b_c32r128
1984	45904	11641	181.9	10978.8	280.3	0.254	4.057	5.532	144.645	409807	31.8	8.927	222	648.8	751.1	100.3	3.845	4047	1072	ma110806_rel_withdbg.cz12b_c32r128
1978	46389	11607	181.4	10863.2	279.1	0.250	4.003	5.491	144.463	412910	32.5	8.901	224	648.8	751.2	101.3	4.623	4063	1264	ma120301_rel_withdbg.cz12b_c32r128
1990	46903	11682	182.5	10984.1	281.3	0.249	3.985	5.519	144.734	415549	32.4	8.860	221	648.7	751.1	101.3	4.441	4127	1184	ma130000_rel_withdbg.cz12b_c32r128

qp1000.L6

qp1000.L6: point queries with 1000 insert/s per client

Performance metrics for all DBMS, not just the ones listed above. Some are normalized by throughput, others are not. Legend for results is here.

ips	qps	rps	rmbps	wps	wmbps	rpq	rkbpq	wpi	wkbpi	csps	cpups	cspq	cpupq	dbgb1	dbgb2	rss	maxop	p50	p99	tag
1950	1714	28251	441.4	18269.3	468.3	16.485	263.766	9.371	245.979	133613	9.0	77.968	1681	727.9	830.9	104.7	7.969	176	0	ma100230_rel_withdbg.cz12a_c32r128
1968	1714	28397	443.7	18394.6	472.5	16.564	265.023	9.345	245.788	131072	9.9	76.454	1848	727.4	830.3	104.7	7.317	176	0	ma100244_rel_withdbg.cz12a_c32r128
2050	1681	27746	433.5	17890.4	456.8	16.503	264.046	8.728	228.210	133377	8.3	79.330	1580	707.8	810.1	104.6	8.998	160	0	ma100339_rel_withdbg.cz12a_c32r128
2052	1658	27747	433.5	17982.6	459.9	16.731	267.701	8.762	229.477	132533	8.3	79.916	1602	707.4	809.8	NA	8.980	160	0	ma100434_rel_withdbg.cz12a_c32r128
2721	1523	27170	424.5	16301.9	451.7	17.840	285.434	5.990	169.973	225220	9.1	147.879	1912	690.6	793.8	101.8	6.670	128	0	ma100529_rel_withdbg.cz12a_c32r128
2649	2294	37263	582.2	16708.6	465.2	16.246	259.935	6.307	179.795	232081	9.6	101.182	1339	649.4	751.8	101.3	6.432	208	0	ma100625_rel_withdbg.cz12a_c32r128
2561	2238	36196	565.6	16148.7	449.5	16.176	258.823	6.306	179.714	253220	9.4	113.166	1344	649.5	751.8	101.3	8.042	208	0	ma101116_rel_withdbg.cz12a_c32r128
1481	1329	21174	330.9	10083.0	257.8	15.931	254.902	6.809	178.268	169329	6.3	127.401	1517	649.5	752.0	101.3	5.229	128	32	ma101116_rel_withdbg.cz12b_c32r128
1428	1329	20842	325.7	10074.1	257.5	15.682	250.906	7.052	184.605	162789	5.5	122.480	1324	648.7	751.3	101.3	1.376	128	32	ma110410_rel_withdbg.cz12b_c32r128
1446	1355	21168	330.8	10274.3	261.0	15.627	250.034	7.106	184.867	165224	5.6	121.972	1323	648.8	751.3	100.3	4.628	128	32	ma110806_rel_withdbg.cz12b_c32r128
1437	1342	21004	328.2	10147.6	259.4	15.646	250.339	7.062	184.855	164270	5.6	122.371	1335	648.8	751.4	101.3	3.816	128	32	ma120301_rel_withdbg.cz12b_c32r128
1450	1356	21212	331.4	10268.9	261.7	15.645	250.320	7.084	184.865	164512	5.6	121.340	1322	648.7	751.3	101.3	1.375	128	32	ma130000_rel_withdbg.cz12b_c32r128

l.i0

l.i0: load without secondary indexes
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.749	98.918	0.154	0.084	0.069	0.016	0.010	0.000	0.000	2.693	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.487	99.146	0.193	0.079	0.071	0.014	0.010	0.000	0.000	3.216	ma100244_rel_withdbg.cz12a_c32r128
0.000	0.595	98.991	0.239	0.077	0.070	0.020	0.009	0.000	0.000	3.268	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.639	98.949	0.233	0.077	0.073	0.019	0.010	nonzero	0.000	4.795	ma100434_rel_withdbg.cz12a_c32r128
0.000	1.120	97.191	1.127	0.389	0.155	0.018	0.002	0.000	0.000	2.497	ma100529_rel_withdbg.cz12a_c32r128
0.000	0.371	98.709	0.763	0.070	0.069	0.012	0.007	nonzero	0.000	4.121	ma100625_rel_withdbg.cz12a_c32r128
0.000	89.440	10.347	0.065	0.060	0.060	0.020	0.009	0.001	0.000	5.757	ma101116_rel_withdbg.cz12a_c32r128
0.000	86.130	13.616	0.072	0.087	0.069	0.018	0.008	0.001	0.000	5.244	ma101116_rel_withdbg.cz12b_c32r128
0.000	74.473	25.251	0.082	0.096	0.070	0.020	0.008	nonzero	0.000	4.943	ma110410_rel_withdbg.cz12b_c32r128
0.000	80.061	19.664	0.080	0.096	0.071	0.020	0.008	nonzero	0.000	4.620	ma110806_rel_withdbg.cz12b_c32r128
0.000	76.222	23.503	0.083	0.092	0.072	0.019	0.008	nonzero	0.000	5.010	ma120301_rel_withdbg.cz12b_c32r128
0.000	77.537	22.194	0.086	0.084	0.073	0.019	0.008	nonzero	0.000	4.843	ma130000_rel_withdbg.cz12b_c32r128

l.x

l.x: create secondary indexes
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

TODO - determine whether there is data for create index response time

l.i1

l.i1: continue load after secondary indexes created with 50 inserts per transaction
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	0.001	1.265	79.988	17.970	0.345	0.431	0.000	10.840	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.001	0.991	80.671	17.505	0.387	0.444	0.000	10.939	ma100244_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	nonzero	0.525	67.648	30.904	0.408	0.514	0.000	11.215	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	nonzero	0.525	68.182	30.381	0.401	0.511	0.000	10.699	ma100434_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.011	15.422	59.644	24.368	0.402	0.153	0.000	11.047	ma100529_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.001	10.288	71.958	16.936	0.477	0.340	0.000	9.262	ma100625_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	nonzero	6.192	77.509	15.708	0.271	0.320	0.000	10.046	ma101116_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.000	0.193	57.901	40.999	0.904	0.003	0.000	5.498	ma101116_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.148	55.934	42.800	1.111	0.007	0.000	5.483	ma110410_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.066	55.907	43.117	0.899	0.011	0.000	5.760	ma110806_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.132	56.060	42.776	1.025	0.007	0.000	5.810	ma120301_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.125	56.335	42.489	1.041	0.010	0.000	6.485	ma130000_rel_withdbg.cz12b_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	0.031	20.532	69.306	9.545	0.318	0.267	0.000	10.224	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.007	19.938	70.020	9.429	0.339	0.266	0.000	10.900	ma100244_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.002	21.117	55.744	22.447	0.399	0.291	0.000	11.170	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.005	20.431	56.709	22.185	0.359	0.310	0.000	10.540	ma100434_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.041	48.994	33.348	17.249	0.281	0.087	0.000	10.985	ma100529_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.472	35.816	46.901	16.194	0.358	0.259	0.000	9.253	ma100625_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.257	30.604	53.764	14.858	0.281	0.236	0.000	9.254	ma101116_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.018	1.507	65.428	32.750	0.294	0.003	0.000	5.436	ma101116_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.034	1.385	65.371	32.708	0.495	0.006	0.000	5.401	ma110410_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.004	1.341	65.164	33.127	0.355	0.008	0.000	5.658	ma110806_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.026	1.461	65.375	32.688	0.445	0.006	0.000	5.777	ma120301_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.040	1.503	65.142	32.902	0.405	0.008	0.000	5.914	ma130000_rel_withdbg.cz12b_c32r128

l.i2

l.i2: continue load after secondary indexes created with 5 inserts per transaction
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.057	3.300	20.288	47.977	27.599	0.396	0.368	0.016	0.000	7.903	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.070	3.301	19.493	49.470	26.915	0.383	0.351	0.018	0.000	8.282	ma100244_rel_withdbg.cz12a_c32r128
0.000	0.220	7.175	30.550	48.931	12.623	0.250	0.235	0.015	0.000	8.502	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.211	6.853	30.554	48.521	13.362	0.254	0.229	0.016	0.000	8.359	ma100434_rel_withdbg.cz12a_c32r128
nonzero	0.072	16.114	54.221	27.499	1.987	0.041	0.063	0.003	0.000	7.270	ma100529_rel_withdbg.cz12a_c32r128
nonzero	0.070	10.400	47.541	40.332	1.324	0.223	0.107	0.003	0.000	6.396	ma100625_rel_withdbg.cz12a_c32r128
nonzero	0.089	8.501	46.780	43.233	1.068	0.220	0.102	0.007	0.000	7.821	ma101116_rel_withdbg.cz12a_c32r128
nonzero	0.061	2.631	20.020	55.572	21.663	0.052	nonzero	0.000	0.000	1.167	ma101116_rel_withdbg.cz12b_c32r128
nonzero	0.058	2.504	18.881	56.491	22.005	0.057	0.003	nonzero	0.000	4.713	ma110410_rel_withdbg.cz12b_c32r128
nonzero	0.066	2.557	18.857	56.744	21.719	0.053	0.003	nonzero	0.000	4.806	ma110806_rel_withdbg.cz12b_c32r128
0.000	0.067	2.561	18.926	56.576	21.809	0.057	0.003	0.000	0.000	2.560	ma120301_rel_withdbg.cz12b_c32r128
0.000	0.065	2.552	19.029	56.727	21.574	0.050	0.004	nonzero	0.000	4.169	ma130000_rel_withdbg.cz12b_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.463	9.079	20.308	44.853	24.770	0.325	0.197	0.005	0.000	7.425	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.493	8.798	19.991	46.246	23.957	0.316	0.195	0.005	0.000	7.941	ma100244_rel_withdbg.cz12a_c32r128
nonzero	1.089	14.070	31.501	43.161	9.821	0.219	0.136	0.004	0.000	8.095	ma100339_rel_withdbg.cz12a_c32r128
nonzero	0.986	13.920	31.203	42.852	10.688	0.210	0.136	0.005	0.000	7.603	ma100434_rel_withdbg.cz12a_c32r128
nonzero	0.404	31.897	42.171	24.361	1.078	0.040	0.046	0.001	0.000	7.254	ma100529_rel_withdbg.cz12a_c32r128
nonzero	0.336	21.727	38.737	38.098	0.797	0.216	0.087	0.002	0.000	6.366	ma100625_rel_withdbg.cz12a_c32r128
nonzero	0.445	17.354	42.361	38.855	0.683	0.211	0.086	0.005	0.000	7.748	ma101116_rel_withdbg.cz12a_c32r128
nonzero	0.332	6.444	27.458	46.098	19.634	0.034	0.000	0.000	0.000	0.952	ma101116_rel_withdbg.cz12b_c32r128
nonzero	0.266	6.025	25.646	47.848	20.169	0.043	0.003	nonzero	0.000	4.795	ma110410_rel_withdbg.cz12b_c32r128
nonzero	0.305	6.105	25.627	47.973	19.949	0.039	0.002	nonzero	0.000	4.800	ma110806_rel_withdbg.cz12b_c32r128
nonzero	0.295	6.164	25.715	47.832	19.949	0.044	0.002	0.000	0.000	2.404	ma120301_rel_withdbg.cz12b_c32r128
nonzero	0.290	6.056	25.864	47.965	19.784	0.039	0.003	nonzero	0.000	4.044	ma130000_rel_withdbg.cz12b_c32r128

qr100.L1

qr100.L1: range queries with 100 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
99.792	0.158	0.049	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.138	ma100230_rel_withdbg.cz12a_c32r128
99.766	0.183	0.050	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.196	ma100244_rel_withdbg.cz12a_c32r128
99.751	0.198	0.050	0.001	nonzero	nonzero	0.000	0.000	0.000	0.000	0.132	ma100339_rel_withdbg.cz12a_c32r128
99.727	0.219	0.053	0.001	nonzero	nonzero	nonzero	0.000	0.000	0.000	0.936	ma100434_rel_withdbg.cz12a_c32r128
99.752	0.202	0.044	0.002	nonzero	nonzero	0.000	0.000	0.000	0.000	0.152	ma100529_rel_withdbg.cz12a_c32r128
99.471	0.457	0.062	0.008	0.001	0.000	0.000	0.000	0.000	0.000	0.058	ma100625_rel_withdbg.cz12a_c32r128
99.505	0.427	0.060	0.007	0.001	nonzero	0.000	0.000	0.000	0.000	0.076	ma101116_rel_withdbg.cz12a_c32r128
99.433	0.463	0.084	0.014	0.006	nonzero	nonzero	0.000	0.000	0.000	0.517	ma101116_rel_withdbg.cz12b_c32r128
99.390	0.494	0.088	0.018	0.010	0.001	nonzero	0.000	0.000	0.000	0.613	ma110410_rel_withdbg.cz12b_c32r128
99.395	0.491	0.090	0.017	0.007	0.001	nonzero	0.000	0.000	0.000	0.823	ma110806_rel_withdbg.cz12b_c32r128
99.421	0.468	0.085	0.017	0.007	0.001	nonzero	0.000	0.000	0.000	0.557	ma120301_rel_withdbg.cz12b_c32r128
99.424	0.466	0.087	0.017	0.006	nonzero	nonzero	0.000	0.000	0.000	0.726	ma130000_rel_withdbg.cz12b_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	11.032	86.352	2.613	0.002	0.000	0.000	0.000	0.892	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	12.995	84.303	2.701	0.000	0.000	0.000	0.000	0.238	ma100244_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	25.752	72.917	1.331	0.000	0.000	0.000	0.000	0.170	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	20.329	78.495	1.174	0.000	0.002	0.000	0.000	1.074	ma100434_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	8.306	77.370	14.086	0.238	0.000	0.000	0.000	0.615	ma100529_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	19.762	79.338	0.900	0.000	0.000	0.000	0.000	0.188	ma100625_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	26.745	72.569	0.685	0.000	0.000	0.000	0.000	0.251	ma101116_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	35.083	54.056	7.613	3.169	0.079	0.000	0.000	1.583	ma101116_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	17.194	71.484	7.870	3.435	0.016	0.000	0.000	1.183	ma110410_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	22.808	65.854	9.076	2.215	0.046	0.000	0.000	1.612	ma110806_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	21.549	67.407	8.440	2.600	0.005	0.000	0.000	1.050	ma120301_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	20.581	67.991	9.549	1.852	0.028	0.000	0.000	1.176	ma130000_rel_withdbg.cz12b_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	50.123	49.157	0.720	0.000	0.000	0.000	0.000	0.224	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	50.644	48.361	0.995	0.000	0.000	0.000	0.000	0.229	ma100244_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	57.130	42.486	0.384	0.000	0.000	0.000	0.000	0.136	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	51.951	47.674	0.375	0.000	0.000	0.000	0.000	0.244	ma100434_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	19.046	71.745	9.134	0.074	0.000	0.000	0.000	0.481	ma100529_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	50.512	49.058	0.431	0.000	0.000	0.000	0.000	0.093	ma100625_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	62.736	37.000	0.264	0.000	0.000	0.000	0.000	0.103	ma101116_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	53.970	36.808	6.377	2.810	0.035	0.000	0.000	1.510	ma101116_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	38.213	51.794	6.694	3.280	0.019	0.000	0.000	1.326	ma110410_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	44.056	46.343	7.620	1.931	0.051	0.000	0.000	1.503	ma110806_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	43.093	47.630	7.058	2.220	0.000	0.000	0.000	0.901	ma120301_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	41.903	48.995	7.484	1.590	0.028	0.000	0.000	1.152	ma130000_rel_withdbg.cz12b_c32r128

qp100.L2

qp100.L2: point queries with 100 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.004	30.136	64.725	4.984	0.143	0.009	nonzero	0.000	0.000	0.000	0.377	ma100230_rel_withdbg.cz12a_c32r128
0.003	30.875	63.628	5.320	0.170	0.004	nonzero	nonzero	0.000	0.000	3.788	ma100244_rel_withdbg.cz12a_c32r128
0.004	30.978	64.257	4.631	0.128	0.002	0.000	0.000	0.000	0.000	0.175	ma100339_rel_withdbg.cz12a_c32r128
0.003	29.305	65.832	4.728	0.130	0.002	0.000	0.000	0.000	0.000	0.256	ma100434_rel_withdbg.cz12a_c32r128
0.003	19.409	73.479	6.759	0.347	0.002	nonzero	0.000	0.000	0.000	0.318	ma100529_rel_withdbg.cz12a_c32r128
0.005	40.867	55.253	3.802	0.069	0.003	0.002	nonzero	0.000	0.000	2.141	ma100625_rel_withdbg.cz12a_c32r128
0.005	42.956	53.245	3.725	0.064	0.003	0.002	nonzero	0.000	0.000	2.328	ma101116_rel_withdbg.cz12a_c32r128
0.002	20.909	51.268	25.973	1.760	0.084	0.005	nonzero	0.000	0.000	1.217	ma101116_rel_withdbg.cz12b_c32r128
0.003	25.838	51.485	21.496	1.124	0.052	0.003	nonzero	0.000	0.000	1.039	ma110410_rel_withdbg.cz12b_c32r128
0.003	26.820	51.447	20.669	1.005	0.052	0.003	nonzero	0.000	0.000	1.338	ma110806_rel_withdbg.cz12b_c32r128
0.003	26.549	51.204	21.082	1.109	0.051	0.003	0.000	0.000	0.000	0.951	ma120301_rel_withdbg.cz12b_c32r128
0.003	27.701	50.460	20.705	1.074	0.056	0.002	nonzero	0.000	0.000	1.026	ma130000_rel_withdbg.cz12b_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	0.100	65.130	33.787	0.979	0.005	0.000	0.000	1.050	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.039	63.905	35.368	0.655	0.028	0.005	0.000	4.052	ma100244_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.125	67.833	31.620	0.421	0.000	0.000	0.000	0.588	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.157	70.113	29.461	0.264	0.005	0.000	0.000	1.025	ma100434_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.012	64.815	34.037	1.137	0.000	0.000	0.000	0.551	ma100529_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.169	91.958	7.262	0.488	0.106	0.016	0.000	5.414	ma100625_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.134	85.278	14.081	0.368	0.106	0.032	0.000	4.727	ma101116_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.060	22.627	66.384	10.593	0.336	0.000	0.000	1.492	ma101116_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.627	60.961	35.044	3.012	0.356	0.000	0.000	1.839	ma110410_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.750	62.134	33.586	3.183	0.347	0.000	0.000	1.757	ma110806_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.660	62.729	32.414	3.942	0.255	0.000	0.000	1.746	ma120301_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.806	60.356	34.009	4.512	0.317	0.000	0.000	1.700	ma130000_rel_withdbg.cz12b_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	0.569	76.590	22.162	0.678	0.000	0.000	0.000	0.848	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.442	75.343	23.956	0.229	0.030	0.000	0.000	3.295	ma100244_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.748	76.958	22.062	0.231	0.000	0.000	0.000	0.511	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.972	79.375	19.495	0.157	0.000	0.000	0.000	0.819	ma100434_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.062	76.079	23.319	0.539	0.000	0.000	0.000	0.437	ma100529_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	4.132	91.769	3.775	0.192	0.125	0.007	0.000	5.373	ma100625_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.606	91.417	7.646	0.197	0.113	0.021	0.000	4.069	ma101116_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.208	33.704	57.546	8.463	0.079	0.000	0.000	1.284	ma101116_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	12.118	62.468	22.556	2.683	0.176	0.000	0.000	1.455	ma110410_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	12.782	63.738	20.546	2.734	0.199	0.000	0.000	1.639	ma110806_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	12.347	64.215	20.005	3.308	0.125	0.000	0.000	1.410	ma120301_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	11.951	63.514	20.606	3.741	0.188	0.000	0.000	1.389	ma130000_rel_withdbg.cz12b_c32r128

qr500.L3

qr500.L3: range queries with 500 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
96.707	2.305	0.897	0.078	0.011	0.001	0.001	nonzero	nonzero	0.000	8.962	ma100230_rel_withdbg.cz12a_c32r128
96.399	2.491	1.021	0.075	0.011	0.001	0.001	nonzero	nonzero	0.000	8.660	ma100244_rel_withdbg.cz12a_c32r128
96.059	2.585	1.181	0.153	0.019	0.001	0.001	0.001	nonzero	0.000	8.961	ma100339_rel_withdbg.cz12a_c32r128
95.987	2.669	1.171	0.149	0.021	0.002	0.001	0.001	nonzero	0.000	9.347	ma100434_rel_withdbg.cz12a_c32r128
96.026	2.806	1.052	0.094	0.018	0.003	0.001	nonzero	nonzero	0.000	7.417	ma100529_rel_withdbg.cz12a_c32r128
93.512	4.562	1.781	0.111	0.029	0.002	0.003	nonzero	nonzero	0.000	4.335	ma100625_rel_withdbg.cz12a_c32r128
94.146	4.269	1.303	0.238	0.039	0.002	0.003	nonzero	nonzero	0.000	5.254	ma101116_rel_withdbg.cz12a_c32r128
94.823	3.424	1.395	0.282	0.074	0.003	nonzero	0.000	0.000	0.000	0.382	ma101116_rel_withdbg.cz12b_c32r128
93.511	4.272	1.354	0.634	0.215	0.013	nonzero	0.000	0.000	0.000	0.465	ma110410_rel_withdbg.cz12b_c32r128
93.605	4.374	1.173	0.619	0.217	0.012	nonzero	0.000	0.000	0.000	0.691	ma110806_rel_withdbg.cz12b_c32r128
93.699	4.294	1.168	0.608	0.219	0.013	nonzero	0.000	0.000	0.000	0.561	ma120301_rel_withdbg.cz12b_c32r128
93.753	4.245	1.150	0.626	0.216	0.011	nonzero	0.000	0.000	0.000	0.981	ma130000_rel_withdbg.cz12b_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	0.451	9.184	83.056	6.724	0.261	0.325	0.000	10.443	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.676	9.906	82.763	6.075	0.235	0.344	0.000	9.341	ma100244_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.286	10.880	81.337	6.934	0.275	0.289	0.000	10.785	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	1.196	10.768	80.804	6.674	0.287	0.272	0.000	10.536	ma100434_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	1.477	27.129	58.128	12.815	0.194	0.257	0.000	8.062	ma100529_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	3.894	60.472	34.443	0.950	0.139	0.102	0.000	8.644	ma100625_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	2.720	24.425	71.888	0.567	0.213	0.188	0.000	8.565	ma101116_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.833	6.650	79.229	13.258	0.029	0.000	0.000	1.548	ma101116_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.017	4.830	81.063	14.036	0.055	0.000	0.000	1.591	ma110410_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.108	6.175	79.756	13.926	0.035	0.000	0.000	1.590	ma110806_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.026	4.782	81.240	13.908	0.044	0.000	0.000	1.493	ma120301_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.052	5.554	80.686	13.665	0.044	0.000	0.000	1.692	ma130000_rel_withdbg.cz12b_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	1.274	21.812	74.858	1.603	0.243	0.210	0.000	10.354	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	1.625	22.329	74.399	1.202	0.215	0.230	0.000	9.214	ma100244_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.936	22.308	74.155	2.162	0.241	0.199	0.000	10.553	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	2.277	21.279	74.030	1.989	0.249	0.175	0.000	10.499	ma100434_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	2.750	44.746	43.425	8.728	0.156	0.195	0.000	7.911	ma100529_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	7.863	70.190	20.997	0.693	0.171	0.086	0.000	8.715	ma100625_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	6.098	30.413	62.769	0.326	0.272	0.122	0.000	8.173	ma101116_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	1.489	7.888	78.904	11.708	0.012	0.000	0.000	1.414	ma101116_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.091	8.955	79.400	11.527	0.028	0.000	0.000	1.555	ma110410_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.393	9.920	78.826	10.848	0.013	0.000	0.000	1.484	ma110806_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.155	8.463	80.351	11.009	0.022	0.000	0.000	1.368	ma120301_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.135	8.966	80.181	10.694	0.024	0.000	0.000	1.548	ma130000_rel_withdbg.cz12b_c32r128

qp500.L4

qp500.L4: point queries with 500 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.008	10.159	60.119	29.311	0.200	0.094	0.094	0.015	0.000	8.940	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.005	8.962	61.800	28.834	0.184	0.107	0.095	0.013	0.000	9.212	ma100244_rel_withdbg.cz12a_c32r128
0.000	0.113	28.904	57.701	13.037	0.103	0.078	0.058	0.006	0.000	9.326	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.095	28.809	58.419	12.439	0.100	0.075	0.057	0.006	0.000	9.704	ma100434_rel_withdbg.cz12a_c32r128
nonzero	1.182	59.272	35.093	4.194	0.236	0.014	0.009	0.001	0.000	6.018	ma100529_rel_withdbg.cz12a_c32r128
0.000	0.000	3.077	80.163	16.309	0.086	0.330	0.036	nonzero	0.000	4.091	ma100625_rel_withdbg.cz12a_c32r128
0.000	0.006	4.883	75.603	19.109	0.046	0.310	0.043	nonzero	0.000	4.558	ma101116_rel_withdbg.cz12a_c32r128
0.000	0.058	6.587	62.132	29.377	1.843	0.002	0.000	0.000	0.000	0.437	ma101116_rel_withdbg.cz12b_c32r128
0.000	0.069	6.446	62.241	29.295	1.942	0.007	0.000	0.000	0.000	0.723	ma110410_rel_withdbg.cz12b_c32r128
nonzero	0.076	6.746	62.333	29.251	1.586	0.007	0.000	0.000	0.000	0.711	ma110806_rel_withdbg.cz12b_c32r128
0.000	0.084	7.050	63.053	28.155	1.652	0.006	0.000	0.000	0.000	0.655	ma120301_rel_withdbg.cz12b_c32r128
nonzero	0.081	6.783	62.206	29.397	1.528	0.005	0.000	0.000	0.000	0.595	ma130000_rel_withdbg.cz12b_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	0.005	1.458	96.842	1.037	0.288	0.370	0.000	9.433	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.002	1.249	97.050	0.995	0.341	0.363	0.000	9.590	ma100244_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.003	2.404	75.838	20.891	0.414	0.450	0.000	9.659	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.020	2.399	73.802	22.859	0.457	0.462	0.000	10.349	ma100434_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.000	8.895	34.998	55.421	0.532	0.154	0.000	6.416	ma100529_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.000	1.181	97.926	0.249	0.341	0.303	0.000	8.410	ma100625_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.015	0.549	97.687	1.131	0.287	0.331	0.000	9.481	ma101116_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.000	0.048	60.656	38.756	0.540	0.000	0.000	1.560	ma101116_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.010	59.946	39.071	0.973	0.000	0.000	2.057	ma110410_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.056	59.877	39.257	0.809	0.000	0.000	2.227	ma110806_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.001	0.055	58.618	40.515	0.811	0.000	0.000	2.073	ma120301_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.047	59.803	39.420	0.730	0.000	0.000	1.931	ma130000_rel_withdbg.cz12b_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	0.006	8.092	90.976	0.393	0.262	0.271	0.000	9.367	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.002	7.819	91.245	0.388	0.287	0.258	0.000	9.486	ma100244_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.002	9.594	69.341	20.344	0.405	0.314	0.000	9.587	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.030	8.962	67.989	22.268	0.430	0.321	0.000	10.356	ma100434_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.027	16.969	29.046	53.346	0.483	0.128	0.000	6.371	ma100529_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.000	6.030	93.181	0.199	0.362	0.229	0.000	7.820	ma100625_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.017	2.407	95.938	1.070	0.314	0.253	0.000	9.176	ma101116_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.000	0.050	61.738	37.939	0.273	0.000	0.000	1.480	ma101116_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.031	60.774	38.588	0.607	0.000	0.000	2.057	ma110410_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	nonzero	0.082	60.718	38.714	0.485	0.000	0.000	2.116	ma110806_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.001	0.077	59.542	39.888	0.492	0.000	0.000	1.979	ma120301_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.068	60.699	38.805	0.428	0.000	0.000	1.902	ma130000_rel_withdbg.cz12b_c32r128

qr1000.L5

qr1000.L5: range queries with 1000 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
76.361	21.511	1.985	0.117	0.023	0.001	0.001	0.001	nonzero	0.000	8.176	ma100230_rel_withdbg.cz12a_c32r128
78.334	19.424	2.109	0.106	0.023	0.001	0.001	0.001	nonzero	0.000	8.437	ma100244_rel_withdbg.cz12a_c32r128
93.557	4.364	1.967	0.098	0.012	0.001	0.001	0.001	nonzero	0.000	8.614	ma100339_rel_withdbg.cz12a_c32r128
93.066	4.860	1.953	0.103	0.014	0.001	0.001	0.001	nonzero	0.000	8.558	ma100434_rel_withdbg.cz12a_c32r128
94.694	4.535	0.654	0.094	0.019	0.002	0.001	nonzero	nonzero	0.000	7.426	ma100529_rel_withdbg.cz12a_c32r128
90.995	6.657	2.189	0.129	0.023	0.003	0.004	nonzero	nonzero	0.000	7.736	ma100625_rel_withdbg.cz12a_c32r128
91.617	6.417	1.849	0.097	0.013	0.003	0.004	nonzero	nonzero	0.000	9.045	ma101116_rel_withdbg.cz12a_c32r128
93.378	4.769	1.664	0.159	0.030	0.001	nonzero	nonzero	nonzero	0.000	4.258	ma101116_rel_withdbg.cz12b_c32r128
92.896	5.197	1.438	0.377	0.089	0.003	nonzero	nonzero	nonzero	0.000	4.229	ma110410_rel_withdbg.cz12b_c32r128
92.911	5.394	1.223	0.381	0.088	0.003	nonzero	nonzero	0.000	0.000	3.845	ma110806_rel_withdbg.cz12b_c32r128
93.115	5.159	1.258	0.377	0.088	0.003	nonzero	nonzero	nonzero	0.000	4.623	ma120301_rel_withdbg.cz12b_c32r128
93.220	5.082	1.235	0.374	0.086	0.002	nonzero	nonzero	nonzero	0.000	4.441	ma130000_rel_withdbg.cz12b_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	0.001	1.584	71.742	25.704	0.481	0.488	0.000	9.046	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.004	1.700	72.333	24.943	0.537	0.483	0.000	8.942	ma100244_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.005	1.090	50.994	46.790	0.529	0.593	0.000	9.719	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.002	1.047	51.837	46.022	0.501	0.591	0.000	10.580	ma100434_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.054	39.297	40.857	19.362	0.256	0.175	0.000	8.887	ma100529_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.002	15.197	63.258	20.792	0.378	0.372	0.000	8.190	ma100625_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.003	16.992	53.457	28.787	0.303	0.459	0.000	9.451	ma101116_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.000	0.143	48.536	50.699	0.607	0.015	0.000	5.419	ma101116_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.085	48.359	50.766	0.772	0.018	0.000	6.500	ma110410_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.114	48.117	51.074	0.681	0.014	0.000	5.103	ma110806_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.074	48.468	50.728	0.718	0.012	0.000	6.257	ma120301_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.089	48.592	50.686	0.617	0.016	0.000	5.259	ma130000_rel_withdbg.cz12b_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	0.003	7.544	68.660	22.979	0.455	0.360	0.000	8.996	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.006	8.233	68.413	22.478	0.527	0.345	0.000	8.834	ma100244_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.008	8.922	46.142	43.972	0.542	0.415	0.000	9.553	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.008	7.995	47.850	43.214	0.520	0.413	0.000	9.570	ma100434_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.295	53.777	30.028	15.542	0.221	0.138	0.000	8.743	ma100529_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.007	28.308	50.498	20.487	0.391	0.309	0.000	8.185	ma100625_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.009	30.741	40.181	28.354	0.328	0.386	0.000	9.449	ma101116_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.000	0.381	49.514	49.788	0.305	0.013	0.000	5.308	ma101116_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	nonzero	0.281	49.436	49.799	0.466	0.016	0.000	6.196	ma110410_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.312	49.267	50.001	0.409	0.012	0.000	5.120	ma110806_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.254	49.684	49.617	0.436	0.010	0.000	6.176	ma120301_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.290	49.779	49.549	0.368	0.014	0.000	5.175	ma130000_rel_withdbg.cz12b_c32r128

qp1000.L6

qp1000.L6: point queries with 1000 insert/s per client
Legend for results is here.
Each entry lists the percentage of responses that fit in that bucket (slower than max time for previous bucket, faster than min time for next bucket).

Query response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
nonzero	0.287	38.533	56.946	4.060	0.065	0.064	0.040	0.003	0.000	7.969	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.275	37.746	57.701	4.104	0.063	0.068	0.040	0.003	0.000	7.317	ma100244_rel_withdbg.cz12a_c32r128
nonzero	0.202	38.275	57.259	4.107	0.045	0.066	0.042	0.003	0.000	8.998	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.159	36.566	58.902	4.208	0.053	0.066	0.043	0.003	0.000	8.980	ma100434_rel_withdbg.cz12a_c32r128
0.000	0.066	41.836	48.162	9.622	0.267	0.025	0.022	0.002	0.000	6.670	ma100529_rel_withdbg.cz12a_c32r128
0.000	0.615	48.771	49.287	1.141	0.039	0.143	0.004	nonzero	0.000	6.432	ma100625_rel_withdbg.cz12a_c32r128
nonzero	0.543	50.772	47.341	1.138	0.031	0.169	0.005	nonzero	0.000	8.042	ma101116_rel_withdbg.cz12a_c32r128
nonzero	0.133	11.390	79.176	9.183	0.118	nonzero	nonzero	nonzero	0.000	5.229	ma101116_rel_withdbg.cz12b_c32r128
nonzero	0.180	12.023	78.587	9.071	0.139	nonzero	nonzero	0.000	0.000	1.376	ma110410_rel_withdbg.cz12b_c32r128
nonzero	0.200	12.458	78.405	8.845	0.092	nonzero	nonzero	nonzero	0.000	4.628	ma110806_rel_withdbg.cz12b_c32r128
nonzero	0.201	12.328	78.361	9.005	0.104	0.001	0.001	0.000	0.000	3.816	ma120301_rel_withdbg.cz12b_c32r128
nonzero	0.202	12.236	78.676	8.798	0.087	nonzero	nonzero	0.000	0.000	1.375	ma130000_rel_withdbg.cz12b_c32r128

Insert response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	0.003	0.907	40.202	57.418	0.782	0.689	0.000	8.850	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.001	0.734	40.909	56.872	0.839	0.644	0.000	8.208	ma100244_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.003	3.145	40.537	55.001	0.642	0.672	0.000	9.626	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.004	2.881	40.762	55.034	0.660	0.659	0.000	9.661	ma100434_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	nonzero	30.287	33.810	35.278	0.403	0.221	0.000	7.665	ma100529_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.005	12.626	42.811	43.672	0.430	0.456	0.000	7.485	ma100625_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.002	11.822	43.540	43.795	0.322	0.518	0.000	9.127	ma101116_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.001	0.013	11.406	87.635	0.940	0.006	0.000	6.043	ma101116_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.034	9.613	88.510	1.843	0.000	0.000	2.345	ma110410_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.011	8.935	90.182	0.866	0.006	0.000	5.436	ma110806_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.026	9.635	89.159	1.172	0.009	0.000	4.656	ma120301_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.010	8.991	90.133	0.867	0.000	0.000	2.403	ma130000_rel_withdbg.cz12b_c32r128

Delete response time histogram

256us	1ms	4ms	16ms	64ms	256ms	1s	4s	16s	gt	max	tag
0.000	0.000	0.000	0.004	3.879	37.394	57.513	0.746	0.464	0.000	8.800	ma100230_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.001	3.424	38.402	56.953	0.796	0.425	0.000	8.130	ma100244_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.005	11.241	32.645	55.003	0.657	0.448	0.000	9.657	ma100339_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.006	10.828	32.898	55.176	0.647	0.444	0.000	9.564	ma100434_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.003	41.044	25.039	33.371	0.355	0.189	0.000	7.473	ma100529_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.010	23.945	31.820	43.384	0.423	0.418	0.000	7.490	ma100625_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	0.003	23.035	32.651	43.501	0.342	0.468	0.000	9.120	ma101116_rel_withdbg.cz12a_c32r128
0.000	0.000	0.000	nonzero	0.011	11.621	87.855	0.506	0.005	0.000	5.941	ma101116_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.039	9.788	89.085	1.087	0.000	0.000	2.429	ma110410_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.013	9.135	90.371	0.475	0.005	0.000	5.394	ma110806_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.035	9.792	89.514	0.650	0.009	0.000	4.628	ma120301_rel_withdbg.cz12b_c32r128
0.000	0.000	0.000	0.000	0.011	9.165	90.348	0.476	0.000	0.000	2.065	ma130000_rel_withdbg.cz12b_c32r128

Introduction

Contents

Summary

l.i0

l.x

l.i1

l.i2

qr100.L1

qp100.L2

qr500.L3

qp500.L4

qr1000.L5

qp1000.L6

l.i0

l.x

l.i1

l.i2

qr100.L1

qp100.L2

qr500.L3

qp500.L4

qr1000.L5

qp1000.L6

l.i0

l.x

l.i1

l.i2

qr100.L1

qp100.L2

qr500.L3

qp500.L4

qr1000.L5

qp1000.L6
